USER MANUAL PASO T10 MSW

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Shrink tunnel
Model	MSW-PASO T10
Rated voltage [V~] / Frequency [Hz]	400 / 50
Rated power [W]	7500
Protection class	I
Protection rating IP	IP2X
Dimensions [Width x Depth x Height; mm]	710 x 1215 x 1045 (with shrink tunnel set in the highest position)
Weight [kg]	87
Max processed object dimensions [kg]	900 x 450 x 250
Tunnel dimensions [mm]	900 x 450 x 50-250
Heating temperature range [°C]	Up to 180
Conveyor speed [m/min]	0-10

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical

guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)
	ATTENTION! Electric shock warning!
	ATTENTION! Rotating parts, entanglement hazard!
	ATTENTION! Hot surface, risk of burns!
	Only use indoors.

Do not reach in!

Protect against rain and excessive humidity.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to the:

Shrink tunnel

2.1. Electrical safety

a) Electrical connection should be done by a qualified electrician.

b) Do not touch the device with wet or damp hands.

c) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

d) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service center.

e) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

f) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.

g) Do not use in very humid environments or in the direct vicinity of water tanks.

h) Prevent the device from getting wet. Risk of electric shock!

i) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorized persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
g) Use the device in a well-ventilated space.
h) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
j) Keep packaging elements and small assembly parts in a place not available to children.
k) Keep the device away from children and animals.
If this device is used together with another equipment, the remaining instructions for use shall also be followed. Do not cut off the supply of compressed air by crushing or bending pressure hoses.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/ or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the machine.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
g) Do not wear loose clothing or jewelry. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewelry or long hair may get caught in moving parts.
h) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
i) The device is not a toy. Children must be supervised to ensure that they do not play with the device. Do not wear loose clothing or jewelry. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewelry or long hair may get caught in moving parts.

2.4. Safe device use

a) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.

d) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
i) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
j) Do not move, adjust or rotate the device in the course of work.
k) Do not leave this appliance unattended while it is in use.
I) The specified vibrations emission was measured using standard measurement methods. Vibrations emissions may change if the device is used in different surroundings.
m) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
n) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
o) Keep the device away from sources of fire and heat.
p) Do not overload the device.
q) Do not cover the ventilation openings!
r) NOTE: During operation, some elements of the device become very hot - scalding hazard!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is designed to heat shrinkable film for packaging various objects to protect them from damp, dust etc. It is also suitable for packaging of multiple-pieces articles and tray packaging.

The user is liable for any damage resulting from unintended use of the device.

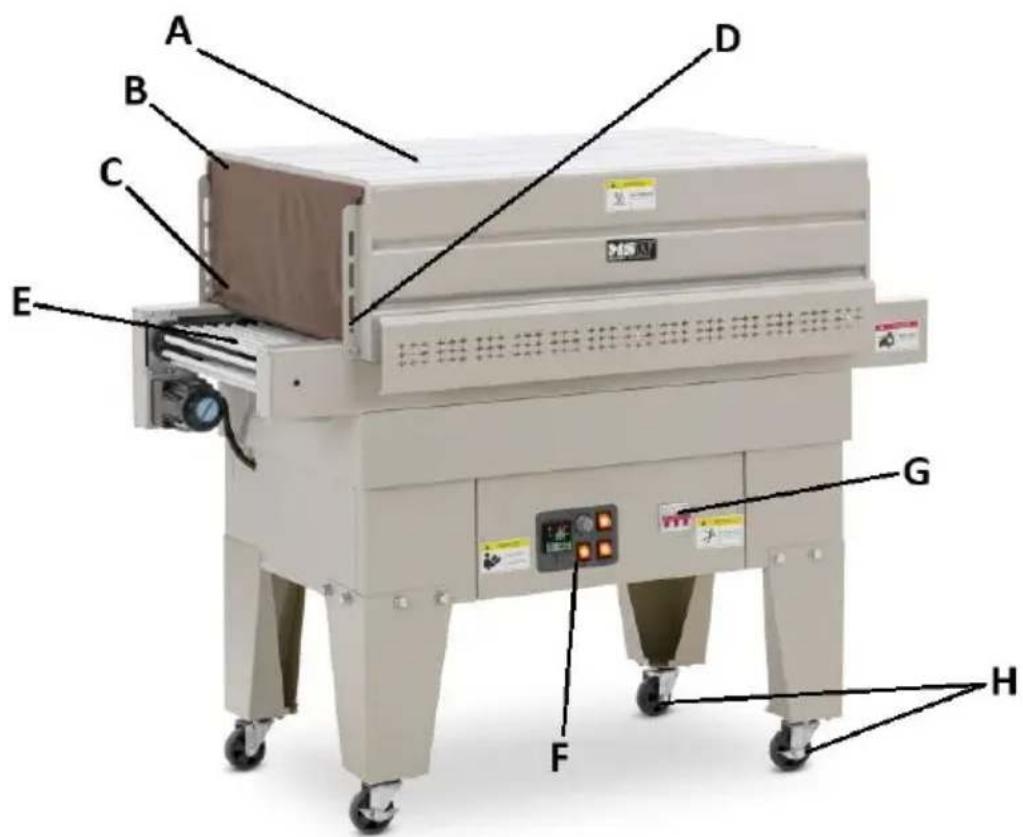

3.1. Device description

A. Shrink tunnel
B. Shrink tunnel overhang
C. Air deflectors (not visible on the picture)
D. Tunnel height adjustment bolts
E. Conveyor
F. Control panel
G. Electrical supply switches
H. Wheels (2x with brakes + 2x without brakes)

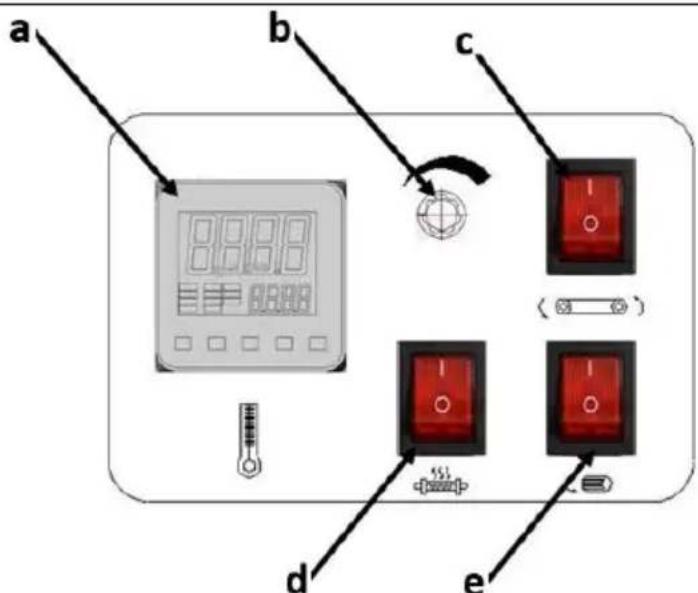

Control panel:

a) Temperature controller with display
b) Conveyor speed adjustment knob
c) Conveyor power switch
d) Heating power switch
e) Hot air blower power switch

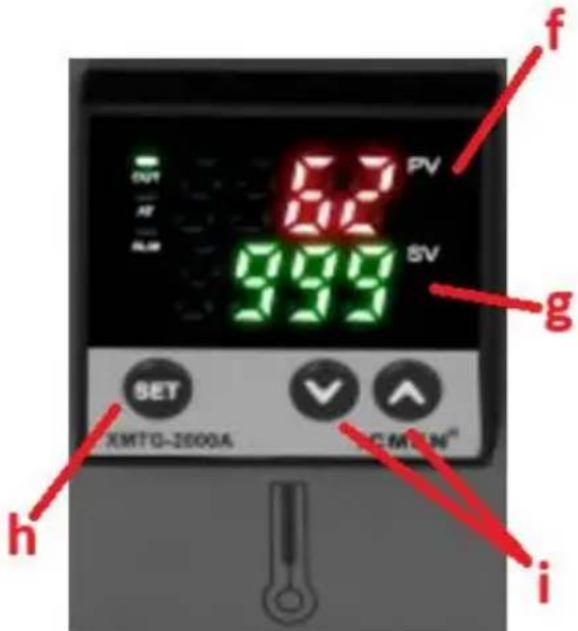

Temperature controller with display:

f) Current temperature
g) Set temperature
h) Temperature setting mode button
i) Temperature adjustment buttons

IMPORTANT: the temperature is preset by factory for optimal performance. In normal operating conditions it is not recommendable to adjust it. Furthermore

improper parameter setting may shorten the service life of this machine or even damage it! The shrinking temperature will vary depending on the type, thickness, and quality of the film – generally best setting is between 120-180C for 3-5 seconds of processing time.

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not exceed the -10 - 40^ span and the relative humidity should be less than 85% . Ensure good ventilation in the room in which the device is being used and away from any flammable or explosive materials. To ensure good ventilation, there should be at least 10~cm distance between each side of the device and the wall or other objects. The device should always be used positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

ASSEMBLING THE APPLIANCE

The device is delivered almost ready to work but few components require further assembly:

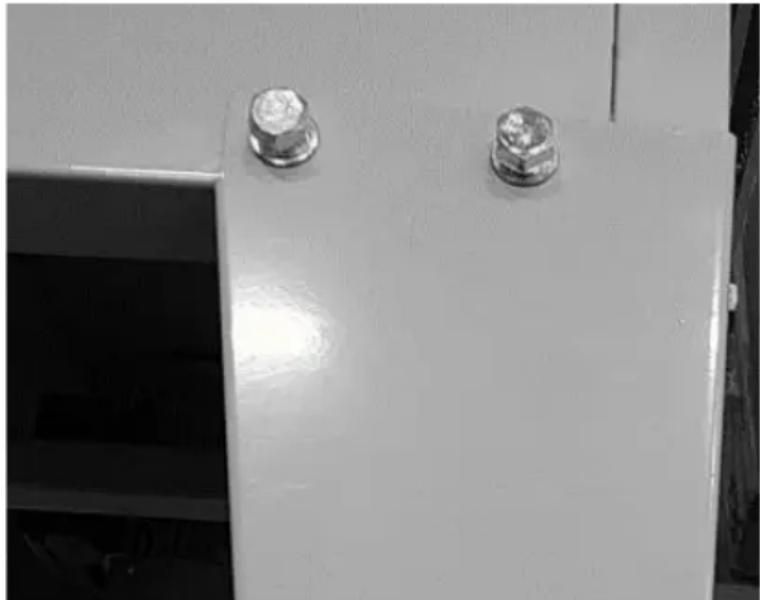

• Legs - after lifting the shrink tunnel install the legs and then wheels on them where the two wheels with brakes are in diagonal position to each other. Use for it the included bolts and washers by mounting them form outside:

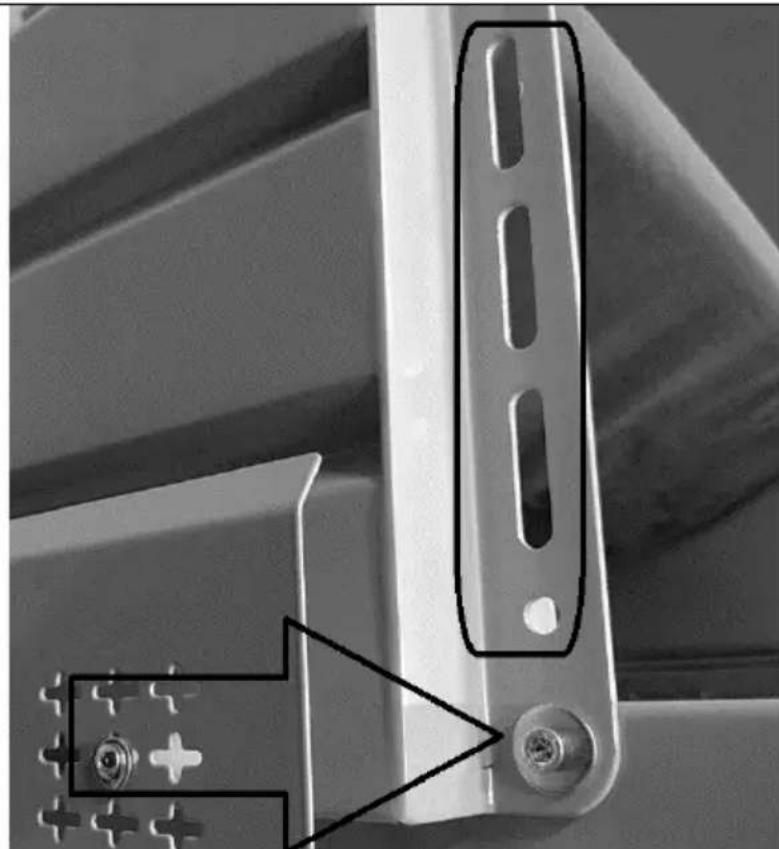

• Shrink tunnel - it is height adjustable by removing fixing it screws and after heights adjustment fixing them again in chosen position:

NOTE: adjust the shrink tunnel height according to the product need and working performance.

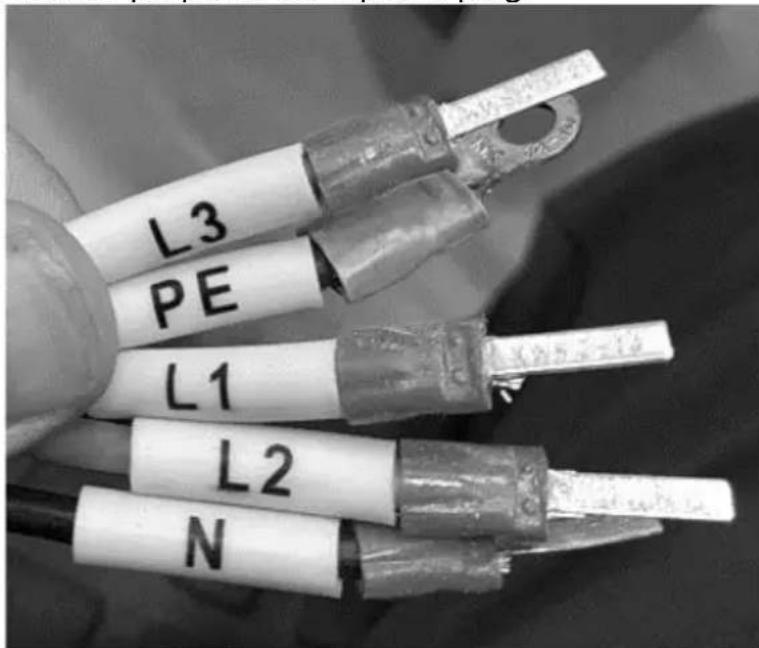

• The electrical wires are prepared for 3-phase plug:

NOTICE: this installation should be done by a qualified electrician.

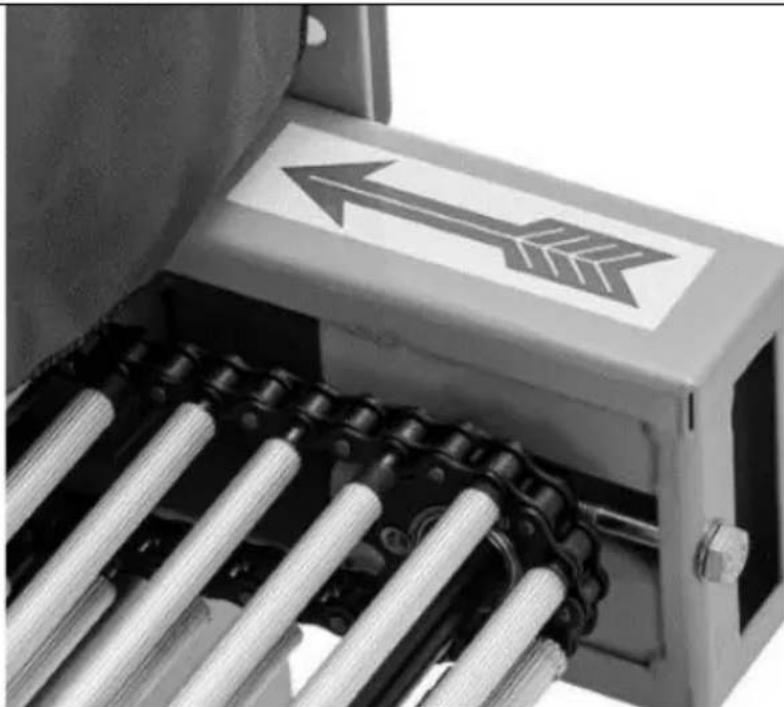

After installation the machine should be switched on and checked for proper conveyor rotation direction - as indicated by the arrow on its housing. When the rotation is in the opposite direction than indicated by the arrow, exchange any two of the three 3-phase wires:

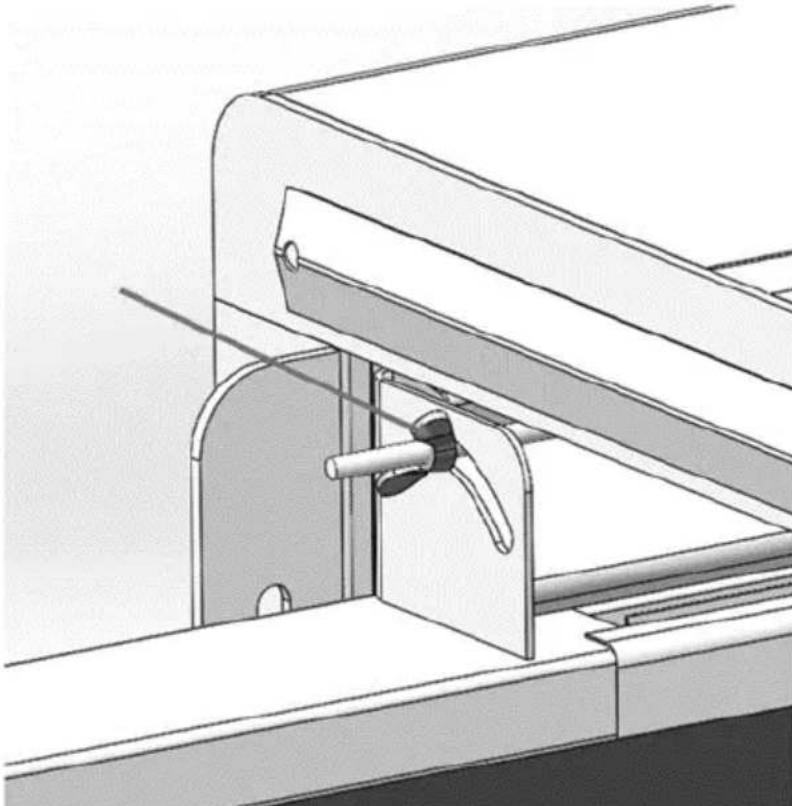

• When necessary the angle of the air deflectors (located on both sides of the shrink tunnel) can be adjusted. To do it you have to loose the wing nut on both sides of a deflector and manually adjust its angle. After adjusting to the desired position, re-tighten both wing nuts:

3.3. Device use

• Switch on the electric supply - put all 3 switches to ON position.
• Turn on the heating, air blow and conveyor switch - each one should illuminate.
  [optional] Adjust the conveyor speed and temperature - they both have to be matched. Also adjustable (if needed) are the shrink tunnel height and air deflectors.

NOTE: to change the heating temperature first press the "SET" button and then the adjustment buttons ( /) .

WARNING: some of these components may become very hot while working - extra caution advised!

• When the machine reaches the set temperature, the products packed in shrinkable film can be put on the conveyor. Observe the result and made adjustments if needed – the shrunk film should not be melted.

3.4. Cleaning and maintenance

a) The device must be regularly inspected to check its technical efficiency and spot any damage. To lengthen the machine service life it should be frequently maintained - every 6 months when used more than 4 hour per day or each year when used less than 4 hours daily.
b) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.

• Wait for the rotating elements to stop and allow the machine to cool it down.

c) Always unplug the device before cleaning it.
d) Use only non-corrosive cleaners to clean the surface.
e) After cleaning the device, all parts should be dried completely before using it again.
f) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
g) Do not spray the device with a water jet or submerge it in water.
h) Do not allow water to get inside the device through vents in the housing of the device.
i) Clean the vents with a brush and compressed air.
j) Use a soft cloth for cleaning.
k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.

1) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
m) If not used for longer period store it in dry, shadowed place and protect it from dust by putting a nylon bag over or similar material.
n) Every week check the condition of the conveyor rollers and their insulation. If the insulation is ripped off or the roller cracked replace it immediately.
o) Every 6 months add lubrication (like ceramic or synthetic lube) to the conveyor chains – be careful to not dispose it over the rollers insulation.
p) Every 2 years of regular service replace the insulated rollers.

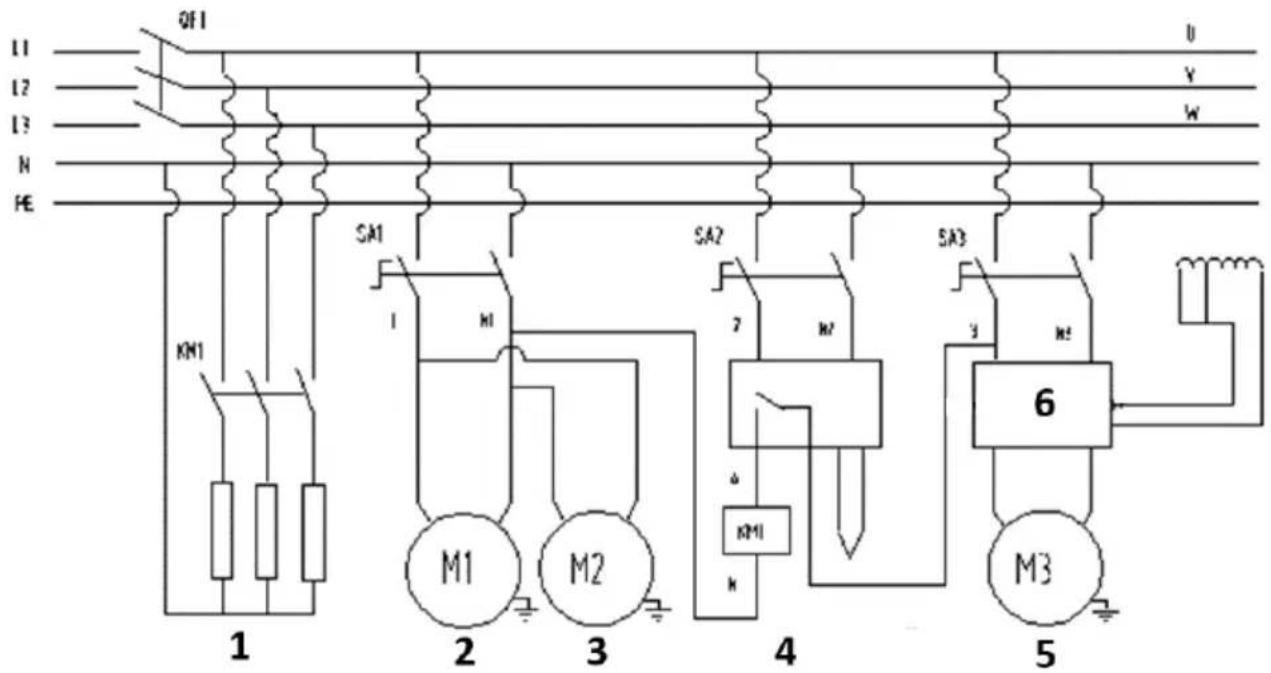

3.5 Electric Schematic diagram

1. Heater
2. Fan motor 1
3. Fan motor 2
4. Temperature controller
5. Conveyor motor
6. Speed governor

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
