USER MANUAL RVPM-1200 MSW

Close-up of a black electrical outlet switch with red connectors and a white label (no readable text or symbols)

VACUUM PACKING MACHINE 1 0.06 0.04 0.08 0.02 -0.1 0 10% VACUUM 2 STOP OPERATION WARNING PROCEDURE 99 S VACUUM CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS 1 2 3 4 5

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Vacuum packing machine
Model	MSW-RVPM-1200
Rated voltage [V~] / frequency [Hz]	230/50
Rated engine power [W]	900
Rated heating power [W]	800
Dimensions [width x depth x height; mm]	500 x 550 x 920
Weight [kg]	60.5

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE !

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Hot surface, risk of burns!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Vacuum packing machine

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the appliance if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or the appliance itself in water or other liquid. Do not use the product on wet surfaces.
h) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
i) The electrical outlet to which the unit will be connected must have a grounding wire.

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases, or dust. The unit produces sparks that can ignite dust or fumes.
c) If in doubt as to whether the product is working properly or found to be damaged, contact the manufacturer's technical service.
d) Only the manufacturer's service department may repair the appliance. Do not attempt to repair the product on your own!
e) In the event of a fire threat or fire, use only dry powder or carbon dioxide ( CO_2 ) extinguishers to extinguish the device while it is operating.
f) Use the product in a well-ventilated area.
g) Keep this manual for future reference. If the unit is to be passed on to third parties, the operating instructions must also be handed over together with the unit.
h) Keep packaging components and small installation parts out of the reach of children.
i) Keep the device away from children and animals.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.

c) Please be attentive and use common sense when operating this equipment. A moment's inattention during operation may result in serious personal injury.
d) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
e) The product is not a toy. Children should be watched to ensure that they do not play with the product.

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected unit will do a better and safer job for which it was designed.
b) Do not use the device if the "ON / OFF" switch does not work properly (does not turn the device on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
c) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
d) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
e) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
f) Keep the product out of the reach of children.
g) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
h) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
i) When transporting or moving the device from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the device is used.
j) Clean the device regularly to prevent permanent dirt build-up.
k) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
1) Do not tamper with the device to alter its performance or design.
m) Keep the unit away from sources of fire and heat.
n) Do not block the ventilation openings of the unit!
o) CAUTION! Some parts of the unit become very hot during operation - there is a danger of scalding! Do not touch these parts with bare hands!
p) Do not reverse the direction of rotation of the vacuum pump motor.
q) Fill up the oil before use.
r) Check the oil level regularly. The minimum oil level should not be less than 1/4 of the height of the oil port, and the maximum oil volume should not exceed 3/4 of the height of the oil port.
s) If the oil contains water or other impurities, it must be changed.
t) The oil container must be emptied before transporting the device.
u) The exhaust filter should be replaced every six months.
v) It is forbidden to pack flammable and explosive materials.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The machine is designed for vacuum packaging of food, cosmetics, electronics and other products.

The user is liable for any damage resulting from unintended use of the device.

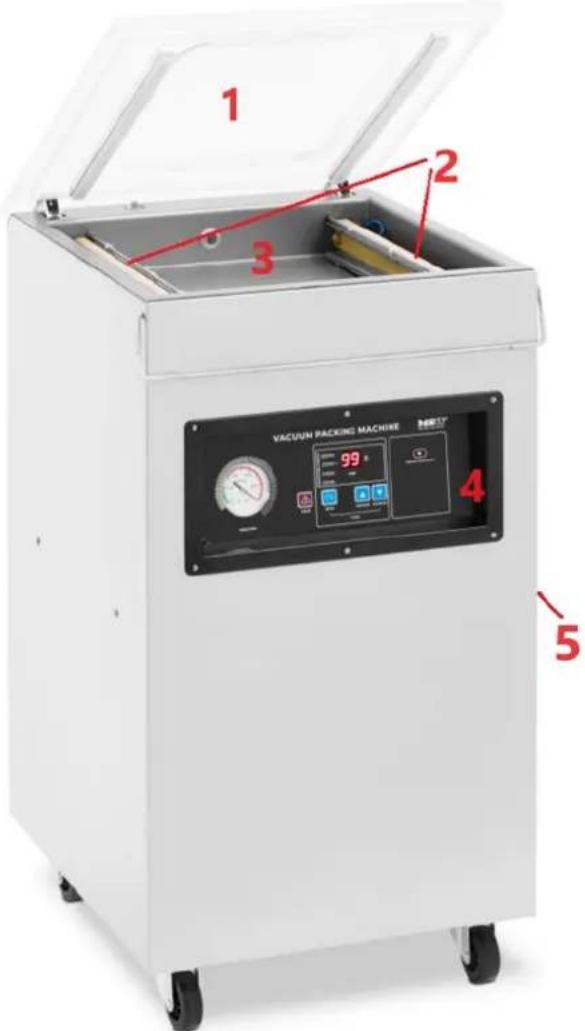

3.1. Device description

1 2 3 VACUUN PACKING MACHINE 99° 4 5

1 - Cover
2 – Sealing bar
3 - Vacuum chamber
4 - Control panel
5 – Main switch on the device (not visible on the main photo):

Close-up of a black electrical circuit breaker with red components and a white terminal block (no visible text or symbols)

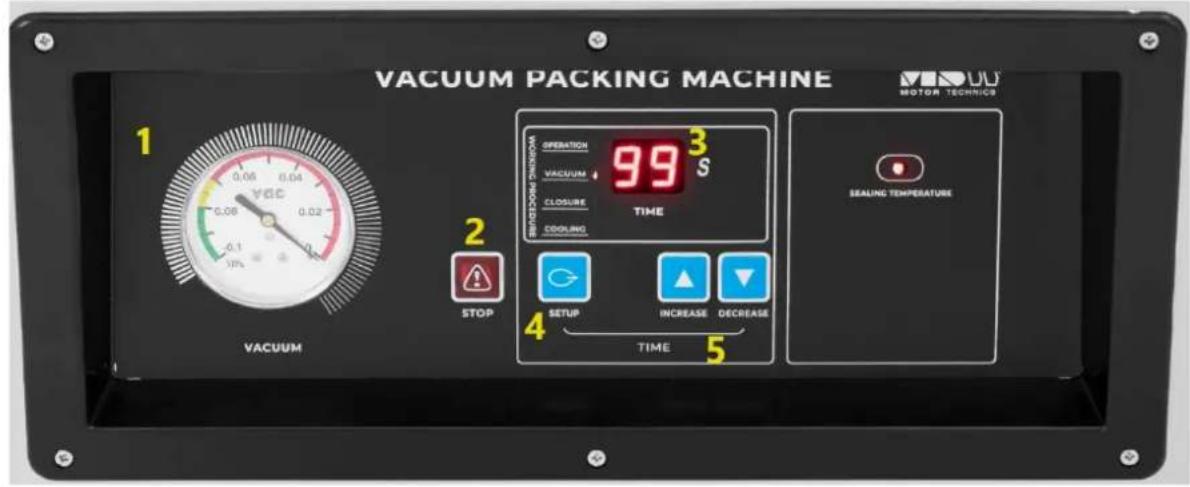

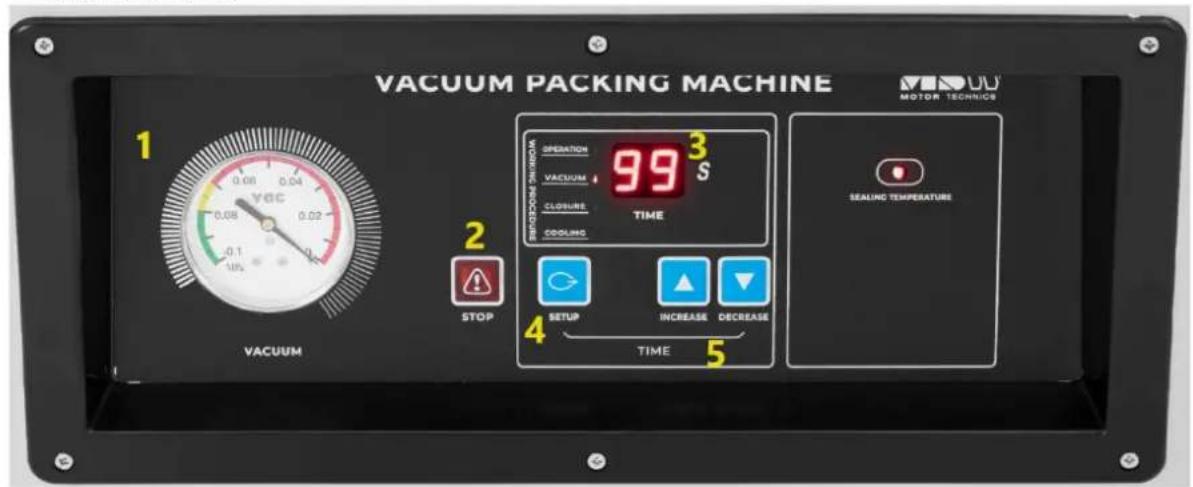

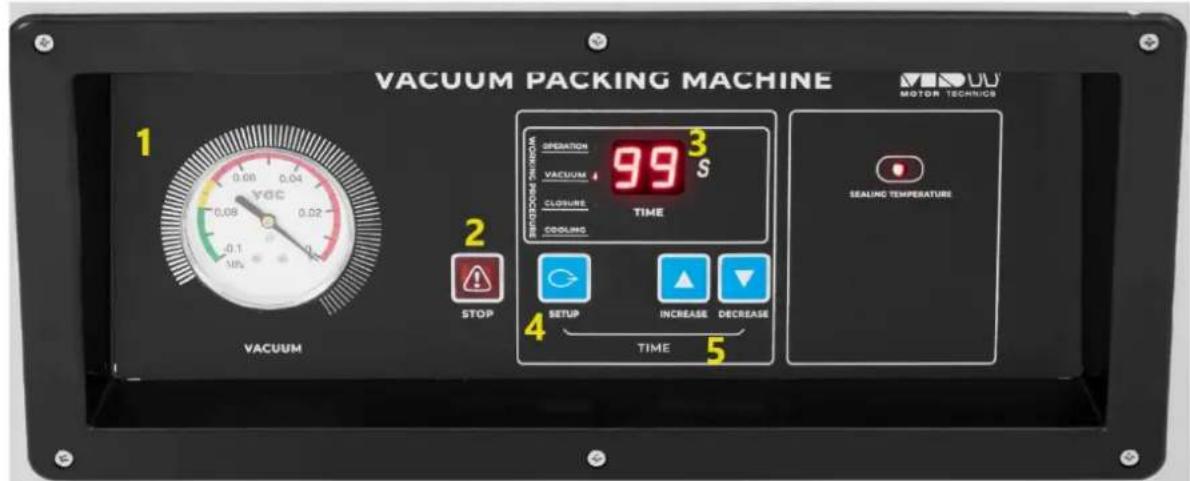

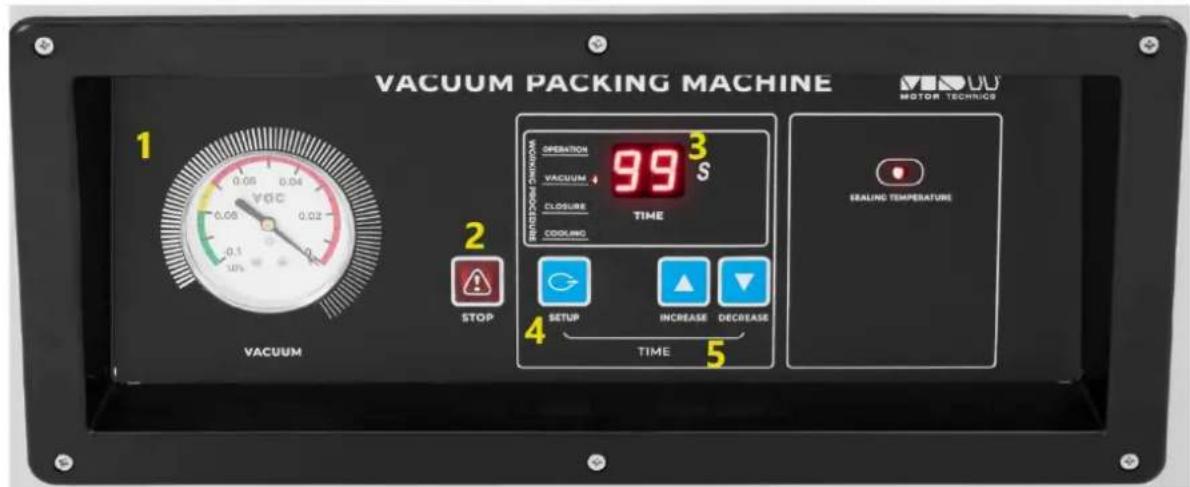

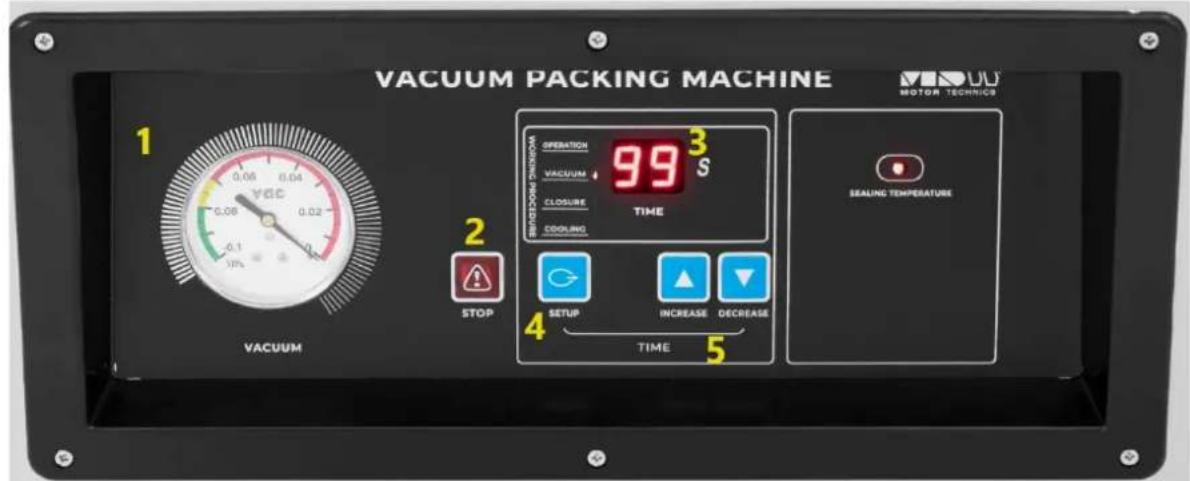

Panel sterowania:

VACUUM PACKING MACHINE 1 0.08 0.04 0.08 0.02 -0.1 US VACUUM STOP 2 WORKING OPERATION 99 S VACUUM ↓ CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS SEALING TEMPERATURE

1 - Pressure gauge showing the current pressure in the vacuum chamber.
2 - Emergency stop button of the unit.
3 - Display of unit status and operating time of individual operating modes.
4 - Button for setting aspiration, sealing and cooling times.

5 - Buttons for increasing ("INCREASE") and decreasing ("DECREASE") the values of the aspiration, sealing and cooling times.

Unit operation indicator light. Lights up during the working process.

Vacuum indicator light. Lights up during the vacuum duration setting and during operation while air is being extracted from the chamber.

Closing (sealing) indicator light. Lights during the setting of the closing (sealing) duration and during operation while the bag is being closed (sealed).

Cooling indicator light. Lights up when setting the cooling duration and during operation during cooling itself.

Setting the values of individual times:

After turning on the device with the main switch, the display will show "Ed."

Press the SETUP button (4), and the device will enter the air suction time setting mode (the vacuum indicator will light up). Use the increase and decrease buttons (5) to set the desired air suction time (0 – 99 seconds).

Next, press the SETUP button (4) again to move on to setting the closing (sealing) time (the closing (sealing) indicator will light up). Use the increase and decrease buttons (5) to set the desired closing (sealing) time (0 - 9.9 seconds).

Press the SETUP button (4) again to move on to setting the exhaust time (cooling indicator will light up). Use the increase and decrease buttons (5) to set the desired cooling time (0 - 9.9 seconds).

All time adjustments must be made with the device turned on and the device cover open..

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

Connect the device to the power supply and turn on the device using the main switch. Set operating parameters – vacuum/sealing/cooling times.

Insert the bag containing the product to be packaged into the vacuum chamber, ensuring that the bag opening extends beyond the sealing strip.

Note! The entire bag, including the openings, must be inside the vacuum chamber. Choose the appropriate size of the vacuum bag. Leave at least 2.5-5cm of space on each side of the bag; this will ensure better bag sealing during the sealing process.

Close the device cover. The device will automatically perform air suction, followed by sealing and finally cooling. The display will countdown each time from the set values to 0 (air suction time, then sealing time, and finally cooling time).

After each sealing, check if the sealing has been done correctly. In case of leaks or wrinkles in the sealing areas, extend the sealing time and repeat the cycle. The sealing area should be clean.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
I) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Close-up of a black electrical circuit breaker with red components and a white terminal block (no visible text or symbols)

Close-up of a black electrical switch with red components and a white panel (no visible text or symbols)

VACUUM PACKING MACHINE 1 0.06 0.04 0.08 0.02 -0.1 0 10% VACUUM 2 STOP OPERATION WARNING PROCEDURE 99 S VACUUM CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS 1 2 3 4 5

Close-up of a black square electrical outlet with red components and a white label (no readable text or symbols)

VACUUM PACKING MACHINE 1 0.06 0.04 0.08 0.02 -0.1 0 10% VACUUM 2 STOP OPERATION WARNING PROCEDURE 99 S VACUUM CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS 1 2 3 4 5

CE RECOCONOMATION WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Warning Exception

Close-up of a black square electronic device with red connectors and a white top, no visible text or symbols.

VACUUM PACKING MACHINE 1 0.06 0.04 0.08 0.02 0.1 10% VACUUM 2 STOP 3 99 S OPERATION VACUUM ↓ CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS

Close-up of a black electrical outlet switch with red connectors and a white panel (no visible text or symbols)

Panel sterowania:

VACUUM PACKING MACHINE 1 VOC 0.05 0.04 0.02 0.1 10% 1 2 STOP OPERATION 99 S VACUUM ↓ CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE VACUUM MOTOR TECHNICS

Close-up of a black electrical circuit breaker with red components, no visible text or symbols on the device itself.

Panel sterowania:

VACUUM PACKING MACHINE 1 0.08 0.04 0.08 0.02 0.1 10% VACUUM STOP 2 OPERATION 99³ S VACUUM CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS SEALING TEMPERATURE

APPARATETS PLACERING

Close-up of a black square electrical outlet with red connectors and a white label (no readable text or symbols)

Sterowania-paneeli:

VACUUM PACKING MACHINE 1 0.08 0.04 0.02 0.1 MIS VACUUM 2 STOP OPERATION 99 S VACUUM CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS

Close-up of a black electrical fuse with red connectors and a white panel (no visible text or symbols)

VACUUM PACKING MACHINE 1 0.06 0.04 0.08 0.02 -0.1 0 10% VACUUM 2 STOP OPERATION WARNING PROCEDURE 99 S VACUUM CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS 1 2 3 4 5

PLAATS VAN HET APPARAAT

OBS! Varm overflate, fare for forbrenning!

Close-up of a black electrical circuit breaker with red components and a white terminal block (no visible text or symbols)

Panel Sterowania:

VACUUM PACKING MACHINE 1 0.08 0.04 0.08 0.02 0.1 10% VACUUM STOP 2 OPERATION 99³ S VACUUM CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS SEALING TEMPERATURE

APPARATENS PLACERING

Close-up of a black square electronic device with red connectors and a white top, no visible text or symbols.

VACUUM PACKING MACHINE 1 0.06 0.04 0.08 0.02 -0.1 0 10% VACUUM 2 STOP OPERATION WARNING PROCEDURE 99 S VACUUM CLOSURE TIME COOLING 4 SETUP INCREASE DECREASE TIME 5 SEALING TEMPERATURE MOTOR TECHNICS 1 2 3 4 5

Close-up of a black electrical circuit breaker with red components, no visible text or symbols on the device itself.

For the disposal of the device please consider and act according to the national and local rules and regulations.
