USER MANUAL VPM-900G MSW

Operation manual must be reviewed.

Never dispose of electrical equipment together with household waste.

This machine conforms to the CE declarations.

Attention! Your hand may get squeezed

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details it may differ from the actual machine.

The original operation manual is in German. Other language versions are translations from German.

USER MANUAL

SAFETY INSTRUCTIONS

General safety information for the use of electrical devices:

To avoid injury from fire or electric shock, please ensure compliance with safety instructions when using this device. Please read the instructions carefully and make sure that you have understood them well. Keep the manual near the equipment to be able to read it at any time. Always use current sources connected to the ground and providing the necessary voltage (indicated on the label on the device). If you have any doubt, let an electrician check that your outlet is properly grounded. Never use a damaged power cable. Do not open the unit in damp or wet environment, or if your hands or body are damp or wet. Protect the unit from solar radiation. Use the device in a protected place to avoid damaging the equipment or endangering others. Make sure the device is able to cool and avoid placing it too close to other devices that produce heat. Before cleaning, disconnect it from the power source. Use a soft damp cloth for cleaning. Avoid using detergents and make sure that no liquid enters the unit. No internal element of this device needs to be maintained by the user. Opening the device without our approval leads to a loss of warranty!

SAFETY GUIDELINES

1. Please read and understand these instructions carefully before operating the device! Please observe the safety guidelines carefully in order to prevent damages through improper use!
2. Please keep this manual available for future reference. If this device is passed on to third parties, the manual must be passed on with it.
3. Only use this device indoors and for its intended use.
4. We do not offer any warranty for damages resulting from improper use or incorrect operation.
5. Before the first use, check whether the main voltage type and the current comply with the indicated data on the type plate.
6. This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or have received instruction from this person as to how the device is used.
7. ELECTRIC SHOCK HAZARD! Do not attempt to repair the unit by yourself. In case of device failures, repairs must be done by qualified experts.
8. Please check the main plug and power cable regularly. If the power cable for this device is damaged, it has to be replaced by the manufacturer or its customer service or another qualified person in order to prevent hazards.
9. Prevent damages to the power cable by avoiding squeezing or bending it or rubbing it on sharp edges. Also keep the power cable away from hot surfaces and open flames.
10. ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
11. Under no circumstances should the housing be opened.
12. Do not insert any items into the packing machine.
13. Do not use the packing machine un humidity.

14. Do not use the machine in the presence of flammable and chemically aggressive fumes.

15. Do not use the machine for packing hazardous, flammable and chemically aggressive items.

16. When closing the device, do not put your hands under the cover.
17. If a technical defect is identified, immediately stop the operation and do not use the device until the defect has been repaired.
18. When transporting and handling the vacuum packing machine between the warehouse and the destination, take into account the occupational health and safety principles for manual transport operations which apply in the country where the vacuum packing machine will be used.
19. Never operate the machine without a vacuum bag inside.
20. Pay particular attention when opening the cover - danger of impact.
21. The device may be operated by persons who are physically fit, have been appropriately trained, have read these instructions and have been trained within the scope of occupational health and safety.

TECHNICAL DATA

Product name Vacuum Packing Machine Vacuum Packing Machine
Model MSW-VPM-900K MSW-VPM-900G
Rated voltage [V] 230~ 230~
Frequency [Hz]	50	50
Rated power [W]	900	900
Vacuum chamber dimensions [mm]	445 x 440 x 75	445 x 440 x 75
Seal length [mm]	400	400
Maximum thickness of sealed material [mm]	0.5	0.5
Vacuum time range [s]	0 - 99	0 - 99
Heat sealing time range [s]	0 - 9.9	0 - 9.9
Pump performance [m3/h]	20	20
Sound pressure level LpA [dB(A)]	65	65

SCOPE OF THE APPLICATION

The vacuum packing machine is designed for vacuum pack products using film and other packing materials. Do not use the vacuum packing machine for packing hazardous, flammable and chemically aggressive items. The user is liable for any damage resulting from non-intended use of the device!

BERORE THE FIRST USE

Upon receipt of the goods, check the packaging for integrity and open it. If the packaging is damaged, please contact your transport company and distributor within 3 days, and document the damages as detailed as possible. Do not turn the package upside down! When transporting the package, please ensure that it is kept horizontal and stable.

DISPOSAL OF THE PACKAGING

Please keep all packaging materials (cardboard, plastic tapes and Styrofoam), so that in case of a problem, the device can be sent back to the service centre in accurate condition!

INSTALLING THE APPLIANCE

APPLIANCE LOCATION

The temperature of environment must not be higher than 45 °C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is to be used.

The distance between the back of the chain toaster and the wall should be at least 20 cm, minimum distance between the sides of the device and the walls should be at least 10 cm on each side and 35 cm between the top of the device and the ceiling. Keep the device away from hot surfaces. Operate the device on flat, stable, clean, refractory and dry surfaces out of the reach of children and people with mental disabilities. Install the device making sure that constant access to the main plug is ensured. The power cord connected to the appliance must be properly grounded and should correspond to the technical details. Before the first use, remove all elements and clean them along with the entire device.

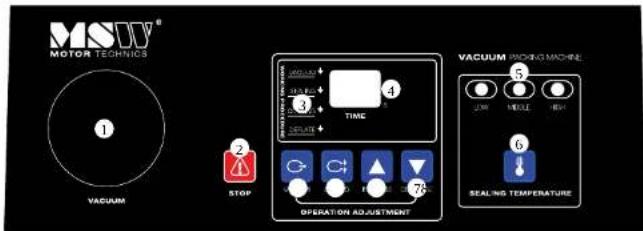

PRINCIPLE OF OPERATION Control panel view:

MSDV® MOTOR TECHNICS 1 VACUUM STOP 2 3 4 TIME 5 6 7 OPERATION ADJUSTMENT VACUUM PACKING MACHINE LUX MIDDLE RHI SEALING TEMPERATURE

I. Manometer showing vacuum level in chamber
2. Emergency stop: stops the operation of the packing machine
3. Control indicator: display the current operation of the packing machine
4. Display
5. Control lights indicating current heat sealing temperature: Three packing seal temperature settings
6. Sealing temperature selector button LOW, MIDDLE, HIGH
7. Button to decrease the current value
8. Button to increase the current value
9. "Sealing" option button: Setting sealing strip heating time required to heat seal the packaging.
10. "Vacuum" option button: time required to establish the required vacuum level in the vacuum packing machine chamber

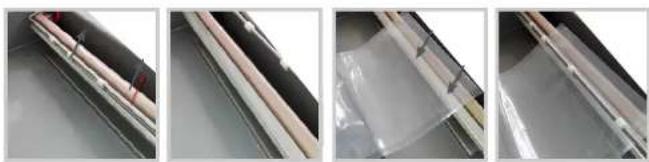

Open the top cover of the device; place the packed product in the foil bag inside the vacuum chamber. The foil bag should be placed with its opening on the sealing strip – see the figures below. Turn on the device using the main switch (at the back of the machine). Set the desired vacuum, temperature and time parameters. Close the top cover of the device, vacuum process starts and when it's finished – sealing process starts. After the processes are finished, the top cover opens automatically and device is ready for another packaging operation

Four-panel sequence showing a transparent plastic sheet being handled in a metal enclosure, with no visible text or symbols.

Vacuum packing machine rear view:

1. On / off switch
2. Ventilation grille / air pump filter
3. Power / earth cable

Marking bags during vacuum packing:

- Remove gasket from guide in the cover

- Insert appropriate letters / numbers into slots in the gasket

- Insert the gasket back into the guide in the cover. Attention! Insert the rubber gasket with the letters facing downwards!

- Perform the vacuum packing process. Remember to place the bag directly under the letters!

Oil change in the pump:

Open the vacuum packing machine cover. To do that, unscrew the screw at the front of the machine and lift the housing up:

Close-up of a mechanical component with labeled parts (1, 2, 3), no readable text or symbols beyond numbered annotations

Place a container for used oil under the machine (in the opening in the floor). Then unscrew the screw above the opening (3). Once the oil has been discharged, tighten screw (3) and put new oil into the pump using inlet (1), make sure that the oil level is always between 12 and 34 of the container (2) capacity! Too high or too low oil level might have a detrimental effect on pump lifetime (oil is already in the device, its level needs to be checked). Replace the oil every 500 vacuum packing machine working hours. L-DAA 100 compressor oil is recommended.

Vacuum packing machine pump filter replacement.

Unscrew the four screws on the grate:

Then unscrew the four screws on the filter cover:

Gently remove the pump filter:

Close-up of a mechanical component with a circular button and arrow indicator (no text or symbols)

Close-up of a white cylindrical object mounted in a black circular opening (no text or symbols visible)

To insert a filter, proceed in reverse order: insert the filter with the correct end facing the pump, attach filter cover using the 4 screws and then screw grille to the vacuum packing machine housing.

Photograph depicting a pump filter:

Filter dimensions: 130x70 (mm), opening size ∅35 mm. Replace filter at least once a year, if the vacuum packing machine performance decreases, check filter and replace if necessary.

TRANSPORTATION AND STORAGE

Shaking, crashing and turning upside down of the device should be prevented when transporting it. Store it in a properly ventilated location with dry air and without any corrosive gas.

CLEANING AND MAINTENANCE

• Unplug the device from the electricity when cleaning it.

• Use cleaner without corrosive substances to clean surface.

• After cleaning the device, all parts should dry well before the device is used again

• Store the unit in a dry, cool location, free from moisture and direct exposure to sunlight.

- Clean vacuum packing machine regularly. Remove all stains from the vacuum packing machine chamber after use. All vacuum packing machine maintenance and inspection works should be carried out by a trained and qualified member of staff. A person without the required experience and knowledge should not attempt to complete these tasks.

CHECK REGULARLY THE DEVICE

Check regularly whether the device presents any damages. If it should be damaged, please stop using it immediately and contact your customer service to solve the problem.

What to do in case of a problem?

Please contact your customer service and prepare the following information:

• Invoice number and serial number (the latter is to be found on the technical plate on the device).

• If relevant, take a picture of the damaged, broken or defective part.

It will be easier for your customer service clerk to determine the source of the problem if you give a detailed and precise description of the matter. The more detailed your information, the better customer service will be able to solve your problem rapidly and efficiently!

CAUTION: Never open the device without the authorization of your customer service. This can lead to a loss of warranty!

Instrukcja obsługi

SYMBOLE

Close-up of a mechanical component with a circular button and arrow pointing to it (no visible text or symbols)

Close-up of a white cylindrical component mounted on a black circular base (no text or symbols visible)

S 7 8 9 10

Close-up of a computer fan with visible blades and control panel, no text or symbols present

Close-up of a hand using a tool to adjust or install a circular mechanical component (no visible text or symbols)

Close-up of a car engine bay with visible wiring and components (no text or symbols)

Close-up of a hand holding a textured object with no visible text or symbols

Four-panel sequence showing a cable or cable assembly with transparent film strips, no visible text or symbols

Close-up of a hand holding a textured object with visible markings (no readable text or symbols)

A TERMÉK ELHELYEZÉSE

Four-panel sequence showing a cable or cable holder with insulation and plastic film, no text or symbols visible

NAMEPLATE TRANSLATIONS

Manufacturer encend Palkasp. no. no. k. ul. Derivate sp. 3, 55-150 Zelmos Câtra | Poland, EU
Product name: Voccur Facing Machine		(973C) DESIGN MADE IN GERMANY expendite
Model
Power 30WV
Voltage / Frequency 200V / 50Hz
Seal width 100 mm
Weight
Production year
Series No.
Produkturier Volumm -	Verpackungsmachme
Modell
Bereinleistung 50300
Hermosanung / Frequency	200V / 50Hz	(YEZ4)
Schwalt/Grange 400 mm
Sewicht
Übrungsvammer
Produktur径
Producent encend Palkasp. no. no. k. ul. Derivate sp. 3, 55-150 Zelmos Câtra | Poland, EU
Rerware productu. Palkoscara prchrimaus
Modell
Max 30WV
Respectar / Concellulosic 200V / 50Hz		(CCTX)
Drupof/igrewn 400 mm
Wage
Number set
Risk Product
Fabricante encend Palkasp. no. no. k. ul. Derivate sp. 3, 55-150 Zelmos Câtra | Poland, EU
Nombre del producto Mérkura de encorado al varzo
Modell
Poten da nominal 500W
Tetraón nominal / Frequenza	230V / 50Hz	(3HAW)
Linguidad de cierra 100mm
Peso
Márcena de auc
Aldo de produzaje

NAMEPLATE TRANSLATIONS

Produzione esponda lativa sp. c.o.sp.k ul Dekorazony 3, 65-155 Zeicola Góre | Poland, EU
Nome del progetto	Machina per il corvazione	[7Y62] DESIGN MADE IN GERMANY expendido.de
Modella
Potenza nominale 500W
Terstione nominale / Frequenza	230V/-/50Hz
Lungarona del vaglia	400mm
Peso
Numero di coloro
Anna di produzione
Fabriquent esponda lativa sp. c.o.sp.k ul Dekorazony 3, 65-155 Zeicola Góre | Poland, EU
Nom da produit	Machine e embalier syyzoide	[5748] DESIGN MADE IN GERMANY expendido.de
Modella
Power	300W
Voltage / Frequency	230V/-/50Hz
Longueur du joint	400mm
Roise
Numero de série
Arona de produzione
Výrolova esponda lativa sp. c.o.sp.k ul Dekorazony 3, 65-155 Zeicola Góre | Poland, EU
Nácia výrolova	Velkana baílka	[207C] DESIGN MADE IN GERMANY expendido.de
Modella
Immuční úškon	900W
Immuční úšperti muzional / Prelemonie	230V/-/50Hz
Dálba l'inkelní	400mm
Immučnol
Siničeni Šidlo
Rok výroly
Gyrtáti esponda lativa sp. c.o.sp.k ul Dekorazony 3, 65-155 Zeicola Góre | Poland, EU
Termale nava	velkana baílka
Modell
Něrkágos učipadměng	900W
Něrkágos učipadměng/Frelemonia	230V/-/50Hz
Magazitcs hressa	400mm
Sily
Sonstatizám
Gráta tasi bě

DE

We hereby certify that the appliances listed in this manual are CE compliant.

FR

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.

ul. Dekoracyjna 3

65-155 Zielona Góra | Poland, EU

e-mail: [e-mail]
