XS 6B4S3FSB-80 - Dishwasher HAIER - Free user manual and instructions

Product type	Built-in dishwasher
Brand	Haier
Model	XS 6B4S3FSB-80
Dimensions (H x W x D)	818 - 898 mm x 596 mm x 550 mm (approximate)
Net weight	Approximately 45 kg
Power supply	220-240 V, 50/60 Hz, 10 A
Water pressure	0.08 - 1 MPa
Capacity	12 place settings (standard estimate)
Wash programs	Multiple programs (Eco, Intensive, Quick, etc.)
Energy class	Not specified (likely class A+ or higher)
Water consumption per cycle	Approximately 10-12 L
Noise level	Approximately 44-48 dB(A)
Overflow protection	Yes, automatic water shut-off in case of overflow
Drying system	Condensation drying (standard)
Tub material	Stainless steel (estimate)
Installation type	Built-in under countertop
Accessories included	Anti-vapor strip, mounting kit, drilling template
Repairability	Repairability index not provided (spare parts available via after-sales service)

Frequently Asked Questions - XS 6B4S3FSB-80 HAIER

What is the minimum installation height for the Haier XS 6B4S3FSB-80 dishwasher?

The minimum installation height is 818 mm. For a maximum height of 898 mm, the distance between the door and the floor must be between 90 and 210 mm.

How to adjust the height of the dishwasher feet?

Tilt the appliance by lifting the rear about 10 cm, then adjust the rear foot from the front. Then adjust the front feet directly. Make sure the appliance is level.

What type of water connection is needed?

The dishwasher requires a connection to cold water with pressure between 0.08 and 1 MPa. Use the supplied inlet hose and follow the connection diagram.

Can I install the dishwasher under a cooktop?

No, it is forbidden to install the dishwasher under a cooktop. Place it in a closed, dry, and well-ventilated location near an electrical outlet.

What is the maximum allowed weight for the kitchen panel?

The kitchen panel must not exceed 9 kg. If it does, contact Haier customer service.

How to secure the dishwasher to adjacent cabinets?

Secure the dishwasher laterally to the adjacent cabinets. If not possible, use the supplied brackets to fix it to the countertop, ensuring the countertop material is suitable.

Does the dishwasher have overflow protection?

Yes, all Haier dishwashers are equipped with an overflow safety device that automatically stops the water supply or drains excess in case of malfunction.

Can I use the dishwasher without a front panel?

No, the appliance must be fully built-in with the front panel installed before connecting to the electrical network. Use without a panel presents an electrical hazard.

What to do if the dishwasher door does not close properly?

First check that the appliance is level. Incorrect foot adjustment can prevent proper door closure and cause hot steam leakage. Adjust the feet accordingly.

How to get the complete user manual in French?

The manual is available for free download in PDF format on sites like notice-facile.com. If the desired language is not offered, you can request a translation via the provided form.

USER MANUAL XS 6B4S3FSB-80 HAIER

sliding movement hinges

FROM CLEAN

TO SHINE

EN|IT|FR|DE|ES|GR|NL|PT|SK|PL|CZ|RO|HU

SL|SR|LT|EE|LV|BG|HR|DA|FI|NO|SV|UA|TR

WELCOME

This installation manual is intended for kitchen manufacturers who will accommodate these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with installation, note the serial number, as it may be needed in case of repairs. Check for any damage during transport and consult a technician if in doubt before use. Always keep all packaging material away from children.

NOTE: The features and images contained in this document are for reference only and may change without notice.

Index

1 Safety notices for installation p.2-3 2 Where to install the dishwasher p.3 3 Dishwasher dimensions p.4-5 4 Step-by-step installation video p.6 5 Installation tools p.6 6 Built-in dimensions p.7 7 Instructions for dishwasher installation p.8 - 15

7.1 Steam band installation 7.2 Height adjustment 7.3 Adjustment of the rear foot 7.4 Adjustment of the front feet height 7.5 Tilt adjustment 7.6 Insertion into the built-in compartment 7.7 Fixing the front feet 7.8 Preparation of the panel 7.9 Installation of the panel 7.10 Fixing the machine to the kitchen

8 Connection to water and electrical network p.16-17

8.1 Connection diagram 8.2 Safety devices

9 Delivery to the user p.17 10 Dishwasher disassembly p.17

Observe these directions before beginning the installation of the product. Your safety is very important to us. Please read this information carefully before using the product.

• The installation must be carried out by a qualified technician who must be aware of and comply with the laws in force in the country of installation and the manufacturer's instructions;
• If manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the fix;
• Remove the packaging material before operating the appliance;
• After unpacking the product, check that it is not damaged and, in case of problems, contact the service center before proceeding with installation and do not connect it to the power supply;
• A damaged product can cause a short circuit, electric shock, fire hazard, and other dangers;
• Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) and, if so, remove and store them;
• Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury;
• Safe use is only guaranteed if installation has been carried out properly according to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product;
• During installation, the appliance must not be connected to the power supply;
• It is recommended to wear protective gloves during installation to avoid cut injuries;
• In case of incorrect installation, tampering with the device and improper connection, the validity of the product warranty will expire;
• Make sure that when the product's power supply cable is completed, it is not accessible;
• After assembly, the power cord must not come into contact with moving parts of kitchen components (such as a drawer) and must not be exposed to mechanical stresses;
• When delivering the product to the end user, the technician must ensure that it has been installed correctly;
• Do not connect the product to the electrical network until the front panel has been fully installed. Otherwise, there may be an electrical hazard; Take care during transport, the product is heavy;
• Before starting the installation, check all the dimensions of the built-in compartment by comparing them with the instructions contained in this manual. Note that it is possible to align the door with the doors of other furniture, even if it exceeds the control panel in height;
• Make sure the installation area is stable and solid;
• Apply the protective film, supplied in the installation kit, under the worktop and on surrounding furniture. This film protects the furniture from humidity;
• Be careful when opening and closing the product;
• Incorrect installation can cause the product to tip over;
• The product must be level to function correctly, otherwise the door will not close properly, leading to the escape of hot steam.

Where to install the dishwasher

• Install and use this product in a closed, covered, dry, and well-ventilated environment;
• Do not install the product in open environments exposed to atmospheric agents;
• Install the product near an electrical outlet;
• Use the product only when placed in a recessed compartment, otherwise you risk injury and burns;
• Do not install the dishwasher under a cooktop;
• Do not install the product near heat sources (radiators, stoves, etc.);
• Do not place the product on carpets or similar surfaces;
• Place the product on a clean, level, and stable surface.

Dimensions in mm

Front axonometric view of the product

Front axonometric view with kitchen door

WARNING: if the kitchen panel weighs more than 9 kg, contact customer service.

Dimensions in mm

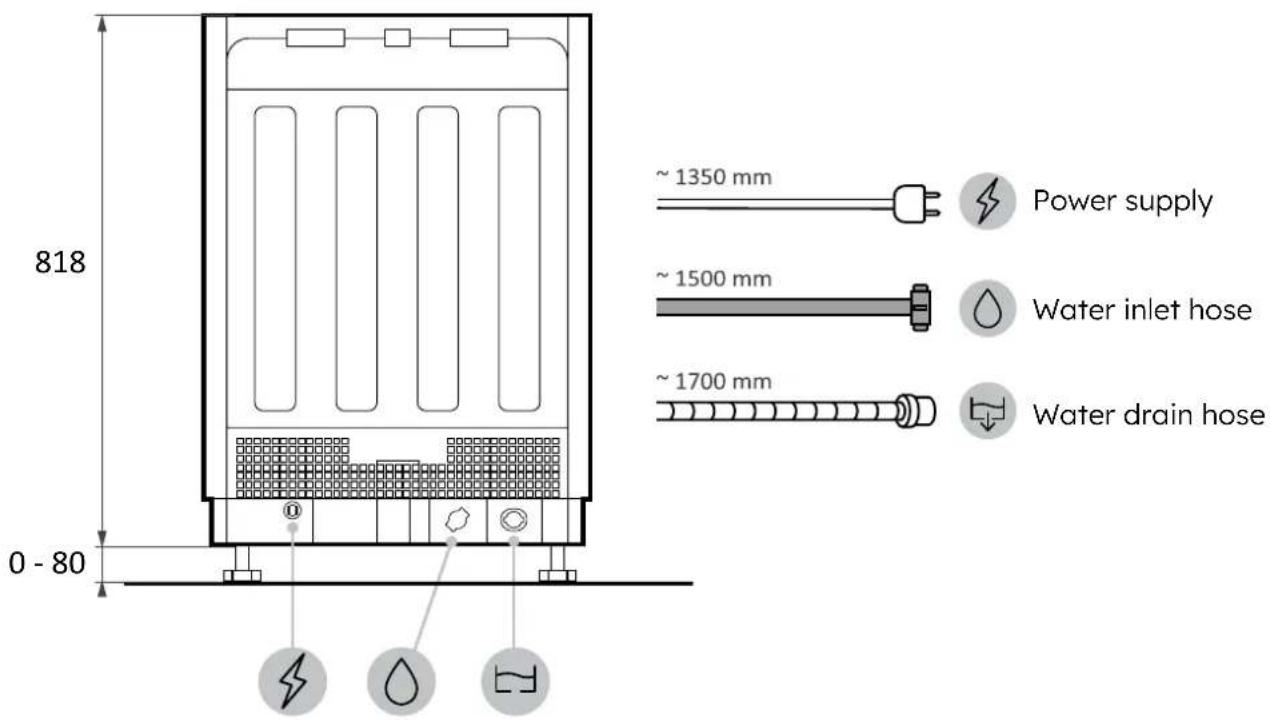

Back view

Side view

4 Step-by-step installation video

You can watch the product installation video by scanning the QR Code:

or by clicking this link

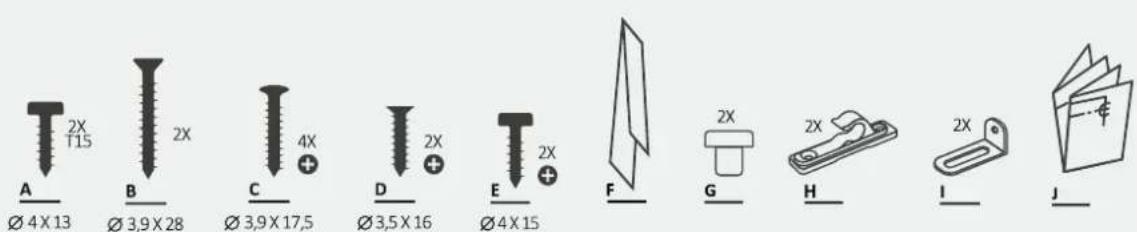

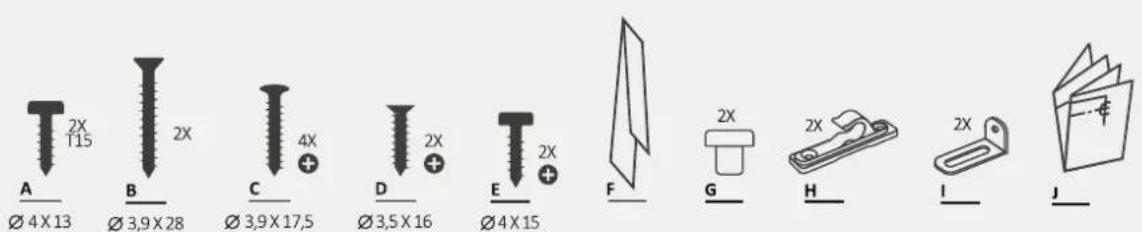

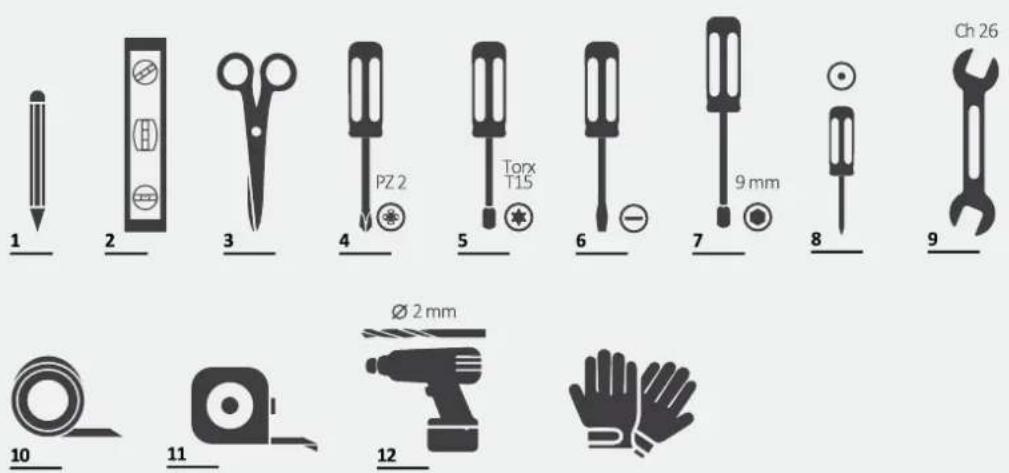

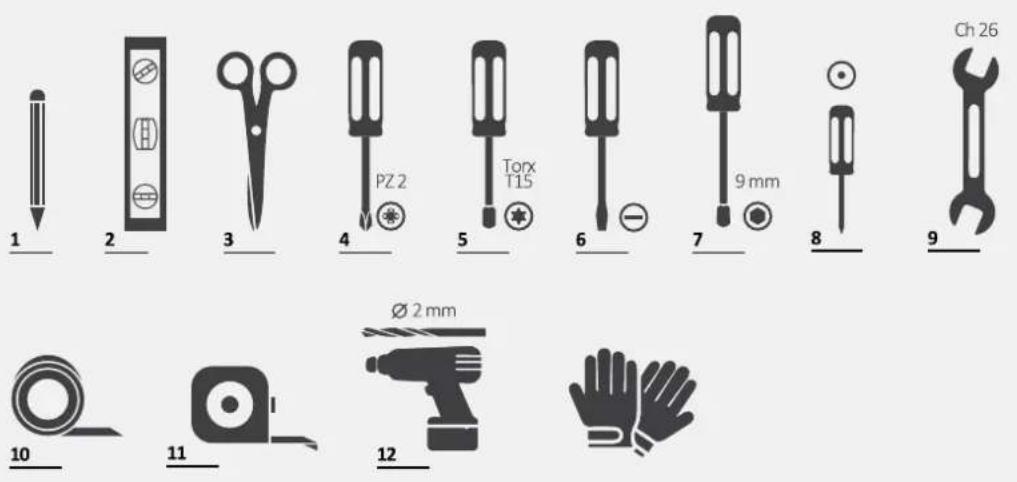

5 Installation tools

Required tools

Tools provided with the product

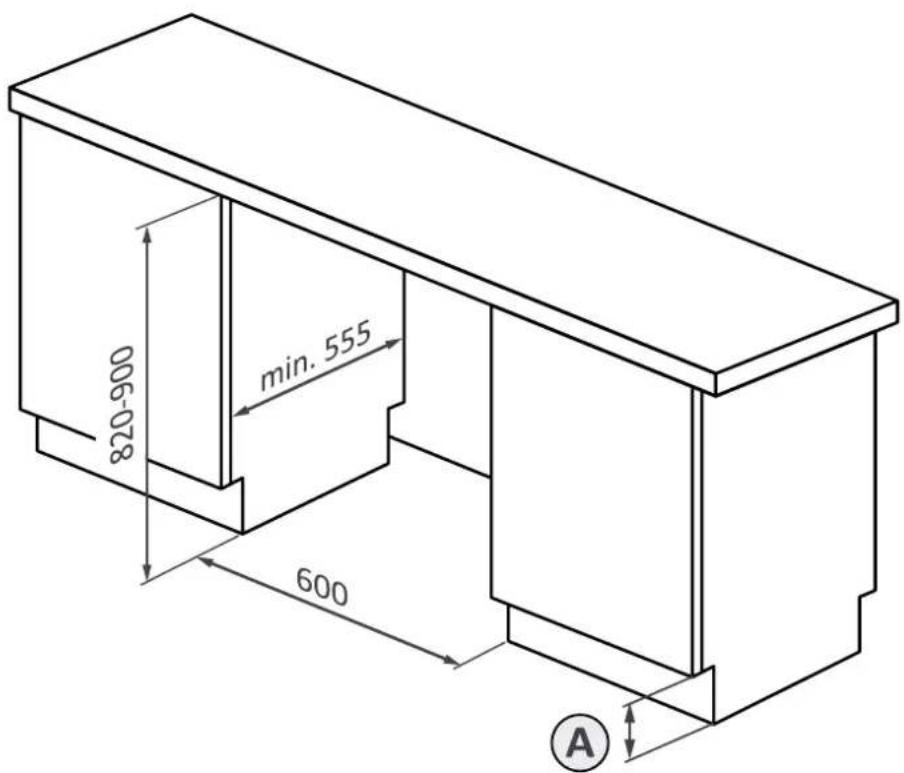

Dimensions in mm

Axonometric view

A

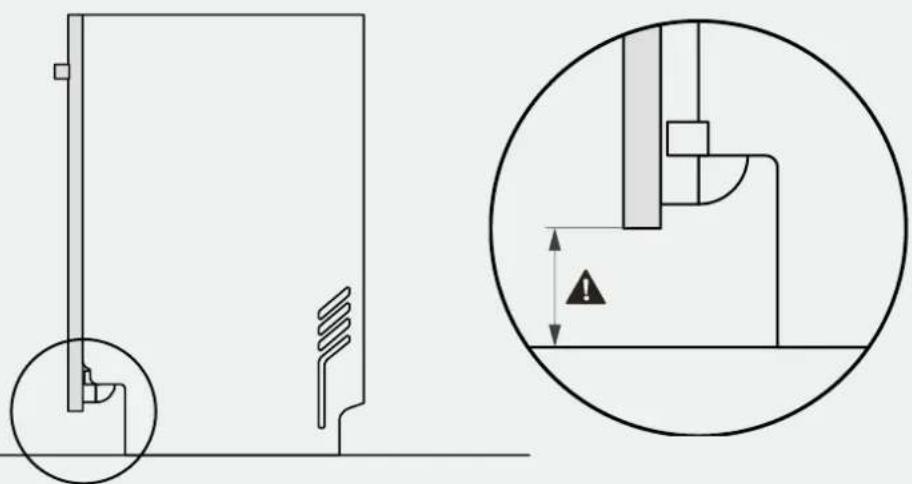

WARNING: The minimum recess height is 818 mm; in this case, the distance between the door and the floor must be between 10 and 130 mm. If the dishwasher is raised (max. 898 mm), the door-to-floor distance must also increase proportionally, up to a maximum between 90 and 210 mm.

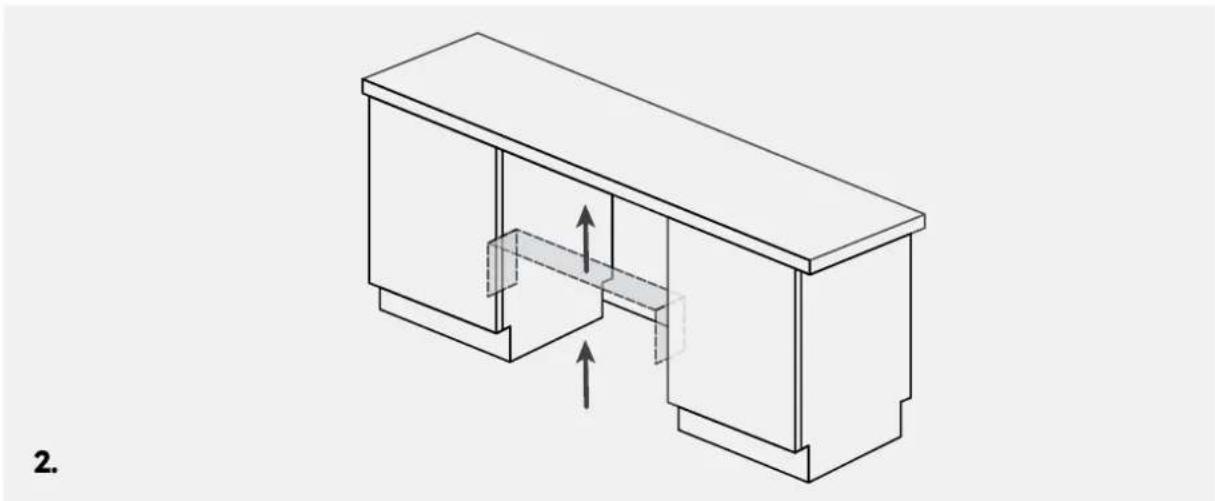

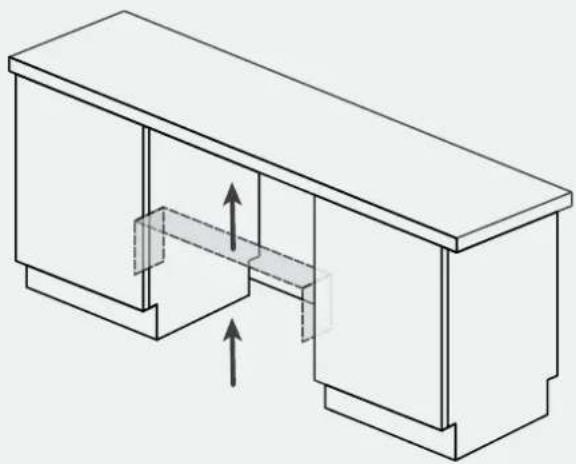

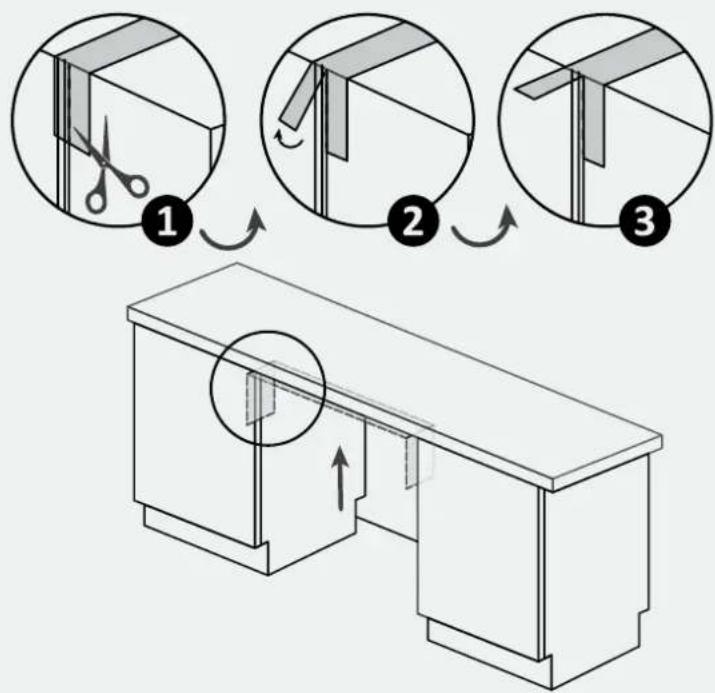

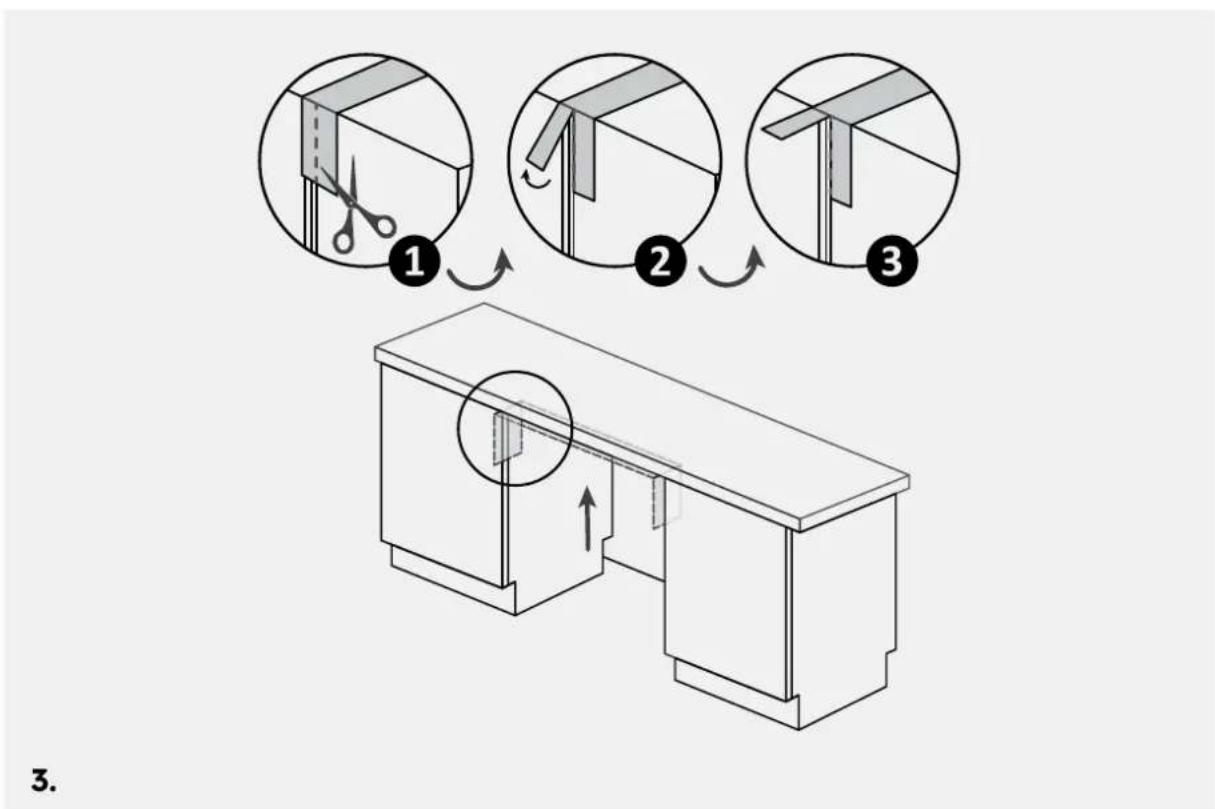

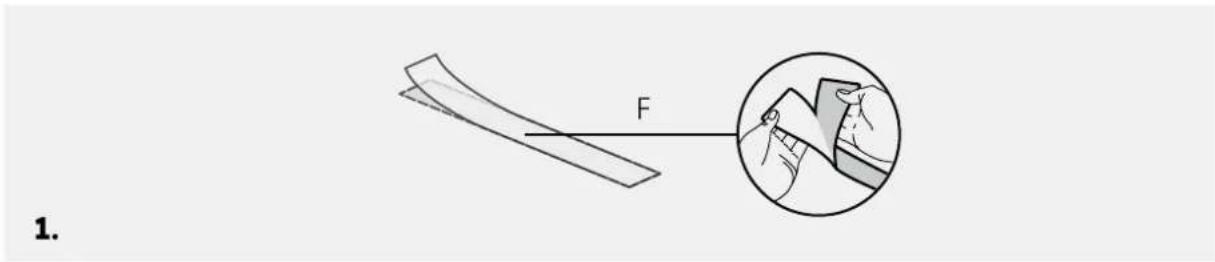

Steam band installation 7.1

Apply the sticker band under the worktop and to the sides of the adjacent furniture;

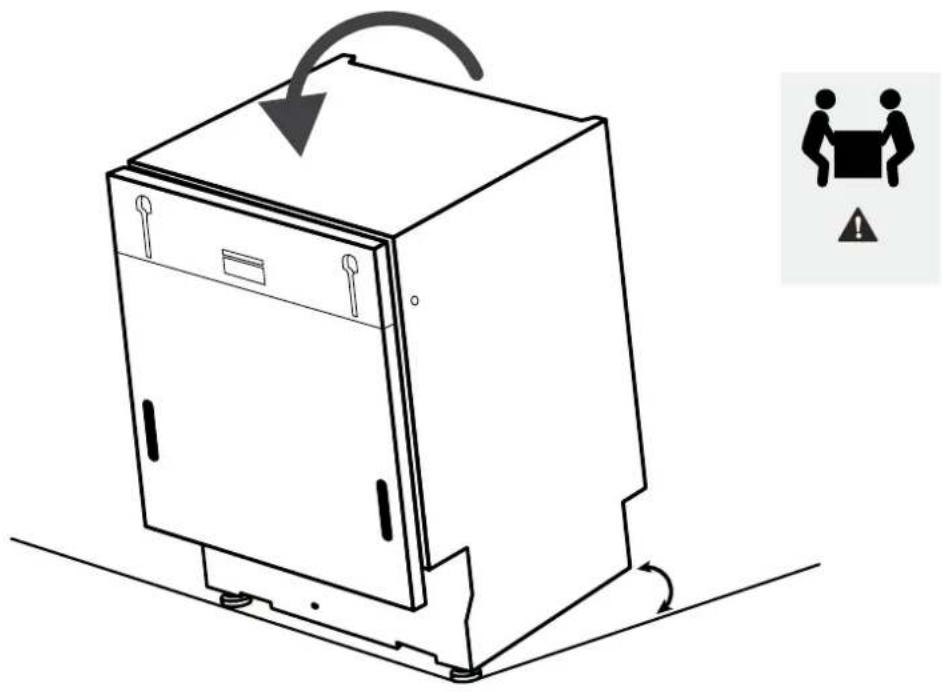

7.2 Height adjustment

Incline the dishwasher by raising the back about 10 cm.

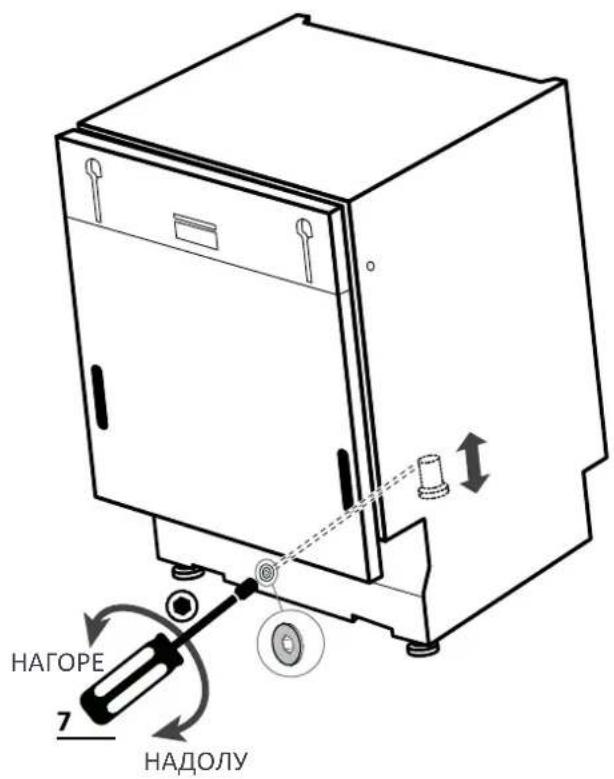

7.3 Rear foot adjustment

Adjust the rear foot height by operating from the front of the machine as indicated below.

7.4 Front feet adjustment

Adjust the front feet directly. If necessary, lift the dishwasher slightly.

7.5 Tilt adjustment

Level the dishwasher by the vertical and horizontal planes.

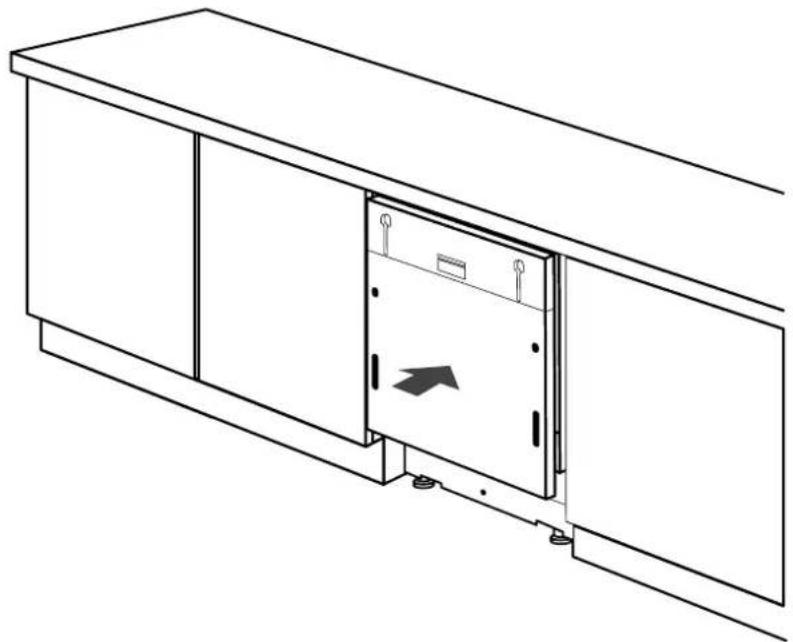

7.6 Insertion into the built-in compartment

Insert the dishwasher into the built-in compartment and check measurements and tolerances.

7.7 Fixing the front feet

After checking all measurements, permanently fix the front feet to prevent them from loosening over time. This operation can also be done after installing the kitchen panel.

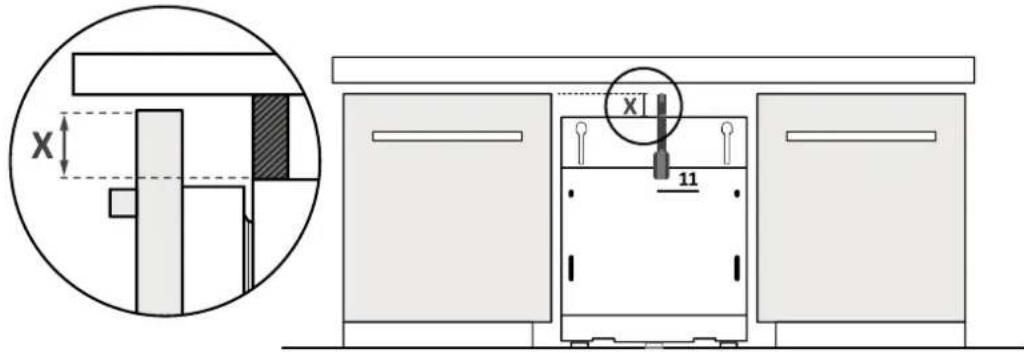

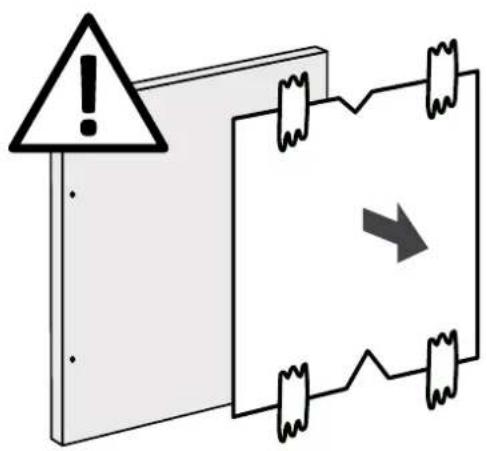

7.8 Panel preparation

1.

Measure the distance between the top edge of the adjacent doors and the dishwasher;

2.

Transfer the measurement onto the kitchen panel and locate the center;

3.

Apply the drilling template and follow the instructions provided.

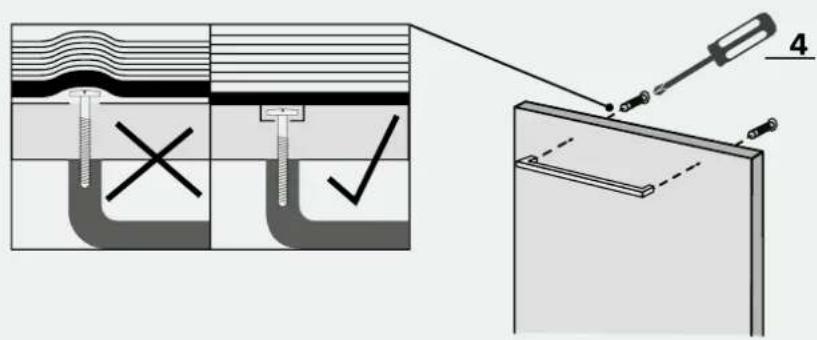

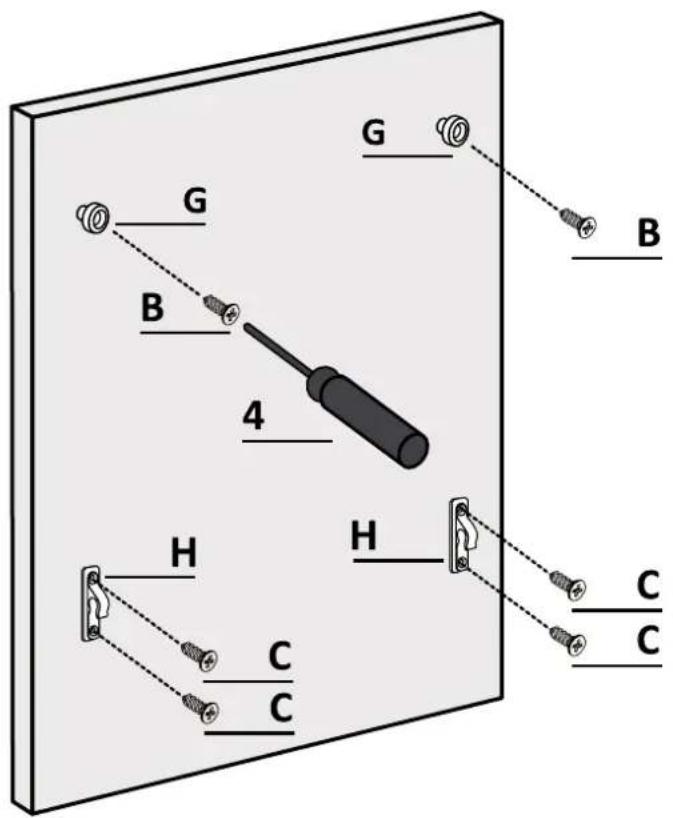

7.8 Panel preparation

4.

Remove the drilling template and apply the accessories.

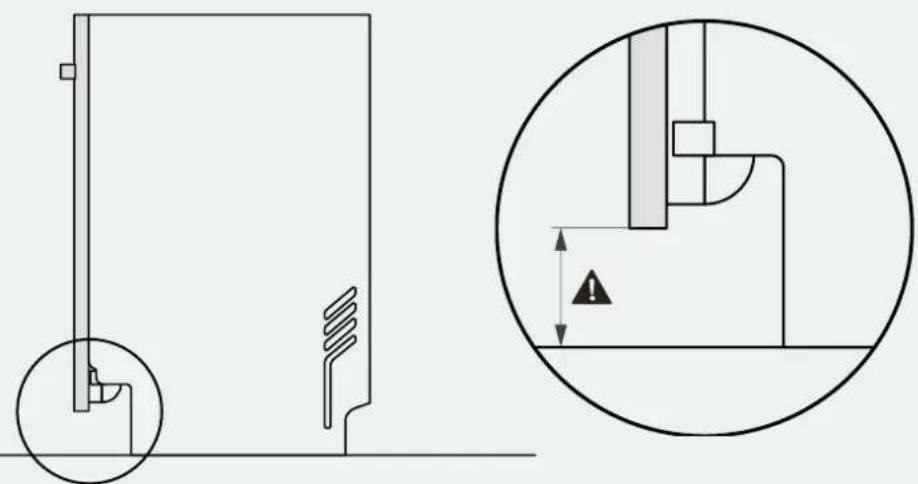

WARNING: Ensure screw heads don't protrude from the panel's rear surface, especially if you install the handle.

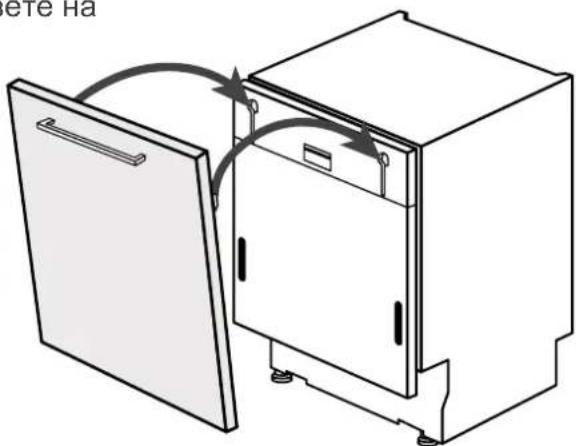

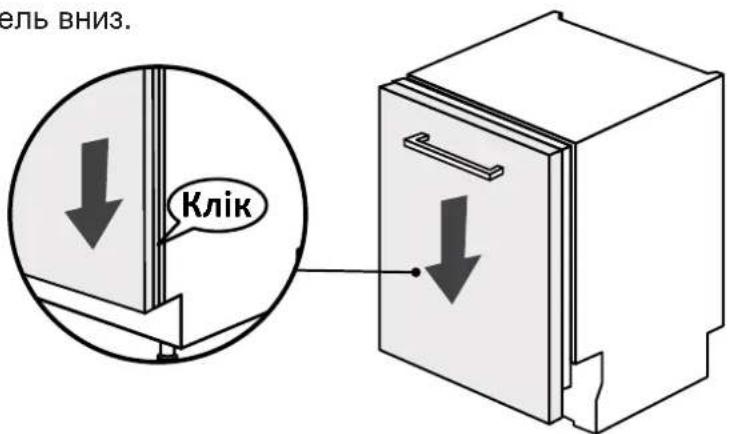

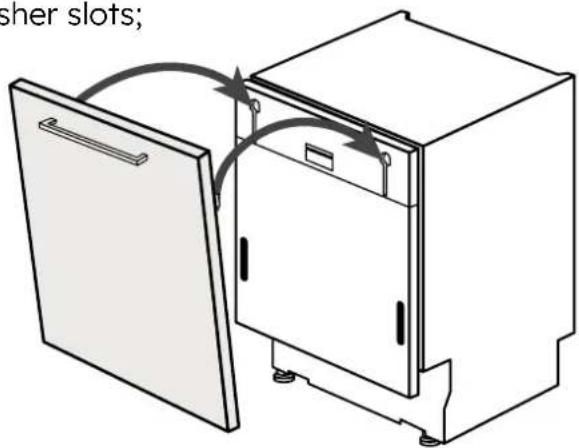

7.9 Panel installation

1.

Insert the upper pins into the dishwasher slots;

2.

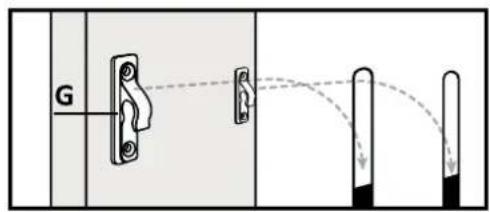

Fix the panel using the lower hooks;

3.

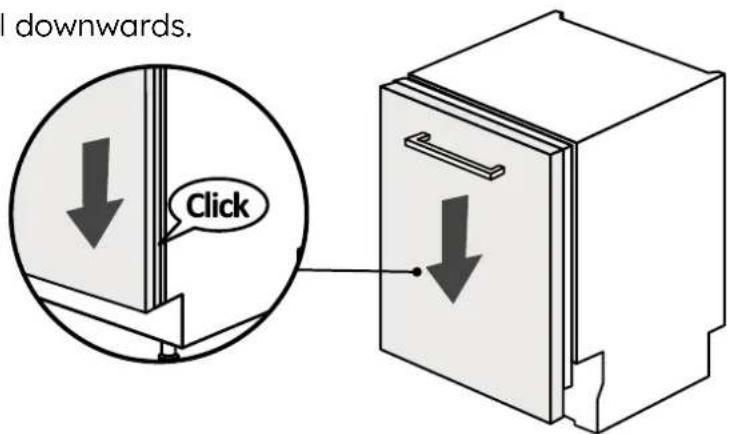

Push the panel downwards.

WARNING: Connect the dishwasher to the water and electrical mains at this time, observing the instructions provided in chapter 8.

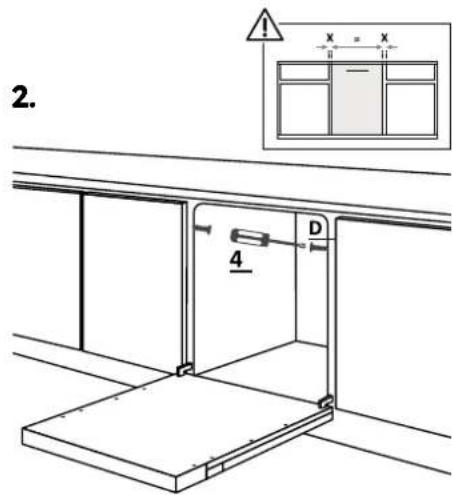

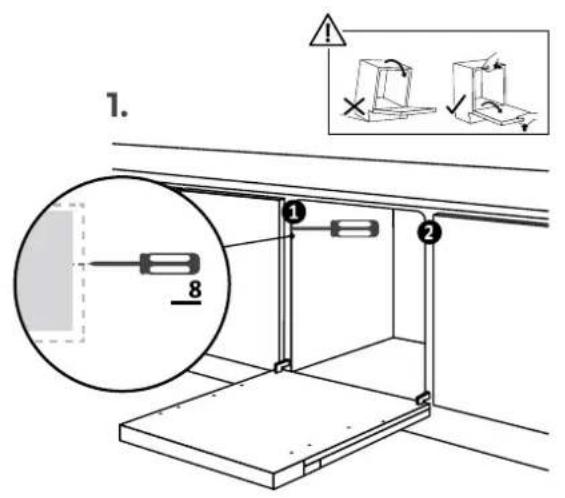

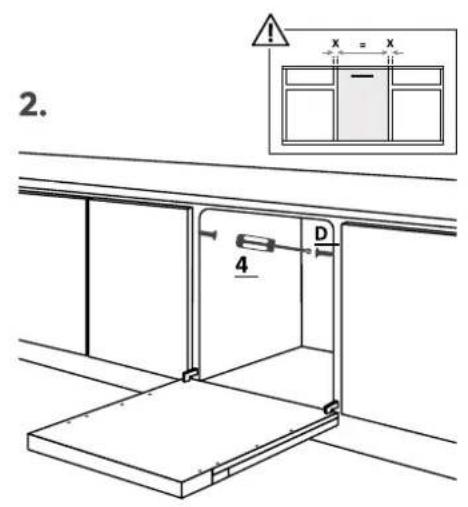

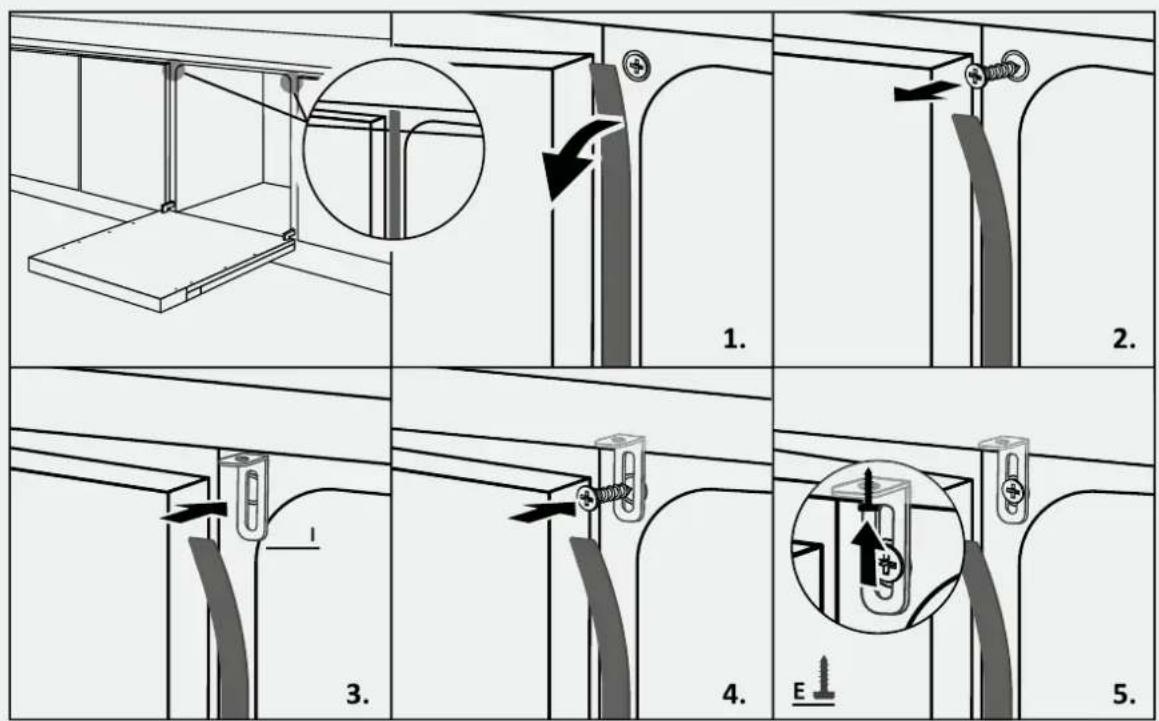

7.10 Fixing the machine to the kitchen

Instructions for fixing the dishwasher to the side of adjacent cabinets.

WARNING: If you can't fix the dishwasher laterally, use the brackets provided and secure it to the worktop; be careful if the worktop material is not wood.

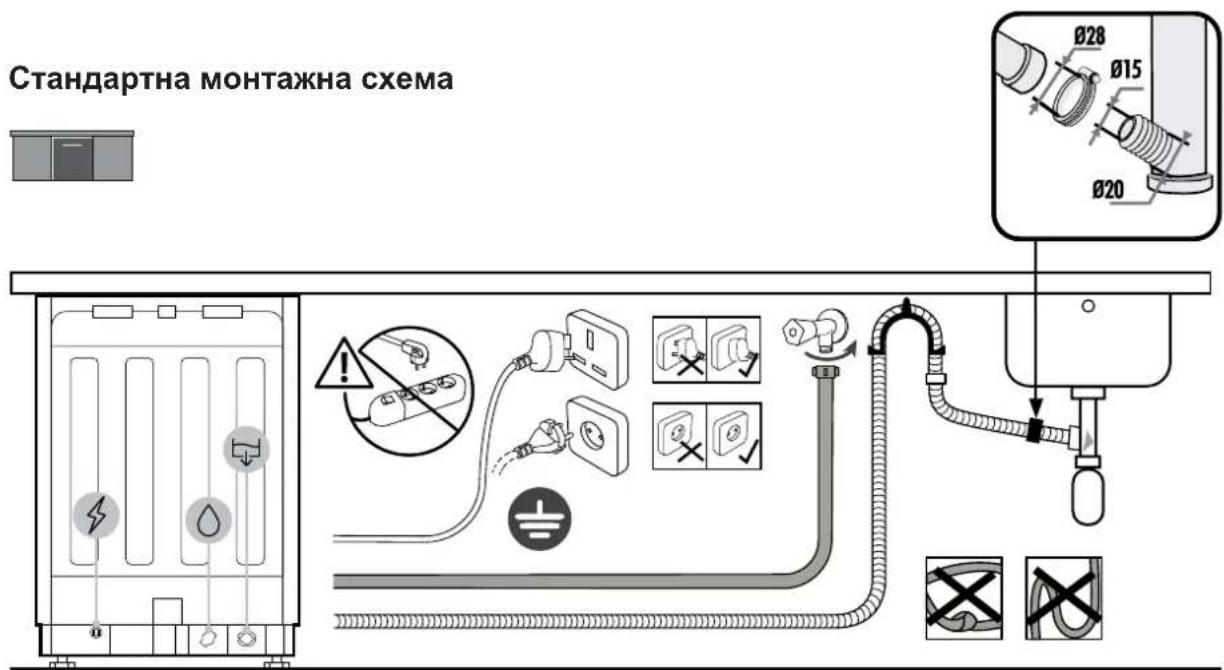

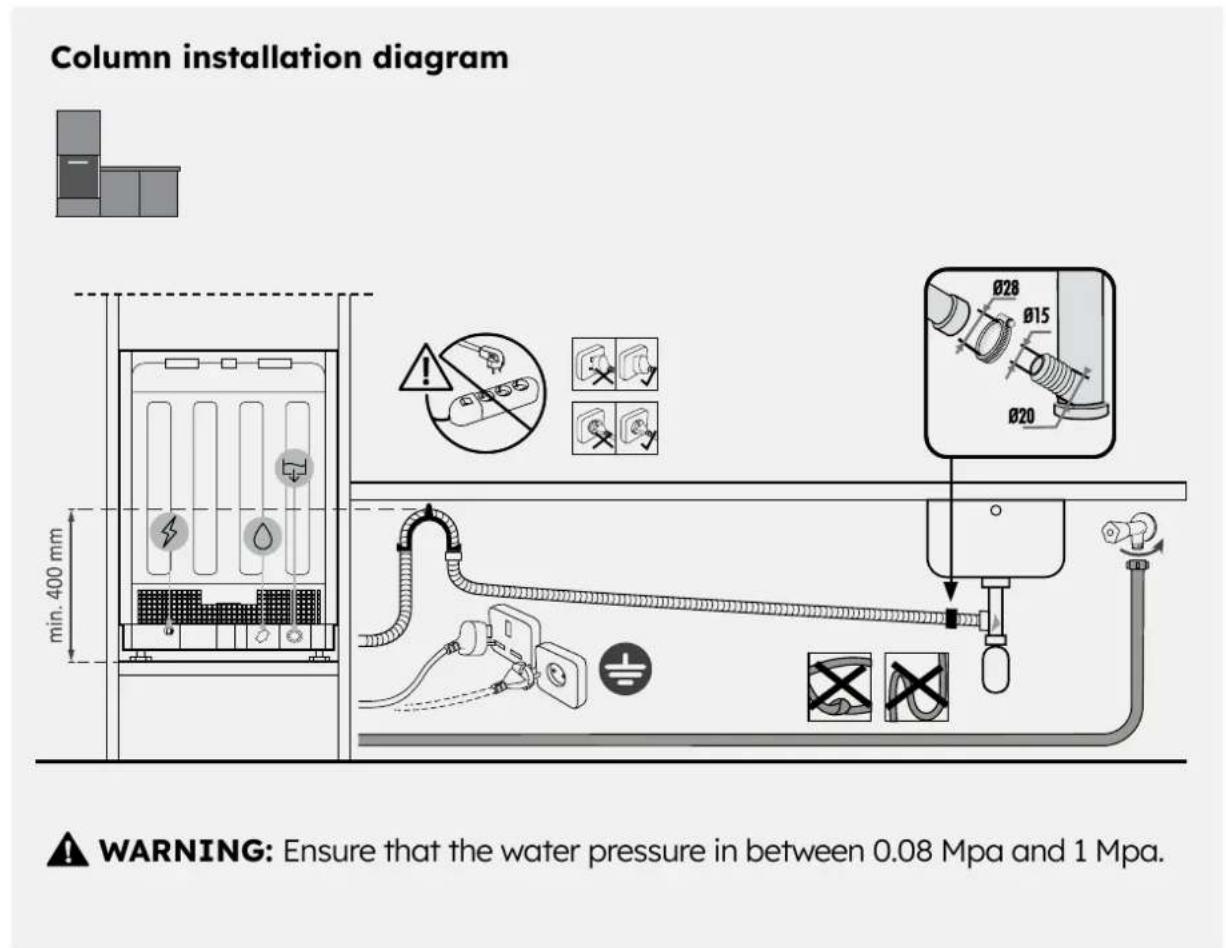

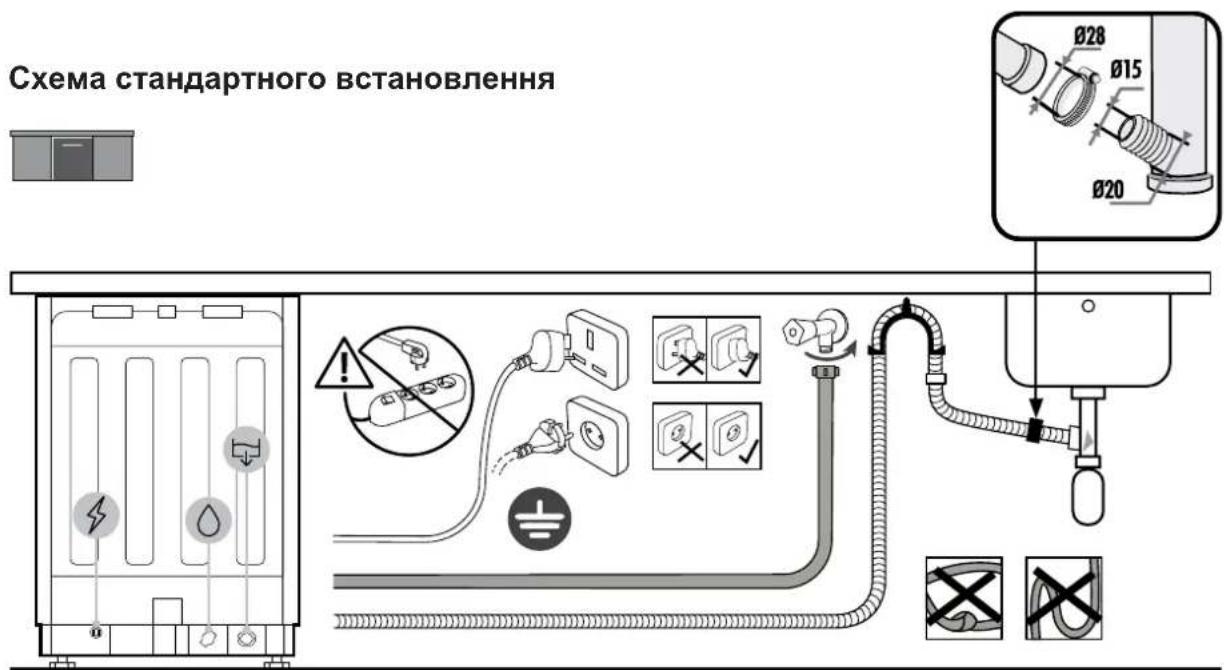

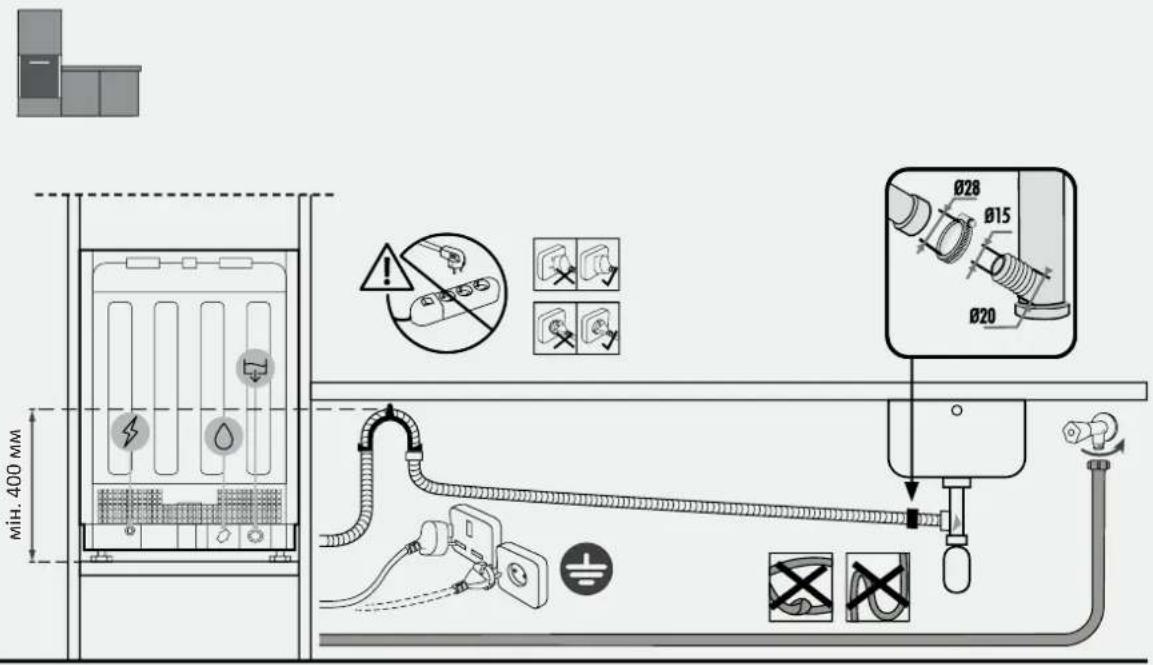

8.1 Connection diagram

8.2 Safety devices

All dishwashers are equipped with an anti-overflow safety device which, in the event that the water exceeds the normal level due to a malfunction, automatically blocks the water flow and/or drains the excess water.

See the User Manual for more details.

Delivery to the user 9

At the end of installation:

• Inform the user about essential functions;
• Inform the user about all aspects relevant to safe use and handling;
• Deliver accessories and instructions for use and assembly to the user to be kept with care.

After installation is complete, remove the protective film, tape, and all other packing materials and remove the supplied accessories from inside the product.

NOTE: The actual appearance of the product depends on the model chosen.

Dishwasher disassembly

10

• Disconnect the product from the electrical and water supply;
• Unscrew the fastening screws;
• Slightly lift the product and pull it out completely;
• This product does not damage the furniture, which can also be used with a new appliance.

Haier

BENVENUTI

Please read these instructions carefully before installing the product. Your safety is very important to us. Please read these instructions carefully before using the product.

Scan the QR code for installation instructions for the product:

by scanning the QR code:

and then click on this

5 installation tools

Required tools

Tools provided with the product

04X13

B 039X28

c 03,9X17,5

035X16

04X15

H

Dimensions in millimeters

Economizer

A

ATTENTION: The minimum height of the appliance is 818 mm; in this case, the distance between the door and the floor must be between 10 and 130 mm. If the appliance is raised (max. 898 mm), the distance from the door to the floor must be increased proportionally, up to a maximum between 90 and 210 mm.

7.1 Installation of the belt for the condenser

Place the belt that is being installed around the worktop and remove the adjacent furniture;

1.

2.

3.

7.2 Adjusting the height

Tilt the appliance by lifting the rear part by about 10 cm.

7.3 Adjusting the rear feet

Adjust the height of the rear foot by acting from the front part of the appliance, as shown below.

7.4 Adjusting the front feet

Adjust the machine to the desired position. If necessary, move the machine slightly.

7.5 Adjusting the tilt

Level the machine on the vertical and horizontal plane.

7.6 Placing in the storage compartment

Place the machine in the storage compartment and check the dimensions and adjust the deviations.

WARNING: Make sure that the screw heads do not protrude from the mounting surface, especially if you are mounting the bracket.

7.9 Mounting the panel

1.

Place the upper bolts in the assembled machine;

2.

WARNING: If you cannot fix the machine securely, use the provided screws and tighten them to the workbench; be careful if the workbench material is not wood.

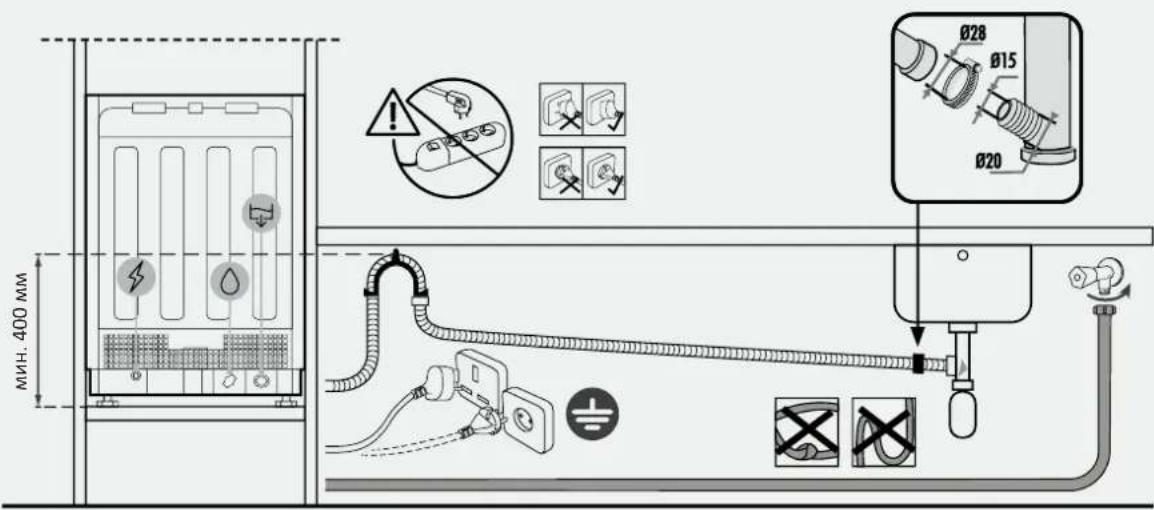

8.1 Connection diagram

Diagram for mounting the column

WARNING: Make sure that the water pressure is between 0.08 MPa and 1 MPa.

8.2 Device operation

The appliance is equipped with a device for protection against overpressure, which in the event of abnormal pressure increase automatically blocks the water flow to the water heater.

The product's efficiency for the consumer is increased.

Delivery to the consumer

9

During installation:

• Inform the consumer about the main functions;
• Inform the consumer about all aspects related to safe use and maintenance;
• Provide the consumer with the accessories and instructions for use and installation, which they should keep carefully.

Check the installation, remove the protective cap, any other packaging and materials, and remove any accessories from the interior of the product.

NOTE: The actual appearance of the product may vary depending on the selected model.

Unpacking the appliance

10

• Disconnect the product from the electrical supply and water supply; unscrew the fixing screws;
• Then lift the product and remove it from the wall; this product does not damage furniture that can be used with new furniture.

Haier

WELCOME

7.8 Preparing the panel

1.

7.8 Preparing the panel

4.

7.9 Installing the panel

1.

Before starting installation,

before installation,

scan the QR code:

or subscribe to

the link

5 Installation tools

Required tools

Tools supplied with the product

Dimensions (mm)

Dishwasher

A

IMPORTANT. The minimum height of the niche is 818 mm; for the built-in version, the distance between the legs must be from 10 to 130 mm. If the dishwasher height is increased (max. 898 mm), the distance from the top of the niche must also be proportionally increased, up to a maximum of 90-210 mm.

7 Installation instructions for the dishwasher

7.1 Applying the sealing strip

Stick the adhesive strip to the top and sides on the adjacent furniture.

1.

2.

3.

7.2 Adjusting the height

Tilt the dishwasher, lifting the rear part by about 10 cm.

7.3 Adjusting the legs

Adjust the height of the rear legs, working from the front part of the machine, as shown below.

7.4 Adjusting the front legs

Before operating the dishwasher, read the instructions carefully. If necessary, slightly lift the dishwasher.

7.5 Adjusting the legs

Level the dishwasher in both the vertical and horizontal planes.

7.6 Installing the dishwasher under a countertop

Insert the dishwasher into the opening of the built-in installation, checking the dimensions and tolerances.

Install the drilling template and follow the instructions.

7.8 Panel installation

4.

Remove the drilling template and install the cover.

WARNING. It is recommended that the screw heads do not protrude from the front surface of the panel, unless you have installed the spacer.

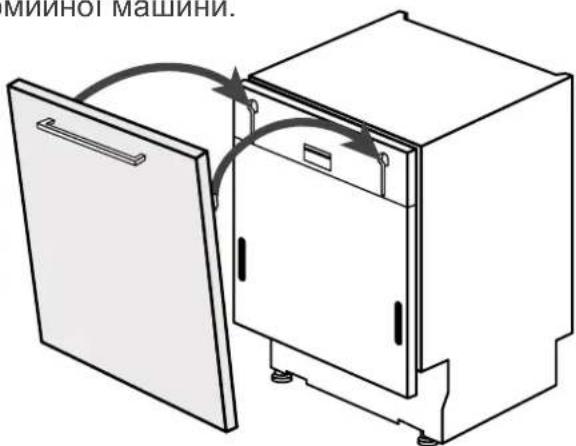

7.9 Installing the panel

1.

Insert the upper hinges into the grooves of the dishwasher.

2.

Secure the panel with the supplied screws.

3.

WARNING: Read carefully.

WARNING. Connect the dishwasher to the water supply and electrical connection according to the instructions given in section 8.

7.10 Attaching the machine to the kitchen

Instructions for attaching the dishwasher to adjacent furniture.

WARNING. If you cannot attach the dishwasher from the side, use the supplied brackets and attach it to the worktop; be careful that the worktop material is not wood.

8.1 Connection diagram

Connection diagram for the appliance. WARNING. Make sure that the water pressure is within the range of 0.08 MPa to 1 MPa.

8.2 Safety device

All dishwashers are equipped with a safety device against overflows, which in case of exceeding the normal water level automatically blocks the water flow and/or activates the water alarm.

Appendix: User guide for obtaining additional information.
