STREAM 100

AUDIO CONTROLLER

With the Hercules Stream 100 audio controller and the dedicated Hercules Stream Control app, you can take control of the audio sources used when livestreaming content on the Internet.

1. Box contents

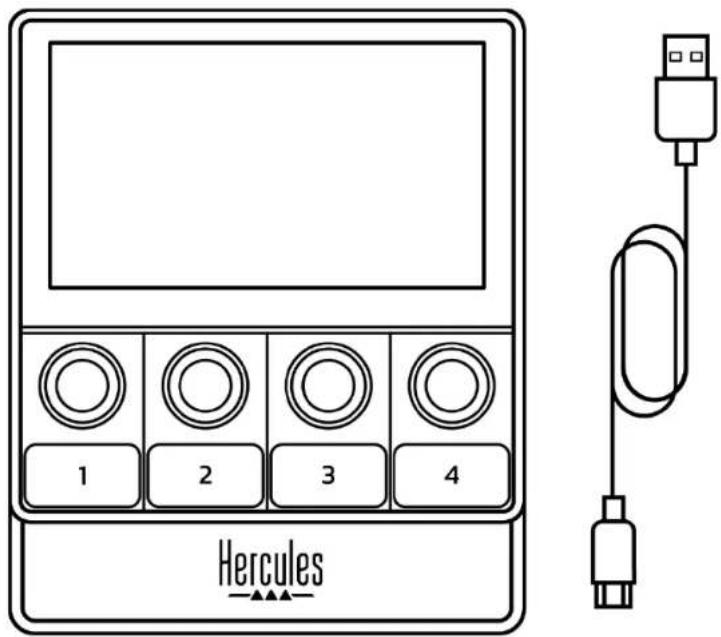

• Hercules Stream 100
• USB-A - USB-C power cable
• Link to download the Hercules Stream Control app (on the box flap)
  – Hercules and Hercules Stream stickers
• Warranty flyer

1 2 3 4 Hercules

You can remove the protective film from the screen of the Hercules Stream 100 controller. You can also leave it on, as it won't interfere with use of the controller.

2. Technical specifications

System requirements for Hercules Stream Control:

• Windows® 10 or more recent (64-bit)
• 4 GB of RAM
• USB 2.0 port

3. Installation

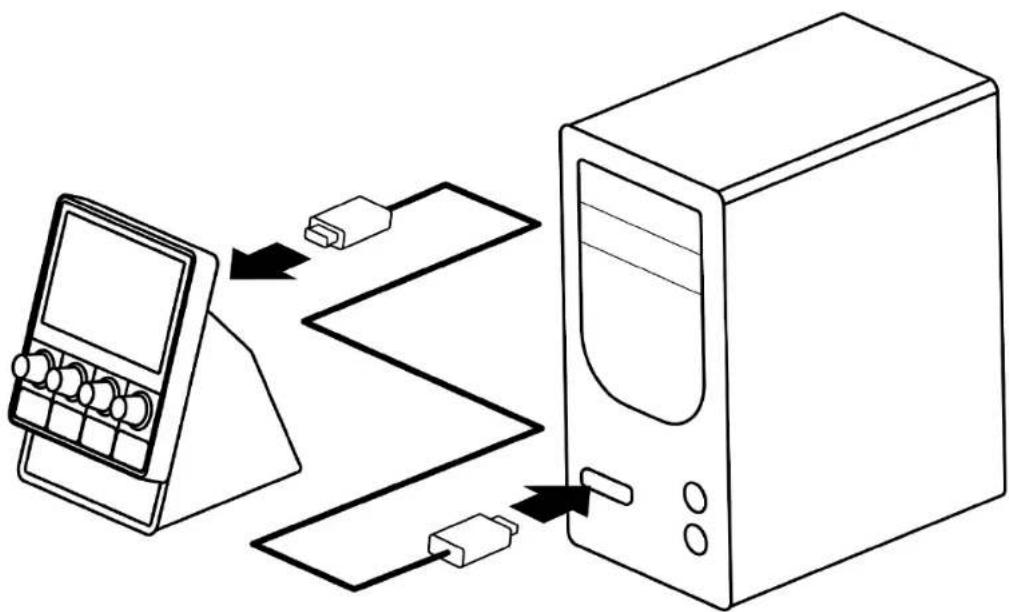

Connecting Hercules Stream 100

1. Connect the USB cable to the USB port on the back of your Hercules Stream 100, then to a USB port on your computer.

2. The Hercules logo appears on the screen of your Hercules Stream 100.

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Do not connect Hercules Stream 100 to a USB hub.

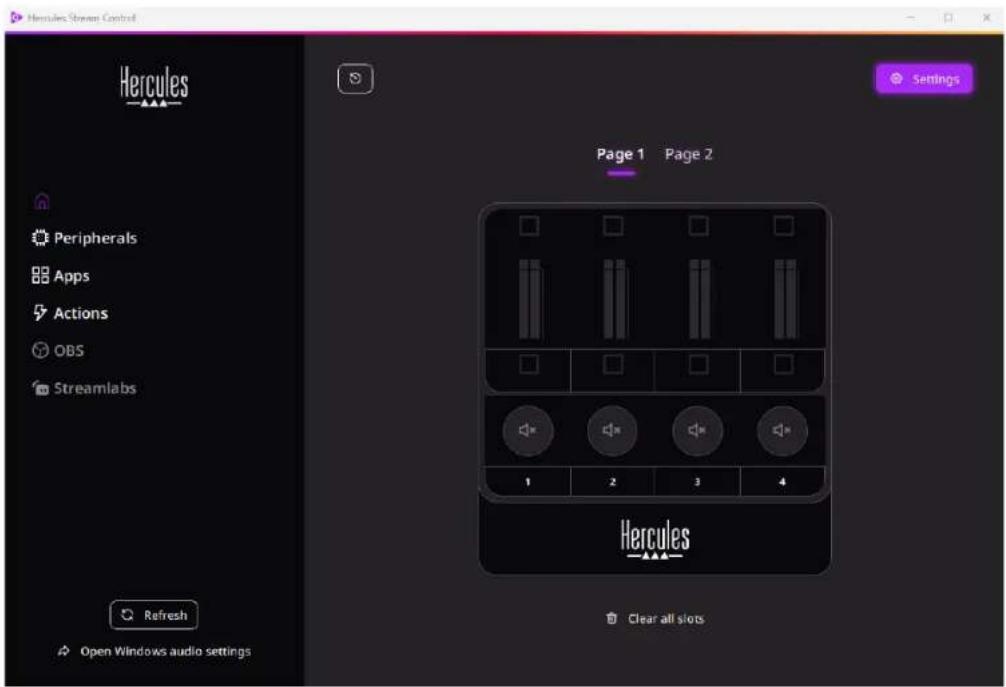

Downloading Hercules Stream Control

1. Make sure that your Hercules Stream 100 is properly connected to your computer.

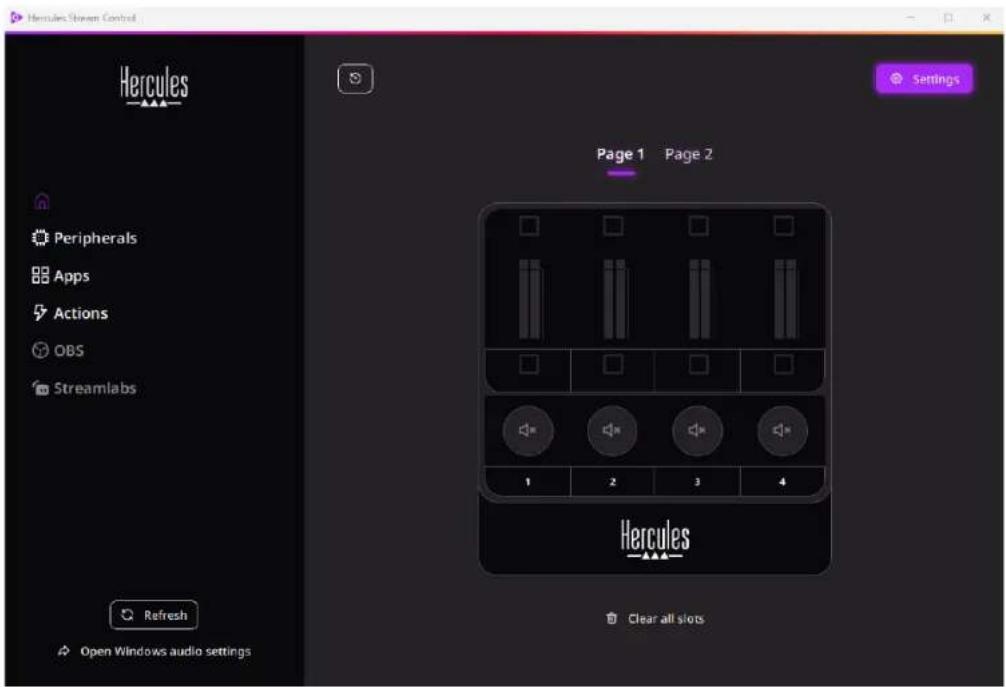

2. Visit:

https://support.hercules.com/product/stream100.

1. Download and install Hercules Stream Control.

2. Open the Hercules Stream Control app to configure your Hercules Stream 100.

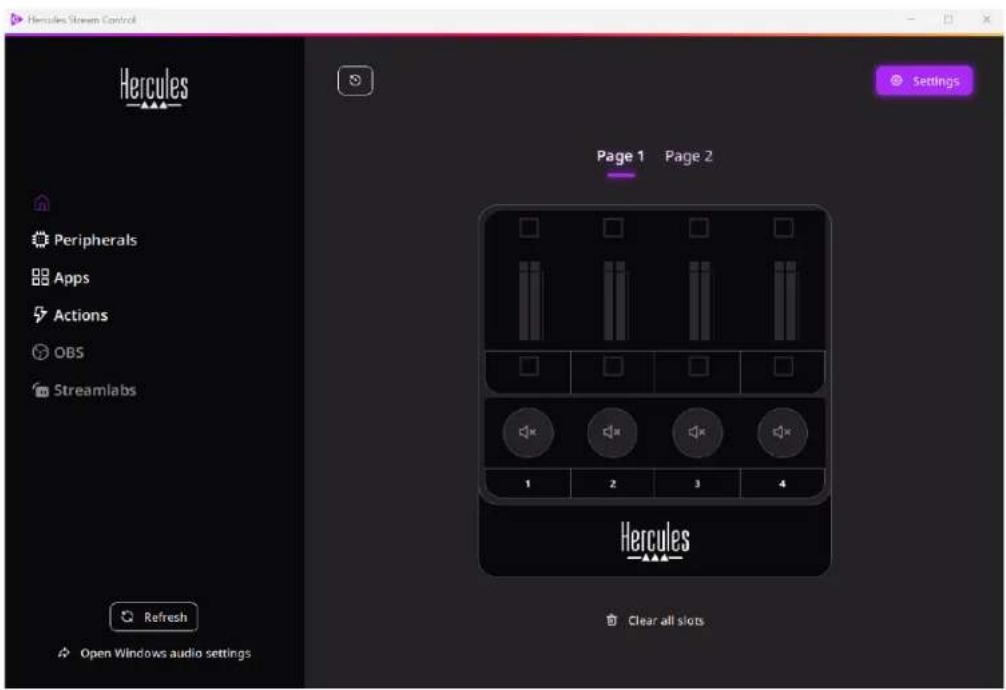

Hercules Power Control Hercules Page 1 Page 2 Refresh Open Windows audio settings Clear all slots

4. Features

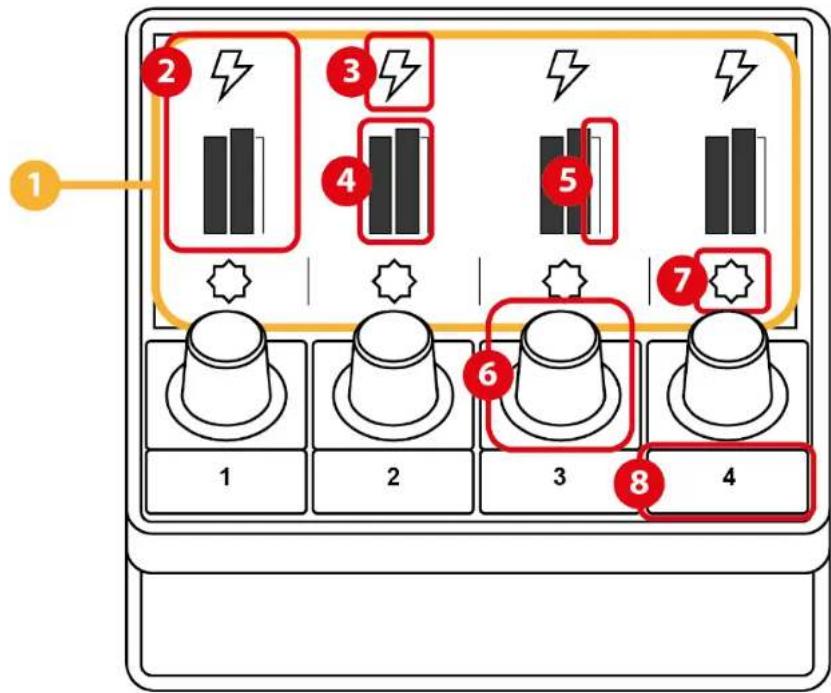

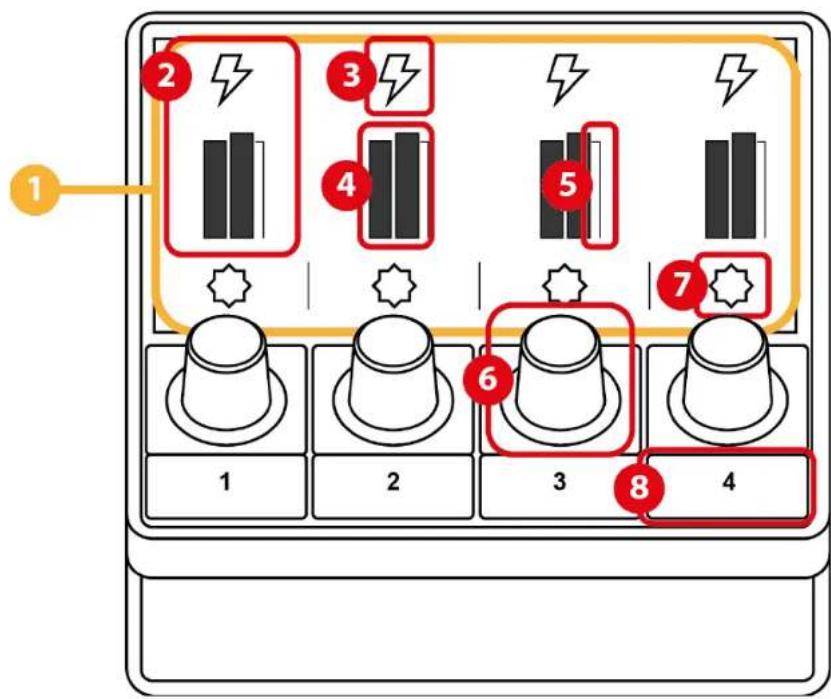

Overview

1 2 3 4 5 6 7 8 1 2 3 4

1. Page (display)
2. Track (display)
3. Track icon (display)
4. VU meter (display)
5. Volume bar (display)
6. Encoder
7. Action icon (display)
8. Action button

9 10 11

1. USB connector
2. Brightness adjustment button

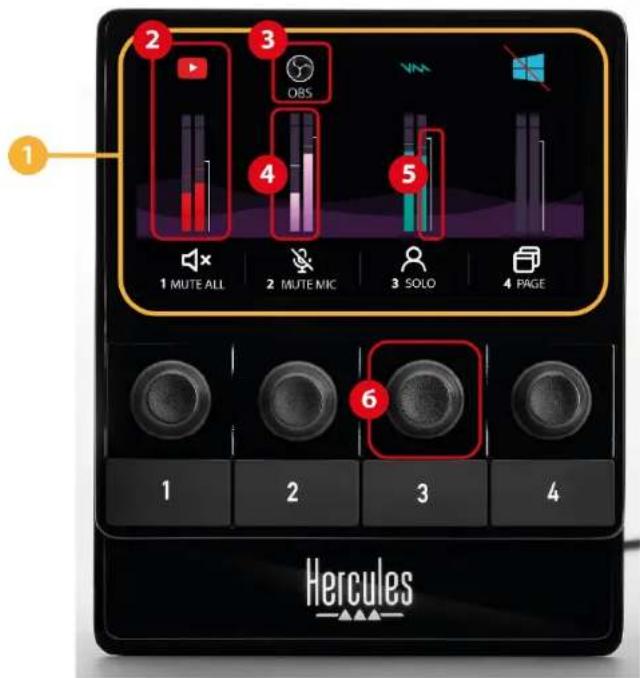

Controlling tracks

1 MUTE ALL 2 MUTE MIC 3 SOLO 4 PAGE Hercules

① Page (display): Hercules Stream 100 has two display pages, each of which lets you view four tracks and four actions in the dedicated area.

To switch from one page to the other, the action must be assigned to an action button. For more information, please see the Actions section.

② Track (display): one or more audio sources can be assigned to a track. An encoder is associated with each track, allowing you to control that particular track. Hercules Stream 100 has eight tracks, split up into two pages.

③ Track icon (display): lets you assign a visual cue to a track.

- Icon: by default, an icon is automatically assigned when an audio source is added to a track. You can replace the default icon with another element from the icon library (predefined icon or user-added icon).

– Name: lets you name the track.

The track's volume percentage is displayed instead of text for 1.5 seconds when the corresponding encoder is used.

- Mute track: by default, a red bar appears on the icon.

If you use a custom icon, the OFF status icon is displayed when the track is muted. To find out how to define an ON and an OFF status icon, refer to the Custom icon section.

- Inactive audio source: the icon is grayed out when the audio source(s) assigned to the track are inactive or not recognized in Windows.

④ VU meter (display): displays the track's audio signal level. The VU meter is grayed out when the track is muted.
⑤ Volume bar (display): indicates the track's volume.
⑥ Encoder:

- Turn the encoder to adjust the track's volume.

- Press the encoder to enable or disable the track's sound.

Controlling actions

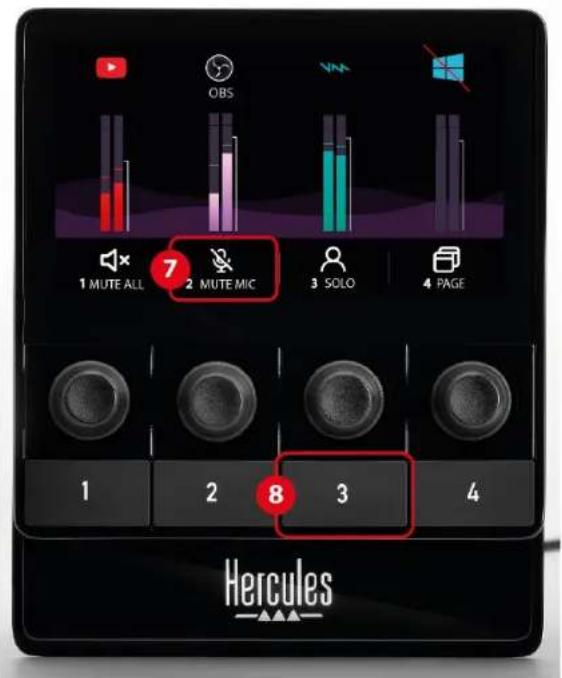

OBS 1 MUTE ALL 7 MUTE MIC 3 SOLO 4 PAGE 1 2 8 3 4 Hercules

⑦ Action icon (display): lets you add a visual cue for the action assigned to the corresponding action button.

- Icon: by default, the icon is grayed out when the action is running.

If you use a custom icon, the OFF status icon is displayed when the action is executed. To find out how to define an ON status icon and an OFF status icon, refer to the Custom icon section.

- Name: lets you name the assigned action. The text is grayed out when the action is running.

⑧ Action button: lets you enable or disable the action assigned to this button.

The status of the action button is indicated by an LED:

• LED off: no action is assigned to the button.
• LED on: an action is assigned to the button.
• LED flashing: an action is running.

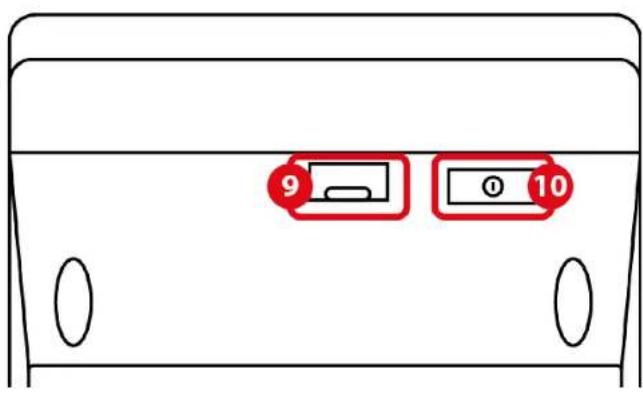

Connection port and brightness button

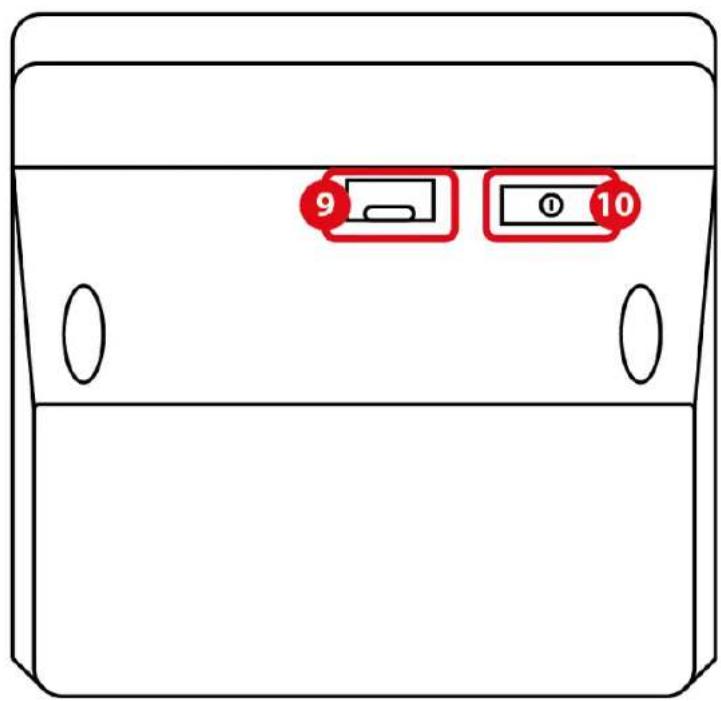

9 ① 10

⑨ USB connector: lets you connect Hercules Stream 100 to a computer using the USB-A – USB-C power cable.

⑩ Brightness adjustment button:

- Short press: increases the brightness of the screen. If the light intensity is set to maximum, a short press returns the light intensity to minimum.

- Long press: puts the screen to sleep, without switching off the audio functions.

5. Hercules Stream Control

On first launch, a tutorial appears, showing you how to use Hercules Stream Control. To watch the tutorial again, click Settings, then Restart tutorial.

Main functions

Peripherals

The Peripherals menu lists all audio devices connected to the computer and recognized by Windows. They are grouped into two categories:

• RECORDING: all devices that let you record audio (USB microphones, sound cards, etc.).
• PLAYBACK: all devices that let you play audio (speakers, headphones, sound cards).

To control a device with Hercules Stream 100:

1. Click on a device in the list.

2. Two labels are displayed:

○ Volume: lets you control the volume. Drag and drop the Volume label into a yellow-lit area on the image of Hercules Stream 100. You can adjust the volume using the encoder corresponding to that track.

○ Mute: lets you mute the sound. Drag and drop the Mute label into a blue-lit area on the image of Hercules Stream 100. You can mute the sound using the action button corresponding to that track.

1. A panel opens on the right-hand side. You can name the track or action, assign an icon or change the color of the VU meter.

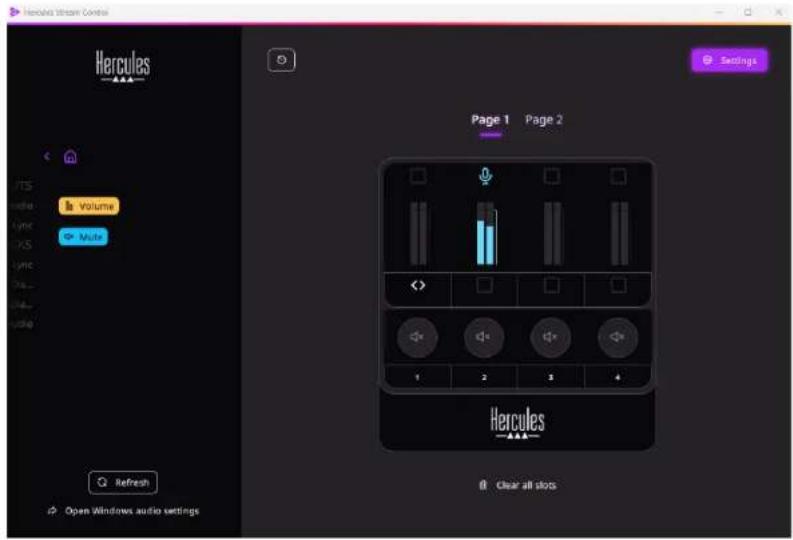

Hercules Stream Control Hercules Volume Main Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps

The Apps menu lists all apps that output an audio stream recognized by Windows on the user's computer.

To control an app with Hercules Stream 100:

1. Click on an app in the list. If the app you want to assign is not in the list, launch the app and, if necessary, for Internet browsers or music apps, play a media file.

2. Two labels are displayed:

○ Volume: lets you control the volume. Drag and drop the Volume label into a yellow-lit area on the image of Hercules Stream 100. You can adjust the volume using the encoder corresponding to that track.

- Mute: lets you mute the sound. Drag and drop the Mute label into a blue-lit area on the image of Hercules Stream 100. You can mute the sound using the action button corresponding to that track.

1. A panel opens on the right-hand side. You can name the track or action, assign an icon or change the color of the VU meter.

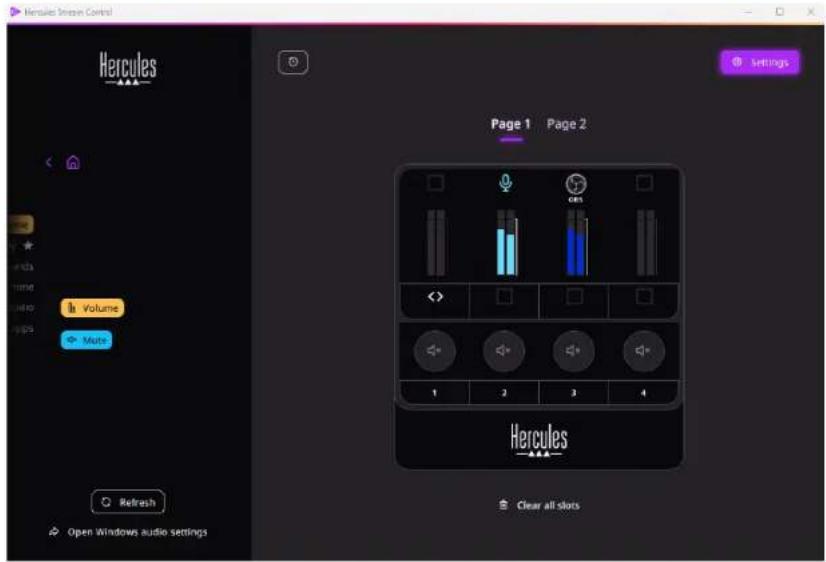

Hercules Engine Control Volume Mute Page 1 Page 2 Hercules Clear all slots Refresh Open Windows audio settings

Specific functions:

• Multi-app Volume: lets you add multiple apps to a single track and control them via a single volume knob. Drag and drop the Multi-app Volume label into a yellow-lit area on the image of Hercules Stream 100. In the right-hand panel, select the apps you want to group on this track.
• ☆: lets you anchor an app in the list. It will appear permanently, even if it is not launched.
• 🔒: lets you hide an app from the list. It will only appear in the Hidden apps

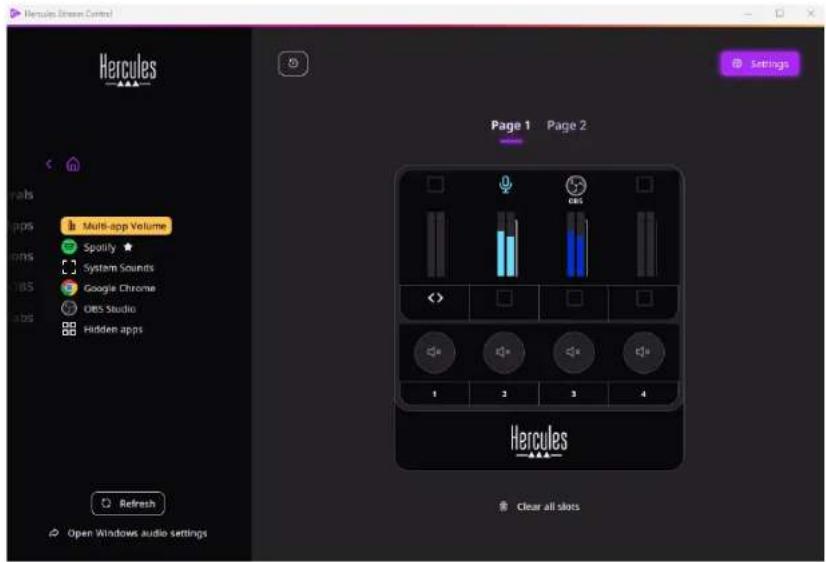

Hercules Dream Control Page 1 Page 2 Settings Multi-app Volume Spotify ★ System Sounds Google Chrome OBS Studio Hidden apps Refresh Open Windows audio settings Hercules Clear all slots

Actions

The Actions menu lists all the actions assignable to action buttons 1 to 4 on Hercules Stream 100.

To assign an action, simply drag and drop a label into a blue-lit area on the image of Hercules Stream 100.

Hercules Stream Control Page 1 Page 2 Push to mute Clear all slots

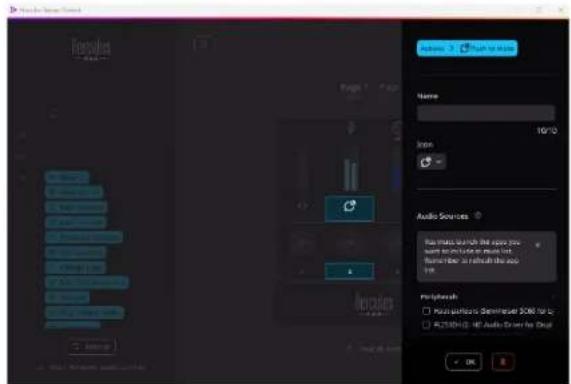

The panel on the right-hand side lets you assign a name and icon to the action and configure it (if the action can be configured).

Audio Files Page 1 Page Name 10/10 Icon Audio Sources Play https://www.abc.com/ Play https://www.abc.com/ Playback: 3 formats in the app Link Peripheral □ Make purchases Dashhead $OMS for up □ A255N0: H! Audio Driver for Digit OK

Mute all: mutes all audio sources recognized by Windows.

Mute source : mutes all audio sources selected in the list.

Mute channel : mutes all audio channels selected in the list.

Push to mute: mutes all audio sources selected in the list for as long as the corresponding action button is pressed.

Keyboard shortcut : launches a keyboard shortcut.

URL launcher: opens an Internet page and launches the URL that you have entered.

Change page: changes the page on Hercules Stream 100 and in Hercules Stream Control.

Solo / Isolate source : mutes all audio sources apart from the selected source.

Set level: sets the volume of selected audio sources or tracks to a preset level.

© Play / Pause media : plays or pauses the track.

@ Next media : plays the next media track in the playlist.

Previous media: plays the previous media track in the playlist.

Customization

When an item is added to Hercules Stream 100, a customization and configuration menu appears on the right-hand side of the Hercules Stream Control app, allowing you to add or modify various features of the item.

Name: lets you assign a name (maximum 10 characters, both uppercase and lowercase letters allowed).

Icon: lets you assign an icon. Custom icons can be added to the icon library from Graphics settings.

VU meter color: for VU meters only, lets you select the VU meter's color and display solid or gradient levels.

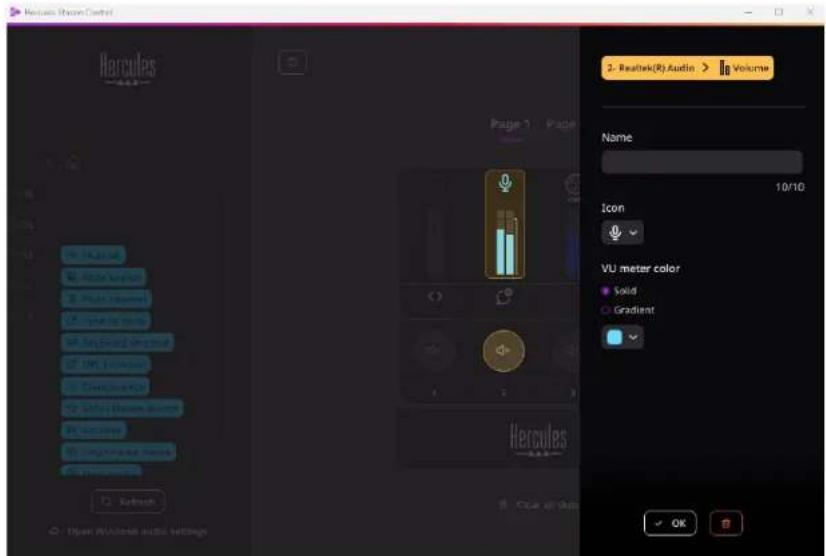

Hercules Page 1 Page 2 2. Realtek(R) Audio > Volume Name 10/10 Icon VU meter color Solid Gradient OK Open Audio audio settings

Other fields or characteristics can be completed or modified to configure the action.

Third-party apps

The Hercules Stream Control app can connect to various third-party apps to control certain elements.

To find out how to connect third-party apps to Hercules Stream Control, please refer to the Server access section.

OBS

OBS is a video recording and streaming app for managing multiple media sources via a system of scenes.

Managing audio volume levels in OBS:

• General volume: controls the general volume of the OBS app. Drag and drop the label into a yellow-lit area on the image of Hercules Stream 100.
• [O]: controls a specific track from the OBS app. Two labels are displayed:

○ Volume: lets you control the volume. Drag and drop the Volume label into a yellow-lit area on the image of Hercules Stream 100. You can adjust the volume using the encoder corresponding to that track.

- Mute: lets you mute the sound. Drag and drop the Mute label into a blue-lit area on the image of Hercules Stream 100. You can mute the sound using the action button corresponding to that track.

Assigning an action

Drag and drop a blue label into a blue-lit area on the image of Hercules Stream 100. You can launch the action using the action button corresponding to that track.

• Play audio file: lets you select an audio file from an OBS scene, and play it.
• Scene Switch: lets you select a scene previously created in the OBS app, and launch it.
• Filter ON/OFF: lets you select a filter to be associated with an OBS source, and enable it.
• Toggle recording: lets you start and stop recording of the audio/video stream via the OBS app.
• ▷ Start/stop streaming : lets you start and stop livestreaming via the OBS app.

Streamlabs

Streamlabs is a video recording and streaming app for managing multiple media sources via a system of scenes.

Managing audio volume levels in Streamlabs:

- General volume: controls the general volume of the Streamlabs app. Drag and drop the label into a yellow-lit area on the image of Hercules Stream 100.

- [icon] controls a specific track from the Streamlabs app.

Two labels are displayed:

○ Volume: lets you control the volume. Drag and drop the Volume label into a yellow-lit area on the image of Hercules Stream 100. You can adjust the volume using the encoder corresponding to that track.

○ Mute: mutes the sound. Drag and drop the label into a blue-lit area on the image of Hercules Stream 100. You can mute the sound using the action button corresponding to that track.

Assigning an action

Drag and drop a blue label into a blue-lit area on the image of Hercules Stream 100. You can launch the action using the action button corresponding to that track.

• Scene Switch: lets you select a scene previously created in the Streamlabs app.
• .Let's you start and stop recording of the audio/video stream via the Streamlabs app.
• : let's you start and stop livestreaming via the Streamlabs app.

Settings

Settings

The Settings menu lets you configure the Hercules Stream Control app.

General settings

This submenu lets you:

- select the app's language;

- watch the tutorial again;

- update the Hercules Stream Control app and the Hercules Stream 100 firmware;

- access links to legal information.

Graphic settings

This submenu lets you:

- change the appearance of the VU meters and the action area;

- add icons and define the ON/OFF status icons (supported formats: .jpeg, .png and .svg; size: 32 x 32 pixels (icon), 480 x 272 pixels (background));

- add and change the background.

Custom icon:

By default, when you use an icon suggested by Hercules Stream Control, the action icon is grayed out when an action is triggered, and the track icon is crossed out when the track is muted.

You can define icons to be displayed according to the status of the action or of the track:

– Action not triggered / Track playing: ON status icon;
- Action in progress / Track muted: OFF status icon.

To set the ON/OFF status icons:

- In My icon library, click Add new custom icon.

- Select an image. This image will be the ON status icon.

- To set the OFF status icon, click

- In the Edit icon window, click Add OFF state, then click + to select an image.

- Click Save.

Images must be in .jpeg, .png or .svg format and 32 x 32 pixels in size.

Server access

This submenu lets you connect third-party apps to Hercules Stream Control.

OBS:

1. To link OBS to Hercules Stream Control, open the OBS app.
2. In the Tools tab, select WebSocket Server Settings.
3. In Plugin Settings, tick Enable WebSocket Server.
4. In Server settings:
5. enter "4455" in the Server Port box;
6. tick Enable Authentication;
7. set a server password in the Server password box.
8. Click Apply, and then click Ok.
9. In the OBS Access section of Hercules Stream Control, enter the same number and password in Server Port and Server password as in OBS.
10. Click Save.

Streamlabs:

1. To link Streamlabs to Hercules Stream Control, open the Streamlabs app.
2. To open the settings, click ⚙ in the bottom-left menu.
3. Select the Remote Control menu.
4. Click Click to reveal to display the QR code, then click Show details.
5. Copy the API token.
6. In the Streamlabs Access section of Hercules Stream Control, enter the same number in Port as in Streamlabs and paste the API token in API token.
7. Click Save.

Hercules

TECHNICAL SUPPORT

https://support.hercules.com

Trademarks

Microsoft® Windows® 10/11 is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

Open Broadcaster Software ^® (OBS) is a trademark of Wizards of OBS LLC.

Streamlabs ^® is a registered trademark of Logitech Services S.A.

All other trademarks and trade names are duly respected in this document and remain the property of their respective owners. Illustrations not binding. Contents, illustrations and specifications are subject to change without notice and may vary from one country to another.

Copyright

No part of this manual may be reproduced, summarized, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, for any purpose or by any means, electronic, mechanical, magnetic, manual, photocopying, recording, or otherwise, without the express written permission of Guillemot Corporation S.A.

STREAM 100

AUDIO CONTROLLER

Black ergonomic electric guitar with control knobs and display screen (no visible text or symbols)

TABLE DES MATIÈRES

1. CONTENU DE LA BOITE......5
2. CARACTERISTIQUES TECHNIQUES......6
3. INSTALLATION 7

Branchement du Hercules Stream 100 .....7

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

https://support.hercules.com/product/stream100.

Mobile User Control Volume 3 AppUser your profile is Name: 10/19 Profile Search buttons This image has been for any this image is available to the data set by the user's profile. It is not available to the application to find the app? Help another request Is true platform (another user) is required. Do you use this application to get OK

Black ergonomic electric guitar with control knobs and display screen (no visible text or symbols)

INHALTSVERZEICHNIS

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Hercules Stream Coobol Page 1 Page 2 Settings Peripherals Apps Actions OBS Streamlabs Refresh Open Windows audio settings Page 1 Page 2 1 2 3 4 Hercules Clear all slots

4. Funktionen

Überblick

1 2 3 4 5 6 7 8 1 2 3 4

Hercules Stream Control VOLUME Multi Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps

Apps

Profile Name: 12/16 Audio Settings Your mask button: The new user will be installed in the main box. It is recommended to switch the new icon. Foreground ■ Microsoft's Distresser Call for My ■ 0x2000 - 45. Audio Driver for Graph

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

INHOUDSOPGAVE

1. INHOUD VAN DE VERPAKKING......5
2. TECHNISCHE SPECIFICATIES......6
3. INSTALLATIE....7

Hercules Stream Control downloaden......8

1. FUNCTIONALITEIT ......9

Overzicht....9

Tracks beheren....11

Beheeracties....14

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

https://support.hercules.com/product/stream100.

1. Download en installeer de Hercules Stream Control-app.
2. Open de Hercules Stream Control-app om de Hercules Stream 100 te configureren.

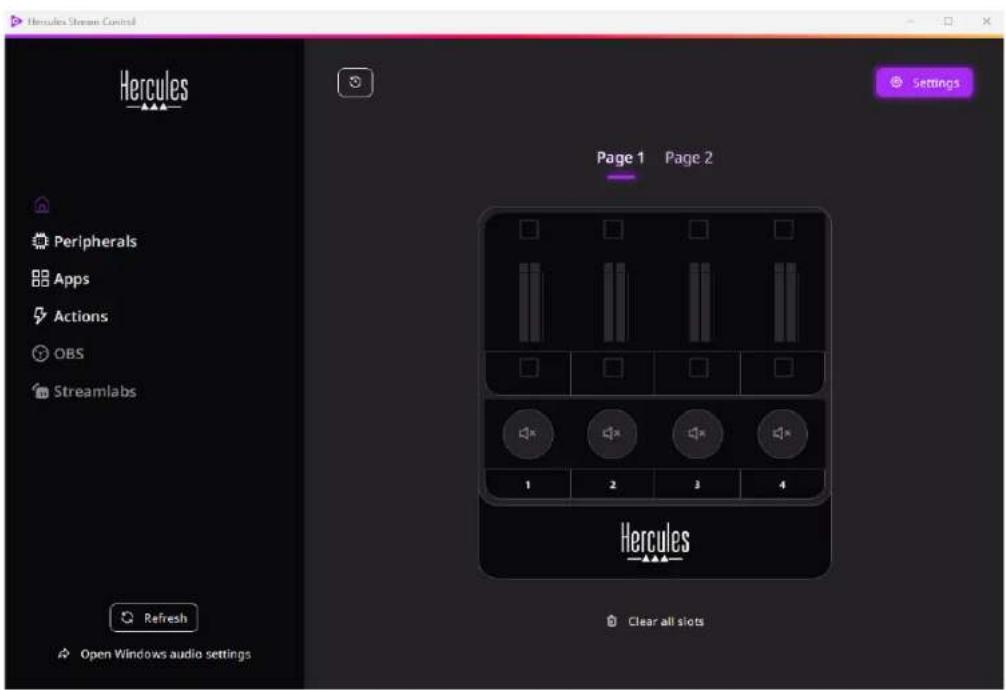

Hercules Stream Control Hercules Page 1 Page 2 Refresh Open Windows audio settings Settings Clear all slots

4. Functionaliteit

Overzicht

1 2 3 4 5 6 7 8 1 2 3 4

Hercules Stream Control Hercules VOLUME Multi Page 1 Page 2 Refresh Open Windows audio settings Clear all slots

Apps

Hercules Page 1 Page 2 Push to mute Clear all slots Refresh Open Windows audio settings

Audio Name: 10/10 Item Audio Sources You must search the app you want to include in millions. Remember to select the app box. Peripherals Net-partners (Enteraher SGB for L) Hi-2006 (45 Audio Driver for Dog)

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

INDICE

1. CONTENUTO DELLA CONFEZIONE......5
2. CARATTERISTICHE TECNICHE......6
3. INSTALLAZIONE......7

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Non collegare Hercules Stream 100 a un hub USB.

Download di Hercules Stream Control

https://support.hercules.com/product/stream100.

1. Scarica e installa Hercules Stream Control.
2. Apri la app Hercules Stream Control per configurare il tuo Hercules Stream 100.

Hercules Power Control Hercules Page 1 Page 2 Refresh Open Windows audio settings Clear all slots

4. Funzionalità

Panoramica

1 2 3 4 5 6 7 8 1 2 3 4

Hercules Page 1 Page 2 Push to move Hercules Clear all slots

Screenshot of a software interface showing audio editing controls and settings panel with Chinese labels

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

TABLA DE CONTENIDO

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

No conectes el Hercules Stream 100 a un concentrador USB.

Descarga de Hercules Stream Control

https://support.hercules.com/product/stream100.

Hercules Stream Control Volume Multi Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps (Aplicaciones)

Hercules Stream Control Page 1 Page 2 Push to move Hercules Stream Control Refresh Open Windows audio settings

Audio Name: 10/10 Audio Sources Where must be the sign you we will be used to find this reternar or through the app. Hi5. Highsets □ Highpathable Deepbox 3200 for i □ A 2.000x 100% low level for dogs

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

ÍNDICE

1. CONTEÚDO DA EMBALAGEM......5
2. ESPECIFICAÇÕES TÉCNICAS ......6
3. INSTALAÇÃO......7

Ligar o Hercules Stream 100....7

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Hercules Stream Control Page 1 Page 2 Push to mate OK COS Hercules Clear all slots Refresh Open Windows audio settings

Audio Name: 8012 Video Audio Sources Microsoft export the image you we have to export the image. We remember to export the image. The audio Hot portion: Diesel from 3GB for C# FLJ2017-40 (Air) to Diver for USB

Black ergonomic Hervico VR headset with control knobs and display screen (no readable text or symbols)

СОДЕРЖАНИЕ

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Не подключайте

Hercules

Stream 100

K

концентратору USB.

Загрузка Hercules Stream Control

Hercules Stream Control Page 1 Page 2 Push to mute Hercules Stream Control Refresh Open Windows audio settings

Audio Name: 10/13 Item Audio Sources You must launch this app you want to include an app for the information to access your app. Peripherals □ Macromedia (Macromedia: 5G84 for L) □ PC-VR (PC-VR: Macromedia: 5G84 for L) OK

Black ergonomic electric guitar with control knobs and display screen (no visible text or symbols)

OBSAH

1. OBSAH BALENÍ......5
2. TECHNICKÉ SPECIFIKACE ......6
3. INSTALACE....7

Actions (Akce)....22

Přizpůsobení 25

https://support.hercules.com/product/stream100.

Hercules Stream Control VOLUME Volume Multi Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps (Aplikace)

Hercules Page 1 Page 2 Fush to make Hercules Clear all stars 4 Open Windows audio settings

Rancules 10/10 Audio Sources We must search the audio file we want to choose in mode line. Remember you to publish the app let Foreground ■ Make platform (Rancules: 5.00 fps) ■ Add to the audio source for this

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

içİNDEKİLER

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Home Search Name Code Audio Sources You must search the words you want to have your own. Remember to what the text is. Get friends Hot purchase: Get friends 2024 for C# P.O.2019-2: REA will be used for this

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

SPIS TREŚCI

1. ZAWARTOŚĆ OPAKOWANIA......5
2. DANE TECHNICZNE......6
3. INSTALACJA 7

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

https://support.hercules.com/product/stream100.

Hercules Stream Control Hercules Page 1 Page 2 Settings Peripherals Apps Actions OBS Streamlabs Refresh Open Windows audio settings Page 1 Page 2 Hercules Clear all slots

4. Elementy

Widok ogólny

1 2 3 4 5 6 7 8 1 2 3 4

Hercules Stream Control Page 1 Page 2 Push to move Hercules Stream Control Clear all slots Refresh Open Windows audio settings

Forecasts Name: 10/12 Inn Audio Sources You must search the again you want forecast as more than from return to search on app box. Peripherals □ No segmentors (Green filter 2023 for L) □ Platform: No Audio Drive for Click OK

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

INNEHÅLLSFÖRTECKNING

1. INNEHÅLL I FÖRPACKNINGEN ......5
2. TEKNISKA SPECIFIKATIONER......6
3. INSTALLATION 7

Ansluta Hercules Stream 100....7

Ladda ner Hercules Stream Control......8

1. FUNKTIONER......9

Översikt....9

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

https://support.hercules.com/product/stream100.

Hercules Stream Control VOLUME Main Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps (Appar)

Hercules Stream Control Page 1 Page 2 Push to mute Hercules Stream Control Settings Refresh Open Windows audio settings

Audio Name: 8012 Video Audio Sources Recommended search for apps you with or without audio files. Recommended to extract the app File The audio Input portfolio: General from 2016 for PL3201.2.40 Audio Order for Print OK

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

SISÄLLYSLUETTELO

1. LAATIKON SISÄLTÖ 5
2. TEKNISET TIEDOT 6
3. ASENNUS....7

Hercules Stream Control Volume Multi Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps (Sovellukset)

Audio Name: MOSI Audio Sources Microsoft export the output you we have to export the output. The outputs: Heat portfolio: Data from 3GND for G FLJ2017.4.16 (A) & D in the format for Web OK

Black ergonomic device with digital display and control knobs, labeled 'Hercules' (no readable text beyond branding)

OBSAH

1. OBSAH BALENIA ....5
2. TECHNICKÉ ŠPECIFIKÁCIE ......6
3. INŠTALÁCIA....7

Pripojenie Hercules Stream 100....7

Stiahnutie Hercules Stream Control ....8

1. VLASTNOSTI......9

Prehl'ad 9

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Nepripájajte Hercules Stream 100 k rozbočovaču USB.

Stiahnutie Hercules Stream Control

https://support.hercules.com/product/stream100.

1. Stiahnite a nainštalujte Hercules Stream Control.

2. Otvorte aplikáciu Hercules Stream Control a nakonfigurujte svoj Hercules Stream 100.

Hercules Stream Control Hercules Page 1 Page 2 Refresh Open Windows audio settings Clear all slots

4. Vlastnosti

Prehl'ad

1 2 3 4 5 6 7 8 1 2 3 4

Hercules Stream Control Page 1 Page 2 Push to mute < > Clear all sizes Refresh Open Windows audio settings

Audio Name: 10/12 Audio Sources Audio export: The image you want to export the audio file. Audio export: For your app For otherwise: Input music or Music order (30% for 5) FLU2024 (30% Audio Order for Print)

Black ergonomic electric guitar with control knobs and display screen (no visible text or symbols)

TARTALOMJEGYZÉK

1. DOBOZ TARTALMA ....5
2. TECHNIKAI SPECIFIKÁCIÓK......6
3. TELEPÍTÉS......7

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Hercules Stream Control Hercules Page 1 Page 2 Settings Peripherals Apps Actions OBS Streamlabs Refresh Open Windows audio settings Page 1 Page 2 Hercules Clear all slots

4. Jellemzők

Áttekintés

1 2 3 4 5 6 7 8 1 2 3 4

Hercules Stream Control Volume Multi Settings Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps (Alkalmazások)

Hercules Page 1 Page 2 Push to mute Hercules Clear all slots

Hercules Name: 16/12 Icon Audio Sources You must search the audio you has to include in more than... thereafter to refresh the app box Hercules Peripherals ■ Signal portfolio Genethower 300 for it ■ iCloud is not available for this

Black Hermès audio recording device with multiple knobs and a digital display (no readable text or symbols)

תְרָה בְּרָה

1. 1.

2. 2.

7......3.

7......Hercules Stream 100

8......Hercules Stream Control

9......4.

9.

11 ...... כרִיְשָׁה

.https://support.hercules.com/product/stream100

.Hercules Stream Control אַרְׁעֹרָה לַרְׁעֹרָה.3

'TO Hercules Stream Control 777798 76 109.4

.Hercules Stream 100

Hercules Stream Control Hercules Page 1 Page 2 Refresh Open Windows audio settings Clear all slots

תְבָרִי הַלְה

1 2 3 4 5 6 7 8 1 2 3 4

(הכלה) 1

(הכלה)הכלה .2

(הכלה)הכלה 700 .3

(הכלה) VU τη .4

(הכלה) 5

TIIpn .6

(הכלה)הכלה 700 .7

הכלה 197.8

9 10 11

1. בְּרָה

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

אכלה (הכלה)

Hercules Stream 100 :USB ⑨

.USB-C-USB-A 70000

(בַרְהָרִי) Peripherals

Peripherals

Hercules Stream Control VOLUME Multi Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps

Hercules Stream Control Page 1 Page 2 Push to mate Open Windows audio settings

Audio Balance Balance 10/10 Audio Another Sounder Show that search the audio you want to use a sound in the music. Description to check the audio. For signals: local soundset: Event handler (SQL for U) R: 25dB (3) Hz by 0.0000 for SQL OK

) Mute all

Windows .n

.Hercules Stream 100 Ⓟ Ⓟ Ⓟ Ⓟ Ⓟ Ⓟ Ⓟ

© Toggle recording —

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

.הכלהה,הכלהה,

Hercules 77 (OBS-7הכלה) OBS ACCESS 6

-הכלההוּרָה,Stream Control

Server password-☐ (הכלה) Server Port

.OBS-תְּוֹם (הכלהה)

.(הכלה) Save 7.7

Streamlabs:

,Hercules Stream Control-7 Streamlabs אַרְבָרִי לְקֹת.1

Black Hermès audio recording device with control knobs and display screen (no readable text or symbols)

جدول المحتويات

.https://support.hercules.com/product/stream100

.Hercules Stream Control 3.

Hercules Stream Control Hercules Page 1 Page 2 Settings Peripherals Apps Actions OBS Streamlabs Refresh Open Windows audio settings Page 1 Page 2 Hercules Clear all slots

1. إت

نظرة عامة

1 2 3 4 5 7 1 2 3 8 4

.1. Supphة (الشاشة)

Hercules Stream Control Page 1 Page 2 Push to mute Hercules Stream Control Settings Puts Muts all Muts source Muts channel Push to mute Keyboard shortcut URL launcher Change page Solo / isolate source Set level Play / Pause media Next play Refresh Open Windows audio settings Clear all slots

Iemesis Audio Sources You must switch the audio how we have to include your music. Remember how much the audio Audio Poly(zeta) □ How portfolio Semi-Asset SOD for i: □ KL238102 - 100 Audio Driver for i OK

) كمالكل : ( 1

Windows.

Black ergonomic electric guitar with control knobs and display screen (no readable text or symbols)

目次

Peripherals (周边機器)....17

Apps (アプリ)....19

Actions (アクション)....22

カスタマイズ....25

サードパーティ製アプリ....26

OBS....27

Streamlabs 29

Settings (設定)....31

General settings (一般設定)....31

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

https://support.hercules.com/product/stream100.

Diagram of an electrical switch panel with numbered components and indicator lights, highlighting safety features.

Hercules Stream Control Volume Multi Page 1 Page 2 Hercules Clear all slots Refresh Open Windows audio settings

Apps

Hercules Stream Control Page 1 Page 2 Push to music Hercules Clear all does

Audio Record Control Harcules Name: 10/10 Icon Audio Sources You must launch the app you want to create in more bits. Harcules will launch the app bus Peripherals □ Harcosphere Guidance 300% file □ □ PUCOSO - HD audio drive for Drop OK

Black ergonomic electric guitar with control knobs and display screen (no visible text or symbols)

目录

General settings (常规设置)....31

Graphic settings (图形设置)....31

Server access (服务器访问)....34

STREAM 100

AUDIO CONTROLLER

Diagram of an electrical switch panel with numbered components and indicator lights, highlighting safety features.

Hercules Stream Control Page 1 Page 2 Push to mute Hercules Stream Control Refresh Open Windows audio settings

Audio Name: MOS Audio Sources Show out the image you have to use video source. remipede to extract the audio the graphics Input portfolio: Direct from 3GND for G FLUSH2-100 Audio Drive for UGT OK

Mute all (全部静音): 静音被 Windows 识别的所有音频源。

General settings (常规设置)

通过此子菜单，您可以：

- 选择应用的语言；

- 再次观看教程;

- 更新 Hercules Stream Control 应用和 Hercules Stream 100 固件;

- 访问法律信息链接。

Graphic settings (图形设置)

通过此子菜单，您可以：

- 更改音量计和操作区域的外观;

Black ergonomic electric guitar with control knobs and display screen (no visible text or symbols)

目錄

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Hercules Stream Control Hercules Page 1 Page 2 Settings Peripherals Apps Actions OBS Streamlabs Refresh Open Windows audio settings Page 1 Page 2 Hercules Clear all slots

4. 功能

概覽

1 2 3 4 5 7 1 2 3 8 4

Hercules Stream Control Volume Multi Page 1 Page 2 Refresh Open Windows audio settings Hercules Clear all slots

Apps (應用)

Apps

Hercules Stream Control Page 1 Page 2 Push to mute Hercules Stream Control Settings Puts Tips Mute all Mute source Mute channel Push to mute Keyboard shortcut URL launcher Change page Solid / Isolate source Set level Play / Pause media Next music Refresh Open Windows audio settings

Black ergonomic electric guitar with control knobs and display screen (no visible text or symbols)

목차

Actions (동작)......22

맛춤 설정....25

타사 앱 26

OBS 27

Streamlabs....29

Settings (설정)......31

General settings (일반 설정)......31

Graphic settings (그래픽 설정) 31

Server access (서버 액세스)....34

STREAM 100

AUDIO CONTROLLER

Diagram showing connection between a multimeter and a desktop computer via cable, with labeled components and directional arrows.

Hercules Stream Control Hercules Page 1 Page 2 Settings Peripherals Apps Actions OBS Streamlabs Refresh Open Windows audio settings Page 1 Page 2 Hercules Clear all slots

4. 기능

개요

1 2 3 4 5 7 1 2 3 8 4

Hercules Volume Multi Page 1 Page 2 Refresh Open Windows audio settings Clear all slots

Apps (압)

Apps

Hercules Stream Control Page 1 Page 2 Push to music Hercules Stream Control Open Windows audio settings

Name 10P10 Token Public sources You could search the image you want to choose to match the remainder to advance for any. Help Product ● Make patterns Shenzhen 3400 For i ● 52.200-61.200 3400 For your group OK
