Product Type	Inspection Camera
Brand	Laserliner
Model	DuoView Camera
Application	Connected to the VideoFlex base unit for visual inspection of cavities, shafts, masonry, vehicles
Camera head	Diameter 9 mm, water resistant IP67
Sensor type	CMOS
Resolution	640 x 480 pixels
Field of view	57°
Focal length (front camera)	3 to 5 cm
Focal length (side camera)	1 to 5 cm
LED lighting	4 front LEDs, 2 side LEDs
Flexible tube length	1 m
Cable diameter	6 mm
Minimum bending radius	50 mm
Weight	144 g
Dimensions (L x W x H)	1100 x 30 x 24 mm
Working conditions	0°C to 45°C, humidity 20-90% RH without condensation
Storage conditions	-10°C to 60°C, max humidity 80% RH
Cleaning	Slightly damp cloth, no solvents or abrasive cleaners
Safety	Do not use near dangerous voltages, nor for medical examinations
Electromagnetic compatibility	Compliant with EMC directive 2014/30/EU

Frequently Asked Questions - DuoView Camera Laserliner

How to connect the DuoView camera to the base unit?

The DuoView camera plugs directly into the VideoFlex base unit via the dedicated connector (reference 1 on the diagram). Make sure the connection is properly engaged.

How to switch between front and side camera?

Use the switch button (reference 2 on the diagram) to toggle between the front camera view and the side camera view. The green LED (side camera) or red LED (front camera) indicates the active view.

What is the depth of field of the front camera?

The front camera provides sharp images at a distance between 3 and 5 cm in front of the camera head. Objects beyond this range may appear blurry.

Is the camera waterproof?

Yes, the camera head is water resistant with an IP67 rating. It can be temporarily submerged, but not the camera body or cable.

Can I use this camera to inspect live electrical installations?

No, the device is not suitable for measurement near dangerous voltage. Ensure that conductive parts are de-energized before any inspection.

How to maintain and clean the camera?

Clean all components with a slightly damp cloth. Do not use cleaning agents, scouring products, or solvents. Store the device in a dry and clean place.

What is the camera's field of view?

The field of view is 57° for both cameras (front and side).

How many LED lights does the camera have?

The camera is equipped with 4 front LEDs and 2 side LEDs to illuminate the inspected areas.

What temperature conditions can I use the camera in?

The camera operates between 0°C and 45°C with relative humidity of 20 to 90% (non-condensing). Storage is possible from -10°C to 60°C.

Can the camera be used for medical examinations?

No, it is prohibited to use the DuoView Camera for medical examinations or on persons.

USER MANUAL DuoView Camera Laserliner

Close-up of a black endoscopic endoscope with a laser liner, showing no text or symbols on the device itself.

Laserliner

!

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / Application

The DuoView Camera is a camera unit for connection to the base VideoFlex unit. When combined with the base unit, colour video images are sent to the LCD for inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• The camera head is not acid-resistant or fireproof.
• It is absolutely vital to ensure that the DuoView Camera does not come into contact with chemicals, voltage, moving or hot objects. This can damage the device and put its user at risk of serious injury.
• The DuoView Camera must not be used for medical examinations / examining people.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.
• The unit is not suitable for taking measurements close to dangerous voltages. Therefore always make sure that conductive parts are at zero potential when carrying out measurements in the vicinity of electrical systems. Safe isolation from the power supply and precautions to prevent systems being switched on again must be ensured by implementing suitable measures.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet

• The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).
• When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.

Safety instructions

Dealing with electromagnetic radiation

- The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.

Laserliner

- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

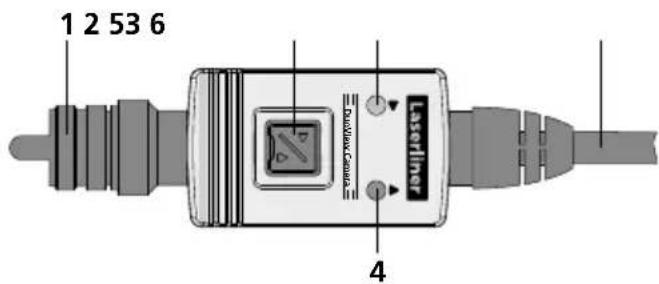

1 Base unit connection
2 Switch between front and side camera
3 Green LED for side camera
4 Red LED for side camera

Diagram of a cable or connector with three circular holes and a numbered label (7), no text or symbols present.

5 Flexible cable
6 Side camera
7 Front camera

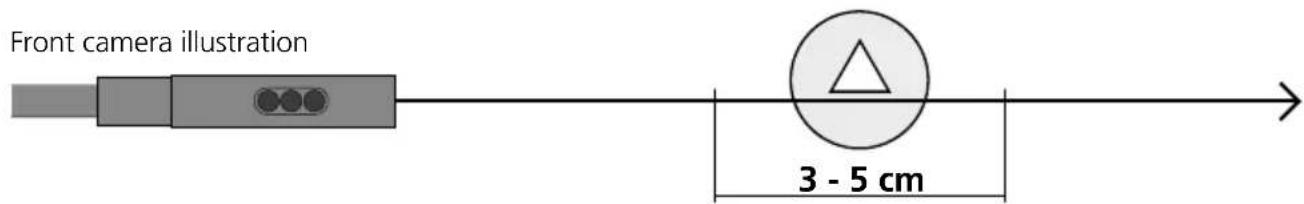

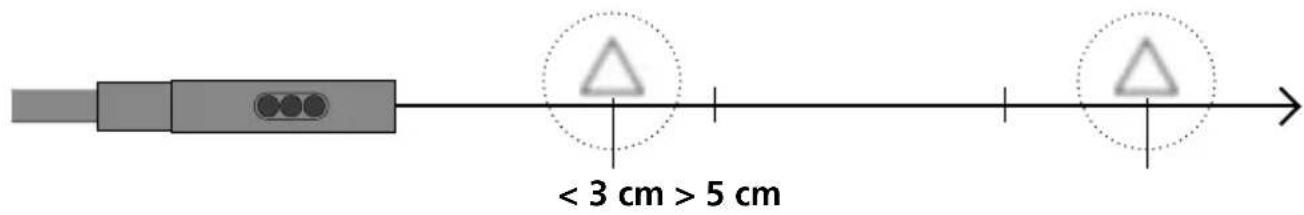

1 Focal depth

The front camera on the DuoView camera delivers sharp images in a range between 3 and 5 cm from the camera head. The side camera has a depth of field of 1 to 5 cm from the camera head.

Objects well beyond the focus range may appear blurred.

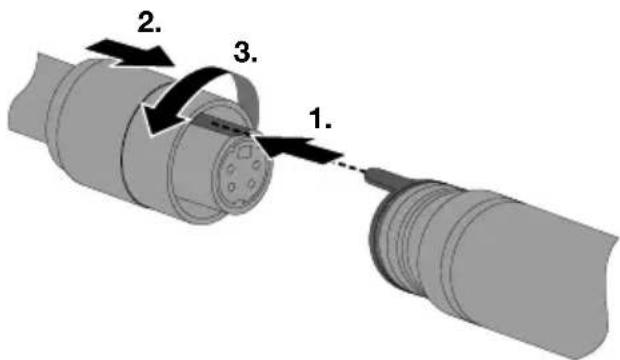

2 Connection for flexible cable

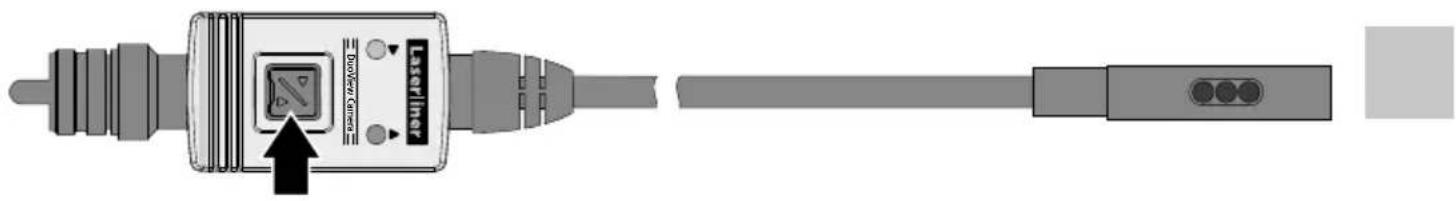

3 Switch between front and side camera

Technical data
Subject to technical alterations. 19W31

Type of camera CMOS image sensor
Camera head ø 9 mm
Camera head protection class water-resistant, IP 67
Camera head LEDs Front: 4 / Side: 2
Camera resolution 640 x 480 pixels
Field of vision 57°
Camera focus Front: F3 cm - F5 cm / Side: F1 cm - F5 cm
Cable diameter 6 mm
Length of flexible cable 1 m
Minimum bending radius 50 mm
Operating conditions	0°C ... 45°C, max. humidity 20 ... 90% rH,no condensation, max. working altitude 4000 mabove sea level
Storage conditions -10°C ... 60°C, max. humidity 80% rH
Weight 144 g
Dimensions (W x H x D) 1100 x 30 x 24 mm

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=AID

!
