USER MANUAL Mysa CHICCO

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

chicco®

Technical diagram showing mechanical assembly with labeled component '1' and red directional arrows indicating motion or force.

Illustration of a hand using a baby stroller to lift a baby's wheel (no text or symbols present)

Line drawing of a hand holding a mechanical component with a red arrow indicating rotation (no text or symbols)

4

Illustration of hands using a tool to adjust or install a car wheel (no text or symbols visible)

Line drawing of a car's front wheel assembly with a hand adjusting the wheel (no text or symbols)

Illustration of hands securing a cable with a 5A label (no text or symbols on the diagram itself)

Illustration of a hand using a tool to adjust a car wheel rim (no text or symbols present)

Line drawing of hands adjusting a component in a car seatbelt (no text or symbols)

Line drawing of a hand using a tool to cut or adjust a mechanical component, no text or symbols present

6 3 2 1 4

6A

Line drawing of hands adjusting a mechanical component with a 6B label (no text or symbols on the diagram itself)

Line drawing of hands holding a mechanical component with a red circular mark (no text or symbols)

Line drawing of a car seat assembly with no text or symbols

Mechanical assembly diagram showing a belt buckle adjustment with red arrows indicating direction (no text or symbols)

8A

9

Line drawing of a stroller with a gumbler and seat, no text or symbols present

Line drawing of a baby stroller with wheels and a red button (no text or symbols)

9C

10

11

Line drawing of a person using a bicycle seatbelt device, showing mechanical components and motion arrows (no text or symbols)

Line drawing of a person using a bicycle steering wheel, no text or symbols present

Illustration of a hand holding a white object over a textured gray area, with a red circular marker nearby (no text or symbols)

Line drawing of a hand using a tool to adjust or install a vehicle wheel (no text or symbols present)

13A

Illustration of a hand adjusting a car seatbelt with a red arrow indicating the point of change (no text or symbols present)

14A

15

Line drawing of a hand holding a tool, with a red circular marker labeled '15A' in the top-left corner (no other text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with a red arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand holding a gun with a red arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a seatbelt on a bicycle (no text or symbols visible)

Illustration of a baby stroller with a red ball attached, showing no text or symbols

18

18A

18B

Illustration of a hand holding a tool with a 18C mark, showing mechanical components and motion (no text or symbols)

18D

Illustration of hands holding a pen or tool, with a red arrow pointing to the pen tip (no text or symbols present)

19

Line drawing of a hand holding a device with a red circular indicator on the top (no text or symbols)

19B

Diagram showing a hand pressing down on a car seatbelt with a red arrow indicating motion (no text or symbols present)

19D

Line drawing of a mechanical device with a red circular mark on the left (no text or symbols)

19F

19G

19H 1 c

IT ISTRUZIONI D'USO

IMPORTANTE - LEG- GERE ATTENTAMEN- TE E CONSERVARE PER FUTURO RIFE- RIMENTO.

ATTENZIONE: PRIMA DELL'USO RI-MUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLASTICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFEZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BAMBINI.

AVVERTENZE

EN INSTRUCTIONS FOR USE IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

WARNINGS

- WARNING: Never leave the child unattended.

- WARNING: Ensure that all the locking devices are engaged before use.

- WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.

- WARNING: Do not let the child play with this product.

- WARNING: Always use the restraint system.

- The use of the crotch strap and safety harness is necessary to guarantee the safety of your child. Always use the safety harness together with the crotch strap.

- WARNING: Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

- WARNING: This product is not suitable for running or skating.

- WARNING: The seat unit is suitable for children from 0 months of age up to 4 years of age or 22 kg, whichever limit is reached first.

- It is recommended that the back-rest should be used in its most reclined position for children from birth to 6 months of age.

- Only KIROS I-SIZE FAST IN / KIROS EVO I-SIZE FAST IN and/or KAI-LY and/or KORY i-Size car seats equipped with compatible fitting devices and/or the MYSA LIGHT carrycot can be fastened to the CHICCO MYSA stroller.

- With the child carrycot fitted on the stroller: WARNING: This product in pram configuration is only suitable for children who cannot sit up unaided or roll over and cannot push up on their hands and knees. Maximum weight of the child: 9 Kg.

- WARNING: Do not add another mattress on top of the mattress supplied or recommended by the manufacturer.

- The parking device shall be engaged when placing and removing the children.

• Always apply the brakes when the stroller is stationary.

- Never leave the stroller on a sloped surface, with a child on board, even when the brakes are on.

- Do not overload the storage basket. Maximum weight 3 kg.

- Any weight attached to the handles and/or backrest and/or on the sides of the stroller may upset the stability of the stroller.

- Do not transport more than one child at a time.

- Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor.

• Do not use this product if any part is broken, torn or missing.
• With the car seat installed on the stroller, this is not a replacement for a crib or bed, if the child needs to sleep he or she should be placed in a carrycot, crib or bed.
• Before assembling, ensure that the product and its components have not been damaged during transportation. In this case, do not use and keep out of reach of children.
• During adjustment operations, ensure that the moving parts of the stroller do not come into contact with your child.
  • Make sure that the person using the stroller knows how to operate it in the safest way.
  • This product must only be used by an adult.
  • The product must only be assembled by an adult.
• To avoid all strangulation hazards, never give children objects with cords or strings attached, or leave them close to such objects.
• Never use the stroller on staircases or escalators: you could suddenly lose control of it.
  • Always pay attention when going up and down steps or pavements.
• If the stroller is left exposed to direct sunlight for an extended period of time, allow it to cool down before placing your child inside. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade.

• Prevent the stroller from coming into contact with salt water. It may cause rusting.

• Do not use the stroller on the beach.

• When not in use, the stroller should be kept out of reach of children.

TIPS FOR CLEANING AND MAINTENANCE

This product requires periodical maintenance. Cleaning and maintenance should only be carried out by an adult.

CLEANING

The lining can be removed (please refer to the section "Fitting/removing the seat lining"). Please refer to the care labels for instructions on how to clean the fabric parts. The washing symbols and relative meanings are indicated below:

Hand wash Do not bleach Do not tumble dry Do not iron Do not dry clean

Routinely wipe clean plastic parts with a soft damp cloth. Never use solvents or abrasive products. To prevent the formation of rust, always dry metal parts if they have come into contact with water.

MAINTENANCE

Regularly check the condition of the wheels and clean off all dust and sand. To avoid friction that may compromise the correct functioning of the stroller, make sure that all plastic parts are clean of dust, dirt and sand. Keep the stroller in a dry place. If necessary, lubricate the moving parts with dry silicone lubricant.

LIST OF COMPONENTS

Check that none of the components of this model are missing before assembling the product. If any part is missing, contact Chicco Customer Service. No tools are needed to assemble this product.

The following pieces are needed for product assembly:

• Frame
- Seat with lining
- Canopy
• Bumper bar
• Comfort kit (shoulder straps and crotch straps)
- Storage basket
- Rain cover
- 2 Rear wheels
- 2 front wheels

Important Note: the pictures and instructions contained in this booklet refer to a specific version of the stroller.

STROLLER FIRST ASSEMBLY

WARNING: When unfolding and folding this product, make sure that your child or other children are at a safe distance. Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

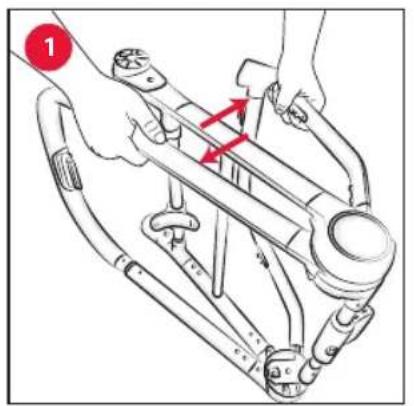

1. To open the stroller take hold of the handle and front tube and rotate until a click confirms that the stroller has opened completely (Fig. 1).

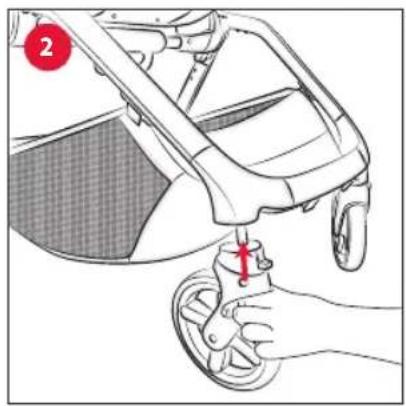

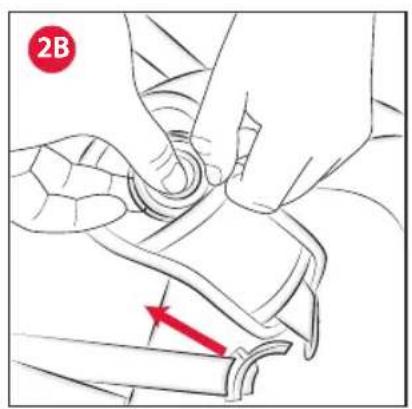

2. Insert the front wheel in the dedicated hole on the frame until you hear the locking click (Fig. 2). Repeat the same operation for the other front wheel.

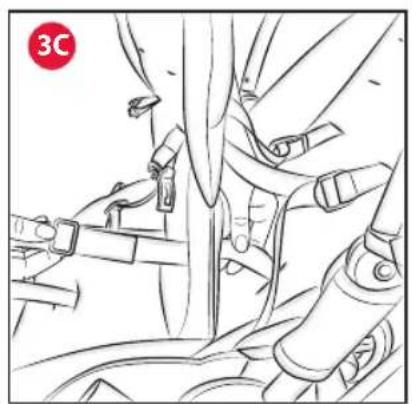

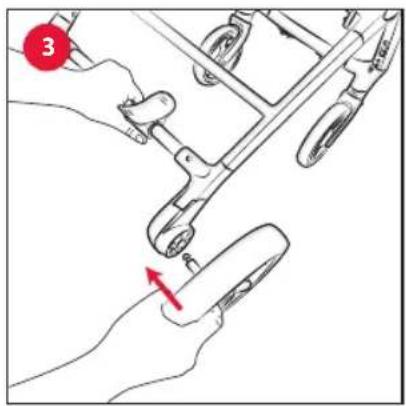

3. To assemble the rear wheels insert the wheel pin in the rear leg tube (Fig. 3). Repeat the same operation for the other wheel.

WARNING: Before using the stroller, make sure that the wheels are firmly attached to the structure by gently pulling them outwards.

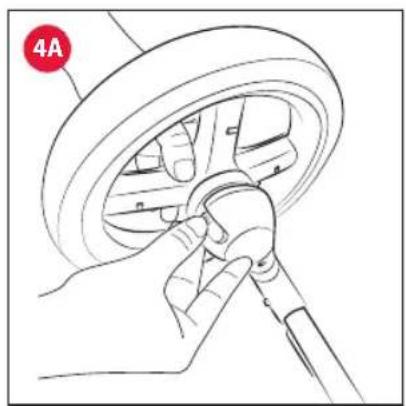

1. To remove the front wheels, use a sharp object to exert pressure on the appropriate slot, which is located on the front part of the frame (Fig. 4). To remove the rear wheels press the release button shown in figure 4A.

CARRY-ALL BASKET

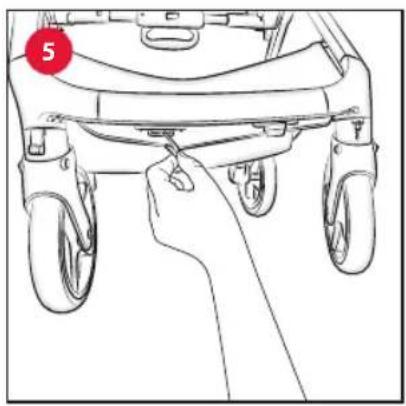

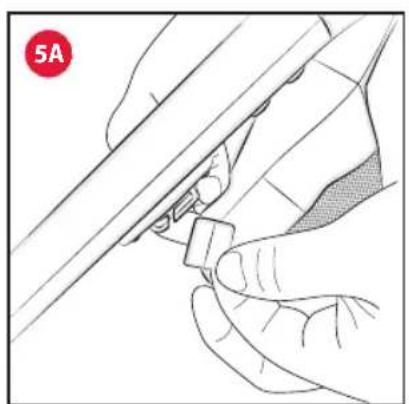

1. To attach the carry-all basket to the stroller insert the fabric straps in the appropriate plastic slots located on the front (Fig. 5) and sides of the frame. (Fig. 5A). Fasten the side zippers to the rear tube of the frame (Fig. 5B) and close the velcro straps (Fig. 5C).

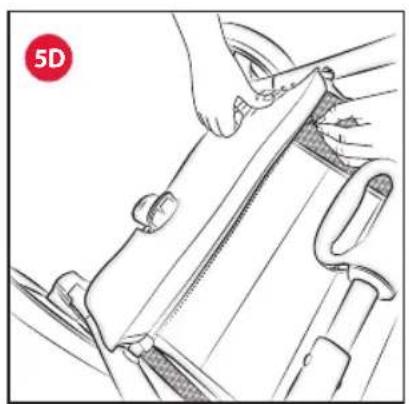

Finally, close the zipper that wraps around the rear tube (5D).

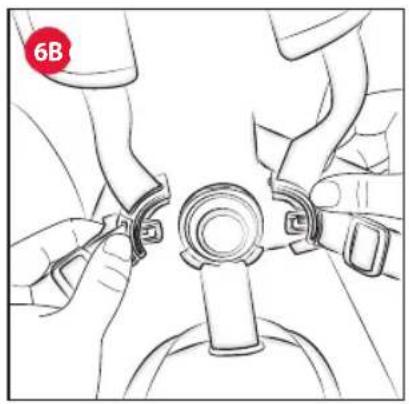

1. The stroller is equipped with a restraint system with five anchoring points, consisting of two shoulder straps with related adjusting holes, two waist belts and a crotch strap with buckle, already assembled.

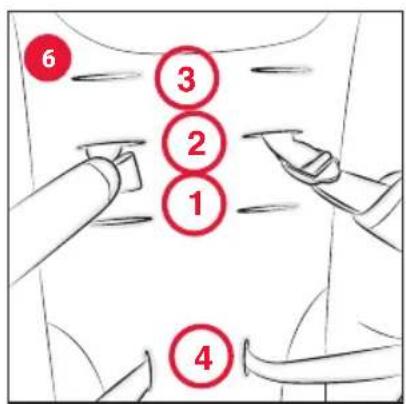

On the backrest there are three pairs of slots for adapting the height of the shoulder straps to the size of the child (Fig. 6)

WARNING: For use with children from birth to about 6 months the shoulder straps must be inserted in the lowest slots (Fig. 6 - no. 1); the length of the straps may need to be reduced so that they fit the size of the child.

WARNING: To adapt the belts to the body of the child, use the shoulder straps, passing them through the two adjustment holes as indicated in Figure 6.

After placing the child in the stroller, fasten the straps by first passing the two prongs through the slots on the shoulder straps (Fig. 6A) and then inserting them in the crotch strap buckle (Fig. 6B); adjust the length of the straps, ensuring that they adhere to the child's shoulders and waist correctly.

To unfasten the waist belt press the central button on the buckle (Fig. 6C).

WARNING: To ensure the safety of your child, you must use the crotch strap, waist belt and shoulder straps at the same time.

WARNING: After removal of the safety harness (e.g. for washing), ensure that the harness is reassembled correctly using the anchorage points. The harness must be re adjusted. To ensure that the harnesses are properly fastened (on the rear of the backrest), after having placed the child in the seat and fastened the harnesses, pull firmly on the ends of the harnesses.

KIT COMFORT

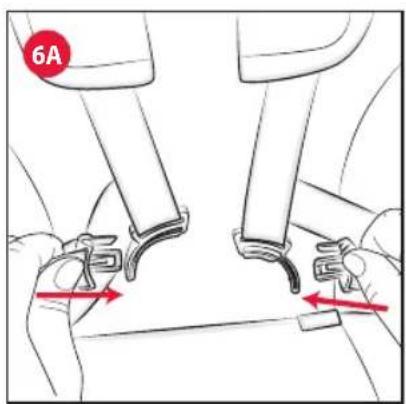

1. The Comfort Kit comprises 2 padded shoulder straps and a padded crotch strap (Fig. 7).

Insert the belts in the shoulder straps and insert the buckle in the padded crotch strap.

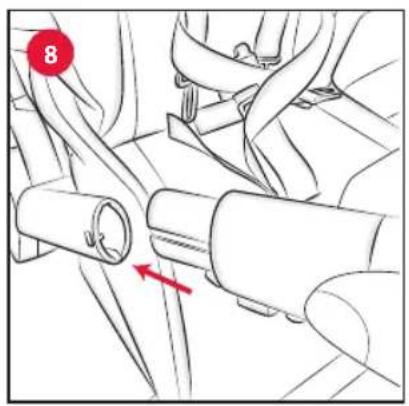

BUMPER BAR

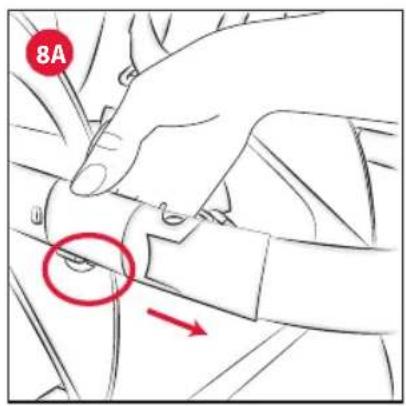

1. The seat features a bumper bar. To fasten the bumper bar insert it in the housing located next to the joint (Fig. 8) with the release button pointing downwards (Fig. 8A) and make sure that the bumper bar is properly fastened by pulling it towards you. To remove the bumper bar press on the two external side buttons (Fig. 8A) and extract the bumper bar from the housing. You can release one side of the bumper bar to easily seat your child. The bumper bar can be used both forward facing and parent facing.

WARNING: Always fasten your child with the safety harnesses. The bumper bar IS NOT a restraint device for the child.

WARNING: Never use the bumper bar to lift the product with your child sitting in it.

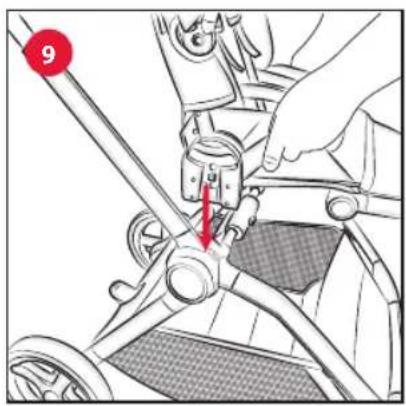

1. To attach the stroller seat to the frame, insert the seat into the appropriate plastic connection points until you hear the locking click (Fig. 9).

To facilitate the operation, guidance slots are present on the sides of the seat indicating proper alignment. The seat can be assembled in either the forward facing configuration (Fig. 9A) or the rear facing configuration. (Fig. 9B)

WARNING: Before using, make sure that the seat is properly locked

on by pulling it upwards.

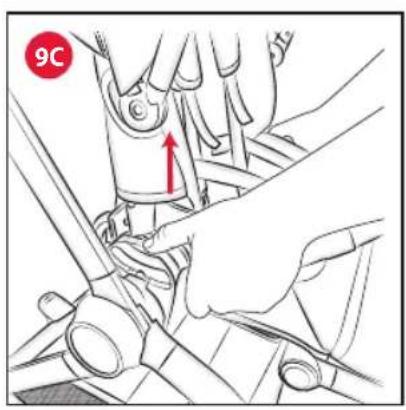

To release the seat press the buttons located on the seat joints simultaneously and pull up. (Fig. 9C)

WARNING: The child must never be sitting in the seat when fastening/unfastening it.

1. The backrest can be reclined in three different positions; to adjust the inclination use the lever located on the rear of the stroller backrest (Fig. 10). The inclination can be adjusted until the desired position is reached. By releasing the button, the backrest will lock in the nearest position.

WARNING: The child's weight can make these operations more difficult.

WARNING: When the seat is in the forward facing position and the handle is completely lowered the inclination cannot be adjusted, to be able to complete the operation raise the handle by one position.

HOW TO ADJUST THE LEGREST

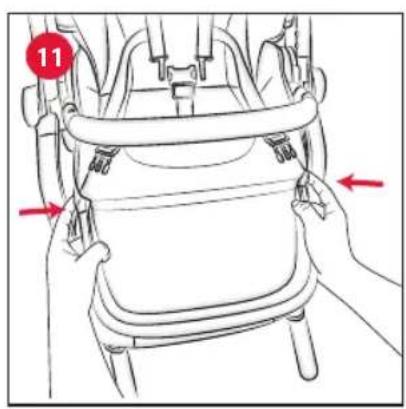

1. The legrest has two positions. To adjust it, use the buttons on the sides of the legrest simultaneously (Fig. 11).

CANOPY

1. The stroller is equipped with a sun canopy and windshield that can be adjusted to various positions.

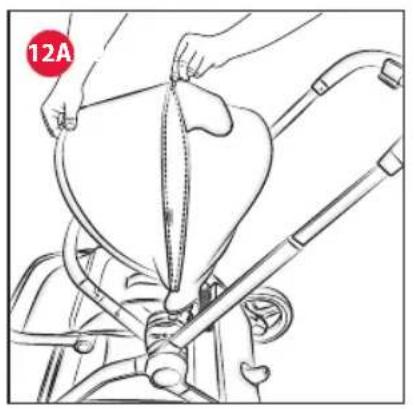

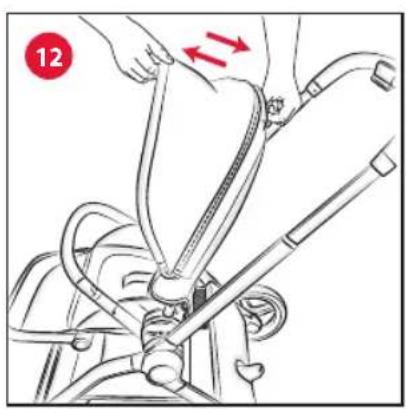

To adjust the hood, pull and/or push it centrally (Fig. 12). For more extensive protection, open the zipper on the hood and open the remaining fabric section (Fig. 12A). Raising the fabric flap present on the top section of the hood (Fig. 12B) reveals a mesh section that can be used to observe the child.

PARKING BRAKE

1. The parking brake acts on both stroller's rear wheels at the same time. To activate the brake press down on the lever (Fig. 13). To release the brake press up on the same lever. (Fig. 13A)

WARNING: Always apply the brakes whenever the stroller is stopped. Never leave the stroller on a sloped surface, with a child inside, even with the parking brakes engaged.

WARNING: After operating the brake lever, ensure that the brakes are correctly engaged in both of the rear wheel units.

SWIVEL WHEELS

The stroller has front swivel/fixed wheels. It is recommended to use the wheels in the fixed mode on particularly changeable surfaces. The use of the wheels in the swivel mode is recommended in order to increase the control of the stroller on a normal road surface.

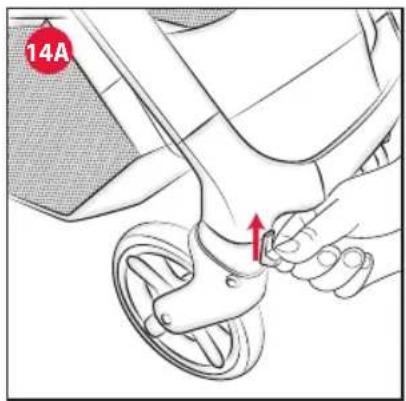

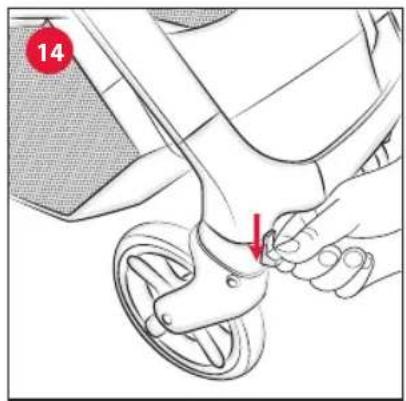

1. To use the front wheels in swivel mode, push down on the lever located in front of the wheels (Fig. 14). To lock it, push upwards returning the lever to its original position (Fig. 14A).

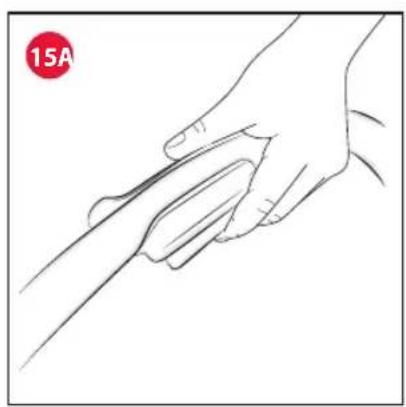

HANDLE ADJUSTMENT

The stroller features a handle that can be adjusted in height, according to the user's needs.

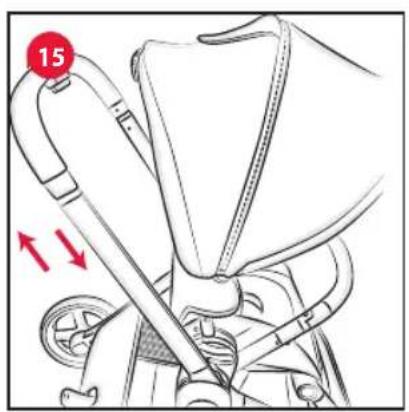

1. Starting from the lowest, or closing position, (Fig. 15) the handle can be adjusted to 3 different positions by pressing the release button located on the centre of the handle (Fig. 15A).

The first operational position is the one indicated by the arrows marked on the tubes.

After switching from one position to the other, make sure the automatic locking mechanism is properly engaged.

WARNING: When opening or closing the stroller, make sure that your child or other children are at a safe distance. Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

WARNING: You must remove all contents from the basket before closing the stroller.

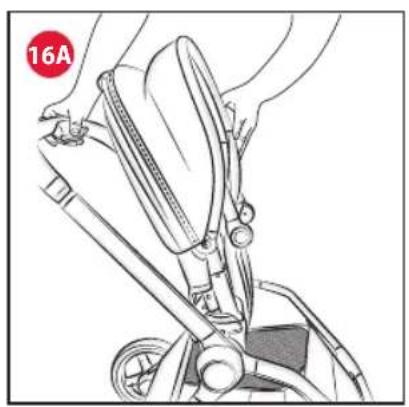

1. The stroller can be folded either without the seat or with the seat (in either configuration: forward facing or rearward facing).

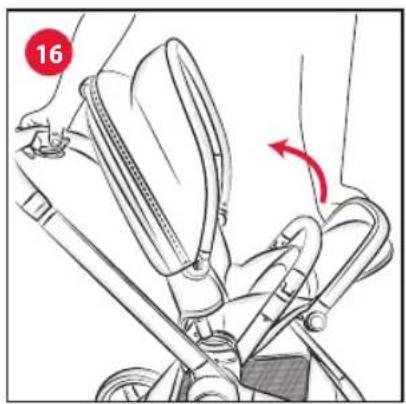

To fold the stroller, put the handle in the closed position as shown in the previous figure 15.

Close the hood, raise and rotate the footrest folding it against the backrest (Fig. 16 - 16A), facing the front of the stroller, operate the folding device located under the seat: press the button while also rotating the release handle upwards. (Fig. 16B). The stroller will fold at this point.

To fold completely, carry out the operations above being sure that the backrest has been lowered into the first reclining position.

To remove the seat before folding the stroller, press the buttons located near the seat joints (Fig. 9C).

To reopen the stroller, lift the handle until a click confirms that it has opened; lower the legrest until a click is heard.

If the seat has been removed, lift the handle until a click confirms that the stroller has opened and then attach the seat to the frame.

RAIN COVER

1. The stroller is equipped with a rain cover.

To assemble the rain cover place it over the sun canopy fastening the elastic edge to the top of the hood (Fig. 17) and to the bottom edge of the legrest. (Fig. 17A).

After use, if wet, let the rain cover dry off before folding and storing it. The rain cover can be used both forward facing and parent facing. The rain cover can also be used with the MYSA carrycot.

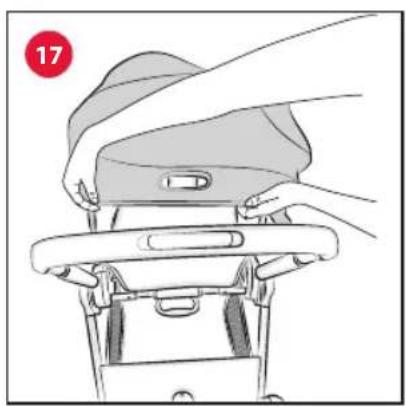

WARNING: The rain cover cannot be used on the stroller without the hood being extended, as it may cause suffocation. When the rain cover is fitted on the stroller, never leave it exposed to direct sunlight with the child inside, as the temperature will rise considerably.

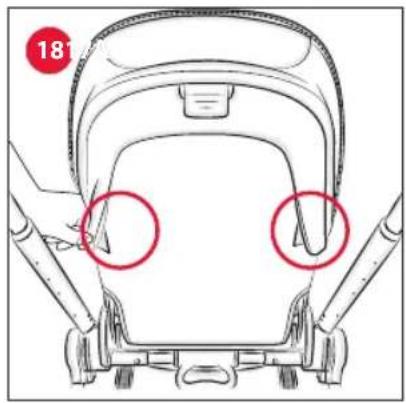

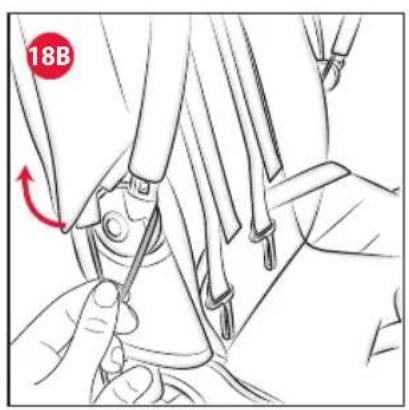

REMOVAL: REMOVING THE HOOD

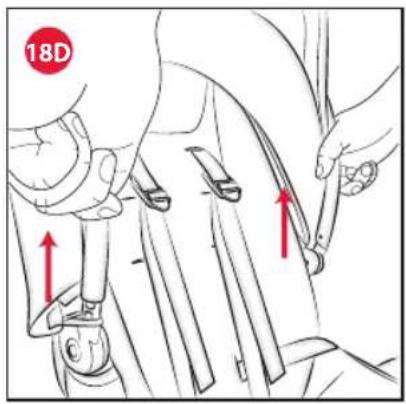

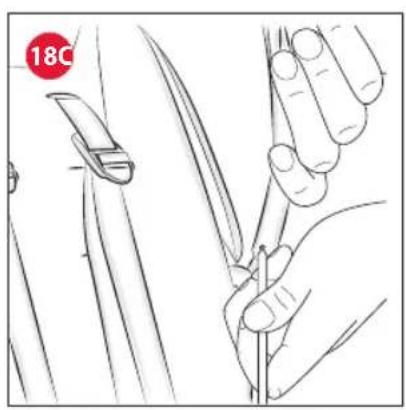

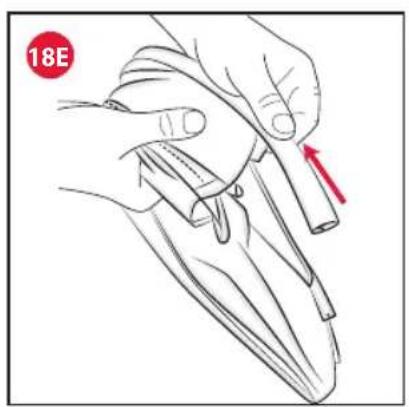

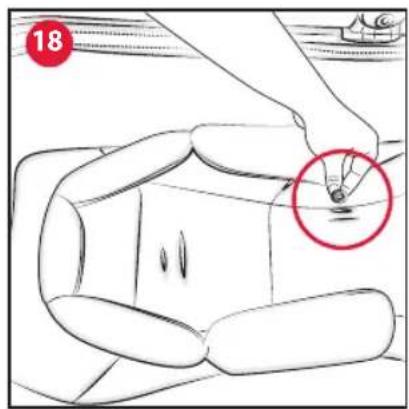

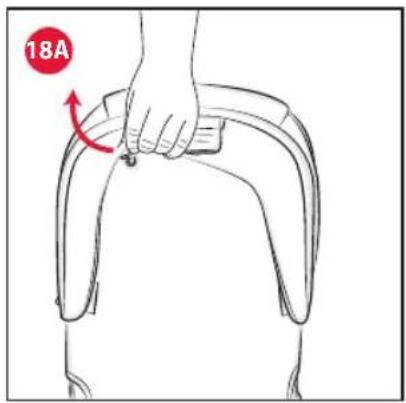

1. If the fabric needs to be removed from the hood for cleaning, follow these steps: open the velcro sections found on the rear of the backrest (Fig. 18), open the snap buttons on the top of the backrest (Fig. 18A); pull the fabric slot off of the backrest adjustment lever. Free the elastic bands located under the seat joints (Fig. 18B). Using a pointed object press on the plastic pins to free the joints from the lateral inserts (Fig. 18C) and pull the hood tube upwards to free it (Fig. 18D); at this point the fabric can be removed from the hood tube (Fig. 18E).

To reassemble the fabric and the hood carry out the operations in reverse order.

WARNING: The hood must be fixed on both sides of the stroller. Ensure that the canopy is correctly fastened.

REMOVING THE FABRIC:

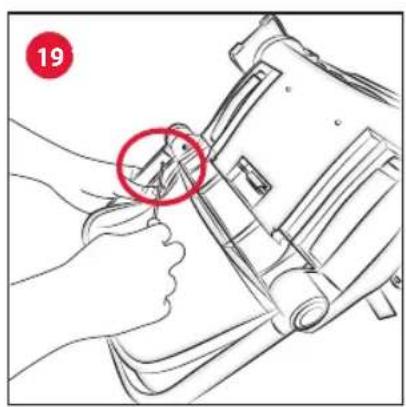

1. To easily remove the fabric from the seat, detach the seat from the frame (paragraph 9) and remove the bumper bar (paragraph 8).

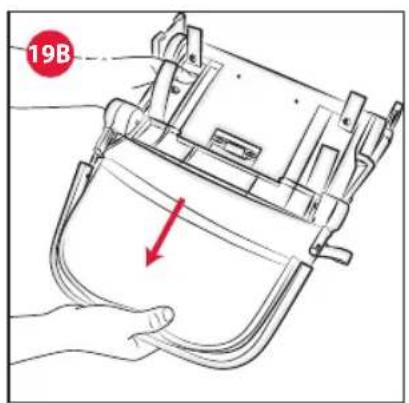

After having removed the hood (paragraph 18) use a cross-tip screwdriver to unscrew the screws located under the footrest (Fig. 19); open the velcro sections under the seat and unfasten the buttons (Fig. 19A), remove the footrests releasing them from the plastic inserts (Fig. 19B).

WARNING: Do not leave the components unattended after removal, keep them out of reach of children.

WARNING: Store the screws and small components carefully for reassembly.

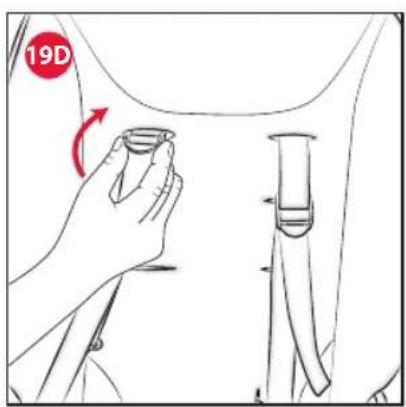

Remove the crotch strap from the seat and the safety harnesses from the fabric by passing them through the appropriate slots (Fig. 19C, 19D); free the fabric from the frame by pulling upwards (Fig. 19E).

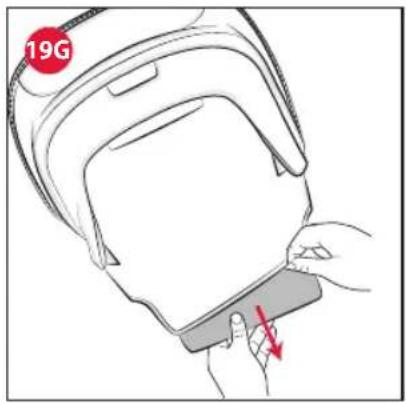

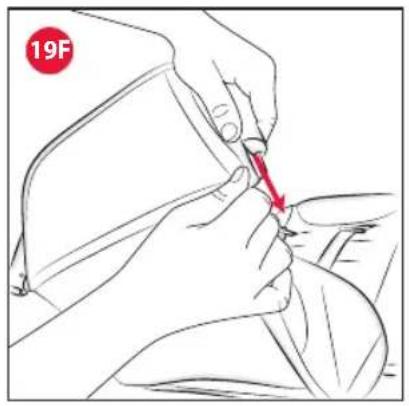

Free the footrest fabric from the track on the metal tube (Fig. 19F). Extract the plastic panel from the pocket located on the rear of the backrest (Fig. 19G). The fabric is now free and ready to be washed.

To put the fabric back on the product, insert the footrest fabric in the slot on the metal tube being sure to aim the track (1) upwards. (Fig. 19H)

To put the fabric back on the seat carry out the operations described above in reverse order. As part of this operation, the crotch strap will need to be inserted in the fabric slot on the seat (Fig. 19C, 19D), the waist belts in the lower part of the backrest (Fig. 6 - n.4) and the shoulder straps in the top part of the backrest (Fig. 6 - no.1/2/3). Reposition the Comfort Kit (paragraph 7).

USING THE CAR SEAT AND CARRYCOT

1. The following products can be attached to the CHICCO MYSA stroller:

- CHICCO KAILY car seat, using specific frame adaptors.

- CHICCO KIROS i-Size Fast In car seat, using specific frame adaptors.

- CHICCO KORY i-Size car seat, using specific frame adaptors.

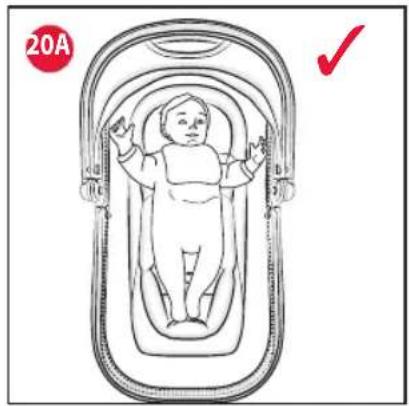

• MYSA LIGHT carrycot.

For instructions on assembling and disassembling the car seats refer to the manual for the MYSA adaptors.

For instructions on assembling and disassembling the carrycot refer to the manual for the MYSA LIGHT carrycot.

WARNING: Before using the stroller with a carrycot or car seat, always check that the attachment devices are correctly engaged by pulling up.

WARNING: Both car seats and the carrycot may only be attached to the chassis in the parent-facing position.

WARRANTY

The product is guaranteed against any lack of conformity under normal use as specified in the instructions. The warranty does not, therefore, apply to damage caused by improper use, wear or accidents. For the duration of warranty on conformity defects, please refer to the specific provisions of national laws applicable in the country of purchase, where provided.

FR NOTICE D'UTILISATION IMPORTANT – À LIRE ATTENTIVEMENT ET À CONSERVER POUR CONSULTATION UL- TÉRIEURE.

AVERTISSEMENT : AVANT L'EMPLOI, ENLEVER ET ÉLIMINER TOUS LES SACS EN PLASTIQUE ET ÉLÉMENTS QUI FONT PARTIE DE L'EMBALLAGE DU PRODUIT ET LES TENIR HORS DE PORTÉE DES ENFANTS.

AVERTISSEMENT

Handwas in koud water

Niet bleken

Niet in de droogtrommel drogen

Niet strijken

RÅD FÖR RENGÖRING OCH SKÖTSEL

INDSTILLING AF RYGLÆN

LUKNING AF KLAPVOGNEN

RÅD FOR RENHOLD OG VEDLIKEHOLD

ال Offensive Capital (6)

ARTSANA GERMANY GMBH

Borsigstrasse 1-3

28923 Alcorcon (Madrid)-Spain

902 117 093

www.CHICCO.es

ARTSANA PORTUGAL S.A.

ARTSANA POLAND Sp.zo.o.

Aquarius, Ul. Połczyńska 31 A

01-377 Warszawa

[phone]

www.CHICCO.com

ООО "Артсана Рус"

ARTSANA BRASIL LTDA.

Dec V. Ruben Dario 1015

Colonia Lomas De Providencia 44647

Guadalajara, Jalisco-Mexico

01800 702 8983

www.CHICCO.com.mx

ARTSANA ARGENTINA S.A.

Av. Santa Rita 2731 Piso 1 Of 5,

1609 Boulogne, Buenos Aires.

Argentina.

Phone:[phone]

www.CHICCO.com.ar

ARTSANA INDIA PRIVATE LIMITED,

7Th Floor, Tower B, Paras Twin Towers,

Golf Course Road, Sector 54

Gurgaon - 122002 - Haryana, India

(+91)(124)(4964500)

www.CHICCO.in

ARTSANA S.p.A.

22070 Grandate (CO) - Italy

Tel. [phone]

Fax [phone]

www.CHICCO.com

NOTE

CUSHY HUG

chicco®

A A1 B1 C1 C2 A2 B2 D E F

Line drawing of a symmetrical mechanical or architectural component with two protrusions and a central base (no text or symbols)

2A

Illustration of hands fastening a seatbelt with a red arrow indicating the angle (no text or symbols present)

Illustration of a person performing a medical procedure on a patient's head (no text or symbols present)

Line drawing of a car interior with hands adjusting equipment, no text or symbols present

Line drawing of a car interior showing steering wheel, armrests, and dashboard (no text or symbols)

4A

4B

5

6

Line drawing of a baby car seat with no text or symbols

Line drawing of a car seatbelt being adjusted for a cable, with a red circle highlighting the cable (no text or symbols present)

Illustration of a stroller with hand and arrow indicating motion (no text or symbols)

10

Line drawing of a car seatbelt with a red circle highlighting the finger area (no text or symbols present)

Line drawing of a person pressing down on a rounded rectangular object, with a red circle labeled '12A' pointing to the top-left area (no other text or symbols)

Line drawing of hands pressing down on a rounded rectangular object (no text or symbols)

Illustration of a person performing a massage or pressure technique on a basin, with no visible text or symbols.

14 ZONE

Illustration of a baby being held in a medical procedure, showing anatomical positioning and tubing (no text or symbols)

16

17

18

Top-down line drawing of a car seat structure with no text or symbols

20A ✓

20B X

CUSHY HUG

The Cushy Hug was developed through collaboration between Chicco and the physiatrists and physiotherapists of the functional rehabilitation department at the Bambin Gesù pediatric hospital.

It is a multifunctional accessory designed to guarantee the well-being of the child accompanying the growth of the baby during the first months of life.

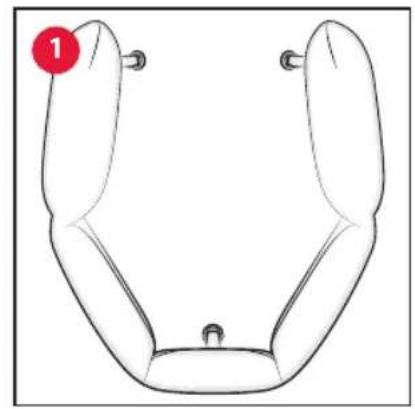

Included with the product is the Infant Positioner (fig. 1), which must only be used when fastened to the Cushy Hug by means of specific buttons; the Infant Positioner helps adjust the size of the reducer cushion, adapting it to the size of the child and guaranteeing that the baby's body receives support from the sides and bottom when taking a stroll.

Used with the carrycot, Cushy Hug helps maintain the proper alignment of the airways, helping keep them open, thanks to the mild incline between the areas that support the head and body of the baby.

Used with the stroller, Cushy Hug provides comfort and an accommodating seat; for very small children, the use of the Infant Positioner in combination with the Cushy Hug helps maintain physiological posture and ensures that the baby's torso is well contained, avoiding sinking or lateral slipping.

IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, KEEP ALL THE ELEMENTS THAT ARE PART OF THE PACKAGING OF THE PRODUCT AND ANY PLASTIC BAGS OUT OF REACH OF CHILDREN.

WARNINGS

- WARNING: Your child may be at risk if the product is not used properly - Do not use this product without first reading the instructions for use.

- Be sure that the Cushy Hug has been assembled completely and properly before use.

- All components of the product must be assembled by an adult.

- WARNING: Be aware of the risk posed by cigarettes, naked flames and other heat sources, like electric or gas heaters, etc. that are near the product.

- WARNING: Danger of SUFFOCATION, DO NOT USE the product on the parent's bed or with products other than the Mysa stroller and Mysa carrycot.

- WARNING: Do not use it if any part is broken, torn or missing.
SUFFOCATION HAZARD - Children may suffocate:

• On additional pillows, covers, or padding
- NEVER position additional padding under or near the infant
- Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.

STOP using the Cushy Hug once the child:

• Starts to move about or turn around in the product, or

• The child's head touches the upper edge of the product.

- Only use spare parts supplied or approved by the manufacturer.

- In the carrycot, your child's head must never be lower than their body.

- Babies must ALWAYS be lying on their back when resting in the Cushy Hug.

- Keep the product out of reach of children when it is not in use.

Cushy Hug can only be used with the Chicco MYSA stroller.
Cushy Hug can be used with or without the Infant Positioner.
The Infant positioner can only be used in combination with the

Cushy Hug.

The purpose of the Infant Positioner is to contain the body of the baby laterally when taking a stroll and, in the event of a slightly raised backrest, to help maintain proper posture.

WARNING: Use the product with the restraint systems always correctlyfastened.

1. CUSHY HUG: USE OF THE REDUCER CUSHION WITH THE INFANT POSITIONER

In this configuration the product is suitable from 0 to 6 months of age.

For babies from about 0 to 3 months of age:

For newborns, be sure that the shoulder straps on the backrest are positioned in the bottom slots (see the instruction manual for the stroller, Fig. 6 - n. 1).

To assemble the product complete the steps described below:

a. Use the lever located on the backrest of the stroller to recline the backrest completely

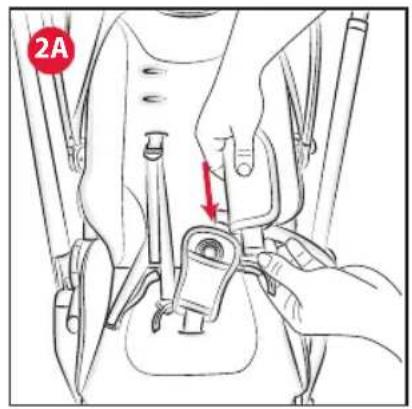

b. Remove the comfort kit from the shoulder straps and crotch strap (Fig. 2A - 2B)
c. Position the Cushy Hug on the seat and insert the shoulder straps, crotch strap, and waist straps in the appropriate slots (Fig. 3A - 3B - 3C); reposition the comfort kit you removed in the previous steps (Fig. 4A - 4B)

d. To attach the Infant Positioner insert the buttons located on the extremities of the positioner into the two slanted slots C1 - C2 found near the middle of the reducer cushion on either side (Fig. 5)

e. Fasten the third button to slot E, located in the centre of the reducer cushion's coloured foot area (Fig. 6)

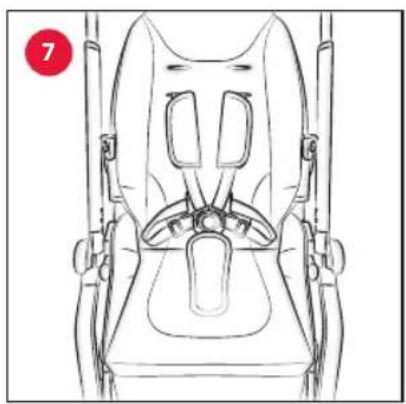

Once assembled, the product will appear as shown in the image (Fig. 7).

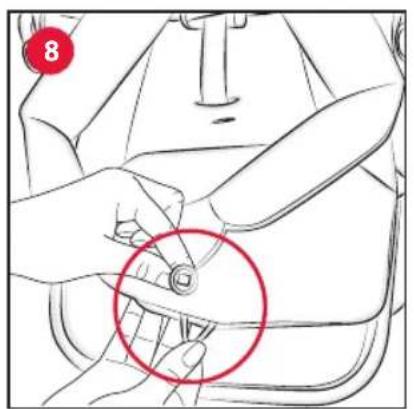

ADDITIONAL ADJUSTMENT: Should the length of the baby be such that they need more room in this configuration, you may ONLY move the button described in point E to fasten it to external slot F, which is found on the perimeter of the coloured foot area (Fig. 8).

For babies from about 3 to 6 months of age:

a. Raise the backrest into the first position (Fig. 9)

b. Remove the comfort kit from the shoulder straps and crotch strap (Fig. 2A - 2B)
c. Position the Cushy Hug on the seat and insert the shoulder straps, crotch strap, and waist straps in the appropriate slots (Fig. 3A - 3B - 3C); reposition the comfort kit you removed in the previous steps (Fig. 4A - 4B)
d. To attach the Infant Positioner insert the buttons located on the extremities of the positioner into the two slanted slots A1 - A2 found on the sides immediately under the coloured perimeter of the head area (Fig. 10)
e. Fasten the third button to slot D, which is located immediately under the crotch strap (Fig. 11)

2. CUSHY HUG: USING THE REDUCER ALONE

In this configuration the product is suitable from about 6 to 12 months of age.

Adjust the position of the shoulder straps to match the size of your child.

To assemble the product complete the steps described in the previous paragraph (points a - b - c).

USE WITH THE CARRYCOT

Cushy Hug can only be used with the Chicco MYSA carrycot.

Cushy Hug can be used with or without the Infant Positioner.

The Infant positioner can only be used in combination with the Cushy Hug.

The purpose of the Infant Positioner is to contain the body of the baby laterally when taking a stroll.

• WARNING: SUFFOCATION HAZARD: Do not place additional pillows, blankets, and additional padding next to the baby.
• WARNING: STOP using the product when the baby is months old or starts turning over or is too big and that its size does not allow correct installation. ALWAYS put the baby on his back to

sleep in the Cushy Hug.

• From birth, lay your baby flat on his back. Never put your baby to sleep on his stomach or side.
- Consider the temperature of the environment and the clothing worn by the child and ensure that the child is not too hot or too cold; too much heat can be life threatening.
- Do not leave other children play near the pram body.
- The item should be washed prior to first use according to the manufacturer's instructions.

1. CUSHY HUG: USING THE REDUCER ALONE

In this configuration the product is suitable from birth to 6 months of age.

To assemble the product complete the steps described below:

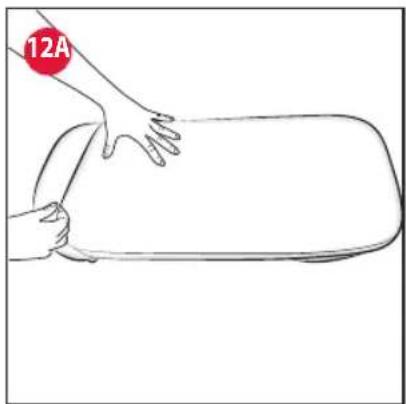

a. Position the Cushy Hug over the mattress, fastening it to the mattress by means of the elastic pockets (Fig. 12A - 12B)

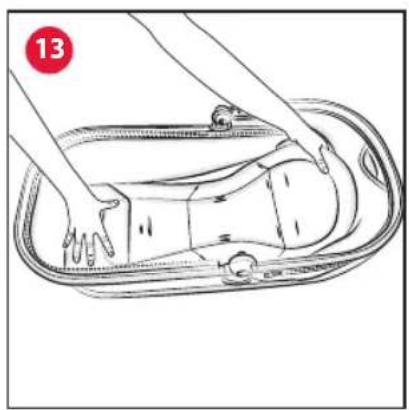

b. Place the mattress, with the Cushy Hug fastened to it, in the carrycot (Fig. 13)

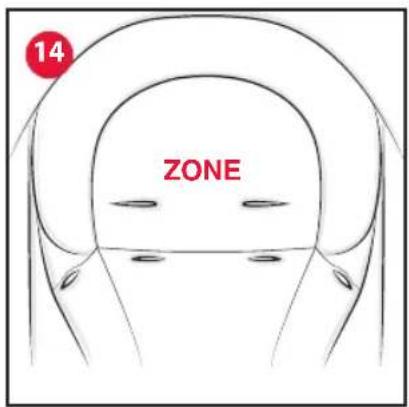

c. Lay the baby down positioning the head in area A, the head area made with white fabric (Fig. 14)

2. CUSHY HUG: USE OF THE REDUCER CUSHION WITH THE INFANT POSITIONER

In this configuration the product is suitable from birth to 4 months of age.

The following configurations are for illustrative purposes and may vary based on the size of the baby.

The head of the baby must always be positioned in the area designated for the head, area A (Fig. 14), so that the body fits comfortably within the Infant Positioner.

For children from 0 to 1 month of age:

To assemble the product complete the steps described below:

a. Position the Cushy Hug over the mattress, fastening it to the mattress by means of the elastic pockets (Fig. 12A - 12B)
b. Place the mattress, with the Cushy Hug fastened to it, in the carrycot (Fig. 13)

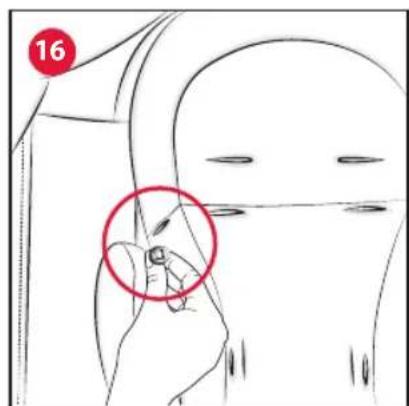

c. To fasten the Infant Positioner insert the central button into slot D, which is located immediately under the opening for the crotch strap (Fig. 15)

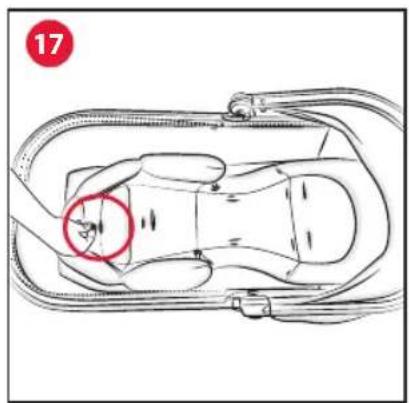

d. Next, insert the buttons located on the extremities of the Infant Positioner into the two slanted slots A1 - A2 found on the sides immediately under the coloured perimeter of the head area (Fig. 16)

For children from 2 to 4 months of age:

a. Position the Cushy Hug over the mattress, fastening it to the mattress by means of the elastic pockets (Fig. 12A - 12B)
b. Place the mattress, with the Cushy Hug fastened to it, in the carrycot (Fig. 13)
c. To fasten the Infant Positioner insert the central button into slot E, located in the middle of the coloured foot area on the reducer (Fig. 17)
d. Next, insert the buttons located on the extremities of the Infant Positioner into the two vertical slots B1 - B2 located next to the openings for the waist straps (Fig. 18)

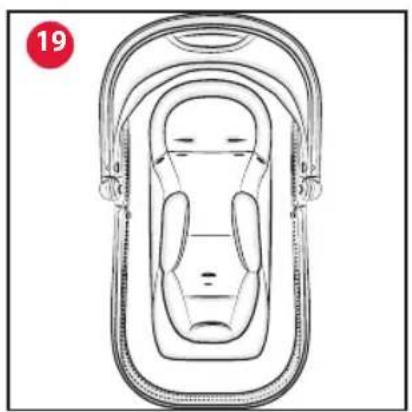

Once assembled, the product will appear as shown in the image (Fig. 19)

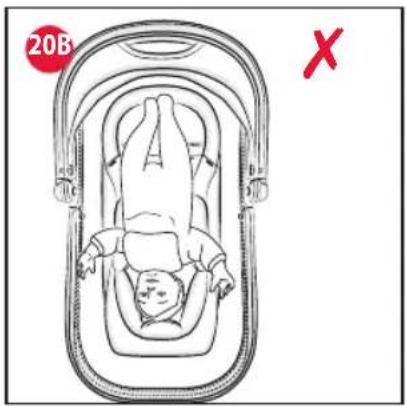

WARNING: always make sure that the head of the child is far from the Infant Positioner (Fig. 20A - 20B).

CARE AND CLEANING

Hand wash

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

WARRANTY

The product is guaranteed against any lack of conformity under normal use as specified in the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.

FR COUSSIN RÉDUCTEUR

Handwas in koud water

Niet bleken

Niet in de droger drogen

Niet strijken

PLEIE OG VEDLIKEHOLD

وأسلاك Satisfaction/Hoc Justice.

ARTSANA GERMANY GMBH

Borsigstrasse 1-3

28923 Alcorcon (Madrid)-Spain

902 117 093

www.CHICCO.es

ARTSANA PORTUGAL S.A.

ARTSANA POLAND Sp.zo.o.

Aquarius, Ul. Połczyńska 31 A

01-377 Warszawa

[phone]

www.CHICCO.com

ООО "Артсана Рус"

ARTSANA BRASIL LTDA.

Dec V. Ruben Dario 1015

Colonia Lomas De Providencia 44647

Guadalajara, Jalisco-Mexico

01800 702 8983

www.CHICCO.com.mx

ARTSANA ARGENTINA S.A.

Av. Santa Rita 2731 Piso 1 Of 5,

1609 Boulogne, Buenos Aires.

Argentina.

Phone: [phone]

www.CHICCO.com.ar

ARTSANA INDIA PRIVATE LIMITED,

7Th Floor, Tower B, Paras Twin Towers,

Golf Course Road, Sector 54

Gurgaon - 122002 - Haryana, India

(+91)(124)(4964500)

www.CHICCO.in

ARTSANA S.p.A.

22070 Grandate (CO) - Italy

Tel. [phone]

Fax [phone]

www.CHICCO.com

NOTE

NOTE
