USER MANUAL SunLight DOMETIC

Technical line drawings of two identical electric stove units with heat sinks and ventilation grilles (no text or labels)

CU351MK, CU354MK

EN

Cooktop and gas oven

Installation and Operating Manual.....19

DE

© 2023 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

Exploded view diagram of a kitchen appliance with labeled parts including stove, grating, and air vent

2

Technical diagram of an open oven with numbered components for identification

Technical diagram of a multi-tiered electric oven with numbered components for identification

4 1 2 3 4 5 6

6

DE, AT, CH, LU	I_3B/P - 50 mbar
DK, FI, HU, NO, PL, SE	I_3B/P - 30 mbar
BE, CZ, ES, FR, GB, IT, NL, PT, RU, SK	I_3 ± 28 - 30/37 mbar

DE, AT, CH, PL, RU

1. 2.

4. 3.

8 5-8 years

9 mm ≥150 ≥ 500 ≥ 150 ≥ 100

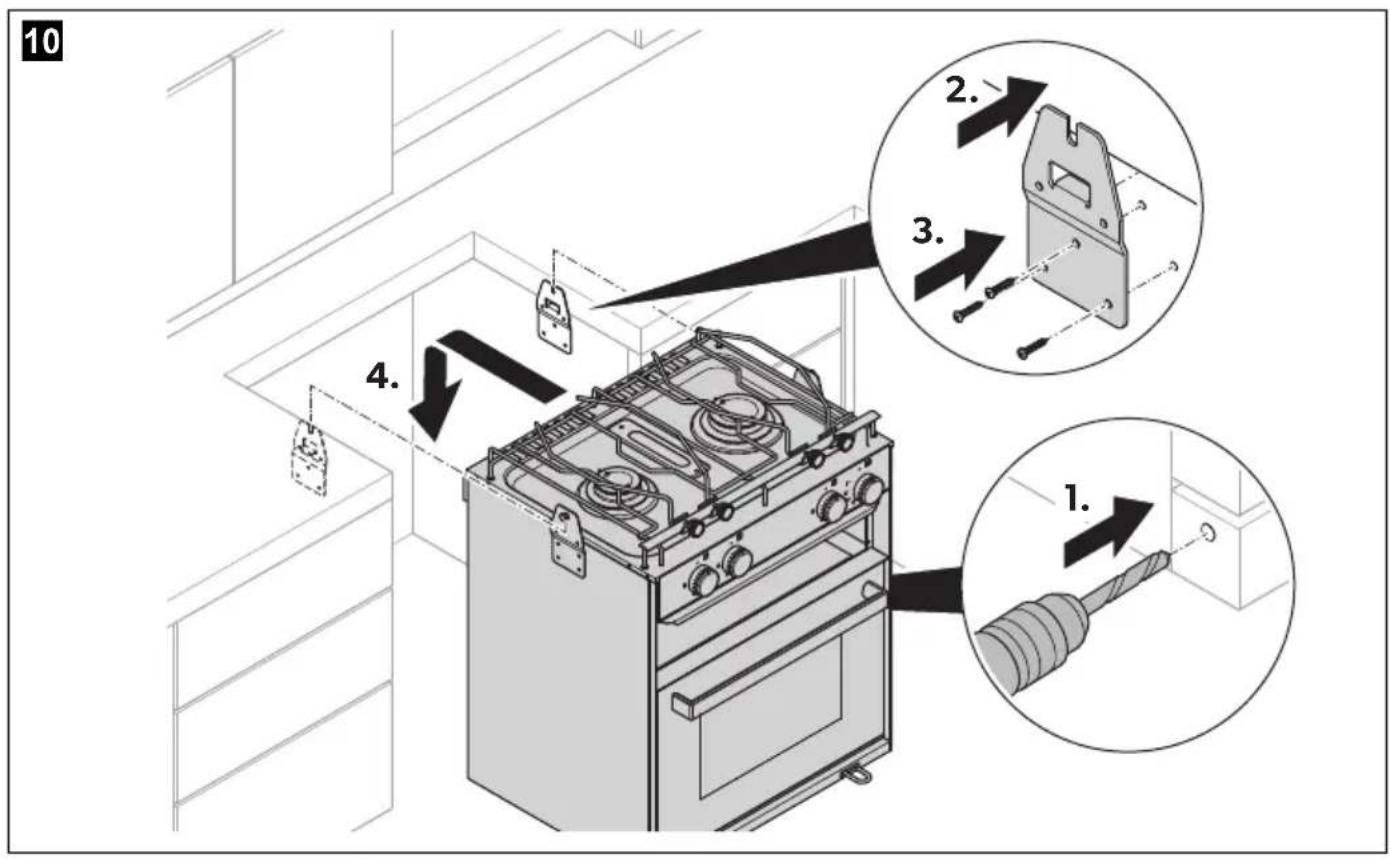

10 2. 3. 4. 1.

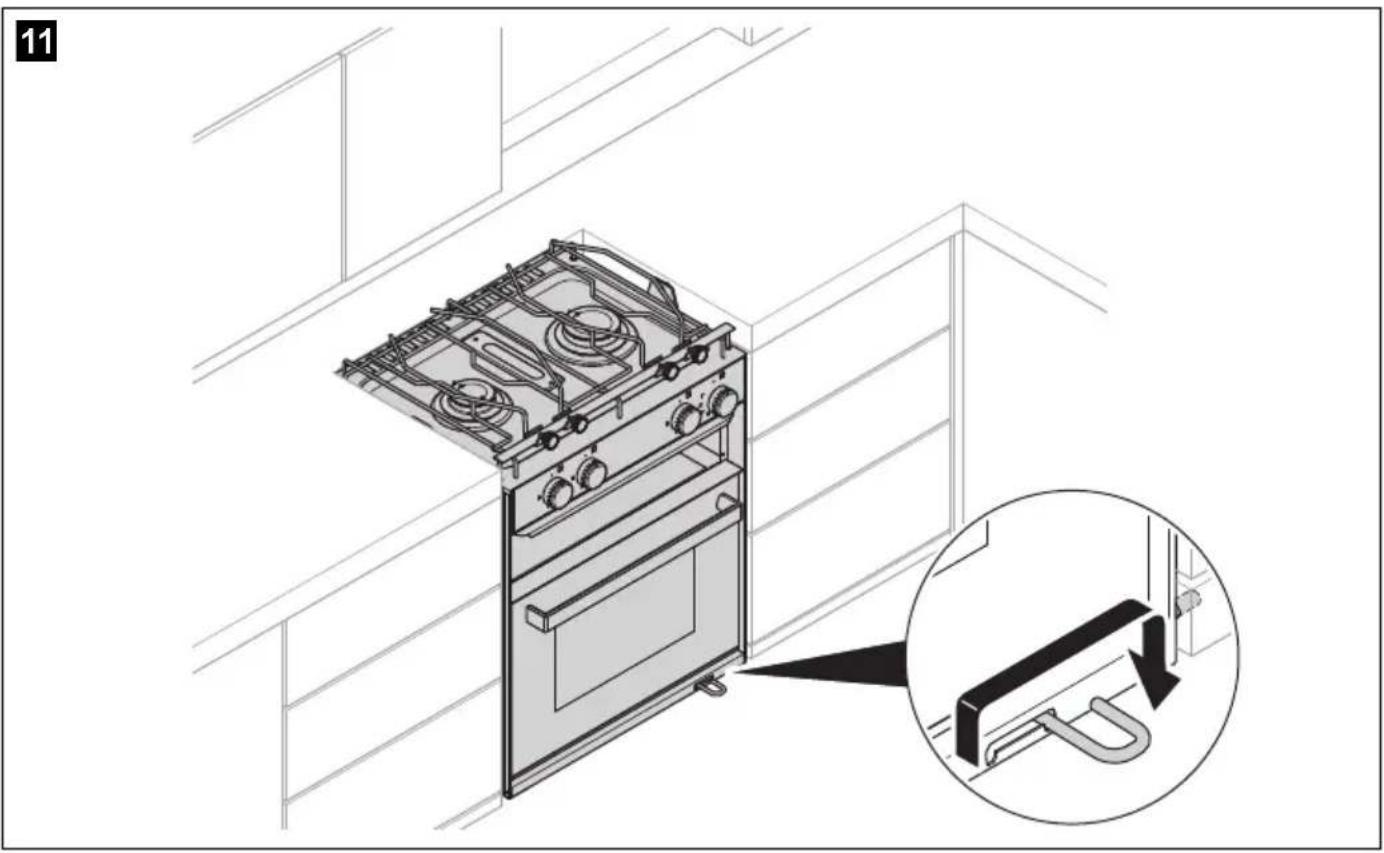

11

12

Technical diagram of an oven with labeled components and fire extinguishing steps

13

1.

2.

3.

4.

Black-and-white symbolic illustration of matchware: a flame on a base and a matchstick with a stick, labeled '5.' (no text or symbols beyond the label)

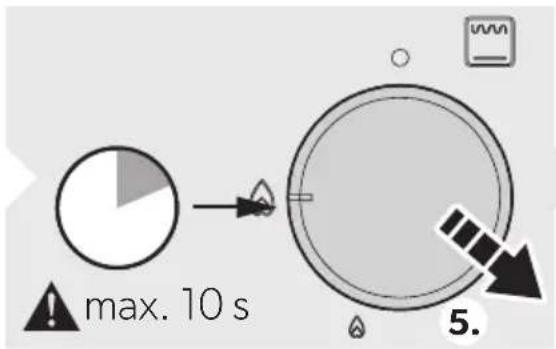

max. 10 s 6.

7.

14

1.

1 2 3 4 5 2.

1 2 3. 4 5 6

Black-and-white symbolic illustration of matchware: a flame on a test tube and a matchbox with a stick, both without any text or labels.

max. 10 s 1 3 4 5.

1 2 6 4 5 6

15

1.

2.

3.

Black and white symbolic illustration of matchware: a flame on a base with a matchstick and a pencil, labeled '4.' (no text or symbols beyond the number)

max. 10 s 5.

6.

16

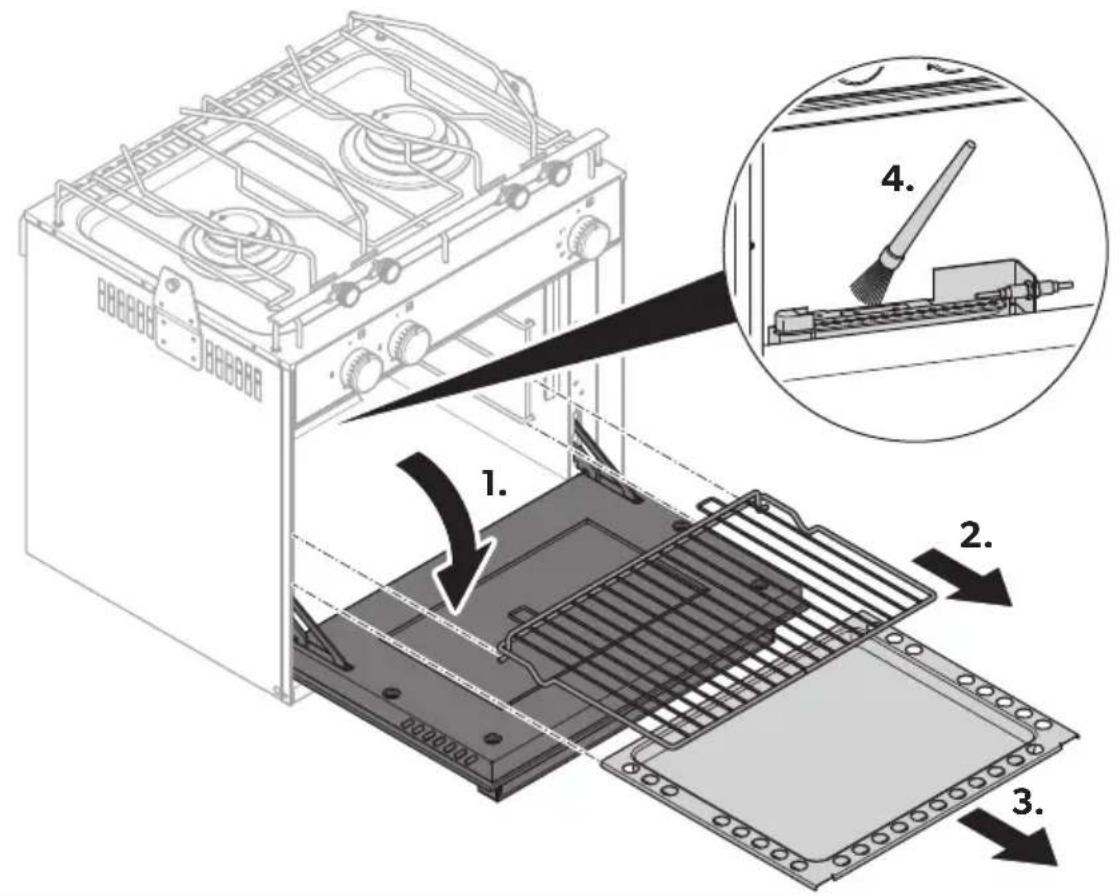

Technical diagram of an oven with numbered parts and a magnified view showing component assembly steps

17

Line drawing of a portable stove with heat exchangers and a door, showing internal components and a black arrow indicating a component (no text or symbols present)

18

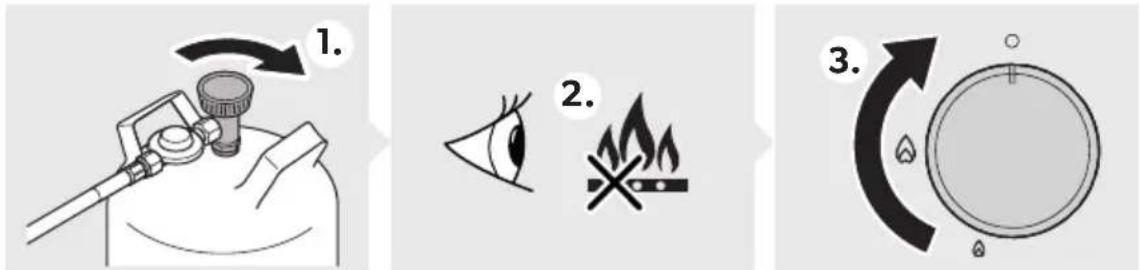

Diagram illustrating three-step safety instructions for a device: lighting, eye protection, and circular dial.

19

Diagram illustrating the process of a gas stove with warning symbols and safety icons, including a warning symbol and a paw print.

20

Diagram illustrating the installation steps of a portable oven, showing fan base, rack panel, and brush tool with numbered instructions.

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com.

Contents

Explanation of symbols....19

Safety instructions .....19

Scope of delivery .....21

Target groups.... 22

Intended use 22

Technical description 22

Installation 23

Operation.... 24

Saving energy 25

Cleaning and maintenance 25

Storage.... 26

Troubleshooting 26

Warranty.... 27

Disposal 27

Technical data 27

Explanation of symbols

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

Safety instructions

Preliminary notes

• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the device are compatible.
• The adjustment conditions for this device are stated on the label (or data plate).
• This device is not connected to a combustion products evacuation the device. It shall be installed and connected with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

General safety

WARNING! Failure to obey these warnings could result in death or serious injury.

Explosion hazard

• This device may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.
• This device must be installed in accordance with any national regulations in force in the country of use.
• This device must only be used in a well ventilated space.
• Read the instructions before installing or using this device.
• Do not modify the device.
• Do not remove or replace any components of this device.
• The gas hose has to be changed if required by the national regulations.
• Do not twist, stretch, pinch, or apply any other load to the gas supply hose.

Fire hazard

- Do not leave this device unattended when hot or in use.

• Children must be supervised to ensure that they do not play with the device.
- Keep a suitable fire extinguisher ready. Ensure that the fire extinguisher is checked by skilled personnel in regular intervals.

Burn hazard

• Keep hands, face and hair away from burners.
• Do not wear loose clothing or allow long hair to hang freely while lighting or using this device.
• Keep children and pets away.
• Carefully monitor all activity around this device to avoid burns or other injuries.
• Do not move the device during operation.

Health hazard

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
• Children must be supervised to ensure that they do not play with the device.

CAUTION! Failure to obey these cau-tions could result in minor or moderate injury.

Injury hazard

• If the device has a glass lid, in case of glass lid breakage:
• Shut off immediately all burners and any electrical heating element and isolate the device from the power supply.
• Do not touch the device surface.
• Do not use the device.

NOTICE! Damage hazard

• If the device has a glass lid:
• Close the glass lid before beginning a journey.
  – Turn off all the burners before closing the glass lid.

Safety precautions when handling

liquid gas

WARNING! Failure to obey these warnings could result in death or serious injury.

Explosion hazard

• After use always disconnect the liquid gas cylinder.
- Store liquid gas cylinders away from heating or cooking devices and other light or heat sources in a well-ventilated area out of the reach of children.
- Never store liquid gas cylinders in unventilated areas or below ground level (funnel-shaped holes in the ground).
- Never store liquid gas cylinders in buildings such as garages.
- Any indoor storage must comply with national regulations.
- Do not store liquid gas cylinders on their side.
- Keep liquid gas cylinders away from direct sunlight. The temperature should not exceed 50 °C.

Operating the device safely

DANGER! Failure to obey these instructions will cause death or serious injury.

Hazard of carbon monoxide poisoning

• The process of burning liquid gas produces carbon monoxide which accumulates inside enclosed areas.
  Only use this device with sufficient ventilation.

Suffocation hazard

• Operating this device in an unventilated area will reduce the amount of oxygen in this area.
• Do not use the device as a space heater.
• The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.
• Ensure that the kitchen is well ventilated especially when the device is in use.
• Keep natural ventilation holes open or install a mechanical ventilation device (e.g, a mechanical extractor hood).

- Prolonged intensive use of the device may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.

WARNING! Failure to obey these warnings could result in death or serious injury.

Explosion hazard

• Do not use this device if it is leaking, damaged or does not operate properly.

• Never use the device in the following situations:

• At petrol stations

• On ferry boats
• While transporting the caravan or mobile home with a transport vehicle or tow truck

• In case of fire shut off the gas supply.
- Do not place chemicals, flammable materials or spray aerosols near this device.
- Never use a naked flame to check for gas leaks.
• In case of gas smell:

• Do not attempt to light this device.
  – Extinguish any naked flames.
  – Turn off the gas supply.
• Disconnect the device from the gas supply.

• When using the device indoors, open the windows and evacuate the vehicle.
  – Have the gas system checked by a specialist.

• Only attach or detach the gas container outdoors away from a naked flame, pilot light or other source of ignition and only when this device is cool to touch.

• Before using the gas container, check that the seal between this device and the gas container is in place and in good condition.
• If the seal is damaged or worn, do not use this device.
• Turn off the gas supply at the gas container after use.

Fire hazard

• This device must be kept away from flammable materials during use.
• Do not place any objects other than cookware on or against this device.
• Never place this device near flammable materials (paper, dry leaves, textiles).
• Keep flammable objects away from the burner.

- Position cookware handles as follows:

– Never allow cookware handles to extend beyond the edge of the device.
– Turn cookware handles inward, but not extending over other burners.

• Do not excessively heat grease or oil.
• Only use dry pot holders to handle hot cookware.
• Turn off the device before removing the cookware.
• Only operate this device when an adult can attend to it.

Burn hazard

- Accessible parts may be very hot. Keep young children away.

CAUTION! Failure to obey these cau-tions could result in minor or moderate injury.

Burn hazard

• Use protective gloves when handling hot components.
• Let the device to cool down before touching it with bare hands.

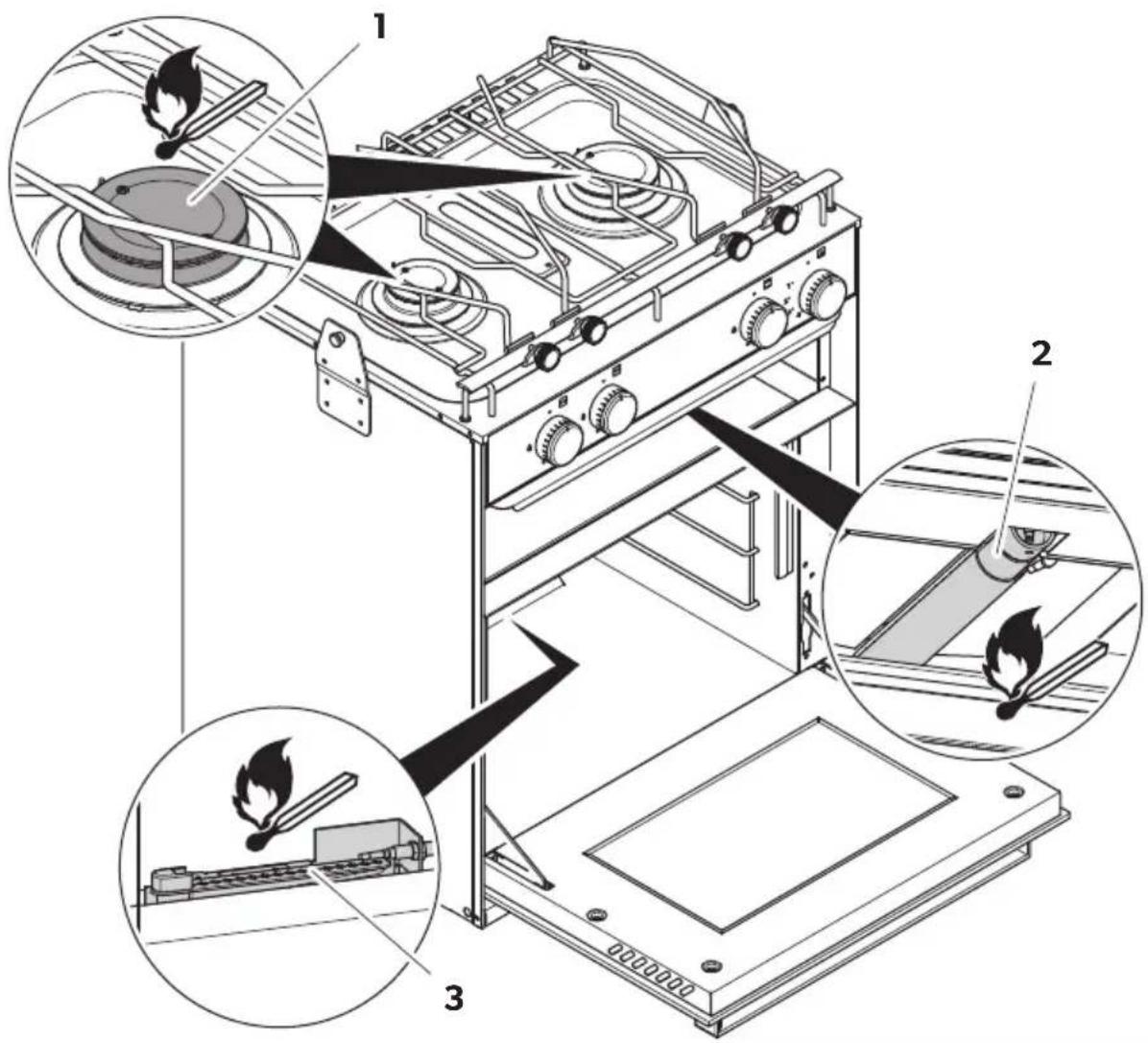

• When a burner is ignited manually:

– Use long matches or a suitable lighter.
- Remove the hands quickly as soon as the burner ignites.

- The use of alcohol or prescription or non-prescription drugs may impair your ability to properly assemble or safely operate this device.

NOTICE! Damage hazard

- Do not use an external timer or remote control system.

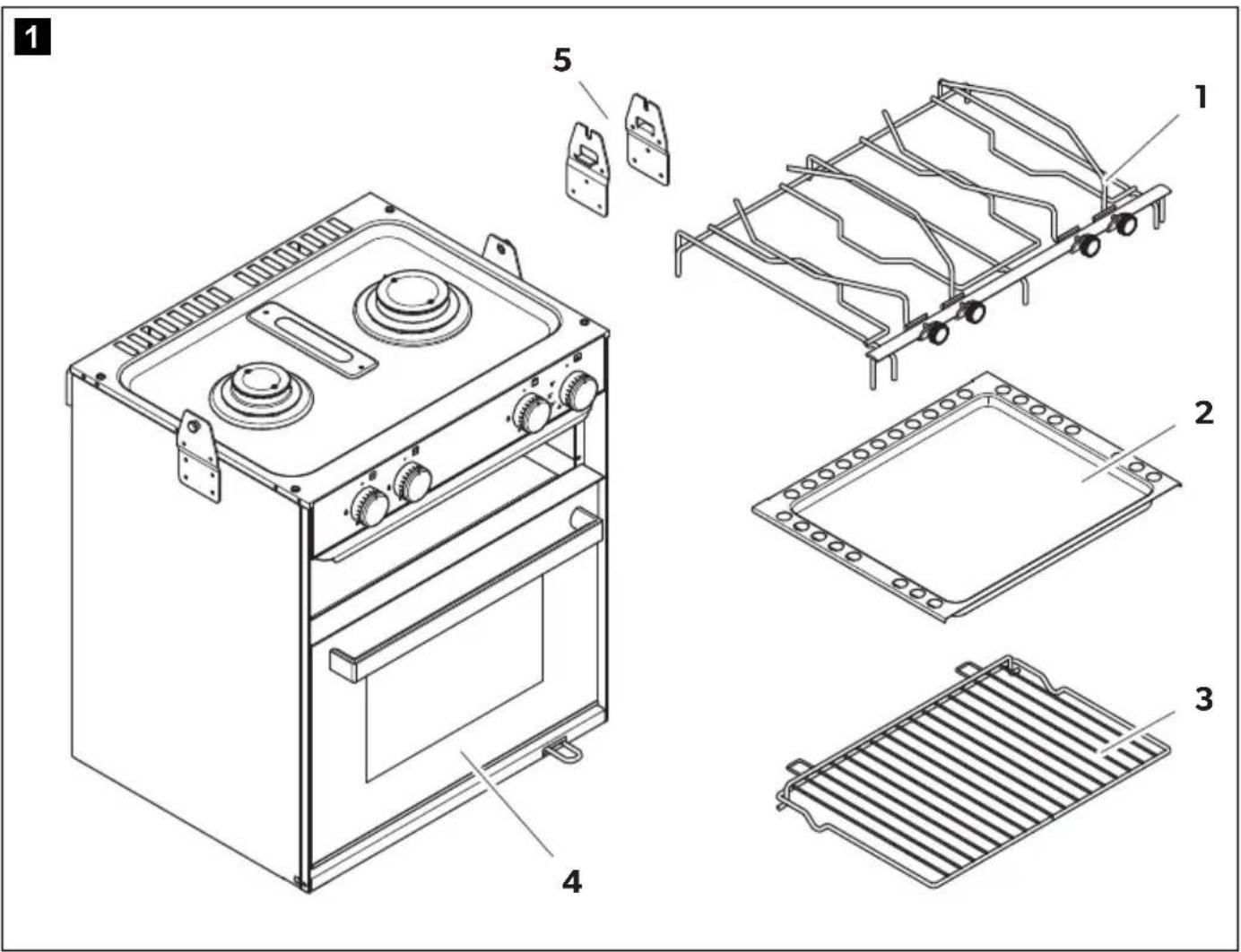

Scope of delivery

No. in fig. 1, Component Quantity page 3

1 Cookware support 1

2 Baking sheet 1

3 O v e n r a c

4 Cooktop and gas oven 1

5 Mounting bracket 2

Target groups

The assembly and installation of the gas connection must be performed by a qualified person who has demonstrated skill and knowledge related to the construction, installation and operation of gas appliances and has received safety training to identify and avoid the hazards involved.

Intended use

The cooktop and gas oven is intended for cooking and baking food.

CU351MK only: The cooktop and gas oven is additionally intended for grilling food.

The cooktop and gas oven is intended for boat and marine use only. For use in enclosed spaces the requirements shown in fig. 5, page 7 must be met. In cases with 3 walls 30 % of the total wall area must be open and unrestricted.

The cooktop and gas oven is not intended to be used on flying decks, in vehicles or buildings.

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Kampa reserves the right to change product appearance and product specifications.

Technical description

The cooktop and gas oven can cook and bake.

CU351MK only: The cooktop and gas oven additionally can grill.

The cooktop and gas oven is attached with mounting brackets and a pin that ensure the device stays in place during wave movements. The device is equipped with a cookware support that ensures that the cookware stands firmly on the cooktop and does not slide during wave movements.

The cooktop and gas oven must be connected to a gas cylinder.

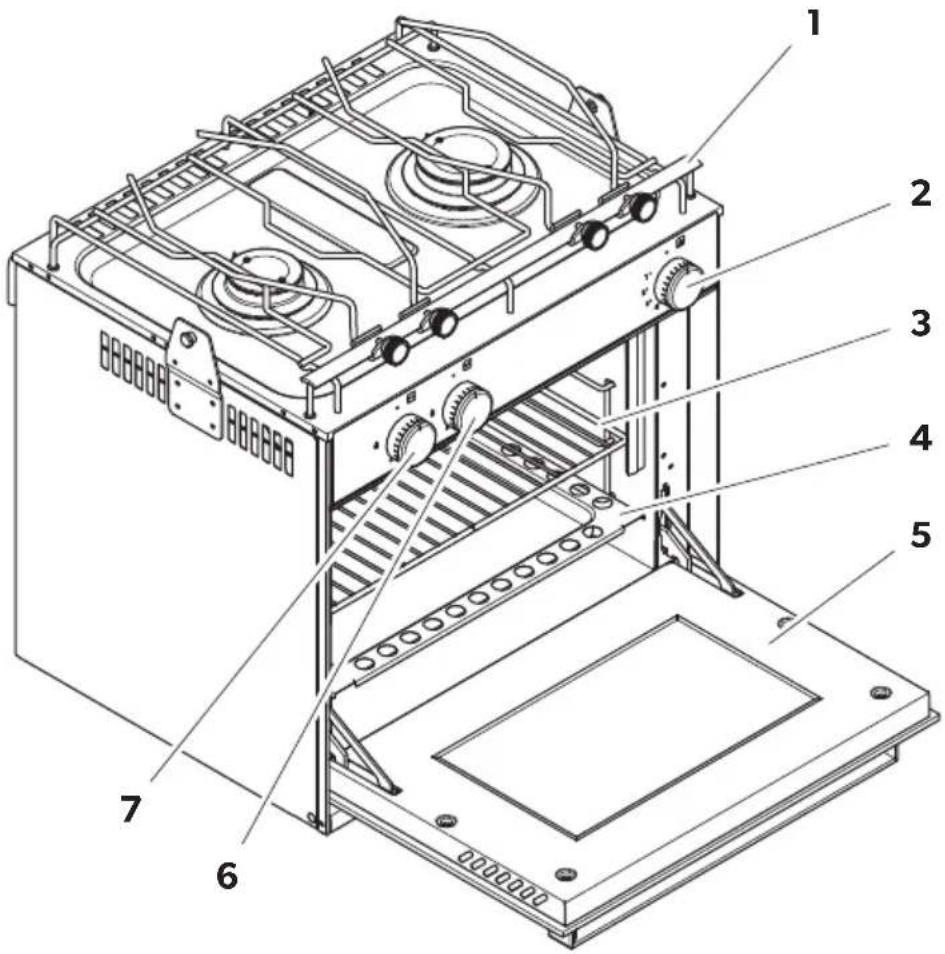

CU354MK

Component

1 Cookware support
2 Oven temperature knob
3 O v e n r a
4 Backing sheet
5 Oven door
6 Right cooktop burner temperature knob
7 Left cooktop burner temperature knob

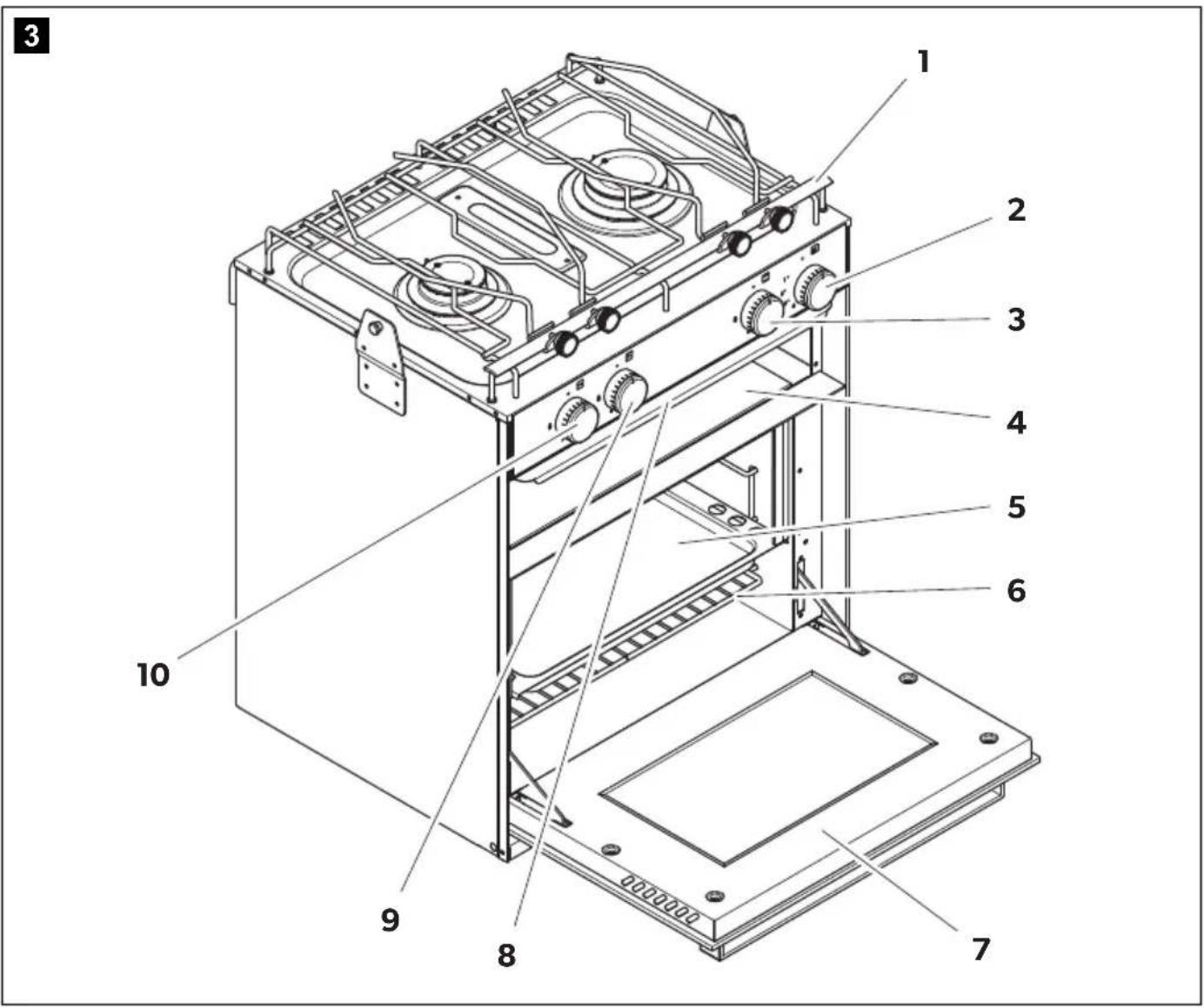

CU351MK

Component

1 Cookware support
2 Oven temperature knob
3 Grill temperature knob
4 G r i l l
5 Backing sheet
6 O v e n r a
7 Oven door

No. in

fig. 3,

page 5

Component

8 Right cooktop burner temperature knob

9 Left cooktop burner temperature knob

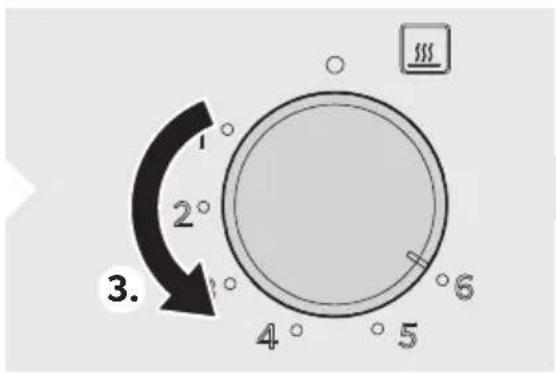

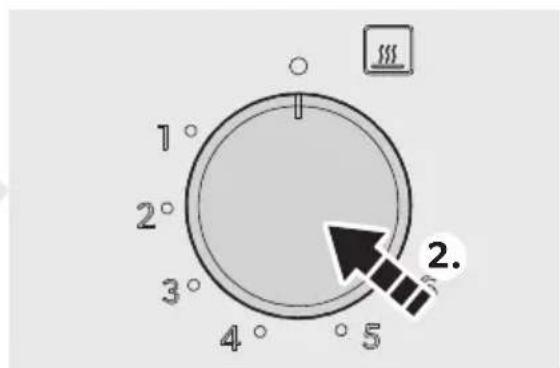

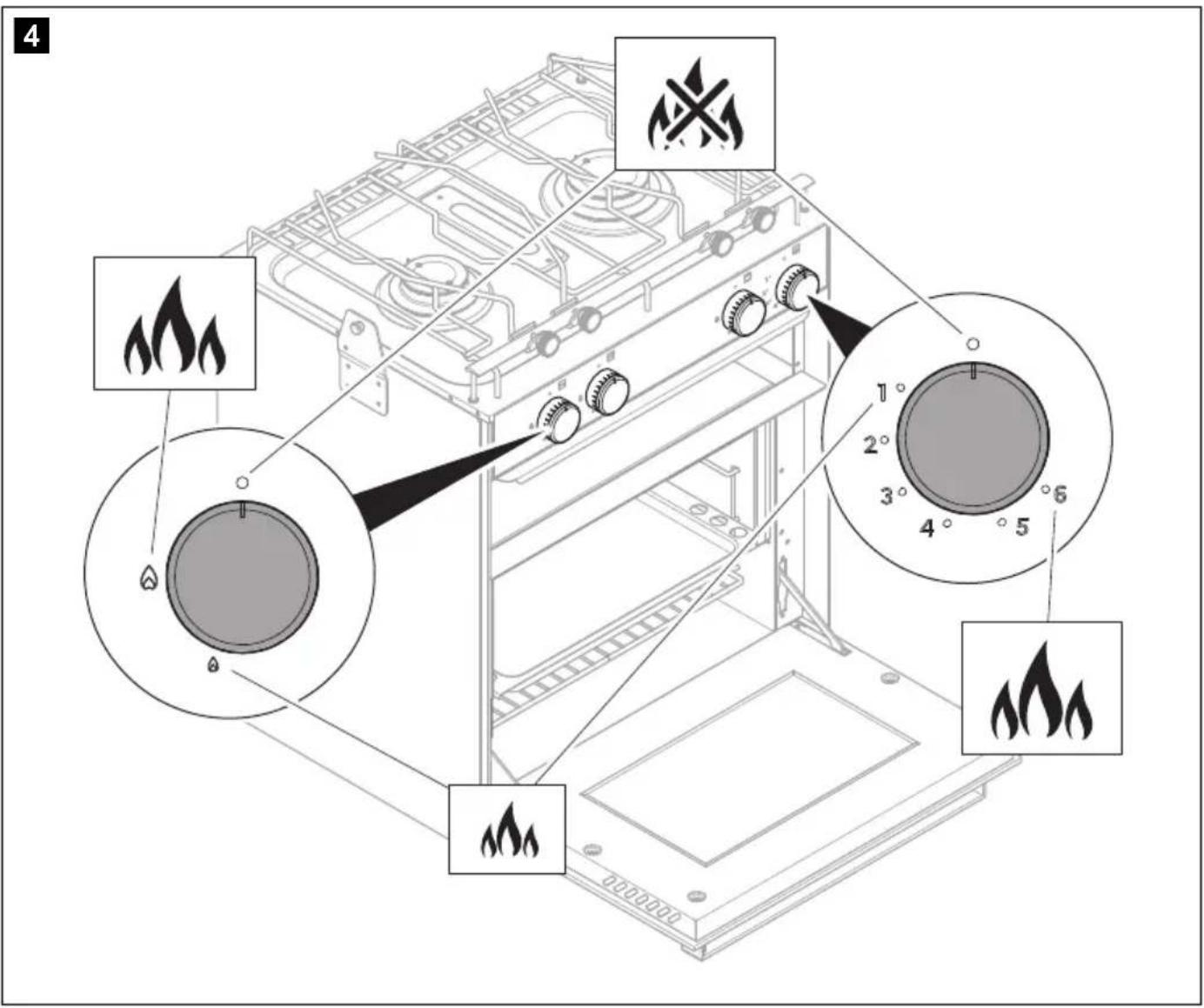

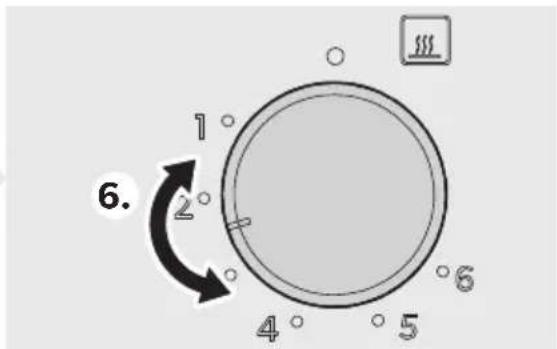

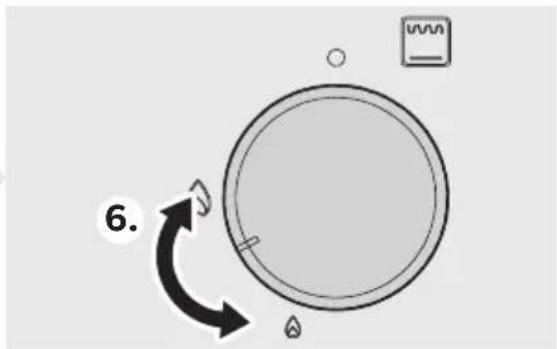

Temperature knobs

The oven temperature and the flame size of the burners can be regulated (fig. 4, page 6).

Oven temperature ranges

Position 1 2 3
Temperature	130°C 160°C 180°C
Position 4 5 6
Temperature	200°C 220°C 240°C

Installation

WARNING! Explosion hazard

• Before installing the cooktop and gas oven ensure that the gas quality and pressure and the gas supply regulators are compatible with the cooktop and gas oven.
  Observe the gas regulation specification for the cooktop and gas oven on the data plate and the specifications in chapter "Technical data" on page 27.
• The cooktop and gas oven is not connected to a fume hood. Install the cooktop and gas oven in accordance with the applicable installation regulations.

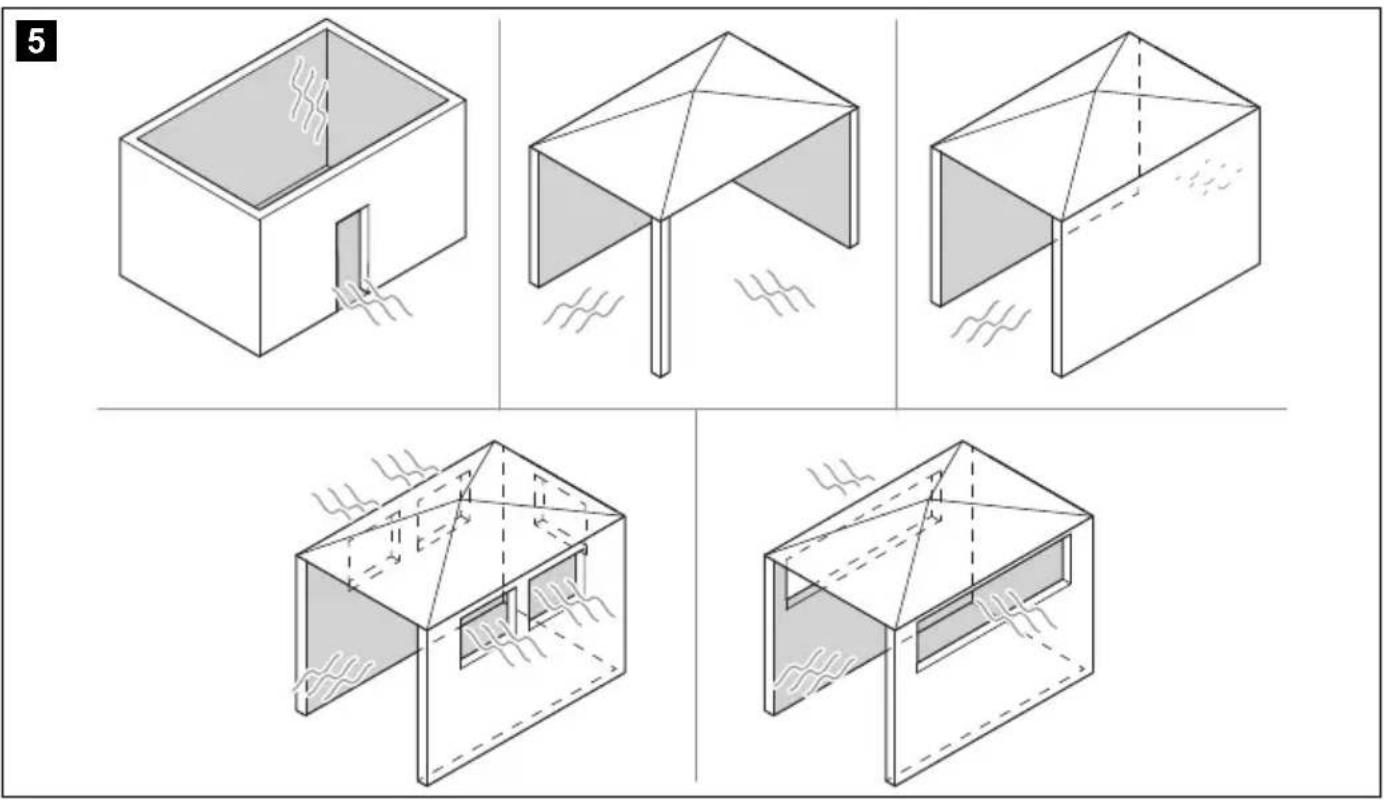

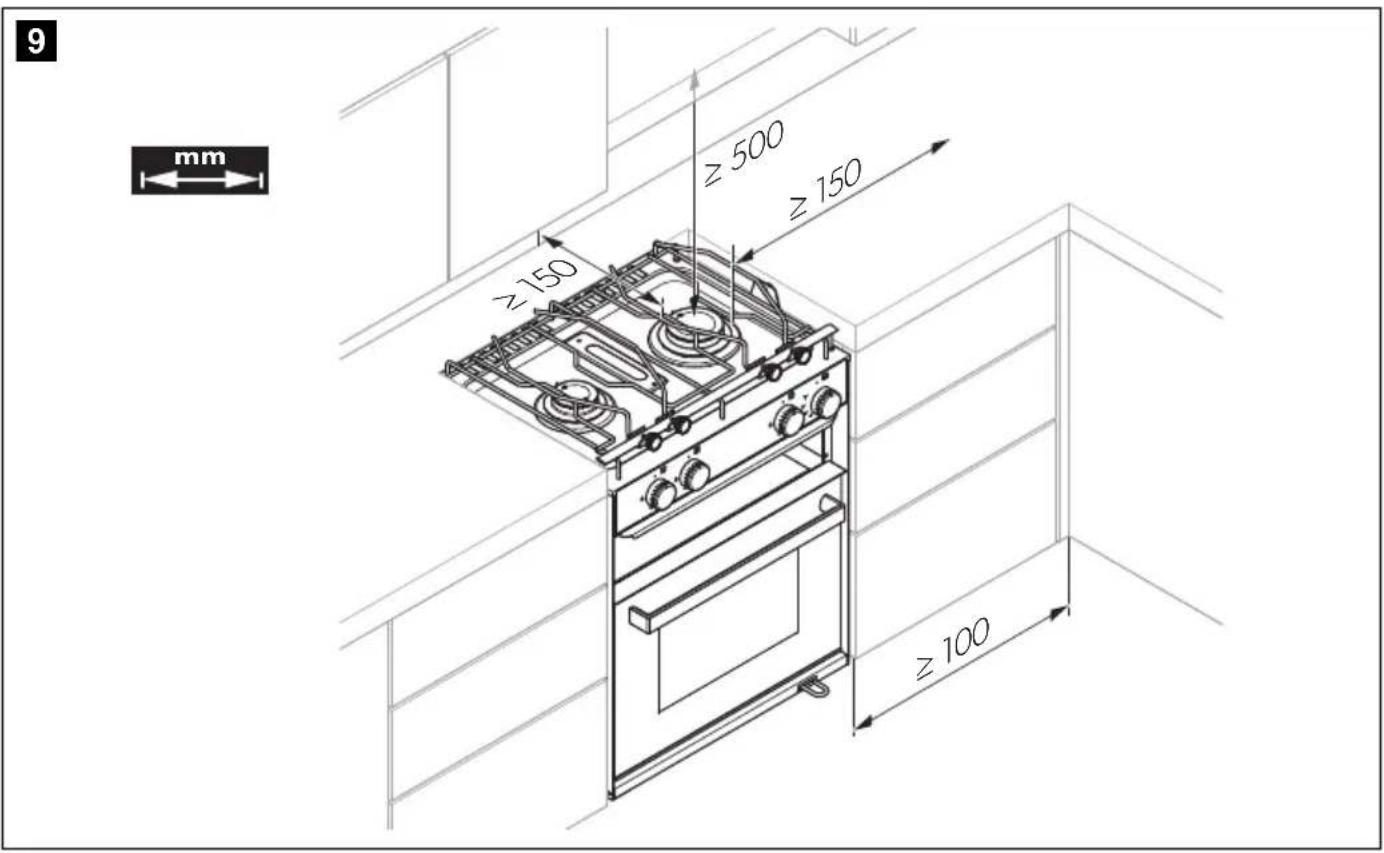

Choosing an installation location

When selecting the location for setting up the cooktop and gas oven, observe the following instructions:

• Position the cooktop and gas oven outdoors or in an enclosed space that meets the requirements as shown in fig. 5, page 7.

• The place must be well ventilated.

• Do not place the cooktop and gas oven in a dip to prevent any gases from accumulating there.

• Keep the cooktop and gas oven protected from wind and direct drafts.
• The ground must be firm, level and stable.
• The housing and the grill cabinet get very hot during operation. The cooktop and gas oven must stand on a base that can withstand heat of at least 80 °C.

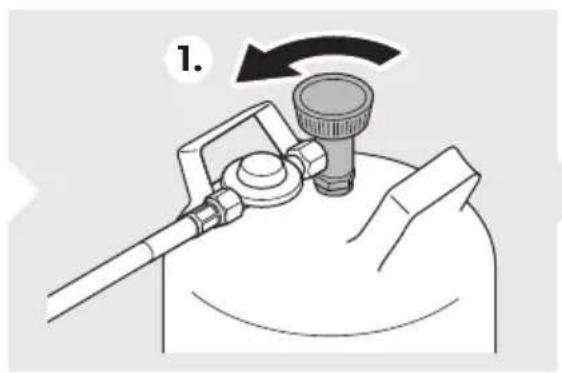

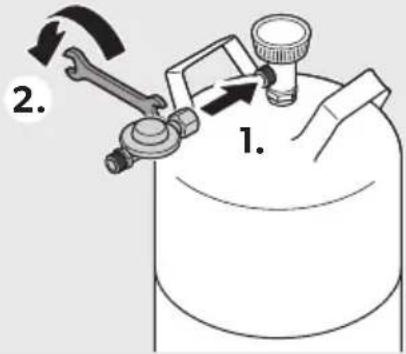

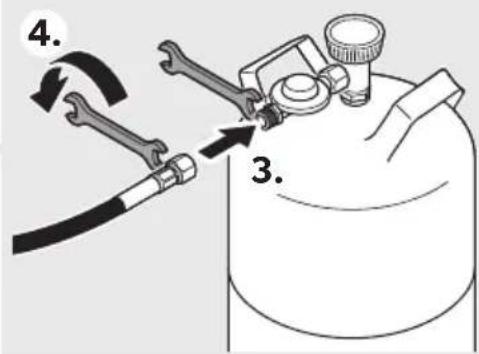

Connecting to the gas cylinder

The cooktop and gas oven is operated with commercial gas cylinders available in the country where it is used (fig. 6, page 8).

The gas cylinder must meet the following conditions:

• The gas cylinder must always be placed in the compartment provided for it.
• The gas cylinder must always be placed vertically.
• The gas cylinder must be provided with a pressure regulator that is easily accessible and not covered.

The gas supply connected to the device must be a rigid metal pipe with sealed connections. If a flexible hose is used, the following conditions must be met:

• The hose must be easily accessible for inspection purposes.
• The hose must be protected from contact with other parts that heat up.
• The hose must be protected against damage.
• The hose must be protected from being pinched by moving parts such as drawers.
• The hose must not be longer than 1.5 ~m .

• The hose must be replaced before its expiration date.

• Connect the pipe or hose of the gas cylinder to the cooktop and gas oven (fig. 7 to fig. 8, page 9).

The hose must be tightened using a suitable spanner such as an adjustable wrench to obtain a gas tight seal.

1. Check the gas hose or pipe for leakage using a foaming agent, e. g. soap.

WARNING! Explosion hazard

Do not use a flame or corrosive liquid to check the gas supply for leaks.

Mounting the cooktop and gas oven

1. Ensure sufficient distance from the walls and other cabinets (see fig. 9, page 10).
2. Mount the cooktop and gas oven as shown in fig. 10 to fig. 11, page 11.

Operation

WARNING! Explosion hazard

• Ignite the burners as soon as the gas supply is switched on. Otherwise, gas may accumulate in the burner area and cause an explosion.

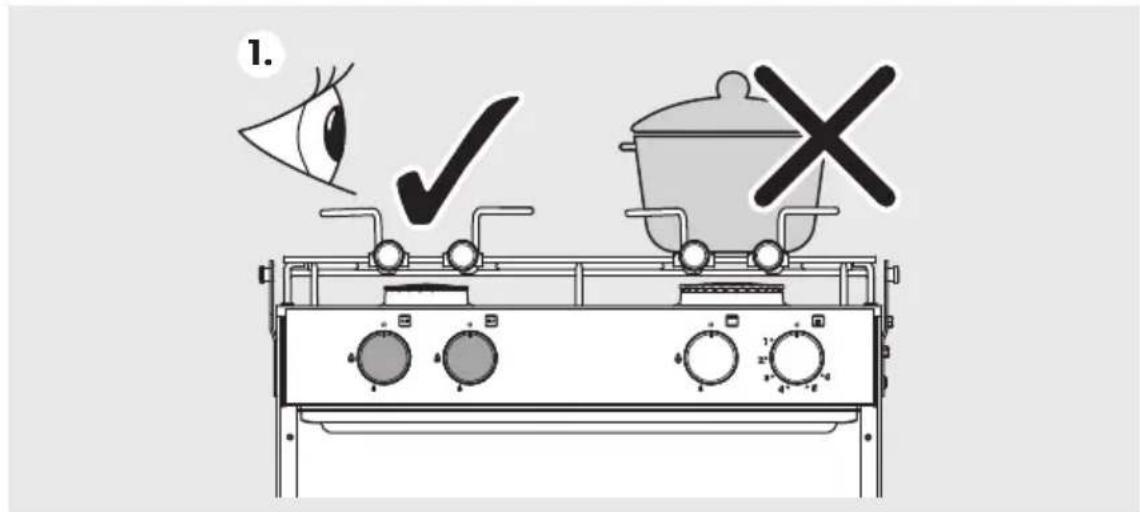

• The entire ignition process must be visible from above and must not be obscured by cookware placed on the cooktop.

NOTICE! Damage hazard

CU351MK only: Do not use the grill for more than 25 minutes.

NOTE

• During the operation of the cooktop and gas oven, a slight noise can be heard, which is caused by the gas escaping.
• Smoke can occur when using cooktop and gas oven for the first time. This is caused by deposits of machine oil burning and stops after approx. 10 minutes.
• CU351MK only: The grill can not be used as an oven.
• When using propane (G31) the flame is blue without yellow peaks.
• When using butane (G30) the flame is blue with yellow peaks when ignited. The yellow peaks become more intense when the burner is heated.

Igniting the burners

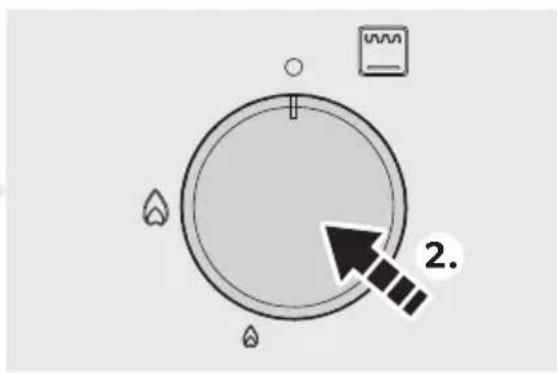

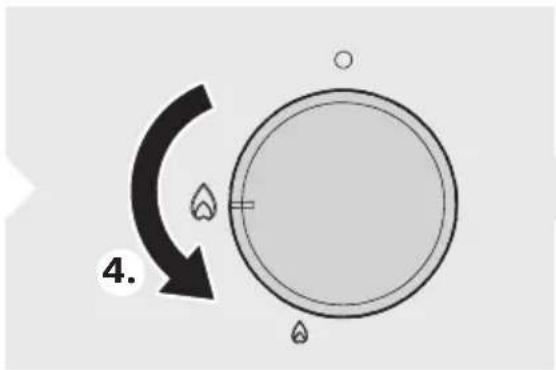

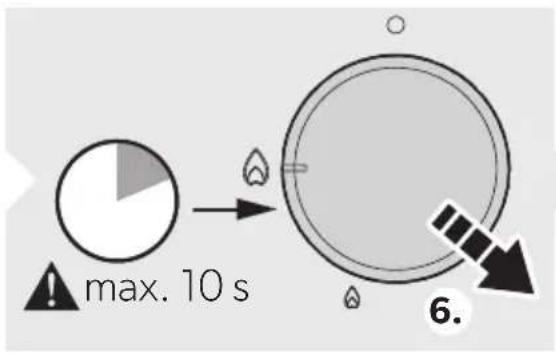

▶Ignite the cooktop as shown in fig. 12 (1) page 12 and fig. 13, page 13.

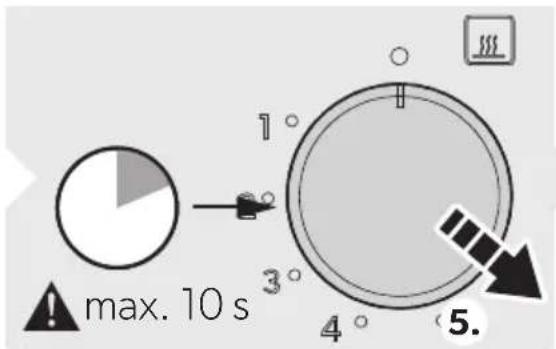

▶CU351MK only: Ignite the grill as shown in fig. 12 (2) page 12 and fig. 14, page 14.
▶Ignite the oven as shown in fig. 12 (3) page 12 and fig. 15, page 15.

Regulating the burners

NOTICE! Damage hazard

Ensure that the baking sheet, oven rack and the cookware do not come into contact with the flames inside the oven.

NOTE

• After igniting the oven for the first time, leave the oven on the highest temperature for least 30 minutes before regulating it.
- After igniting the cooktop for the first time, leave the corresponding cook-top flame on the highest flame size for 15 – 20 minutes before regulating it.

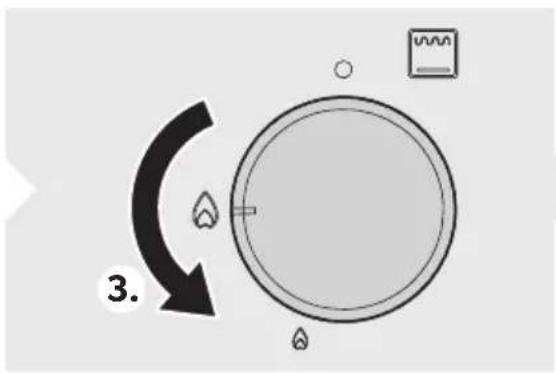

▶ Set the corresponding temperature control to the desired temperature or flame size (see chapter "Temperature knobs" on page 23 and chapter "Oven temperature ranges" on page 23).
√ When the burner of the oven is ignited, the flame remains at the highest flame. When the oven reaches the set temperature, the flame automatically returns to a lower flame.

Using the cooktop

WARNING! Fire hazard

The flame must not extend beyond the edge of the cookware. Center the cookware over the burner and provide a secure stand using the cookware support.

▶ Ensure to use a suitable cookwear. Observe the cooktop burner and cookware diameters:

Cooktop burner diameter	Cookware diameter
62 mm	16 – 22 cm
77 mm	16 – 22 cm

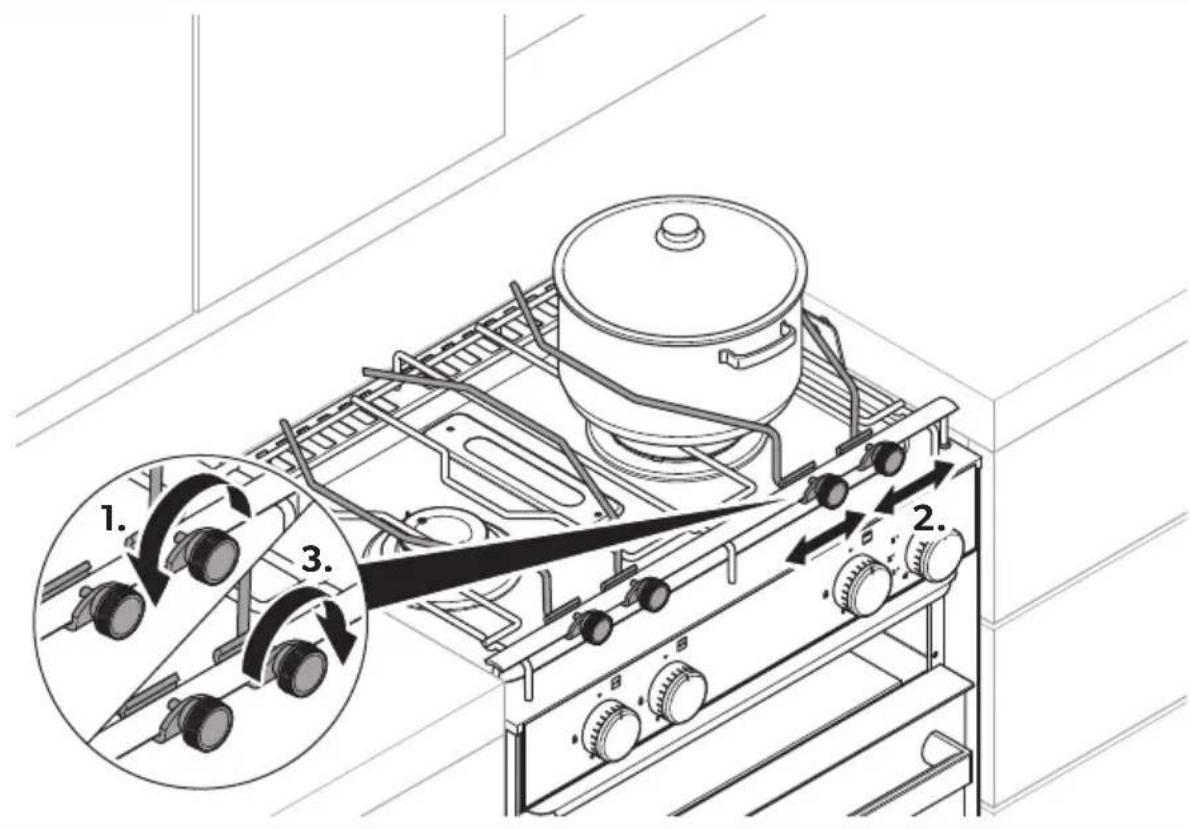

▶ Secure the cookware in the cookware support using the knobs on the cookware support (see fig. 16, page 16).

Using the grill (CU351MK only)

CAUTION! Burn hazard

• Pull out the heat shield to protect the knobs from being heated by the grill.
• The heat shield is very hot while and after operating the grill. Wear protective gloves when touching the heat shield.

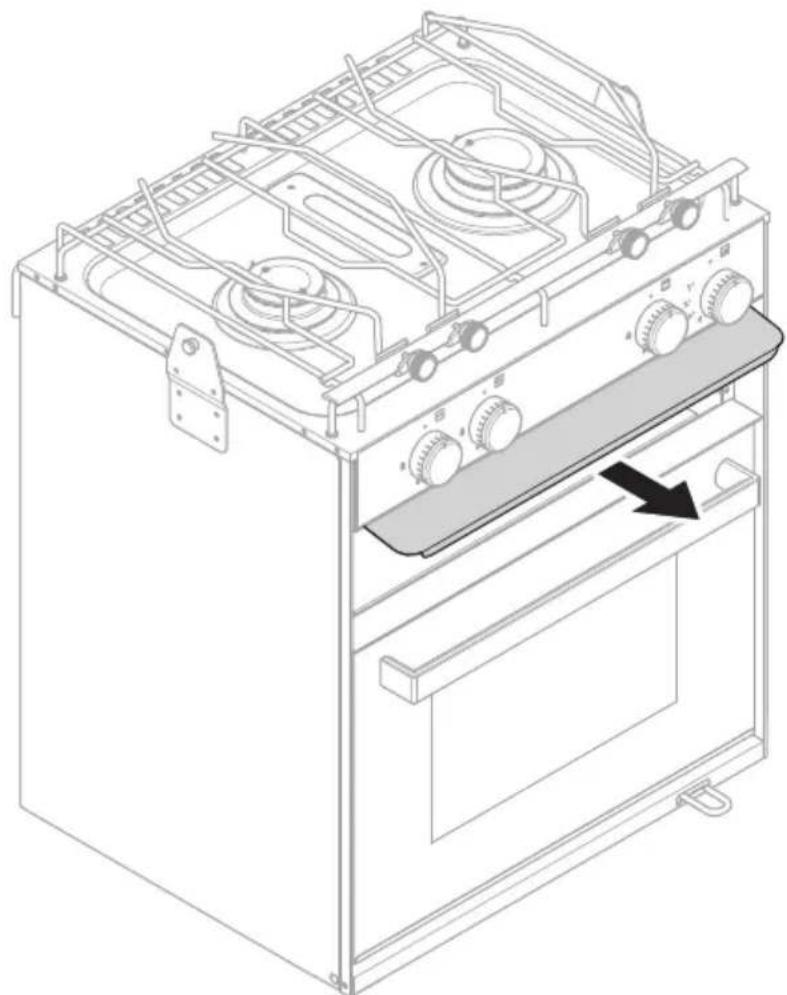

▶ Use the heat shield as shown in fig. 17, page 16.

Switching the cooktop and gas oven off

▶ Switch off the cooktop and gas oven as shown in fig. 18, page 17.

Saving energy

▶Switch off the cooktop and gas oven after use (see chapter "Switching the cooktop and gas oven off" on page 25).
▶ Close the oven door while using the oven.

Cleaning and maintenance

WARNING! Explosion hazard

Do not use a flame or corrosive liquid to check the gas supply for leaks.

CAUTION! Burn hazard

The cooktop and gas oven is very hot while and after operating. Switch off the cooktop and gas oven. Let the cooktop and gas oven cool down before cleaning, packing up or transporting it.

NOTICE! Damage hazard

• Do not use abrasive, corrosive, chlorinated and coarse cleaning agents or brushes to clean the cooktop and gas oven.
• Do not use steam cleaners.
• Do not use compressed air to clean the gas circuit.
• Remove vinegars, salts, citric acid, or other acidic or alkaline substances from the cooktop and gas oven.

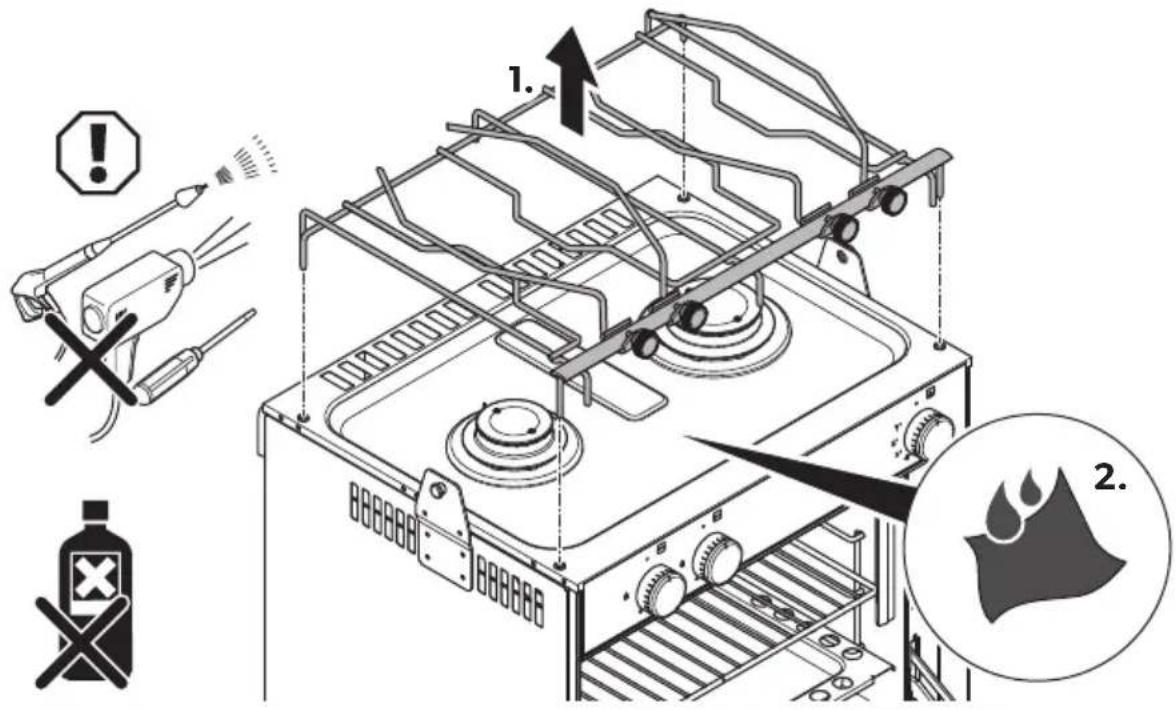

▶Clean the cooktop and gas oven with a damp cloth using neutral cleaning agents (fig. 19, page 17).
▶Clean the oven burner with water as shown in fig. 20, page 18.
▶ To clean or replace the gas injectors contact an authorized service center.

Maintaining the burners

WARNING! Fire hazard

Spiders can spin webs and insects can build nests inside the burners. The webs and nests can obstruct gas flow and cause a fire. Remove any insects, spiders, nests or webs inside the burner.

1. Check the burners twice a month for webs and nests.
2. If necessary, remove the insects, spiders, nests and webs inside the burner.

Replacing the gas cylinder

WARNING! Health hazard

• Replace the gas cylinder in a well-ventilated area.
• Ensure that there are no open flames in the area.

• Only replace the gas cylinder when the cooktop and gas oven is switched off.

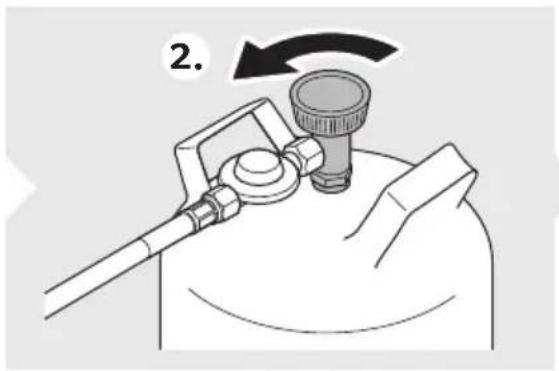

• Close the gas valve on the gas cylinder.

• Unscrew the regulator from the gas cylinder.
• If a gas hose is used, ensure that the hose is not defective.

• If necessary, replace the hose (see chapter "Replacing the hose" on page 26).

• Screw the regulator into the new gas cylinder by hand.

Replacing the hose

WARNING! Health hazard

• Replace the hose in a well-ventilated area.
• Ensure that there are no open flames in the area.

• Only replace the hose when the cook-top and gas oven is switched off.

• Close the gas valve on the gas cylinder.

• Unscrew the regulator from the gas cylinder.

• Replace the gas hose.

• Screw the regulator into the gas cylinder by hand.

• Check the gas hose for leakage using a foaming agent, e. g. soap.

Storage

WARNING! Burn hazard

The cooktop and gas oven is very hot while and after operating. Switch off the cooktop and gas oven. Let the cooktop and gas oven cool down before packing up or transporting it.

1. Close the gas valve on the gas cylinder.
2. Clean the cooktop and gas oven (see chapter "Cleaning and maintenance" on page 25).

Troubleshooting

Fault Possible cause Remedy

The device does not ignit. The wrong gas is used.	▸ Ensure to use suitable gas. Observe the gas regulation specification for the cooktop and gas oven on the data plate. and the specifications in chapter “Technical data” on page 27.▸ If necessary, replace the gas cylinder (see chapter “Replacing the gas cylinder” on page 25).
The gas cylinder is empty.	▸ Replace the gas cylinder (see chapter “Replacing the gas cylinder” on page 25).
The hose is defective.	▸ Replace the hose (see chapter “Replacing the hose” on page 26).
A malfunction or poor connections are present.	▸ Reconnect the pipe or hose (chapter “Connecting to the gas cylinder” on page 23).▸ If necessary, switch off the gas supply and contact an authorized service agent.
The thermocouple is defective.	▸ Switch off the gas supply and contact an authorized service agent.
The cooktop and gas oven is defective.

Fault Possible cause Remedy

The cooktop burners does not ignite.	No sparking occurs.	▶ Set the corresponding cooktop burner knob to the lowest level and switch on the cooktop burner (see chapter “ Igniting the burners” on page 24).
The oven does not ignite. No sparking occurs.		▶ Switch off the oven for 1 minute. ▶ Switch on the oven (see chapter “Regulating the burners” on page 24).
CU351MK only: The grill does not ignite.	No sparking occurs.	▶ Switch off the grill for 1 minute. ▶ Switch on the grill (see chapter “Using the cooktop” on page 24).

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

Note that self-repair or non-professional repair can have safety consequences and might void the warranty.

Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.
Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.

Technical data

	CU351MK CU354MK
Total rated power	6.4 kW, 466 g/h	5.1 kW, 371 g/h
Rated power oven 1.1 kW, 89 g/h
Rated power grill 1.3 kW, 95 g/h –
Rated power cooktopLeft burner Right burner	2.2 kW, 160 g/h1.8 kW, 131 g/h
Combustion air volume	12.8 m3/h	10.2 m3/h
Connection pressure	fig. 6, page 8
Dimensions (H x W x D)	508 x 450 x 358 mm	398 x 449 x 357 mm
Weight	18.50 kg	15.50 kg
Cooktop burner dimensionLeft burnerRight burner	∅ 62 mm∅ 70 mm
Certifications

Description technique

WAARSCHUWING! Brandgevaar

WAARSCHUWING! Brandgevaar

BRĪDINĀJUMS! Apdegumu risks

dometic.com/sales-offices
