USER MANUAL CU325M DOMETIC

ACCENSIONE MANUALE DEL GRILL 12

402 - 414 8,0 - 582 16,0

• PROCEDERE CON L’ACCENSIONE MANUALE

• PROCEDERE CON L’ACCENSIONE MANUALE

• PROCEDERE CON L’ACCENSIONE MANUALE

• CONTROLLARE CHE CI SIA GAS NELLA BOMBOLA SE L’APPARECCHIO NON FUNZIONA ASSOLUTAMENTE CHIUDERE IL RUBINETTO DI ARRIVO DEL GAS E CONTATTARE IL RIVENDITORE. Per generare la fiamma, premere a fondo la manopola di comando e girarla in posizione GRILL o in posizione di fiamma grande. Contemporaneamente accendere il bruciatore con un fiammifero o accendigas. Una volta generata la fiamma, tenere premuta la manopola per qualche secondo in modo che la fiamma resti accesa. SE IL BRUCIATORE NON SI ACCENDE IMMEDIATAMENTE CONTROLLARE CHE CI SIA GAS NELLA BOMBOLA. SE L’APPARECCHIO NON FUNZIONA ASSOLUTAMENTE CHIUDERE IL RUBINETTO DI ARRIVO DEL GAS E CONTATTARE IL RIVENDITORE.

- ACCENSIONE MANUALE DEL GRILL

57 (CU352M) - 64 (CU351MK)

WARNINGS AND SAFETY SYMBOLS

The safety symbols utilised identify possible hazards to users. Always respect all safety warnings identified with these symbols: INDEX SAFETY WARNINGS 17 INSTALLATION 18

MAINTENANCE 29 CLEANING 29 INJECTORS 29 EEC DIRECTIVE 2002/96/EC (WEEE – Waste Electrical and Electronic Equipment) 29

FIGURES AND TECHNICAL DRAWINGS 170-185

DANGER Hazard of injury or death. CAUTION To prevent possible injury and / or damage

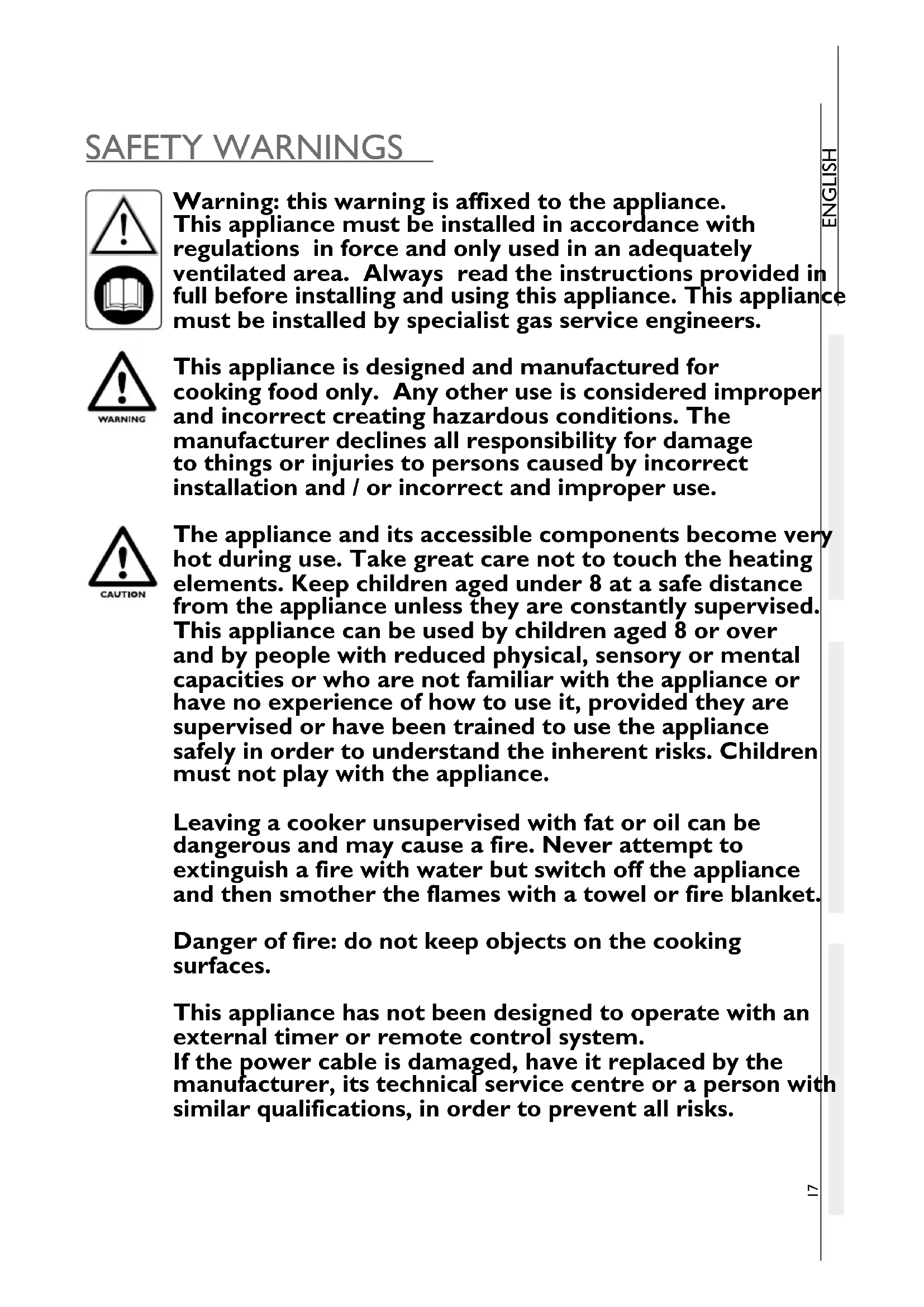

Warning: this warning is affixed to the appliance.

This appliance must be installed in accordance with regulations in force and only used in an adequately ventilated area. Always read the instructions provided in full before installing and using this appliance. This appliance must be installed by specialist gas service engineers. This appliance is designed and manufactured for cooking food only. Any other use is considered improper and incorrect creating hazardous conditions. The manufacturer declines all responsibility for damage to things or injuries to persons caused by incorrect installation and / or incorrect and improper use. The appliance and its accessible components become very hot during use. Take great care not to touch the heating elements. Keep children aged under 8 at a safe distance from the appliance unless they are constantly supervised. This appliance can be used by children aged 8 or over and by people with reduced physical, sensory or mental capacities or who are not familiar with the appliance or have no experience of how to use it, provided they are supervised or have been trained to use the appliance safely in order to understand the inherent risks. Children must not play with the appliance. Leaving a cooker unsupervised with fat or oil can be dangerous and may cause a fire. Never attempt to extinguish a fire with water but switch off the appliance and then smother the flames with a towel or fire blanket. Danger of fire: do not keep objects on the cooking surfaces. This appliance has not been designed to operate with an external timer or remote control system. If the power cable is damaged, have it replaced by the manufacturer, its technical service centre or a person with similar qualifications, in order to prevent all risks.

SAFETY WARNINGSMAINTENANCE USEINSTALLATION

ENGLISH BEFORE INSTALLING CHECK THAT LOCAL GAS (GAS QUALITY AND PRESSURE) AND THE APPLIANCE REGULATORS ARE COMPATIBLE WITH THE APPLIANCE. GAS REGULATING SPECIFICATIONS FOR THIS APPLIANCE ARE PROVIDED ON THE LABEL AFFIXED TO THE APPLIANCE (OR ON THE SERIAL PLATE). THIS APPLIANCE IS NOT CONNECTED TO A FUME EXTRACTION FLUE FOR EXTRACTING PRODUCTS OF COMBUSTION. IT MUST BE INSTALLED AND CONNECTED CONFORMING TO INSTALLATION REGULATIONS IN FORCE. IT IS OF UTMOST IMPORTANCE TO RESPECT LEGISLATION REGARDING VENTILATION. This appliance must not be cleaned or serviced by children unless they are supervised. Never use abrasive and / or coarse cleaning materials or metal brushes to clean the glass oven door as these materials scratch the glass surface with the risk of shattering the glass. Never use steam cleaners to clean the appliance.

Cut-out a hole in the cabinet as illustrated in FIG. 2 - PG. 171 size will depend on appliance model. The cabinet must be appropriately constructed and aligned horizontally with the worktop and with the unit. The cabinet aperture must be perfectly squared and aligned. If there are apertures for cabinet ventilation, prevent flammable materials from entering these.MAINTENANCE USE INSTALLATION

ENGLISH The gas supply pipe connected to the appliance must be a rigid metal pipe with sealed fittings. It is possible to fit a flexible hose, however, in this case the following conditions must be respected: a) The hose can be accessed easily for inspection; b) The hose must be protected against coming into contact with parts which heat up (EG: parts underneath the burners); c) The hose must be protected against being damaged (twisting, pulling, trapping,….); d) The hose must be protected against being trapped by moving parts (e.g. drawers); e) The hose must not have a length over 1.5 m; f) The hose must be replaced before its expiry date; Once the appliance has been connected to the gas supply check for gas leaks utilising a non-corrosive fluid. Do not use a water and soap solution. NEVER USE A FLAME TO CHECK FOR GAS LEAKS. This appliance is designed for running off the following types of gas at the corresponding operating pressures. The gas category (or categories) of the appliance is given on the specifications label affixed to the appliance.

402 - 414 8,0 - 582 16,0

double red and black wire and wire to the terminal junction box located at the rear of the appliance with the wording "+12 V – ". The red terminal is the positive pole and the black terminal is the negative pole.

This chapter refers only to models with the wording 12 V on the appliance specifications label affixed to the appliance.

HIGH VOLTAGE 220-240 V~

This charter refers only to the models listed in the below table. For connecting to the mains power supply use a socket. If the power supply cable (H05RR-F 3x0,75mm

) is damaged, it must be replaced by the manufacturer or by an authorised service centre or by an electrician with a similar qualification to prevent any hazard or risk. WHEN CONNECTING DIRECT TO THE MAINS SUPPLY, IT IS NECESSARY TO INSTALL A CIRCUIT BREAKER WHICH ALLOWS FOR DISCONNECTING AND ISOLATING THE APPLIANCE FROM THE MAINS IN THE EVENT OF OVERVOLTAGE III CONFORMING TO INSTALLATION REGULATIONS. THE SUPPLY CABLE MUST BE POSITIONED SO AS NOT TO REACH IN ANY POINT ALONG THE CABLE ITSELF A TEMPERATURE OF 75K. THE PLUG MUST BE EASY TO ACCESS AFTER INSTALLATION. ALWAYS DISCONNECT ELECTRICAL POWER BEFORE WORKING ON OR SERVICING

GRILL The following symbols are for burner flame regulation and correspond to the position of the knob. NOTE: Different models may have different knobs and different symbols. GAS OFF

ENGLISH To ignite burner, gently push-in and turn the control knob to position HIGH FLAME and maintaining the knob pushed at the same time press the electronic ignition pushbutton. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight.

To regulate flame turn the knob to the desired cooking flame. AUXILIARY Ø 47 mm from 6 to 16 cm SEMI-RAPID Ø 62 mm from 16 to 22 cm RAPID Ø 77 mm from 16 to 22 cm

BURNER PAN DIAMETERMAINTENANCE

INSTALLATION USE To ignite burner, gently push-in and turn the control knob to a position from 1 to 6 and maintaining the knob pushed at the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight.

• CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE. IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER. Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition.

- OVEN FLAME REGULATION WITH THERMOSTAT

When the oven burner is ignited the flame remains at high flame in all knob positions. When the oven reaches the set temperature the flame automatically goes down to low flame. POSITIONS 1 2 3 4 5 6 TEMPERATURE 130° C 160° C 180° C 200° C 220° C 240° C

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition.

- FLAME REGULATION GRILL

For models 414 - CU311 - CU311M - CU333 - CU333M - CU335 - CU352M- CU335M - CU414PE - CU433 CU433M - CU433ML: the grill is to be used only at its rated thermal capacity. For all other models: to regulate flame turn the knob to the desired cooking flame.

Depending on the type of gas used the flame should be: Propane (G31): blue flame without yellow tips. Butane (G30): flame with yellow tips when ignited which becomes more intense in colour as the burner heats. For the installation, use and maintenance instructions , of the microwave, consult the operating manual contained inside the microwave. Ignite the oven as described in the chapter OVEN. Turn the gas knob to the required position. Insert the drip tray with the spit already installed as illustrated in Fig. 5 - Pg. 183. Press the spit button to turn on the spit motor. MICROWAVE SPIT ELECTRIC HOTPLATE (depending on model) BEFORE TURNING ON THE ELECTRIC HOTPLATE (OR IF THE HOTPLATE HAS REMAINED UNUSED FOR A LONG TIME) IT IS NECESSARY TO ELIMINATE ANY DAMP BY TURNING ON THE HOTPLATE AND LEAVING IT ON FOR 30 MINUTES

WITH THE CORRESPONDING KNOB IN POSITION 1

USE PANS WITH FLAT BOTTOMS AND WITH DIAMETERS NO LESS THAN THE DIAMETER OF THE HOTPLATE. DRY THE BOTTOM OF THE PAN BEFORE PLACING IT ON TOP OF THE HOTPLATE. WHEN USING THE HOTPLATE DO NOT LEAVE THE APPLIANCE UNATTENDED AND MAKE SURE CHILDREN ARE NOWHERE NEAR THE APPLIANCE. The electric hotplate is controlled by a 7-position knob: position off is 0 (zero) whereas positions 1 to 6 are for regulating the hotplate. Positions 1 to 6 correspond to an increase in temperature of the hotplate. There is a red LED positioned next to the knob which lights up when the hotplate is on. Position the drip tray with the rotating plate as illustrated in FIG. 6 - PG. 184. Press the purpose button to turn on rotating plate motor. ROTATING PLATEMAINTENANCE INSTALLATION USE

The appliance runs off standard gas bottles which can be found in the country of use. The type of gas to use is clearly marked on the packaging and on the specifications label affixed to the rear of the appliance. However always respect the following instructions: gas bottles must always be located and positioned in the compartment provided for this purpose. They must always be vertical and fitted with a pressure regulator and easily accessible and not obstructed. Do not obstruct or impede access to the gas bottle to permit quick and easy access when replacing. WARNING! When replacing the gas bottle always take the following precautions: a) close all gas knobs; b) make sure there are no flames or fires in proximity of the gas bottle; c) close the gas valve on the bottle to be replaced; d) unscrew the pressure regulator on the empty bottle and remove the bottle from the purpose compartment. This procedure is inverted for fitting a new bottle. Check for gas leaks utilising a non-corrosive fluid. Do not use a water and soap solution. NEVER USE A FLAME TO CHECK FOR GAS LEAKS; e) ignite the burners to check they function correctly. If there are problems, call in an authorised gas service engineer. AFTER APPLIANCE USE ALWAYS TURN OFF THE GAS TAP ON THE BOTTLE GAS LEAKS We recommend the use of an electronic and homologated gas detector for checking for gas leaks. If there is a smell of gas; a) immediately open the windows and evacuate the vehicle or caravan. b) do not turn on or off light switches or other electronic and electric appliances, do not light matches or lighters or anything that could cause the gas to ignite; c) put out any flames d) shut off the valve on the gas bottle or cylinder. Do not re-open this valve unless the gas leak has been identified and eliminated. e) contact a specialised gas service engineer. NEVER OPERATE THE APPLIANCE WITH GAS AND/OR AT GAS PRESSURES DIFFERENT FROM THOSE INDICATED BY THE MANUFACTURER AS THIS COULD CAUSE IRREGULAR AND INCORRECT OPERATION. THE MANUFACTURER DECLINES ALL LIABILITY FOR THE INCORRECT OR IMPROPER USE OF THE APPLIANCE.USE INSTALLATION MAINTENANCE BURNER Ø INJECTOR (mm) STAMPED N. 0,67 0,75

57 (CU352M) - 64 (CU351MK)

ALLUMAGE MANUEL DU FOUR 39

ALLUMAGE MANUEL DU GRIL 40

DIMENSIONS DU FOUR A ENCASTREMENT

402 - 414 8,0 - 582 16,0

- ALLUMAGE MANUEL DU FOUR

- ALLUMAGE MANUEL DU GRIL

57 (CU352M) - 64 (CU351MK)

402 - 414 8,0 - 582 16,0

57 (CU352M) - 64 (CU351MK)

402 - 414 8,0 - 582 16,0

57 (CU352M) - 64 (CU351MK)

402 - 414 8,0 - 582 16,0

57 (CU352M) - 64 (CU351MK)

402 - 414 8,0 - 582 16,0

57 (CU352M) - 64 (CU351MK)

INDBYGNINGSHULLETS MÅL

402 - 414 8,0 - 582 16,0

- MANUEL TÆNDING AF KOGEPLADEN

- MANUEL TÆNDING AF OVNEN

57 (CU352M) - 64 (CU351MK)

402 - 414 8,0 - 582 16,0

57 (CU352M) - 64 (CU351MK)

INNEHÅLLSFÖRTECKNING

402 - 414 8,0 - 582 16,0

57 (CU352M) - 64 (CU351MK)

INNEBYGGINGSHULLETS MÅL

MODELL TOTAL NOMINELL

402 - 414 8,0 - 582 16,0

• FORTSETT MED MANUELL TENNING.

• FORTSETT MED MANUELL TENNING.

• FORTSETT MED MANUELL TENNING.

57 (CU352M) - 64 (CU351MK)

402 - 414 8,0 - 582 16,0

57 (CU352M) - 64 (CU351MK)
