USER MANUAL BKM-256DD SONY

Information for Customers in Europe (欧州顧客向け情報) (1)

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Symbols on the product

This symbol indicates the manufacturer, and appears next to the manufacturer's name and address.

This symbol indicates the EU Importer, and appears next to the EU Importer's name and address.

This symbol indicates the European Community representative, and appears next to the European Community representative's name and address.

This symbol indicates the medical device in the European Community.

This symbol indicates the date of manufacture.

This symbol indicates the serial number.

This symbol indicates the version of the accompanying document.

Caution

For cautions and further information on using this product, refer to the instructions for use for the monitor.

For customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of part 15 of FCC Rules.

Caution

Do not use the device in a MR (Magnetic Resonance) environment.

It may cause a malfunction, fire, and unwanted movement.

For the customers in the U.S.A.

SONY LIMITED WARRANTY - Please visit http://www.sony.com/psa/warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Canada

SONY LIMITED WARRANTY - Please visit http://www.sonybiz.ca/pro/lang/en/ca/article/resources-warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Europe

Sony Professional Solutions Europe - Standard Warranty and Exceptions on Standard Warranty.

Please visit https://pro.sony/en_GB/support-services/warranty/support-professional-solutions-europe-standard-product-warranty for important information and complete terms and conditions.

For the customers in Korea

SONY LIMITED WARRANTY -

Please visit

http://bpeng.sony.co.kr/handler/BPAS-Start for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

Overview

This unit is a DVI-D signal input adaptor for Sony monitors. When installed in an optional input slot on the main unit, it provides DVI-D input and output connectors for the main unit and a decoder for DVI-D signal.

Notes

• There are some monitors that are not compatible with this unit.
  To check if the monitor is compatible with this unit, refer to the instructions for use of the monitor.
• DVI-A and DVI-I signals are not compatible with this unit.
• DVI-D dual-link signal is not compatible with this unit.

Function

Decoder for DVI-D signal

The BKM-256DD supports DVI-D single-link signal, which can be decoded by connecting a DVI-D 24-pin cable.

Cable equalizer

The BKM-256DD is equipped with an equalizer for received signals in the DVI-D signal receiver section.

5 V output function

The BKM-256DD supplies 5 V power from pin 14 on either IN or OUT connector to an external device.

Using the Input and Output Connectors

For information about installing this unit in an input option slot, refer to the instructions for use for the monitor.

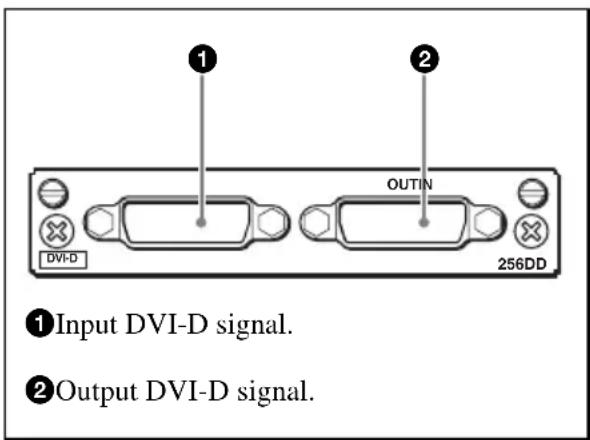

Configuration of input/output connectors and signals that may be input

The configuration of the input and output connectors, and the signals that may be input are shown below.

① Input DVI-D signal. ② Output DVI-D signal.

Input of DVI-D signal

You can input DVI-D signal to the connector ①. Also you can output the signal, that input to the connector ①, from connector ②.

Note

The DC 5 V supply from the IN connector, and DC 5 V supply and output signal from the OUT connector are provided only when the power of the main unit is ON. For information about DC 5 V output, refer to the instructions for use of the monitor.

Specifications

General

Voltage +3.3 V, +5 V (supplied from the main unit)

Power consumption

Approx. 2 W

Operating conditions

Temperature

0^ to 35^ (32°F to 95°F)

Optimum temperature

20^ to 30^ (68°F to 86°F)

Humidity 0% to 90% (no condensation)

Pressure 700 hPa to 1060 hPa

Storage and transport conditions

Temperature -20^ to +60^ (-4^ to +140^)

Humidity 0% to 90%

Pressure 700 hPa to 1060 hPa

Maximum external dimensions (w/h/d)

100 × 20 × 154 ~mm

(4×^13 / 16× 6^1 / 8 inches)

Mass Approx. 250 g (8.8 oz)

Input/Output connectors

DVI-D input/output

DVI-D 24-pin connector (2)

Available signal format

Refer to the instructions for use of the monitor.

Signal characteristics

DVI-D signal

Single-link TMDS compatible

Compliance with DVI Revision 1.0

Notes

- DVI-A and DVI-I signals are not compatible with this unit.

- DVI-D dual-link signal is not compatible with this unit.

Note

Depending on the SCAN setting of the monitor, part of the displayed picture may not appear.

Supplied accessories

Instructions for Use (1)

Information for Customers in Europe (1)

Design and specifications are subject to change without notice.

Notes

• Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

- SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY KIND MADE BY USERS OF THIS UNIT OR MADE BY THIRD PARTIES.

- SONY WILL NOT BE LIABLE FOR THE TERMINATION OR DISCONTINUATION OF ANY SERVICES RELATED TO THIS UNIT THAT MAY RESULT DUE TO CIRCUMSTANCES OF ANY KIND.
