USER MANUAL CHE 2-26 18.0-EC Flex

Illustration of a mounted cylindrical tool with dual screws and a handle (no text or symbols visible)

Five circular icons representing different professional and technical roles: person, glasses, headwear, helmet, and a waste bin (no text or symbols)

Vor Inbetriebnahme

Exploded view diagram of a drill press with numbered parts and labeled components

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a tool applying adhesive to a wire, showing a drop and a solid (no text or symbols)

2. 1. "click"

Diagram showing a drill bit being inserted into a drill bit, with numbered callouts indicating the process.

1. "click" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram of a mechanical switch mechanism with arrows indicating clockwise motion (no text or symbols)

Close-up of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of hands operating a drill press with a tool (no text or symbols visible)

Bolters D. -

Eckhard Rühle

Manager Research &

Development (R & D)

15.04.2019

Klaus Peter Weinper

Head of Quality

Department (QD)

Symbols used in this manual ..... 13

Symbols on the power tool....13

Technical data 13

Overview 14

Important safety information ..... 15

Noise and vibration 17

Instructions for use ..... 17

Maintenance and care 21

Disposal information 21

C ∈ conformity ..... 22

Exemption from liability 22

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE!

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear protective goggles!

Wear ear defenders!

Use lightweight breathing protection!

Disposal information for the old machine (see page 21)!

Technical data

Rechargeable hammer drill	CHE 2-2618.0-EC
Nominal voltage V 18
Battery AP 18.0 (5.0 Ah)
No-load speed rpm 980
No-load impact rate rpm	4,350
Max. single impact energy (according to “EPTA procedure 05/2009”)	J	2.6
Lubrication Grease
Tool holder		SDS-plus
Max. drill diameter– concrete– wood– metal	mm mm mm	263013
Weight according to “EPTA Procedure 01/2003” (without battery)	kg	3.18
Weight of battery 5.0 Ah	kg	0.72

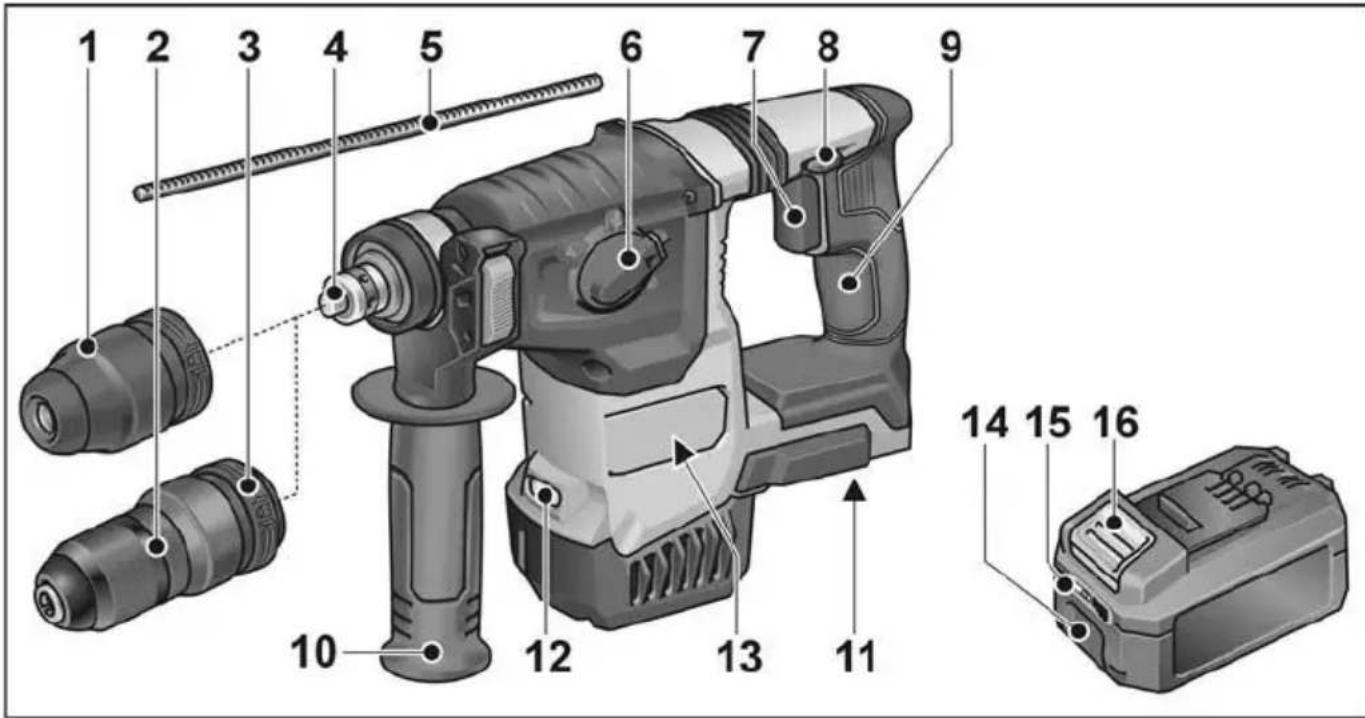

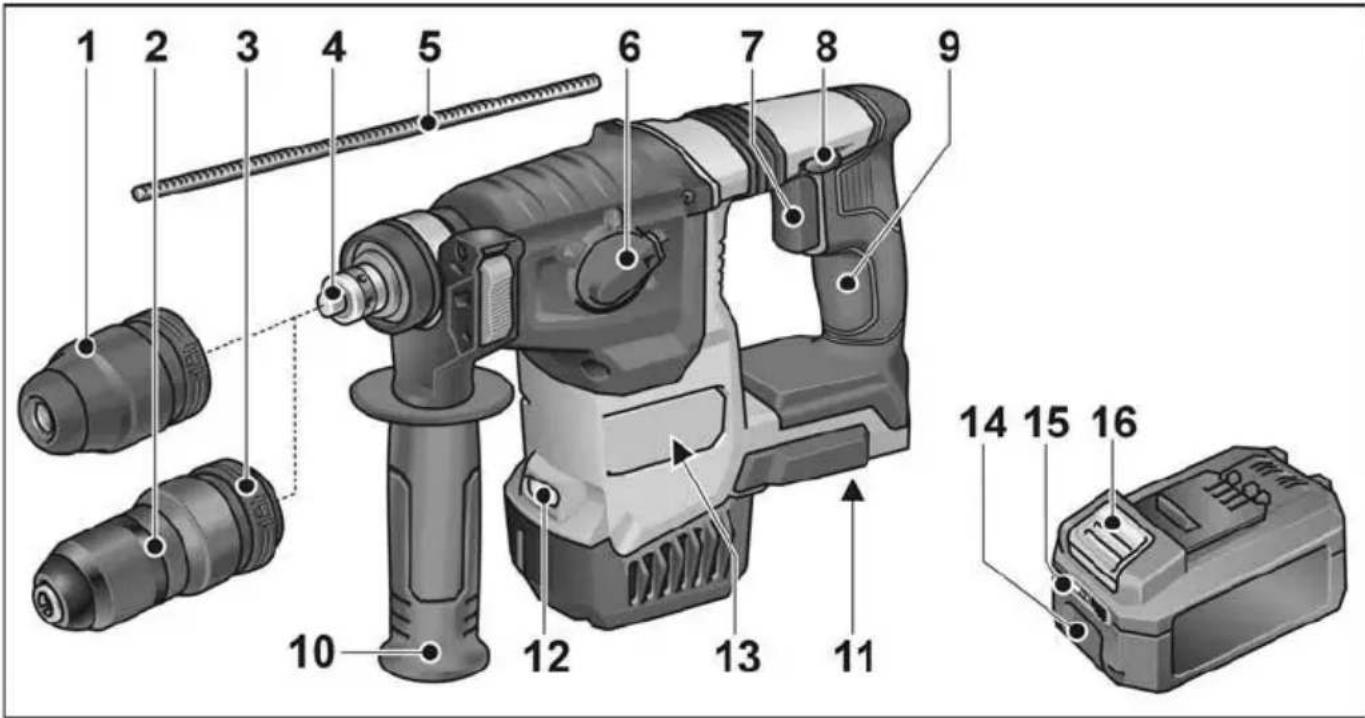

Overview

Exploded view diagram of a drill press with numbered parts and labeled components

1 SDS drill chuck
2 Keyless chuck
3 Locking sleeve
4 Spindle
5 Depth stop
6 Rotary knob for operating mode
7 Trigger switch

For switching on and off and for accelerating up to maximum speed/impact rate.

8 Direction preselector switch

9 Handle

10 Auxiliary handle
11 Slot for battery
12 LED lighting

For illuminating the working area.

13 Rating plate *
14 Li-ion battery
15 State of charge indicator
16 Release button for battery

* not visible

Important safety information

WARNING!

Read all safety instructions and general instructions. Failure to comply with the safety instructions and general instructions may result in electric shock, fire and/or serious injuries. Keep all safety instructions and general instructions in a safe place for future reference.

Before using the power tool, please read the following and act accordingly:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The power tool may be operated only if it is

– for its intended use,

– in perfect working order.

Faults which compromise safety must be repaired immediately.

Intended use

The rechargeable hammer drill CHE 2-26 18.0-EC is designed

– for commercial use in industry and trade,
– for hammer drilling in masonry and concrete for wall plug and anchor attachments and through-holes,

– for light trimming work to remove plaster and tiles,

– to be used with suitable tools recommended by the manufacturer for this power tool.

Safety instructions for hammers

■ Wear ear defenders. The effect of noise may result in loss of hearing.
■ Use auxiliary handles supplied with the power tool. The loss of control may result in injuries.
- Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and shock the operator.
■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
■ A damaged or incorrectly used battery may result in the emission of fumes. Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.

Safety instructions for drill machines Safety instructions for all operations

■ Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
■ Use the auxiliary handle(s). Loss of control can cause personal injury.
■ Brace the tool properly before use. This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury.
- Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and shock the operator.

Safety instructions when using long drill bits

■ Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

■ Always start drilling at low speed and with the bit tip in contact with the workpiece.

At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

■ Apply pressure only in direct line with the bit and do not apply excessive pressure.

Bits can bend causing breakage or loss of control, resulting in personal injury.

Additional safety instructions

■ Use suitable detectors to detect concealed power supply cables or consult your local supply company.

Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property or may cause an electric shock.

■ When working, hold the power tool firmly with both hands and ensure that you have a secure footing. The power tool is controlled more securely if held with both hands.

- Secure the workpiece. A workpiece is held more securely in a clamping device than by hand.

■ Only use tools with SDS-plus tool holder. Pull on the tool to check that it is locked properly.

■ Have a damaged dust cap replaced immediately. The dust cap prevents the ingress of dust into the tool holder.

■ Dust released from materials, such as lead paints, some types of wood, minerals and metal, may be hazardous to the operator or people in the vicinity. Inhaling or touching such dust may result in respiratory diseases and/or allergic reactions.

- Ensure the workplace is well ventilated.

- If possible, use external dust extraction.

- It is recommended to wear a respirator mask belonging to filter class P2.

■ Do not work on materials which release hazardous substances (e.g. asbestos).

■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.

■ Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.

The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.

■ Before carrying out any work on the power tool, move the direction preselector switch to the middle position.

■ Operate the direction preselector switch or torque setting turning dial only when the tool is stopped.

■ Identify the power tool with stickers only. Do not drill any holes into the housing.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 60745.

The A-weighted noise level of the power tool is typically:

- Sound pressure level: 90 dB(A);

– Sound power level: 101 dB(A);

- Uncertainty K: 3 dB.

Total vibration value:

- when hammer drilling:

– Emission value a_h : 15.9 m/s

– Uncertainty K: 1.5 m/s ^2

- when chiselling:

– Emission value a_h : 12.7 m/s ^2

– Uncertainty K: 1.5 m/s ^2

ATTENTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE!

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

Instructions for use

Before switching on the power tool Unpack the power tool and accessories and check that no parts are missing or damaged.

NOTE

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. Refer to the charger operating manual.

Inserting/replacing the battery

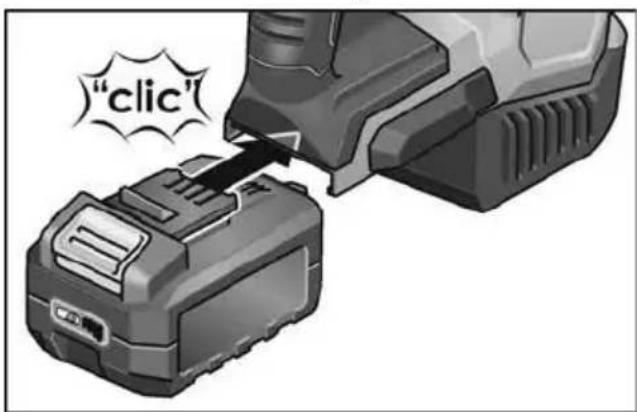

■ Press the charged battery into the power tool until it clicks into place.

"click"

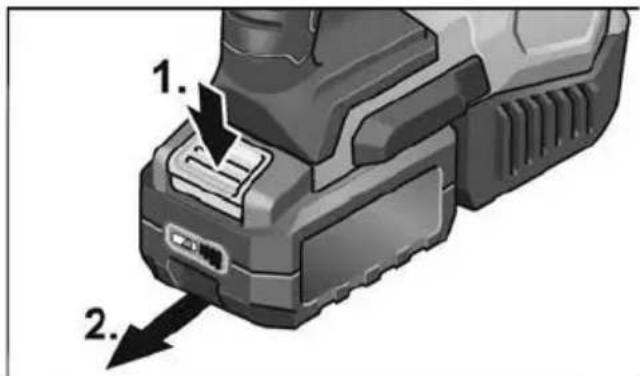

■ To remove, press the release button (1.) and pull out the battery (2.).

1. 2.

CAUTION!

When the device is not in use, protect the battery contacts. Loose metal parts may short-circuit the contacts; explosion and fire hazard!

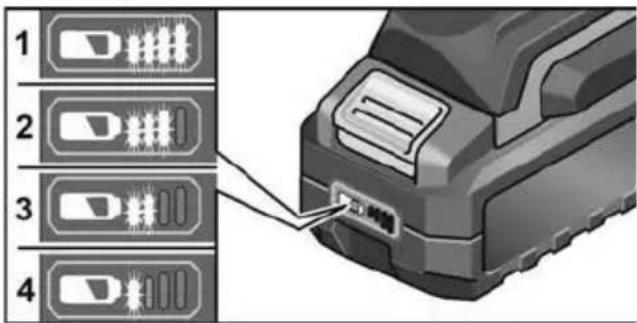

Battery state of charge

■ Press the button to check the state of charge at the state of charge indicator LEDs.

1 2 3 4

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

Adjusting the auxiliary handle

WARNING!

Remove the battery before carrying out any work on the power tool.

CAUTION!

Use the power tool with the attached auxiliary handle only.

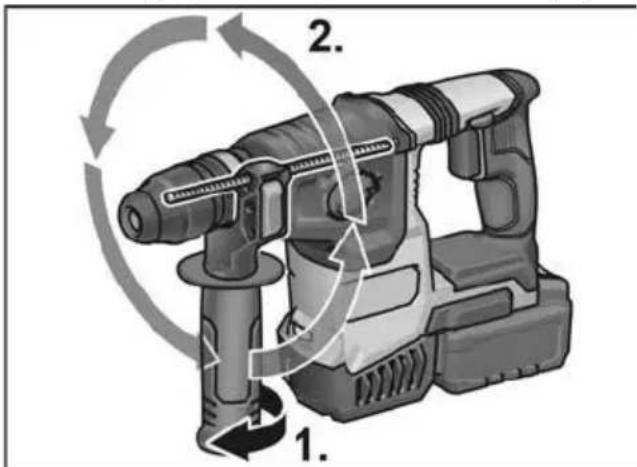

The auxiliary handle can be swivelled into any position to ensure safe and fatigue-free working.

NOTE!

With the depth stop attached, the pivot range of the auxiliary handle is restricted.

■ Release the clamping by turning the auxiliary handle counterclockwise (1.).

1. 2.

■ Swivel the auxiliary handle into the desired position (2.).

- Secure the adjustment by turning the auxiliary handle clockwise.

Attaching the depth stop

WARNING!

Remove the battery before carrying out any work on the power tool.

■ Press and hold clamping lever on auxiliary handle in upper area (1.).
■ Push in the depth stop (2.).

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

■ Set depth stop to the required drilling depth.
■ Release clamping lever.

i NOTE!

Push tool with SDS-plus shank in the SDS-plus tool holder as far as the back position. The movement of the tool could otherwise result in an incorrect drilling depth setting.

Inserting tools with SDS-plus shank

WARNING!

Remove the battery before carrying out any work on the power tool.

CAUTION!

Used cutting accessories may become hot. Wear protective gloves!

i NOTE!

Tools used must have an SDS-plus shank. If tools do not have an SDS plus shank (e.g. wood drill bit), a keyless chuck must be used.

■ Check the dust cap.

– Clean the cap if dirty.
- Have a defective dust cap replaced.

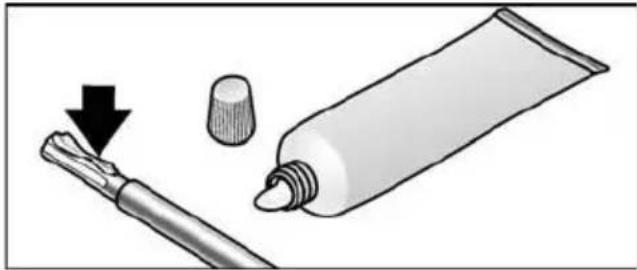

■ Clean tools and lightly grease the shank.

Illustration of a toothbrush applying a toothpaste to a cap, with a black arrow indicating the tip (no text or symbols present)

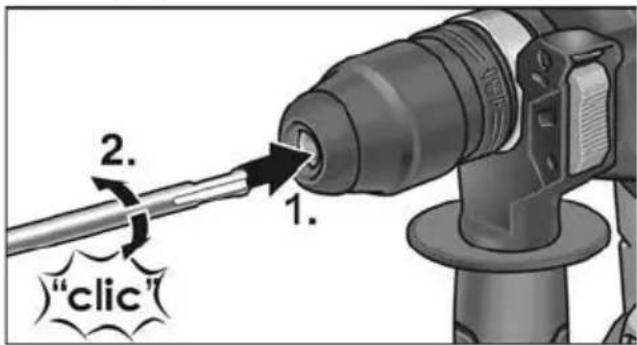

■ Insert the cutting accessory (1.) and turn (2.) until it locks.

2. 1. "click"

■ Check lock by pulling on the cutting accessory.

Removing the accessories

WARNING!

Remove the battery before carrying out any work on the power tool.

CAUTION!

Used cutting accessories may become hot. Wear protective gloves!

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

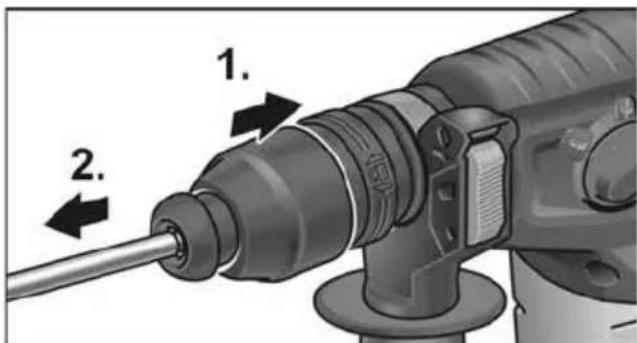

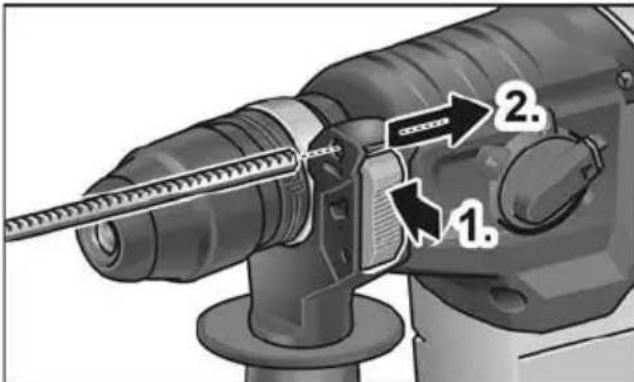

■ Pull the locking sleeve backwards (1.).
■ Remove the cutting accessory (2.).

Mounting keyless chuck

i NOTE!

To fit a keyless chuck, the original adapter from the FLEX accessories range is required.

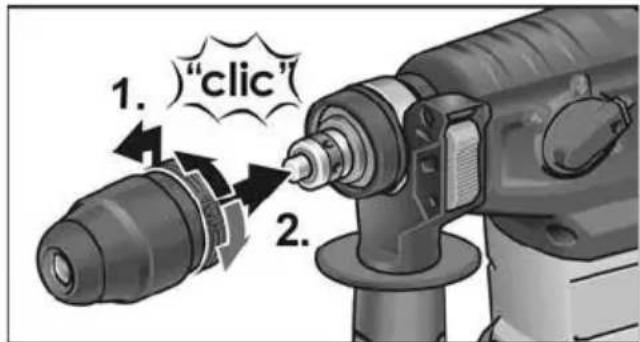

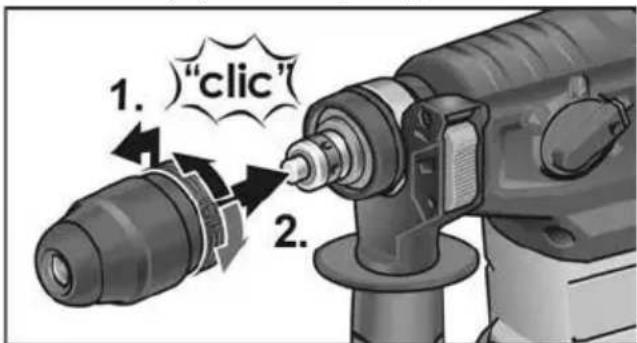

■ Pull back the locking sleeve on the keyless chuck (1.) and fit it on the spindle until it is heard to engage (2.).

1. "clic" 2.

■ Check the lock by pulling on the keyless chuck.

CAUTION!

Never use chiselling mode or hammer drill mode when the keyless chuck is fitted! The tool and keyless chuck could become damaged.

Direction preselection

CAUTION!

Change the direction of rotation only when the power tool is stopped.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

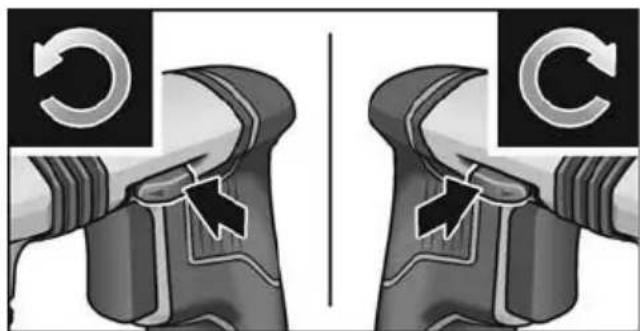

■ Move the direction preselector switch to the required position:

• Left: counterclockwise (remove screws, release screws)
• Right: clockwise (drill, insert screws, tighten down screws)
• Middle: switch-on interlock (tool change, when working on the power tool)

Setting the operating mode

CAUTION!

Do not change the operating mode until the power tool has come to a stop.

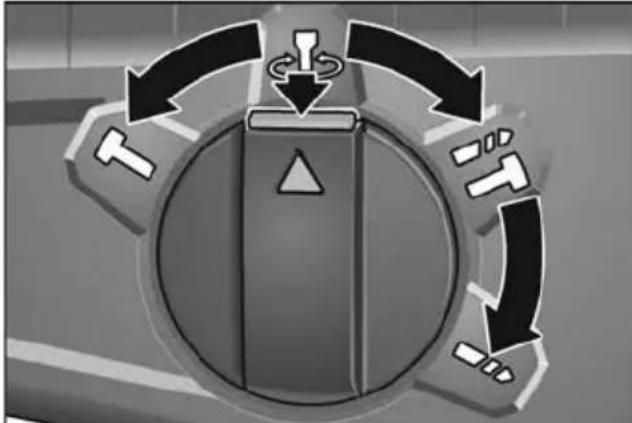

Diagram of a rotary knob with hammer and gear symbols, no text or labels present

■ Setting rotary knob to the required operating mode:

Drilling

Hammer drilling

Setting the chisel position (see below)

Chiselling

NOTE!

• The rotary knob must audibly click into place in all positions.
• Do not switch on the power tool in the position (setting the chisel position).

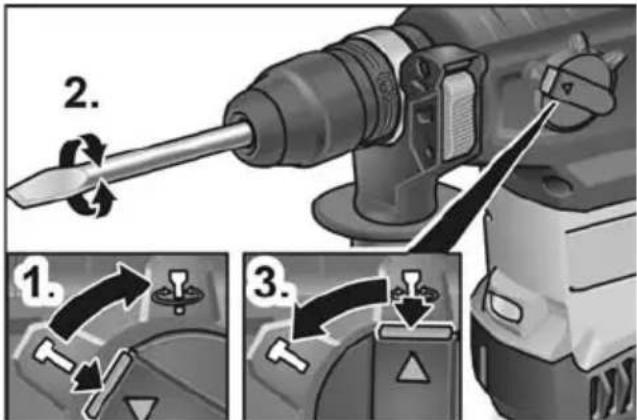

Setting the chisel position

The chisel can be turned to a position which is ideal for the work to be performed.

■ Move the operating mode rotary knob to the symbol (1.).
■ Turn the chisel until it is at the required angle (2.).

2. 1. 3.

■ Move the operating mode rotary knob to the symbol (3.). Make sure it audibly clicks into place.

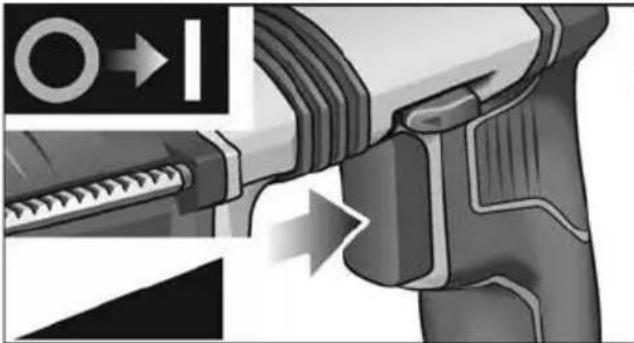

Switching on the power tool

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

■ Press and hold down the trigger switch. The power tool trigger switch enables the speed or impact rate to be increased slowly to the maximum value.

The LED illuminates the working area when the power tool is switched on.

To switch off the machine:

■ Release the trigger switch.

Operating instructions

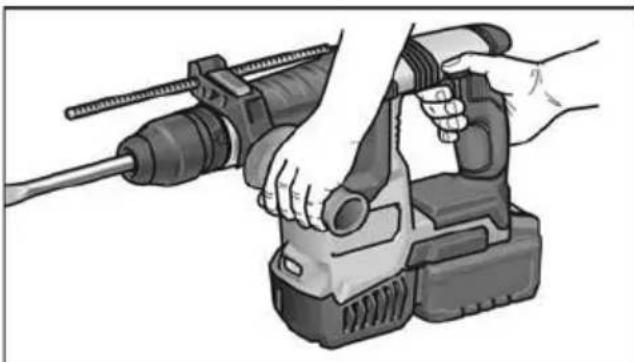

Drilling/hammer drilling

1. Move the operating mode rotary knob to the (drilling) or (hammer drilling) symbol. Make sure it audibly clicks into place.
2. Insert the drill bit.
3. Swivel the auxiliary handle into the required position.
4. Insert the battery.
5. Grip the power tool with both hands and assume the working position.

Illustration of hands operating a drill presser with a tool, no text or symbols present

1. Position the drill bit and switch on the power tool.
2. Gently press the power tool forwards.
3. After drilling, switch off the power tool.

Chiselling

1. Insert the chisel.
2. Move the operating mode rotary knob to the symbol.
3. Turn the chisel into the required position.

4. Move the operating mode rotary knob to the symbol. Make sure it audibly clicks into place.

5. Swivel the auxiliary handle into the required position.

6. Insert the battery.

7. Grip the power tool with both hands and assume the working position.

8. Switch on the power tool.

9. When chiselling, gently press the power tool forwards to prevent it from jumping.

10. After working, switch off the power tool.

Other information

• The use of “sharp” cutting accessories increases performance and the service life of the power tool.

– After work, clean the power tool and store in the carrying case in a dry location.

Maintenance and care

WARNING!

Remove the battery before carrying out any work on the power tool.

Cleaning

CAUTION!

When cleaning with compressed air, always wear goggles.

■ Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

Other accessories, in particular cutting accessories, can be found in the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable:

• mains operated power tool by removing the power cord,
• battery operated power tool by removing the battery.

EU countries only.

Do not dispose of electric power tools in the household waste!

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its incorporation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open used batteries.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

NOTE!

Please ask your dealer about disposal options!

CE conformity

We declare on our sole responsibility that the product described in "Technical data" conforms to the following standards or normative documents:

EN 60745 according to the provisions of Directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents:

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profits due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Table des matières

Labeled diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a toothbrush applying a toothpaste to a tube, with a pencil inserted (no text or symbols)

2. 1. "click"

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Close-up of a firearm trigger mechanism showing internal components and motion arrows (no text or symbols)

Illustration of hands operating a drill press tool with a handheld drill (no text or symbols visible)

Bolivia Q.-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

15.04.2019

Labeled diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

Illustration of a toothbrush applying a toothpaste to a tube, with a black arrow indicating the tip direction (no text or symbols present)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with directional arrows and a circular symbol, no readable text or labels present.

Circular diagram with directional arrows and symbols, no readable text or labels

Close-up of a handgun with a tool inserted, showing internal components and motion arrows (no text or symbols)

Illustration of hands operating a drill presser with a tool, no text or symbols present

Manager Research & Development (R & D) 15/04/2019

Klaus Peter Weinper

Head of Quality Department (QD

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a toothbrush applying a toothpaste to a tube, with a pencil inserted (no text or symbols)

2. 1. "click"

Diagram showing a drill bit being inserted into a drill bit, with numbered callouts indicating the process.

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Close-up of a mechanical device with arrows indicating process flow (no text or symbols)

Illustration of hands operating a drill presser with a tool (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

15.04.2019

Exploded view diagram of a drill press with numbered parts and labeled components

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

Illustration showing a tooth being inserted into a tube with a cap, and a pencil tip being removed (no text or symbols)

2. 1. "click"

Desmontar as ferramentas

AVISO!

1. "clic" 2.

Diagram showing two mechanical components with curved arrows indicating rotation or force direction (no text or symbols)

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Illustration of hands operating a drill presser with a tool (no text or symbols visible)

Bolks Q - 1

Eckhard Rühle Manager Research & Development (R & D) 15/04/2019

Klaus Peter Weinper Head of Quality Department (QD)

Labeled diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

Illustration of a toothbrush applying a toothpaste to a tube, with a pencil inserted (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Close-up of a mechanical component with arrows indicating process direction (no text or symbols)

Illustration of hands operating a drill presser with a tool (no text or symbols visible)

B. R. Q.-1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

15-04-2019

Labeled diagram of a drill press with numbered parts for identification

1 SDS-borepatron

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

■ Indstil dybdestoppet i ønsket boredybde.
■ Slip klemarmen.

i BEMAERK!

Illustration of a toothbrush applying a toothpaste to a cap, with a magnified view showing the brush tip (no text or symbols present)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with curved surfaces and directional arrows, no text or symbols present

Circular mechanical component with directional arrows indicating rotation and fastening (no text or symbols)

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Illustration of a hand using a drill press to lift a power tool (no text or symbols visible)

Exploded view diagram of a drill press with numbered parts and labeled components

1 S D S - c h u c 10kEkstra håndtak
2 Hurtigchuck 11 Sjakt for innsetting av batteri
3 Låsehylse 12 LED-belysning
4 Spindel 13 Merkeskilt *
5 Dybdeanslag 14 Li-lon-batteri
6 Dreieknapp for arbeidsmodus 15 Batterinivåindikator
7 B r y t e r

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

■ Dybdeanslaget innstilles på den ønskede boredybden.

■ Slipp klemmen.

HENVISNING!

Illustration of a tube being inserted into a wire, with a magnified view showing the tip and cap (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

■ Trekk läsehylsen bakover (1.).

1. "click" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram of a rotary knob with hammer and screw icons, no text or symbols present

■ Dreieknappen innstilles på ønsket arbeidsmodus:

Boring

Hammerboring

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Illustration of hands operating a drill presser with a tool (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a tube being inserted into a wire, with a pencil and cap nearby (no text or symbols)

2. 1. "click"

Diagram showing a drill bit being inserted into a drill bit, with numbered callouts indicating component placement.

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Illustration of hands operating a drill press and power tool (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

15.04.2019

Labeled diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a toothbrush applying paint to a tube, with a black arrow indicating the tip (no text or symbols present)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Illustration of hands operating a drill press tool with a drill bit (no text or symbols visible)

Rille Bohn D.1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

15.04.2019

Labeled diagram of a drill press with numbered parts for identification

1 T σ o κ

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a toothpaste being used to remove a tooth, showing a pencil and cotton tube (no text or symbols)

2. 1. "click"

Diagram showing a drill bit being inserted into a tool, with numbered callouts indicating component placement.

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram of a rotary switch mechanism with hammer, gear, and screw symbols (no text or labels)

Close-up of a firearm trigger mechanism showing internal components and motion arrows (no text or symbols)

Illustration of hands operating a drill press with a tool (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

15/04/2019

Four circular icons representing different workplace and safety symbols (person, helmet, gear, mask) with a horizontal line symbol below, no text or labels present.

Exploded view diagram of a drill press with numbered parts and exploded view of the final component

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

Illustration of a tube being inserted into a wire, with a magnified inset showing the tip and cap (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "click" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram of a rotary knob with hammer and wrench symbols, no text or labels present

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Illustration of hands operating a drill presser with a tool, no text or symbols present

Labeled diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

Illustration of a tooth being inserted into a tube, showing a magnified view of the tooth (no text or symbols present)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Illustration of hands operating a drill presser with a tool (no text or symbols visible)

Rille Bhatson D.1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

15.04.2019

Exploded view diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

Illustration of a toothbrush applying a toothpaste with a cap, showing a downward arrow (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Close-up of a handgun mechanism with arrows indicating movement or force (no text or symbols)

Illustration of hands operating a drill presser with a tool, no text or symbols present

Bolts Q - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

1. 1. 15.

Labeled diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a tool applying paint to a screwdriver, showing a drop and a solid tube (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement direction

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram of a rotary knob with hammer and wrench symbols, no text or labels present

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Illustration of hands operating a drill presser with a tool, no text or symbols present

Handwritten signature or scribble with partial text, likely from a document or form

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

15.04.2019

Labeled diagram of a drill press with numbered parts for identification

Illustration of a toothbrush applying a toothpaste to a tube, with a pencil inserted (no text or symbols)

2. 1. "click"

Diagram showing a drill bit being inserted into a drill bit, with numbered callouts indicating component placement.

■ Ĥahajte blokovacie puzdro smerom dozadu (1.).
■ Vyberte pracovný nástroj (2.).

1. "click" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Circular diagram with arrows and symbols, no readable text or labels

Close-up of a handgun grip mechanism with directional arrows indicating movement (no text or symbols)

Illustration of hands operating a drill press tool with a drill bit (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

15.04.2019

Four circular icons representing different professional and technical roles: person, person wearing glasses, head with headphones, and helmet (no text or symbols)

Prije stavljanja u rad pročitati uputu za opsluživanje!

Nositi zaštitu za oči!

Nosite štitnike za sluh!

Nosite laganu zaštitnu masku za disanje!

Naputak o zbrinjavanju na otpad staroga aparata (vidjeti stranicu 184)!

Tehnički podaci

Akumulatorski bušaćičekić	CHE 2-2618.0-EC
Mrežni napon V 18
Akumulator AP 18.0 (5,0	Ah)
Broj okretaja u praznom hodu	min^-1	980
Broj udaraca u praznom hodu	min^-1	4.350
Maks. energija pojedinačnog udarca (prema „EPTA--Procedure 05/2009“)	J	2,6
Podmazivanje Mast
Prihvat alata SDS-plus
Maks. promjer bušenja – beton– drvo– metal	mm mm mm	263013
Težina prema „EPTA-Procedure 01/2003“(bez akumulatora)	kg 3,18
Težina akumulatora 5,0 Ah	kg 0,72

Na jedan pogled

Labeled diagram of a drill press with numbered parts for identification

1 SDS stezna glava
2 Brzostezna glava
3 Čahura za blokadu
4 Vreteno
5 Graničnik dubine
6 Okretni gumb za način rada
7 Prekidač
Za uključivanje i isključivanje te za povećavanje do maksimalnog broja okretaja/udaraca.
8 Prekidač za odabir smjera okretanja
9 Drška

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Graničnik dubine namjestite na potrebnu dubinu bušenja.
■ Otpustite steznu polugu.

NAPUTAK!

Gurnite alate sa SDS-plus prihvatom do stražnjeg graničnika u SDS-plus-prihvat alata. Zbog pomičnosti alata može doći do pogrešnog namještanja dubine bušenja.

Umetanje alata sa SDS-plus prihvatom

POZOR!

Prije svih radova na električnom alatu izvadite akumulator iz alata.

OPREZ!

Illustration of a toothbrush applying a toothpaste to a tube, with a pencil inserted (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

■ Čahuru za blokadu povucite prema natrag (1.).

■ Izvadite nastavak (2.).

Montaža brzostezne glave

NAPUTAK!

Za montažu brzostezne glave potreban je originalni adapter iz FLEX programa pribora.

■ Povucite čahuru za blokadu na brzosteznoj glavi prema natrag (1.) i stavite na vreteno (2.) da se čujno uglavi.

1. "click" 2.

Diagram showing two identical mechanical components with arrows indicating motion or force, no text or symbols present.

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

■ Pritisnite prekidač i čvrsto ga držite. Prekidač električnog alata omogućuje postupno povećanje broja okretaja odn. udaraca do maksimalne vrijednosti.

Illustration of hands operating a drill presser with a tool, no text or symbols present

B. P. Q.-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

15.04.2019

Hrup in tresljaji 188

Navodila za uporabo ..... 189

Labeled diagram of a drill press with numbered parts for identification and assembly reference.

1 Vrtalna glava SDS

2 Hitrovpenjalna vrtalna glava

3 Blokirna puša

4 V r e t e n o

– Negotovost K: 3 dB.

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

■ Omejevalnik globine nastavite na želeno globino vrtanja.
■ Spustite vpenjalni vzvod.

OPOMBA

Illustration of a tool applying adhesive to a cable, showing a drop and a cap (no text or symbols)

■ Vstavite nastavek (1.) in ga z obračanjem (2.) blokirajte.

2. 1. "click"

■ Preverite, da je nastavek pravilno fiksiran, tako da ga povlečete.

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

■ Blokirno pušo povlecite nazaj (1.).
■ Odstranite nastavek (2.).

1. "clic" 2.

■ Povlecite hitrovpenjalno vrtalno glavo, da preverite, ali je ustrezno fiksirana.

POZOR!

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

■ Stikalo za izbiro smeri vrtenja nastavite v želen položaj:

Close-up of a firearm trigger mechanism showing tool insertion and release (no text or symbols)

Illustration of hands operating a drill press and power tool (no text or symbols visible)

Bolts Q - 1

Eckhard Rühle Manager Research & Development (R & D) 15.04.2019

Klaus Peter Weinper Head of Quality Department (QD)

Four circular icons representing different professional and personal roles: person, handwashing, helmet, and mask (no text or symbols)

Labeled diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

Illustration of a toothbrush applying a toothpaste to a tube, with a black arrow indicating the tip (no text or symbols present)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram of a rotary knob with hammer and gear symbols, no text or labels present

Close-up of a handgun with a tool inserted, showing motion arrows (no text or symbols)

Illustration of hands operating a drill presser with a tool, no text or symbols present

EN 60745 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Responsabili pentru documente tehnice FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Rille Bhatson D.1

Eckhard Rühle

Manager Research &

Development (R & D)

15.04.2019

Klaus Peter Weinper

Head of Quality

Department (QD)

Exploded view diagram of a drill press with numbered parts for identification

Technical diagram of a drill bit with numbered annotations indicating parts 1 and 2

Illustration of a tool applying adhesive to a cable, showing a drop and a solid (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Diagram of a mechanical switch mechanism with arrows indicating rotational and clockwise motion (no text or symbols)

Close-up of a handgun with a close-up view showing internal structure and directional arrows (no text or symbols)

Illustration of hands operating a drill press and power tool (no text or symbols visible)

Rille Bollard D.1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Exploded view diagram of a drill press with numbered parts and labeled components

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a tube being inserted into a wire, with a magnified view showing the tip and cap (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "click" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Circular mechanical knob with directional arrows indicating rotation and adjustment (no text or symbols)

Close-up of a mechanical component with arrows indicating motion or flow, no visible text or symbols

Illustration of hands operating a drill presser with a tool, no text or symbols present

B. P. Q. - 1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

15.04.2019

Exploded view diagram of a drill press with numbered parts and labeled components

Technical diagram of a drill bit with numbered annotations indicating components 1 and 2

Illustration of a tube being inserted into a wire, with a magnified view showing the tip and cap (no text or symbols)

2. 1. "click"

■ Lukustuse kontrollimiseks tömmake tarvikust.

1. "clic" 2.

Diagram showing two mechanical components with curved surfaces and directional arrows, no text or symbols present

Close-up of a firearm being inserted into a handgun, showing mechanical components and motion direction (no text or symbols)

Illustration of hands operating a drill press tool with a handheld drill (no text or symbols visible)

B. P. Q.-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

15.04.2019

Labeled diagram of a drill press with numbered parts for identification and assembly reference.

Diagram of a drill bit with numbered annotations indicating parts of the drill bit and their directional arrows.

Illustration of a tooth being extracted from a tube and a cap, with a downward arrow indicating the process (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Diagram showing two mechanical components with directional arrows, no text or symbols present

Circular mechanical knob with directional arrows indicating rotation and clockwise motion (no text or symbols)

Close-up of a handgun mechanism with arrows indicating motion (no text or symbols)

Illustration of hands operating a drill presser with a tool (no text or symbols visible)

Bolters Q.-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

2019-04-15

Exploded view diagram of a drill press with numbered parts and exploded view of battery pack

Technical diagram of a drill bit with numbered annotations indicating parts 1 and 2

Illustration of a tool applying adhesive to a screwdriver, showing a drop and a solid tube (no text or symbols)

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

■ Velciet atpakal fiksējošo uzmavu (1.).
■ Iznemiet darba instrumentu (2.).

1. "click" 2.

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

Circular diagram with arrows and symbols, no readable text or labels

■ lestatiet pagriežamo pogu pret nepieciešamo darba režimu:

Urbšana

Perforēšana

Close-up of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of hands operating a drill press with a tool (no text or symbols visible)

Bolters D. -

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

15.04.2019

Klaus Peter Weinper Head of Quality Department (QD)

Illustration of hands operating a drill press with a handheld tool (no text or symbols visible)

Close-up of a mechanical component with arrows indicating process flow (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force, no text or symbols present

2. 1. "click"

Diagram of a drill bit with numbered callouts indicating tool positioning and movement

1. "clic" 2.

Technical diagram of a drill bit with numbered annotations indicating components and directional arrows

Illustration of a toothpaste tube being inserted into a toothbrush, with a magnified inset showing the tip and arrow (no text or symbols)

Labeled diagram of a drill press with numbered parts for identification
