Product Type	i-Size convertible car seat with harness and booster mode
Brand	Joie
Model	i-Bold
Category	Car seat
Dimensions (approx.)	Approx. 44 x 38 x 60 cm (height adjustable)
Weight (approx.)	Approx. 10 kg
Power supply	None (non-electric car seat)
Main functions	Harness mode (76-105 cm, ≤22 kg, from 15 months) and booster mode (100-150 cm, ≤36 kg, 3.5-12 years); 3-position recline; 12-position adjustable headrest; removable side impact protection; cup holder; ISOFIX connectors + top tether
Care and cleaning	Hand wash soft parts in cold water ≤30°C; do not iron, bleach, dry clean or use solvents; dry in shade
Safety	Approved to UN R129 (i-Size); ISOFIX system + top tether; visual lock indicators; side impact protection; harness buckle with red release
Spare parts and repairability	Contact retailer for service, repair or replacement; do not use parts not recommended by the manufacturer
General information	Materials: plastics, metals, fabrics; patent pending; keep manual in storage compartment under the base

Frequently Asked Questions - i-Bold Joie

What is the difference between harness mode and booster mode?

The harness mode uses a 5-point harness for children from 76 to 105 cm (≤22 kg, from 15 months). The booster mode uses the vehicle's seat belt for children from 100 to 150 cm (≤36 kg, from 3.5 to 12 years). The harness must be removed and the buckle stored in booster mode.

How to install the seat with ISOFIX?

Place the ISOFIX guides on the vehicle anchors. Extend the ISOFIX connectors by pressing the adjustment button. Push the seat against the seatback until the indicators turn green. Attach the top tether to the anchor point and tighten until its indicator is green.

Can I use the seat in booster mode without ISOFIX?

Yes, ISOFIX is optional in booster mode. You can install the seat using only the vehicle's 3-point seat belt. If using ISOFIX, both connectors must be properly secured with green indicators.

How to adjust the headrest and harness height?

To adjust, press the headrest adjustment lever (mark 11) and slide to the desired height (12 positions). In harness mode, the straps should be at or below the child's shoulders. In booster mode, they should be at shoulder level.

How to recline the seat?

Press the recline adjustment button (mark 7) and choose among 3 positions. After changing the angle, check that the top tether indicator remains green; retighten if necessary.

How to install the side impact protection?

Insert the side impact protection module on the side closest to the vehicle door. It inserts using an opening button. Remove it by pressing the same button.

How to clean the soft parts of the seat?

Remove the soft parts following steps 36-44 of the manual. Hand wash in cold water ≤30°C. Do not iron, bleach, or dry clean. Dry in shade. Do not use gasoline or organic solvents.

What to do in case of an accident?

The seat must be replaced after a severe accident, even with no visible damage. Consult the vehicle instructions and replace the seat according to the manufacturer's recommendations to ensure safety.

What is the maximum weight and height for the child?

Harness mode: height 76-105 cm, weight ≤22 kg. Booster mode: height 100-150 cm, weight ≤36 kg. Do not use before 15 months in harness mode.

Where to store the instruction manual?

The manual is stored in the storage compartment under the seat base. Always keep it for future reference.

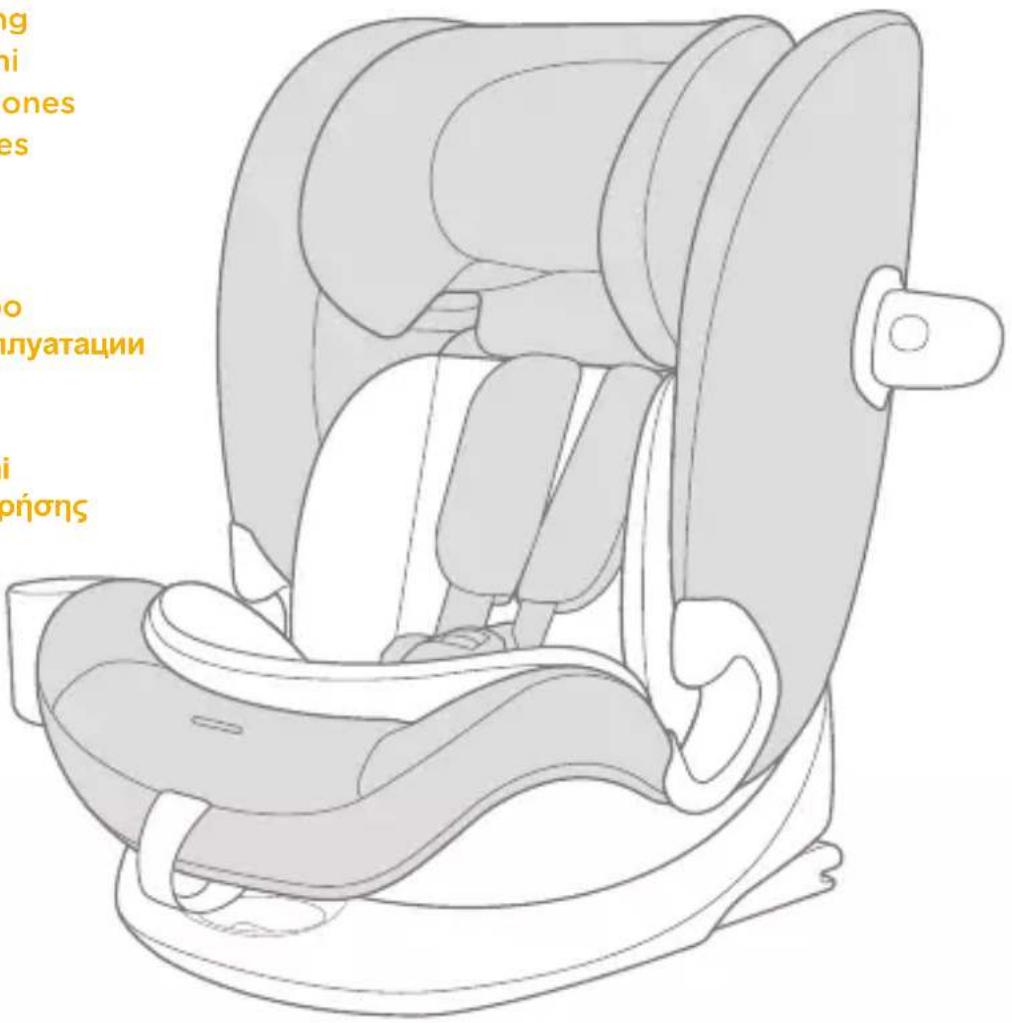

USER MANUAL i-Bold Joie

enhanced child restraint

GB Instruction Manual

Icon depicting a person sitting on a chair next to an indistinct human figure (no text or symbols)

ECE R129: i-Size

ng ni ones es o nlyatauin i róhons

1 CLICK

2 2 1

Illustration of a hand pressing down on a car seatbelt, showing a yellow arrow indicating rotation (no text or symbols)

Line drawing of a baby car seat with a highlighted seat area and arrow indicating rotation (no text or symbols)

Illustration of a person holding a long rod, with a red bandage and number 3 in the corner (no text or symbols on the diagram itself)

Line drawing of a person seated in a chair with head lifted, no text or symbols present

Diagram showing directional arrows and red symbols on a curved surface, no readable text or labels

10 1!

Illustration of a hand placing a small object into a baby car seat (no text or symbols)

Diagram of a human head with highlighted anatomical regions and an upward arrow, no text or symbols present

11 CLICK 1✓ X

Line drawing of a car seatbelt device with no text or symbols

12 2 1

13 1

17

18 1 2

14 2 3 1

2

19

Line drawing of a car seat with seatbelt covers and directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a pink object with an arrow indicating motion (no text or symbols)

16

21 CLICK

Line drawing of a car seat with visible internal organs and no text or symbols

Illustration of a baby in a car seat with two hands adjusting the seat (no text or symbols)

27

Illustration of a car seat with a highlighted seat area and directional arrows indicating movement (no text or symbols)

24

Line drawing of a car seatbelt with an upward arrow indicating direction (no text or symbols)

Diagram of a car seat with highlighted seating areas and directional arrows indicating movement (no text or symbols)

Diagram of a vehicle seat with internal components and a highlighted orange arrow indicating a specific area (no text or symbols present)

26

Diagram of a car seatbelt buckle with a highlighted seatbelt (no text or symbols)

30 2 1

Line drawing of a car seat with seatbelt and seat rack (no text or symbols)

32 1 optional ✓ × 100 2 3 ✓ ×

Simple line drawing of a stylized object with arrows indicating motion or force, no text or symbols present.

Illustration of a person using a device to lift a cup, with a yellow arrow indicating the cup's motion (no text or symbols)

33

Line drawing of a car seat with a cup and yellow circular badge (no text or symbols)

Line drawing of a car seat with a belt and orange arrow indicating rotation (no text or symbols)

Line drawing of a car seat with a highlighted arrow indicating motion (no text or symbols)

Line drawing of a car seat with a cup and handle, no text or symbols present

Line drawing of a car seat assembly with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand using a tool to adjust or install a baby seat (no text or symbols present)

Illustration of a hand holding a baby seat with an arrow indicating rotation (no text or symbols)

43

Line drawing of a car seat assembly with an arrow indicating direction (no text or symbols)

NOTE

GB

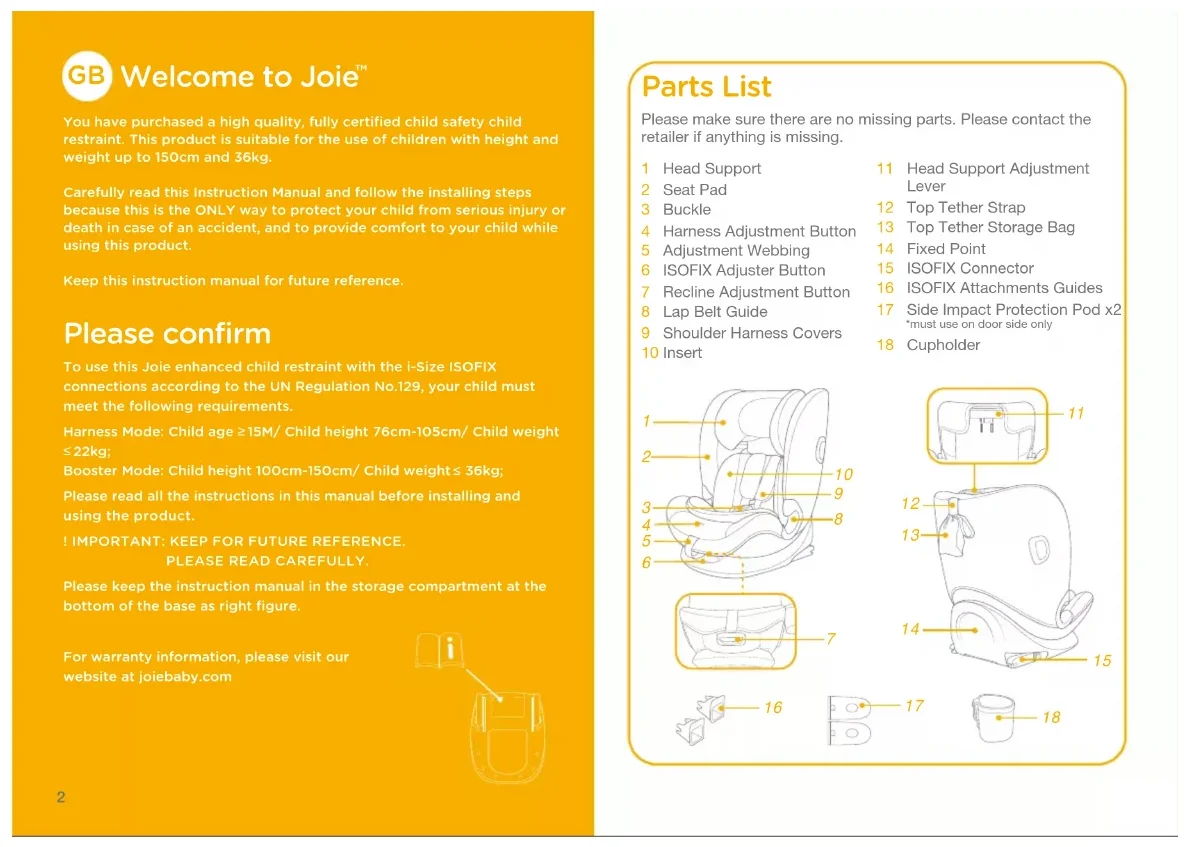

Welcome to Joie™

You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of children with height and weight up to 150cm and 36kg.

Carefully read this Instruction Manual and follow the installing steps because this is the ONLY way to protect your child from serious injury or death in case of an accident, and to provide comfort to your child while using this product.

Keep this instruction manual for future reference.

Please confirm

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the UN Regulation No.129, your child must meet the following requirements.

Harness Mode: Child age ≥15M/ Child height 76cm-105cm/ Child weight ≤22kg;

Booster Mode: Child height 100cm-150cm/ Child weight ≤ 36kg;

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment at the bottom of the base as right figure.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

1 Head Support
2 Seat Pad
3 Buckle
4 Harness Adjustment Button
5 Adjustment Webbing
6 ISOFIX Adjuster Button
7 Recline Adjustment Button
8 Lap Belt Guide
9 Shoulder Harness Covers 10 Insert

11 Head Support Adjustment Lever
12 Top Tether Strap
13 Top Tether Storage Bag
14 Fixed Point
15 ISOFIX Connector
16 ISOFIX Attachments Guides
17 Side Impact Protection Pod x2 *must use on door side only
18 Cupholder

1 2 3 4 5 6 8 9 10

11 12 13 14 15

WARNING

! BE informed that the rigid items and plastic parts of an enhanced child restraint system shall be located and installed so that they are not liable to become trapped by a movable seat or in a door of the vehicle during everyday use of the vehicle.
! To use this enhanced child restraint according to the UN Regulation No.129, your child must meet the following requirements.
! Harness Mode: Child height 76cm-105cm/ max. 22kg;
Booster Mode: Child height 100cm-150cm/ max. 36kg;
! IMPORTANT - DO NOT USE BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions).
The enhanced child restraint may not fit in all approved vehicles.
Any straps holding the enhanced child restraint to the vehicle should be tight, that any straps restraining the child should be adjusted to the child's body, and that straps should not be twisted.
! DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint.
After your child is placed in this enhanced child restraint, the safety belt must be used correctly.
! Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.

WARNING

This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
! DO NOT leave your child unattended in the enhanced child restraint system.
Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
! The enhanced child restraint system shall NOT BE USED without the soft goods.
The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
Please check if this enhanced child restraint can be installed properly in your vehicle before you purchase it.
Consult the retailer for issues concerning maintenance repair and part replacement.
! To avoid burns, never put hot liquids in your child restraint system's cupholder.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Harness Mode: for installation with ISOFIX system + Top Tether

1. This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Booster Mode:

for installation with 3-point belt

for installation with 3-point belt + ISOFIX system

1. This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Choose Your Installation

	Child's Size	Installation Mode	Figure for Installation	Reference Age	Seat Position
ECE R129	76cm-105cm/ ≤ 22kg	Harness Mode		15 months to approx 4 years	Position 1-3
	100cm-150cm/ ≤ 36kg	Booster Mode		3.5 years to 12 years	Position 1-3

Installation Concerns

Use Side Impact Protection

see images 1 - 2

1. The enhanced child restraint is delivered with removable side impact protection pod. Insert the side impact pod on the side closest to the door. Installation shown in ①.
2. Press the release button to remove side impact protection pod.

Height Adjustment for Head Support and Shoulder Harnesses

see images 3 - 6

Please adjust the head support and check if the shoulder harnesses are at the correct height according to 3 & 4 & 5 & 6

When used in harness mode, the shoulder harness height must be even with or just above the top of child's shoulders.
When used in booster mode, the shoulder belt guides must be even with child's shoulders.

Press the head support adjustment lever ^5 and pull up or push down the head support until it clicks into one of the 12 positions, shown as ^6 .

Recline Adjustment

see images 7 - 8

Press the recline adjustment button to adjust the seat angle to the desired position, shown as 7 & 8.

There are 3 recline positions that can be used for both harness mode and booster mode. 8

Child Restraint Installation

see images 9 - 17

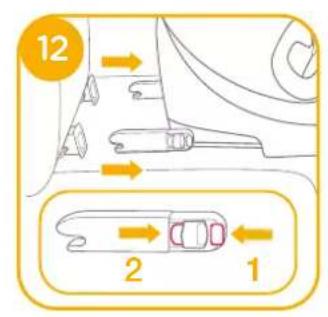

1. Insert ISOFIX guides to assist with installation.
2. Press the ISOFIX adjuster button to extend the ISOFIX.

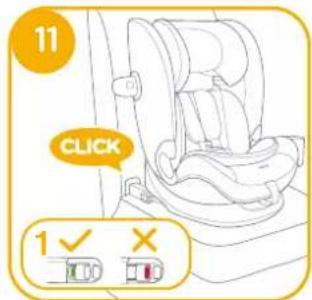

3. Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. 11 -1

! Press the ISOFIX adjustment buttons again while pushing the seat back until it comes in contact with the vehicle seat backrest.

Removing the seat

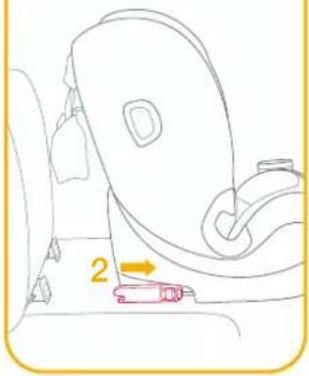

1. To remove from the vehicle press the ISOFIX adjuster button and pull the base back from the seat. Then press and release the connectors from the vehicle's ISOFIX.
2. To prevent damage during transit, press the ISOFIX adjuster button 13 -1 and fold the connector completely. 13 -2

Use top tether

1. To extend top tether for use, press the button on tether adjuster and pull to lengthen. ^14
2. Connect the tether hook securely to vehicle's anchorage point. (see vehicle owner's manual).

! Make sure that tether hook is securely attached to the anchorage point. Tension the tether strap until the indicator shows green completely. 16
! Make sure that tether hook is securely attached to the anchorage point. Tension the tether strap until the indicator shows green completely. 16
When not in use, top tether must be properly stored. To make sure the top tether is properly stored away, remove any slack in strap to avoid the top tether swinging around when the vehicle is in progress. 17

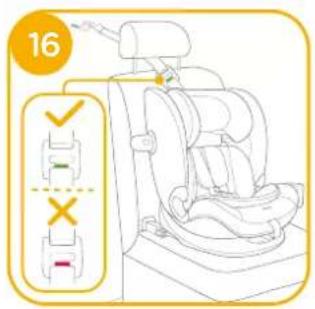

! Make sure the top tether's indicator is in green after the seat recline angle is adjusted; if not, tighten the tether strap again until it turns green completely.

Using in the harness mode (Child height 76cm-105cm/Child weight < 22kg/15 months - 4 years old)

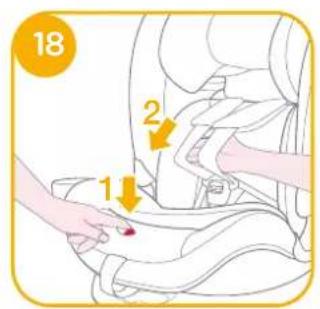

see images 18 - 23

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

Securing Child

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. 18
2. Unbuckle the harness by pressing the red button. 19

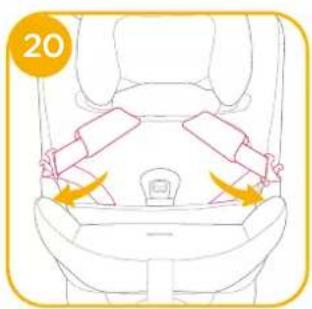

3. Place the harness and buckles to the outsides so they do not get in the way when you put the child in. 20
4. Please use the insert to support the child if the child shoulders is lower than the headrest bottom edge.
5. Place the child into the enhanced child restraint and pass both arms through the harness.

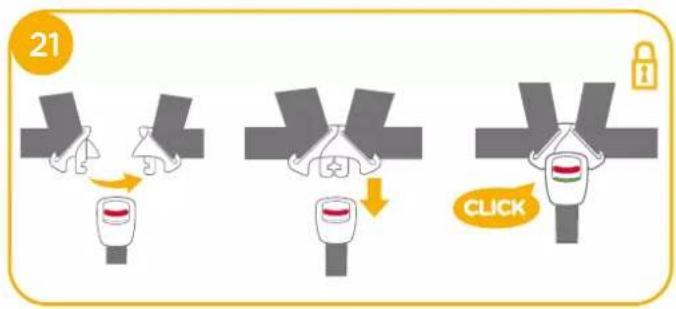

6. Engage the buckle. Please refer to 21

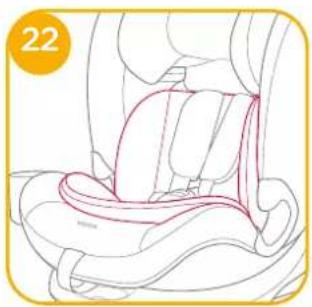

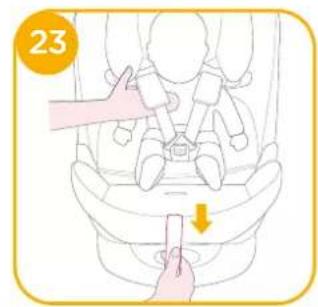

   ! Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured.
   ! Always keep child secured in harness and properly tightened by removing any slack.

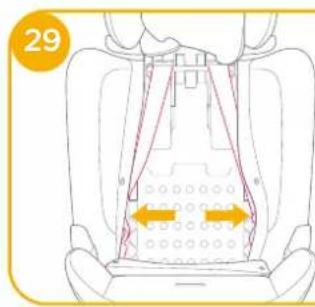

Using in the booster mode (Child height 100cm-150cm/Child weight ≤ 36kg/3.5 - 12 years old)

see images 24 - 32

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.
! Remove the insert when booster mode.

Securing Child

1. Unbuckle the harness by pressing the red button. 24
2. Remove the crotch belt cover or shoulder harness covers and keep it properly. 25 & 27

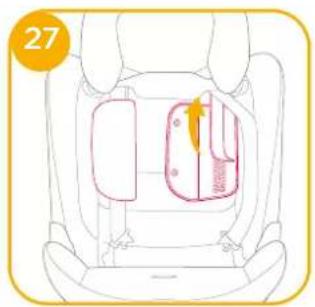

3. Tuck away the buckle, and place harness straps into hideaway compartments. 26 & 29
4. Buckle up with the vehicle belt.

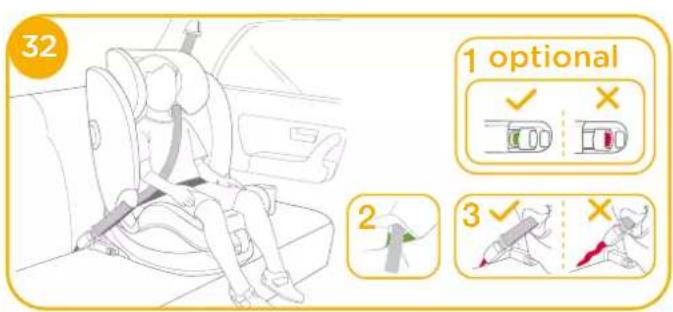

   ! The colors of the indicators on both ISOFIX attachments connectors should be completely green. 32-1
   ! The installation with ISOFIX connectors in booster mode is optional. If ISOFIX connectors are used, make sure the indicator colors on both connectors are completely green when attached to the anchor points.

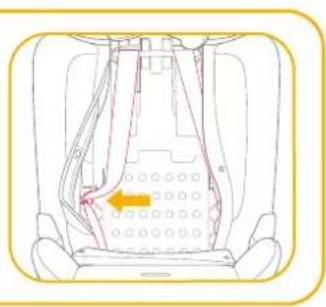

   ! Shoulder belt must pass through shoulder belt guide. 32-2
   ! The enhanced child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the enhanced child restraint securely. 32-3

Use Cupholder

see images 33 - 35

Detach Soft Goods

see images 36 - 44

Press the red button to disengage the buckle.

Follow steps 36 - 44 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

! Please store the pad somewhere out of the child's reach.
! Please wash the soft goods with cold water under 30°C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
! Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
! Please hang dry the soft goods in the shade.
! Please remove the enhanced child restraint from the vehicle seat if it will not be in use for a long period of time.

NOTE

FR

Illustration of a white seat with red arrows indicating seat positions, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Teileliste

Diagram illustrating seatbelt usage and car safety rules in a vehicle, with numbered instructions for correct/incorrect handling.

Diagram illustrating car seatbelt usage and safety rules, showing numbered vehicle positions and safety symbols.

Diagram of car seat anatomy with numbered labels pointing to different compartments

Technical diagram of a car seat with numbered labels pointing to specific components

AVVERTENZA

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Lista de piezas

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Lista de componentes

Technical diagram of a car seat with numbered components labeled 11 to 15

AVISO

Technical diagram of a car seat with numbered labels pointing to specific compartments or parts.

OSTRZEŻENIE

Illustration of a car seat with red dots and a yellow checkmark on the side (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Seznam dílů

Technical diagram of a car seat with numbered labels pointing to specific components

VAROVÁNÍ

Illustration of a white seat with red buttons on the seat, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Technical diagram of a car seat with numbered labels pointing to different compartments or parts.

ПРЕДУПРЕЖДЕНИЯ

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Brug sideskærmen

Se billederne 1 - 2

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Alkatrészek listája

Illustration of a white seat with red arrows indicating seat positions, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Technical diagram of a car seat with numbered components labeled 11 to 15

AVERTISMENT

Illustration of a car seat with red arrows indicating seat positions, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Technical diagram of a car seat with numbered components labeled 11 to 15

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Interior view of a vehicle seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Parça Listesi

Technical diagram of a car seat with labeled components and parts in Chinese

Anatomical diagram of a car seat with labeled parts and measurement lines

Simple line drawing of a computer with an open book and a pointer, no text or symbols present.

تحذیر

ECE R129	Child's Size	Installation Mode	Figure for Installation	Reference Age	Seat Position
	76cm-105cm/≤ 22kg	Harness Mode		15 months to approx 4 years	Position 1-3
	100cm-150cm/≤ 36kg	Booster Mode		3.5 years to 12 years	Position 1-3

مور متعلقة بالتركيب

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

الطوارى

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Popis dijelova

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Upotreba zaštite od bočnog udarca

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Lista över delar

Diagram illustrating seatbelt usage and car safety rules in a vehicle, with numbered instructions and directional arrows.

Simple line drawing of a computer mouse with a pointer (no text or symbols)

Deleliste

Diagram illustrating seatbelt usage and car safety rules in a vehicle, with numbered instructions for correct/incorrect handling.

Diagram illustrating seatbelt usage and car safety rules in a vehicle, with numbered instructions for correct/incorrect handling.

Allison Baby UK Ltd,

Venture Point, Towers Business Park

Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V.

Van der Valk Boumanweg 178 C,

2352 JD Leiderdorp, The Netherlands
