Welcome to Joie™

You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of children with height and weight up to 150cm and 36kg.

Carefully read this instruction manual to ensure that the seat has been properly installed. Incorrect installation could endanger your child.

Keep this instruction manual for future reference.

Please confirm

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the UN Regulation No.129, your child must meet the following requirements.

Harness Mode: Child age ≥15m/ Child height 76cm-105cm/ Child weight ≤22kg;

Booster Mode: Child height 100cm-150cm/ Child weight ≤ 36kg;

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

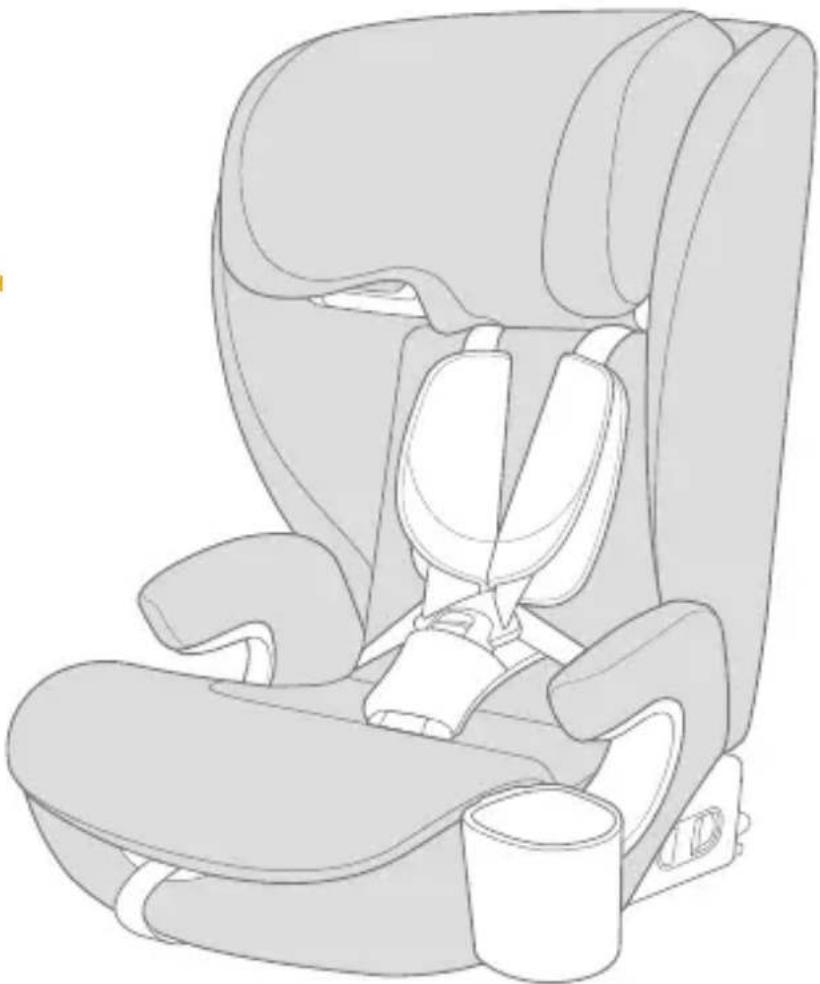

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

1 Head Support
2 Side Wings
3 Armrest
4 Base
5 Adjustment Strap
6 Seat Adjustment Lever
7 ISOFIX Adjustment Button
8 ISOFIX Attachments Guides
9 Shoulder Harness Covers

1 2 3 4 5 9 10

10 Harness Buckle
11 Head Support Adjustment Lever
12 Top Tether Strap
13 Top Tether Storage Bag
14 ISOFIX Connector
15 ISOFIX Release Button
16 ISOFIX Safety Lock
17 Cupholder

9 10 12 13

14 15 16 17

WARNING

! BE informed that the rigid items and plastic parts of an enhanced child restraint system shall be located and installed so that they are not liable to become trapped by a movable seat or in a door of the vehicle during everyday use of the vehicle.
To use this enhanced child restraint according to the UN Regulation No.129, your child must meet the following requirements:
! Harness Mode: Child height 76cm-105cm/ max. 22kg;
Booster Mode: Child height 100cm-150cm/ max. 36kg;
IMPORTANT - DO NOT USE BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions)
The enhanced child restraint may not fit in all approved vehicles. In doubt, please get in contact with the local retailer or Joie customer service.
Make sure that any straps holding the enhanced child restraint to the vehicle are tight, that any straps restraining the child are adjusted to the child's body, and that none of the straps is twisted.
! DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint.
! Ensure that lap section of the seatbelt is worn low down, so that the pelvis is firmly engaged.

WARNING

This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
! DO NOT leave your child unattended in the enhanced child restraint system.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
The enhanced child restraint system shall NOT BE USED without the soft goods.
The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
! Please check if this enhanced child restraint can be installed properly in your vehicle before you purchase it.
! To avoid burns, never put hot liquids in your booster's cupholder.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

For installation with ISOFIX system + Top Tether

1. This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

For installation with 3-point belt

For installation with 3-point belt + ISOFIX system

1. This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Choose Your Installation

ECE R129	Child's Size	Installation Mode	Figure for Installation	Reference Age
	76cm-105cm/≤22kg	Harness Mode		15 months to approx 4 years
	100cm-150cm/≤36kg	Booster Mode		approx. 3.5 years to 12 years

Installation Concerns

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Assembly

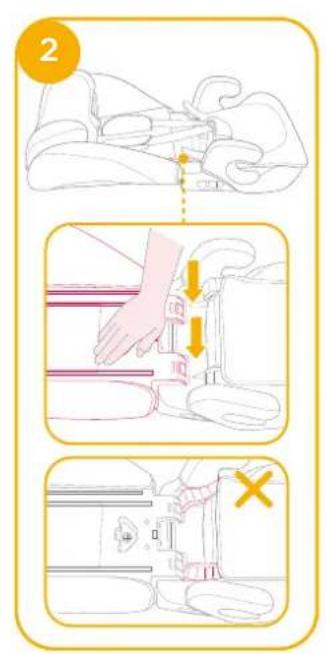

see images 1 - 3

! Make sure that no interference caused by the seat cover when attaching the backrest to the base.

Height Adjustment

for Head Support and Shoulder Harnesses

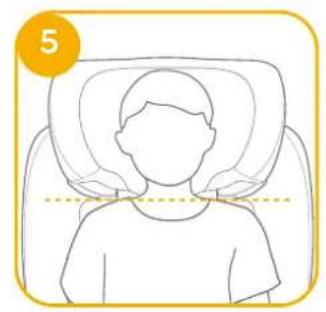

see images 4 - 7

Please adjust the head support and check if the shoulder harnesses are at the correct height according to 4 & 5 & 6 & 7

When used in harness mode, the shoulder harness height must be even with or just above the top of child's shoulders.

When used in booster mode, the shoulder belt guides must be just above child's shoulders. 5

Press the head support adjustment lever 6 and slide the head support until it clicks into one of the 15 positions, shown as 7.

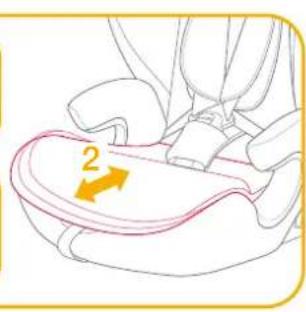

Adjust the seat

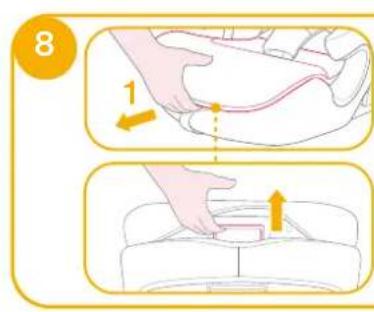

see image 8

Child Restraint Installation

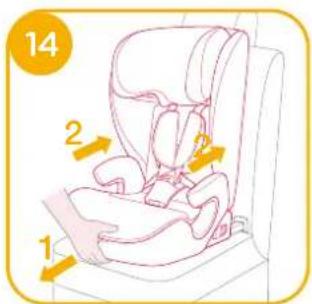

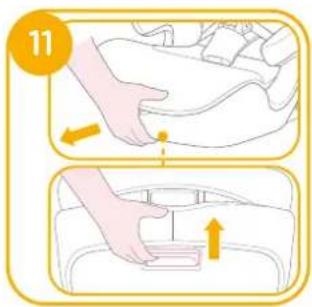

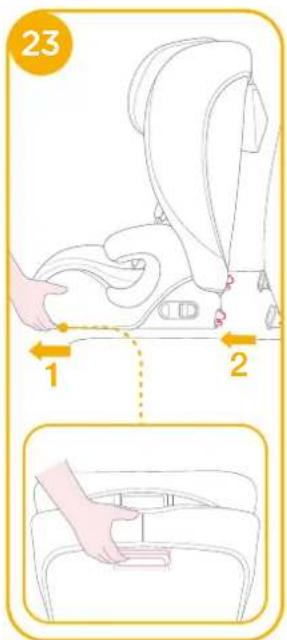

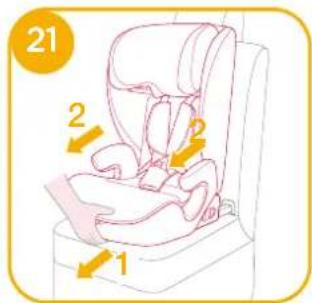

see images 9 - 23

1. Insert ISOFIX guides to assist with installation. 9

2. Place the top tether behind the vehicle seat. 10

3. Press the ISOFIX adjustment button located under the base, both ISOFIX connectors can extend automatically. 11 & 12

4. Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. ^13

! Press the ISOFIX adjustment button again while pushing the seat back until it comes in contact with the vehicle seat backrest. 14

Use top tether

1. To extend top tether for use, press the button on tether adjuster and pull to lengthen. 15
2. Connect the tether hook securely to vehicle's anchorage point. (see vehicle owner's manual). 16
   ! Make sure that tether hook is securely attached to the anchorage point. Tension the tether strap until the indicator shows green completely. ^17
3. Press the release button 18 to loosen the webbing and then detach the hook to remove the top tether. 19
4. When not in use, top tether must be properly stored. 20

Removing the seat

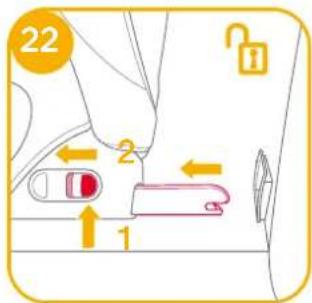

1. To remove from the vehicle press the ISOFIX adjustment button and pull the base back from the seat. ^21 Then press and release the connectors from the vehicle's ISOFIX. ^22
2. To prevent damage during transit, press the ISOFIX adjustment button 23-1 and store the connectors into the base completely. 23-2

Using in the harness mode (Child height 76cm-105cm/Child weight < 22kg/15 months - approx. 4 years old)

see images 24 - 31

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

Securing Child

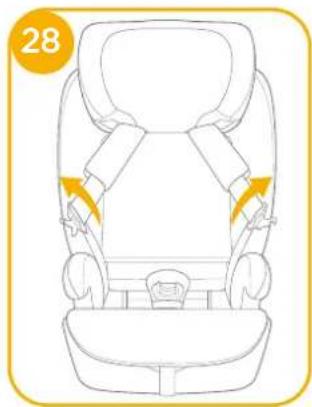

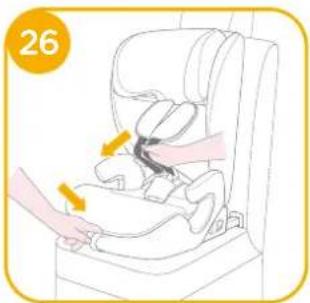

1. To lengthen the shoulder harness belts, press the harness adjustment button while at the same time pulling forward the shoulder harnesses to loosen. ^26
2. Open the harness buckle by pressing the red button. ^27
3. Place the shoulder straps to the outsides so they do not get in the way when you put the child in. 28
4. Place the child into the enhanced child restraint and pass both arms through the shoulder straps.

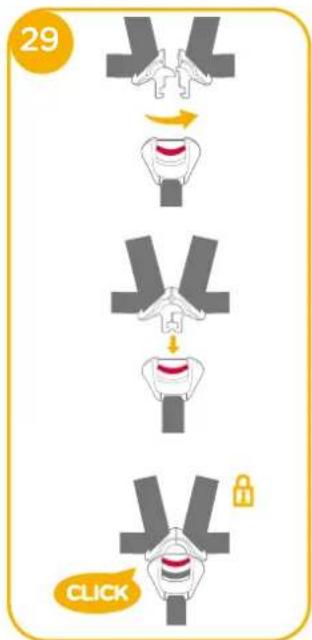

5. Engage the harness buckle. Please refer to 29

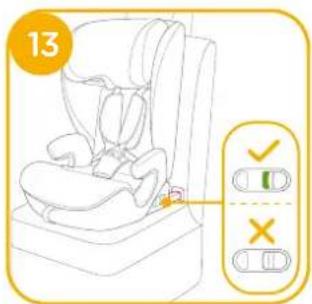

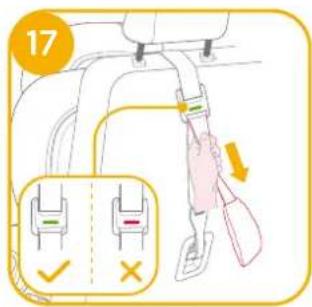

   ! Tension the tether strap until the indicator shows green completely. ^30

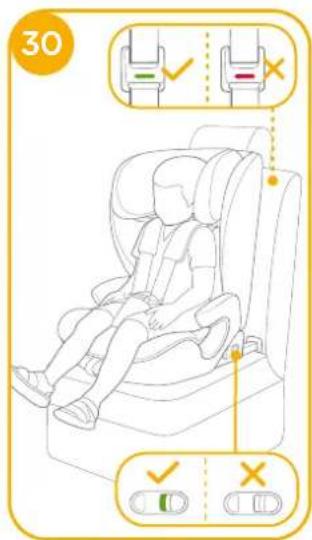

   ! The colors of the indicators on both ISOFIX attachments connectors should be completely green. 30
   ! Pull the adjustment strap and adjust it to the proper length

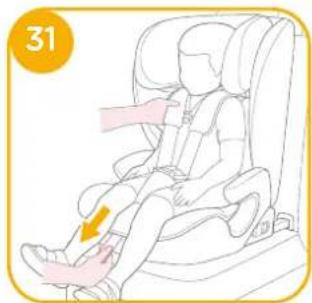

   to make sure your child is properly secured. 31
   ! Always keep child secured in harness and properly tightened by removing any slack.

Using in the booster mode (Child height 100cm-150cm/Child weight < 36kg/3.5 - 12 years old)

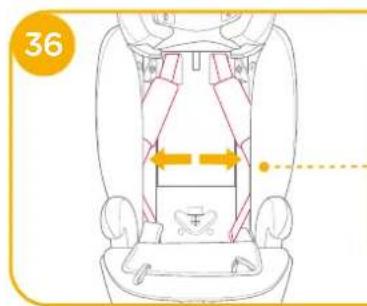

see images 32 - 39

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

Securing Child

1. Open the harness buckle by pressing the red button. 32

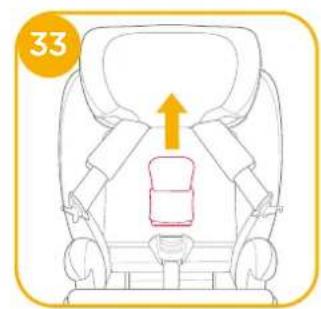

2. Remove the crotch belt cover and keep it properly. 33
3. Place the harness buckle in the recess on the base and place the harness straps to the back and insert the belt clips in the recess on the side wings. 34 & 36

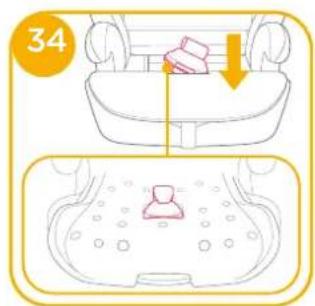

4. The recovered soft goods is shown as 37 & 38.
5. Engage the vehicle 3 point belt buckle.
   ! The colors of the indicators on both ISOFIX attachments connectors should be completely green. 39
   ! The installation with ISOFIX connectors in booster mode is optional. If ISOFIX connectors are used, make sure the indicator colors on both connectors are completely green when attached to the anchor points.

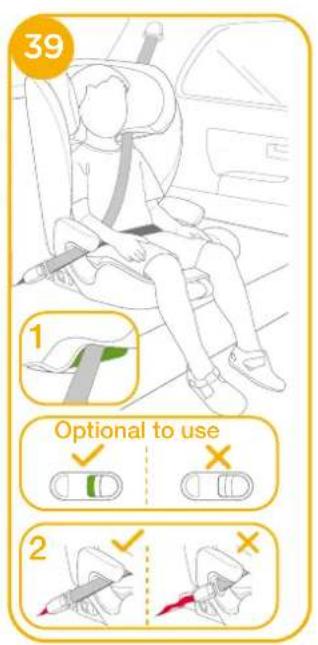

   ! Shoulder belt must pass through shoulder belt guide. 39-1
   ! The enhanced child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the enhanced child restraint securely. Ⓧ-2

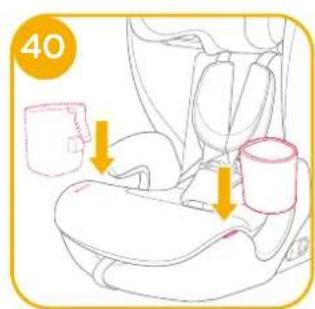

Use Cupholder

see image 40

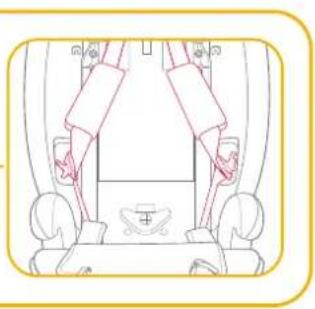

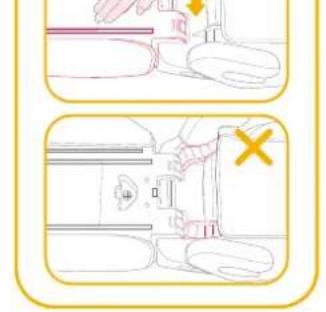

Detach Soft Goods

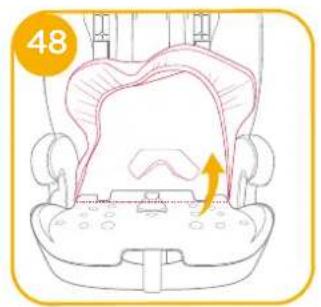

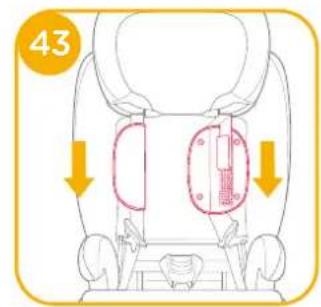

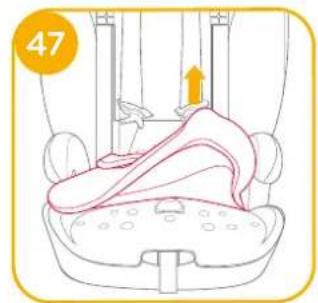

see images 41 - 53

Press the red button to disengage the buckle. 41

Follow steps 42 - 53 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

! Please wash the soft goods with cold water under 30^ C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
! Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
! Please hang dry the soft goods in the shade.
! Please remove the enhanced child restraint from the vehicle seat if it will not be in use for a long period of time.

Liste des pièces

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Assemblage

Simple line drawing of a backpack with a pointer and icon, no text or symbols present

Teileliste

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Onderdelenlijst

Technical diagram of a device rear panel with numbered components and a highlighted top section

14 15 16 17

WAARSCHUWING

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Elenco parti

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Montaggio

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Lista de piezas

Diagram illustrating car seatbelt usage and safety rules, showing seatbelt switches and vehicle positioning.

Ensamblaje

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Lista de componentes

Technical diagram of car seat components with numbered labels for identification

AVISO

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Montagem

ver imagens 1 - 3

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Wykaz części

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Montaż

Patrz rysunki 1 - 3

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Seznam dílů

Diagram illustrating car seatbelt usage and seatbelt number rules in a vehicle, with numbered instructions and safety symbols.

Montáž

viz obrázky 1 - 3

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Zostavenie

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Sestavljanje

glejte slike 1 - 3

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Сборка

См. рисунки 1 - 3

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Samling

Se billederne 1 - 3

Simple line drawing of a backpack with a pointer and icon, no text or symbols present

Alkatrészek listája

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Összeszerelés

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Lista componentelor

Diagram illustrating car seatbelt usage and seatbelt number, showing correct and incorrect positions with numbered slots.

Asamblare

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Interior view of a vehicle seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Συναρμολόγηση

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Parça Listesi

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Montaj

bkz. resim 1 - 3

لقد اشتریت نظام تقيید حركة الط False الذي ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي /. ي/.

Simple line drawing of a device with a pointer and base, no text or symbols present

تحذیر

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Illustration of a car seat with red markers and a yellow checkmark on the side (no text or symbols)

الطوارى

Simple line drawing of a notebook with an open book and a pointer, set against a solid orange background (no text or symbols)

Popis dijelova

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Sklapanje

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Lista över delar

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Deleliste

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Side view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Montering

se bilder 1 - 3

Simple line drawing of a backpack with an open book and a pointer, set against a solid orange background (no text or symbols)

Osaluettelo

Illustration of a seat with red markers and a yellow checkmark (no text or symbols)

Side view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols on the belt)

Kokoonpano

katso kuvat 1 - 3

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Boumanweg 178 C, 2352 JD Leiderdorp, The Netherlands
