USER MANUAL i-Irvana Max Joie

enhanced child restraint

GB Instruction Manual

Simple icon of a person sitting on a chair with a lowercase 'i' symbol, enclosed in a rounded square frame (no text or numbers present)

ECE R129: i-Size

Line drawing of a car comfort seat with seatbelt and cup (no text or symbols)

Illustration of a hand holding a bag with an arrow indicating motion (no text or symbols)

2

Illustration of a hand pressing down on a device component (no text or symbols)

Line drawing of a chair with seat and neck, no text or symbols present

Line drawing of a seatbelt device with an arrow indicating rotation (no text or symbols)

Medical procedure diagram showing laparoscopic insertion and dissection with a cross mark indicating failure

8 1

2

Illustration of a person viewed from behind holding a long rod, with no text or symbols present

Line drawing of a person viewed from behind in a chair, no text or symbols present

9

10

11

Line drawing of a car seatbelt with a red arrow indicating movement (no text or symbols)

17

Illustration of hands using a tool to cut a piece, showing motion with arrows (no text or symbols)

13

14 2 1

19

Illustration of a handbag hanging from a surface with a magnifying glass, no text or symbols present

Illustration of hands using a tool to adjust or apply a piece of hair, no text or symbols present

Diagram illustrating foot movement with a 'CLICK' button, showing finger positioning and movement direction

21 1 2 2

22 1

23 1 2

Line drawing of a car seat with a visible seatbelt and seat, marked with a number 24 and a checkmark (no text or symbols on the diagram itself)

Line drawing of a car seat with orange arrows indicating movement or force (no text or symbols)

29 CLICK

Illustration of a person adjusting a seatbelt using a bandage device (no text or symbols present)

27

30 ✓ × ✓ ×

Illustration of a child in a car seat with a hand pointing to the seat area, no text or symbols present.

32

Line drawing of a car seat with a highlighted seat and orange arrow indicating upward motion (no text or symbols)

Line drawing of a car seat with arrows indicating movement or force (no text or symbols)

Line drawing of a car seat with orange circular indicator (no text or symbols)

34

35

1 Optional to use 2

403

36

Illustration of a person seated in a chair with legs and curtains, no text or symbols present

41

Line drawing of a car seatbelt with an orange arrow indicating upward motion (no text or symbols)

43

Illustration of a car seat with an arrow indicating direction, no text or symbols present

Diagram of a medical or anatomical structure with orange connectors and a central square (no text or labels)

Illustration of a car seat with a pink bandage and orange arrow indicating direction (no text or symbols)

45

50 3 6

Diagram of a medical device with an arrow indicating upward motion, no text or symbols present

Simple line drawing of a bed with a foot emerging from the seat, no text or symbols present

Illustration of a baby seat with an orange arrow indicating upward motion (no text or symbols)

Illustration of a human anatomical structure with a highlighted orange arrow, no text or symbols present

Simple line drawing of a curved, elongated object with no text or symbols

GB

Welcome to Joie™

You have purchased a high quality, fully certified child safety child restraint. This product is suitable for the use of children with height and weight up to 150cm and 36kg.

Carefully read this instruction manual to ensure that the seat has been properly installed. Incorrect installation could endanger your child.

Keep this instruction manual for future reference.

Please confirm

To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the UN Regulation No.129, your child must meet the following requirements.

Harness Mode: Child age ≥15m/ Child height 76cm-125cm/ Child weight ≤25kg;

Booster Mode: Child height 100cm-150cm/ Child weight ≤ 36kg;

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

! Please keep the quick start guide for future reference.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of a notebook with a pointer and an open book icon, no text or symbols present.

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

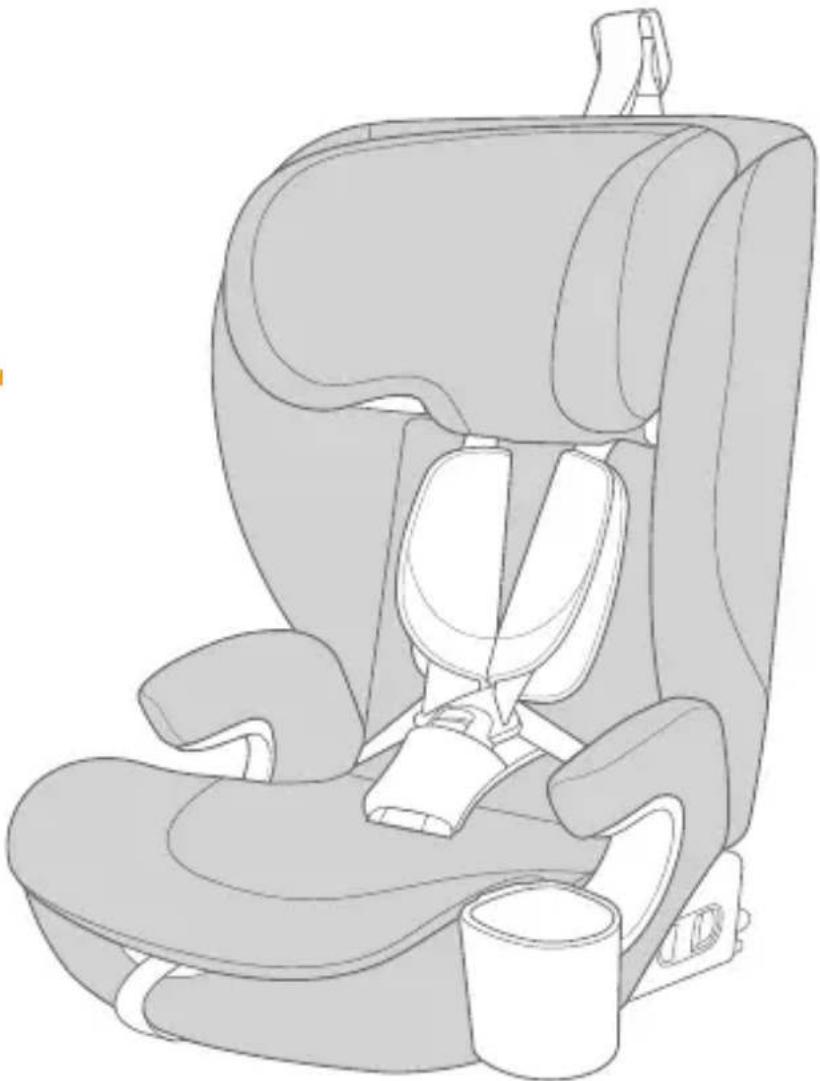

1 Head Support
2 Side Wings
3 Armrest
4 Base
5 Adjustment Strap
6 Seat Adjustment Lever
7 ISOFIX Adjustment Button
8 ISOFIX Attachments Guides
9 Shoulder Harness Covers

1 2 3 4 5 9 10

10 Harness Buckle
11 Head Support Adjustment Lever
12 Top Tether Release Button
13 Top Tether Storage Bag
14 ISOFIX Connector
15 ISOFIX Release Button
16 ISOFIX Safety Lock
17 Cupholder

9 10 12 13

14 15 16 17

WARNING

! BE informed that the rigid items and plastic parts of an enhanced child restraint system shall be located and installed so that they are not liable to become trapped by a movable seat or in a door of the vehicle during everyday use of the vehicle.
To use this enhanced child restraint according to the UN Regulation No.129, your child must meet the following requirements:
! Harness Mode: Child height 76cm-125cm/max. 25kg;
Booster Mode: Child height 100cm-150cm/max. 36kg;
! IMPORTANT - DO NOT USE BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions)
The enhanced child restraint may not fit in all approved vehicles. In doubt, please get in contact with the local retailer or Joie customer service.
Make sure that any straps holding the enhanced child restraint to the vehicle are tight, that any straps restraining the child are adjusted to the child's body, and that none of the straps is twisted.
! DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint.
! Ensure that lap section of the seatbelt is worn low down, so that the pelvis is firmly engaged.

WARNING

This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
! DO NOT leave your child unattended in the enhanced child restraint system.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
! The enhanced child restraint system shall NOT BE USED without the soft goods.
The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
! Please check if this enhanced child restraint can be installed properly in your vehicle before you purchase it.
! To avoid burns, never put hot liquids in your booster's cupholder.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

For installation with ISOFIX system + Top Tether

1. This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

For installation with 3-point belt

For installation with 3-point belt + ISOFIX system

1. This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Choose Your Installation

ECE R129	Child's Size	Installation Mode	Figure for Installation	Reference Age
	76cm-125cm/ ≤ 25kg	Harness Mode		15 months to approx 7 years
	100cm-150cm/ ≤ 36kg	Booster Mode		approx. 3.5 years to 12 years

Installation Concerns

Illustration of a car seat with red markers and a yellow checkmark (no text or symbols)

Interior view of a car seatbelt with a yellow checkmark indicating the correct seatbelt (no text or symbols present)

Assembly

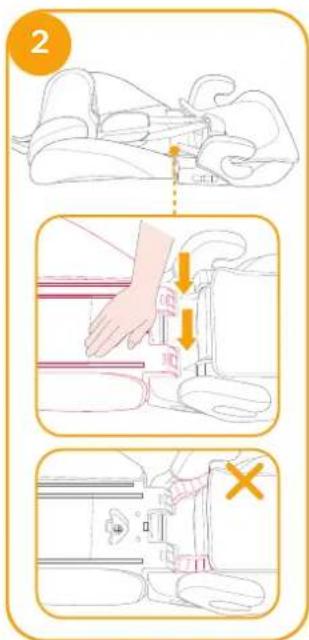

see images 1 - 3

! Make sure that no interference caused by the seat cover when attaching the backrest to the base.

Height Adjustment

for Head Support and Shoulder Harnesses

see images 4 - 7

Please adjust the head support and check if the shoulder harnesses are at the correct height according to 4 & 5 & 6 & 7

When used in harness mode, the shoulder harness height must be even with or just above the top of child's shoulders.

When used in booster mode, the shoulder belt guides must be just above child's shoulders. 5

Press the head support adjustment lever 6 and slide the head support until it clicks into one of the 15 positions, shown as 7.

Adjust the seat

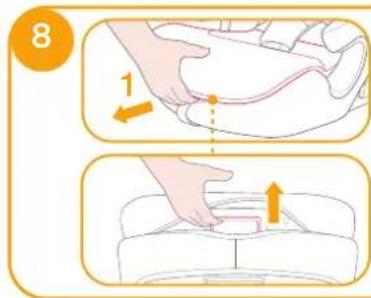

see image 8

Child Restraint Installation

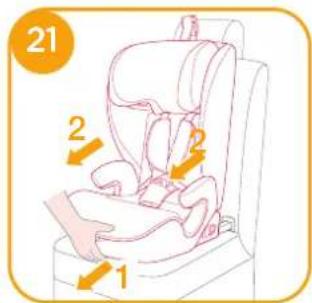

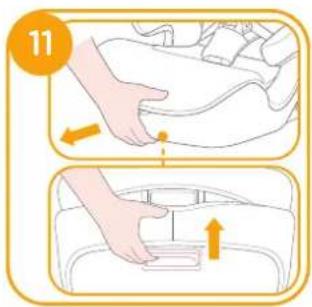

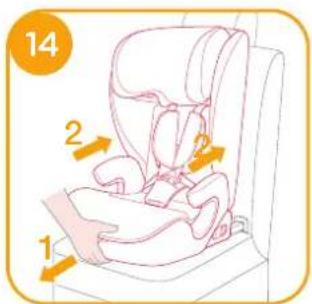

see images 9 - 23

Use ISOFIX

1. Insert ISOFIX guides to assist with installation. 9
2. Place the top tether behind the vehicle seat. 10
3. Press the ISOFIX adjustment button located under the base, both ISOFIX connectors can extend automatically. 11 & 12

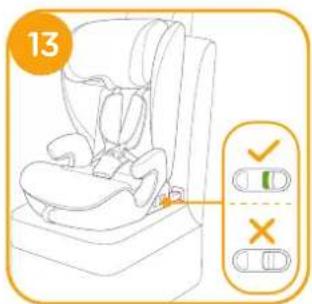

4. Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on both ISOFIX connectors should be completely green. 13
   ! Press the ISOFIX adjustment button again while pushing the seat back until it comes in contact with the vehicle seat backrest. 14

Use Top Tether

1. To extend top tether for use, press the button on tether adjuster and pull to lengthen. 15
2. Connect the tether hook securely to vehicle's anchorage point. (see vehicle owner's manual). 16

! Make sure that tether hook is securely attached to the anchorage point. Tension the tether strap until the indicator shows green completely. 17

1. Press the release button ^18 to loosen the webbing and then detach the hook to remove the top tether. ^19
2. When not in use, top tether must be properly stored. 20

Removing the seat

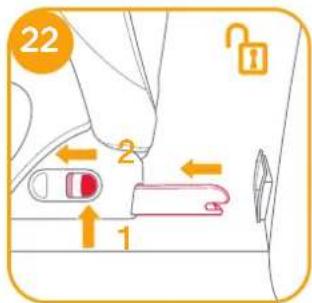

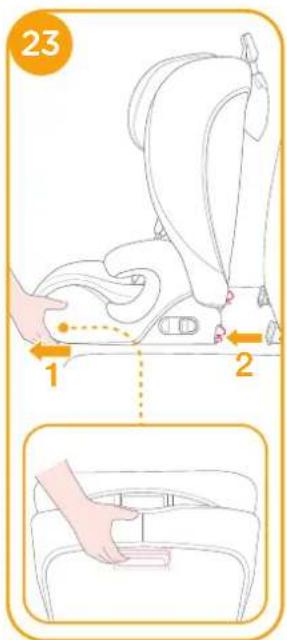

1. To remove from the vehicle press the ISOFIX adjustment button and pull the base back from the seat. 21 Then press and release the connectors from the vehicle's ISOFIX. 22
2. To prevent damage during transit, press the ISOFIX adjustment button 23 -1 and store the connectors into the base completely. 23 -2

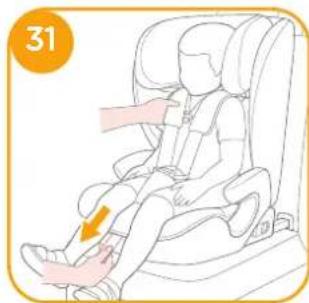

Using in the harness mode (Child height 76cm-125cm/Child weight ≤slant 25kg/15 months - approx. 7 years old)

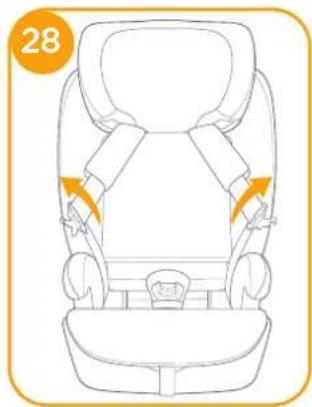

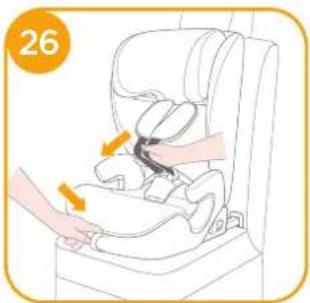

see images 24 - 31

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

Securing Child

1. To lengthen the shoulder harness belts, press the harness adjustment button while at the same time pulling forward the shoulder harnesses to loosen. 26
2. Open the harness buckle by pressing the red button. 27
3. Place the shoulder straps to the outsides so they do not get in the way when you put the child in. 28
4. Place the child into the enhanced child restraint and pass both arms through the shoulder straps.

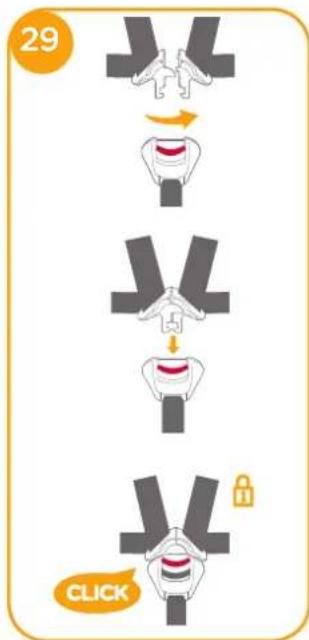

5. Engage the harness buckle. Please refer to 29

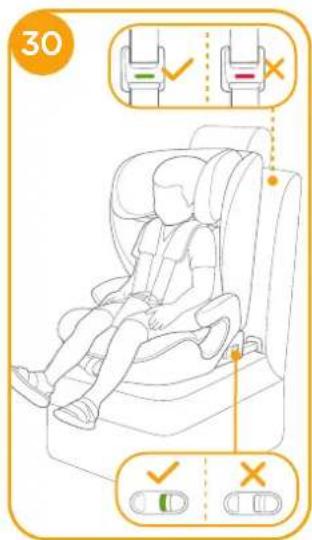

   ! Tension the tether strap until the indicator shows green completely. ^30
   ! The colors of the indicators on both ISOFIX attachments connectors should be completely green. 30
   ! Pull the adjustment strap and adjust it to the proper length to make sure your child is properly secured. 31
   ! Always keep child secured in harness and properly tightened by removing any slack.

Using in the booster mode (Child height 100cm-150cm/Child weight < 36kg/3.5 - 12 years old)

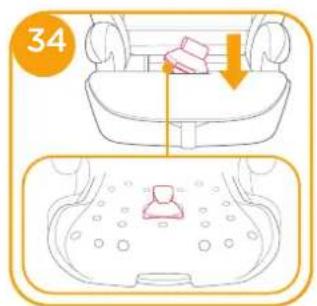

see images 32 - 39

! Install the enhanced child restraint on the rear vehicle seat, and then place the child in the enhanced child restraint.

Securing Child

1. Open the harness buckle by pressing the red button. 32

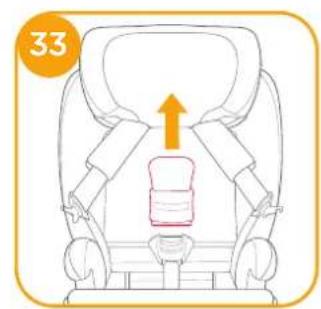

2. Remove the crotch belt cover and keep it properly. 33

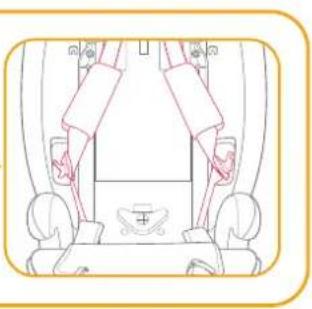

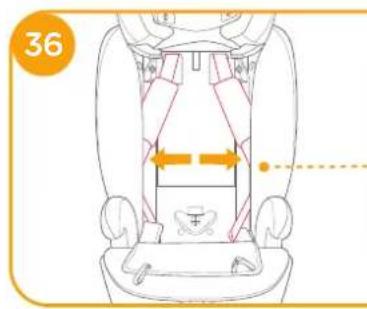

3. Place the harness buckle in the recess on the base and place the harness straps to the back and insert the belt clips in the recess on the side wings. 34 & 36
4. The recovered soft goods is shown as 37 & 38.
5. Engage the vehicle 3 point belt buckle.
   ! The colors of the indicators on both ISOFIX attachments connectors should be completely green. 39
   ! The installation with ISOFIX connectors in booster mode is optional. If ISOFIX connectors are used, make sure the indicator colors on both connectors are completely green when attached to the anchor points.
   ! Shoulder belt must pass through shoulder belt guide. 39-1
   ! The enhanced child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the enhanced child restraint securely. 📞-2

Use Cupholder

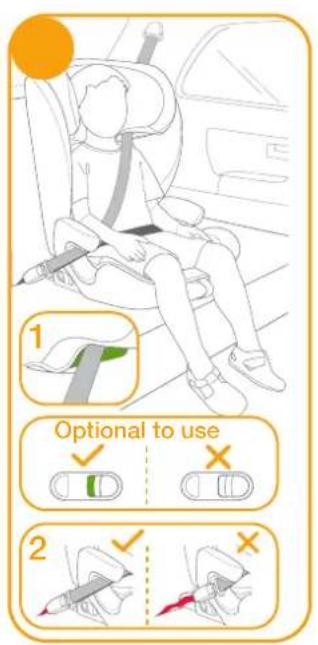

see image 40

Detach Soft Goods

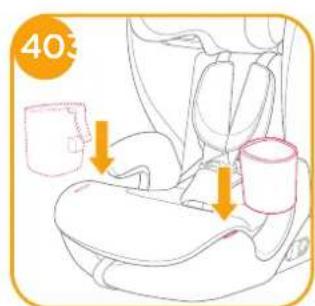

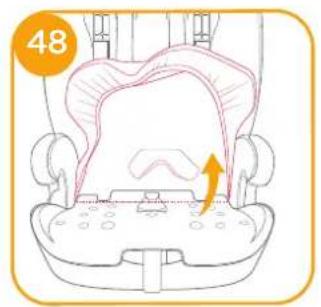

see images 41 - 53

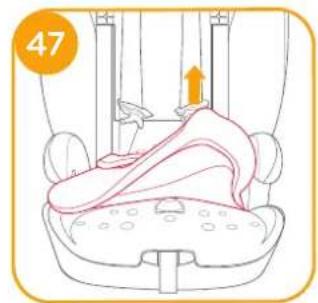

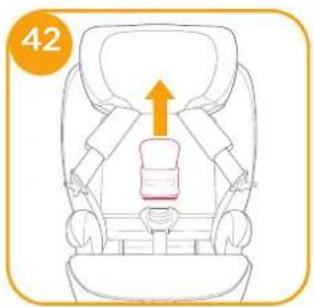

Press the red button to disengage the buckle. 41

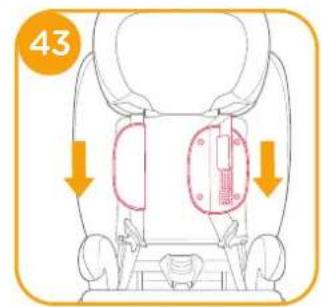

Follow steps 42 - 53 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse order.

Care and Maintenance

! Please wash the soft goods with cold water under 30^ C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
! Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
! Please hang dry the soft goods in the shade.
! Please remove the enhanced child restraint from the vehicle seat if it will not be in use for a long period of time.

Note

FR

Simple line drawing of a notebook with a pointer and a small icon, no text or symbols present.

Liste des pièces

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Side view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Assemblage

Simple line drawing of a laptop with an open book and a pointer, set against an orange background (no text or symbols)

Teileliste

Simple line drawing of an open book and a closed book with a pointer, on orange background (no text or symbols)

Onderdelenlijst

Technical diagram of a car seat assembly with numbered parts labeled 11 to 17

WAARSCHUWING

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Side view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Montage

Simple line drawing of an open book and a closed book with a pointer, set against an orange background (no text or symbols)

Elenco parti

Diagram illustrating seatbelt usage and car safety rules in a vehicle, showing numbered slots and checkmarks for correct/incorrect actions.

Montaggio

Simple line drawing of an open book and a closed book with a pointer, set against an orange background (no text or symbols)

Lista de piezas

Technical diagram of a device rear panel with numbered labels pointing to specific components.

14 15 16 17

ADVERTENCIA

Diagram illustrating seatbelt usage and car safety rules in a vehicle, showing numbered slots and safety symbols.

Ensamblaje

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Lista de componentes

Technical diagram of a car seat assembly with numbered parts and labeled connectors

AVISO

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Montagem

ver imagens 1 - 3

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Wykaz części

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Montaż

Patrz rysunki 1 - 3

Simple line drawing of an open book and a closed book with a pointer, set against an orange background (no text or symbols)

Seznam dílů

Diagram illustrating seatbelt usage and car safety rules in a vehicle, showing numbered slots and checkmarks for correct/incorrect actions.

Montáž

viz obrázky 1 - 3

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Technical diagram of a car seat assembly with numbered parts labeled 11 to 17

VÝSTRAHA

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

Technical diagram of car seat components with numbered labels for identification

OPOZORILO

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Side view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Sestavljanje

glejte slike 1 - 3

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Technical diagram of a car seat with numbered labels pointing to specific components

14 15 16 17

ВНИМАНИЕ

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Side view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Сборка

См. рисунки 1 - 3

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Samling

Se billederne 1 - 3

Simple line drawing of a notebook with a pointer and a small icon, no text or symbols present.

Alkatrészek listája

Technical diagram of a device rear panel with numbered labels pointing to specific components.

14 15 16 17

FIGYELMEZTETÉS

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Összeszerelés

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Lista componentelor

Illustration of a car seat with red arrows pointing to the seat area, no text or symbols present.

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Asamblare

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Technical diagram of a car seat assembly with numbered parts labeled 11 to 17

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Parça Listesi

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Montaj

bkz. resim 1 - 3

Simple line drawing of an open book and a backpack on orange background (no text or symbols)

تحذير

Interior view of a vehicle seat with two seats and a checkmark indicating a location (no text or symbols present)

Interior view of a car seatbelt with a yellow checkmark indicating the location (no text or symbols present)

الطوارئ

Simple line drawing of an open book and a closed book with a pointer, set against an orange background (no text or symbols)

Popis dijelova

Technical diagram of a car seat assembly with numbered parts labeled 11 to 17

UPOZORENJE

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Illustration of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Sklapanje

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

Lista över delar

Simple line drawing of an open book and a closed book with a pointer, on orange background (no text or symbols)

Deleliste

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Interior view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Montering

se bilder 1 - 3

Simple line drawing of an open book and a closed book with a pointer, set against an orange background (no text or symbols)

Osaluettelo

Illustration of a seat with red arrows pointing to the seat area, no text or symbols present

Side view of a car seatbelt with a yellow checkmark indicating a location (no text or symbols present)

Kokoonpano

katso kuvat 1 - 3

Simple line drawing of an open book and a closed book with a pointer, on an orange background (no text or symbols)

부품 설명

Diagram illustrating seatbelt usage and car safety rules in a vehicle, showing numbered slots for seating and safety.

조립방법

그림 1 - 3 참조

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Boumanweg 178 C, 2352 JD Leiderdorp, The Netherlands
