USER MANUAL i-Chapp FX Joie

Line drawing of a baby car seat with adjustable straps and buttons (no text or symbols)

Simple icon of a person relaxing inside a rounded square frame, with no text or symbols present.

ECE R129/04: i-Size

GB

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the i-Chapp™ FX series no back booster you are using a high quality, fully certified safety enhanced child restraint. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

To use this Joie booster according to ECE R129/04, your child must meet the following requirements.

Child height 137cm-150cm (Reference age 7-12 years).

Booster

Please read all the instructions in this manual before installing and using the product.

I IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

! Please keep the quick start guide for future reference.

For warranty information, please visit our website at joiebaby.com

Simple line drawing of an open book with a pointer and a car icon, no text or symbols present.

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Armrest

5 ISOFIX Connector

2 Base

6 Shoulder Harness Anchor

3 Cupholders

7 Shoulder Belt Positioning Clip

4 ISOFIX Attachments Guides

1 2 3

Line drawing of a car seat with labeled component (no text or symbols)

WARNING

! NO booster can guarantee full protection from injury in an accident. However proper use of this booster will reduce the risk of serious injury or death to your child.
! Always take care to follow the installation instructions correctly, this will ensure the booster performs at an optimum safety level.
! Do take care so that the rigid items and plastic parts of an booster shall be so located and installed that they are not liable to become trapped by a moveable seat or in a door of the vehicle.
! To use this booster seat according to the ECE R129/04, your child must meet the following requirements.
Child height 137cm-150cm (reference age: 7-12 years). Forward facing only (in vehicle travel direction)
! The enhanced child restraint may not fit in all approved vehicles.
! Any straps holding the booster to the vehicle should be tight, that any straps restraining the child should be adjusted to the child's body, and the straps should not be twisted.
! The booster seat should be replaced if it has been subjected to heavy loads in the event of an accident or if it has been dropped.

WARNING

! This booster seat is only intended to be used in the car.
! Do not make any alterations or additions to the booster seat without approval from the type approval authority. DO NOT remove any of the white EPP/EPS foams. Failure to do so may result in serious safety issues.
! DO NOT use the seat if the surfaces are too hot from sunlight.
! Never leave the child unattended in the booster seat or vehicle, not even for a few minutes.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
! The booster shall not be used without the soft goods.
! The booster soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
! Always secure child in booster, even on short trips, as this is when most accidents occur.
! DO NOT leave this booster, or other items unbelt-ed or unsecured in your vehicle. Remove the booster seat from the car if not regular used and store in a dry, sun-protected surrounding.

WARNING

It's recommended not to use a second-hand booster seat whose history is not known. It may have invisible structural damages or defects due to incorrect usage/storage.
! DO NOT use any load bearing contact points other than those described in the instructions and marked on the booster.
! DO NOT install this booster under the following conditions:
1. Vehicle seats facing sideways or rearward with respect to the vehicle's direction of travel.
2. Vehicle seats movable during installation.
! Consult the retailer for issues concerning maintenance repair and part replacement.
! To avoid burns, never put hot liquids in your booster's cupholders.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

1. This is an Universal booster cushion Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in i-Size compatible and universal vehicle seating positions as indicated by vehicle manufacturer in the vehicle user's manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Product Booster seat

Materials Plastics, Metal, Fabrics

Patent No. Patents pending

Suitable for Child height 137cm-150cm (Reference age 7-12 years).

Installation Forward facing (in vehicle travel direction)

Concerns on Installation

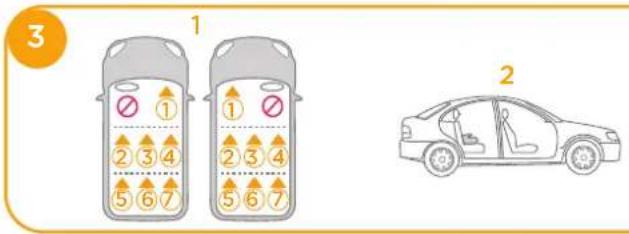

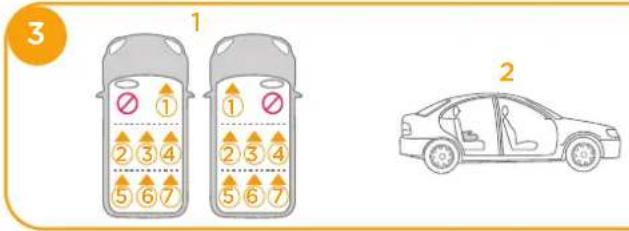

see images 1 - 3

Interior view of a vehicle seatbelt with no visible text or symbols

Interior view of a car seatbelt with a checkmark indicating selection (no text or symbols on the belt)

3

1 2 3 4 5 6 7 1 2 3 4 5 6 7

Installation using ISOFIX System and 3-point belt or using 3-point belt only

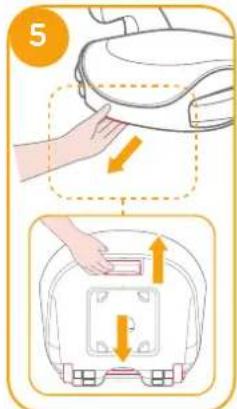

see images 4 - 16

If vehicle is equipped with ISOFIX, the vehicle lower anchor points may be visible at the vehicle seat crease. See your vehicle owner's manual for exact locations, anchor identification, and requirements for use.

1. Fit the ISOFIX guides with the ISOFIX anchor points. 4 The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors.
2. Press the ISOFIX adjusting button to pull out the ISOFIX connectors.

Rotate the ISOFIX connectors 180 degrees until they are pointing in the direction of the ISOFIX guides.

4

5

6 1 2 1 2 1

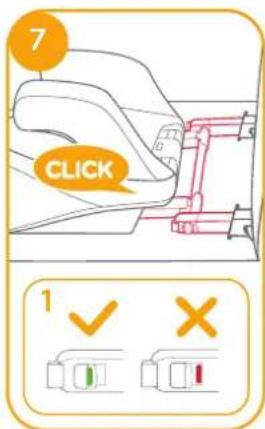

3.Line up the ISOFIX connectors with the ISOFIX anchor points, and then click both ISOFIX connectors into the ISOFIX anchor points.

! Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. The colors of the indicators on the both ISOFIX connectors should be completely green. ⑦-1

! Check to make sure the booster is securely installed by pulling on the both ISOFIX connectors.

1. Press the ISOFIX adjustment button to retract the seat back to desired position. 8

7 CLICK 1 ✓ ✗

8 2 1

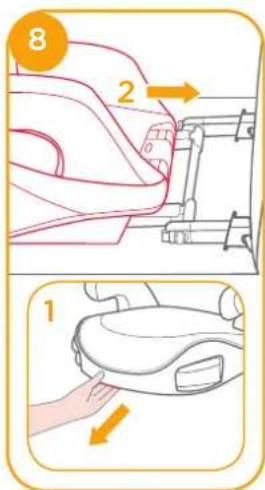

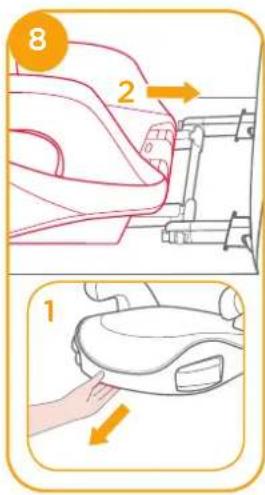

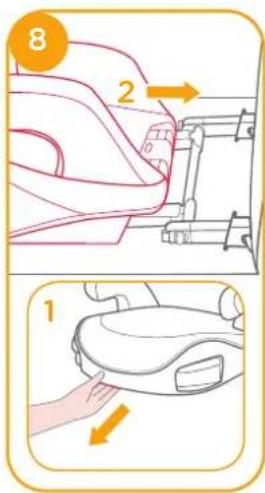

1. To remove the booster:

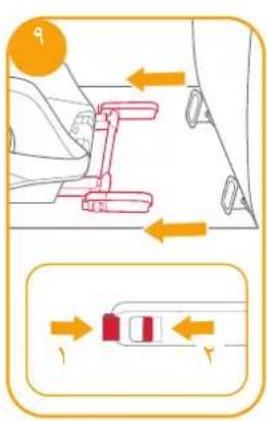

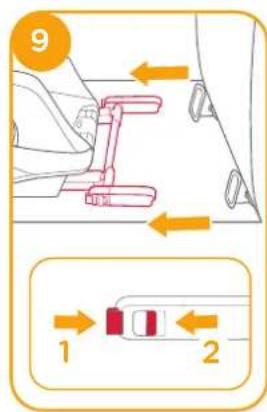

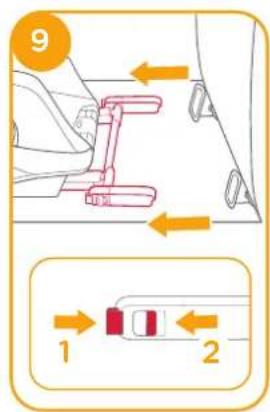

a. Press the secondary lock button ⑨ -1 first and then the button ⑨ -2 on the ISOFIX connectors before removing the booster from the vehicle seat.

b. Rotate the ISOFIX connectors by 180 degrees, then press the ISOFIX adjusting button to fold the ISOFIX connectors.

9 1 2

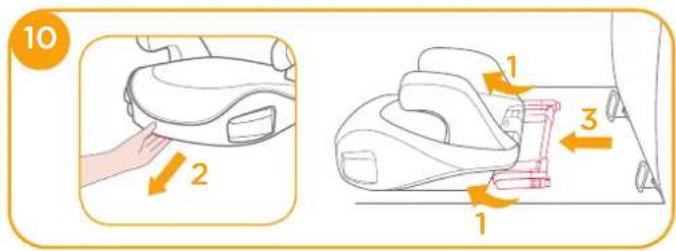

10 2 1 3 1

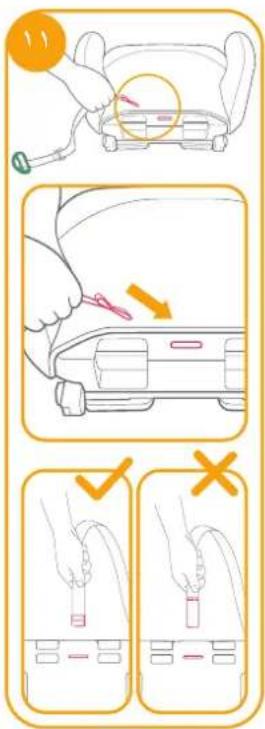

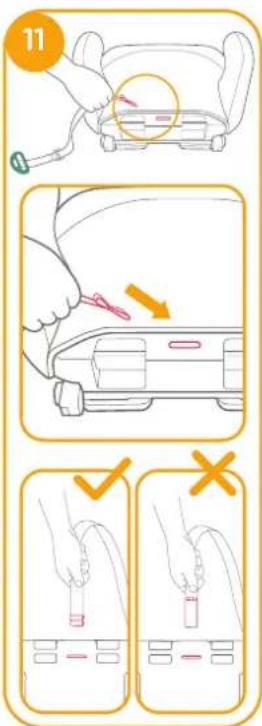

Insert the end of shoulder belt positioning clip webbing into the hole on the base.

! Please check the direction of shoulder harness anchor as ⑥ to avoid hurting the child's back if shoulder harness anchor is in the opposite direction.
! Pull the shoulder belt positioning clip webbing slightly to make sure the webbing fixed on the base.
! Slide shoulder harness anchor to adjust webbing length.

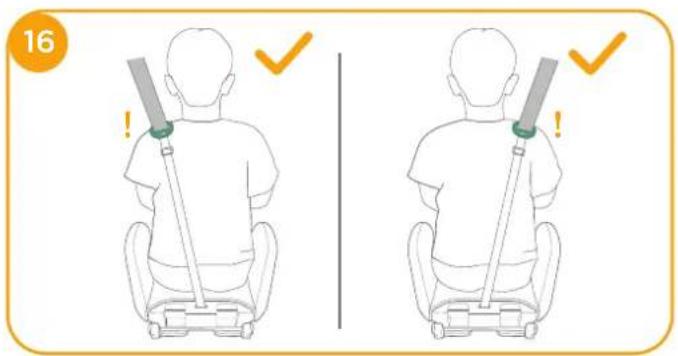

Slide the shoulder belt positioning clip to make sure the clip is close to child's shoulder, ^15 -1 buckle the vehicle safety belt. ^15 -3

! To achieve the safest installation, we suggest the shoulder belt positioning clip should be level with the highest point of the child's shoulder.
! DO NOT position vehicle belt over top of the armrests. It must pass

11 ✓ ×

12

underneath the armrests. ^5 -2

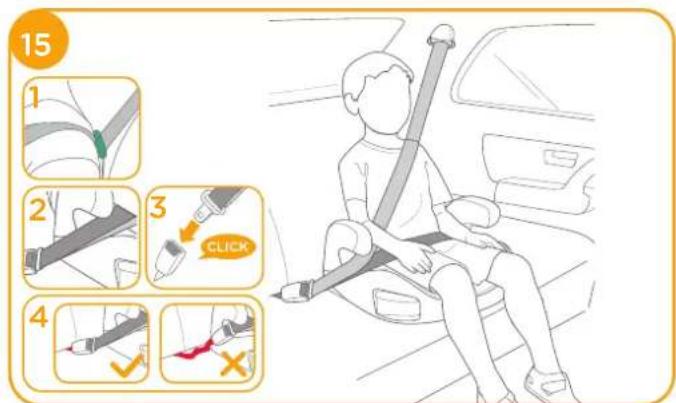

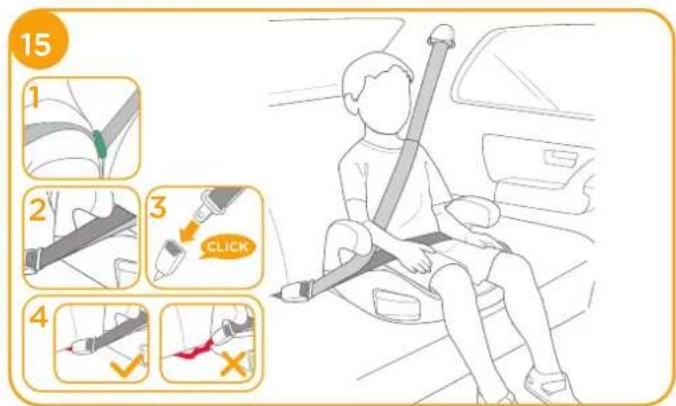

! The booster can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the booster securely. 15 -4

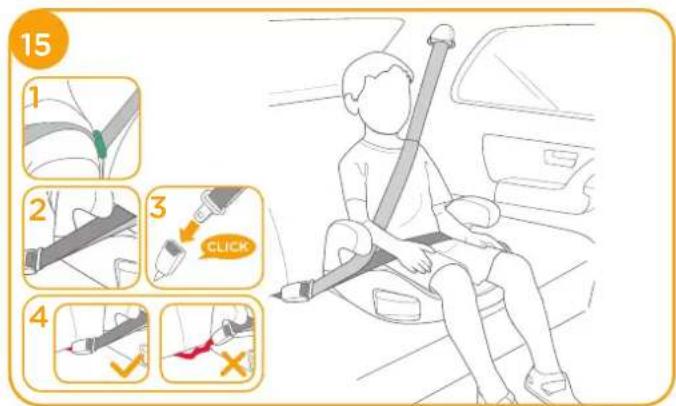

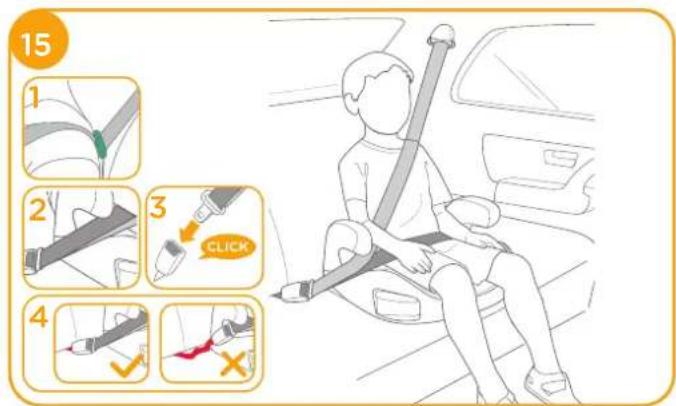

! After your child is placed in this booster, the safety belt must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged.
! Place a booster firmly against the back of a forward-facing vehicle seat equipped with a lap/shoulder belt.

Simple line drawing of a golf club with a numbered circle and checkmark (no text or symbols)

Illustration of a car seat with a seatbelt and a cross mark, no text or symbols present

15 1 2 3 CLICK 4

16 !

Use Cupholders

see image ⑰

Simple line drawing of a crab with two legs and two side baskets, no text or symbols present

Detach Soft Goods

see image 8

Line drawing of a car seatbelt with orange arrows indicating side motion (no text or symbols)

Care and Maintenance

! Please wash the soft goods and inner padding with cold water under 30°C.
! Do not iron the soft goods.
! Do not bleach or dry clean the soft goods.
! Do not use undiluted neutral detergent gasoline or other organic solvent to wash the booster. It may cause damage to the booster.
! Do not twist the soft goods and inner padding to dry with great force. It may leave the soft goods and inner padding with wrinkles.
! Please hang dry the soft goods and inner padding.
! Please remove the booster from the vehicle seat if not in use for a long period of time. Put the booster in a cool, dry place and somewhere your child cannot access it.

Simple line drawing of an open book with a pointer and a small icon below, on orange background (no text or symbols)
