USER MANUAL Chestnut Joie

IMPORTANT!READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Highchair Assembly

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Diagram illustrating two steps of a mechanical device with labeled parts and directional arrows, including a lock mechanism.

4 5

Diagram illustrating two steps of a device with directional arrows and lock icons, labeled 6 and 7.

8 9

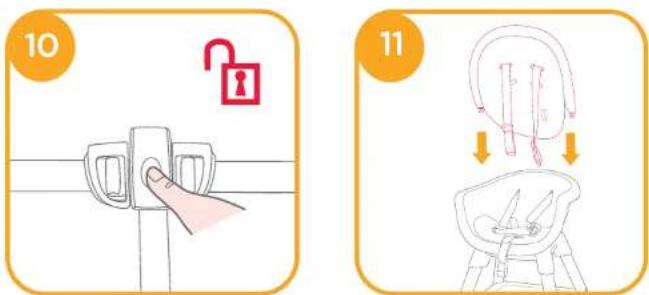

10 11

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols)

Line drawing of a baby seat with a highlighted seat and button, no text or symbols present

Line drawing of a baby boom seat with a highlighted tray and 'CLICK' button (no text or symbols on the diagram itself)

Line drawing of a spacecraft with a helmet and wings, no text or symbols present

14

15

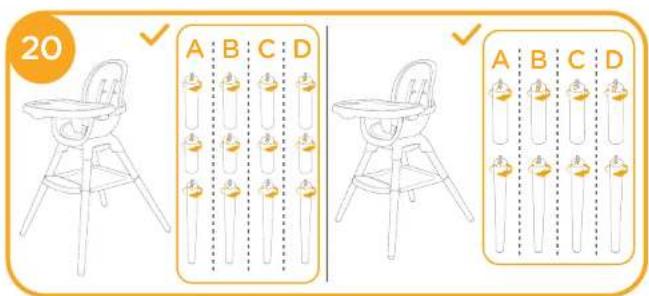

20 A: B C: D A B C D

Line drawing of a baby bottle with a handle and arrow indicating direction (no text or symbols)

17 2 2 1

Highchair Operation

21 1 2

Line drawing of a baby bottle with a handle and lid, no text or symbols present

23

Illustration of a hand adjusting a seatbelt device with a numbered label (24) in the corner, no text or symbols on the diagram itself.

Line drawing of a baby seatbelt with a highlighted orange arrow indicating a specific seatbelt (no text or symbols present)

Line drawing of a baby seat with buttons and straps (no text or symbols)

Line drawing of a chair with an arrow indicating motion, no text or symbols present

Illustration of a hand pressing a lock on a car seat, with no text or symbols present.

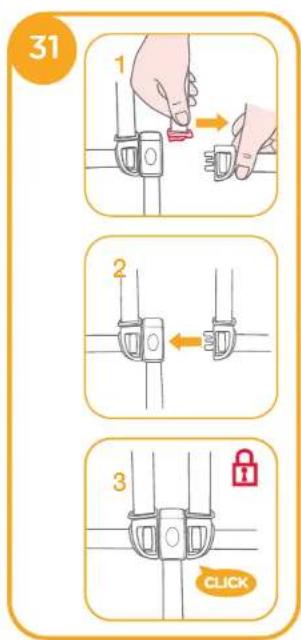

31 1 2 3 CLICK

32 3 2

27 1 2

Illustration of a medical device with a highlighted insertion point and orange arrow (no text or symbols)

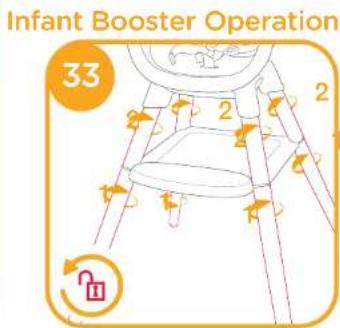

Infant Booster Operation 33 2 2

Simple line drawing of a mechanical device with no text or symbols

Line drawing of a cartoon character with limbs and accessories, no text or symbols present

Illustration of a hand placing a small object into a chair frame, with arrows indicating motion (no text or symbols)

Illustration of a hand placing a yellow object into a mechanical frame (no text or symbols)

Line drawing of a baby in a high chair with seat, no text or symbols present

Line drawing of a baby seat with orange circular badge showing number 37 (no text or symbols on the diagram itself)

Line drawing of a baby seat with orange label '42' (no text or symbols on the diagram itself)

Line drawing of a child wearing a seatbelt and safety harness, sitting on a chair (no text or symbols)

Illustration of a hand holding a chair with a bandage and orange arrows indicating motion (no text or symbols)

Illustration of a hand cutting down a chair with scissors, showing a 39-degree angle (no text or symbols)

44 1 2

45

Illustration of a person pulling a car with motion arrows indicating movement (no text or symbols)

47 CLICK

Simple line drawing of a cartoon character with a finger pointing to the head (no text or symbols)

52

Toddler Booster Operation

48

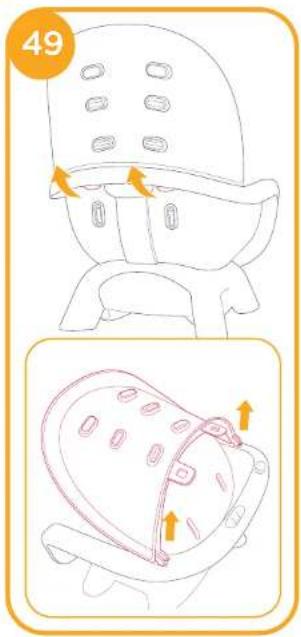

49

Illustration of a baby in a baby chair with arrows indicating movement or posture (no text or symbols)

Illustration of a baby in a baby seat with a hand placed on the seat, no text or symbols present

Line drawing of a baby in a bathtub with legs and feet (no text or symbols)

Illustration of a hand holding a helmet with arrows indicating movement or force (no text or symbols)

55

Line drawing of a hand adjusting a chair seatbelt, no text or symbols present

Illustration of a hand holding a small object through a mechanical structure with directional arrows (no text or symbols)

Illustration of a hand placing an orange arrow on a wooden chair frame (no text or symbols)

Line drawing of a person sitting in a chair, no text or symbols present

Illustration of a person interacting with a device, showing motion arrows (no text or symbols)

Line drawing of a baby seat with legs and feet, no text or symbols present

Illustration of a hand holding a lock attached to a wall-mounted device, with a lock icon and number 60 in the corner (no text or symbols on the diagram itself)

Line drawing of a stylized animal toy with four legs and a rectangular body, no text or symbols present

Toddler Chair Operation

65

61 1

2 CLICK

3 2 1

Simple line drawing of a small table with a handle and seat, no text or symbols present

Simple line drawing of a chair seat with a curved arm and a numbered arrow indicating direction (no text or symbols)

67 U 2

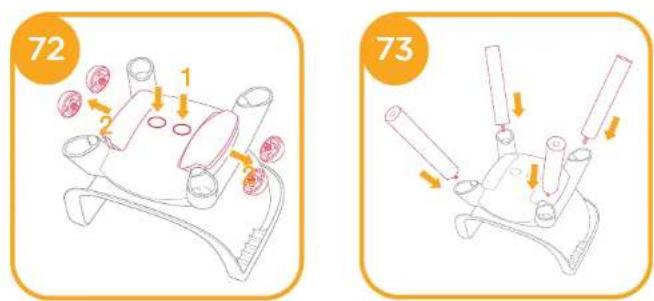

72 1 2 73

68 69

74 75

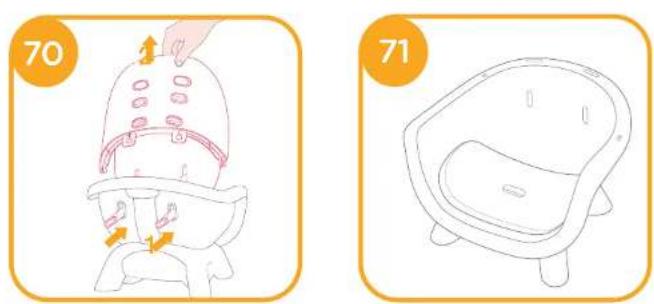

70 71

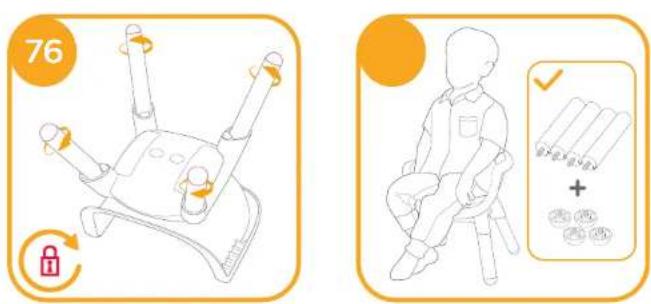

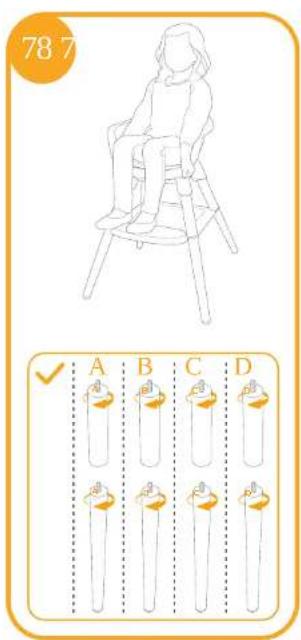

76 ✓ +

78 7 ✓ A B C D

A B C D

82

Line drawing of a baby seat with an arrow indicating direction (no text or symbols)

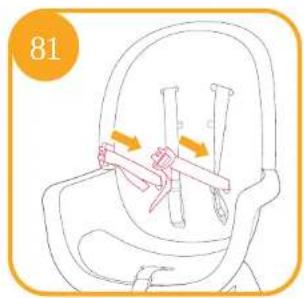

Detach Seat Pad

Illustration of a hand pressing a keyhole on a wall, with a red lock icon and number 80 in the corner (no text or symbols on the diagram itself)

81

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your life with your little one. While using with the Joie chestnut™, you are using a high quality, fully certified high chair, approved to European safety standards EN 14988:2017+A2:2024 and EN 12790-1:2023 and EN 16120:2012+A2:2018 and NF-D60-300-1:2019 and NF-D60-300-2:2008. When using as reclined cradle, the maximum weight is 9kg (6 months approximately). This product is suitable for use with children between 0-72 months. Please carefully read this manual and follow each step to ensure a pleasant experience and best protection for your child.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

For warranty information, please visit our website at joiebaby.com

Contents

Figures	1-16
WARNING	19
Choose the Installation Mode 21
Highchair Assembly 22
Assemble Seat 22
Assemble Tray 22
Highchair Operation 22
Use Tray 22
Adjust Recline 22
Adjust Height for Shoulder Harnesses 22
Use Buckle 23
Adjust Length for Harnesses 23
Infant Booster Operation 23
Toddler Booster Operation 23
Use Buckle 24
Toddler Chair Operation	24
Accessories	24
Remove Seat Pad And Backrest Pad	24
Care and Maintenance	24

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please contact your local distributor.

Product	chestnutTM
Suitable for	Child weighing under 27.3kg (0 - 72 months)
Materials	Plastics, metal, fabrics, wood
Patent No.	Patents pending
Made in	China
Brand Name	Joie
Website	www.joiebaby.com

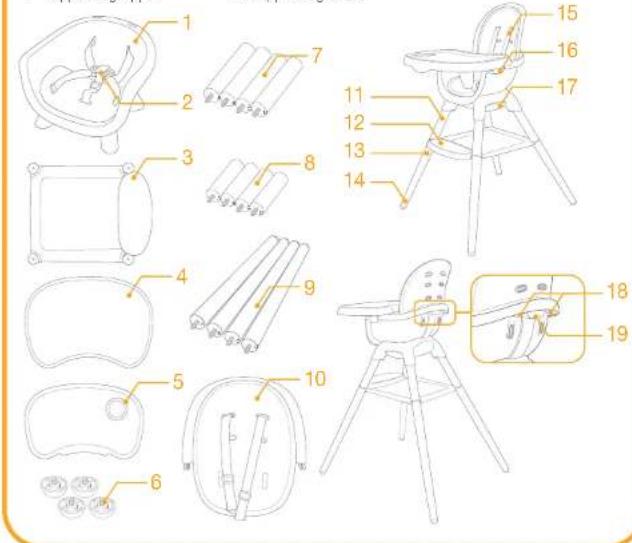

Parts List

Make sure all parts are available before assembly. If any part is missing please contact your local distributor. No tools are required for assembly.

1	Seat	8	Support Leg-Middle	15	Backrest
2	Buckle	9	Support Leg-Lower	16	Tray Adjustment Button
3	Basket	10	Backrest	17	Webbing Storage Box
4	Tray	11	Support Leg-Upper	18	Backrest release Button
5	Tray Cover	12	Footrust	19	Recline Adjustment Button
6	Feet	13	Support Leg-Middle
7	Support Leg-Upper	14	Support Leg-Lower

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

WARNING

! Adult assembly required.
! Please read all the instructions in this manual before assembling and using this product.
! Please keep instruction manual for future reference.
! When using as reclined cradle, the maximum weight is 9kg (6 months approximately).
! This product is suitable for children between 0-72 months of age (under 27.3kg).
! Failure to follow these warnings and the assembly instructions could result in serious injury or death.
! DO NOT make any modification to this product or use it along with component parts from other manufacturers.
! Not to use accessories or replacement parts other than those approved by the manufacturer.
! DO NOT use the product if any parts are broken, torn or missing.
! DO NOT leave the child unattended. Always keep your child in view.
! To prevent serious injury or death from falling or sliding out, always use the restraint system and ensure it is correctly fitted.
! Always use the restraint system and ensure it is correctly fitted.
! Always use the chair attachment system and ensure it is correctly fitted before use.
! Always check the security and the stability of the product on the adult chair before use.
! Do NOT use this product on stools or benches.
! Make sure that any harness is correctly fitted.
! Secure your child at all times using the restraint harness provided in both the reclining or upright positions. The tray is not designed to hold your child in the product.
! DO NOT use the highchair until the child can sit up unaided.
! It is recommended that the product be used in the upright position only by children capable of sitting upright unaided.
! DO NOT allow your child to stand in or on the highchair.
! DO NOT lift and carry highchair while occupied.
! DO NOT allow children to play with or around highchair while occupied.
! DO NOT allow children to lean over sides of highchair. It may become unbalanced and tip over.
! DO NOT place any heavy bags, packages, or other items on the high-chair tray. They may cause the chair to tip over.

! Do not move or lift this product with the baby inside it.
! Falling hazard: Prevent your child from climbing on the highchair.
! To ensure that the adult chair with the chair mounted seat is placed in a position where the child is not able to use its feet to push against the table or any other structure as this can cause the tip over of the adult chair supporting the chair mounted seat.
! Always use on a flat and level floor.
! Be aware of the risk of open fire and other sources of strong heat in the vicinity of the product.
! To avoid strangulation hazard, DO NOT place product in any location where there are cords, such as window blind cords, drapes, phone cords, etc.
! All assembly fittings should be unfolded completely, tightened and latched properly before using the product.
! DO NOT use the product unless all components are correctly fitted and adjusted.
! Regularly check the locks and fittings for security.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! Regularly inspect the product for damaged hardware, loose joints, missing parts or sharp edges.
! Remove your child from product before adjusting the highchair.
! Make sure the product has been folded or unfolded completely before letting your child approach the highchair.
! Consult your local distributor for issues concerning maintenance, repair and part replacement.
! To avoid burns, DO NOT place hot food on tray.
! Never leave the child unattended.
! Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
! Never let the child sleep in this product. This reclined cradle does not replace a cot or a crib. Should your child need to sleep, then it should be placed in a suitable cot or crib.
! Stop using the reclined cradle when the child starts trying to sit up.
! Always use the restraint system.
! Removed accessories (including basket and wooden foot) are not toys and should be placed out of reach of children.

Choose the Installation Mode

Child's Weight	Figure for Installation
The product is intended for newborn up to children start trying to sit up and up to 6 months or a maximum weight of 9 kg
	Newborn Highchair (Standard Height)	Newborn Highchair (Counter Height)
The product is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15 kg
	Highchair (Standard Height)	Highchair (Counter Height)
This product is intended for children able to sit unaided (minimum 6 months) and up to 36 months or a maximum weight of 15kg.
	Infant Booster Toddler Booster
Child weighing under 27.3kg (3 - 6 years)
The children below 36 months do not use this product	Youth Chair	Youth Stool (Standard Height)	Youth Stool (Counter Height)

Highchair Assembly

Please read all the instructions in this manual before assembling and using this product.

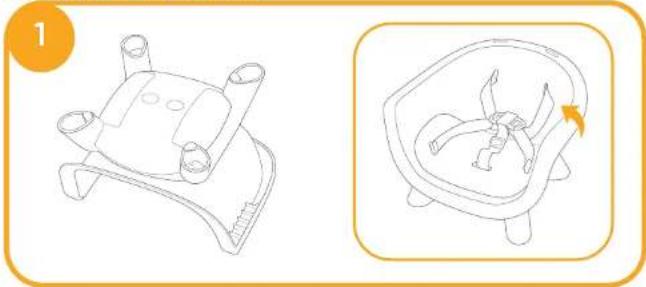

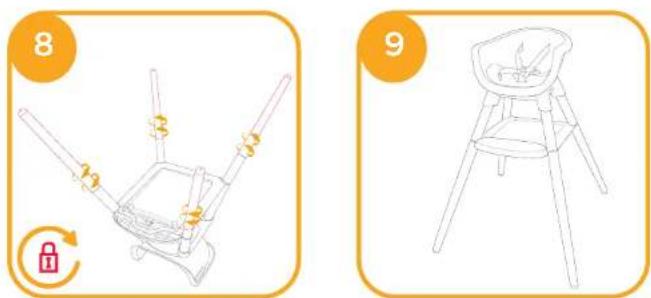

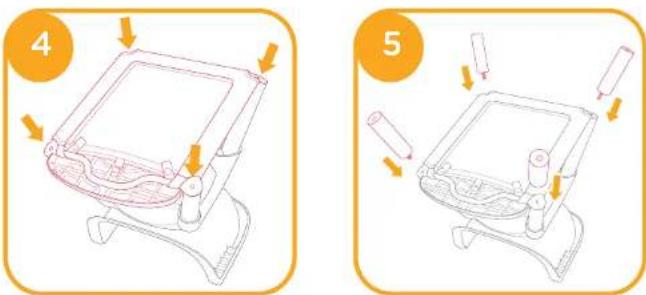

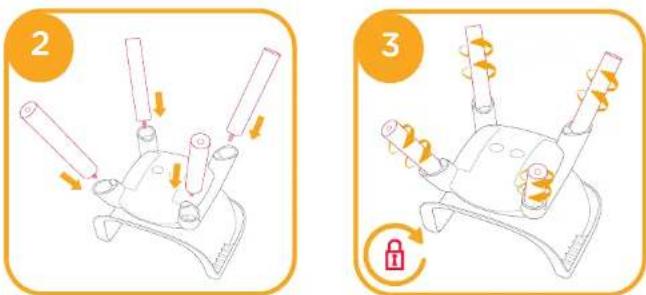

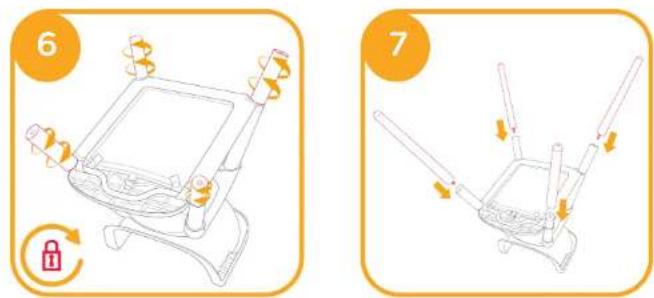

Assemble Seat

see images 1 - 13

Assemble Tray

see images 17 - 28

The completely assembled highchair is shown as

Please match and install according to the corresponding letters on the wooden legs.

Highchair Operation

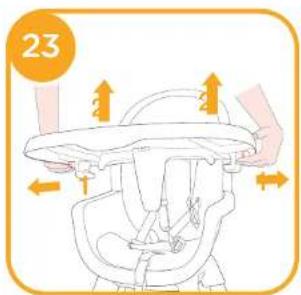

Use Tray

see images ② - ②

Adjust Recline

see images ⑦ - ②

The recline can be adjusted to 4 positions.

When the backrest is adjusted to the most level position, it can be used as a newborn highchair (reclined cradle).
When using as a newborn highchair (reclined cradle), the maximum weight is 9kg (6 months approximately).
When using as a newborn highchair (reclined cradle), do not use the tray.

Adjust Height for Shoulder Harnesses

see images 公 -

Note

1. The shoulder harness must go into the slot that is even with or slightly above the shoulders.
2. In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder harnesses are at proper height.

-1 Shoulder harness anchor

-2 Slide adjuster

Choose a pair of proper shoulder slots. Insert the shoulder harnesses into slots in seat pad and seat back.

2 2 1

When changing shoulder harness slots, make sure shoulder harnesses are going through same slots in seat pad and seat back.

Use Buckle

see images 51 - 52

Note

1. To prevent serious injury or death from falling or sliding out, always secure child in the restraint.
2. Make sure the restraint harness is fitted correctly and the space between the harness and the child does not exceed the thickness of an adult hand.
3. DO NOT cross the shoulder belts. This will cause pressure on child's neck.

Lock Buckle

Match the waist belt buckle up with the shoulder buckle and slide together 31 - 1. Insert buckles into the center buckle 31 - 2. A "click" means the buckle is locked completely 31 - 3.

Release Buckle

Press the center button to release the buckles.

Adjust Length for Harnesses

see image

1. Use slide adjuster to change the harness length. 62 - 1
2. Pull waist harness to tighten to proper length ⏻ - 2. Press the button to loosen the waist harness. ⏻ - 3

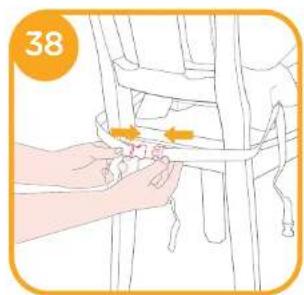

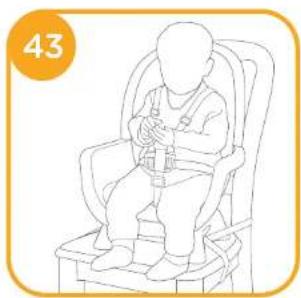

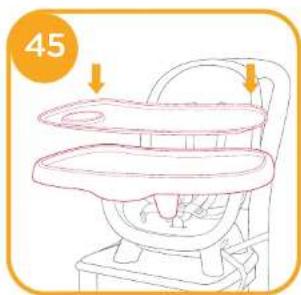

Infant Booster Operation

see images -

The backrest of infant booster can not be reclined when using infant booster with chair.

Please refer to the form data to use the product to avoid it failing and cause hurting child

Recommended adult chair seat dimensions to be minimum 29.5 cm (width)× 28.2 cm (depth)

Minimum height of the adult chair's backrest should be 24.5cm.

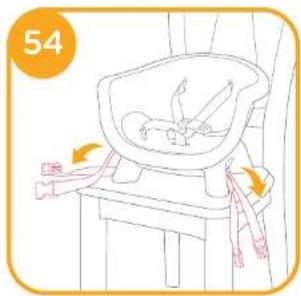

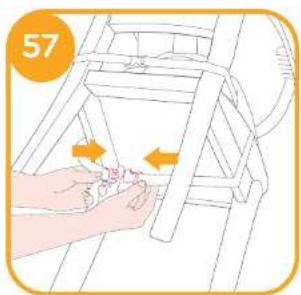

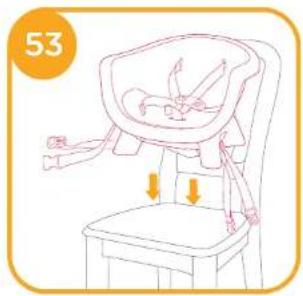

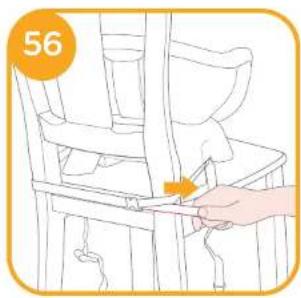

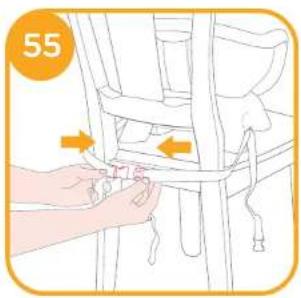

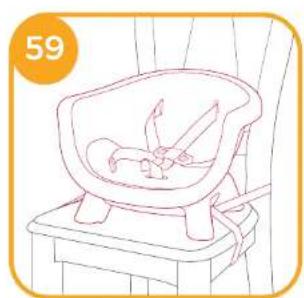

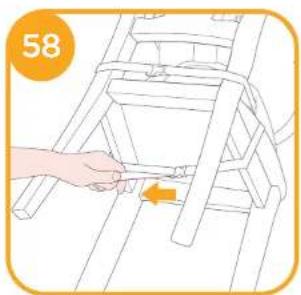

Toddler Booster Operation

see images 48 - 64

! Please adjust the backrest to the most reclined position before removing it.

Please refer to the form data to use the product to avoid it falling and cause hurting child

Recommended adult chair seat dimensions to be minimum 29.5 cm (width)× 28.2 cm (depth).

Minimum height of the adult chair's backrest should be 24.5cm.

Use Buckle

see images -

Toddler Chair Operation

see images ③ - ④

When using the product in toddler chair mode, can be used in conjunction with support leg-upper and feet 77 or in conjunction with support leg-upper and support leg-lower 18 or in conjunction with support leg-upper, support leg-middle and support leg-lower.

Accessories

Accessories may be sold separately or may not be available depending on region.

Remove Seat Pad And Backrest Pad

see images -

To assemble seat pad, reverse the steps above.

Care and Maintenance

! The tray cover is dishwasher safe for TOP RACK ONLY.
Your seat pad can be spot cleaned with a sponge and soapy water. DO NOT use bleach.
Drip dry the washed seat pad. DO NOT put in dryer.
To clean the frame, wipe with a damp cloth and mild detergent then wipe out any traces of moisture on the frame with a dry cloth.
DO NOT use undiluted neutral detergent, gasoline or other organic solvent to wash the product. It may cause damage to the product.
From time to time, check your product for worn parts, torn material or stitching. Replace the parts as needed.
If the product is not in use for a long period of time, please put it somewhere your child cannot access it.

8 Pied de support central

15 Dossier

2 Boucle

13 Pied de support central

l'inclinaison

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

AVERTISSEMENT

Technical diagram of a baby seat with numbered parts and close-ups, likely for assembly or labeling purposes.

WARNHINWEISE

Technical diagram of a baby seat with numbered parts and labeled parts for identification.

WAARSCHUWING

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

AVVERTENZA

Technical diagram of a baby seat with numbered parts and close-up views for details

ADVERTENCIA

Technical diagram of a baby seat with numbered parts and exploded views, likely for product design or assembly reference.

AVISO

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

OSTRZEŻENIE

Technical diagram of a baby seat with numbered parts and labeled parts for identification.

VAROVÁNÍ

Plast, kov, textil, drevo

Patent c.

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

VÝSTRAHA

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

ВНИМАНИЕ

Technical diagram of a baby seat with numbered parts and close-ups, likely for assembly or labeling purposes.

ADVARSEL

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Plastik, metal, kumaş, ahşap

Patent No.

Technical diagram of a baby seat with numbered parts and a close-up inset showing the interior details.

UYARI

there isn't your business in the country. In this case, you are doing business in the United States.

10

J

الحَمْدُ

The image is too blurry to recognize any text content.

1.2.1

1. مسند لمرج - مسند

Technical diagram showing exploded view of a device with labeled components and parts

10 17 14 13 12 11 10 15

Technical diagram of a birdwatch with labeled parts and magnified detail view

Job www.ijiebany.com

Alkatrészlista

Technical diagram of a baby seat with numbered parts and labeled parts for identification.

FIGYELEM

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

HOIATUS

Plastmasa, metals, audums, koks

Patenta numurs

Gaida patentu

Razols

代碼

Zimola Husaukums 150mla vinko

Juni

Timeka Vietne

www.joliebaby.com

Detalu saraksts

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

BRĪDINĀJUMS

Technical diagram of a baby seat with numbered parts for identification and assembly reference.

JSPÈJIMAS

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Boumanweg 178 C, 2352 JD Leiderdorp, The Netherlands
