USER MANUAL MagCharge Multi 187272 HAMA

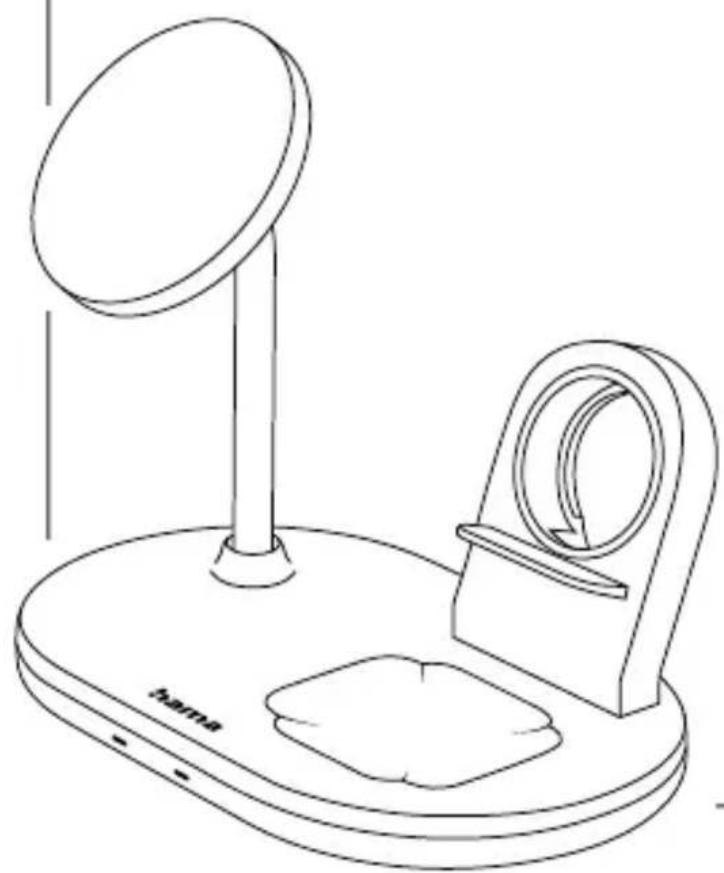

3in1 Wireless Charging Station MagCharge 3in1 Kabellose Ladestation

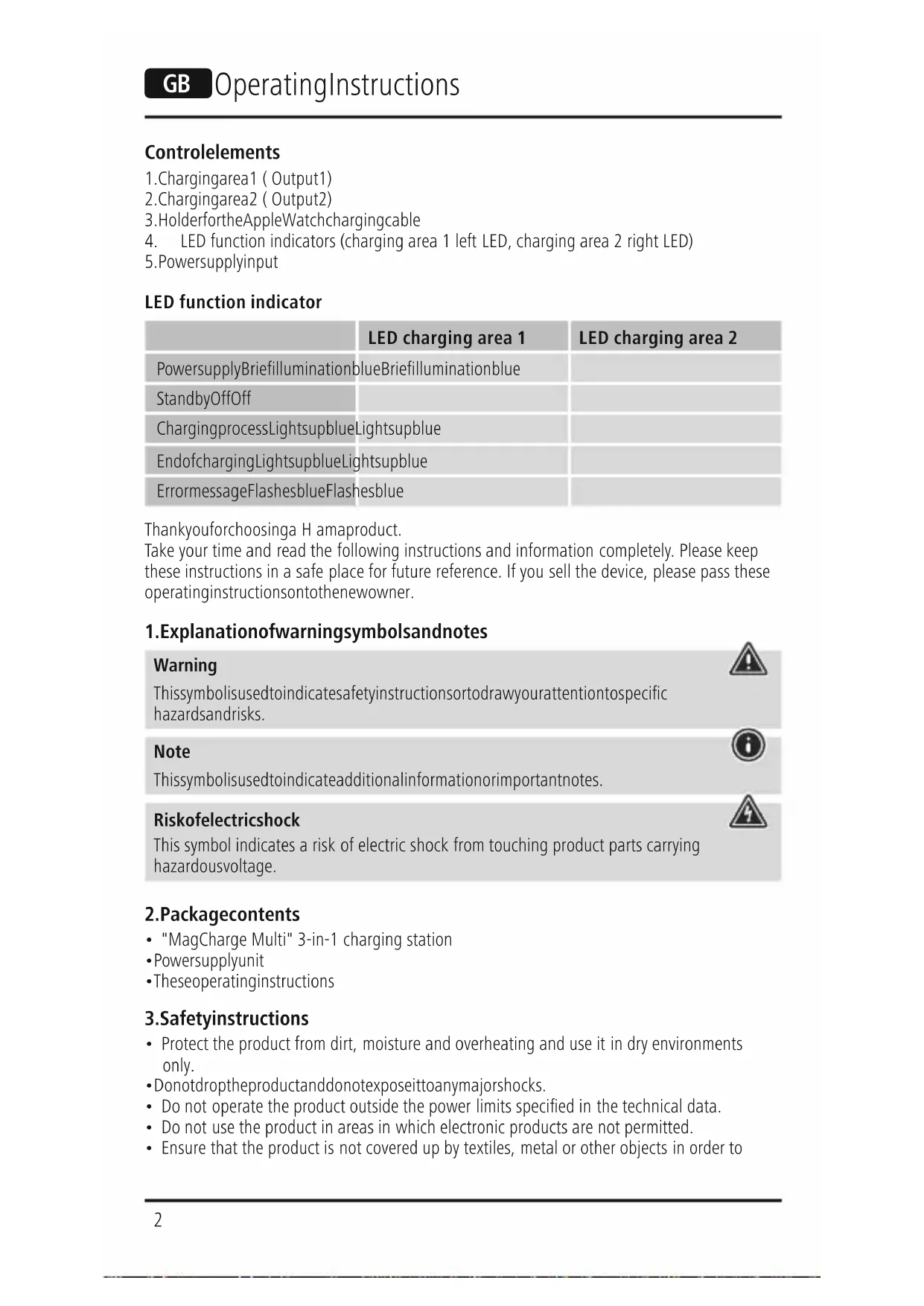

G Operating Instructions Control elements

1. Charging area 1(Output 1)

2. Charging area 2(Output 2)

3. Holder for the Apple Watch charging cable

LED functionindicator LED chargingarea 1LED chargingarea2 Power supply Brief illumination blue Brief illumination blue Standby Off Off Charging process Lights up blue Lights up blue End of charging Lights up blue Lights up blue Error message Flashes blue Flashes blue Thank you for choosing aHama product. Take your time and read the following instructions and information completely.Please keep these instructions in asafe place for futurereference. If you sell the device, please pass these operating instructions on to the new owner.

1. Explanation of warning symbols and notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specic hazards and risks. Note This symbol is used to indicate additional information or important notes. Risk of electric shock This symbol indicates arisk of electric shock from touching product parts carrying hazardous voltage.

• "MagCharge Multi" 3-in-1charging station

• These operating instructions

3. Safety instructions

• Protect the product from dirt, moistureand overheating and use it in dry environments only.

• Do not drop the product and do not expose it to any major shocks.

• Do not operate the product outside the power limits specied in the technical data.

• Do not use the product in areas in which electronic products arenot permitted.

• Ensurethat the product is not covered up by textiles, metal or other objects in order to3 avoid damage caused by overheating.

• Dispose of packaging material in accordance with the locally applicable regulations.

• Do not modify the product in any way.Doing so voids the warranty.

• Use the product only for the intended purpose.

• Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight.

• As with all electrical products, this device should be kept out of the reach of children.

• Only use the article under moderate climatic conditions.

• Do not use the product in adamp environment and avoid splashing water.

• The product is intended only for use inside buildings.

• This product is not intended for use by persons, including children, with limited physical, sensory or mental abilities or lacking in experience or knowledge, unless they are supervised by aperson responsible for their safety or have been instructed on how to use the product.

• Pull directly on the plug when disconnecting the cable, never on the cable itself.

• This product is intended for private, non-commercial use only.

• Do not open the device or continue to operate it if it becomes damaged.

• Do not attempt to service or repair the product yourself.Leave any and allservice work to qualied experts.

• Do not bend or crush the cable.

• Do not place any liquid-lled vessels such as ower vases on or in the immediate vicinity of the product. The vessel may topple over and the liquid can then impair the electrical safety. Warning -magnets

• People with pacemakers should keep away from the magnets. The magnets can negatively affect the function of the pacemaker.

• Do not place any bank or similar cards with magnetic strips or magnetically sensitive objects on the product. The data on the cards could be damaged or completely deleted. Warning Ensurethat thereare no metal parts on the back of your device. Metal heats up signicantly in the eld of an induction charger and can damage your device and/or the charger. Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.

• Do not use the product if the AC adapter,the adapter cable or the mains cable aredamaged.

• Do not attempt to service or repair the product yourself.Leave any and all service work to qualied experts.4

4. Start-up and operation

• To be able to charge your device via the wireless charger,itmust be compatible with induction charging technology.For moreinformation, please refer to the operating instructions of your device.

• Note that mobile phone cases, covers, etc., and other materials between the wireless charger and the back of your device may interferewith or even prevent the charging process.

• Install the charging cable required for the Apple Watch (not included in the extent of delivery) in the holder for theAppleWatch charging cable(3) provided.

• Connect the enclosed power supply unit to the powersupply inp ut (5).The power supply is indicated by the LED functionindicators (4) briey ashing blue.

• Place your Apple smartphone on chargingarea 1(1).Docking takes place automatically thanks to the integrated magnetic rings. The LED functionindicator(4) for charging area 1lights up blue and the charging process begins automatically.The current charging status can be checked on the smartphone. Please see your smartphone's operating instructions to determine whether your Apple smartphone supports magnetic wireless charging.

• Place your Apple AirPods on charging area 2(2).The LED functionindicator(4) for charging area 2lights up blue and the charging process begins automatically.

• Place your Apple Watch on the holder for the Apple Watchcharging cable(3)

• The individual charging areas areindependent of each other and you can charge your devices accordingly as required.

5. Care and maintenance

Only clean this product with aslightly damp, lint-free cloth and do not use aggressive cleaning agents. Ensurethat no water is able to enter the product. Note Disconnect the device from the mains beforecleaning and during prolonged periods of non-use.

6. Warranty disclaimer

Hama GmbH &CoKGassumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failuretoobserve the operating instructions and/or safety notes.

3-in-1 wireless chargingstation Input 15V 1.8A Output charging area 15W/7.5W/10W/15Wmax. Output charging area 25Wmax. Dimensions 150 x95x130 mm Connection DC 3.5 mm hollow plug socket5 Powersupplyunitplug Connection DC 3.5 mm hollow plug socket Polarity Specications according to EU Directive 2019/1782 Brand name, commercial register number, address Hama, HRA12159, Dresdner Str. 9, 86653 Monheim Model identier 00187272 Input voltage 100 –240V Input AC frequency 50/60Hz Output voltage / output current / power output

Average eciency during operation 86.7% Eciency at low load (10%) 82.7% Power consumption at zeroload 0.08W

8. Recycling information

Note on environmental protection: Following the implementation of European Directive 2012/19/EU and 2006/66/ EU into the national legal systems, the following applies: Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers areobliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the point of sale at the end of their service lives. Detailed information on this topic is dened in the national laws of the respective country.This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/ batteries, you aremaking an important contribution to protecting our environment.

9. Declaration of Conformity

Hama GmbH &CoKGhereby declares that the radio equipment type [00187272] is in compliance with Directive 2014/53/EU.The fulltext of the EU declaration of conformity is available at the following Internet address: www.hama.com -> 00187272 -> Downloads. Output 1: Frequency band(s) 119kHz –130.6kHz Maximum radio-frequency power transmitted -19.60dBμA/m at 10m Output 2: Frequency band(s) 128.8kHz –131.2kHz Maximum radio-frequency power transmitted -10.21dBμA/m at 10m6 D Bedienungsanleitung Bedienungselemente
