USER MANUAL 00178337 HAMA

Car Charger Kit "Quick Charge"

Kfz-Ladeset

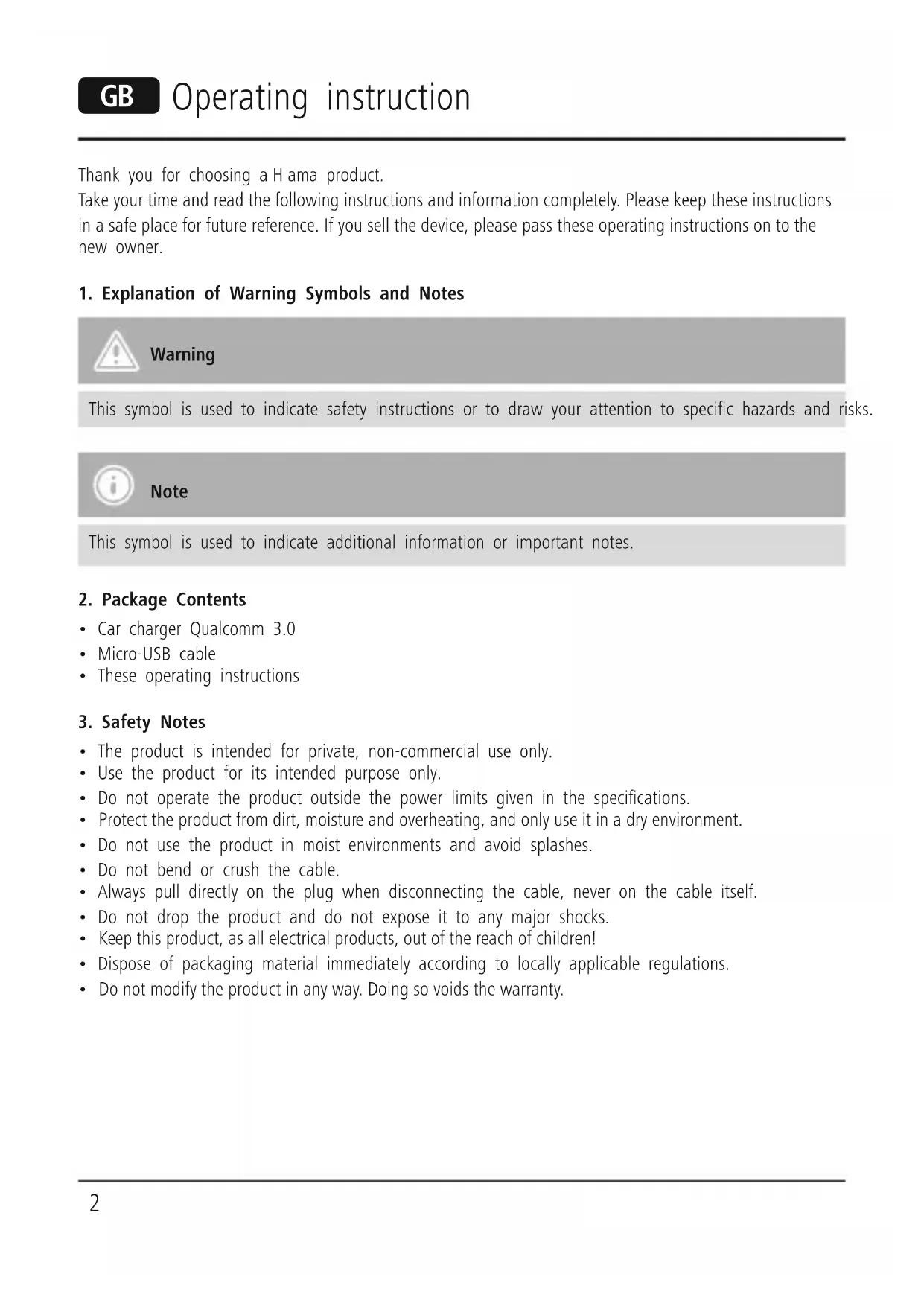

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

2. Package Contents

Car charger Qualcomm 3.0
- Micro-USB cable
These operating instructions

3. Safety Notes

• The product is intended for private, non-commercial use only.
• Use the product for its intended purpose only.
• Do not operate the product outside the power limits given in the specifications.
• Protect the product from dirt, moisture and overheating, and only use it in a dry environment.
• Do not use the product in moist environments and avoid splashes.
• Do not bend or crush the cable.
• Always pull directly on the plug when disconnecting the cable, never on the cable itself.
• Do not drop the product and do not expose it to any major shocks.
• Keep this product, as all electrical products, out of the reach of children!
• Dispose of packaging material immediately according to locally applicable regulations.
• Do not modify the product in any way. Doing so voids the warranty.

Note

• When using this product, observe the applicable local traffic laws and regulations.
• Take care that components such as airbags, safety areas, controls, instruments, etc. and visibility are not blocked or restricted.

4. Startup and Operation

Note - Connecting terminal devices

• Before connecting a terminal device, check whether the power output of the charger can supply sufficient power for the device.
• In principle, all terminal devices whose power consumption does not exceed 3000mA can be charged. Terminal devices that support Quick Charge 3.0 charge considerably faster.

• Please refer to the instructions in the operating manual of your terminal device.

• Plug the charger into a car socket in the vehicle electrical system.

• Directly connect the terminal device to be charged to the USB port using the included Micro-USB cable or a suitable USB cable.
• Disconnect all cable and mains connections after use.

Note

• For some vehicle types, the ignition has to be switched on to supply power to the car socket. For more information, please refer to your vehicle's manual.

5. Maintenance and Care

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents. Ensure that no water intrudes the product.

6. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

7. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

8. Technical Data

Car charger
Input voltage 12 - 2.4 V
Output voltage/output current	3.6 - 6.5 V-3A 6.5 - 9.0 V-2A 9 - 12 V-1.5 A
Connection Micro-USB
Cable length 1.5m

9. Recycling Information

Note on environmental protection:

After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the

respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/ Batteries, you are making an important contribution to protecting our environment.
