Brand	HiKOKI
Model	CG25EUAP
Product type	Lawn mower (multifunction brush cutter)
Engine type	4-stroke, single cylinder
Displacement	25 cm³
Fuel	Unleaded gasoline, octane rating 89
Fuel tank capacity	Approximately 0.5 L
Engine oil	SAE 10W-30, capacity 80 ml
Starting	Manual recoil starter
Cutting system	Semi-automatic head (nylon line Ø 2.4 mm) or metal blade with 3 or 4 teeth
Cutting diameter (line)	Up to 14 cm (adjustable 11-14 cm)
Max. rotation speed	6000 min⁻¹ (line head)
Sound pressure level (LpA)	See manual (not provided in excerpt)
Guaranteed sound power level (LwA)	See manual
Weight (dry)	Approximately 5.5 kg
Safety	Harness, cutting guard, emergency stop, line limiter
Routine maintenance	Air filter cleaning, oil change (every 50 h), spark plug replacement, gearbox lubrication
Spare parts	Air filter, spark plug, cutting head, blades, nylon line, grease
Included accessories	Harness, guard, combination wrench, Allen key, oil cup, glasses (depending on model)
Repairability	Contact an authorized HiKOKI center

Frequently Asked Questions - CG25EUAP HiKOKI

What type of fuel to use for the HiKOKI CG25EUAP lawn mower?

Use unleaded gasoline with an octane rating of 89. Do not mix oil with fuel as the engine is 4-stroke. Always refuel outdoors, away from any flame or spark.

How to start the cold engine?

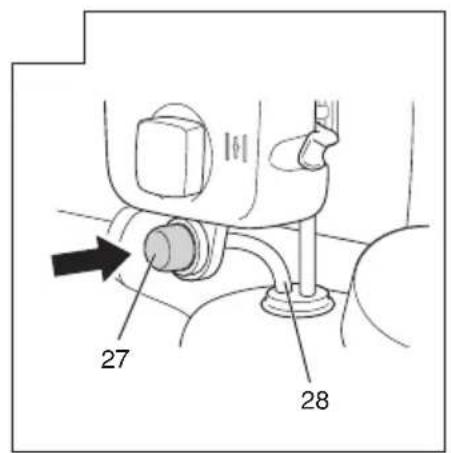

1. Turn the switch to ON. 2. Press the primer bulb several times until fuel flows. 3. Set the choke to closed (start) position. 4. Pull the starter rope sharply. 5. As soon as the engine sputters, open the choke. 6. Pull again to start. Let it warm up for 2-3 minutes.

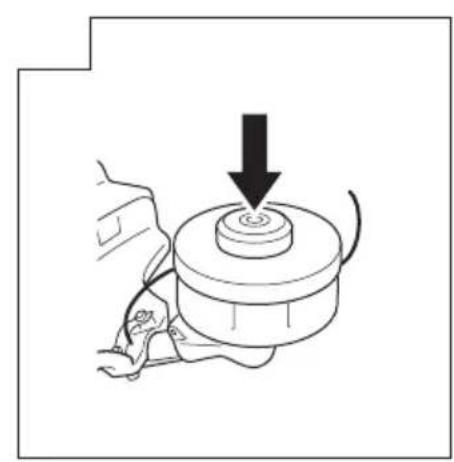

How to adjust the length of the nylon line in the semi-automatic head?

With the engine at low speed, tap the cutting head on the ground: the line advances about 3 cm per tap. The ideal length is 11 to 14 cm on each side. You can also lengthen the line manually after stopping the engine.

Which engine oil to use and how to drain it?

Use SAE 10W-30 oil. The capacity is 80 ml. To drain, let the engine cool, remove the oil cap, tilt the unit to drain used oil into a container, then fill to the brim of the opening. Drain after 10 hours (first time) then every 50 hours.

How to install the metal blade?

Lock the shaft with the hex key. Assemble in order: cutting support A, blade, cutting support B, fixing nut (left-hand thread, tighten counterclockwise). Tighten to 14 ± 2 N·m. Check that the blade is not loose and that the cutting edge is in the correct direction.

What to do if the cutting tool spins at idle?

This is dangerous. Slowly turn the idle adjustment screw (T) counterclockwise until the tool stops. If the problem persists, stop the engine immediately and contact an authorized HiKOKI center.

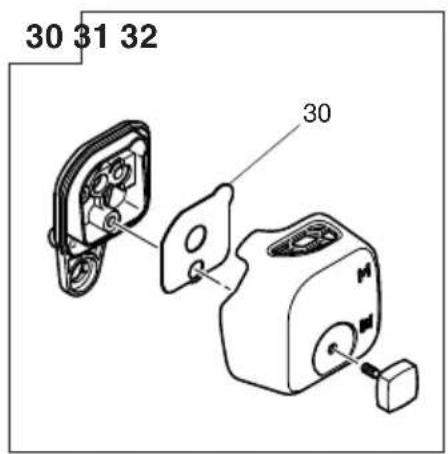

How to clean the air filter?

Remove the filter cover and take out the filter. Wash it with gasoline, let it dry completely before reinstalling. Replace it if damaged or very dirty. Clean it daily or more often in dusty environments.

What are the essential safety instructions?

Always wear glasses, a helmet, and hearing protection. Maintain a safety distance of 15 m around you. Use the harness. Do not touch the cutting tool while running. Never refuel with the engine running. Wait for a complete stop before setting the unit down.

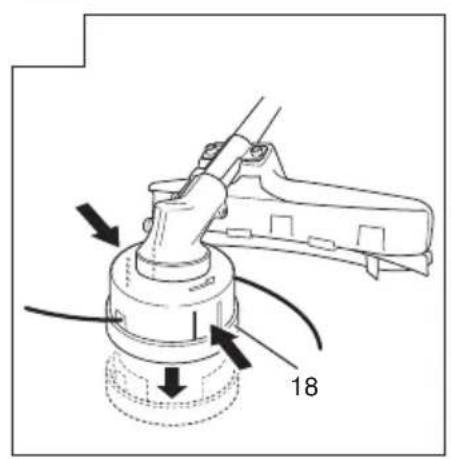

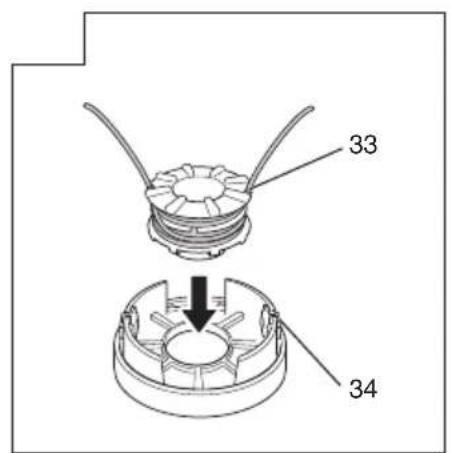

How to replace the nylon line of the cutting head?

Push the locking tabs to remove the housing. Take out the spool and discard the old line. Fold a new 5 m line in half, hook the loop in the central groove, wind both strands in the same direction separating them with the divider. Leave 10 cm free, pass them through the stop holes and put the spool back into the housing aligning the holes with the cord guide. Snap the cover on.

What to do if the engine does not start?

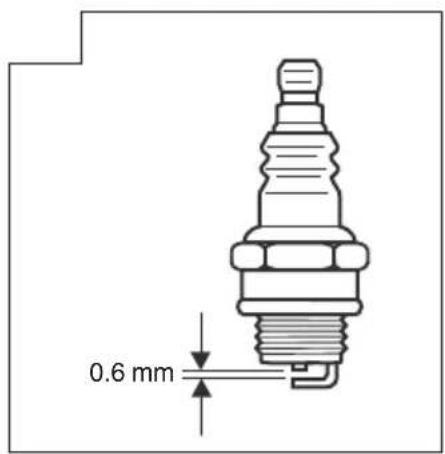

Check the fuel (old?), spark plug (cleaned or replaced, gap 0.6 mm), air filter (clean), and that the choke is properly set. If the plug is flooded, disconnect it, pull the starter several times to expel excess fuel, then try again. If nothing works, contact an authorized service center.

USER MANUAL CG25EUAP HiKOKI

Line drawing of a mechanical tool or device with a long rod and multiple arms (no text or symbols)

CG25EUAP (L)

en Handling instructions
de Bedienungsanleitung
fr Mode d'emploi
it Istruzioni per l'uso
nl Gebruiksaanwijzing
es Instrucciones de manejo
pt Instruções de uso
sv Bruksanvisning
da Brugsanvisning
no Bruksanvisning
fi Käyttöohjeet

el Οδηγίες χειρισμού
pl Instrukcja obsługi
hu Kezelési utasítás
cs Návod k obsluze
tr Kullanım talimatları
ro Instructiuni de utilizare
sl Navodila za rokovanje
⑥Pokyny na manipuláciu
bg Инструкция за експлоатация
sr Uputstvo za rukovanje
hr Upute za rukovanje

1

2

3

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a person wearing a helmet and safety harness (no text or symbols)

Line drawing of a hand pouring liquid into a container with a bottle (no text or symbols)

Technical line drawing of a mechanical device with labeled component '31' (no readable text or symbols beyond label)

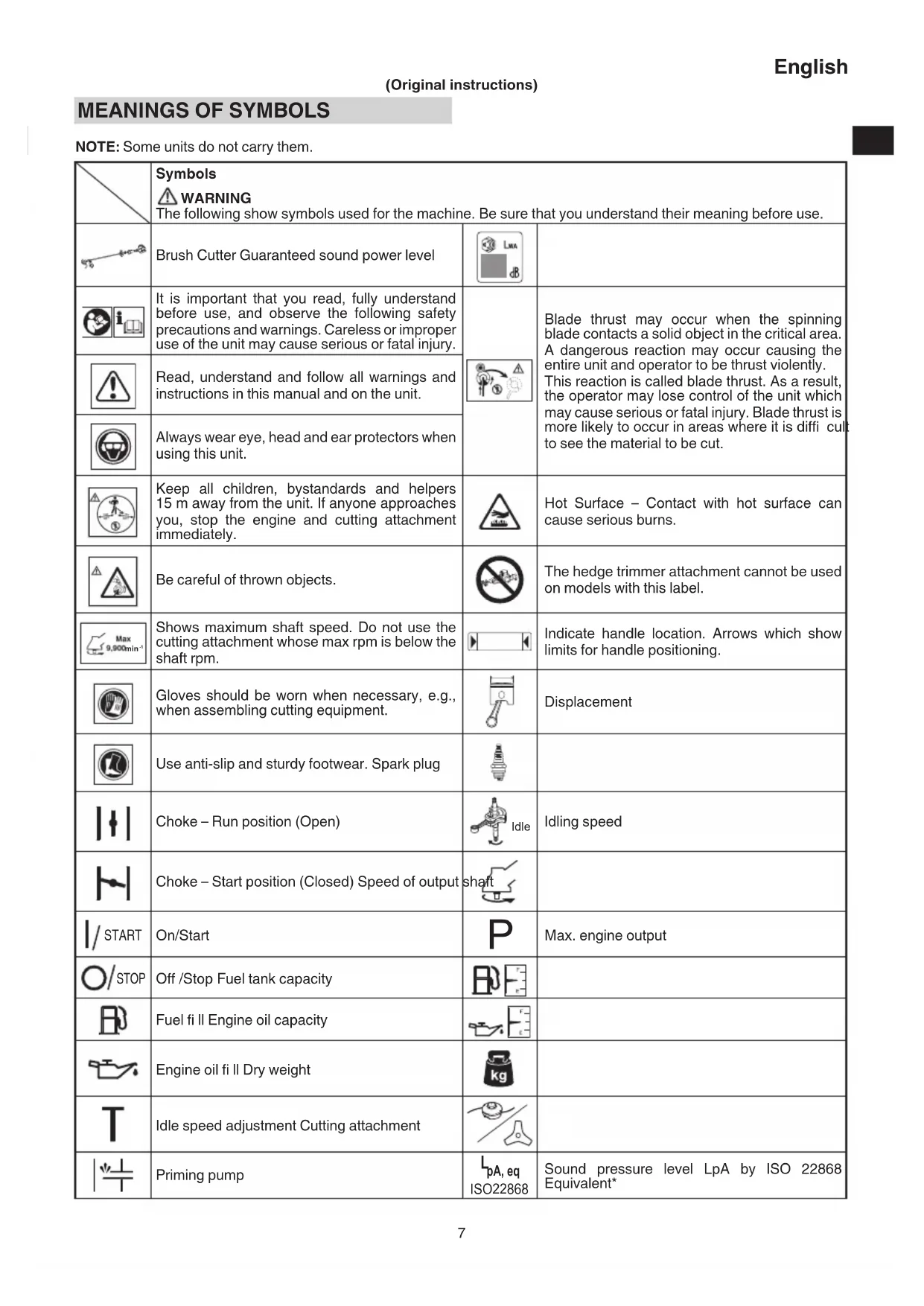

MEANINGS OF SYMBOLS

NOTE: Equivalent noise level / vibration level are calculated as the time-weighted energy total for noise / vibration levels under various working conditions with the following time distribution: * 1/2 Idle, 1/2 racing.
NOTE: Some units do not carry them.

	The following show symbols used for the machine. Be sure that you understand their meaning before use.
	Brush Cutter Guaranteed sound power level
	It is important that you read, fully understand before use, and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury.		Blade thrust may occur when the spinning blade contacts a solid object in the critical area. A dangerous reaction may occur causing the entire unit and operator to be thrust violently. This reaction is called blade thrust. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Blade thrust is more likely to occur in areas where it is difficult to see the material to be cut.
	Read, understand and follow all warnings and instructions in this manual and on the unit.
	Always wear eye, head and ear protectors when using this unit.
	Keep all children, bystandards and helpers 15 m away from the unit. If anyone approaches you, stop the engine and cutting attachment immediately.		Hot Surface - Contact with hot surface can cause serious burns.
	Be careful of thrown objects.		The hedge trimmer attachment cannot be used on models with this label.
	Shows maximum shaft speed. Do not use the cutting attachment whose max rpm is below the shaft rpm.		Indicate handle location. Arrows which show limits for handle positioning.
	Gloves should be worn when necessary, e.g., when assembling cutting equipment.		Displacement
	Use anti-slip and sturdy footwear. Spark plug
	Choke - Run position (Open)	Idle	Idling speed
[5A7S]	Choke - Start position (Closed) Speed of output s
IT	On/Start		Max. engine output
(HW4W)DP	Off /Stop Fuel tank capacity
	Fuel fi II Engine oil capacity
	Engine oil fi II Dry weight
	Idle speed adjustment Cutting attachment
	Priming pump	ISO22008	Sound pressure level LpA by ISO 22868 Equivalent*
L_WA, Ra(M) 2000/14/EC	Measured sound power level LwA by 2000/14/ECRacing	a_hv, eq(R)	Vibration level by ISO 22867Rear or Right handle / Equivalent*
L_WA, Ra(G) 2000/14/EC	Guaranteed sound power level LwA by 2000/14/ECRacing	K	Uncertainty
a_hv, eq(F)	Vibration level by ISO 22867Front or Left handle / Equivalent*
Before using your machineRead the manual carefully.Check that the cutting equipment is correctly assembled and adjusted.Start the unit and check the carburetor adjustment. See “MAINTENANCE”.

WHAT IS WHAT? (Fig. 1)

Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.

A: Fuel cap
B: Throttle trigger
C: Starter handle
D: Cutting attachment guard
E: Guard extension
F: Cutting attachment
G: Drive shaft tube
H: Handle
I: Hanger
J: Ignition switch
K: Spark plug
L: Priming pump
M: Harness
N: Throttle trigger lockout
O: Choke lever
P: Engine
Q: Gear case
R: Oil cap
S: Combi box spanner
T: Handling instructions
U: Goggles
V: Hex bar wrench
W: Blade cover (if so equipped)
X: Engine cover
Y: Cord clump (if so equipped)
Z: Engine oil measuring cup

WARNINGS AND SAFETY INSTRUCTIONS

Pay special attention to statements preceded by the following words:

WARNING

Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.

CAUTION

Indicates a possibility of personal injury or equipment damage, if instructions are not followed.

NOTE

Helpful information for correct function and use.

Operator safety

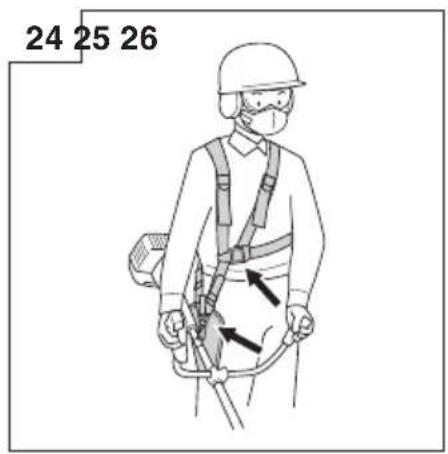

○ Wear head protection (1). (Fig. 2)
○ Always wear a safety face shield or goggles (2). (Fig. 2)
○ Wear approved hearing protection (3). (Fig. 2)
Long-term exposure to noise can result in permanent hearing impairment.
Pay attention to your surroundings. Be aware of any bystanders who may be signaling a problem.

Remove safety equipment immediately upon shutting off engine.

○ Always wear heavy, long-sleeved shirts (4) and long pants (5) and non-slip boots (6) and gloves (7). (Fig. 2)

Do not wear loose clothing, jewelry, short pants, sandals or go barefoot.

Secure hair so it is above shoulder length.

○ Do not operate this tool when you are tired, ill or under the influence of alcohol, drugs or medication.
Do not operate the tool at night or under bad weather conditions when visibility is poor. And do not operate the tool when it is raining or right after it has been raining. Working on slippery ground could lead to an accident if you lose your balance.

- Never let a child or inexperienced person operate the machine.

○ Do not start the engine if there are any flammables such as dry leaves, waste paper or fuel in the vicinity.

- Never start or run the engine inside a closed room or building. Breathing exhaust fumes can kill.

- Keep handles free of oil and fuel.

- Keep hands away from cutting equipment.

○ Do not grab or hold the unit by the cutting equipment.

- Gloves should be worn when installing or removing the cutting attachment. Failure to do so may result in injury.

When the unit is shut off, make sure the cutting attachment has stopped before the unit is set down.

When operation is prolonged, take a break periodically so that you may avoid possible Hand-Arm Vibration Syndrome (HAVS) which is caused by vibration.

WARNING

○ Always operate the tool with proper protective equipment and clothing. Failure to do so may result in accidents such as burns or injuries. (Fig. 2)
○ Do not touch the spark plug area or high voltage during operation. Doing so may result in electric shock.
○ Do not allow children near the tool during operation.
Do not touch the engine, engine cover or exhaust vent during or shortly after operation. Doing so may result in burn or injury.

○ Antivibration systems do not guarantee that you will not sustain Hand-Arm Vibration Syndrome or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fi ngers. If any of the above symptoms appear, seek medical advice immediately.
☐ If you are using any medical electric/electronic devices such as a pacemaker, consult your physician as well as the device manufacturer prior to operating any power equipment.

Unit/machine safety

○ Inspect the entire unit/machine before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely tightened.
○ Replace parts that are cracked, chipped or damaged in any way before using the unit/machine. Faulty parts may increase the risk of accidents and may lead to an injury.
○ Make sure the cutting attachment guard and harness are properly attached. Do not operate if cutting attachment guard and harness is not properly attached.
○ Keep others away when making carburetor adjustments.
○ Use only accessories as recommended for this unit/machine by the manufacturer.
Before operation, make sure that there are no tools such as the adjustment key or spanner still attached to the unit.

WARNING

☐ Never modify the unit/machine in any way. Do not use your unit/machine for any job except that for which it is intended.
- Tampering with the engine voids the EU type approval of this engine.
○ Non-authorized modifications and/or accessories may result in serious personal injury or the death of the operator or others.

Fuel safety

• Pour fuel outdoors and where there are no sparks or flames.
  ○ Use a container approved for fuel.
  ○ Move at least 3 m away from fueling site before starting engine.
• Stop engine before removing fuel cap. Do not remove the fuel cap during operation.
  ○ Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.

WARNING

• Fuel is easy to ignite or get explosion or inhale fumes, so that pay special attention when handling or fi lling fuel.
  ○ Do not smoke or allow smoking near fuel or the unit/machine or while using the unit/machine.
  ○ Wipe up all fuel spills before starting engine.
  ○ Store unit/machine and fuel in area where fuel vapors cannot reach sparks or open fl ames from water heaters, electric motors or switches, furnaces. etc.
  When using the unit in dry areas, make sure that fire extinguishing equipment is readily available.
  ○ If you shut off the engine for refueling, make sure the unit has cooled down before adding fuel.

Cutting safety

○ Do not cut any material other than grass and brush.
○ Inspect the area to be cut before each use. Remove objects which can be thrown or become entangled.
Do not operate in areas where there are tree roots or rocks.
☐ For respiratory protection, wear an aerosol protection mask when cutting the grass after insecticide is scattered.

Keep others including children, animals, bystanders and helpers outside the 15 m hazard zone. Stop the engine immediately if you are approached.
Please exercise caution as engine startup may be delayed after pulling the starter handle.
○ Always keep the engine on the right side of your body.
○ Hold the unit/machine firmly with both hands.
- Keep firm footing and balance. Do not over-reach.

Losing your balance during work may lead to an injury.

• Keep all parts of your body away from the muffler and cutting attachment when the engine is running.
• Keep cutting attachment below knee level.
• Please exercise caution when operating in areas where electrical cables or gas pipes are present.
  Do not operate the cutting attachment for anything but clearing grass or bushes. Avoid operations where the cutting attachment may touch water such as puddles or dig into dirt. Failure to do so may result in injury or damage to the unit.
• Avoid prolonged use at low speed range in which vibration is high. Doing so may result in engine damage.
  When relocating to a new work area, or inspecting, adjusting or exchanging the unit's cutting attachments, accessories, etc., be sure to shut off the machine and ensure that all cutting attachments are stopped.
  ○ Never place the machine on the ground when running.
  ○ Never touch the cutting attachment when it is rotating.
  ○ Always ensure that the engine is shut off and any cutting attachments have completely stopped before clearing debris or removing grass from the cutting attachment.
  ○ Always carry a first-aid kit when operating any power equipment.
  Turn off the engine and make sure the cutting attachment has come to a full stop before removing the unit from your body or before leaving the unit unattended.
  ☐ If you accidentally bump or drop the unit, inspect it immediately to make sure there are no damage, cracks or deformations.
  ○ If the tool is operating poorly and produces strange noise or vibrations, turn off the engine immediately and ask your dealer to have it inspected and repaired.
  Continued use under these conditions could lead to injury or tool damage.
  O Use in accordance with local laws and regulations.

WARNING

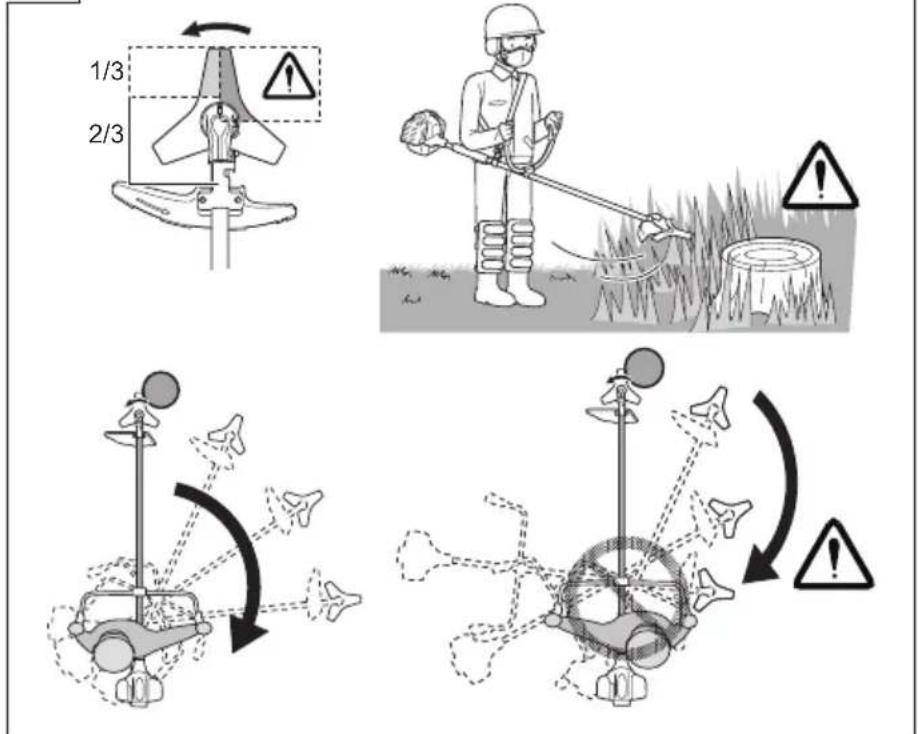

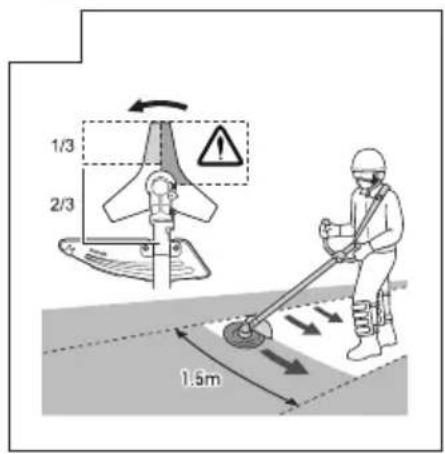

KICKBACK DANGER (Fig. 3)

When using metal cutting attachments such as blades, contact with obstacles such as trees or other hard surfaces with the front or right portion of the spinning attachment may force the unit to catch on an obstacle, resulting in a kickback reaction towards the right side of the operator.

Kickback may occur when the cutting attachment comes into contact with tree stumps or rocks hidden behind weeds. Always make sure there are no obstacles hidden by weeds before starting work.

To minimize the danger of kickbacks when they do occur, always position the unit to the right side of the body during operation. With the operator properly positioned as the cutting attachment rotates, this will reduce the danger of the unit's direct contact with the body.

Maintenance safety

• Maintain the unit/machine according to recommended procedures.
  ○ Disconnect the spark plug before performing maintenance except for carburetor adjustments.
• Keep others away when making carburetor adjustments.
  ○ Use only genuine HiKOKI replacement parts as recommended by the manufacturer.

CAUTION

Do not disassemble the recoil starter. There is a possibility of personal injury with recoil spring.

English

WARNING

Improper maintenance could result in serious engine damage or in serious personal injury.

Transport and storage

○ Carry the unit/machine by hand with the engine stopped and the muffler away from your body.
○ Allow the engine to cool, empty the fuel tank, and secure the unit/machine before storing or transporting. Failure to do so may result in fire or accidents.
☐ Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
○ Store unit/machine out of the reach of children.
○ Clean and maintain the unit carefully and store it in a dry place.

○ Make sure engine switch is off when transporting or storing.

○ When transporting and storing, either remove the cutting attachment or place the blade cover over the blade.

☐ You have to secure the machine during transport to prevent loss of fuel, damage or injury.

○ If a warning label cannot be read, peels off or becomes indistinct, replace it with a new one. To purchase new labels, contact HiKOKI Authorized Service Centers.

If situations occur which are not covered in this manual, take care and use common sense. Contact HiKOKI Authorized Service Centers if you need assistance.

SPECIFICATIONS

The SPECIFICATIONS of this machine are listed in the table on page 261.

NOTE

All data subject to change without notice.

ASSEMBLY PROCEDURES

Installation of handle

(1) Loop handle type (Fig. 4)

Attach the handle to the drive shaft tube.

Adjust the location to the most comfortable position before operation.

Make sure to securely attach the handle with the 4 bolts.

NOTE

If your unit has handle location label (8) on drive shaft tube, follow the illustration.

(2) Bike handle type (Fig. 5)

Remove the handle bracket (9) from the assembly.

Place the handles and attach the handle bracket with four bolts lightly. Adjust to appropriate position. Then attach it firmly with the bolts.

Attach the protection tube to the drive shaft tube or handle using cord clamps (10) to make sure there is no slack. (Fig. 6)

Installation of harness

WARNING

If the product includes a harness, always make sure to use it.

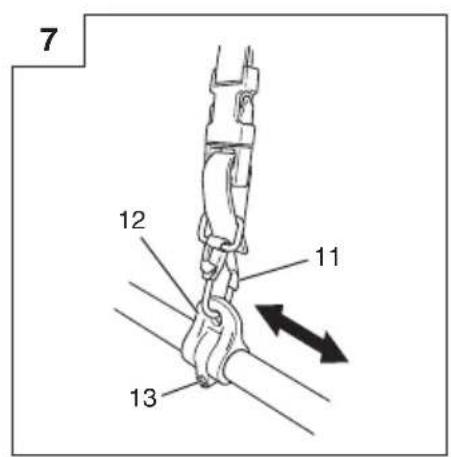

Attach the harness hook (11) to the hanger (12) on the drive shaft tube. (Fig. 7)

Adjust the length of the harness for easy operation of the tool.

NOTE

You may need to adjust the position of the hangar (12) to balance the unit. To do so, loosen bolt (13) and adjust the position of hangar (12). After adjusting as necessary, make sure to securely tighten the bolt (13). (Fig. 7)

Installation of cutting attachment guard

WARNING

If an incorrect or faulty guard is fitted, this may cause serious personal injury.

CAUTION

Some cutting attachment guards are equipped with sharp line limiters. Be careful with handling it.

NOTE

When using a trimmer head with two piece type cutting attachment guard, attach the guard extension to the cutting attachment guard, then tighten the bolt (14). (Fig. 8)
○ The guard bracket may come already mounted to the gear case on some models.

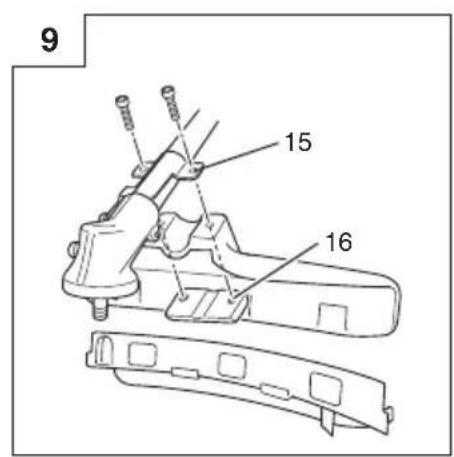

Align the cutting attachment guard with the guard bracket (15) and secure it to the drive shaft tube, using the bolt and guard holder (16) (if so equipped). (Fig. 9)

WARNING

Remove the guard extension when using metal or plastic blades. Failure to do so may result in injury or damage to the cutting attachment guard.

NOTE

To remove the guard extension, refer to the drawings. Wear gloves as the extension has a sharp line limiter. Loosen the bolt (14). Then push the three square tabs on the guard one by one in order.(Fig. 10)

Installation of cutting attachment

WARNING

○ Install the cutting attachment properly and securely as instructed in the handling instructions.
If not attached properly or securely, it may come off and cause serious and/or fatal injury.
○ Do not install or remove cutting attachments while the engine is running.
○ Always use genuine HiKOKI cutting attachments and metal fittings.

Installation of semi-auto cutting head

(if so equipped)

1. Function

Automatically feeds more nylon cutting line when it is tapped at low rpm (not greater than 6000 min ^-1 ).

Specifications

Code No.	Type of attaching screw	Direction of rotation	Size of attaching screw
6600570	Female screw	Counter-clockwise	M10xP1.25-LH

Applicable nylon cord

Cord diameter: Φ2.4 mm Length: 5 m

1. Precautions

○ The case must be securely attached to the cover.
○ Check the cover (17), case (18) and other components for cracks or other damage. (Fig. 11)
○ Check the case and button for wear.
If there is a hole in the bottom (19) of the button, change the new parts immediately. (Fig. 11)
- The cutting head must be securely mounted to the unit's gear case.
☐ If the cutting head does not feed cutting line properly, check that the nylon line and all components are properly installed. Contact HiKOKI Authorized Service Centers if you need assistance.

WARNING

For HiKOKI heads, use only fl exible, non-metallic line recommended by the manufacturer. Never use wire or wire ropes. They can break off and become a dangerous projectile.

3. Installation (Fig. 12)

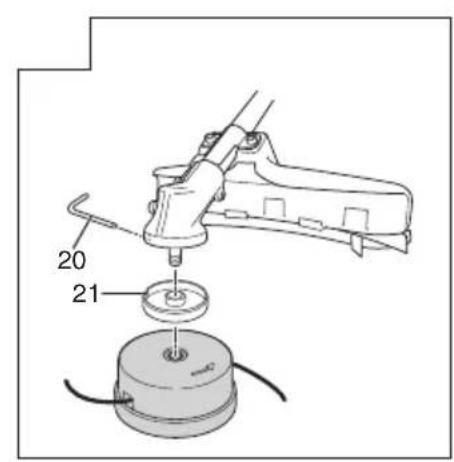

Insert the hex bar wrench (20) into the hole of the gear case and groove of the cutter holder (A) (21) in order to lock the shaft.

Install cutting head on gear case of grass trimmers/brush cutters. The mounting nut is left-hand-threaded. Turn clockwise to loosen/counter-clockwise to tighten.

NOTE

Since the cutter holder cap is not used here, keep it for when a metal blade is used, if so equipped.

4. Adjusting line length

Set the engine speed as low as possible and tap the head on the ground. The nylon line will be drawn out about 3 cm with each tap. (Fig. 13)

Also, you can extend the nylon line by hand but the engine must be completely stopped. (Fig. 14)

Adjust the nylon line to the proper length of 11–14 cm before each operation.

Installation of cutting blade (Fig. 15)

(If so equipped)

Insert the hex bar wrench (20) into the hole of the gear case and groove of the cutter holder (A) (21) in order to lock the shaft.

Assemble in the following order: Cutter holder (A) (21), blade (22), cutter holder (B) (23), nut cover (24).

Tighten the fi xing nut with the combi box spanner with a tightening torque of 14 ± 2 N.m. Please note that the cutter fi xing nut (25) has left-handed threads (clockwise to loosen/counter-clockwise to tighten).

NOTE

○ When installing cutter holder (B) (23), be sure to set concave side upward.

- When installing or removing a blade, make sure to wear gloves and place the blade cover over the blade.

CAUTION

Check a nut cover (24) for wear or cracks before operation. If any damage or wear is found, replace it, as it is an article of consumption.

WARNING

When installing a cutting blade, make sure that there are no cracks or any damage in it and that the cutting edges are facing the correct direction.

○ Remove any surface grit from blade installation fittings (cutter holder (A) (21), cutter holder (B) (23), nut cover (24), nut (25)). Failure to do so may result in the loosening of nuts.

☐ The protrusion of the cutter holder (A) (21) may become misaligned with the blade (22) while tightening nut (25). Before operation, make sure the blade has been properly installed. (Fig. 16)

○ Rotate the blade by hand and make sure there is no rocking or abnormal noise. Rocking may cause abnormal vibrations or result in the loosening of nuts.

OPERATING PROCEDURES

Engine oil

Always use the specified engine oil (multigrade oil of classification SAE 10W-30). Insufficient engine oil or using engine oil other than the specified type may cause breakdown of the unit.

Filling up with engine oil

○ Place the unit horizontally on a clean, flat surface.
○ Remove the oil cap and check whether the engine oil comes up to the mouth of the oil tank opening. (Fig. 17)
☐ If the oil level is low or when using the unit for the first time, fill the tank with engine oil up to the mouth of the oil tank opening.
○ If the engine oil is conspicuously dirty or discolored, change the oil.
O Tighten the oil cap securely after fueling.
When using the unit for the first time, change the engine oil after running the engine for approximately 10 hours. Subsequently, change the oil after every 50 hours of operation.

CAUTION

To avoid the risk of burn injuries, allow the engine to cool thoroughly before changing the engine oil.
☐ To prevent breakdown, ensure that no sand or dirt gets into the tank while refueling.

Fuel

WARNING

○ Provide good ventilation, when fueling or handling fuel.
- Fuel contains highly flammable and it is possible to get the serious personal injury when inhaling or spilling on your body. Always pay attention when handling fuel. Always have good ventilation when handling fuel inside building.
○ Always use branded 89 octane unleaded gasoline.
○ Do not use a mixture of gasoline and engine oil as this may lead to starter failure or power reduction.

Fueling

WARNING

○ Always shut off the engine and let it cool for a few minutes before refueling. Do not smoke or bring flames or sparks near the fueling site.
- Slowly open the fuel tank, when filling up with fuel, so that possible over-pressure disappears.
○ Tighten the fuel tank cap carefully, after fueling.
○ Always move the unit at least 3 m from the fueling area before starting.
○ Always wash any spilled fuel from clothing immediately with soap.
○ Be sure to check any fuel leakage after refueling.
Before fueling, in order to remove static electricity from the main body, the fuel container and the operator, please touch the ground that is slightly damp.

Before fueling, clean the tank cap area carefully, to ensure that no dirt falls into the tank.

Starting

WARNING

Before starting the tool, ensure that the cutting attachment is not touching any objects or the ground. Otherwise, the cutting attachment may unexpectedly rotate and cause an injury.
☐ Ensure that the cutting attachment does not rotate while the engine is idling. If it does rotate, adjust the idle speed according to the instructions in "Idle speed adjustment" in the "MAINTENANCE" section. If the cutting attachment still rotates after this adjustment, immediately stop the engine and cease use, then bring the tool to the nearest HiKOKI Authorized Service Center.

(1) Starting the cold engine

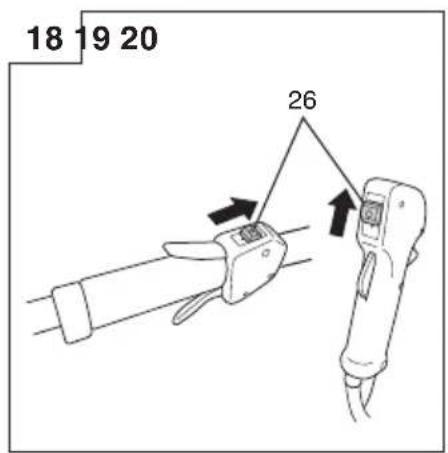

1. Set ignition switch (26) to ON position. (Fig. 18)
2. Push priming bulb (27) several times so that fuel flows through return pipe (28). (Fig. 19)
3. Set choke lever (29) to START position (closed) (A). (Fig. 20)

English

1. Pull recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 21)
2. When you hear the engine want to start, return choke lever to RUN position (open) (B). (Fig. 20)
3. Pull recoil starter briskly again. (Fig. 21)

NOTE

If engine does not start, repeat procedures from 2 to 5.

1. Then allow the engine about 2–3 minutes to warm up before subjecting it to any load.
2. Check that the cutting attachment does not rotate when the engine is idling.

(2) Starting the warm engine

Use only 1, 6 and 8 of the starting procedure for a cold engine.

If the engine does not start, use the same starting procedure as for a cold engine.

Cutting

WARNING

○ Always use the harness and wear the proper attire and protective equipment when operating the unit. (Fig. 22)
Keep others including children, animals, bystanders and helpers outside the 15 m hazard zone. Stop the engine immediately if you are approached. (Fig. 23)
When grass or vines wrap around attachment, stop engine and attachment and remove them. Continuing operation with grass or vines wrapped around the attachment may result in damages such as early abrasion of the clutch.

CAUTION

Use and points of caution will vary depending on the type of cutting attachment. For safe use, make sure to follow the instructions and guidelines provided with each type.

NOTE

○ Press the quick release button or pull emergency release flap (If so equipped) in the event of emergency. (Fig. 24)
○ Use in accordance with local laws and regulations.

(1) Using a semi-auto cutting head
○ Set the engine at high speed when using this attachment.
○ Cut grass from left to right. The cut grass will be discharged away from the body, minimizing transfer to your clothes. (Fig. 25)
With nylon cord, use about 2 cm of the end of the cord to cut grass. Using the full length of the cord will reduce rotation speed and make cutting difficult.

NOTE

Automatically feeds more nylon cutting line when it is tapped at low rpm (not greater than 6000 min ^-1 ).

WARNING

☐ This product is equipped with a line limiter that will automatically cut any excess cord. When operating the unit, do not remove the guard or line limiter.
As the resistance is greater for nylon cords as opposed to blades, mishandling could increase engine load and result in damage.
☐ Do not use with the engine set at low speeds. If the engine speed is low, grass may wrap around the attachment, causing the clutch to slip which could result in clutch abrasion.
With nylon cord cutters, always use over 15 cm of cord. If the length of the cord is too short, rotation speed will increase and may cause damage to the nylon cord cutter.

(2) Using a blade

Adjust engine speed according to the resistance of the grass. For soft grass, use low speeds, For tough clumps of grass, use high speeds.

○ Cut grass from right to left, using the left side of the blade to cut. (Fig. 26)
○ Slightly tilting the blade to the left while cutting will pile the cut grass to the left, making collection easy.

NOTE

Excessively increasing rotation speed may cause increased blade wear, vibration and noise. It will also result in increased fuel consumption.

WARNING

○ Blade thrust may occur when the spinning blade contacts a solid object in the critical area.
A dangerous reaction may occur causing the entire unit and operator to be thrust violently. This reaction is called blade thrust. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Blade thrust is more likely to occur in areas where it is difficult to see the material to be cut.
○ If cutting attachment should strike against stones or other debris, stop the engine and make sure that the attachment and related parts are undamaged.

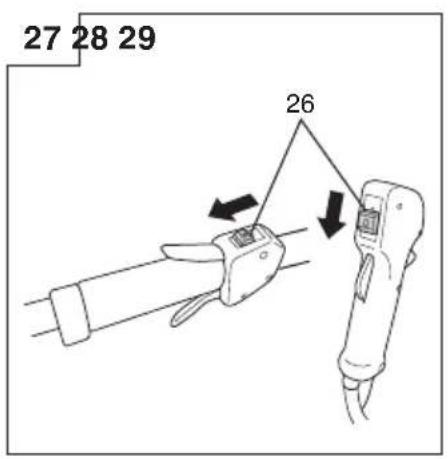

Stopping (Fig. 27)

Decrease engine speed and run at an idle for a few minutes, then turn off ignition switch (26).

WARNING

A cutting attachment can injure while it continues to spin after the engine is stopped or throttle trigger is released. When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.

MAINTENANCE

MAINTENANCE, REPLACEMENT OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NON-ROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment (Fig. 28)

The carburetor is a precision part that mixes air and fuel, and it is designed to ensure high performance from the engine. Before the tool is shipped from the factory, its carburetor is adjusted during a test run. Only make adjustments if it is necessary because of environmental conditions (the climate or atmospheric pressure), the type of fuel, the type of engine oil, etc.

WARNING

Because the carburetor is manufactured with a high degree of precision, do not disassemble it.
☐ For this product, the only setting of the carburetor that can be adjusted is the idle speed (T).
Never start the engine without the complete clutch cover and tube assembled! Otherwise the clutch can come loose and cause personal injuries.

T = Idle speed adjustment screw.

Idle speed adjustment (T)

WARNING

When the engine is stopped, do not excessively turn the idle speed adjustment screw (T) in a clockwise direction. Otherwise, when the engine starts, the cutting attachment may unexpectedly rotate and cause an injury.
○ Do not adjust the idle speed adjustment screw (T) for any reason other than to adjust the idling.

Run the engine while adjusting the idling.

(1) If the engine stops during idling
Start the engine, and slowly turn the idle speed adjustment screw (T) in a clockwise direction until it is in a position at which the engine rotates smoothly. At that time, ensure that the cutting attachment is not spinning.

(2) If the cutting attachment rotates during idling

Slowly turn the idle speed adjustment screw (T) in a counter-clockwise direction until it is in a position at which the cutting attachment does not rotate. At that time, ensure that the rotation of the engine is smooth.

WARNING

If the cutting attachment still rotates after adjustment of the idle speed adjustment screw (T), immediately stop the engine and cease use, then contact the nearest HiKOKI Authorized Service Center.

Changing the engine oil

Dirty engine oil will considerably reduce the service life of the engine. Check and change the engine oil regularly.

CAUTION

To avoid the risk of burn injuries, allow the engine to cool thoroughly before changing the engine oil.
To prevent breakdown, ensure that no sand or dirt gets into the tank while refueling.

When to change the oil: When first using the unit, after approximately 10 hours of operation or after 1 month, whichever occurs earlier; subsequently, after every 50 hours of operation or every 6 months, whichever occurs earlier. Specified engine oil: Multigrade oil of classification SAE 10W-30

Engine oil capacity: 80 ml

1. Turn off the ignition switch.
2. Check that the fuel cap is securely tightened.
3. Remove the oil cap, tilt the unit so that the oil tank opening is on the underside and drain the engine oil into a container. (Fig. 29)
4. When all the engine oil has been drained, place the unit horizontally on a clean, fl at surface.
5. Fill the oil tank with engine oil up to the mouth of the oil tank opening. (Fig. 17)
6. Tighten the oil cap securely by hand.

NOTE

• Do not dispose of waste engine oil with garbage or into the ground.
  Dispose of the oil according to the specified method in your area.
  If you are unsure, contact the retailer where the oil was purchased.
• Fill the oil tank with the specified amount of engine oil. Too much or too little engine oil may result in engine breakdown.
  ○ Engine oil deteriorates naturally even if unused.
  Change the engine oil regularly.

Air fi Iter (Fig. 30)

The air filter (30) must be cleaned from dust and dirt in order to avoid:

○ Carburetor malfunctions.
○ Starting problems.
○ Engine power reduction.
○ Unnecessary wear on the engine parts.
○ Abnormal fuel consumption.
Clean the air fi liter daily or more often if working in exceptionally dusty areas.

Cleaning the air fi Iter

Remove the air filter cover and the filter (28). Rinse it in gasoline. Check that the filter is dry before reassembly. An air filter that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced with a new one. A damaged filter must always be replaced.

Fuel fi Iter (Fig. 31)

Remove the fuel filter (31) from the fuel tank, and replace it if it is dirty.

NOTE

A blocked fuel filter (31) can prevent the supply of fuel and cause a rotation malfunction of the engine.

Spark plug (Fig. 32)

The spark plug condition is influenced by:

○ An incorrect carburetor setting.
○ A dirty air filter.
○ Hard running conditions (such as cold weather).
○ Too much engine oil

These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting difficulties. If the engine is low on power, difficult to start or runs poorly at idling speed, always check the spark plug first.

If the spark plug is dirty, clean it and check the electrode gap. Re-adjust if necessary. The correct gap is 0.6 mm. The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

NOTE

In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

Gear case (Fig. 33)

Check gear case or angle gear for grease level about every 50 hours of operation by removing the grease filler plug on the side of gear case.

If no grease can be seen on the flanks of the gears, fill the gear case with quality lithium based multipurpose grease up to 3/4. Do not completely fill the gear case.

CAUTION

○ Make sure to remove any dirt or grit when attaching the plug to its original position.
Before attempting inspection or maintenance of the gear case, make sure the case has cooled.

Semi-auto cutting head

Nylon line replacement

1. Remove the case (18) by firmly pushing inward the locking tabs with your thumbs as shown in Fig. 34.
2. After removing the case, take out the reel and discard the remaining line.
3. Fold the new nylon line unevenly (approx. 10 cm) in half as shown in picture.
   Hook the U-shaped end of the nylon line into the groove (32) on the center partition of the reel.
   Wind both halves of the line on the reel in the same direction, keeping each half of the line on its own side of the partition. (Fig. 35)
4. Push each line into the stopper holes (33), leaving the loose ends approx. 10 cm in length. (Fig. 36)
5. Insert both loose ends of the line through the cord guide (34) when placing the reel in the case. (Fig. 37)

NOTE

When placing a reel in the case, try to line up the stopper holes (33) with the cord guide (34) for easier line release later.

1. Place the cover over the case so that the cap locking tabs (35) on the cover meet the long holes (36) on the case. Then push the case securely until it clicks into place. (Fig. 38)

2. The initial cutting line length should be approx. 11–14 cm and should be equal on both sides. (Fig. 39)

Blade (Fig. 40)

WARNING

Wear protective gloves when handling or performing maintenance on the blade.

English

○ Use a sharp blade. A dull blade is more likely to snag and thrust.

Replace the fastening nut if it is damaged and hard to tighten.

When replacing blade, purchase one recommended by HiKOKI, with a 25.4 mm (one inch) fl tting hole.
○ In the case of a 3 tooth blade (37), it can be used on either side.
○ Use the correct blade for the type of work.
○ When replacing blades, use appropriate tools.
When cutting edges become dull, re-sharpen or file as shown in the illustration. Incorrect sharpening may cause excessive vibration.
- Discard blades that are bent, warped, cracked, broken or damaged in any way.

NOTE

When sharpening blade it is important to maintain an original shape of radius at the base of the tooth to avoid cracking.

For long-term storage

Drain all fuel from the fuel tank and drain all engine oil. Start and let engine run until it stops. Repair any damage which has resulted from use. Clean the unit with a clean rag, or the use of high pressure air hose. Put a few drops of engine oil into the cylinder through the spark plug hole, and spin the engine over several times to distribute oil.

Cover the unit and store it in a dry area.

Maintenance schedule

Below you will find some general maintenance instructions. For further information please contact HiKOKI Authorized Service Centers.

Daily maintenance

○ Clean the exterior of the unit.
○ Check that the harness is undamaged.
○ Check the cutting attachment guard for damage or cracks. Change the guard in case of impacts or cracks.
☐ Check that the cutting attachment is properly centered, sharp, and without cracks. An off-center cutting attachment induces heavy vibrations that may damage the unit.
○ Check that the cutting attachment nut is sufficiently tightened.
○ Make sure that the blade cover is undamaged and that it can be securely fitted.
○ Check that nuts and screws are sufficiently tightened.
○ Check the volume and condition of the engine oil.
○ Check that the unit is undamaged and free of defects.

Weekly maintenance

○ Check the starter, especially the cord and return spring.
○ Clean the exterior of the spark plug.
○ Remove the spark plug and check the electrode gap. Adjust it to 0.6 mm, or change the spark plug.
○ Check that the angle gear is filled with grease up to 3/4.
○ Clean the air filter.

Monthly maintenance

○ Rinse the fuel tank with gasoline.
○ Clean the exterior of the carburetor and the space around it.
○ Clean the fan and the space around it.

SELECTING ACCESSORIES

The accessories of this machine are listed on page 262.

SELECTING CUTTING ATTACHMENTS

Recommended accessories for each model are presented in the table below.

For purchases, contact HiKOKI Authorized Service Centers.

Please check carefully as those accessories not marked with “●” cannot be attached.

List of recommended accessories

Type Name		Specifi cation LOOP HANDLE BIKE HANDLE			CG25EUAP (L)	CG25EUAP
		Diameter	Feed System Adapter or No. of Teeth (Blade)	Blade Thickness (mm) or Trimmer line Diameter (mm)
ALUMINUM HEADS	NYLON HEAD CH-100 (W/NYLON LINE)	4" Pre-Cut Line 2.2 - 3.0			●	●
	NYLON HEAD CH-100				●	●
	NYLON HEAD CH-300 (W/CUTTER HOLDER CAP)	5" Manual line feed 2.2 - 2.7
	NYLON HEAD CH-300
AUTO NYLON HEADS	NYLON HEAD TH-97M	5" L M10 x 1.25 Nut 2.4 - 2.7
	NYLON HEAD TH-97U2	5" L M10 x 1.25 Nut L M8 x 1.25 Nut	2.4 - 2.7
TAP & GO NYLON HEADS	NYLON HEAD 4" L M10 x 1.25	Nut 2.4 ●	●
	NYLON HEAD BF-5	5"	L M10 x 1.25 Nut L M8 x 1.25 Nut	2.2 - 3.0 ●	●
	NYLON HEAD ASS'Y (G138-501)	4" L M10 x 1.25 Nut 2.0 - 2.8	●		●
	NYLON HEAD ASS'Y (S128-500)	5" L M10 x 1.25 Nut 2.0 - 3.0
BLADES	BLADE B3/10/1.8	10" 3 1.8 ●		●
	BLADE B3/10/2.01	10" 3 2.0 ●		●
	BLADE B3/12/3.0	12" 3 3.0
	BLADE B4/9/1.6	9" 4 1.6 ●		●
	BLADE B4/10/1.6	10" 4 1.6 ●		●

TROUBLESHOOTING

Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the HiKOKI Authorized Service Center.

Condition Cause Remedy
Engine does not start	Fuel system	Fuel tank is empty or fuel level is low Fill the fuel tank
		Fuel tank contains old fuel (off ensive odor)	Replace with new fuel
		Too much fuel is absorbed and spark plug is wet	1. Disconnect the spark plug and allow to dry2. Pull the starter handle 5 or 6 times to remove the surplus fuel3. Attach the spark plug4. Set the choke lever to RUN position and pull the starter handle
		Fuel filter is clogged with dirt	Clean the fuel filter
		Fuel pipe is bent or disconnected	Ensure that the fuel flows smoothly
		Carburetor malfunction Contact HiKOKI Authorized Service Centers
	Electrical system	Stop switch lead has short-circuited Contact HiKOKI Authorized Service Centers
		Spark plug is dirty Replace or clean the spark plug
		Electrode gap is too big Adjust the gap to 0.6mm
		Poor connection between high tension cable and spark plug	Reconnect
		Electrical system malfunction Contact HiKOKI Authorized Service Centers
	Other	Muffler exhaust port is clogged with carbon	Contact HiKOKI Authorized Service Centers for repair
Engine starts but cuts out straightawayEngine is apt to cut out	Fuel system	Fuel tank is empty or fuel level is low Fill the fuel tank
		Fuel tank contains old fuel (off ensive odor)	Replace with new fuel
		Engine oil has not been added Contact HiKOKI Authorized Service Centers
		Choke lever is in START position Set the choke lever to RUN position
		Air has got into fuel system Reconnect the fuel pipe or joint
		Carburetor malfunction Contact HiKOKI Authorized Service Centers
	Electrical system	Ignition failure
		Spark plug failure Replace with new spark plug
		Electrical system failure	Contact HiKOKI Authorized Service Centers
	Other	Engine overheating
		Wrong spark plug model	Replace with designated part See “SPECIFICATIONS”
		Dirty air cleaner	Clean
		Carbon clogging (muffler exhaust port)	Clean
		Insufficient compression (piston, piston ring, cylinder)	Contact HiKOKI Authorized Service Centers
Abnormal vibration		Cutting attachment is not properly installed	See “Installation of cutting attachment”
		Handle, handle bracket or other fastening part is loose	Check and tighten
		Blade is bent or damaged	Replace with new blade
		Grass is wrapped round gear case	Remove grass
Engine is running but cutting attachment does not move Movement is poor		Grass is wrapped round gear case	Remove grass and dirt
Engine does not stop		Stop switch failure	Set the choke lever to START position to stop the engineCease use immediately and contact HiKOKI Authorized Service Centers
Condition Cause Remedy
Engine stops when throttle is closed		Idle speed is too low	Contact HiKOKI Authorized Service Centers
Cutting attachment continues rotating when throttle is closed		Idle speed is too highThrottle wire is too taut	Contact HiKOKI Authorized Service Centers

SYMBOLBEDEUTUNGEN

Cordon de nylon applicable

WAARSCHUWINGEN EN VEILIGHEIDSINSTRUCTIES

HVAD ER HVAD? (Fig. 1)

UPOZORENJA I BEZBEDNOSNA UPUTSTVA

UPOZORENJA I SIGURNOSNE UPUTE

Posebno obratite pažnju na izjave kojima prethode sljedeće riječi:

⚠ UPOZORENJE

Pure diagram of a circular mechanical component with internal segments and mounting holes (no text or symbols)

6600578

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

6600579

Line drawing of a mechanical clamping device with no visible text or symbols

6600580

Simple line drawing of a cylindrical mechanical component with a circular top and curved side (no text or symbols)

6600570

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

English Nederlands
EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that Brush Cutter, identified by type and specific identification code *1), is in conformity with all relevant requirements of the directives *2) and standards *3).Technical fi le at *4) – See below.The European Standard Manager at the representative office in Europe is authorized to compile the technical fi le.Annex V (2000/14/EC): For information relating to noise emissions, see the chapter specifications.The declaration is applicable to the product affi xed CE marking.	EC VERKLARING VAN CONFORMITEITWij verklaren onder onze eigen verantwoordelijkheid dat Motorbosmaier, geidentificeerd door het type en de specifieke identificatiecode*1), voldoet aan alle relevante bepalingen van de richtlijnen*2) en normen*3). Technische documentatie bij*4) – zie onder.De Europese Normen Manager bij de vertegenwoordiging in Europa is gemachtigd om het technisch dossier samen te stellen.Aanvulling V (2000/14/EC): Voor informatie over de lawaai-emissie wordt u verwezen naar het hoofdstuk met de specifi caties.Deze verklaring is van toepassing op producten voorzien van de CE-markeringen.
Deutsch Español
EG-KONFORMITÄTSERKLÄRUNGWir erklären in alleiniger Verantwortung, dass die durch den Typ und den spezifischen Identifizierungscode *1) identifizierte Motorsense allen einschlägigen Bestimmungen der Richtlinien *2) und Normen *3) entspricht. Technische Unterlagen unter *4) – Siehe unten.Die Leitung der repräsentativen Behörde für europäische Normen und Richtlinien ist berechtigt, die technischen Unterlagen zusammenzustellen.Anhang V (2000/14/EG): Informationen zur Geräuschentwicklung finden Sie im Kapitel Spezifizierungen.Die Erklärung gilt für die an dem Produkt angebrachte CE-Kennzeichnung.	DECLARACIÓN DE CONFORMIDAD DE LA CEDeclaramos bajo nuestra única responsabilidad que las Desbrozadoras, identificadas por tipo y por código de identificación específico *1), están en conformidad con todas las disposiciones correspondientes de las directivas *2) y de las normas *3).Documentación técnica en *4) – Ver a continuación.El Director de Normas Europeas en la oficina de representación en Europa está autorizado para elaborar el expediente técnico.Anexo V (2000/14/CE): Para más información sobre la emisión de ruidos, consulte la sección de especificaciones.La declaración se aplica al producto con marcas de la CE.
Français Português
DECLARATION DE CONFORMITE CENous déclarons sous notre entière responsabilité que la Débroussailleuse, identifiée par le type et le code d'identification spécifique *1) est en conformité avec toutes les exigences applicables des directives *2) et des normes *3). Dossier technique en *4) - Voir ci-dessous.Le Gestionnaire des normes européennes du bureau de représentation en Europe est autorisé à constituer le dossier technique.Annexe V (2000/14/CE): Pour les informations relatives aux émissions de bruits, reportez-vous au chapitre Caractéristiques.Cette déclaration s'applique aux produits désignés CE.	DECLARAÇÃO DE CONFORMIDADE CEDeclaramos, sob nossa única e inteira responsabilidade, que Roçadora, identificada por tipo e código de identificação específico *1), está em conformidade com todos os requerimentos relevantes das diretivas *2) e normas *3). Ficheiro técnico em *4)–Consulte abaixo.O Gestor de Normas Europeias no escritório de representação na Europa está autorizado a compilar o fi cheiro técnico.Anexo V (2000/14/CE): Para obter mais informações relacionadas com emissões de ruido, consulte as especificações do capítulo.A declaração aplica-se aos produtos com marca CE.
Italiano Svenska
DICHIARAZIONE DI CONFORMITÀ CEDichiariamo sotto la nostra esclusiva responsabilità che il decespugliatore, identificato dal tipo e dal codice identificativo specifico *1), è conforme a tutti i requisiti pertinenti delle direttive *2) e degli standard *3). Documentazione tecnica presso *4) – Vedere sotto.Il gestore delle norme europee presso l'ufficio di rappresentanza in Europa è autorizzato a compilare il fascicolo tecnico.Allegato V (2000/14/CE): Per informazioni riguardo alle emissioni di rumore, consultare le specifi che del capitolo.La dichiarazione è applicabile ai prodotti cui sono applicati i marchi CE.	EG-DEKLARATION BETRÄFFANDE LIKEFORMIGHETVi intygar på eget ansvar att denna röjsax, identifierad enligt typ och särskild identifikationskod *1), överensstämmer med alla relevanta krav i direktiven *2) och standarderna *3). Teknisk fil enligt *4) – Senedan.Den europeiska standardansvariga på representationskontoret i Europa är auktoriserad att sammanställa den tekniska fi len.Bilaga V (2000/14/EG): För information rörande buller, se kapitelbeskrivningen.Denna försäkran gäller för produkten med tillhörande CE-märkning.
*1) CG25EUAP E333006 E3330062*2) 2006/42/EC, 2014/30/EU, 2000/14/EC, 2011/65/EU*3) EN ISO 11806-1:2011CISPR 12:2007+A1:2009EN ISO 14982:2009
*4) Representative offi ce in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead offi ce in Japan Koki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan		29. 3. 2019Naoto YamashiroEuropean Standard Manager29. 3. 2019A. NakagawaCorporate Offi cer
Dansk Polsk
EF-OVERENSSTEMMELSESERKLÆRINGVi erklærer os fuldstændige ansvarlige for, at buskrydderen, identificeret ved type og specifik identifikationskode *1), er i overensstemmelse med alle relevante krav i direktiverne *2) og standarderne *3). Teknisk fi I *4) – Se nedenfor.Lederen af europæiske standarder på repræsentationskontoret i Europa er bemyndiget til at kompilere den tekniske fi I.Appendiks V (2000/14/EF): For information vedrørende støjafgivelse henvises til afsnittet Specifi kationer.Erklæringen gælder produktet, der er mærket med CE.	DEKLARACJA ZGODNOŚCI Z WEOświadczamy na własną wyłączną odpowiedzialność, że Kosa spalinowa podanego typu i oznaczona unikalnym kodem identyfikacyjnym *1) jest zgodna ze wszystkimi właściwymi wymogami dyrektyw *2) i norm *3). Dokumentacja techniczna w *4) – Patrz poniżej.Menedzer Norm Europejskich przedstawicielstwa firmy w Europie jest upoważniony do sporządzania dokumentacji technicznej.Załącznik V (2000/14/WE): Informacje na temat poziomu hałasu znajdują się w części Specyfikacje.Niniejsza deklaracja ma zastosowanie do produktu opatrzonego znakiem CE.
Norsk Magyar
EF'S ERKLÆRING OM OVERENSSTEMMELSEVi erklærer på eget ansvar at ryddesag, identifisert etter type og spesifikk identifikasjonskode *1), er i samsvar med alle relevante krav i direktiver *2) og standarder *3).Teknisk fil under *4) - Se nedenfor.Styreren for europeiske standarder ved representantkontoret i Europa er autorisiert til å kompilere den tekniske fi len.Anneks V (2000/14/EF): For informasjon relatert til lydemisjon, se kapittel spesifi kasjonene.Erklæringen gjelder for CE-merket på produktet.	EK MEGFELELŐSÉGI NYILATKOZATA kizárólagos felelősségünkre kijelentjük, hogy a Benzinmotoros bozótvágó, mely típus és egyedi azonosító kód *1) alapján azonosított, megfelel az irányelvek vonatkozó követelményeinek *2) és szabványainak *3). Műszaki fájl a *4) - Lásd alább.Az EU képviseleti roda európai szabványügyi menedzsere jogosult a műszaki dokumentáció összeállítására.V. függelék (2000/14/EK): A zajkibocsátási adatokat illetően tekintse meg a Műszaki adatok c. fejezetet.Jelen nyilatkozat a terméken feltüntetett CE jelzésre vonatkozik.
Suomi Češtiņa
EY-ILMOITUS YHDENMUKAISUUDESTAVakuutamme yksinomaisella vastuullamme, että raivaussaha, joka identifioidaan tyypin ja erityisen tunnistuskoodin *1) perusteella, on kaikkien direktlivien *2) ja standardien *3) asiaankuuluvien vaatimusten mukainen. Tekninen tiedosto kohdassa *4) – katso alta.Eurooppalaisten standardien hallintaelin Euroopan edustustossa on valtuutettu kokoamaan teknisen tiedoston.Liite V (2000/14/EY): Katso melupäästöihin liittyviä tietoja kappaleesta ominaisuudet.Ilmoitus on sovellettavissa tuotteeseen kiinnitettyyn CE-merkintään.	PROHLÁŠENÍ O SHODĚ S ESProhlašujeme na svou výhradní zodpovědnost, že křovinořez, identifikovaný podle typu a specifického identifikačního kódu *1), je v souladu se všemi příslušnými požadavky směrnic *2) a norem *3).Technický soubor *4) - viz niže.K sestavení technické dokumentace je oprávněn manažer pro evropské standardy v evropském obchodním zastoupení.Příloha V (2000/14/ES): Ohledně informaci o hlukových emisich viz specifi kace kapitol.Toto prohlášení platí pro výrobek označený značkou CE.
Ελληνικά Túrkçe
EK ΔΗΛΩΣΗ ΕΝΑΡΜΟΝΙΣΜΟΥΔηλώνουμε με αποκλειστική μας ευθύνη ότι το Θαμνοκοπτικό, το οποίο προσδιορίζεται από τον τύπο και ειδικό αναγνωριστικό κωδικό *1), είναι σύμφωνο με όλες τις σχετικές απαιτήσεις των Οδηγιών *2) και στα σχετικά πρότυπα *3). Τεχνικό Αρχείο στο *4) – Δείτε παρακάτω.O Διαχεριστής Ευρωπαϊκών Προτύπων στο γραφείο εκπροσώπησης στην Ευρώπη είναι εξουσιοδοτημένος για τη σύνταξη του τεχνικού φακέλου.Παράρτημα V (2000/14/EK): Για πληροφορίες σχετικά με την εκπομπή θορύβου, βλέπε τις προδιαγραφές του κεφαλαίου.H δήλωση ισχύει μόνο για το προϊόν που είναι τοποθετημένη σήμανση CE.	AT UYGUNLUK BEYANITip ve özel taním koduyla *1) tanımli Çali Kesicisi’nin direktiflerin *2) ve standartlarin *3) túm ilgili gereksinimlerine uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ederiz. Teknik dosya *4)'dedir – Aşagiya bakın.Avrupa'daki temsilcilik ofisindeki Avrupa Standartları Yöneticisi, teknik dosyayi derlemek için yetkilendirilmiştir.Ek V (2000/14/AT): Gürültü emisyonları hakkında bilgi için, teknik özellikler bölümüne bakın.Beyan, üzerinde CE işareti bulunan ürünler için geçerlidir.
*1) CG25EUAP E333006 E3330062*2) 2006/42/EC, 2014/30/EU, 2000/14/EC, 2011/65/EU*3) EN ISO 11806-1:2011CISPR 12:2007+A1:2009EN ISO 14982:2009
*4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead office in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan		29. 3. 2019Naoto YamashiroEuropean Standard Manager29. 3. 2019A. NakagawaCorporate Officer
Română Български
DECLARATIE DE CONFORMITATE CEDeclarăm pe propria răspundere că Motocoasa, identificată după tipul și codul de identificare specific *1), este în conformitate cu toate cerințele relevante ale directivelor *2) și ale standardelor *3). Fișier tehnic la *4) – Vezi mai jos.Managerul standardelor europene de la biroul reprezentanței din Europa este autorizat să întocmească dosarul tehnic.Anexa V (2000/14/CE): Pentru informații legate de emisiile de zgomote, vedeți specificațiile capitolului.Declarația se referă la produsul pe care este aplicat semnul CE.	EO ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕДекларираме на своя собствена отговорност, че Резачката за храсти, идентифицирана по тип и специален идентификационен код *1), е в съответствие с всички съответни изисквания на директивите *2) и стандартите *3). Техническо досие в *4) - Вижте по-долу.Мениджърът по европейските стандарти в представителния офис в Европа е упълномощен да съставя техническото досие. Приложение V (2000/14/EO): За информация, относно емисите на шум, вижте главата със спецификации.Декларацията е приложима за продукта, който има поставена CE маркировка.
Slovenščina Srpski
ES IZJAVA O SKLADNOSTINa lastno odgovornost izjavljamo, da je Motorna kosa, označena z vrsto in posebno identifikacijsko kodo *1), v skladu z vsemi ustreznimi zahtevami direktiv *2) in standardov *3). Tehnična dokumentacija pod *4) – glejte spodaj.Upravitelj evropskih standardov na predstavništvu v Evropi je pooblaščen za pripravo tehnične dokumentacije.Dodatek V (2000/14/ES): Za informacije v zvezi z emisijami hrupa glejte specifi kacije poglavja.Deklaracija je označena na izdelku s pritrjeno oznako CE.	EZ DEKLARACIJA O USAGLAŠENOSTIPod punom odgovornošću izjavljujemo da je Sekač za žbunje, identifikovana prema tipu i specifičnom identifikacionom kodu *1), u skladu sa svim relevantnim zahtevima direktiva *2) i standardima *3). Tehnička datoteka pod *4) - Pogledajte dole.Direktor za evropske standarde u kancelariji predstavništva u Evropi je odgovoran za sastavljanje tehničke dokumentacije.Dodatak V (2000/14/EZ): Za informacije o emisiji buke vidite poglavlje o specifi kacijama.Deklaracija je primenjiva na proizvod na koji je stavljena CE oznaka.
Slovenčina Hryatski
ES VYHLÁSENIE O ZHODETýmto vyhlasujeme na vlastnú zodpovednosť, že výrobok Krovinorez identifikovaný podľa typu a špecifického identifikačného kódu *1) je v zhode so všetkými príslušnými požiadavkami smerníc *2) a noriem *3). Technický súbor v *4) – Pozrite nižšie.Manažér europskych noriem na zastupujúcom úrade v Európe má oprávnenie na zostavovanie technickej dokumentácie.Priloha V (2000/14/ES): Informácie o emisiách hluku nájdete v kapitole s technickými parametrami.Toto vyhlásenie sa vztahuje na výrobok označený značkou CE.	EZ IZJAVA O SUKLADNOSTIIzjavljujemo pod vlastitom odgovornošću kako je Rezač grmlja, identificiran prema vrsti i posebnom identifikacijskom kodu *1), u skladu sa svim relevantnim zahtjevima direktiva *2) i standarda *3). Tehnička dokumentacija na *4) - Vidi dolje.Menadžer za europske standarde u europskom predstavništvu tvrtke ovlašten je za sastavljanje tehničke dokumentacije.Dodatak V (2000/14/EZ): Za informacije o razini emisije buke vidi poglavlje sa specifi kacijama.Izjava se primjenjuje na proizvod na kojem je stavljena CE oznaka.
*1) CG25EUAP E333006 E3330062*2) 2006/42/EC, 2014/30/EU, 2000/14/EC, 2011/65/EU*3) EN ISO 11806-1:2011CISPR 12:2007+A1:2009EN ISO 14982:2009
*4) Representative offi ce in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead offi ce in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan		29. 3. 2019Naoto YamashiroEuropean Standard Manager29. 3. 2019A. NakagawaCorporate Offi cer

Koki Holdings Co., Ltd.
