USER MANUAL J-165 Novus

1.1 Declaration of Conformity: We declare under our sole responsibility that this NOVUS

electric stapler meets the pertinent health and safety requirements of the EC Directive on General Product Safety *. The device complies with the following standards: ** according to the requirements of directives ***. Issued at ****.

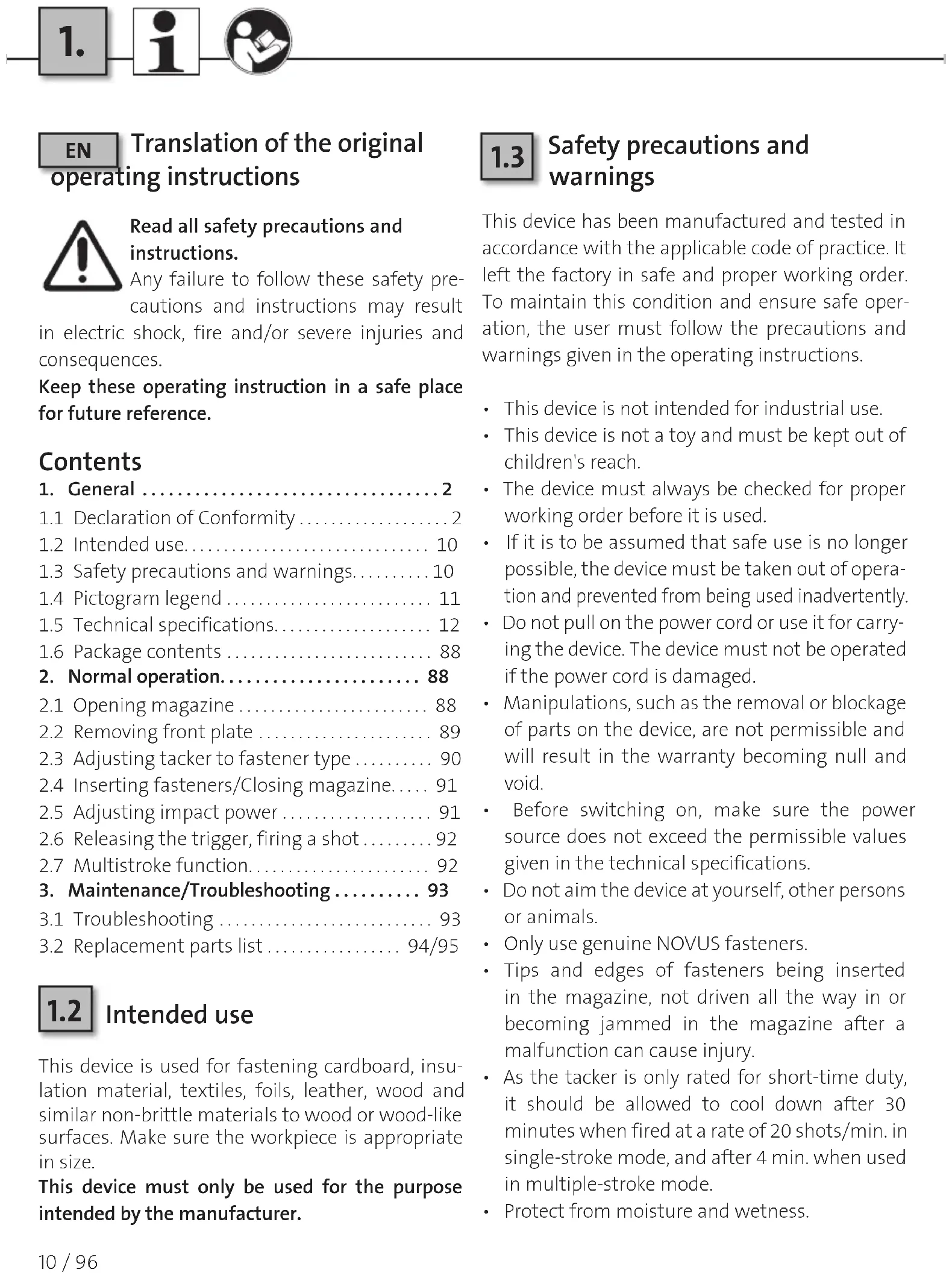

Read all safety precautions and instructions. Any failure to follow these safety pre- cautions and instructions may result in electric shock, fire and/or severe injuries and consequences. Keep these operating instruction in a safe place for future reference. Contents

Intended use This device is used for fastening cardboard, insu- lation material, textiles, foils, leather, wood and similar non-brittle materials to wood or wood-like surfaces. Make sure the workpiece is appropriate in size. This device must only be used for the purpose intended by the manufacturer.

Translation of the original operating instructions

Safety precautions and warnings This device has been manufactured and tested in accordance with the applicable code of practice. It left the factory in safe and proper working order. To maintain this condition and ensure safe oper- ation, the user must follow the precautions and warnings given in the operating instructions.

• This device is not intended for industrial use.

• This device is not a toy and must be kept out of children's reach.

• The device must always be checked for proper working order before it is used.

• If it is to be assumed that safe use is no longer possible, the device must be taken out of opera- tion and prevented from being used inadvertently.

• Do not pull on the power cord or use it for carry- ing the device. The device must not be operated if the power cord is damaged.

• Manipulations, such as the removal or blockage of parts on the device, are not permissible and will result in the warranty becoming null and void.

• Before switching on, make sure the power source does not exceed the permissible values given in the technical specifications.

• Do not aim the device at yourself, other persons or animals.

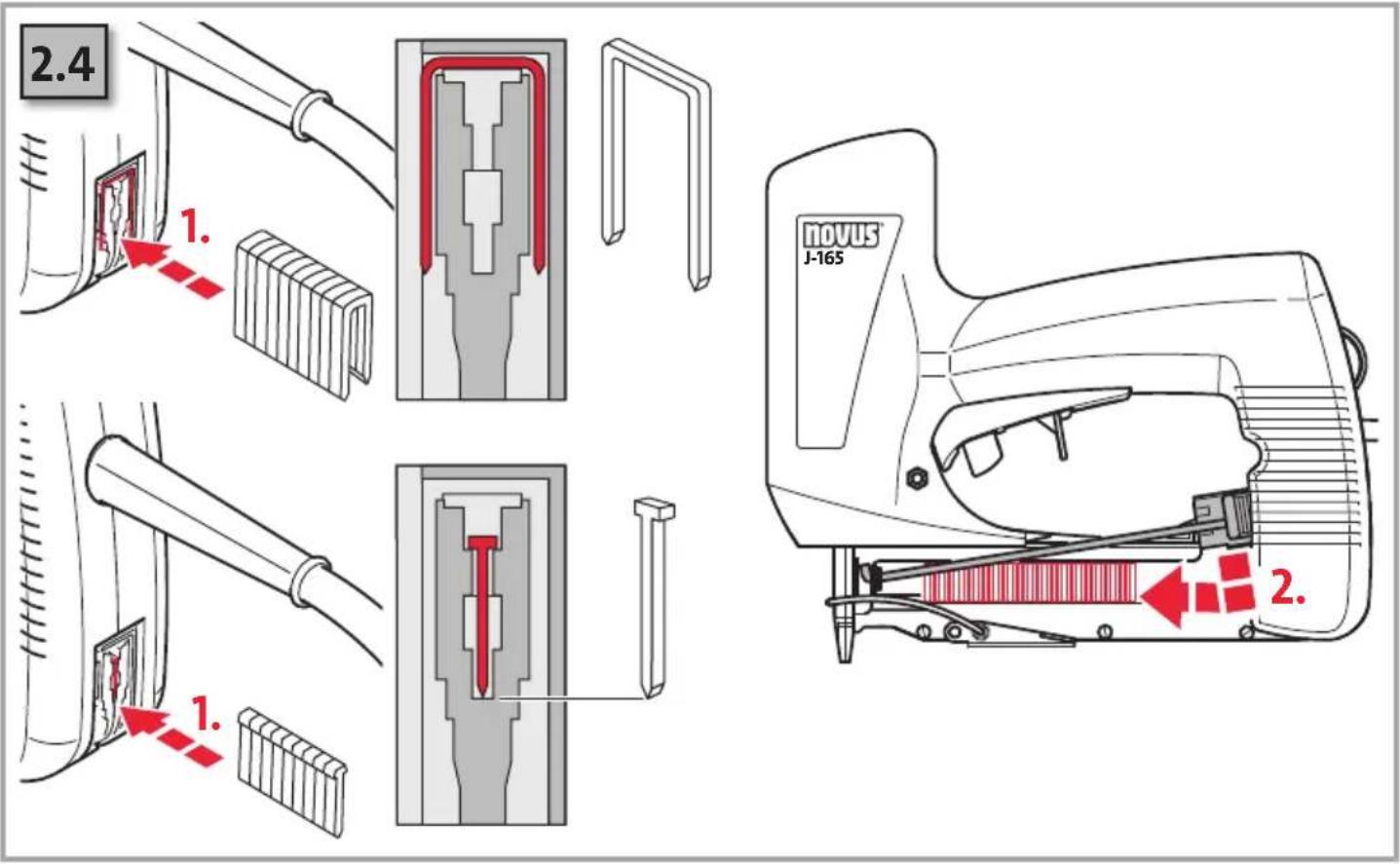

• Only use genuine NOVUS fasteners.

• Tips and edges of fasteners being inserted in the magazine, not driven all the way in or becoming jammed in the magazine after a malfunction can cause injury.

• As the tacker is only rated for short-time duty, it should be allowed to cool down after minutes when fired at a rate of shots/min. in single-stroke mode, and after min. when used in multiple-stroke mode.

• Protect from moisture and wetness. / J-165

Read user information/ safety precautions ATTENTION Disconnect device from power supply Wear eye and hearing protection Important information Normal operation Maintenance information / troubleshooting Connect device to power supply Conformity with applicable EU safety directives Intertek certifies that the product complies with the German Equipment and Product Safety Act . Protection class II (double insulation, no earthed plug required.) Do not dispose of as household waste.

• Clean the device with a soft paintbrush as ne- cessary.

• Unplug the device after you finish working with it. Do not leave the device unattended while it is connected to the power supply.

• After approximately every shots, lubricate the staple outlet with a drop of light oil.

• The device must only be opened by trained service personnel.12 / 96

Technical specifications

• Power cord: Cable 3 m long, 2-core (2 x 1 mm

• Extension lead: max. 10 m with core cross-section of 1.5 mm

• Pulse repetition rate: max. 20 shots/min, S2 30 min

• Dimensions: 205 mm high, 233 mm long, 56 mm wide

• Noise emission: measured in accordance with EN 60745-1 A-weighted sound pressure level

A-weighted sound power level

• Vibration: Total vibration value measured in accordance with EN 60745-1 Vibration emission value ah = 3.2 m/s

• The total vibration value stated and the noise emission level stated were measured on the basis of a standardised testing method and can be used for comparing one power tool with another.

• The total vibration value stated and the noise emission level stated can also be used for mak- ing a preliminary estimate of load.

• While actually using the power tool, vibration and noise emissions may vary from the values stated. This will depend on the way in which the power tool is used, in particular the type of workpiece it is being used for.

• To protect the operator, define additional safe- ty measures based on an estimate of vibra- tion load under actual operating conditions (taking into account all parts of the operating cycle, such as cycles in which the power tool is switched off, and cycles in which it is switched on but not operating under load). We reserve the right to make technical modifications and improvements in the interest of advancing our products. / J-165

• Vibration: Total vibration value measured in accordance with EN 60745-1 Vibration emission value ah = 3.2 m/s

• Vibration: Total vibration value measured in accordance with EN 60745-1 Vibration emission value ah = 3,2 m/s
