USER MANUAL J-102 Novus

1.1 Declaration of Conformity: We declare under our sole responsibility that this NOVUS electric staple gun meets the pertinent health and safety requirements of the EC Directive on General Product Safety*. The device complies with the following standards: ** according to the requirements of directives ***. Issued at ****.

fr

Ab Baujahr/ From year of manufacture: 2020

Authorised person for documents

D-49808 Lingen (Ems)

**** Lingen, 2020-08-18 Rev04

Chdu kieupe

Translation of the original operating instructions.... 10

Translation of the original operating instructions

Read all safety precautions and instructions.

Any failure to follow these safety precautions and instructions may result in electric shock, fire and/or severe injuries and consequences.

Keep these operating instruction in a safe place for future reference.

Contents

1 General....2

1.1 Declaration of Conformity ..... 2
1.2 Intended use.... 10
1.3 Safety precautions and warnings.....10
1.4 Pictogram legend 11
1.5 Technical specifications.... 12
1.6 Package contents 88

2 Normal operation.... 88

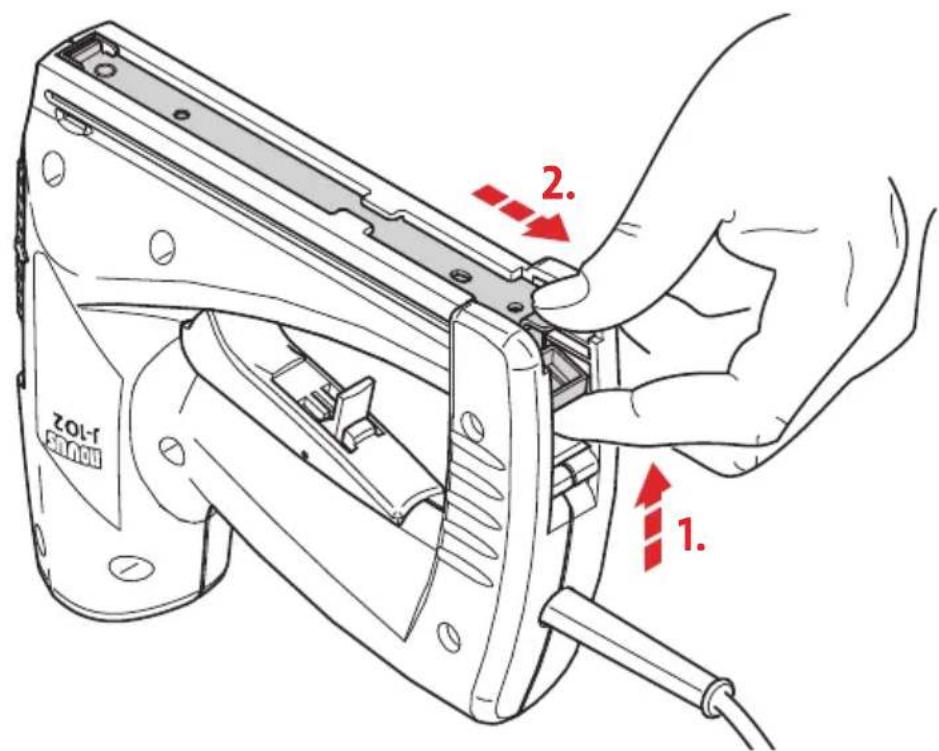

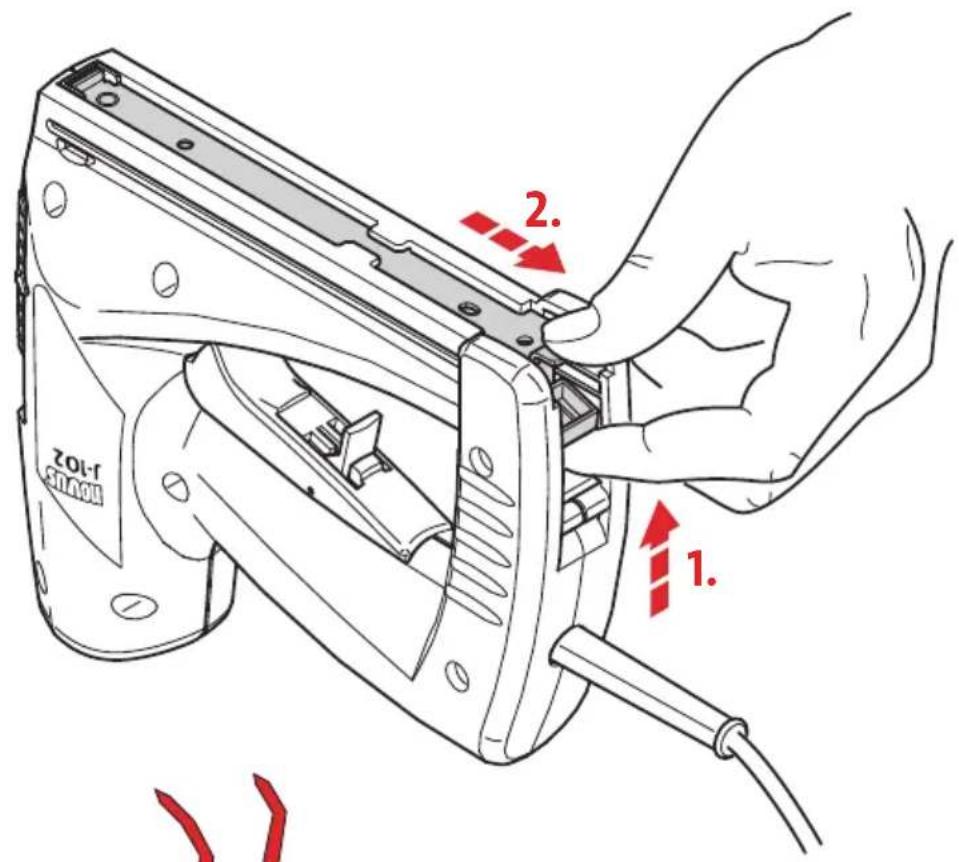

2.1 Opening magazine 88
2.2 Setting tacker to staple type....89
2.3 Inserting fasteners....89

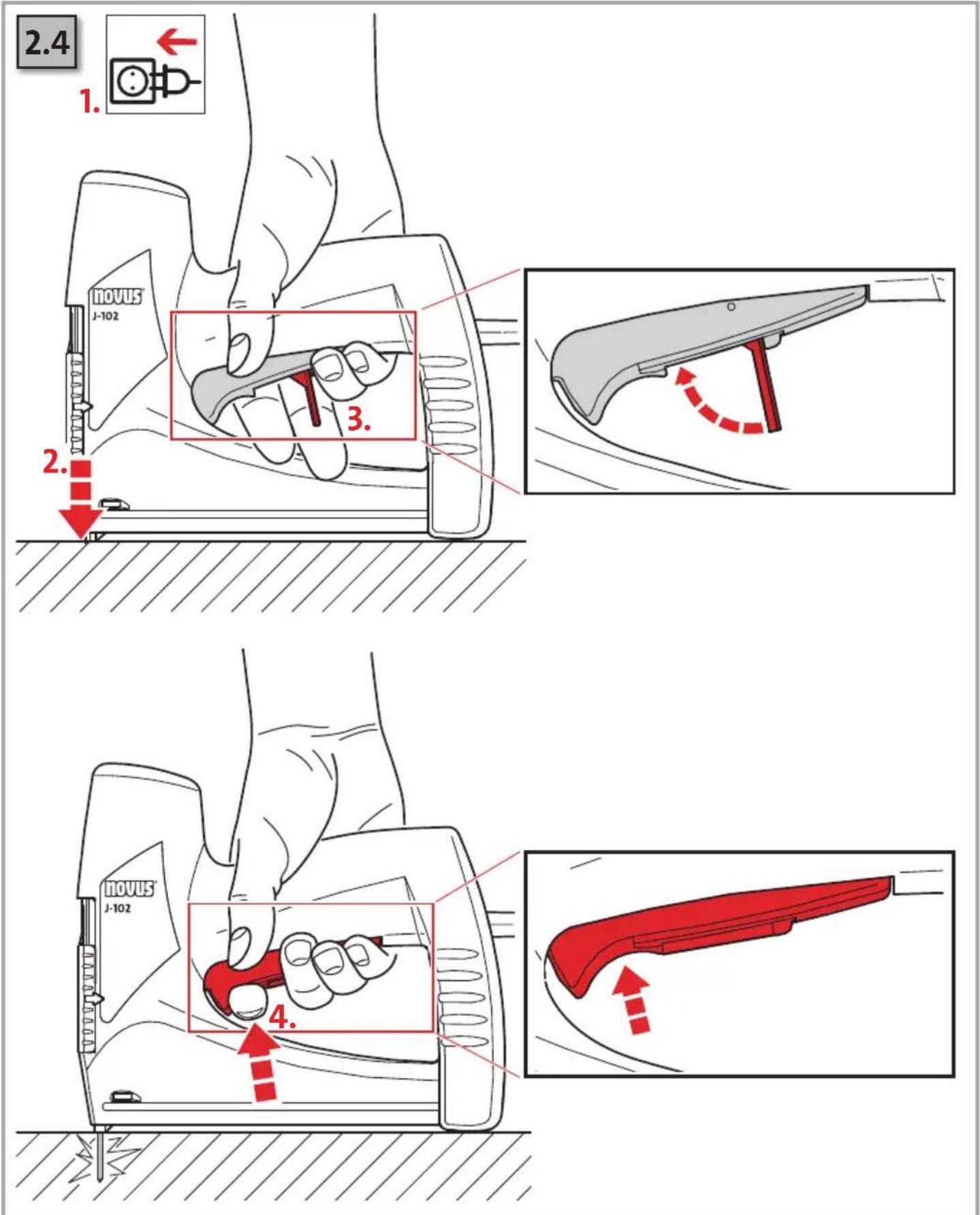

2.4 Releasing the trigger, firing a shot ..... 90

3 Maintenance/Troubleshooting ..... 91

3.1 Troubleshooting....91
3.2 Replacement parts list....92/93

1.2

Intended use

This device is used for fastening cardboard, insulation material, textiles, foils, leather, wood and similar non-brittle materials to wood or wood-like surfaces. Make sure the workpiece is appropriate in size.

This device must only be used for the purpose intended by the manufacturer.

1.3

Safety precautions and warnings

This device has been manufactured and tested in accordance with the applicable code of practice. It left the factory in safe and proper working order. To maintain this condition and ensure safe operation, the user must follow the precautions and warnings given in the operating instructions.

• This device is not intended for industrial use.
- This device is not a toy and must be kept out of children's reach.
- The device must always be checked for proper working order before it is used.
- If it is to be assumed that safe use is no longer possible, the device must be taken out of operation and prevented from being used inadvertently.
- Do not pull on the power cord or use it for carrying the device. The device must not be operated if the power cord is damaged.
- Manipulations, such as the removal or blockage of parts on the device, are not permissible and will result in the warranty becoming null and void.
- Before switching on, make sure the power source does not exceed the permissible values given in the technical specifications.
- Do not aim the device at yourself, other persons or animals.
- Only use genuine NOVUS fasteners.
- Tips and edges of fasteners being inserted in the magazine, not driven all the way in or becoming jammed in the magazine after a malfunction can cause injury.
- As the tacker is only rated for short-time duty, it should be allowed to cool down after 30 minutes when fired at a rate of 20 shots/min. in single-stroke mode, and after 4 min. when used in multiple-stroke mode.
- Protect from moisture and wetness.

1

novus

J-102

• Clean the device with a soft paintbrush as necessary.
• Unplug the device after you finish working with it. Do not leave the device unattended while it is connected to the power supply.

• After approximately every 1000 shots, lubricate the staple outlet with a drop of light oil.
- The device must only be opened by trained service personnel.

1.4

Pictogram legend

Read user information/safety precautions

ATTENTION

Disconnect device from power supply

Wear eye and hearing protection

Important information

Normal operation

Maintenance information / troubleshooting

Connect device to power supply

Conformity with applicable EU safety directives

Intertek certifies that the product complies with the German Equipment and Product Safety Act.

Protection class II (double insulation, no earthed plug required.)

Do not dispose of as household waste.

1.5 Technical specifications

• Mains voltage/frequency:

230V / 50Hz

- Mains power fuse protection:

10 A medium time-lag min.; 16 A medium time-lag max.

- Power cord:

Cable 2.5 m long, 2-core (2 x 1 mm²)

CEE 7/17 plug, power socket type EF

- Extension lead:

max. 10 m with core cross-section of 1.5 mm ^2

- Pulse repetition rate:

max. 20 shots/min, S2 30 min

• Electrical pulse generator:

radio-interference-suppressed

• Temperature range:

-10°C to 40°C

- Dimensions:

166 mm high, 196 mm long, 56 mm wide

- Weight:

1000 g

- Noise emission:

measured in accordance with EN 60745-1

A-weighted sound pressure level

L_pA=86 dB(A) ; uncertainty K_pA=2.5 dB(A)

A-weighted sound power level

L_WA=97 dB(A) ; uncertainty K_wa=2.5 dB(A)

Wear ear protection!

- Vibration:

Total vibration value measured in accordance with EN 60745-1

Vibration emission value ah = 3.2 m/s ^2 ; uncertainty K = 1.5 m/s ^2

- The total vibration value stated and the noise emission level stated were measured on the basis of a standardised testing method and can be used for comparing one power tool with another.

- The total vibration value stated and the noise emission level stated can also be used for making a preliminary estimate of load.

Warning:

- While actually using the power tool, vibration and noise emissions may vary from the values stated. This will depend on the way in which the power tool is used, in particular the type of workpiece it is being used for.

- To protect the operator, define additional safety measures based on an estimate of vibration load under actual operating conditions (taking into account all parts of the operating cycle, such as cycles in which the power tool is switched off, and cycles in which it is switched on but not operating under load).

fr

Intertek certifies that the product complies with the German Equipment and Product Safety Act.

Total vibration value measured in accordance with EN 60745-1

Vibration emission value ah = 3.2 m/s ^4 ; uncertainty K = 1.5 m/s ^4

- Vibration: Total vibration value measured in accordance with EN 60745-1 Vibration emission value ah = 3,2 m/s ^2 ; uncertainty K = 1,5 m/s ^2

1.3 Sikkerhed advarsler

This device is used for fastening cardboard, insulation material, textiles, foils, leather, wood and similar non-brittle materials to wood or wood-like surfaces. Make sure the workpiece is appropriate in size.

This device must only be used for the purpose intended by the manufacturer.

1.3 Sigurnosne napomene i upozorenja

Ovaj uređaj je izrađen i ispitan u skladu s važećim tehničkim pravilima. Pogon je napustio u sigurnosno-tehnički besprijekornom stanju. Da bi se takvo stanje održalo i osigurao bezopasan rad, korisnici se trebaju pridržavati naputaka i upozorenja koja se nalaze u ovim Uputama za uporabu.

Line drawing of a Novus J-102 electric iron with attached cable (no text or symbols)

NOVUS J-102 DA NOVUS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

2

2.1

1-102 Sauou 2.

2

novus®

J-102

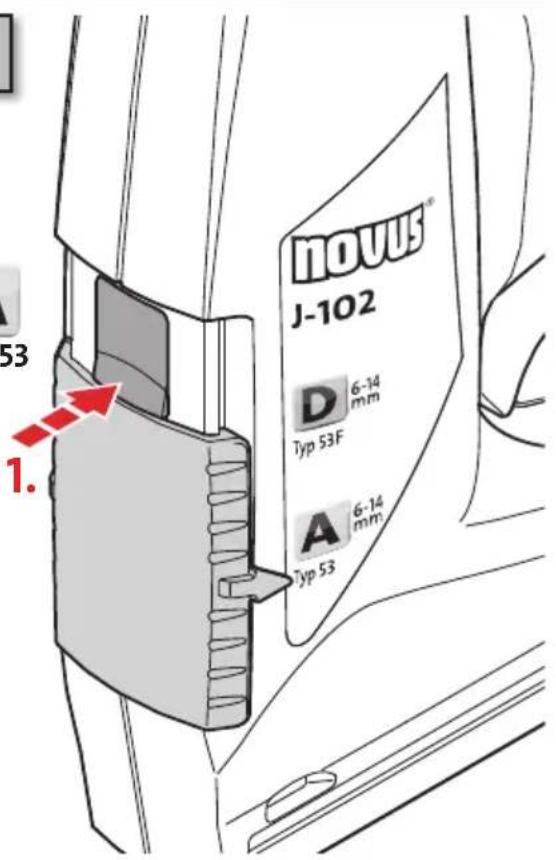

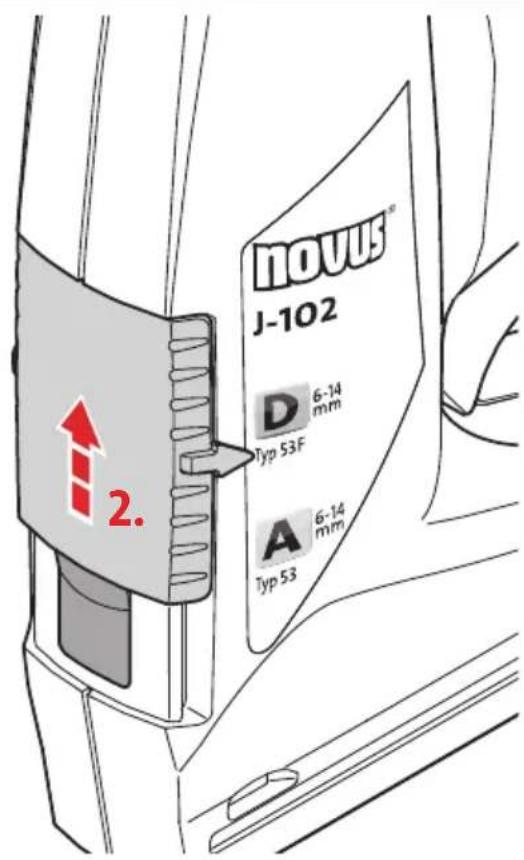

2.2
A Typ 53

NOVUS J-102 D 6-14 mm Typ 53F A 6-14 mm Typ 53 1.

D Typ 53 F

novus J-102 D 6-14 mm Typ 53F A 6-14 mm Typ 53

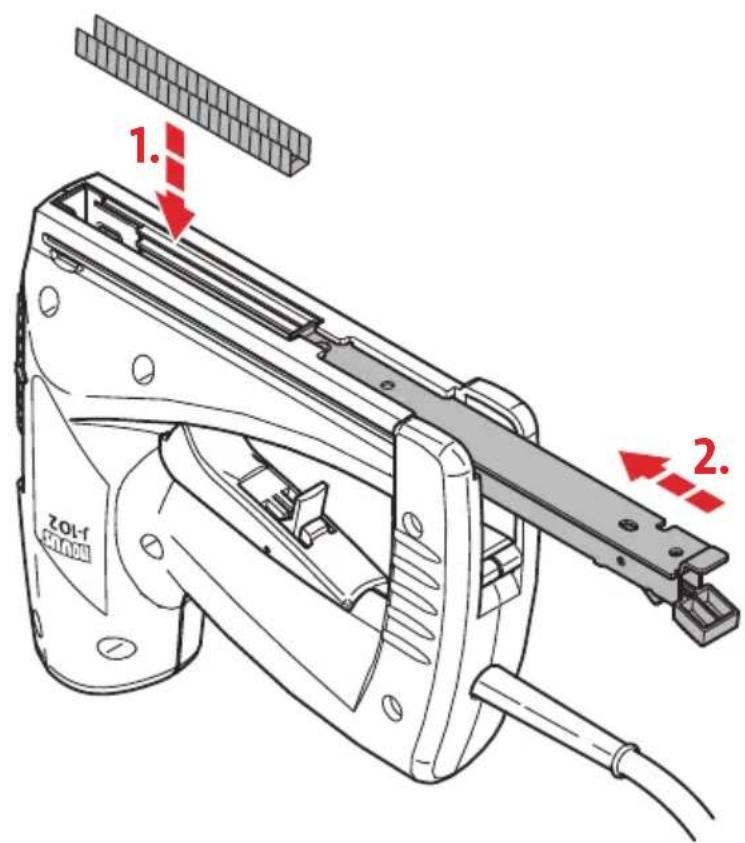

2.3
135x

Typ 53

6 8 10 (V2A) 12 14 A: 11,3 mm

80x

Typ 53 F

6 8 10 12 14 (D) D: 11,3 mm

1. 2. ZOL-1 RANOU

2

3

novus®

J-102

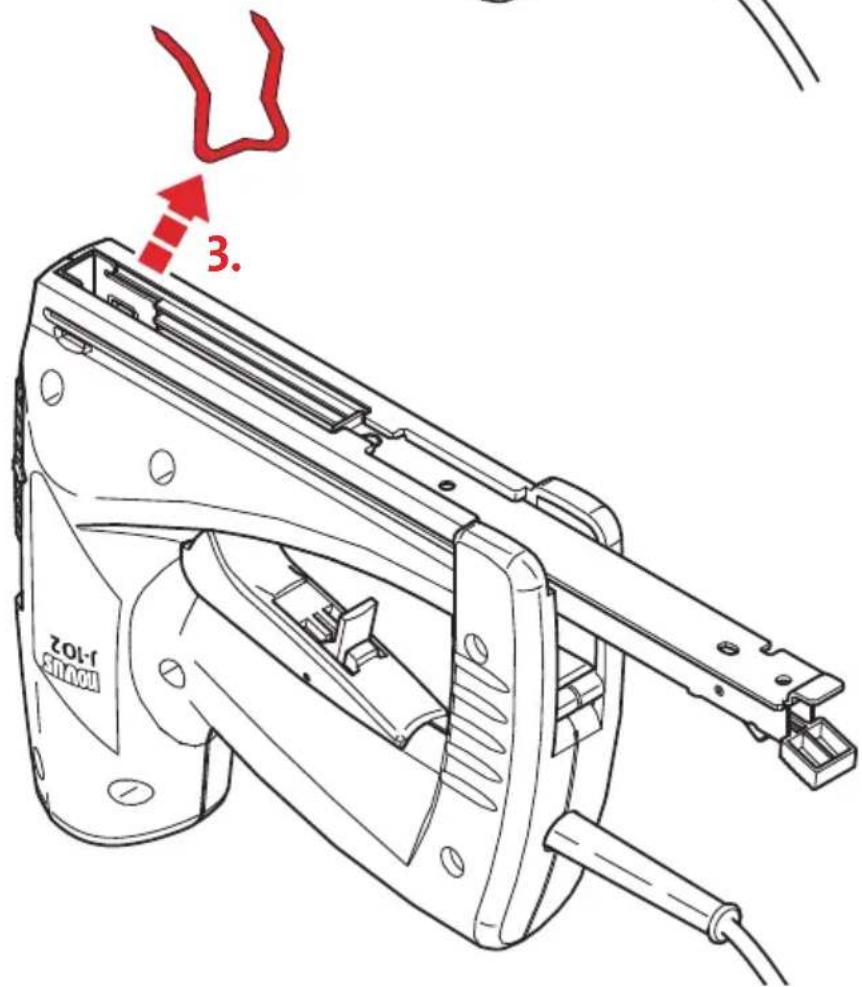

3.1

J-102 2. 1.

NOVALE 1-102 3.

3

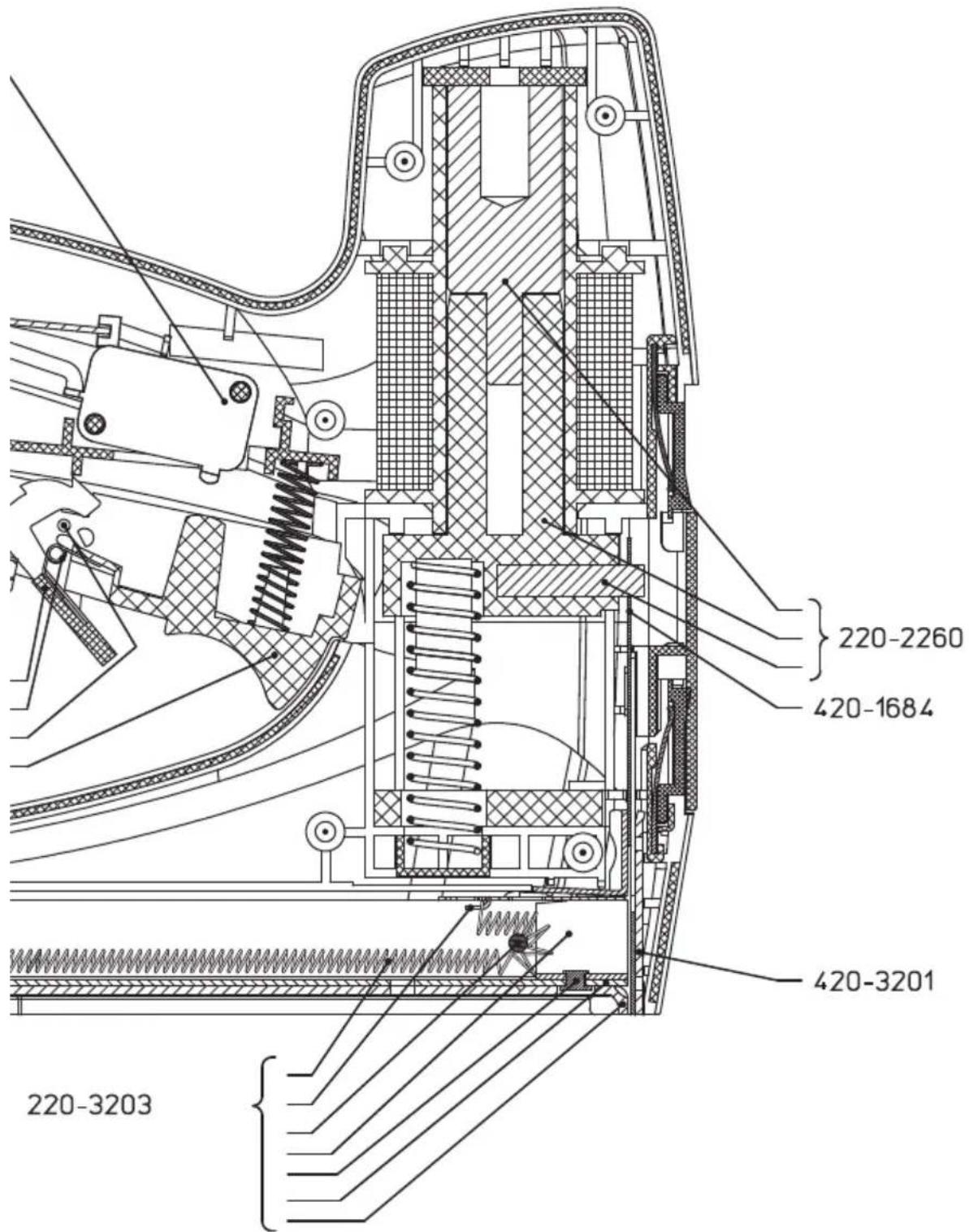

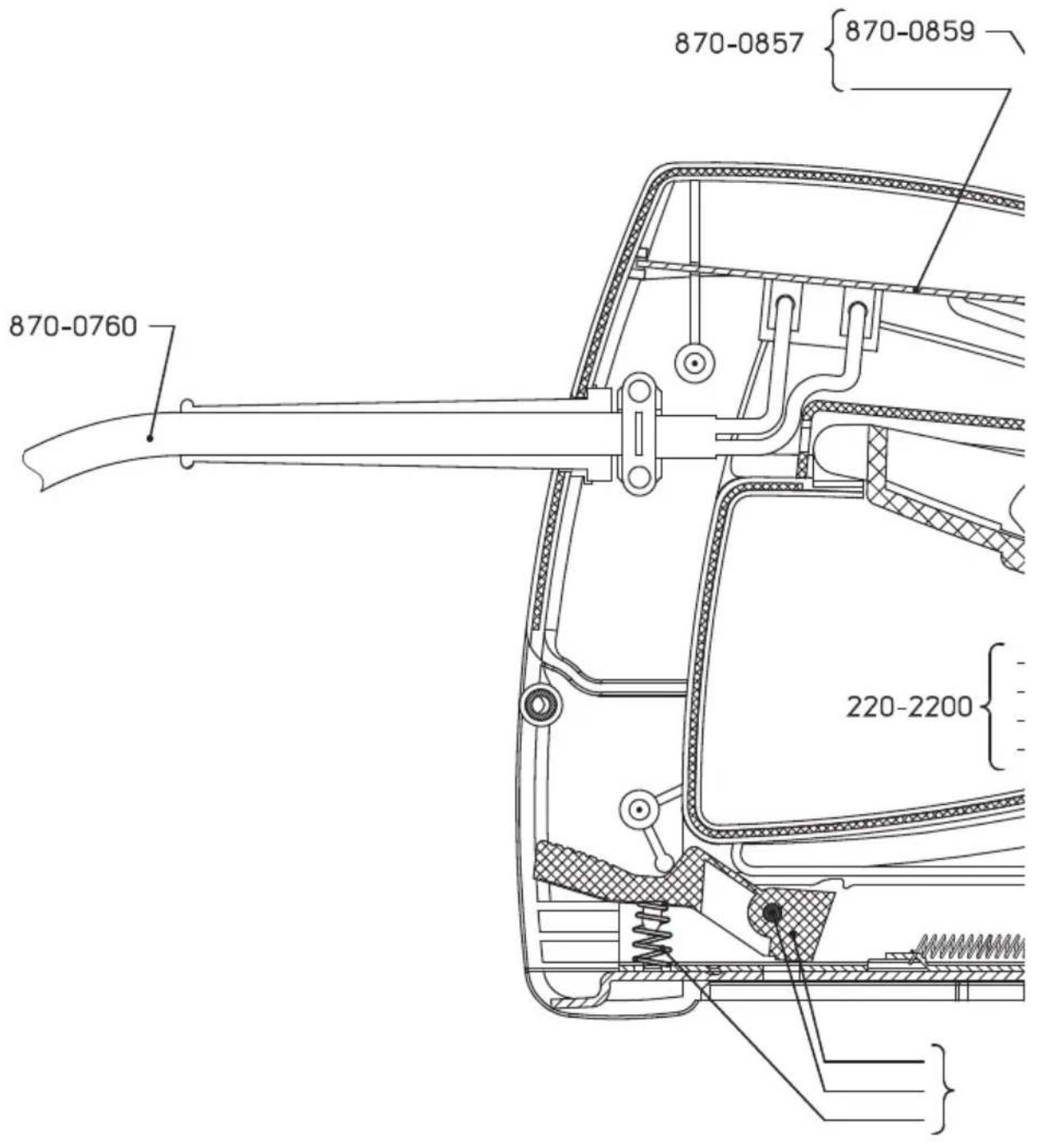

3.2

870-0760 870-0857 { 870-0859 220-2200

220-3203 420-3201 420-1684 220-2260

Blank grid paper with no text, numbers, or symbols

Blank grid paper with no text, numbers, or symbols
