PDM1060P_K - Drill Ferm - Free user manual and instructions
Find the device manual for free PDM1060P_K Ferm in PDF.
| Brand | Ferm |
| Model | PDM1060P_K |
| Category | Hammer drill |
| Product type | Corded hammer drill |
| Supply voltage | 220-240 V~ |
| Frequency | 50/60 Hz |
| Power consumption | 850 W |
| No-load speed | 0 - 3 000 min⁻¹ |
| Impact rate | 0 - 48 000 min⁻¹ |
| Max. chuck size | 13 mm |
| Max. drilling diameter (wood) | 25 mm |
| Max. drilling diameter (concrete) | 16 mm |
| Max. drilling diameter (steel) | 13 mm |
| Weight | 2.08 kg |
| Sound pressure level | 94 ± 3 dB(A) |
| Sound power level | 105 ± 3 dB(A) |
| Vibration (metal drilling) | 5.4 ± 1.5 m/s² |
| Vibration (hammer drilling concrete) | 10.3 ± 1.5 m/s² |
| Protection class | II (double insulation) |
| Functions | Drilling, hammer drilling |
| Speed control | Electronic (wheel + trigger pressure) |
| Rotation direction | Left/right (reversing switch) |
| Lock-on feature | Yes (lock button) |
| Side handle | Yes, 360° adjustable |
| Depth stop | Yes, adjustable |
| Chuck | Keyless, 13 mm capacity |
| Cleaning | Soft slightly damp cloth (no solvents) |
| Carbon brush replacement | By customer service or qualified person |
Frequently Asked Questions - PDM1060P_K Ferm
User questions about PDM1060P_K Ferm
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual PDM1060P_K - Ferm and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PDM1060P_K by Ferm.
USER MANUAL PDM1060P_K Ferm
EN Original instructions 03
DE Übersetzung der Originalbetriebsanleitung 07
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 11
FR Traduction de la notice originale 15
ES Traducción del manual original 19
PT Tradução do manual original 23
IT Traduzione delle istruzioni originali 27
SV Översättning av bruksanvisning i original 31
FI Alkuperäisten ohjeiden käännös 35
NO Oversatt fra orginal veiledning 38
DA Oversættelse af den originale brugsanvisning 42
HU Eredeti használati utasítás fordítása 46
CS Překlad původního návodu k používání 49
SK Prevod izvirnih navodil 53
PL Tłumaczenie instrukcji oryginalnej 57
LT Originalios instrukcijos vertimas 61
LV Instrukciju tulkojums no originālvalodas 65
RO Traducere a instructiunilor originale 69
RU Перевод исходных инструкций 73
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 77
TR Orijinal talimatların çevirisi 81
Thank you for buying this FERM product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.
1.SAFETYWARNINGS
WARNING
Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.
The following symbols are used in the user manual or on the product:
Read the user manual.
Risk of personal injury.
Risk of electric shock.
Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.
Wear safety goggles. Wear hearing protection.
Wear a dust mask.
Double insulated.
Do not dispose of the product in unsuitable containers.
The product is in accordance with the applicable safety standards in the European directives.
ADDITIONAL SAFETY WARNINGS FOR IMPACT DRILLS
Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
Electrical safety
When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.
Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.
Class II machine - Double insulation - You don't need any earthed plug.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
2. MACHINE INFORMATION
Intended use
Your impact drill has been designed for drilling holes in wood, metal and plastics and for hammer drilling in brick and concrete.
Technical specifications
| Mains voltage 220-240V~ |
| Mains frequency 50/60 Hz |
| Power input 850W |
| No-load speed 0-3,000 /min |
| Impact rate 0-48,000 /min |
| Max. chuck size 13 mm |
Max. drill diameter
| Wood 25 mm |
| Concrete 16 mm |
| Steel 13 mm |
| Weight 2.08 kg |
Noise values
| Sound pressure (LPA) 94 + 3 dB(A) |
| Acoustic power (LWA) 105 + 3 dB(A) |
Vibration values
| Drilling into metal, a_h,D | 5.4 + 1.5 m/s^2 |
| Impact drilling into concrete, a_h,ID | 10.3 + 1.5 m/s^2 |
Vibration level
The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.
- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.
Description
The numbers in the text refer to the diagrams on page 2.

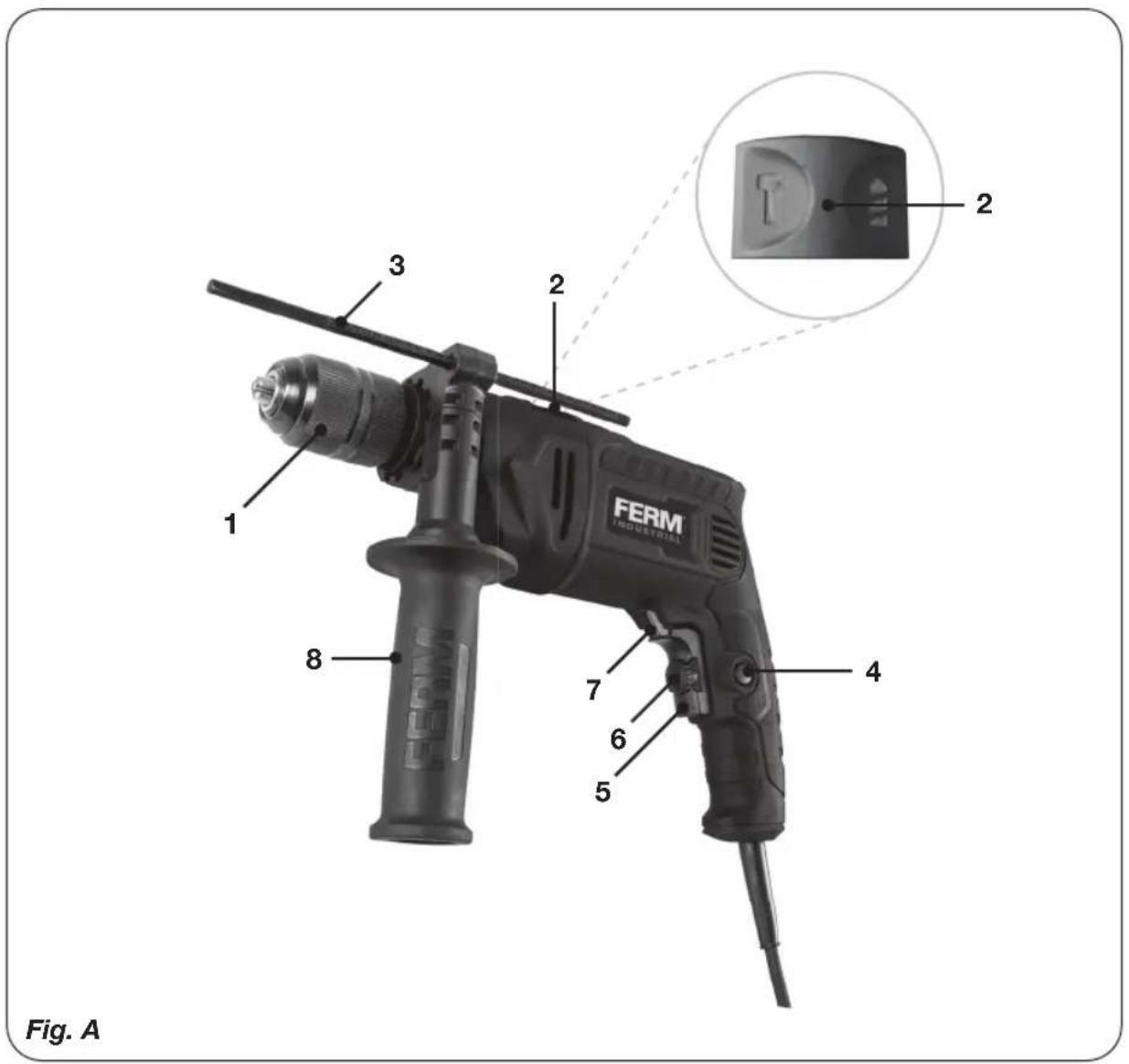

Fig. A
- Chuck
- Function selection switch
- Depth stop
- Lock-on button
- On/Off switch
- Speed adjustment wheel
- Left/right rotation switch
- Side handle

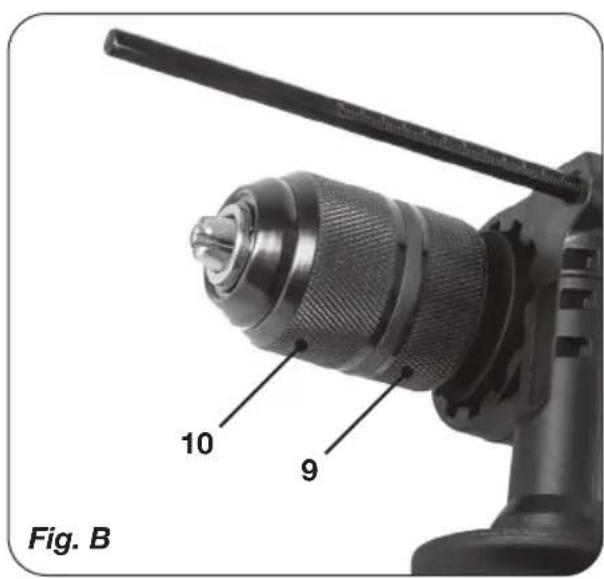

Fig. B
- Rear sleeve
10.Front sleeve
3. OPERATING
Impact drills require very little operator pressure. Excessive pressure on the tool can lead to unnecessary overheating of the motor, and burning of the driven tool.
Side handle
Fig. A
The side handle (8) can be rotated 360° around the drill head, enabling safe and comfortable operation for both left and right-handed users.
- Loosen the side handle (8) by turning it anticlockwise.
- Rotate the side handle to the desired position.
- Retighten the side handle in the new position by turning it clockwise
Exchanging and removing drill bits
Fig. A - B
The machine is suitable for use of the following drill bits:
- Wood (HSS)
- Metal (HSS)
• Concrete / masonry (hard metal)
Before exchanging bits, first remove the power plug from the wall socket.
Inspect bits regularly during use. Blunt bits should be re-sharpened or replaced.
- Open the chuck (1) by turning the front sleeve (10) clockwise while simultaneously holding the rear sleeve (9) or turning it counterclockwise and insert the bit into the chuck opening.
- Tighten the bit by turning the front sleeve (10) counterclockwise while simultaneously holding the rear sleeve (9) or turning it clockwise.
Setting depth stop
Fig. A
- Loosen the side handle (8) by turning it counterclockwise.
- Insert the depth stop (3) through the hole in the side handle ring.
- Slide the ruler to the desired depth.
• Retighten the screw firmly by turning it clockwise.
The On/Off switch
Fig. A
- Switch the machine on by pressing the On/Off switch (5). When you release the On/Off switch (5) the machine will turn off.
- The rotation-speed can be adjusted by pressing the On/Off switch (5) harder for raising the rotation-speed or release pressure for lowering the rotation-speed.
Lock-on Button
Fig. A
- You can lock the On/Off switch (5) by pressing the On/Off switch (5) and then pressing the lock-on button (4).
- To release the switch-lock; shortly press the On/Off switch (5) again.
Adjusting of the maximum rotation speed Fig. A
- Adjust the speed by turning the speed adjustment wheel (6) to the desired maximum rotation speed.
Switching the direction of rotation
Fig. A
Do not change the direction of rotation during use.
- Direction of rotation counter-clockwise: shift left/right rotation switch (7) to “”
- Direction of rotation clockwise: shift left/right rotation switch (7) to “.”
Function selection switch
Fig. A
In order to avoid damage to the machine, adjusting the function selection switch (2) shall only be done when machine is not running
- Set the function selection switch (2) to "if" for drilling.
- Set the function selection switch (2) to "f" for hammer drilling.
User tips
Always use the machine with the side handle firmly anchored in place - you will not only work with more comfort, you will also work with more precision.
Caution: drilling bits and hammer drilling bits can get very hot
Drilling and hammer drilling
- For large holes, for instance in very hard concrete, start using a smaller bit for pilot drilling first, then drill to nominal size.
- Hold the machine firmly with 2 hands. Be aware the drill can jam and because of that machine might suddenly turn (Especially when drilling deep holes).
- Do not apply a lot of pressure on the machine, let the machine do the work.
4. MAINTENANCE
Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.
Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.
Carbon brush
If the carbon brushes are worn, the carbon brushes must be replaced by the customer service department of the manufacturer or a similarly qualified person.
Only use the correct original type of carbon brushes.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Defects
The machine should be regularly inspected for the following possible defects, and repaired if necessary.
- Damage to power cord
- Broken on/off switch
- Shortcircuiting
• Damaged moving parts
WARRANTY
The warranty conditions can be found on the separately enclosed warranty card.
ENVIRONMENT
Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.
Only for EC countries
Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.
The product and the user manual are subject to change. Specifications can be changed without further notice.
SCHLAGBOHRMASCHINE PDM1060P\_K
1. VEILIGHEIDSWAARSCHUWINGEN
WAARSCHUWING
DECLARATION OF CONFORMITY PDM1060P\_K - IMPACT DRILL
(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht, den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilidade-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restricção de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget anvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuulamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraaval standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelenljük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: az Európai Parlament és az EU Tanács 2011. június 8-i, 2011/65/EU sz., a bizonyos veszélyes anyagok elektromos és elektronikus berendezésekben való használatának korlátozásáról szóló rendelettel.
(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: je v souladu se směrnící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi: Je v súlade s normou 2011/65/EÚ Európske ho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovomostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/UE Parla mentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem stand - artiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronicne.
(HR) Izjavljujemo pod vlastitom odgovomol, su daje strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovornošću izjavljujemo daje usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότιπα: συμφορφώνεται με την Οδηγία 2011/85/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου 783 Βουλίου 2011 για τον περιορισμό της χρήσης ορισμένων επικίνδυνων συσιών σε ηλεκτρικό και ηλεκτρονικό εξοπιλιμό.
(AR) تيّزاتلاتاتي جمتردار ري قياعبلا عم قفاروي جشنطلا النناً انذج انتيولويم قildع نك ----------------------------------------------------------------
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.
EN55014-1, EN55014-2, 62841-1, EN 62841-2-1, EN61000-3-2, EN61000-3-3
2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU
Zwolle, 01-12-2021
H.G.F. Rosberg
CEO Ferm
Ferm • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands
