USER MANUAL HDM1021 Ferm

Exterior view of a FEMC electric drill putter with orange handle and black body (no visible text or symbols)

EN Original instructions 04

Fig. D

Fig. E

ROTARY HAMMER

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

Safety warnings

WARNING Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Keep the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Wear safety goggles. Wear hearing protection.

Double insulated.

Additional safety warnings for hammer drills

• Do not work materials containing asbestos. Asbestos is considered carcinogenic.

• Wear safety goggles, hearing protection and if necessary other protective means, such as safety gloves, safety shoes, etc.
  • Always hold the machine with two hands.

• Make sure that the workpiece is properly supported or fixed.

• Before use, always check walls, floors, or ceilings for the presence of hidden wiring and pipes.
• Only use accessories that are suitable for use with the machine.
• Only use accessories with the correct dimensions.
• Inspect the accessories before each use. Do not use accessories which are bent, cracked, or otherwise damaged.
• Always use the auxiliary grip to reduce the risk of loss of control. Risk of personal injury.
• Hold the machine by the insulated gripping surfaces where the accessory may contact hidden wiring or the mains cable. If the accessory contacts a ‘live’ wire, the exposed metal parts of the machine can also become ‘live’. Risk of electric shock.
  • After use, do not touch the tip of the accessory.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm^2 . If you use a extension cable reel, always fully unroll the cable.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/13A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code:

blue neutral brown live

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be

connected to the terminal which is marked with the letter N or coloured black.

- The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Technical data

Mains voltage 230-240V~
Mains frequency 50Hz
Power input 1,500W
No-load speed 350 - 800 /min
Impact rate 1100 - 2700 /min
Max. drilling diameter
Wood 40 mm
Steel 13 mm
Concrete 36 mm
Weight 6 kg
Noise and vibration
Hammer position
Sound pressure (Lpa) 98.5 dB(A)
Acoustic power (Lwa) 109.5 dB(A)
Uncertainty (K) 3 dB(A)
Vibration main handle 19.819 m/s	^2
Uncertainty (K)	1.5 m/s ^2
Hammer/drill position
Sound pressure (Lpa)	96.88 dB(A)
Acoustic power (Lwa)	107.88 dB(A)
Uncertainty (K) 3 dB(A)
Vibration main handle 24.847 m/s	^2
Uncertainty (K)	1.5 m/s ^2

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Description

(fig. A)

Your hammer drill has been designed for drilling holes into wood, steel, and masonry. The machine can also be used as a demolition hammer in combination with the SDS chisels.

1. On/off switch
2. Drill selection switch
3. Hammer selection lever
4. Chuck
5. Locking sleeve
6. Main grip
7. Auxiliary grip
8. Depth stop
9. Lubrication point
10. Adjusting wheel for electronic speed control

Assembly

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and removing the accessory (fig. B)

Do not use blunt drill bits or chisels. Immediately sharpen or replace blunt drill bits or chisels.

Mounting

• Apply a few drops of oil to the shaft of the accessory.
• Slide the locking sleeve (5) to the rear.
• Insert the accessory into the chuck (4).
• Secure the accessory by turning it counterclockwise until it locks into place.
• Release the locking sleeve (5).

Removing

• Slide the locking sleeve (5) to the rear.
• Remove the accessory from the chuck (4).
• Release the locking sleeve (5).

Mounting and removing the auxiliary grip (fig. C)

Mounting

• Loosen the auxiliary grip (7) by turning it counterclockwise.
• Mount the auxiliary grip (7) by sliding it over

the chuck (4).

• Turn the auxiliary grip (7) to the required position.
• Tighten the auxiliary grip (7) by turning it clockwise.

Removing

• Loosen the auxiliary grip (7) by turning it counterclockwise.
• Remove the auxiliary grip (7).
• Tighten the auxiliary grip (7) by turning it clockwise.

Mounting and removing the depth stop (fig. C)

Mounting

• Loosen the auxiliary grip (7) by turning it counterclockwise.
• Insert the depth stop (8) through the hole in the auxiliary grip (7).
• Set the depth stop (8) to the required position.
• Tighten the auxiliary grip (7) by turning it clockwise.

Removing

• Loosen the auxiliary grip (7) by turning it counterclockwise.
• Remove the depth stop (8).
• Tighten the auxiliary grip (7) by turning it clockwise.

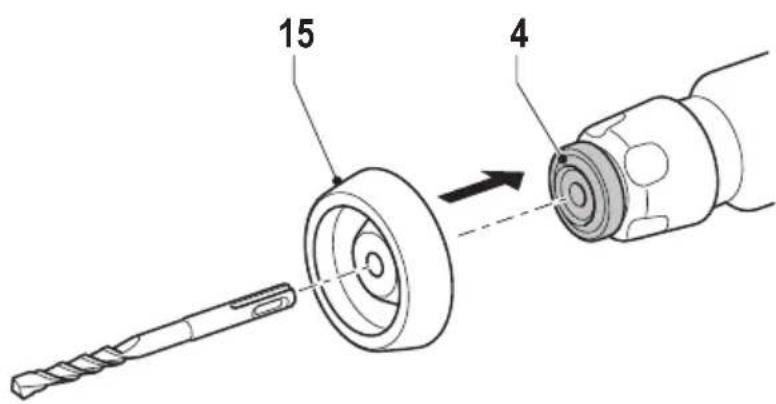

Mounting and removing the dust collector (fig. D)

The dust collector prevents dust from entering the machine when drilling into ceilings.

Immediately replace a damaged dust collector.

Mounting

• If necessary, remove the accessory from the chuck (4).
• Slide the dust collector (15) over the shaft of the accessory.
• Insert the accessory with the dust collector (15) into the chuck (4).

Removing

• Remove the accessory with the dust collector (15) from the chuck (4).
• Remove the dust collector (15) from the accessory.

Use

Switching on and off (fig. A)

• To switch on the machine, press the on/off switch (1).
• To switch off the machine, release the on/off switch (1).

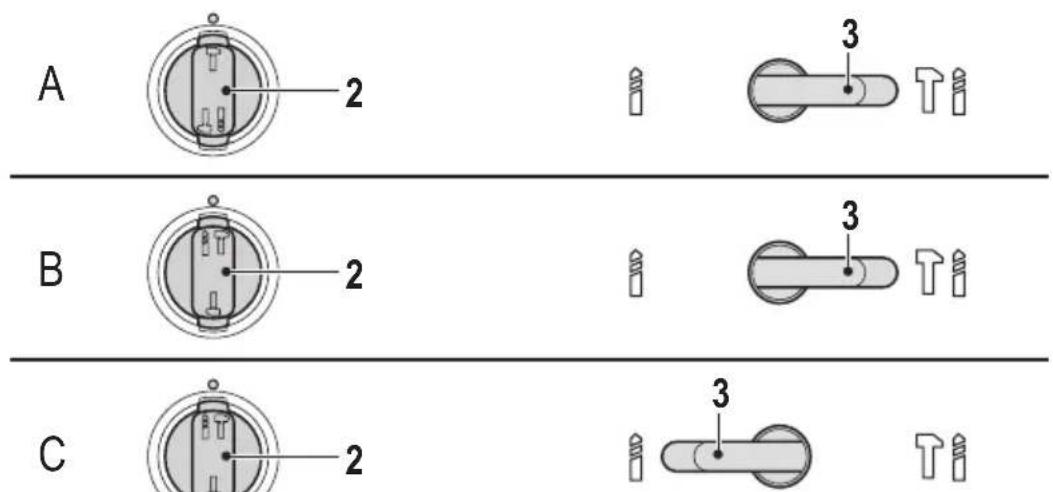

Setting the operating mode (fig. A & E)

The drill selection switch and the hammer selection lever must be set according to the required operating mode. Refer to the table below to set the required operating mode.

Setting (fig. E) Operating mode

A	Demolition hammer / Chisel
B	Hammer drill
C	Drill

- Turn the drill selection switch (2) and the hammer selection lever (3) to the required position.

Speed Preselection

The required speed can be preselected with the thumbwheel. Also during running the rotational speed can be adjusted.

$$ \begin{array}{l} 1 - 2 = \text { low speed } \ 3 - 4 = \text { medium speed } \ 5 - 6 = \text { high speed } \ \text { Max } = \text { maximum speed } \ \end{array} $$

The required speeds depends on the material and can be determined by practical testing.

Hints for optimum use

• Clamp the workpiece. Use a clamping device for small workpieces.
  • Firmly hold the machine by the grip.
• Set the operating mode.
• Switch on the machine.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

Cleaning and maintenance

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
- Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.

Lubrication

(fig. A)

• Regularly grease the shaft in which the accessories must be inserted.
• Regularly check the grease level inside the machine:

• Remove the cover from the lubrication point (9) using a screwdriver.
• Remove the cap from the lubrication point (9).
  • If necessary, add some grease into the lubrication point (9).
  • Mount the cap to the lubrication point (9).
• Mount the cover to the lubrication point (9) using a screwdriver.

Trouble shooting

Below we have listed a few probable causes and solutions to which you can refer if your circular saw does not function properly.

1. Machine fails to operate.

• Power turned off.
• (Extension) cable damaged.

2. The elektromotor hardly reaches maximum speed.

• The extension cable is too thin and/or too long.
  • The mains voltage is lower than 230 V.

3. Machine overheats.

• Air vents are blocked. Clean them with a dry cloth.
- The machine has been overloaded. Use the machine for the purpose it is made for.

4. Excessive sparking or elektromotor runs irregular.

• There's dirt inside the motor or the carbon brushes are worn.
• Replace the carbon brushes or bring the machine to a specialized repair centre.

Warranty

Consult the enclosed warranty terms.

Environment

Disposal

The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

BOHRHAMMER

3. La machine surchauffe.

Spare parts list

HDM1021

Position Description No.

706064 Front selection lever 43 TILL 50
806002	Bearing	52
706065 Big gear 56
800627	Bearing	59
806202	Bearing	65
706066 Rear selection knob 75
806001	Bearing	76
706067	Rotor	77
800608	Bearing	78
706068	Stator	84
706069 Carbon brush holder 89
706070 Carbon brush set 90
706071	Switch	95
706072	Capacitor	100
706073 Speed control		102
706074 Auxiliary handle		104 TILL 109

CE

DECLARATION OF CONFORMITY HDM1021 - ROTARY HAMMER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnici 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands
