Product type	Cordless drill/driver
Brand	Ferm
Model	PDM1037S
Battery voltage	12 V
Battery type	Lithium-ion
Battery capacity	1.5 Ah
Chuck	Keyless, 10 mm
Max. drilling diameter (wood)	25 mm
Max. drilling diameter (steel)	10 mm
No-load speed (min⁻¹)	0-600 / 0-1800
Max torque	30 Nm
Number of torque positions	18+1
Weight (with battery)	1.2 kg
Dimensions (L x W x H)	220 x 190 x 70 mm
Power supply	Battery (included in kit)
Main functions	Drilling, screwdriving, hammer
Safety	Spindle lock, motor brake, reverse switch
Maintenance and cleaning	Clean with a damp cloth, do not use aggressive solvents
Spare parts	Battery, charger, chuck, carbon brushes
Repairability	Repairable by a qualified professional
Warranty	2 years

Frequently Asked Questions - PDM1037S Ferm

How to change the chuck on the Ferm PDM1037S drill?

To change the chuck, use an Allen key to loosen the inner screw (if present) then unscrew the chuck counterclockwise. The new chuck is screwed on by hand.

What is the battery life of the Ferm PDM1037S?

The battery life depends on usage. With a 1.5 Ah battery, it can last about 30 minutes at full charge under continuous use. For light work, it can last several hours.

How to charge the drill battery?

Insert the battery into the provided charger. Plug the charger into a mains socket. The red light indicates charging, the green light indicates the battery is fully charged.

Can I drill into concrete with the Ferm PDM1037S?

Yes, this drill is equipped with a hammer function, which allows drilling into light concrete. Use a suitable hammer drill bit.

How to adjust the torque setting?

Turn the torque adjustment ring located behind the chuck. The numbers (1-18) correspond to different torque levels. The drill mode (drill icon) disables the torque limitation.

How to reverse the rotation direction?

Use the reverse switch located above the trigger. Push it to the left for forward rotation (screwing) and to the right for reverse rotation (unscrewing).

What to do if the drill does not start?

Check that the battery is charged and properly inserted. Make sure the reverse switch is not in the neutral position. If the problem persists, contact customer service.

How to maintain the Ferm PDM1037S drill?

Regularly clean the ventilation slots with a soft brush. Wipe the housing with a damp cloth. Do not immerse in water. Grease the chuck occasionally.

Where to buy spare parts for the Ferm PDM1037S?

Spare parts (battery, charger, chuck) are available from authorized Ferm dealers or on the official website. Use original parts to ensure safety.

Are Ferm batteries interchangeable between models?

Yes, Ferm 12V series batteries are generally compatible with all tools of the same series. However, check the compatibility in the manual.

USER MANUAL PDM1037S Ferm

Exterior view of a black and blue FBPIM drill press tool against a concrete wall (no text or symbols visible on the device body)

PDM1037S

EN Original instructions
DE Übersetzung der Originalbetriebsanleitung 7
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 12
FR Traduction de la notice originale 17
ES Traducción del manual original 22
PT Tradução do manual original 27
IT Traduzione delle istruzioni originali 32
SV Översättning av bruksanvisning i original 37
FI Alkuperäisten ohjeiden käännös 41
NO Oversatt fra orginal veiledning 45
DA Oversættelse af den originale brugsanvisning 49
3

HU Eredeti használati utasítás fordítása 00
CS Překlad původního návodu k používání 00
SK Prevod izvirnih navodil 00
PL Tłumaczenie instrukcji oryginalnej 00
LT Originalios instrukcijos vertimas 00
LV Instrukciju tulkojums no originālvalodas 00
RO Traducere a instructiunilor originale 00
RU Перевод исходных инструкций 00
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 00
AR قيلىصألا تاميلىعىتلا قمجرت 00
TR Orijinal talimatların çevirisi 00

IMPACT DRILL PDM1037S

Thank you for buying this FERM product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

1.SAFETYWARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Wear safety goggles. Wear hearing protection.

Wear a dust mask.

Doubleinsulated

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

ADDITIONAL SAFETY WARNINGS FOR IMPACT DRILLS

Wear ear protectors when impact drilling.

Exposure to noise can cause hearing loss.

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.

Class II machine - Double insulation - You don't need any earthed plug.

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/5A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code:

blueneutral

brownlive

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

2. MACHINE INFORMATION

Intended use

Your impact drill has been designed for drilling holes in wood, metal and plastics and for hammer drilling in brick and concrete.

Technical specifications

Mains voltage 230-240 V~
Mains frequency 50 Hz
Power input 1010W
No-load speed (1) 0-1.000 /min
No-load speed (2) 0-3.000 /min
Impact rate (1) 0-16.000 /min
Impact rate (2) 0-48.000 /min
Max. chuck size 13 mm
Max. drill diameter
Wood 40 mm
Concrete 16 mm
Steel 13 mm
Weight	2.77 kg
Noise values
Sound pressure ( L_PA )	87.36 + 3 dB(A)
Acoustic power ( L_WA )	98.36 + 3 dB(A)
Vibration values
Drilling into metal, a_h,D	10.667 + 1.5 m/s ^2
Impact drilling into concrete, a_h,ID	13.957 + 1.5 m/s ^2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Description

The numbers in the text refer to the diagrams on pages 2-3.

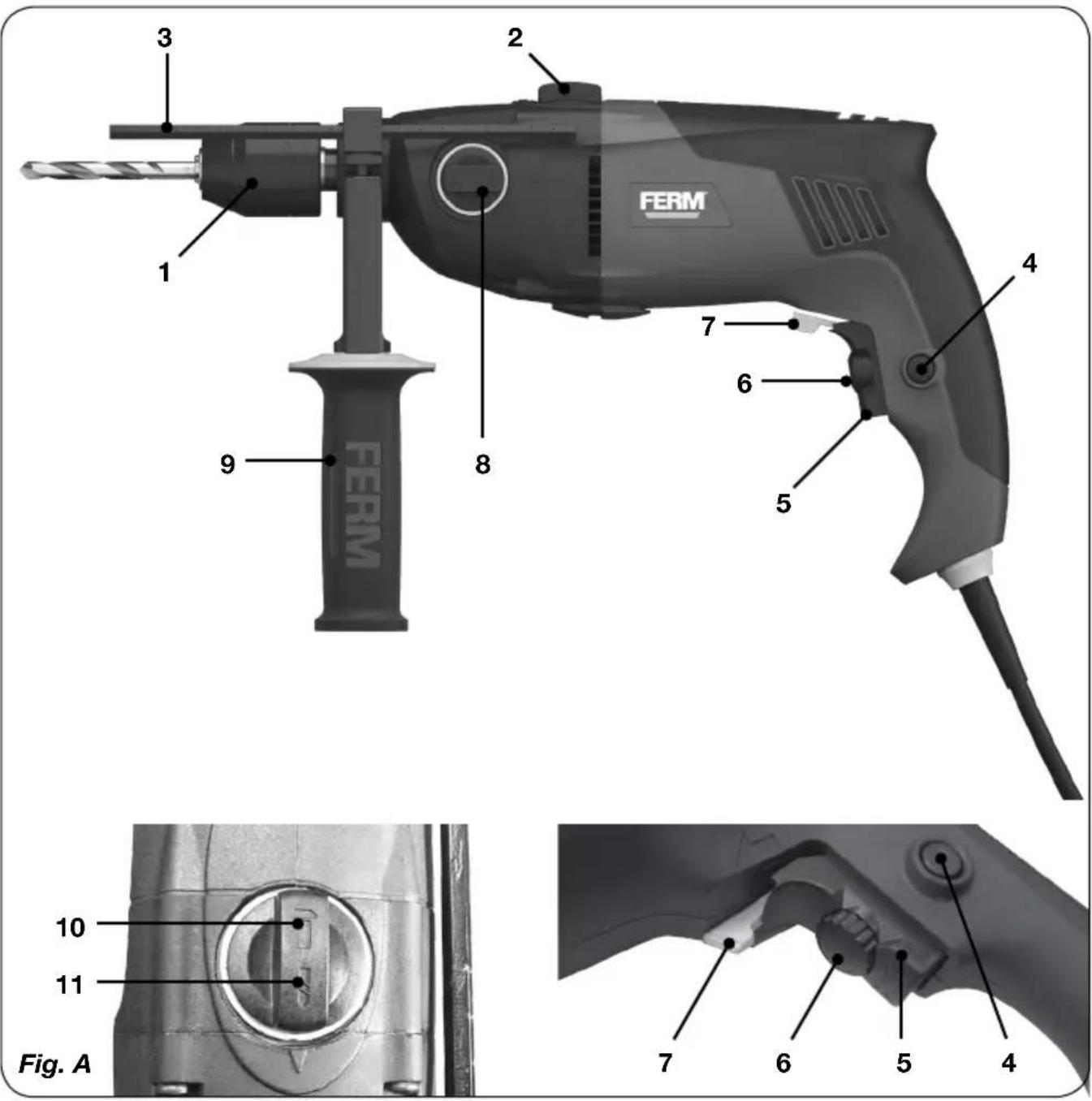

Fig. A

1. Chuck
2. Function selection switch
3. Depth stop
4. Lock-on button
5. On/Off switch
6. Speed adjustment wheel
7. Left/right rotation switch
8. Gear selection switch
9. Side handle
10. Function selection: Hammer drilling
11. Function selection: Drilling

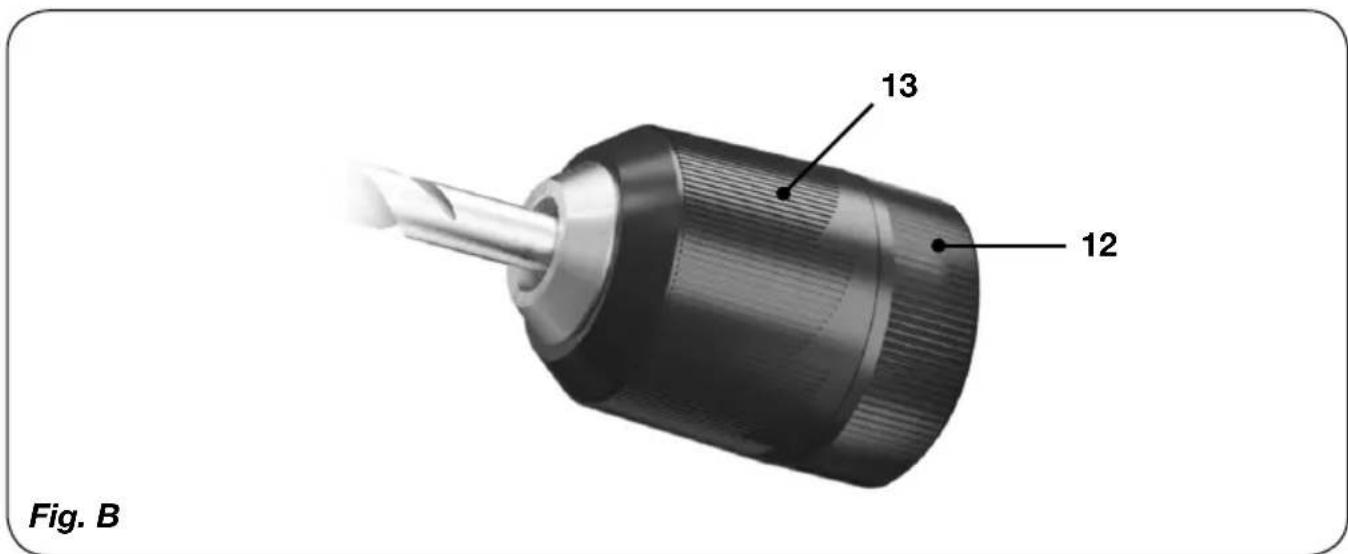

Fig. B

1. Rear sleeve

2. Front sleeve

3. OPERATING

Impact drills require very little operator pressure. Excessive pressure on the tool can lead to unnecessary overheating of the motor, and burning of the driven tool.

Side handle

Fig. A

The side handle (9) can be rotated 360^0 around the drill head, enabling safe and comfortable operation for both left and right-handed users.

• Loosen the side handle (9) by turning it anticlockwise.
• Rotate the side handle to the desired position.
• Retighten the side handle in the new position by turning it clockwise

Exchanging and removing drill bits

Fig. A - B

Before exchanging bits, first remove the power plug from the wall socket.

Inspect bits regularly during use. Blunt bits should be re-sharpened or replaced.

• Open the chuck (1) by turning the front sleeve (13) clockwise while simultaneously holding the rear sleeve (12) or turning it counterclockwise and insert the bit into the chuck opening.
• Tighten the bit by turning the front sleeve (13) counterclockwise while simultaneously holding the rear sleeve (12) or turning it clockwise. The chuck has a lock function; you will hear a couple of “clicks” once the bit is tightened.

Setting depth stop

Fig. A

• Loosen the side handle (9) by turning it counterclockwise.
• Insert the depth stop (3) through the hole in the side handle ring.
• Slide the ruler to the desired depth.
• Retighten the screw firmly by turning it clockwise

The On/Off switch

Fig. A

• Switch the machine on by pressing the On/Off switch (5). When you release the On/Off switch (5) the machine will turn off.
• The rotation-speed can be adjusted by pressing the On/Off switch (5) harder for raising the rotation-speed or release pressure for lowering the rotation-speed.

Lock-on Button

Fig. A

• You can lock the On/Off switch (5) by pressing the On/Off switch (5) and then pressing the lock-on button (4).
• To release the switch-lock; shortly press the On/Off switch (5) again.

Adjusting of the maximum rotation speed

Fig. A

• Switch the machine on by pressing the On/Off switch (5).
• Lock the On/Off switch (5) by pressing the lock-on button (4).
• Adjust the speed by turning the speed adjustment wheel (6) to the desired maximum rotation speed.

Switching the direction of rotation

Fig. A

Do not change the direction of rotation during use.

• Direction of rotation counter-clockwise: shift left/right rotation switch (7) to “.”
• Direction of rotation clockwise: shift left/right rotation switch (7) to “ ”

Function selection switch

Fig. A

In order to avoid damage to the machine, adjusting the function selection switch (2) shall only be done when machine is not running

• Set the function selection switch (2) to (11) for drilling.
• Set the function selection switch (2) to (10) for hammer drilling.

Gear selection switch

Fig. A

In order to avoid damage to the machine, adjusting the gear selection switch (8) shall only be done when machine is not running.

• If you set the gear selection switch (8) to position "1", the drilling speed can be adjusted between 0 and 1.000 /min.
• If you set the gear selection switch (8) to position "2", the drilling speed can be adjusted between 0 and 3.000 /min.
• When the gear selection switch (8) cannot switch easily between “1” and “2”, give the chuck (1) a little spin by using your hands. This will help the gears fall into the correct position and makes switching the gears easier.

User tips

Always use the machine with the side handle firmly anchored in place - you will not only work with more comfort, you will also work with more precision.

Caution: drilling bits and hammer drilling bits can get very hot

Drilling and hammer drilling

• For large holes, for instance in very hard concrete, start using a smaller bit for pilot drilling first, then drill to nominal size.
• Hold the machine firmly with 2 hands. Be aware the drill can jam and because of that machine might suddenly turn (Especially when drilling deep holes).
• Do not apply a lot of pressure on the machine, let the machine do the work.

4. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

Carbon brush

If the carbon brushes are worn, the carbon brushes must be replaced by the customer service department of the manufacturer or a similarly qualified person.

Only use the correct original type of carbon brushes.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Defects

The machine should be regularly inspected for the following possible defects, and repaired if necessary.

• Damage to power cord
• Broken on/off switch
• Shortcircuiting
• Damaged moving parts

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

SCHLAGBOHRMASCHINE PDM1037S

KLOPBOORMACHINE PDM1037S

1. VEILIGHEIDSWAARSCHUWINGEN

WAARSCHUWING

1. Takalaippa

2. Etulaippa

3. KÄYTTÖ

1. Bakre hylse
2. Fronthylse

3. DRIFT

CE

DECLARATION OF CONFORMITY PDM1037S - IMPACT DRILL

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előlrásoknak: je v souladu se směrnici 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. jūna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Výhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpísmí: Je v súlade s normou 2011/65/EÚ Európske ho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronikom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2001/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje įrangje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem: Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornošu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovomošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα όπι το προϊόν αυτό συμφωνεί και τηρει τους παρακάτω κανονισμούς και πρότυπα: συμμορφώνεται με την Οδηγία 2011/65/EE του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον περιαρισμό της χρήσης ορισμένων επικίνδυνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.
(AR) قيذاتلا شامیچ رشلاو ریمیاعبلا عم قفابوئي چکنجلا انداً اندح و انتتیلوی سم یلید نلیدن
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.

EN55014-1, EN55014-2, EN60745-1, EN60745-2-1, EN61000-3-2, EN61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2011/65/EC, 2012/19/EC

Zwolle, 01-06-2014

W.Dekens

CEO FERM B.V.

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

FERM B.V. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands

Dark, grainy surface with irregular cracks and small dark spots, no visible text or symbols.
