PDM1046 - Drill Ferm - Free user manual and instructions

Product type	Hammer drill
Brand	Ferm
Model	PDM1046
Supply voltage	230 V ~ 50 Hz
Power consumption	700 W
No-load speed	0 - 2800 rpm
Number of speeds	1
Drilling capacity (steel)	13 mm
Drilling capacity (wood)	35 mm
Drilling capacity (concrete)	16 mm
Chuck	Self-tightening 13 mm
Hammer function	Yes
Forward/reverse	Yes
Variable speed	Yes, by trigger
Trigger lock	Yes
Auxiliary handle	Yes, adjustable
Adjustable drilling depth	Yes, with depth stop
Net weight	1.9 kg
Power cord	2.5 m
Protection class	II (double insulation)
Maintenance and cleaning	Unplug before cleaning; use a damp cloth; do not immerse; grease the chuck regularly
Spare parts and repairability	Carbon brushes, chuck, switch available; repair by a professional recommended

Frequently Asked Questions - PDM1046 Ferm

What is the power of the Ferm PDM1046 drill?

The Ferm PDM1046 drill has a power of 700 W, allowing it to drill efficiently in wood, metal, and concrete.

Is the Ferm PDM1046 a hammer drill?

Yes, the Ferm PDM1046 is a hammer drill: it can drill into brick and concrete in hammer mode.

What is the maximum drilling diameter in steel?

The maximum drilling diameter in steel is 13 mm.

How do I change the rotation direction on the Ferm PDM1046?

Use the forward/reverse switch located above the trigger to reverse the rotation direction. This allows screwing or unscrewing.

Is the drill supplied with an auxiliary handle?

Yes, the Ferm PDM1046 comes with an adjustable auxiliary handle for better control and increased safety.

How do I adjust the drilling depth?

Use the supplied depth stop: insert it into the hole on the side of the chuck and adjust it to the desired depth.

What type of chuck is on the Ferm PDM1046?

The drill is equipped with a self-tightening 13 mm chuck that allows quick and tool-free bit changes.

How do I maintain the drill?

Always unplug the device before any maintenance. Clean the housing with a damp cloth and dry it. Grease the chuck occasionally and check the condition of the carbon brushes.

Where can I find spare parts for the Ferm PDM1046?

Spare parts such as carbon brushes, the chuck, or the switch are available at authorized Ferm dealers or online. For complex repairs, contact after-sales service.

Does the drill have a variable speed?

Yes, the speed is variable and is controlled by the pressure on the trigger: the harder you press, the higher the speed.

USER MANUAL PDM1046 Ferm

Blue FERM power tool with drill bit and handle, shown against black background (no text or symbols on the tool itself)

PDM1046

EN Original instructions 04
DE Übersetzung der Originalbetriebsanleitung 08
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 12
FR Traduction de la notice originale 16
ES Traducción del manual original 20
PT Tradução do manual original 24
IT Traduzione delle istruzioni originali 28
SV Översättning av bruksanvisning i original 32
FI Alkuperäisten ohjeiden käännös 36
NO Oversatt fra orginal veiledning 40
DA Oversættelse af den originale brugsanvisning 44
HU Eredeti használati utasítás fordítása 48
CS Překlad původního návodu k používání 52
SK Prevod izvirnih navodil 56

SL Preklad pôvodného návodu na použitie 60
PL Tłumaczenie instrukcji oryginalnej 64
LT Originalios instrukcijos vertimas 68
LV Instrukciju tulkojums no originālvalodas 72
ET Algupärase kasutusjuhendi tölge 76
RO Traducere a instructiunilor originale 80
HR Prevedeno s izvornih uputa 84
SR Prevod originalnog uputstva 88
RU Перевод исходных инструкций 92
UK Переклад оригінальних інструкцій 97
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 101
BG Превод на оригиналната инструкция 105
МК Оригинални упатства 110

CE

IMPACT DRILL PDM1046

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.

All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

SAFETY WARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and the instructions.

Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury.

Keep the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Wear safety goggles.

Wear hearing protection.

Wear a dust mask.

Wear safety gloves.

Variable electronic speed.

Double insulated.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for impact drills

- Do not work materials containing asbestos. Asbestos is considered carcinogenic.

- Wear safety goggles.

- Wear hearing protection to avoid the risk of hearing loss.

- If necessary, use other protective means, such as safety gloves, safety shoes, etc.

- Hold the machine with one hand on the main grip and the other hand on the auxiliary grip. Risk of personal injury.

- Hold the machine by the insulated gripping surfaces where the accessory may contact hidden wiring or the mains cable. If the accessory contacts a 'live' wire, the exposed metal parts of the machine can also become 'live'. Risk of electric shock.

- Do not use accessories which are not specifically designed and recommended by the manufacturer. Risk of personal injury.

- Only use accessories that are suitable for use with the machine.

- Only use accessories with the correct dimensions. Make sure that the accessories are properly mounted.

- Inspect the machine and the accessories before each use. Do not use accessories which are bent, cracked, or otherwise damaged. If the machine or one of the accessories is dropped, inspect the machine or the accessory for damage. If necessary, replace the accessory.

- Let the machine run at no load in a safe area after mounting the accessories. If the machine vibrates strongly, immediately switch off the machine, remove the mains plug from the mains, and try to solve the problem.

• Make sure that the maximum speed for the

accessory is larger than or the same as the maximum speed of the machine. Refer to the rating plate on the machine.

• Before use, remove all nails and other metal objects from the workpiece.
• Make sure that the workpiece is properly supported or fixed.
• Keep your hands away from the workpiece during use.
• Never put the machine down on a table or a workbench before it has been switched off.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm^2 . If you use a extension cable reel, always fully unroll the cable.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/5A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code: blueneutral brownlive

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

TECHNICAL DATA

PDM1046

MainsvoltageV~230
MainsfrequencyHz50
PowerinputW500
No-load speed min-1 0 - 3,000
Impact rate min-1 0 - 48,000
Max.drillbitdiameter	Woodmm 25
	Concretemm 13
	Steelmm 10
Protectionclass	IP20
Weight	kg1.8

Noise and vibration

PDM1046

Soundpressure(Lpa)	dB(A)97.7
Acousticpower(Lwa)	dB(A)108.7
Uncertainty(K)	dB(A)3
Impactdrillingmode	m/s218.64
Drillintometal	m/s22.98
Uncertainty(K)	m/s21.5

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

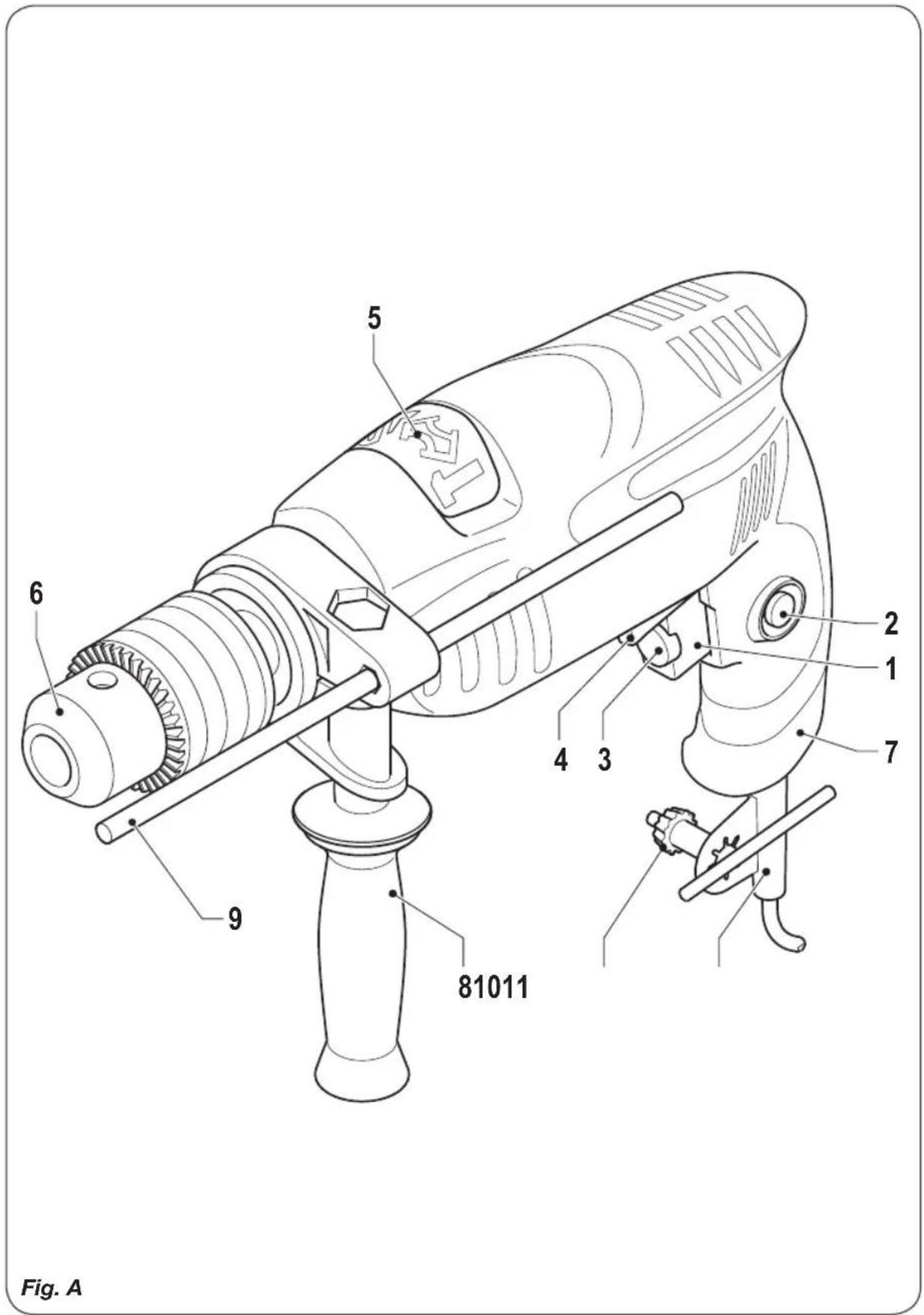

DESCRIPTION (FIG. A)

Your impact drill has been designed for drilling holes in wood, metal and plastics and for hammer drilling in brick and concrete.

1. On/offswitch
   2.Lock-onbutton
2. Speedadjustmentwheel

3. Forward/reverseswitch

4. Switch for drilling / hammer drilling

6.Chuck
7. Maingrip
8.Auxiliarygrip
9.Depthstop
10.Chuckkey
11.Chuckkeyholder

ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and removing the drill bit (fig. B)

The machine is suitable for use of the following drill bits:

-Wood(HSS)
-Metal(HSS)
- Concrete / masonry (hard metal)

Mounting

• Place the chuck key (10) into one of the holes in the chuck (6).
• Open the chuck (6) by turning the chuck key (10) counterclockwise.
• Insert the drill bit (12) into the chuck (6).
• Close the chuck (6) by turning the chuck key (10) clockwise.
• Remove the chuck key (10) from the chuck (6).

Removing

• Place the chuck key (10) into one of the holes in the chuck (6).
• Open the chuck (6) by turning the chuck key (10) counterclockwise.
• Remove the drill bit (12) from the chuck (6).
• Close the chuck (6) by turning the chuck key (10) clockwise.
• Remove the chuck key (10) from the chuck (6).

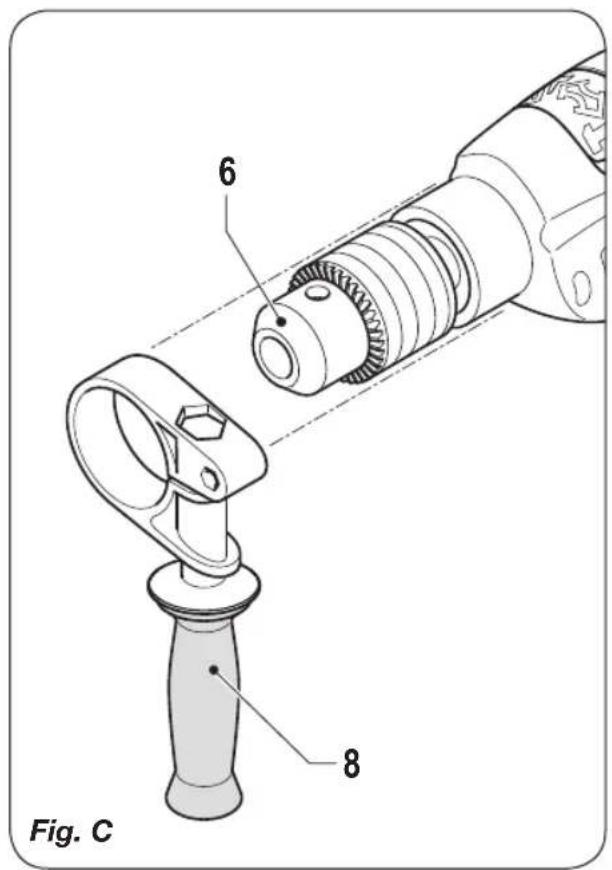

Mounting and removing the auxiliary grip (fig. C) Mounting

• Loosen the auxiliary grip (8).
• Slide the auxiliary grip (8) over the chuck (6).
• Turn the auxiliary grip (8) to the required position.
• Tighten the auxiliary grip (8).

Removing

• Loosen the auxiliary grip (8).
• Remove the auxiliary grip (8) from the chuck (6).
• Tighten the auxiliary grip (8).

Mounting and removing the depth stop (fig. D)

The depth stop is used to set the maximum drilling depth.

Mounting

• Loosen the auxiliary grip (8).
• Insert the depth stop (9) through the hole in the auxiliary grip (8).
• Set the depth stop (9) to the required position.
• Tighten the auxiliary grip (8).

Removing

• Loosen the auxiliary grip (8).
• Remove the depth stop (9) from the auxiliary grip (8).
• Tighten the auxiliary grip (8).

USE

Switching on and off (fig. A)

• To switch on the machine, press the on/off switch (1). The further the on/off switch (1) is pressed, the higher the speed of the machine.
• To switch the machine to continuous mode, keep the on/off switch (1) pressed and simultaneously press the lock-on button (2).
• To switch off continuous mode, press the on/off switch (1) again.
• To switch off the machine, release the on/off switch (1).

Forward/reverse switch (fig. A)

Do not change the direction of rotation during use.

• For clockwise rotation, slide the forward/reverse switch (4) to the left.
• For counterclockwise rotation, slide the forward/reverse switch (4) to the right.

Setting the maximum drilling speed (fig. A)

Do not set the speed during use.

• Turn the speed adjustment wheel (3) clockwise to increase the maximum drilling speed.
• Turn the speed adjustment wheel (3) counterclockwise to decrease the maximum drilling speed.

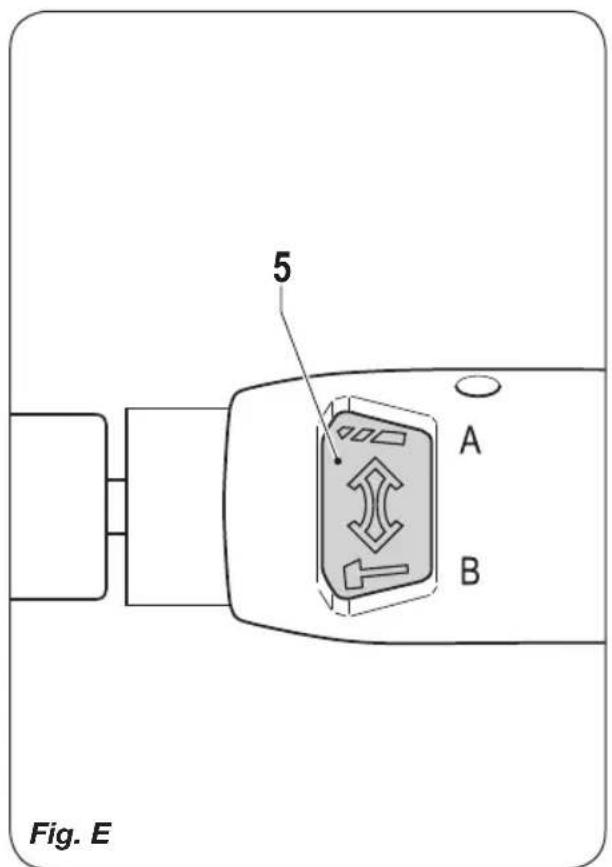

Setting the operating mode (fig. E)

Do not change the operating mode during use.

• Set the switch (5) to position "A" for drilling.
• Set the switch (5) to position "B" for hammer drilling.

Hints for optimum use

• Clamp the workpiece.
• Firmly hold the machine with both hands.
• Place the drill bit on the workpiece.
• Switch on the machine.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
- Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.
- Regularly clean the chuck and the drill bit to avoid inaccuracies during use.

Replacing the drill bit (fig. B)

• To remove the drill bit (12), proceed as described in the section "Mounting and removing the drill bit".
• To mount the drill bit (12), proceed as described in the section "Mounting and removing the drill bit".

WARRANTY

Consult the enclosed warranty terms.

ENVIRONMENT

Disposal

The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

SCHLAGBOHRMASCHINE PDM1046

10.Spannfutterschlüssel

BESCHRIJVING (FIG. A)

TECHNINIAI DUOMENYS PDM1046

CE

DECLARATION OF CONFORMITY PDM1046 - IMPACT DRILL

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht, den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk ultrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előirásoknak: je v souladu se směmici 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na naši vlastní zodpovědnost prohlášujeme, že je tento výrobek v souladu s následujícími standardy a nomami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je vzhode a súlade s nasledujúcimi normami a predpísmí. Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebez pečných látok v elektrickom a elektronickom vybavení.

(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevamih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2001/65/UE Parła mentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka żemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikru pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standar- tiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornol,šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8. juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(BG) Ние декларираме на наша отговорност, че този продукт отговаря на съответствие с Директива 2011/65/EC на Европейския парламент и на Съвета от 8 юни 2011 г. относно ограничението на употребата на определени опасни вещества в електрическото и електронното оборудване, в съответствие с следните стандарти и наредби
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμμοφίνωτει με την οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλιου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον περιορισμό της χρήσης ορισμένων επικίνδυνων συσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.
(AR) تيّلاتلا تاعي جوئلار ري قي اعجبا عم فضاوتي چتنجبا اذه ناً أندح و انتيولو قىسم قildع نكىن
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.
(MK) Изјавуваме со наша цепосна одговорност дека производот е во согласност со Смерницата 2011/65/EU на Европскиот парламент и е во согласност според Советот од 9 јни за ограничување на користење на одредени опасни супстанции во електричината и електронската опрема и дека е според следните стандарди и регулативи:

EN 55014-1, EN 55014-2, EN 60745-1, EN-60745-2-1, EN 61000-3-2, EN 61000-3-3

2004/108/EC, 2006/95/EC, 2006/42/EC, 2012/19/EU, 2011/65/EU

Zwolle, 01-07-2016

H.G.FRosberg CEO FERM B.V.

FERM B.V. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
