CDM1114S - Drill Ferm - Free user manual and instructions

Brand	Ferm
Model	CDM1114S
Category	Hammer drill
Power source	Mains (corded)
Rated voltage	230 V ~ 50 Hz
Rated power	650 W
No-load speed (variable)	0 - 2800 rpm
Impact rate	0 - 44800 bpm
Drilling capacity (wood)	25 mm
Drilling capacity (metal)	13 mm
Drilling capacity (concrete)	13 mm
Chuck type	Keyless chuck
Chuck diameter	1.5 - 13 mm
Rotation direction	Left / Right (reversible)
Weight	1.9 kg
Cable length	2 m
Double insulation	Yes (class II)
Work light	Integrated LED
Auxiliary handle	Auxiliary handle included
Included accessories	Auxiliary handle, depth stop
Maintenance	Clean with a dry cloth; regularly check carbon brushes
Repairability	Replacement parts available; professional repair recommended

Frequently Asked Questions - CDM1114S Ferm

How to change the chuck of the CDM1114S drill?

The chuck is keyless. To remove it, open the chuck fully, then insert an Allen key into the set screw (located inside the chuck). Turn clockwise to unscrew. The chuck can then be unscrewed by hand. To reassemble, reverse the steps.

What power for drilling concrete with the Ferm CDM1114S?

With a power of 650 W and an impact rate of 44800 bpm, the drill is suitable for drilling concrete up to 13 mm in diameter. Use specific concrete drill bits and activate the hammer function.

How to reverse the rotation direction?

The reverse switch is located above the trigger. For drilling, set it to forward (arrow pointing forward). To unscrew or remove a stuck bit, switch it to reverse. Never change direction while the motor is still running.

What to do if the drill does not start?

First, check that the power cable is properly plugged in and the socket works. Then check the socket fuse. If the drill still does not start, the carbon brushes may be worn; replace them or have them checked by a professional.

What type of oil to use for maintenance?

No lubrication is needed for the motor. Lightly grease the chuck occasionally with a drop of fine oil. Do not use thick grease that could jam the mechanism.

The drill sparks at the motor, is this normal?

Small sparks under the brushes are normal during operation. If sparks are excessive or accompanied by a burning smell, the carbon brushes are likely worn and need replacing.

How to adjust the depth stop?

Insert the depth stop into the hole on the auxiliary handle. Loosen the locking screw, adjust the desired depth, then tighten. The stop prevents drilling too deep.

What drill bits to use for metal?

Use HSS (high-speed steel) drill bits for metal. Drill at low speed and use a lubricant (cutting oil) to prevent the bit from overheating.

Can I use the drill as a screwdriver?

Yes, by disabling the hammer function and setting the torque to a low level (if your model has a torque setting). Use appropriate screwdriver bits.

How to clean the Ferm CDM1114S drill?

Always unplug the device before cleaning. Clean the housing with a slightly damp cloth. Never use solvents or abrasive products. The ventilation slots should be cleared of dust using a soft brush.

USER MANUAL CDM1114S Ferm

Blue FERM electric drill put tool with black body and orange handle, displayed on a base (no visible text or symbols on the device body)

Blue FERM electric drill put tool with black body and orange handle, displayed on a base (no visible text or symbols)

CDM1113S / CDM1114S

EN Original instructions 05
DE Übersetzung der Originalbetriebsanleitung 11
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 18
FR Traduction de la notice originale 25
ES Traducción del manual original 32
PT Tradução do manual original 39
IT Traduzione delle istruzioni originali 46
SV Översättning av bruksanvisning i original 53
FI Alkuperäisten ohjeiden käännös 59
NO Oversatt fra orginal veiledning 65
DA Oversættelse af den originale brugsanvisning 71

HU Eredeti használati utasítás fordítása 77
CS Překlad původního návodu k používání 83
SK Prevod izvirnih navodil 90
PL Tłumaczenie instrukcji oryginalnej 97
LT Originalios instrukcijos vertimas 104
LV Instrukciju tulkojums no originālvalodas 111
RO Traducere a instructiunilor originale 118
RU Перевод исходных инструкций 124
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 132
AR ئي ل ص ألا ت ام ي ل ع ت لا ة م ج ر ت 139
TR Orijinal talimatların çevirisi 144

Fig. A

Two views of a handheld device with labeled parts, showing internal components and directional arrows (no text or symbols on the device itself)

White electronic device with labeled parts (2 and 4), no visible text or symbols on the body itself.

Cordless Li-Ion Drill 14.4V / 18V CDM1113S / CDM1114S

Thank you for buying this Ferm product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety

warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock

Variable electronic speed

Rotation, left/right

Do not use in rain

Indoor use only

Class II machine - Double insulation - You don't need any earthed plug.

In case of failure, the transformer is not dangerous

Max temperature 40^ C

Do not throw the battery into fire

Do not throw the battery into water

Do not dispose of the product in unsuitable containers.

Separate collection for Li-ion battery.

Time-lag miniature fuse-link

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for drills and screw drivers

a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

For the charger Intended use

Charge only 14.4V or 18.0V MAX 1.5Ah Li-ion type rechargeable battery packs. Other types of batteries may burst causing personal injury and damage.

a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
b) Children being supervised not to play with the appliance
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!

Residual risks

Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool's construction and design:

a) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
b) Injuries and damage to property to due to broken accessories that are suddenly dashed.

Warning! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this power tool.

Power cord replacement

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Mains plug replacement (UK plug of charger only)

If the molded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS1363/5A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are colored in accordance with the following code:

• blue neutral
• brown live

As the colors of the wires in the mains cable of the unit may not correspond to the colored markings identifying the terminals in the plug, proceed as follows:

• The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black.
• The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red.

2. MACHINE INFORMATION

Intended use

This cordless drill is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

Technical specifications

Model No CDM1113S CDM1114S
Charger CDA1080S
Input of charger 230-240 V ~ 50Hz 45W
Output of charger 10.8-18V DC 2A
Rechargeable Battery pack	14,4 V --- 18 V --- Li-ion 1.5Ah Li-ion 1.5Ah
Battery charging time 1 hour
Chuck capacity 1.5-13 mm
Torque settings 23 + Drill mode
No load speed
Position 1:	0-400 /min
Position 2:	0-1400 /min

Weight (incl. battery) 1,44 kg 1,50 kg
Sound pressure level L_PA	66.23 dB(A)K=3 dB(A)	66.40 dB(A)K=3 dB(A)
Sound power level L_WA	77.23 dB(A)K=3 dB(A)	77.40 dB(A)K=3 dB(A)
Hand-arm vibration a_h (screwdriving without impact)	0.627m/s ^2 K=1.5 m/s ^2	0.846m/s ^2 K=1.5 m/s
Hand-arm vibration a_h,D (Drilling into metal)	1.454 m/s ^2 K=1.5 m/s ^2	1.843m/s ^2 K=1.5 m/s ^2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Description

The numbers in the text refer to the diagrams on pages 2-4

Fig. A

1. Machine
2. Battery
3. Battery unlock button
4. Battery charge indication
5. Charger
6. Charger LED indicators
7. Chuck
8. Gear selection switch
9. Direction switch
10. On / off switch
11. Torque adjustment ring
12. Work light
13. Belt hook

Lithium-Ion technology

The batteries provided with this machine have Lithium-Ion technology.

One advantage of using Lithium-Ion batteries is that, until the battery is almost empty, hardly and power fading is noticeable. The machine can be used until you start noticing that the power of the drill is elapsed. The battery is discharged now and needs to be charged.

Another advantage is that Lithium-Ion batteries have no memory effect. Therefore they can be charged at any moment without degrading, independent of the charging state of the battery.

3. OPERATING

The battery must be charged before first use.

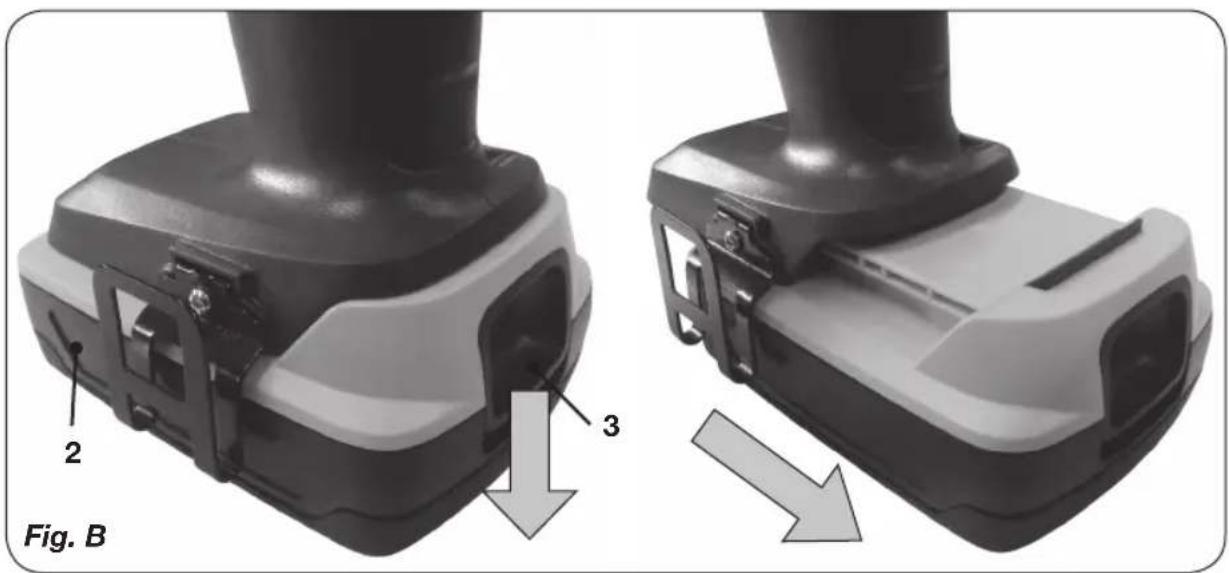

Removing the battery from the machine Fig. B

• Hold the machine (1) firmly with one hand
• Push down the battery unlock button (3) located on the rear side of the battery (2) with the other hand.
• Keep pushing this button (3) down and slide the battery backwards out of the machine, like shown in Fig. B.

Inserting the battery into the machine

Fig. B

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

• Hold the machine (1) firmly with one hand
• Insert the battery (2) into the base of the machine as shown in Fig. B.
• Push the battery further forward until it clicks into place.

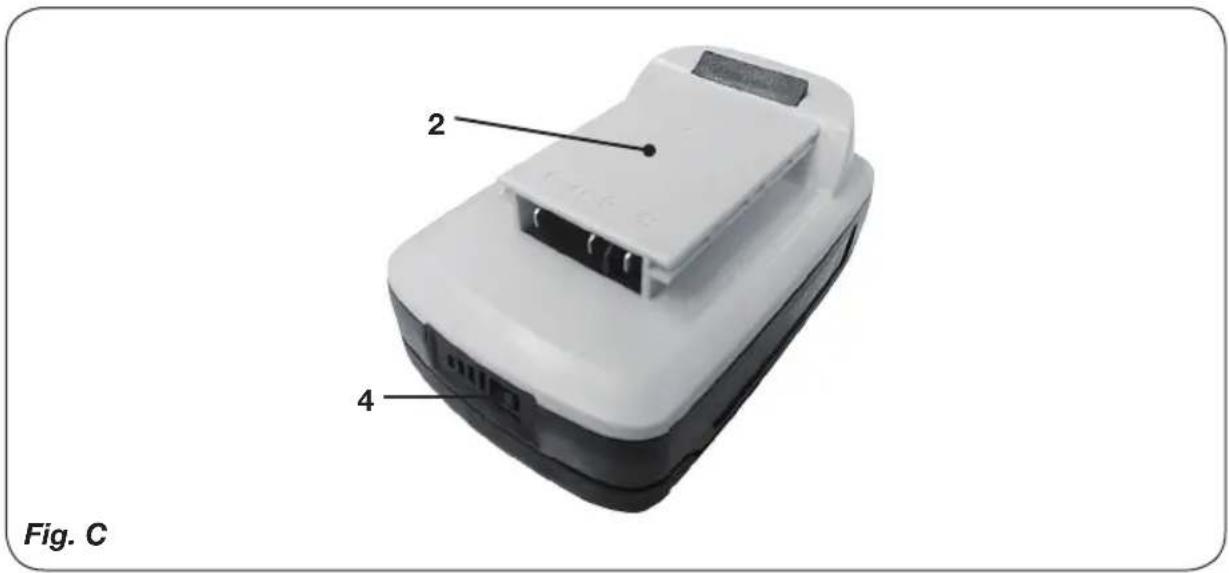

Checking the battery charging status

Fig. C

The included battery is delivered in partly charged condition.

• To check the battery charge status, push the button (4) on battery shortly.
• The battery has 4 lights indicating the charge level, the more lights that burn, the more charge the battery has left.
• When the lights are burning RED it means the battery is empty and must be charged immediately.

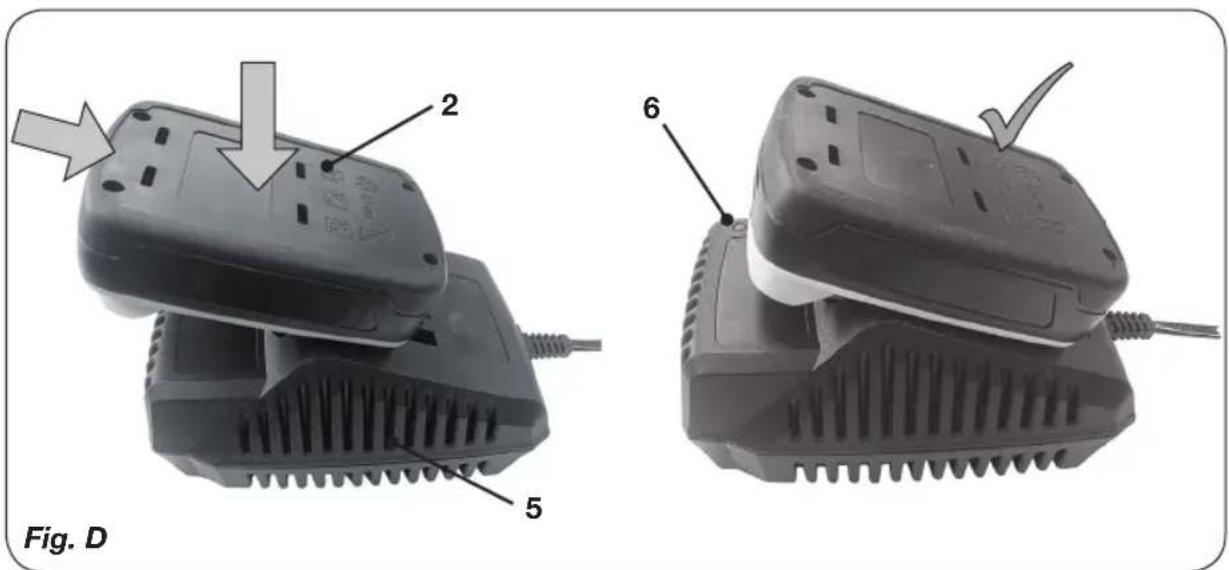

Charging the battery (with the charger) Fig. D

• Take the battery (2) from the machine
- Turn the battery (2) to upside down position and slide it onto the charger (5) as shown in Fig. D.
- Push the battery until it is fully pushed into the slot.
- Plug the charger plug into an electrical outlet and wait for a while. The LED indicators on

the charger (6) will lighten up and show the charger status.

LED indicators (6)

Fig.D
The charger has 2 LED indicators (6) which indicate the status of the charging process:

Red LED status:	Green LED status:	Charger status
Off Off No power
Off On		Standby mode:-No battery is inserted or,-Battery inserted but charging has finished more then 2 hours ago
On Off Defective battery
Blinking Off Battery charging in progress
Off Blinking		Battery charging finished, battery fully charged
On On		Battery is too hot, charging progress is on hold. Charging will start automatically after the battery has cooled down.

• Fully charging the battery may take up to 60 minutes.
• After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.
• The battery can be stored or directly installed on the machine.

Lithium-Ion cells can be stored for a long period without losing much of their charge. When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

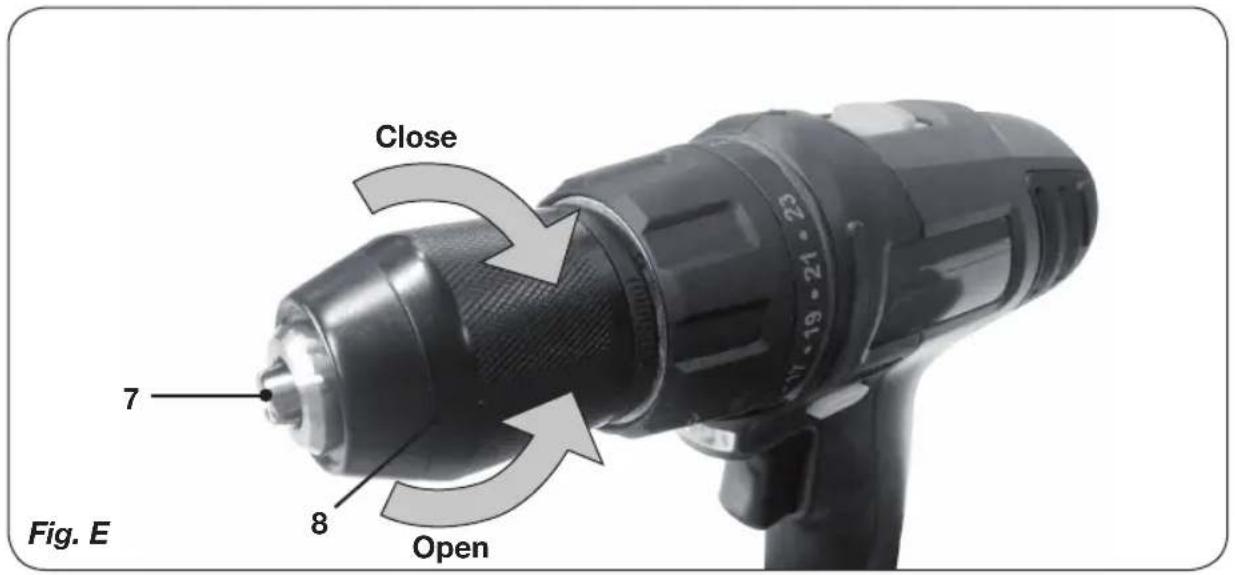

Fitting and removing drills or screwdriver bits Fig. E

Always remove the battery before mounting an accessory.

The drill chuck (7) is suitable for drills and screwdriver bits with round shaft as well as hexagonal shaft.

• Hold the machine firmly with one hand
• Open the drill chuck (7) by rotating the chuck

sleeve (8) with your other hand in clockwise direction until it is opened far enough for the bit to slide in.

• Insert the shaft of the drill or screwdriver bit
• Tighten the drill chuck again by firmly rotating the chuck sleeve (8) counterclockwise.
• Check if the bit is centered well by shortly activating the machine's on/off switch.

Adjusting the gears

Fig. F

Never switch gears when the motor is running, this will damage your machine.

Never put switch in the middle between both positions, this will damage your machine

The machine has 2 drill speeds, which can be adjusted by sliding the gear switch (9) forward or backwards. The number on the gear switch (9) shows which position is chosen.

• Position 1: For slow drilling, large drilling diameter or screw driving. The machine has high power at a low speed.
• Position 2: For fast drilling or small drilling diameter

Adjusting the direction of rotation

Fig. G

• Set the direction switch (10) to position “←” in order to drive screws or to use it for drilling.
• Set the direction switch (10) to position “→” in order to remove screws

Switching the machine on and off

Fig. G

The on/off switch (11) is used for activating the machine and adjusting rotation speed.

• Pressing the on/off switch (11) will activate the machine, the further the switch is being pushed, the faster the drill will turn.
• Releasing the on/off switch (11) will stop the machine.
• Move the direction reversing switch (10) to the middle position to lock the movement of the on/off switch. It cannot be activated in this position.

Only lay down the machine when it has stopped running completely. Do not place it on a dusty surface as particles of dust could get into the mechanism.

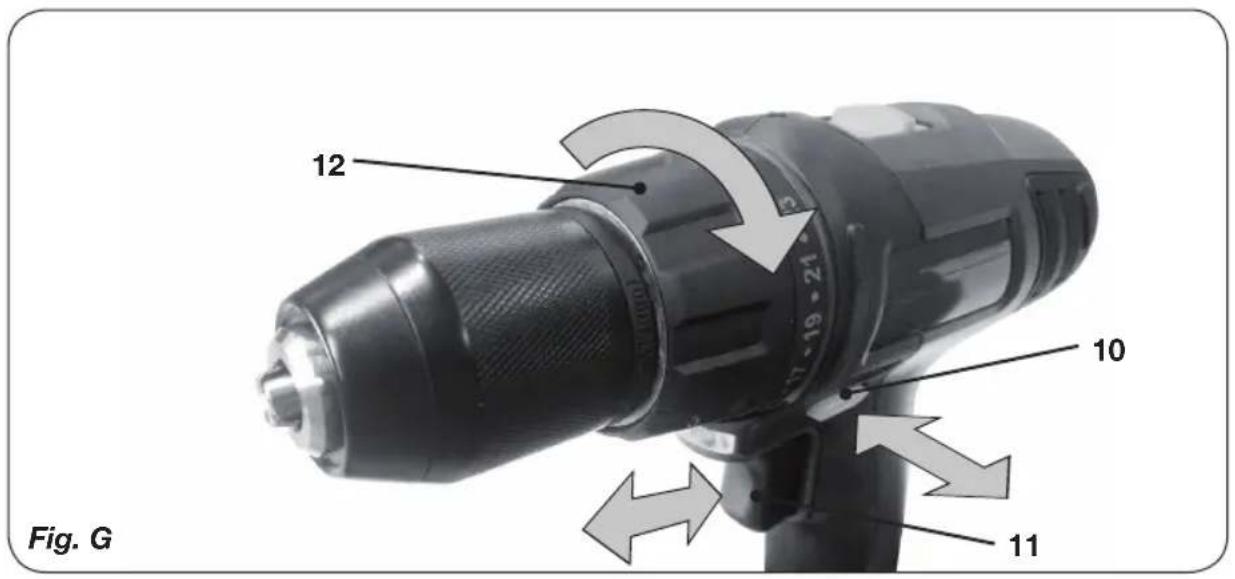

Adjusting the torque

Fig. G

The machine has 23 different torque settings and a special drill mode to set the power being transmitted to the chuck.

By rotating the torque adjustment ring (12), screws can be driven to a predetermined depth, which is ideal for repetitive work. The higher the number, the more torque will be transmitted.

• Select a low setting for small screws or soft work material.
• Select a high setting for large screws, hard work materials and when removing screws.
• You should preferably choose a setting as low as possible when driving screws. Select a higher setting if the motor slips before the screw is fully tightened.
• For drilling, turn the torque adjustment ring (12) to the setting for drilling by fully turning it counterclockwise.

Ensure that the direction switch (10) is always set to ← during drilling.

The machine is equipped with electronic overload protection function. When the machine gets overloaded it will shut down automatically. When this happens, please wait for at least 5 seconds to let the overload protection reset itself.

Work light (13)

Fig. A

The machine is equipped with a work light to illuminate the work location.

• It automatically switches on when the on/off switch is being pressed.
• It automatically switches off when the on/off switch is released again.

Belt hook (14)

Fig. A

The machine is equipped with a belt hook for hanging the machine to your belt during use.

Always switch the direction switch (10) to middle position to avoid accidental startup of the machine.

• When delivered, the belt hook (14) is assembled to the left side of the machine.
• It can easily be removed by removing the screw on the hook and taking it off.
• It can be assembled on the right side of the machine when this is preferred.

User tips

When driving screws into wood, metal and other materials:

• Before using the appliance check if the drill or screw bit is properly fitted and centered inside the drill chuck.
• Screw bits are available in several shapes and dimensions. When unsure, always try if the bit fits on the screw head without any free play before using the machine.
• Make sure the machine is not running when it contacts the screw. A rotating bit may slip. This could result in damage to the work piece.

When drilling into wood, metal and other materials:

• With small diameter drills use a high drill speed. For large diameter drills use a low drill speed.
• For hard materials, select a low drill speed, for soft materials select a high drill speed.
• Fix the work piece properly, preferably by using a clamp or vice.
• During drilling draw back the drill out of the hole frequently so swarf or drill dust will be removed.

When drilling in metal:

• Use a metal drill (HSS). For the best results you should cool the bit with oil.
• Metal (HSS) drills can also be used drilling into plastic.

4. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

Modellnummer CDM1113S CDM1114S

Ladegerät CDA1080S

Kablosuz Li-Ion drill 14,4V / 18V CDM1113S / CDM1114S

CE

DECLARATION OF CONFORMITY CDM1113S / CDM1114S - CORDLESS DRILL

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht, den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat ditproduct voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilidade-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vägaranlerar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuillamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na naši vlastni zodpovědnost prohlášujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Výhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpísmi: Je v súlade s normou 2011/65/EÚ Európske ho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronikom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladuin da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe doloćenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach; jest zgodny z Dyrektywą 2001/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornoLšu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovomošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8. juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα όπι τροϊόν αυτό συμφωνεί και τηρεί τους παρακάπω κανονισμούς και τρότυπα: συμμοφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον περιορισμό της χρήσης ορισμένουν επικίνδυνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.
(AR) تيكلاتا تاميجرتلاو روياعملا عم قفاروتي جكتجلا اللهنا اندحو انتيولوهم م soloع نلعتن
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.

EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 62233 EN 60745-1, EN 60745-2-1, EN 60745-2-2, EN 60335-1, EN 60335-2-29,

2006/42/EC, 2011/65/EU, 2012/19/EC, 2006/95/EC, 2004/108/EC

Zwolle, 01-06-2015

H.G.F Rosberg CEO FERM B.V.

FERM B.V. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
