Product Type	Child car seat
Brand	Joie
Model	Steadi R129
Safety Standard	UN R129 (i-Size)
Rear-facing use	Child height: 40–105 cm, max weight 18 kg (birth to approx. 4 years)
Forward-facing use	Child height: 76–105 cm, max weight 18 kg (from 15 months)
Approximate dimensions	60 × 40 × 50 cm (estimate)
Seat weight	Approximately 10 kg
Materials	Plastic, metal, fabric
Included accessories	Newborn insert, canopy, strap covers
Restraint system	5-point harness adjustable in height
Headrest adjustment	6 positions, adjustable with harness
Recline	Adjustable (reclined position for rear-facing)
Installation	Vehicle seat belt (universal)
Maintenance	Machine wash cold ≤30°C, do not iron, do not dry clean
Safety	Integrated side protection, do not use with active front airbag
Spare parts	Harness, buckle, cover; contact Joie or retailer
Repairability	Do not modify the seat; replace after an accident

Frequently Asked Questions - Steadi R129 Joie

What is the difference between rear-facing and forward-facing modes?

The rear-facing mode is recommended for children from 40 to 105 cm (max weight 18 kg), ideally from birth to 4 years. The forward-facing mode is for children from 76 to 105 cm (max weight 18 kg) and from 15 months. It is advised to use rear-facing mode as long as possible for optimal safety.

How to adjust the height of the headrest and harness?

Pull the headrest adjustment lever (located at the back) and slide the headrest to the desired position (6 positions). The shoulder harness must be at or below the shoulders in rear-facing mode, and at the shoulders in forward-facing mode.

Can I install this seat on a passenger seat with a front airbag?

No, never use a rear-facing car seat on a seat equipped with an active front airbag. For forward-facing mode, check the vehicle's recommendations. If in doubt, consult the vehicle's manual.

How to clean the cover and soft parts?

Remove the cover and soft parts following the disassembly instructions. Wash them in cold water (≤30°C) with a mild detergent. Do not iron, do not use bleach or dry clean. Let dry in the shade.

When should I replace the car seat?

Replace the seat immediately after an accident, even if no visible damage is apparent. Also replace it if parts are damaged or missing. The recommended lifespan is generally 6 to 10 years (check the manufacturing date).

How to correctly install the seat in rear-facing mode?

Place the seat on the vehicle seat. Route the seat belt through the green slots at the back of the seat. The shoulder belt must go through the designated slot. Open the locking mechanism, insert the belt, then close it. Pull the belt to tighten firmly. Check that the seat does not move more than 2.5 cm.

Can I use the seat without the newborn insert?

The newborn insert is recommended for children under 60 cm in height. It improves side protection and comfort. In forward-facing mode, the insert must be removed. For taller children, you may omit it if the child outgrows the insert.

How to adjust the harness strap?

To loosen, press the harness adjustment button (located under the front cover) while pulling both shoulder straps. To tighten, pull the front adjustment strap. Make sure there is no slack by leaving about one hand's thickness between the child and the straps.

Is the seat compatible with all vehicles?

This seat is a universal restraint device compliant with UN R129 regulation. It is installed using the vehicle's seat belt. However, always check compatibility with your vehicle before purchase. Consult the vehicle's manual for approved seating positions.

How to remove the soft parts for washing?

Press the red button on the buckle to open the harness. Follow steps 26 to 33 in the manual: remove the strap covers, detach the attachments, then remove the cover starting from the back. Consult the manual for detailed diagrams. Reassembly is done in reverse order.

USER MANUAL Steadi R129 Joie

enhanced child restraint

GB Instruction Manual

Line drawing of a baby car seat assembly (no text or symbols)

GB

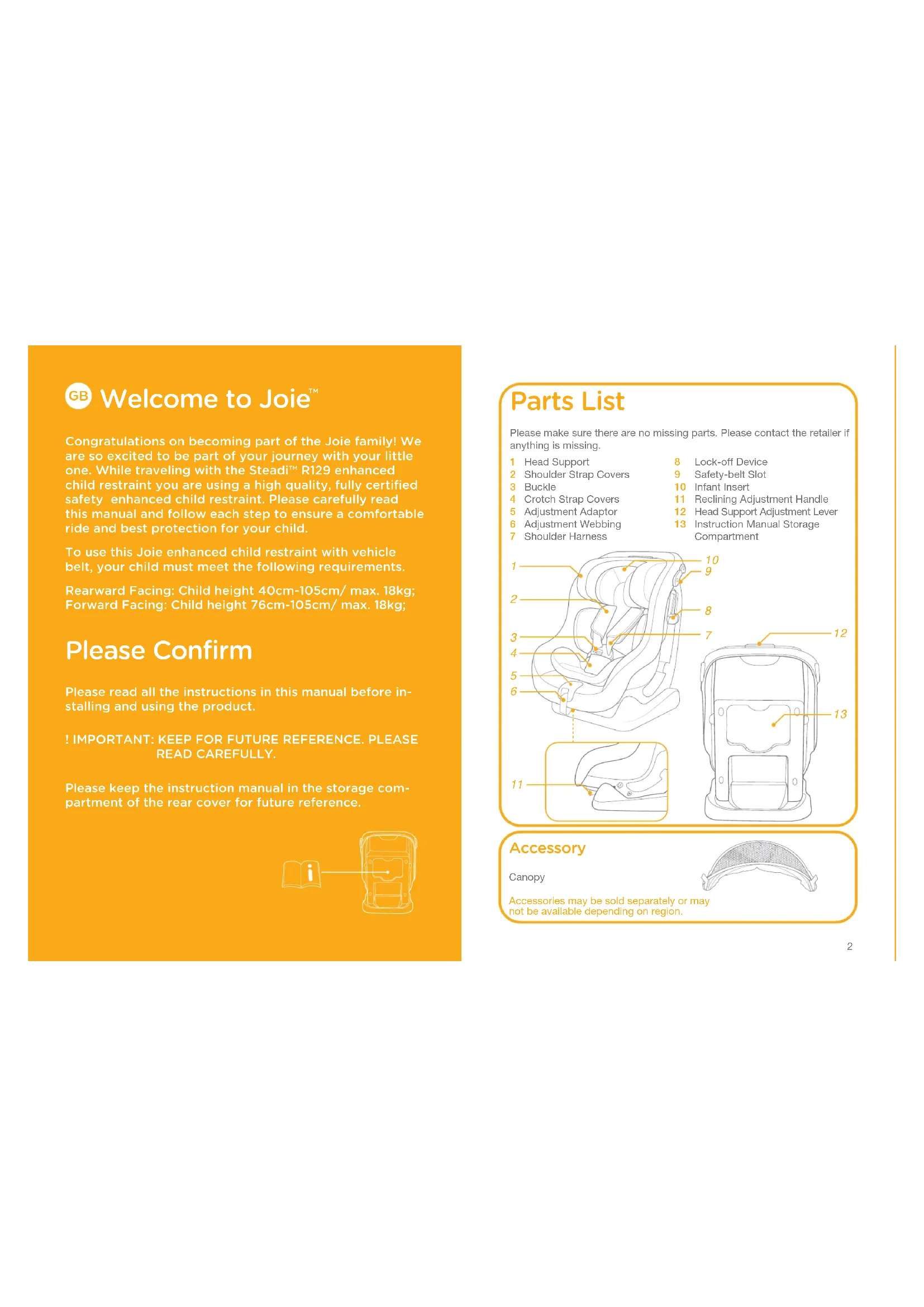

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Steadi™ R129 enhanced child restraint you are using a high quality, fully certified safety enhanced child restraint. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

To use this Joie enhanced child restraint with vehicle belt, your child must meet the following requirements.

Rearward Facing: Child height 40cm-105cm/ max. 18kg; Forward Facing: Child height 76cm-105cm/ max. 18kg;

Please Confirm

Please read all the instructions in this manual before installing and using the product.

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.

Please keep the instruction manual in the storage compartment of the rear cover for future reference.

Simple line drawing of an open book and a device with an 'i' label, no text or symbols present

Parts List

Please make sure there are no missing parts. Please contact the retailer if anything is missing.

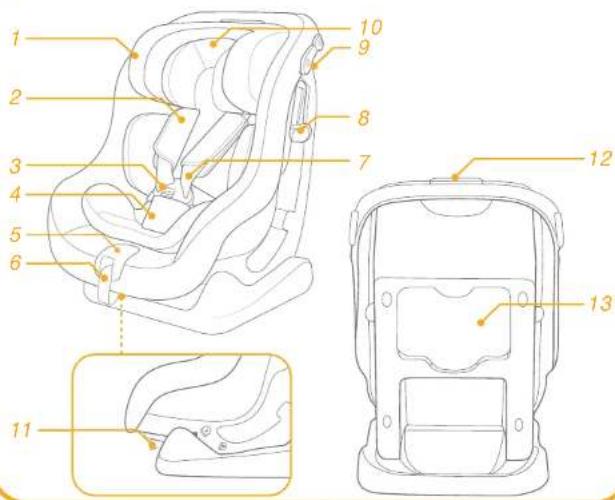

1 Head Support
2 Shoulder Strap Covers
3 Buckle
4 Crotch Strap Covers
5 Adjustment Adaptor
6 Adjustment Webbing
7 Shoulder Harness

8 Lock-off Device

9 Safety-belt Slot

10 Infant Insert

11 Reclining Adjustment Handle

12 Head Support Adjustment Lever

13 Instruction Manual Storage Compartment

1 2 3 4 5 6 7 8 9 10 11 12 13

Accessory

Canopy

Accessories may be sold separately or may not be available depending on region.

WARNING

! BE cautious that the rigid items and plastic parts of the enhanced child restraint system shall be so located and installed that they are not liable to become trapped by a movable seat or in the door of the vehicle.
! DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed.
! To use this enhanced child restraint according to the UN Regulation No.129, your child must meet the following requirements.
! Rearward Facing: Child height 40cm -105cm / max. 18kg
! Forward Facing: Child height 76cm - 105cm / max. 18kg
! IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions).
! The enhanced child restraint may not fit in all approved vehicles. Please refer to the fitting list included for more details.
! Any straps holding the enhanced child restraint to the vehicle should be tight, that any straps restraining the child should be adjusted to the child's body, and that straps should not be twisted.
! After your child is placed in this enhanced child restraint, the safety belt must be used correctly. Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer.
! Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.

WARNING

! NEVER leave your child unattended with this enhanced child restraint.
! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
! The enhanced child restraint system shall NOT BE USED without the soft goods.
! The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
! Please check if this enhanced child restraint can be installed properly in your vehicle before you purchase it.
! NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child.
! DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death.
! DO NOT use this enhanced child restraint if it has damaged or missing parts.
! DO NOT have your child in large/oversized clothes because this may prevent your child from being, properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.

Emergency

In case of emergency or accidents, it is most important to have your child taken care of with first aids and medical treatment immediately.

Product Information

1. This is Universal Belted Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use primarily in "Universal seating positions" as indicated by vehicle manufacturers in the vehicle user's manual.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

Materials Plastics, metal, fabrics

Patent No. Patents pending

Choose the Installation Mode

ECE R129	Child's Size	Installation Mode	Installation	Reference Age
	40cm-105cm/≤18kg	Rear facing mode		Approx 4 years
	76cm-105cm/≤18kg	Forward facing mode		15 months to approx 4 years

Important

When the child is suitable for both forward and rearward facing modes, it is recommended to install this child restraint in the rearward facing mode as it is relatively safer.

Concerns on Installation

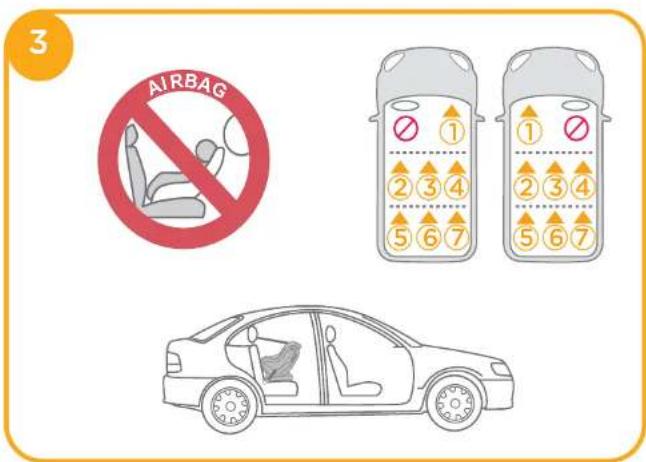

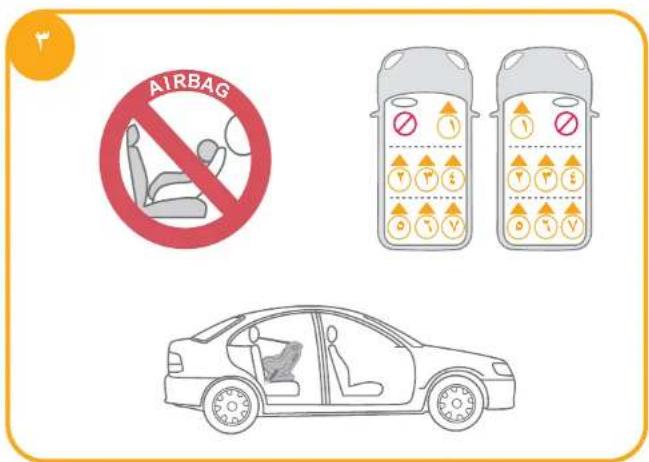

see images 1 - 3

1 3 1 2 ✓

2 1 2 X

3

Illustration showing two containers with numbered circles and symbols, possibly for counting or math exercise.

Line drawing of a car showing front and side views (no text or symbols)

Height Adjustment

for Head Support and Shoulder Harnesses

see images 4 - 6

When used in rear facing mode, the shoulder harness height must be even with or just below the top of child's shoulders.
! When used forward facing, the shoulder harness height must be even with the top of child's shoulders.
1. Please adjust the head support and shoulder harnesses to proper height according to the child's height.

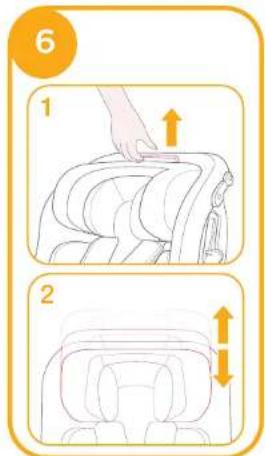

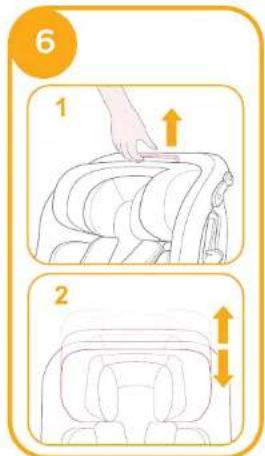

2. Pull the head support adjustment lever 6 -1, meanwhile pull up or push down the head support until it snaps into one of the 6 positions. The head support positions are shown as 8

Simple line drawing of a child holding a long rod, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Recline Adjustment

see images 7 - 8

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seatbelt, accompanied by a small icon showing a person in a chair (no text or symbols)

Line drawing of a car seat with a person sitting on top, no text or symbols present

Using in the rear facing mode

(Child height 40cm-105cm/max. 18kg/infant - 4 years old)

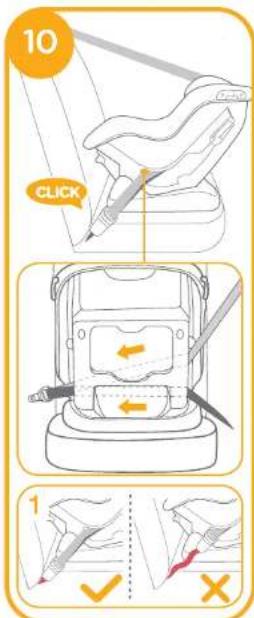

see images 10 - 18

! Please install the child restraint on the vehicle seat, and then put the child in the child restraint.
The child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the child restraint securely. ^10 -1

1. Fasten the belts in the a green safety-belt slots at the back of the body.
   ! Shoulder belt must pass through the safety-belt slot.

10 CLICK 1 ✓ X

Line drawing of a car seat with a diagonal line and a label '11' (no text or symbols on the diagram itself)

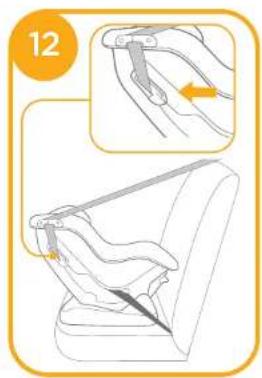

1. Open the lock-off device and insert the safety belt through it. 12
2. While pressing the child restraint, pull the belts to fasten the child restraint tightly and securely.
   ! Please check by moving the child restraint back and forth.
   ! Shoulder belt passes through the safety-belt slots, as 13 -1
   ! Shoulder belt passes through Lock-off Device, confirm the Lock-off Device is pushed down, as 13-1

Line drawing of a car seatbelt with a belt buckle, no text or symbols present

1. To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. (grab the both two shoulder pads to pull).

12

Line drawing of a hand holding a pair of scissors, no text or symbols present

14 1 2

! We recommend using the full infant insert while the baby is under 60cm and can be used until they outgrow the infant insert. The infant insert increases side impact protection.

15 1

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

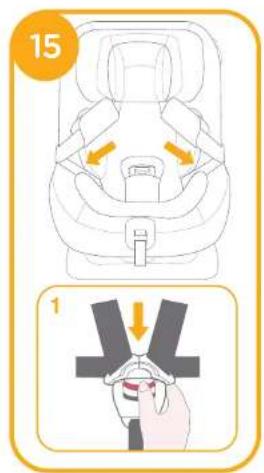

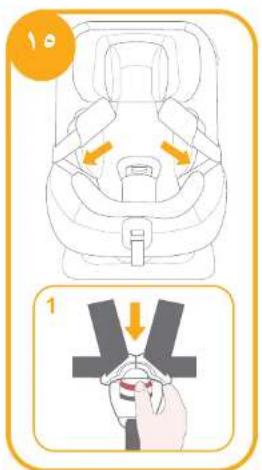

1. Place the child into the enhanced child restraint and pass both arms through the harnesses.

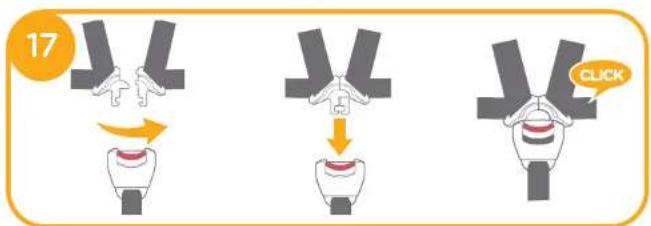

2. Engage the buckle until it clicks. 17

17 CLICK

1. Pull down the adjustment webbing and adjust it to the proper length to make sure your child is properly secured. ^18

! Always keep child secured in harness and properly tightened by removing any slack.

Illustration of a baby car seat with a highlighted seatbelt and arrow indicating downward motion (no text or symbols)

Using in the forward facing mode (Child height 76cm-105cm/max. 18kg/15 months - 4 years old)

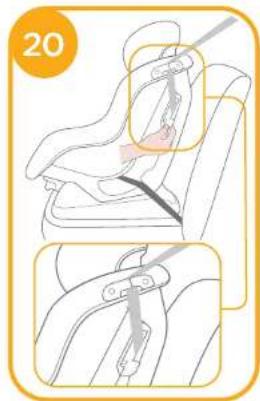

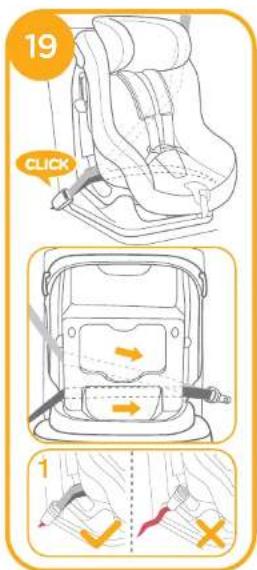

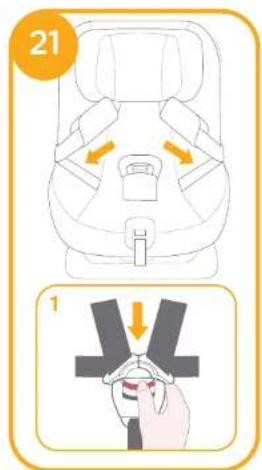

see images 19 - 22

! Please install the child restraint on the vehicle seat, and then put the child in the child restraint.

! The vehicle buckle tongue is engaged with the buckle correctly, as 19

The child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the child restraint securely. 19 -1

! Shoulder belt passes through Lock-off Device and safety-belt slots, confirm the Lock-off Device is pushed down, as 20

19 CLICK 1

20

To lengthen the shoulder harness belts, press the harness adjustment button while pulling out the shoulder harnesses to loosen. (grab the both two shoulder pads to pull).
! Open the belt buckle by pressing firmly on the red button. 21 -1, place the child in the seat and put the shoulder belts over the child's shoulder. 23
! Remove the infant insert when forward facing mode.
! Pull down the adjustment webbing and adjust it to the proper length so that your child is snugly secured.
! Make sure the space between the child and the shoulder harness is about the thickness of one hand.

21 1

22

Use Canopy

see images 24 - 25

Illustration of a garment pattern piece with measurement arrows (no text or symbols)

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Detach Soft Goods

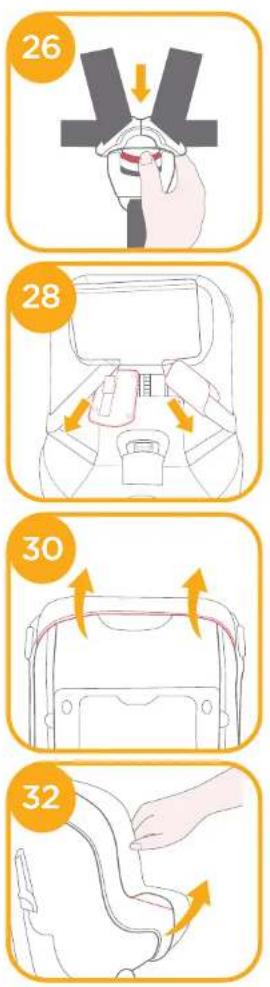

see images 26 - 33

Press the red button to disengage the buckle.

Follow steps 27 - 30 to detach soft goods.

To re-attach the soft goods please repeat the above steps in the reverse step.

Line drawing of a car seat with arrows indicating movement or force (no text or symbols)

Illustration of a car seatbelt device with a magnified inset showing the front view (no text or symbols)

Illustration of a hand pressing down on a curved object with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Care and Maintenance

Please wash the seat cover and inner padding with cold water under 30°C.
! Do not iron the soft goods.
Do not bleach or dry clean the soft goods.
Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint.
Do not wring out the seat cover and inner padding to dry. It may leave the seat cover and inner padding with wrinkles.
! Please hang dry the seat cover and inner padding in the shade.
Please remove the enhanced child restraint and base from the vehicle seat if not in use for a long period of time. Put the enhanced child restraint in a cool, dry place where your child cannot access it.
Do not tamper with the harness connectors during cleaning.

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Liste des pièces

Simple line drawing of a child holding a long rod, no text or symbols present

Illustration of a person holding a long rod with a red bandage, no text or symbols present

6 1 2

Line drawing of a car seatbelt with a finger pointing to the seat (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seatbelt, and a small inset image showing a person in a chair (no text or symbols)

Line drawing of a car seat with a small inset showing a person sitting on the seat (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a car seatbelt with a diagonal line and a label '11' (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a bookmark (no text or symbols)

Line drawing of a hand holding a pair of scissors (no text or symbols)

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a car seat with a belt and seatbelt, no text or symbols present

Illustration of a person's seat with a patterned head cover and seatbelt, no text or symbols present

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seatbelt with arrows indicating movement or force (no text or symbols)

29

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Teileliste

Simple line drawing of a child's head with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Neigungsverstellung

Line drawing of a person's seatbelt and lapel, no text or symbols present

Line drawing of a car seat with an orange arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols)

Line drawing of a car seat with a highlighted seat and a small inset image showing a person sitting on the right (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a car seat with a diagonal bar and a small object on the seat (no text or symbols)

Line drawing of a car seatbelt with a bookmark (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a car seatbelt with a hand bandage and a downward arrow indicating pressure or force (no text or symbols)

Illustration of a garment pattern piece with measurement arrows (no text or symbols)

Line drawing of a person wearing a head covering, with a yellow sun in the corner (no text or symbols)

Diagram of a car interior showing seatbelt and seat, with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat with a highlighted inset showing the seat detail (no text or symbols)

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Pflege und Wartung

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Onderdelenlijst

Simple line drawing of a child's head with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Instelling schuine stand

Line drawing of a person's seatbelt being adjusted for a button (no text or symbols)

Illustration of a car seat with a seatbelt and a person relaxing (no text or symbols)

Line drawing of a car seat with a highlighted seat and seatbelt icon (no text or symbols)

Line drawing of a car seat with a diagonal line and a label '11' in the corner (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a diagonal band and orange circle label (13) in top-left corner

Line drawing of a hand holding a tool, no text or symbols present

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a car seatbelt with a highlighted seatbelt and arrow indicating downward motion (no text or symbols)

Illustration of a garment pattern piece with measurement arrows (no text or symbols)

Line drawing of a person wearing a head covering, with a yellow sun in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat assembly with a highlighted inset showing the lower portion of the seat (no text or symbols present)

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Elenco parti

Simple line drawing of a child with a red band, no text or symbols present

Illustration of a person holding a long rod with a red bandage, no text or symbols present

6 1 2

Line drawing of a baby car seat with a finger inserted, no text or symbols present

Line drawing of a car seat with an arrow indicating the seatbelt, accompanied by a small icon showing a person in a chair (no text or symbols present)

Line drawing of a car seat with a person sitting on top, no text or symbols present

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Line drawing of a car seatbelt with a diagonal line and a small orange arrow pointing to the seat (no text or symbols)

Line drawing of a car seatbelt with a pen inserted, no text or symbols present

Line drawing of a hand holding a tool, no text or symbols present

Illustration of hands performing a step-up on a rounded object, with an arrow indicating direction (no text or symbols)

Illustration of a person's seat with a patterned head cover and seatbelt, no text or symbols present

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seatbelt device with arrows indicating movement (no text or symbols)

29

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Simple line drawing of a boat hull with an arrow indicating direction (no text or symbols)

Cura e manutenzione

Simple line drawing of an open book and a device with a pointer, on an orange background (no text or symbols)

Lista de piezas

Illustration of a child holding a long rod with a red band, no text or symbols present

Illustration of a person holding a long rod, with a numbered circle (5) in the top-left corner (no text or symbols on the diagram itself)

6 1 2

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seatbelt, and a small inset image showing a person in a chair (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seat area, accompanied by a small icon showing a person in a chair (no text or symbols present)

Line drawing of a car seat with a diagonal line and a triangular pointer (no text or symbols)

Line drawing of a car seatbelt device (no text or symbols)

Illustration of a hand using a tool to cut or lift a piece of hair (no text or symbols present)

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a baby car seatbelt with a highlighted bandage and arrow (no text or symbols)

Illustration of a person's seat with a patterned head cover and seatbelt, no text or symbols present

Line drawing of a person wearing a headscarf with a mesh grille, against a solid orange background (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat with arrows indicating movement or force (no text or symbols)

29

Illustration of a hand pressing down on a curved object, with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of an open book and a device with a pointer, on orange background (no text or symbols)

Lista de componentes

Diagram showing two identical containers with numbered boxes and symbols, possibly indicating a counting or counting system.

Line drawing of a car showing two interior compartments with no text or symbols

Ajuste da altura

Simple line drawing of a child with a curved rod and a red band, no text or symbols present

Illustration of a person holding a long rod with a red bandage, no text or symbols present

6 1 2

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Illustration of a car seat with an orange arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols)

Line drawing of a car seat with a highlighted seat and seatbelt icon (no text or symbols)

Line drawing of a car seat with a diagonal line and a triangular pointer (no text or symbols)

Line drawing of a car seatbelt with a bookmark (no text or symbols)

Illustration of a hand holding a pair of scissors (no text or symbols)

14 1 2

Illustration of hands performing a step-up on a rounded object, no text or symbols present

Illustration of a car seatbelt with a hand bandage and a downward arrow indicating pressure or movement (no text or symbols)

Illustration of a garment pattern with measurement arrows (no text or symbols)

Line drawing of a person wearing a headband with a mesh pattern, against a yellow circular background (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat with arrows indicating movement or positioning (no text or symbols)

29

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Simple line drawing of a boat hull with an arrow indicating direction (no text or symbols)

Simple line drawing of an open book connected to a device with an 'i' label, on orange background (no text or symbols)

Lista części

Simple line drawing of a child with a red band attached to the ear, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seatbelt, alongside a small inset image of a person in a chair (no text or symbols)

Line drawing of a car seat with a highlighted seat and seatbelt icon (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Line drawing of a car seatbelt with a diagonal line and a label '11' (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a clip and handle, no text or symbols present

Line drawing of a hand holding a pair of scissors, no text or symbols present

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a car seatbelt with a highlighted bandage and arrow (no text or symbols)

Illustration of a car seatbelt with arrows indicating measurement or assembly (no text or symbols)

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Seznam dílů

Simple line drawing of a child's head with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Nastavení sklonu

viz obrázky 7 - 9

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat with a seatbelt and a person relaxing (no text or symbols)

Line drawing of a car seat with a highlighted seat and seatbelt icon (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Line drawing of a car seatbelt with a diagonal line and a label '11' (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a diagonal band and orange circle label (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to cut or spread material (no text or symbols)

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Line drawing of a car seatbelt with a hand bandage and arrow indicating downward motion (no text or symbols)

Illustration of a car seatbelt with arrows indicating measurement or positioning (no text or symbols)

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Diagram of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat with arrows indicating motion or movement (no text or symbols)

Illustration of a car seatbelt device with a highlighted seatbelt (no text or symbols)

Illustration of a hand pressing down on a curved surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Péče a údržba

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Simple line drawing of a child's head with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Nastavenie sklonu

Line drawing of a car seatbelt with a finger pointing to the seat (no text or symbols)

Line drawing of a baby car seat with an orange arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols)

Line drawing of a car seat with a highlighted seat and a small inset image showing a person sitting on the right (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Line drawing of a car seatbelt with a diagonal line and a triangular pointer (no text or symbols)

Line drawing of a car seatbelt with a bookmark (no text or symbols)

Line drawing of a hand holding a pliers or tool, no text or symbols present

14 1 2

Illustration of hands performing a step-up on a rounded object, with an arrow indicating direction (no text or symbols)

Illustration of a baby car seat with a highlighted seatbelt and arrow indicating downward motion (no text or symbols)

Illustration of a car seatbelt with arrows indicating parts of the seat (no text or symbols)

Illustration of a person wearing a head covering, with a sun in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat with arrows indicating movement or force (no text or symbols)

Illustration of a car seatbelt device with a magnified inset showing the front view (no text or symbols)

Illustration of a hand pressing down on a curved object, with an arrow indicating motion (no text or symbols)

Simple line drawing of a device with a handle and arrow indicator (no text or symbols)

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Seznam delov

Prepričajte se, da noben del ne manjka. Če kar koli manjka, se obrnite na prodajalca.

Illustration of a child with a red bandage attached to the ear, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Nastavitev naklona

Glejte slike 7 - 9

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols)

Line drawing of a car seat with a highlighted seat and a small inset image showing a person sitting on the side (no text or symbols)

Line drawing of a car seatbelt with a diagonal line and a label '11' (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a belt and seat, no text or symbols present

Line drawing of a hand using a pliers to cut or wire (no text or symbols)

1. Ramenska varnostna pasova podaljšate s pritiskom na gumb za prilagoditev varnostnega pasu, hkrati pa izvlečete ramenska pasova, da ju sprostite. (primate obe ramenski blazinici, da potegnete). 12

14 1 2

Illustration of hands performing a step-up on a rounded object, with an arrow indicating direction (no text or symbols)

Line drawing of a car seatbelt with a highlighted seatbelt and arrow indicating downward motion (no text or symbols)

Illustration of a person's seat with a patterned head cover and seatbelt, no text or symbols present

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seatbelt with arrows indicating movement or force (no text or symbols)

29

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Nega in vzdrževanje

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Illustration of a child with a red bandage attached to the ear, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Регулировка наклона

См. рисунки ⑦ - ⑨

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols)

Line drawing of a car seat with a highlighted seat and seatbelt icon (no text or symbols)

10 CLICK 1 ✓ X

Line drawing of a car seat with a diagonal line and a triangular pointer, no text or symbols present

Line drawing of a car seatbelt with a pen inserted, no text or symbols present

Illustration of a hand holding a tool with a triangular blade, no text or symbols present

14 1 2

Illustration of hands performing a finger movement on a rounded object, with an arrow indicating direction (no text or symbols)

Illustration of a car seatbelt with a hand pointing to the seat (no text or symbols)

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car interior with seat, dashboard, and directional arrows indicating movement (no text or symbols)

29

31

Illustration of a hand pressing down on a curved object with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Уход за изделием

Simple line drawing of an open book and a device with a pointer, set against an orange background (no text or symbols)

Liste over dele

Kontroller, at der ikke mangler nogen dele. Kontakt venligst din forhandler, hvis noget mangler.

Illustration showing two containers with numbered boxes and symbols, possibly for counting or counting exercises.

Line drawing of a car showing front and side views (no text or symbols)

Højdeindstilling

Simple line drawing of a child with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Line drawing of a car seatbelt with a hand pointing to the seat (no text or symbols)

Illustration of a car seat with a person sitting on top and a hand pointing to the seat (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seat area, accompanied by a small icon showing a person sitting on the side (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a car seat with a diagonal bar and a small object on the seat (no text or symbols)

Line drawing of a car seatbelt with a belt buckle (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

14 1 2

Illustration of hands performing a step-up on a piece of dough (no text or symbols)

Illustration of a baby car seat with a bandage and a downward arrow indicating pressure or force (no text or symbols)

Brug i fremadvendt stilling

Line drawing of a person wearing a head covering, with a yellow sun in the corner (no text or symbols)

Diagram of a car interior showing seatbelt and seat, with arrows indicating movement (no text or symbols)

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of an open book and a computer monitor on orange background (no text or symbols)

Alkatrészek listája

Simple line drawing of a child with a curved rod and a red band, no text or symbols present

Illustration of a person holding a long rod with a red bandage, no text or symbols present

6 1 2

Döntés állítás

Line drawing of a car seatbelt with a finger pointing to the seat (no text or symbols)

Illustration of a car seat with an orange arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols present)

Line drawing of a car seat with a highlighted seat and a small inset image showing a person sitting on the right (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Line drawing of a car seatbelt with a diagonal line and a triangular pointer (no text or symbols)

Line drawing of a car seatbelt with a belt buckle (no text or symbols)

Line drawing of a hand using a pliers to cut or wire (no text or symbols)

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a baby car seat with a highlighted seatbelt and arrow indicating downward motion (no text or symbols)

Illustration of a car seatbelt with arrows indicating measurement or positioning (no text or symbols)

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat with arrows indicating movement or force (no text or symbols)

29

Illustration of a hand pressing down on a curved object, with an arrow indicating motion (no text or symbols)

Simple line drawing of a device with a handle and arrow, no text or symbols present

Simple line drawing of an open book connected to a device with an 'i' label, no text or symbols present

Lista componentelor

Simple line drawing of a child holding a long rod, no text or symbols present

Illustration of a person holding a long rod with a red bandage, no text or symbols present

6 1 2

Reglarea înclinării

Line drawing of a person's seatbelt and lapel, no text or symbols present

Line drawing of a car seat with an orange arrow indicating the seatbelt, alongside a small icon showing a person in a chair (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seat area, accompanied by a small icon showing a person sitting on the right (no text or symbols present)

Line drawing of a car seatbelt with a diagonal line and a label '11' (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a belt buckle (no text or symbols)

Line drawing of a hand holding a pair of scissors (no text or symbols)

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a person sitting in a car seat with a belt and seatbelt, no text or symbols present

Illustration of a person wearing a head covering, with a sun in the corner (no text or symbols)

Diagram of a car interior showing seatbelt and seat, with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car interior with seat, dashboard, and directional arrows indicating movement (no text or symbols)

29

Illustration of a hand pressing down on a curved object, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Illustration of a baby with a red bandage attached to the neck, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Ρύθμιση ανάκλισης

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seatbelt, alongside a small inset image of a person in a chair (no text or symbols)

Line drawing of a car seat with a highlighted seat and a small inset image showing a person sitting on the right (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Line drawing of a car seat with a diagonal line and a triangular pointer (no text or symbols)

Line drawing of a car seatbelt with a belt and seat, no text or symbols present

Line drawing of a hand holding a pair of scissors, no text or symbols present

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a car seatbelt with a highlighted seatbelt (no text or symbols)

Illustration of a person wearing a head covering, with a sun in the background (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car interior with seat, dashboard, and directional arrows indicating movement (no text or symbols)

29

31

Illustration of a hand pressing down on a curved object, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of an open book connected to a device with an icon, on orange background (no text or symbols)

Parça Listesi

Simple line drawing of a child with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Yatırma Ayarı

bkz.resim 7 - 9

Line drawing of a car seatbelt with a hand pointing to the seat (no text or symbols)

Line drawing of a car seat with a highlighted seatbelt and a person sitting on top (no text or symbols)

Line drawing of a car seat with a highlighted seat and seatbelt, no text or symbols present

10 CLICK 1 ✓ X

Line drawing of a car seat with a diagonal line and a triangular pointer (no text or symbols)

Line drawing of a car seatbelt with a bookmark (no text or symbols)

Line drawing of a hand holding a pliers or tool, no text or symbols present

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols present)

Illustration of a car seatbelt with a highlighted seatbelt and orange circle number 18 (no text or symbols on the diagram itself)

Illustration of a car seatbelt with arrows indicating measurement or positioning (no text or symbols)

Line drawing of a person wearing a head covering, with a sun in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Illustration of a car seatbelt device with a magnified inset showing the front view (no text or symbols)

Illustration of a hand pressing down on a curved object, with an arrow indicating motion (no text or symbols)

Simple line drawing of a bag with a handle and arrow indicating rotation (no text or symbols)

Bakım ve Koruma

Diagram of car seat anatomy with numbered labels and highlighted areas for anatomical reference.

1r 1r

الملحقات

المظلة

Simple line drawing of an open book and a device with an 'i' icon, no text or symbols present

تحير

The image is too blurry to recognize any text content.

Simple line drawing of a child with a long rod and a red band, no text or symbols present.

Illustration of a person holding a long rod, with no text or symbols present

Illustration showing two steps of a car seat replacement, with arrows indicating direction of movement.

Simple line drawing of a chair seat with a cross mark indicating no text or symbols

Line drawing of a seatbelt with a belt buckle and a checkmark indicating a detail (no text or symbols)

AIRBAG ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ↓

1. CLICK ✓ X

راجع الصور -

Line drawing of a car seatbelt with a diagonal band and orange circular badge (no text or symbols)

Line drawing of a car seatbelt with a hand pointing to the seat (no text or symbols)

Line drawing of a car seat with a seatbelt and a person relaxing (no text or symbols)

Line drawing of a car seat with an orange arrow indicating the seatbelt (no text or symbols present)

Diagram illustrating car seat usage and grip mechanism, showing left side with orange arrows indicating movement and right side with a key symbol.

Illustration of hands performing a step-up on a rounded object with an arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelting technique with magnified detail showing force application on seatbelt

Line drawing of a car seatbelt with a clip and adjustment mechanism (no text or symbols)

Illustration of a baby car seat with numbered instructions for adjusting the seatbelt and lifting the seatbelt.

Illustration of a person seated in a car seat with a belt and seatbelt, no text or symbols present

Diagram illustrating car seat positioning and lifting mechanism, showing correct vs. incorrect states with directional arrows.

Illustration of a person in a seatbelt with a belt and arrow indicating pressure or movement (no text or symbols)

Line drawing of a car seat with arrows indicating motion or movement (no text or symbols)

Illustration showing a hand holding a tool with a downward arrow and a small yellow icon labeled 'Y' in the corner.

Diagram of a car seatbelt device with labeled parts and an inset showing a magnified view of the seatbelt.

Line drawing of a car seatbelt with arrows indicating movement (no text or symbols)

Illustration of a hand pressing down on a car seatbelt, with an orange arrow indicating the motion direction (no text or symbols present)

Diagram of a car's front bumper with arrows indicating direction (no text or symbols)

Simple line drawing of a boat hull with an arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a curved object with an arrow indicating motion (no text or symbols)

Dobro došli u Joie™

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Popis dijelova

Simple line drawing of a child's head with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Podešavanje nagiba

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Illustration of a car seat with an orange arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols present)

Line drawing of a car seat with a highlighted seat and seatbelt icon (no text or symbols)

10 CLICK 1 ✓ X

Line drawing of a car seat with a diagonal line and arrow indicating the seat (no text or symbols)

Line drawing of a car seatbelt with a cable inserted, no text or symbols present

Illustration of a hand using pliers to cut or draw a piece, no text or symbols present

14 1 2

Illustration of hands performing a step-up on a rounded object, with an arrow indicating direction (no text or symbols)

Illustration of a baby car seat with a highlighted seatbelt and orange arrow indicating downward motion (no text or symbols)

Illustration of a car seatbelt with arrows indicating measurement or positioning (no text or symbols)

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Skidanje obloga

Line drawing of a car seatbelt device with arrows indicating movement (no text or symbols)

Illustration of a car seatbelt device with a magnified inset showing the front view (no text or symbols)

Illustration of a hand pressing down on a curved object, with an arrow indicating motion (no text or symbols)

Simple line drawing of a boat hull with an arrow indicating direction (no text or symbols)

Briga i održavanje

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Lista över delar

Angående installation

se bilder 1 - 3

1 2 3

2 1 2 X

3 AIRBAG 1 2 3 4 5 6 7 1 2 3 4 5 6 7

Höjdjustering

Simple line drawing of a child with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Lutningsjustering

se bilder 7 - 8

Line drawing of a car seatbelt with a finger pointing to the seat (no text or symbols)

Line drawing of a car seat with a highlighted seatbelt and a person silhouette (no text or symbols)

Line drawing of a car seat with a highlighted seat and an orange arrow indicating the seat (no text or symbols)

10 CLICK 1 ✓ X

Line drawing of a car seat with a diagonal line and a label '11' (no text or symbols on the diagram itself)

Line drawing of a car seatbelt with a belt buckle, no text or symbols present

Line drawing of a hand holding a pair of scissors, no text or symbols present

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a car seatbelt with a highlighted bandage and arrow (no text or symbols)

Illustration of a person's seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a person wearing a head covering, with a sun icon in the corner (no text or symbols)

Illustration of a car interior with a patterned roof and directional arrows indicating movement (no text or symbols)

Line drawing of a car seat with arrows indicating movement or force (no text or symbols)

Line drawing of a car seat with a highlighted seat and seatbelt, no text or symbols present

Illustration of a hand pressing down on a curved surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Simple line drawing of an open book and a device with an arrow pointing to it (no text or symbols)

Deleliste

Illustration showing two containers with numbered circles and symbols, possibly for counting or math exercise.

Line drawing of a car showing front and side views of a person sitting in the back seat (no text or symbols)

Høydejustering

Simple line drawing of a child with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Ryggjustering

se bilder 7 - 8

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a car seat with an arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols)

Line drawing of a car seat with a highlighted seat and a small inset image showing a person sitting on the right (no text or symbols)

Bakovervendt bruk

Diagram of a device with two arrows indicating direction, no text or symbols present

Line drawing of a car seatbelt with a diagonal line and a label '11' (no text or symbols on the diagram itself)

Line drawing of a car seatbelt buckle being adjusted for size (no text or symbols)

Illustration of hands performing a step-up on a rounded object, with an arrow indicating direction (no text or symbols)

Illustration of a car seatbelt with a person seated and a downward arrow indicating pressure or relief (no text or symbols)

Fremovervendt bruk

Illustration of a car seatbelt with arrows indicating measurement or positioning (no text or symbols)

Line drawing of a person wearing a head covering, with a yellow sun in the corner (no text or symbols)

Illustration of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seat with arrows indicating movement or positioning (no text or symbols)

Line drawing of a car seatbelt device with a magnified inset showing the front view (no text or symbols)

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Diagram of a medical device with an arrow indicating rotation or movement (no text or symbols)

Simple line drawing of an open book and a device with an 'i' label, no text or symbols present

Osaluettelo

Simple line drawing of a child's head with a red band, no text or symbols present

Illustration of a person holding a long rod, no text or symbols present

6 1 2

Kallistuksen säätö

katso kuvat 7 - 8

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Illustration of a car seat with an orange arrow indicating the seatbelt, accompanied by a small inset image showing a person in a chair (no text or symbols present)

Line drawing of a car seat with a highlighted seat and a small inset image showing a person sitting on the right (no text or symbols)

Line drawing of a car seatbelt with a diagonal line and a small orange arrow pointing to the seat (no text or symbols)

Line drawing of a car seatbelt with a belt buckle, no text or symbols present

Illustration of a hand using a pliers to cut or wire (no text or symbols)

14 1 2

Illustration of hands performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

Illustration of a car seatbelt with a highlighted seatbelt and orange arrow (no text or symbols)

Illustration of a person's seat with a patterned head cover and arrows indicating movement or positioning (no text or symbols)

Illustration of a person wearing a head covering, with a sun symbol above (no text or symbols present)

Diagram of a car seatbelt with arrows indicating movement or positioning (no text or symbols)

Irrota pehmyttarvikkeet

katso kuvat 28 - 33

Line drawing of a car seat with arrows indicating movement or force (no text or symbols)

Line drawing of a car seat with a highlighted seat and seatbelt, no text or symbols present

Illustration of a hand pressing down on a curved surface with an arrow indicating motion (no text or symbols)

Diagram of a medical device with an arrow indicating rotation or movement (no text or symbols)

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Bourmanweg 178 C, 2352 JD Leiderdorp, The Netherlands
