E5005 - Weather Station Emos - Free user manual and instructions

Product type	Wireless weather station
Brand	Emos
Model	E5005
Station dimensions	193 × 144 × 50 mm
Station weight	364 g
Sensor dimensions	60 × 100 × 21 mm
Sensor weight	54 g
Station power supply	3 AAA 1.5 V batteries (not included) or 5 V DC power adapter (included)
Sensor power supply	2 AAA 1.5 V batteries (not included)
Max. number of sensors	3
Radio range	Up to 30 m in open air
Transmission frequency	433 MHz
Indoor temperature range	0 °C to +50 °C
Outdoor temperature range	-50 °C to +70 °C
Relative humidity range	20% to 95% RH
Atmospheric pressure range	850 hPa to 1,050 hPa
Main functions	DCF77 radio-controlled clock, weather forecast, comfort icon, moon phases, thermal alarms, 2 alarms, backlight, MIN/MAX memory, 12h pressure history
Care and cleaning	Soft slightly damp cloth, no solvents or harsh cleaners
Safety	Keep out of reach of children, do not expose to water or weather, do not open the device
Spare parts and repairability	Standard AAA batteries; repair by qualified specialist only

Frequently Asked Questions - E5005 Emos

How to set the time and date manually?

Press and hold MODE for 3 seconds. Use MEM and HISTORY to adjust successively: 12/24h format, time offset, date format, year, month, day, hour, minute, day language, pressure unit, temperature unit.

How to connect an additional outdoor sensor?

Press CH repeatedly to select the channel (1, 2 or 3). Press and hold CH, then set the same channel number on the sensor using the button in the battery compartment. The station detects the sensor within 3 minutes.

What does the flat battery icon mean?

The flat battery icon indicates that the sensor or station batteries are low. Replace them with new AAA alkaline batteries (observe polarity).

How to turn the alarm on or off?

Press MODE to display the alarm time (A1 or A2). Then press MEM or HISTORY to enable/disable. The alarm icon appears or disappears in field n°19.

Why is the outdoor temperature not displaying?

Check that the sensor batteries are installed and the channel is correct. Press and hold CH to restart signal search. Ensure the sensor is within 30 m of the station with no metal obstacles.

How to interpret the weather forecast icons?

The icons (sunny, partly cloudy, cloudy, rainy, stormy) forecast the weather for the next 12 to 24 hours within a 15-20 km radius. A snowflake blinks if the outdoor temperature is between -3°C and +1°C.

What does the comfort icon mean?

The COMFORT icon (smiley) appears if humidity is between 40% and 70% and temperature between 20°C and 28°C. DRY if humidity < 40%, WET if > 70%. Otherwise, no icon.

How to set the thermal alarm?

Press and hold ALERT. The high limit flashes: set from -49°C to 70°C with MEM/HISTORY. Press ALERT again to set the low limit (-50°C to 69°C). Enable/disable with ALERT (icon n°26).

How to enable permanent backlight?

When the station is plugged in, press SNOOZE•LIGHT repeatedly to choose between off, medium, or high. On batteries, the backlight only turns on for 10 seconds after pressing the button.

What to do if the DCF time is incorrect?

If the time is off by ±1h, set the time offset manually (press and hold MODE, select time offset setting with MODE, then adjust with MEM/HISTORY).

USER MANUAL E5005 Emos

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

J K 27.9 °C = 47 % WIRELESS REMOTE SENSOR 433MHz

L N M - + + -

GB | Wireless Weather Station

Weather station E5005 displays time, weather forecast, nice environment icon, data about indoor and outdoor temperature, humidity, atmospheric pressure, atmospheric pressure history, moon phase, day, month, day of the week, week of the year.

It has a memory of minimum and maximum values measured and indicators for temperature, pressure and humidity trends.

Read this manual carefully before using the product.

Weather Station Display

1 – Outdoor temperature; 2 – Outdoor temperature trend; 3 – Indoor temperature trend; 4 – Indoor temperature; 5 – Display of MIN-MAX indoor temperature and humidity; 6 – Low batteries in the station; 7 – Indoor humidity trend; 8 – Indoor humidity; 9 – Display of MIN-MAX outdoor temperature and humidity; 10 – Outdoor humidity trend; 11 – Forecast; 12 – Low battery in the sensor; 13 – Outdoor humidity; 14 – Moon phase; 15 – Pressure history; 16 – Pressure value; 17 – Pressure trend; 18 – DCF signal reception; 19 – Alarm activation; 20 – Summer time; 21 – Clock; 22 – Week number; 23 – Day of the week; 24 – Month; 25 – Day; 26 – Temperature alert activation; 27 – Cycling of values from sensors 1/2/3; 28 – Outdoor sensor channel number; 29 – Symbol for signal reception from the sensor; 30 – Nice environment icon – smiley

Weather station: control buttons for settings options:

	Button press Press and hold (3 seconds)
Mode (A*) Display time, alarm 1, alarm 2.		Settings for time format, time zone, calendar format, year, month, day, hour, minute, language for day of the week, switching between pressure units hPa/inHg, °C/°F units.
CH (B*)	Display values for sensor 1–3 and activate cycling mode to display values from sensors 1–3 C.	Repeat search for sensor signal and pair sensors 1/2/3.
ALERT (C*) Turn temperature alert on/off Set temperature alert.
SNOOZE • LIGHT (D*)	1. Snooze – postpone alarm by 5 minutes.2. Station backlight – when operating on batteries.3. Change backlight mode – when operating on network adapter.	Set altitude and change weather forecast icon.
∧ • MEM (E*)	1. View MAX/MIN measured values for temperature and humidity.2. One step forward in settings mode.	1. Erase MAX/MIN values from memory.2. Fast forward setting.
∨ • HISTORY (F*)	1. View pressure history in the last 0 to 12 h.2. One step back in settings mode.	Fast backward setting.

Weather Station Rear Description:

G – Connector for plugging in power adapter; H – Battery cover; CH – Openings for hanging the station on a wall; I – Stand

Sensor

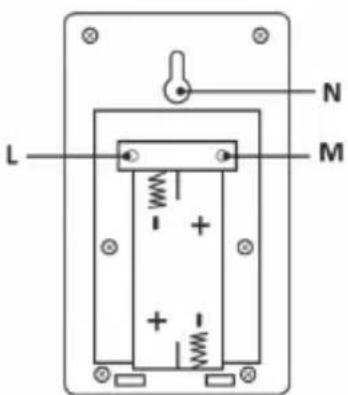

J – LED indicator for signal transmission from sensor; K – Outdoor temperature and humidity; L – Changing channel number for the sensor (1,2,3); M – Temperature unit; N – Opening for hanging on a wall

Technical specifications

radio controlled clock

time format: 12/24 h

indoor temperature: 0 °C to +50 °C, 0.1 °C increments

temperature measurement accuracy: ±1 °C for range 0 °C to +40 °C, otherwise ±2 °C

outdoor temperature: -50 °C to +70 °C, 0.1 °C increments

temperature measurement accuracy: ±1 °C for range 0 °C to +40 °C, otherwise ±2 °C

relative humidity: 20–95 % RH, 1 % increments

humidity measurement accuracy: 5 %

temperature measurement units: °C/°F

bar. pressure measurement range: 850 hPa to 1 050 hPa

pressure unit: hPa/inHg

radio signal range: up to 30 m in an open area

number of sensors which can be connected: max. 3

wireless sensor: transmission frequency 433 MHz, 10 mW e.r.p. max.

length of the sensor's wire probe: 1 m

station power supply: 3× 1.5 V AAA batteries (not supplied)

adapter AC 230 V/DC 5 V (included)

sensor power supply: 2× 1.5 V AAA (not included)

station dimensions and weight: 193 × 144 × 50 mm, 364 g

sensor dimensions and weight: 60 × 100 × 21 mm, 54 g

Getting Started

1. Connect the adapter to the station/insert batteries first into the weather station (3× 1.5 V AAA), then into the wireless sensor (2× 1.5 V AAA). When inserting the batteries make sure the polarity is correct to avoid damaging the weather station or sensor. Only use alkaline batteries of the same type; do not use rechargeable batteries.
2. Place the two units next to each other. The weather station will detect the remote sensor signal within 3 minutes. If signal from the sensor is not detected, long press the CH button on the weather station to repeat the search.
3. If the outdoor temperature reading disappears from the display, long press the CH button on the weather station. The weather station will reset all values and repeat the search for the sensor signal.
4. We recommend placing the sensor on the north side of the house. The range of the sensor may decrease substantially in areas with large number of obstacles.
5. The sensor is resistant to dripping water; however, it should not be exposed to sustained rain.
6. Do not place the sensor on metal objects as this will reduce the transmission range.
7. If the low battery icon is displayed, replace batteries in the sensor or weather station.

Switching Channel and Connecting Additional Sensors

1. Choose the desired channel (1, 2, or 3) for the sensor by repeatedly pressing the CH button. Then long press the CH button; the 📞 icon will start flashing.

2. Remove the cover from the battery compartment and insert batteries (2× 1.5 V AAA).

3. Set the required sensor channel number (1, 2, 3) by repeatedly pressing the CH button located in the battery compartment of the sensor. The channel number will be shown on the sensor's display. Data from the sensor will be loaded within 3 minutes.

4. If the sensor signal is not detected, remove the batteries and reinsert them.

Displaying Data from Multiple Sensors, Automatic Cycling through Values from Connected Sensors

Press the CH button repeatedly to display data from all connected sensors one by one.

You can also activate cycling through data from all connected sensors:

1. Turning on cycle mode

Repeatedly press the CH button until the display shows icon C.

Data from all connected sensors will be shown automatically and repeatedly one after another.

1. Turning off cycle mode

Repeatedly press the CH button until icon C disappears.

Radio Controlled Clock (DCF77)

After registering with the wireless sensor, the weather station will automatically begin searching for DCF77 signal (hereinafter referred to as DCF) for 7 minutes; the ▲ icon will be flashing. No other data on the display will be updated while the search is in progress and all buttons will be disabled (except for SNOOZE•LIGHT). Once signal is detected, the icon will stop flashing and the current time will be displayed along with the ▶ DCF icon. If no signal is detected, the DCF icon will not be shown.

To repeat the search for DCF signal, hold buttons AMEM and HISTORY simultaneously. To cancel the search, again hold buttons MEM and HISTORY simultaneously. DCF signal will be synchronised daily between 2:00 and 3:00 am.

Note: If the weather station detects DCF signal but the current time on the display is incorrect (e.g. shifted ±1 hour), you must always set the correct time zone for the country where you are using the station, see Manual Settings.

In standard conditions (at safe distance from sources of interference, such as TV sets, computer monitors), the reception of time signal takes several minutes. If the weather station does not detect the signal, follow these steps:

1. Move the weather station to another location and try to detect DCF signal again.

2. Check the distance of the clock from sources of interference (computer monitors or television sets). It should be at least 1.5 to 2 m during the reception of the signal.

3. When receiving DCF signal, do not place the weather station in the proximity of metal doors, window frames and other metal structures or objects (washing machines, dryers, refrigerators etc.).

4. In reinforced concrete structures (cellars, high-rise buildings etc.), the DCF signal reception is weaker, depending on the conditions. In extreme cases, place the weather station close to a window toward the transmitter.

Reception of the DCF 77 radio signal is affected by the following factors:

- thick walls and insulation, basements and cellars;

- inadequate local geographical conditions (these are difficult to assess in advance);

• atmospheric disturbances, thunderstorms, electrical appliances with no interference elimination, television sets and computers located near the DCF receiver.

Manual Settings

1. Long press the MODE button.

2. Then, repeatedly press the MODE button to choose settings for: 12/24 time format – time zone – date format – year – month – day – hour – minute – calendar language – bar. pressure unit (hPa, InHg) – °C/°F temperature units.

You can move between the values by pressing the MODE button, set values using buttons ∧MEM and √HISTORY.

Calendar languages are as follows:

EN – English; GE – German; DA – Danish; SP – Spanish; DU – Dutch; FR – French; IT – Italian

Setting Altitude

To achieve more accurate calculation of pressure values, it is advised to manually set the altitude for the place where the weather station is being used.

1. Hold the SNOOZE•LIGHT button until the altitude value starts flashing.

2. Set the desired altitude by pressing MEM or HISTORY. The settings range between -190 m to 2,000 m, with 10 m increments.

Atmospheric pressure – History

The station shows atmospheric pressure in hPa or inHg and keeps a history of pressure readings for the last 12 hours in field no. 16.

Moving the weather station to another place will affect the measured values.

Measurement will stabilise within 12 hours of battery insertion or weather station moving.

Press the HISTORY button repeatedly to gradually display the pressure values for the last 12 hours.

The measured value + time difference will be displayed in fields no. 15, 16.

Information

After 20 seconds, the station will switch from settings mode back to standard mode once the setting process is complete.

Temperature, Humidity and Pressure Trends

indicator for temperature, humidity and pressure trends
	rising constant	falling

Moon Phases

The moon phase is displayed in field no. 14.

Icons for the main phases of the moon are as follows:

new moon	waxing crescent	first quarter	waxing gibbous	full moon	waning gibbous	last quarter	waning crescent

Displaying Maximum and Minimum Readings of Temperature and Humidity

Press the MEM button repeatedly to gradually display the maximum and minimum readings of temperature and humidity.

Holding the MEM button while viewing MAX/MIN values will erase the memory.

Alarm Settings

2 alarms can be set on the weather station.

Pressing the MODE button will display the time for alarm A1. The selection will be shown in field no. 21.

While showing the alarm time, hold the MODE button and use AMEM and HISTORY to set the desired alarm time.

Activate the alarm by pressing MEM or HISTORY while displaying alarm time in field no. 21.

After activation, the alarm will be indicated by icon 4 field no. 19.

Pressing ∧ MEM or ∨ HISTORY again while displaying alarm time will deactivate the alarm and the icon will disappear.

The same procedure is used for setting up alarm A2 (icon 📄2).

Snooze and Display Backlight Functions (SNOOZE/LIGHT)

The alarm ringing can be delayed by 5 minutes using the SNOOZE•LIGHT button located on the top part of the weather station.

Press the button when the alarm starts ringing. The alarm icon will be flashing.

To cancel the SN00ZE mode, press any other button – the bell icon will stop flashing and will remain on the screen.

The alarm will be re-activated the next day.

Weather Forecast

The station forecasts weather on the basis of changes in atmospheric pressure for the next 12–24 hours for an area within the range of 15–20 km.

The accuracy of weather forecast is 70–75 %. The forecast icon is displayed in field no. 11.

As the weather forecast may not be 100 % accurate, neither the manufacturer nor the seller can be held responsible for any loss caused by an incorrect forecast.

When you first set or reset the weather station, it takes about 12 hours before the weather station begins forecasting correctly.

Weather Forecast Icons:

sunny cloudy	overcast rain heavy rain

the snowflake icon appears at outdoor temperature between -3 °C to +1 °C.

Nice Environment Icon – Smiley

Nice environment icon is displayed in field no. 30.

If the humidity is between 40–70 % RH and the temperature between 20–28 °C, the screen will show the COMFORT icon ☺ nice environment.

If the humidity is lower than 40 % RH, the screen will show the DRY icon 😊 dry environment.

If the humidity is higher than 70 % RH, the screen will show the WET icon 😊- wet environment If temperature is not between 20–28 °C and humidity is not between 40–70 % RH, no icon will be displayed.

Setting Temperature Limits for Maximum and Minimum Temperature

Temperature limits can be set independently for up to 3 outdoor temperature sensors.

Long press the ALERT (C) button. The value for setting maximum temperature alert will begin flashing Use the MEM and HISTORY buttons to set the desired temperature between -49 °C and 70 °C.

Then press the ALERT (C) button and set the minimum temperature for the alert between -50 °C and 69 °C

Press the ALERT button to activate/deactivate the temperature alert function. The 📋icon will appear in field no. 26.

Holding the adjustment buttons will make the values change faster.

Temperature limit range is -50 °C to +70 °C, increment 1 °C.

When the set temperature limit is exceeded, an audio alarm will sound repeatedly and the value will begin flashing.

Pressing the ALERT button silences the audio signal.

Battery Replacement Warning

Replace the batteries in the station or the sensor once the display of the station or the sensor shows the low battery icon 🔒.

Station Display Backlight

When powered via adapter

Permanent backlighting is set automatically.

Repeatedly pressing the SNOOZE•LIGHT button will allow you to set 3 different modes for permanent backlighting (off, medium backlight level, maximum backlight level).

When powered by 3× 1.5 V AAA batteries

Display backlighting is off. Pressing the SNOOZE·LIGHT button will turn the display backlight on for 10 seconds, then it turns off again. When the station is only powered by batteries, permanent backlighting of the display cannot be activated!

Note: The inserted batteries serve as backup for the measured/set data.

If batteries are not inserted and you unplug the adapter, all data will be erased.

Care and Maintenance

The product is designed to provide trouble-free service for many years if used appropriately. Here are some tips for proper operation:

- Read the manual carefully before using this product.

• Do not expose the product to direct sunlight, extreme cold and humidity, and sudden changes in temperature. This would reduce accuracy of detection. Do not place the product in locations prone to vibration and shocks – these may cause damage.
• Do not expose the product to excessive force, impacts, dust, high temperatures or humidity – these may cause malfunction, shorter battery life, damage to batteries and deformation of plastic parts.
• Do not expose the product to rain or moisture, if it is not designed for outdoor use.
• Do not place any open flame sources on the product, e.g. a lit candle, etc.
• Do not place the product in places with inadequate air flow.
• Do not insert any objects in the product's vents.
• Do not tamper with the internal electric circuits of the product – doing so may damage the product and will automatically void the warranty. The product should only be repaired by a qualified professional.
• To clean the product, use a slightly moistened soft cloth. Do not use solvents or cleaning agents – they could scratch the plastic parts and cause corrosion of the electric circuits.
• Do not immerse the product in water or other liquids.
• The product must not be exposed to dripping or splashing water.
• In the event of damage or defect on the product, do not perform any repairs by yourself. Have it repaired in the shop where you bought it.
• This device is not intended for use by persons (including children) whose physical, sensory or mental disability or lack of experience and expertise prevents safe use, unless they are supervised or instructed in the use of the appliance by a person responsible for their safety.

Disclaimer

• The manufacturer reserves the right to change the specifications of the product.
• The manufacturer and supplier are not responsible for malfunction where interference occurs.
• This product is not intended for medical or commercial purposes.
• The product contains small parts, which is why it should be placed out of the reach of children.
• No part of the manual may be reproduced without written permission from the manufacturer.

Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed in landfill, dangerous substances may reach groundwater and subsequently food chain, where it could affect human health.

Hereby, EMOS spol. s r. o. declares that the radio equipment type E5005 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.emos.eu/download.

urni format: 12/24 h

notranja temperatura: 0 °C do +50 °C, ločljivost 0,1 °C

Icona comfort - smiley
