USER MANUAL WFE P Weller

EN English Safety information | Specied Conditions Of Use | User groups | Care and maintenance | Warranty | Technical Data | Symbols | Original declaration of conformity

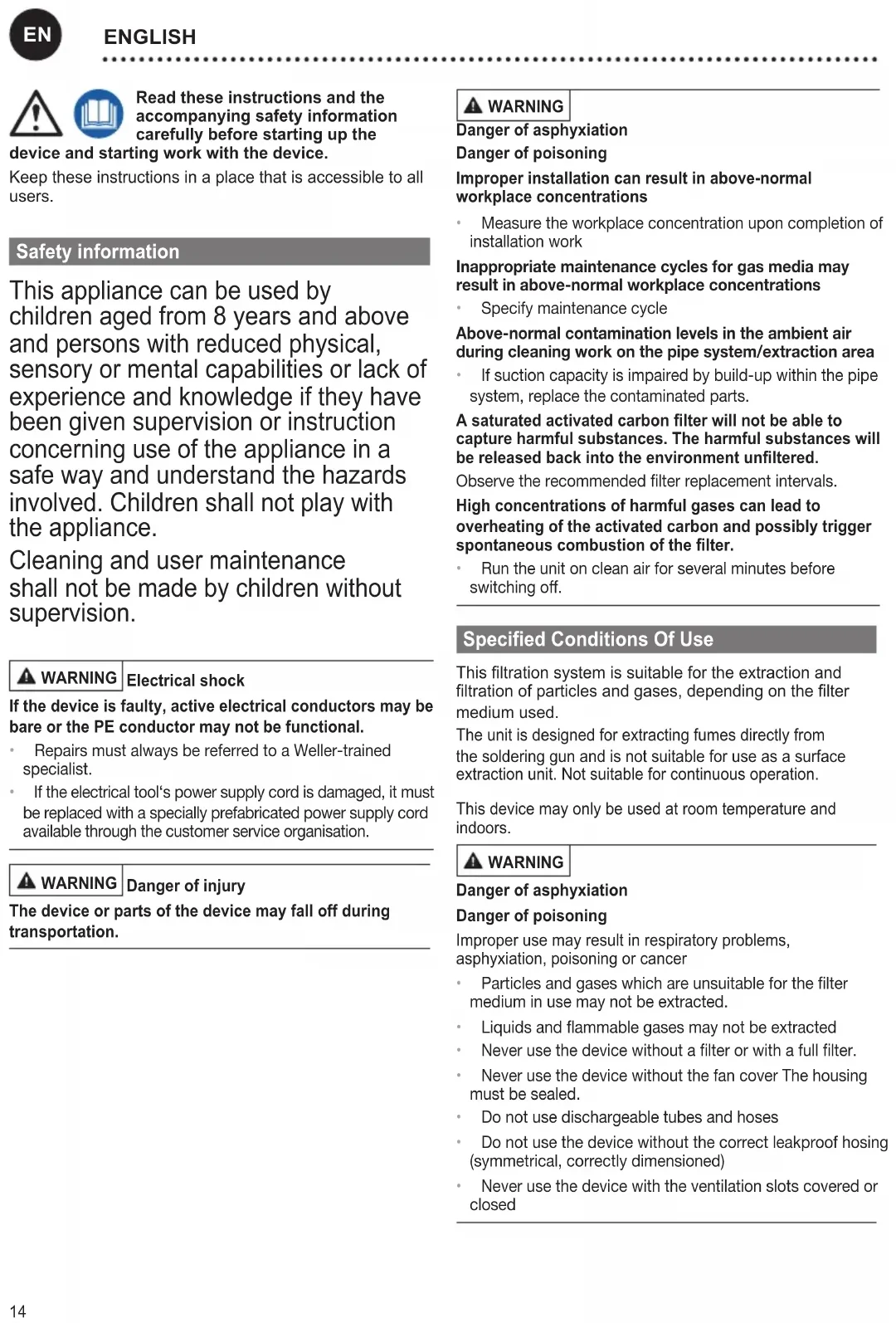

• keinVorltereingesetzt • VorltereinsetztenM5Filter einsetzen.BeihohemFeststoanteil Vorabschneidereinsetzen14 Read these instructions and the accompanying safety information carefully before starting up the device and starting work with the device. Keep these instructions in a place that is accessible to all users. Safety information This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. WARNING Electrical shock If the device is faulty, active electrical conductors may be bare or the PE conductor may not be functional.

• RepairsmustalwaysbereferredtoaWeller-trained specialist.

• Iftheelectricaltool‘spowersupplycordisdamaged,itmust bereplacedwithaspeciallyprefabricatedpowersupplycord availablethroughthecustomerserviceorganisation. WARNING Danger of injury The device or parts of the device may fall off during transportation. WARNING Danger of asphyxiation Danger of poisoning Improper installation can result in above-normal workplace concentrations

• Measuretheworkplaceconcentrationuponcompletionof installationwork Inappropriate maintenance cycles for gas media may result in above-normal workplace concentrations

• Specifymaintenancecycle Above-normal contamination levels in the ambient air during cleaning work on the pipe system/extraction area

• Ifsuctioncapacityisimpairedbybuild-upwithinthepipe system,replacethecontaminatedparts. A saturated activated carbon lter will not be able to capture harmful substances. The harmful substances will be released back into the environment unltered. Observetherecommendedlterreplacementintervals. High concentrations of harmful gases can lead to overheating of the activated carbon and possibly trigger spontaneous combustion of the lter.

• Runtheunitoncleanairforseveralminutesbefore switchingo. Specied Conditions Of Use This ltration system is suitable for the extraction and ltration of particles and gases, depending on the lter medium used. The unit is designed for extracting fumes directly from the soldering gun and is not suitable for use as a surface extraction unit. Not suitable for continuous operation. This device may only be used at room temperature and indoors. WARNING Danger of asphyxiation Danger of poisoning Improper use may result in respiratory problems, asphyxiation, poisoning or cancer

• Neverusethedevicewiththeventilationslotscoveredor closed

ENGLISH15 WARNING Fire and explosion hazard! The unit is not permitted to be used for the extraction of inammable gases. The unit must not be exposed to temperatures above 50°C, naked ame or condensed solvents. The organisation operating the unit is responsible for the observance of the legal limits for noxious substances at the place of work. The ltration system may only be put into operation if it is in perfect working order. Intended use of the soldering station/ desoldering station also includes the requirement that you

• adheretotheseinstructions,

• observeallotheraccompanyingdocuments,

• complywithnationalaccidentpreventionguidelines applicableattheplaceofuse. The manufacturer will not be liable for unauthorised modications to the device. User groups Due to differing degrees of risk and potential hazards, several work steps may only be performed by trained experts.. Work step User groups Replacing electrical replacement parts Electricians Technical trainees under the guidance and supervision of a trained expert Specication of maintenance intervals Safety expert Operation Filter change Non-specialists Operation Notice The unit may emit dust from the main lter after transportation. Make sure that the unit is put into service in a suitable room. CAUTION! A high noxious gas concentration will cause the activated charcoal to heat up. To avoid overheating, the unit should be run without noxious gases for several minutes before switching off. Put the tool into operation as described in the chapter „Placing into operation“. Please adhere to the operating instructions of the connected devices. Check to see if the mains voltage matches the ratings on the nameplate. Make sure the machine is switched off before plugging in. Optimal gas ltration is achieved as follows:

• Temperature of process air in gas lter < 38 °C

• Relative humidity < 60 %

• Gas molecules > 30 g/mol (better ltration results are achieved with larger molecules)

• Boiling point of the gas molecules > 0 °C Useabroadbandgaslter(withoutasuspendedmatter lter)fortheextractionofadhesivevapours. Care and maintenance WARNING Before doing any work on the machine, pull the plug out of the socket. The operator must check that the connector is still removed at every station to which they have access. The unit must not be altered or modied in any way! Repairs must always be referred to a Weller-trained specialist. Use original replacement parts only. Filter change year MIN 1x The suspended matter lter and the broadband gas lter are complementary to one another and can be replaced together as a compact lter. The ne dust lter (lter mat) is the preliminary stage of the compact lter and therefore must be replaced more frequently. It is strongly recommended that the compact lter be replaced after no more than 10 ne dust lter changes. Toensurethattheltrationsystemfunctionsproperly,the compactltermustbereplacedasfollows:

• aspermaintenanceschedule Contaminated lters must be treated as special waste. Wear suitable protective gear. Notice Different uxes and ux constituents and the amount of and size of dust particles in the extracted air will signi cantly effect the lters working life.Submicron particles in the extracted air increase when soldering or welding to varnish insulated wire.

ENGLISH Cleaning To ensure that the device works as correctly, the vacuum tube and the extraction hose of the FE soldering iron must be cleaned on a regular basis. If heavily soiled, the extraction tube can be placed in a sealed, gastight container and soaked in cleaning alcohol (ethanol) until the ux residues have dissolved. WARNING Legal safety regulations on the handling of cleaning products must be observed when using such pro- ducts. The cleaning product should be treated as hazardous waste. Warranty Claims by the buyer for physical defects are time-barred after a period of one year from delivery to the buyer. This does not apply to claims by the buyer for indemnication in accordance with §§ 478, 479 BGB (German Federal Law Gazette). We shall only be liable for claims arising from a warranty furnished by us if the quality or durability warranty has been furnished by use in writing and using the term „Warranty“. The warranty shall be void if damage is due to improper use and if the device has been tampered with by unauthorised persons. Subject to technical alterations and amendments. For more information please visit www.weller-tools.com Technical Data Solder fume extraction WFE P Rated voltage V / Hz 230 V AC / 50-60 Rated power consumption W 70 Maximum vacuum Pa 30.000 Maximum quantity supplied / 1 Soldering iron l / min

Weight kg 4 Dimensions L x W x H mm inch 140 x 140 x 295 5,5 x 5,5 x 11,6 Operating sound level from 1 m distance dB(A) 40 Max. capacity 1–2 workstations Combined lter: Particle lter Class E12 (previously H13) Wide band gas lter (50 % activated carbon, 50 % Puratex) Pre lter: pre lter mat class F7 Symbols Caution! Read the operating instructions! Before performing work of any kind on the unit, always disconnect the power plug from the socket. ESD-compatible design and ESD-compatible workstation Danger of crushing injuries! Disposal Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Dispose of replaced equipment parts, lters or old devices in accordance with the rules and regulations applicable in your country. Contaminated lters must be treated as special waste. CE mark of conformity17

• Sub-micronpariclebecomingdirtyto quickly
