Product type	Indoor TV antenna
Brand	Nedis
Model	ANIR2512GY700
Frequency range	VHF: 87.5 - 230 MHz, UHF: 470 - 694 MHz
Gain	28 dB
Output level	100 dBμV
Output impedance	75 Ohms
Noise factor	≤ 3 dB
Power supply	AC/DC adapter 12 VDC 200 mA or via TV decoder 5 VDC 40 mA
Connector	IEC (coaxial)
Intended use	Indoor only
Key features	Integrated high gain low noise amplifier, shielding against interference, SMD technology
Mounting	Wall (on mast) or tabletop with included stand
Included accessories	Main unit with coaxial cable, power adapter, desktop stand
Compatibility	DVB-T, ISDB-T, DMB-T/H, ATSC, DAB/FM, HD TV
Care and cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to water or moisture. Keep out of reach of children. Do not open the housing.
Spare parts and repairability	No user-serviceable parts. If damaged, return to supplier.
General information	Elegant and compact design, glossy black finish. Portable for mobile use (camping, boat).

Frequently Asked Questions - ANIR2512GY700 NEDIS

How to power the Nedis ANIR2512GY700 antenna?

The antenna can be powered in two ways: either via the included AC/DC adapter (12 VDC, 200 mA) by plugging the DC connector into the antenna, or directly from the TV decoder if it supports power over coaxial cable (5 VDC, 40 mA). Make sure the coaxial power supply function of your decoder is enabled.

What is the range of this indoor antenna?

The range depends on the environment and proximity to transmission towers. With a gain of 28 dB, it is designed for reception within a typical radius of 30 to 50 km depending on obstacles. For better reception, place the antenna near a window and at a height.

Can I use this antenna outdoors?

No, this antenna is designed for indoor use only. It is not designed to withstand weather conditions. For outdoor use, choose a suitable model.

How can I improve signal reception?

Place the antenna near a window, at a height, and away from sources of interference such as air conditioners, microwaves, or elevators. Orient the antenna by rotating the body or positioning it vertically/horizontally. Use the wall mount for a stable installation.

Is this antenna compatible with all TVs?

Yes, it is compatible with any TV or decoder that has a coaxial input (IEC connector). It supports DVB-T, ISDB-T, DMB-T/H, ATSC, and DAB/FM radio. Ensure your TV is equipped with a digital tuner.

What should I do if I cannot receive any channels after installation?

First, check that the antenna is properly powered (adapter plugged in or decoder activated). Then perform a channel scan on your TV. If nothing appears, move the antenna to different locations (near a window, at a height) and repeat the scan. Keep it away from electronic devices.

Does the antenna require special maintenance?

Occasional cleaning with a soft, dry cloth is sufficient. Do not use chemical or abrasive cleaners. Do not leave the antenna in a humid or dusty environment.

Can I use the antenna with a TV decoder without an adapter?

Yes, if your decoder supports power over coaxial cable at 5 VDC. Simply connect the antenna's coaxial cable to the decoder, then enable the coaxial power function in the decoder's settings. Refer to your decoder's manual.

How do I mount the antenna on a wall?

The antenna can be mounted on a wall using the included bracket. Use the fixing holes on the back of the antenna (wall plugs not included). You can also place it on a table using the included desktop stand.

What should I do if the antenna malfunctions?

If the antenna is damaged or does not work properly, do not open it (no user-serviceable parts). Contact Nedis customer service or return it to the store of purchase for a replacement. Keep the proof of purchase.

USER MANUAL ANIR2512GY700 NEDIS

Two horizontal bar charts with grayscale and colored squares, no text or symbols present

nedis

Indoor TV Antenna

ANIR2512GY700

Close-up of a textured fabric or material surface with no visible text or symbols

EN Quick start guide 5
DE Kurzanleitung 9
FR Guide de démarrage rapide 15
NL Snelstartgids 20
IT Guida rapida all'avvio 26
ES Guía de inicio rápido 31
PT Guia de iniciação rápida 36
SV Snabbstartsguide 41
FI Pika-aloitusopas 46
NO Hurtigguide 51
DA Vejledning til hurtig start 55
HU Gyors beüzemelési útmutató 60
PL Przewodnik Szybki start 66
EL Οδηγός γρήγορης εκκίνησης 71
SK Rýchly návod 77
CS Rychlý návod 82
RO Ghid rapid de inițiere 87

Two horizontal bar charts with grayscale and colored squares, no text or symbols present

A ① ② ③

Diagram showing connections between a TV and a cable, with no visible text or symbols

Two horizontal bar charts with grayscale and colored squares, no text or symbols present

C 230V/50Hz TV

D

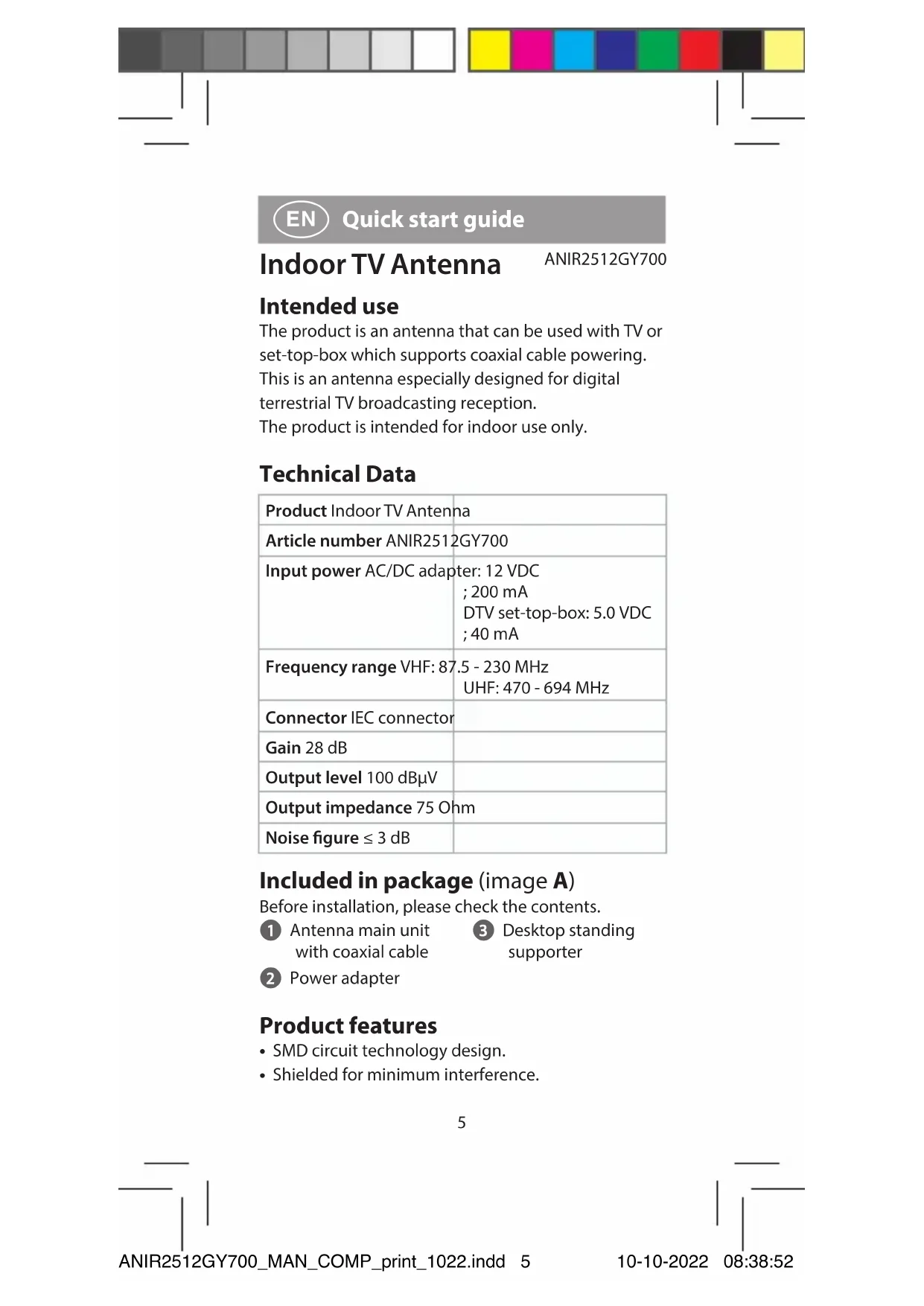

Quick start guide

Indoor TV Antenna

ANIR2512GY700

Intended use

The product is an antenna that can be used with TV or set-top-box which supports coaxial cable powering. This is an antenna especially designed for digital terrestrial TV broadcasting reception. The product is intended for indoor use only.

Technical Data

Product Indoor TV Antenna
Article number ANIR2512GY700
Input power AC/DC adapter: 12 VDC; 200 mADTV set-top-box: 5.0 VDC; 40 mA
Frequency range VHF: 87.5 - 230 MHzUHF: 470 - 694 MHz
Connector IEC connector
Gain 28 dB
Output level 100 dBμV
Output impedance 75 Ohm
Noise figure ≤ 3 dB

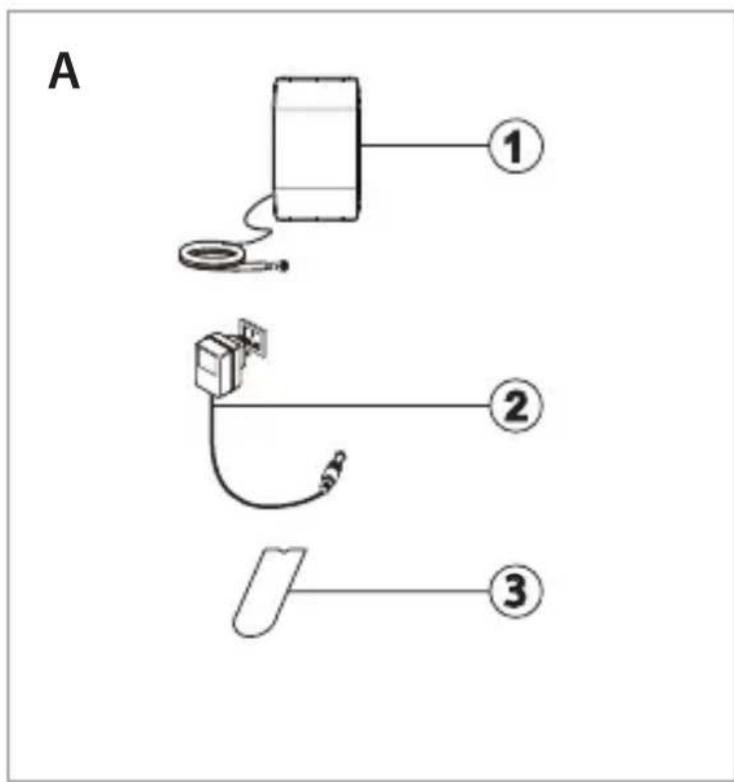

Included in package (image A)

Before installation, please check the contents.

1 Antenna main unit with coaxial cable

3 Desktop standing supporter

2 Power adapter

Product features

• SMD circuit technology design.
• Shielded for minimum interference.

• Built-in high gain and low noise amplifier.

- Portable for mobile use (camping, boating, etc).

- Stylish and compact size design with shiny black finish.

- Powered by DTV set-top-box or included separate power adapter.

- Mounting on the wall (or pole) or positioning on the table for the best possible reception.

- Compatible with HDTV of various digital terrestrial signal (DVB-T, ISDB-T, DMB-T/H, ATSC) and DAB/FM radios.

Safety instructions

WARNING

- Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

- Only use the product as described in this document.

- Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

- Do not drop the product and avoid bumping.

- This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

- Do not expose the product to water or moisture.

- Do not throw away this product with other household waste.

- There are no user serviceable parts. Do not open the housing.

- Keep the product out of reach from children, infirm persons or animals.

- Check the product regularly for signs of damage, when damaged do not use the product any longer and return the product to the supplier.

• Keep the product away from heat sources. Do not place the product on hot surfaces or near open flames.
• Do not place the product under any mechanical stress.
• Do not expose the product to a high level of vibrations.

Operation instruction

For the best reception, please check the following conditions:

• Keep the antenna away from the sources of interference: keep the antenna away from those big power consumption devices, such as air conditioner, elevator, hair dryer and microwave oven.
• Place the antenna near windows when using the antenna in indoor environment.
  • Install the antenna as high as possible: In digital terrestrial reception, interceptions between antenna and transmission tower will cause signal loss temporarily. Please install the antenna as high as possible to reduce interceptions.

Installation 1: powered by DTV set-top-box (image B)

Please be noticed, in this installation, you need to make sure that your set-top-box can support coaxial cable 5V DC powering via the IEC or F connector to antenna.

1. Take out the antenna main unit and accessories from box.
2. Connect the coaxial cable with antenna and DTV set-top-box.
3. Connect the DTV set-top-box to your TV. Please make sure the coaxial cable powering function of your STB is ON. (Please check the operational

manual of your STB for coaxial cable powering function).

1. Adjust the antenna (turn around the antenna body in different direction or put it in vertical or horizontal) in the best position that can receive digital TV signal. (It is recommended to place the antenna near the window where the digital TV signal comes in).
2. Organize the coaxial cable for neat, tidy and safety.

Installation 2: powered by AC/DC adapter (image C)

1. Take out the antenna main unit and accessories from box.
2. Connect the coaxial cable with antenna and DTV set-top-box or TV.
3. Connect the DTV set-top-box to your TV.
4. Connect the power adapter DC output jack to the DC input connector of the antenna, and then plug the AC/DC power adapter into the AC power socket.
5. Adjust the antenna (turn around the antenna body in different direction or put it in vertical or horizontal) in the best position that can receive digital TV signal. (It is recommended to place the antenna near the window where the digital TV signal comes in).
6. Organize the coaxial cable for neat, tidy and safety.

After the installation is finished, you can use your set-top-box to check the signal strength and quality. If you cannot have a steady picture, please move the antenna to a better reception position. When you find the best position, please fix it. Please take reference of following 3 different positioning way to fix the antenna.

Insert the desktop standing supporter for horizontal or vertical reception (image D).

Disposal

This symbol indicates that this product should not be thrown away with other household waste throughout the EU. To prevent possible harm to the environment or human health by uncontrolled waste disposal, you are responsible for recycling it so that it can promote the sustainable reuse of raw materials. To return your used product, you can use the regular return and collection systems or contact the store where the product was purchased. They can recycle this product for the environment.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product ANIR2512GY700 from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/ANIR2512GY700#support
