Product type	Indoor TV antenna
Brand	Nedis
Model	ANIR2503BK700
Power supply	12 VDC (50 mA) or 230 VAC (50 Hz) via adapter
FM frequency range	87.5 - 108.5 MHz
UHF frequency range	470 - 694 MHz
VHF frequency range	170 - 230 MHz
VHF gain	30 dB
UHF gain	36 dB
Output level	95 dBμV
Output impedance	75 Ohms
Noise figure	≤ 5 dB
Connectivity	Coaxial output 75 Ohms
Built-in amplifier	Yes, high gain and low noise
Gain control	Variable (rotary knob)
LED indicator	On/Off
Antennas	Adjustable UHF dipole, UHF reflector, VHF telescopic antenna
Compatibility	DVB-T, ISDB-T, DMB-T/H, ATSC, DAB/FM
Usage	Indoor only
Maintenance	Clean with a dry cloth
Safety	Do not open, do not expose to water
Repairability	No user-serviceable parts
Box content	Antenna, power plug, manual

Frequently Asked Questions - ANIR2503BK700 NEDIS

How to install the Nedis ANIR2503BK700 antenna?

Place the antenna near a window, as high as possible. Keep it away from sources of interference (air conditioner, microwave). Connect the coaxial cable to your TV or decoder, then plug in the AC adapter. Turn on the antenna with the switch: the LED indicator should light up.

How to adjust the antenna gain?

Turn the gain adjustment knob on the antenna. To increase the gain, turn clockwise; to decrease it, turn counterclockwise. Adjust until you get the best picture quality.

Is the antenna compatible with French DTT?

Yes, it is compatible with DVB-T signals used in France. It receives VHF bands (channels 1-12) and UHF bands (channels 21-69).

What to do if reception is poor?

Make sure the antenna is properly oriented towards the nearest transmitter. Try moving the telescopic antennas, the UHF dipole, and the reflector. Adjust the gain. Keep the antenna away from other electronic devices. Check that the connections are fully inserted.

How to clean the Nedis TV antenna?

Disconnect the antenna from power. Clean it with a soft, dry cloth. Do not use chemical or abrasive products. Avoid touching internal components.

Can I use this antenna outdoors?

No, this antenna is designed for indoor use only. Exposing it to moisture or weather could damage it and create a risk of electric shock.

What to do if the antenna malfunctions?

First check the connections and power supply. If the LED indicator does not light up, the AC adapter or antenna may be defective. Do not attempt to repair the antenna yourself; contact the manufacturer or return it to the point of sale.

How to connect the antenna directly to a TV?

Use a coaxial cable to connect the antenna output to the TV antenna input. Plug the antenna's AC adapter into a wall outlet. Turn on the antenna, then perform a channel scan on your TV.

How to connect the antenna to a DTT decoder?

Connect the antenna output to the decoder's antenna input with a coaxial cable. Plug in the antenna's power supply. Connect the decoder to the TV via HDMI or SCART. Turn on the antenna and start the channel search from the decoder.

How to recycle the antenna at end of life?

Do not throw the antenna in household waste. Take it to an electronic waste collection point or return it to the store where you purchased it. This allows recycling of materials and protects the environment.

USER MANUAL ANIR2503BK700 NEDIS

Black desktop fan with visible blades and antenna, no text or symbols present

EN

Quick start guide 4

DE

Kurzanleitung 7

FR

Two horizontal bar charts: one grayscale with black, gray, and white bars, the other colored with yellow, magenta, cyan, blue, green, red, black, and pink bars (no text or symbols)

A 1 2 7 6 8 4 3 5

B AC 110V/220V TV

C AC 110V/220V DVBT TV

Quick start guide

Indoor TV Antenna

ANIR2503BK700

Intended use

The product is an antenna that can be used with TV or set-top-box which supports coaxial cable powering.

This is an antenna especially designed for digital terrestrial TV broadcasting reception.

The product is intended for indoor use only.

Technical Data

Product Indoor TV Antenna
Article number ANIR2503BK700
Input power DC: 12 VDC; 50 mAAC: 230 V; 50 Hz
Frequency range FM: 87.5 - 108.5 MHzUHF: 470 - 694 MHzVHF: 170 - 230 MHz
Receiving range FM, VHF, UHF
Gain VHF: 30 dB	UHF: 36 dB
Output level 95 dBμV
Output impedance 75 Ohm
Noise figure ≤ 5 dB

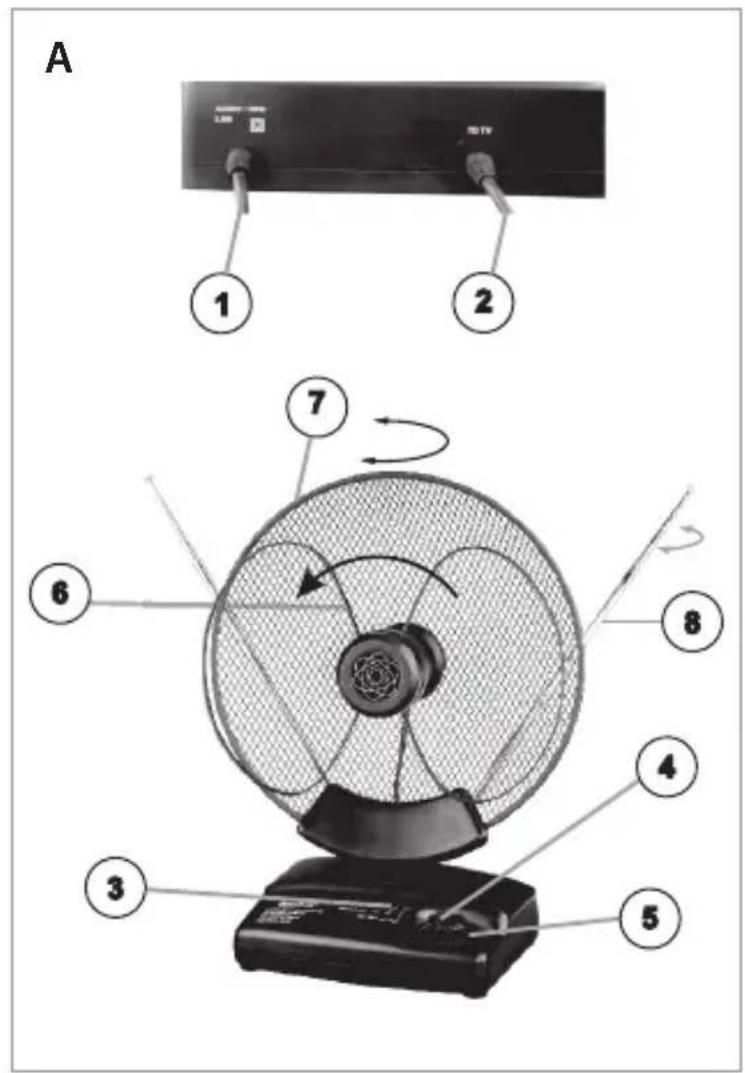

Included in package (image A)

1 Power plug
2 Signal output
3 Power indicator light
4 power ON/OFF switch
5 Gain adjustment knob
6 Tilt UHF dipole for receiving channels 21 - 69. Can be turned

anticlockwise direction (within 90 degrees).

7 UHF reflector. Can be turned sideways (within 90 degrees).
8 VHF telescopic antenna for receiving channels 1 - 12.

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• Do not throw away this product with other household waste.
• There are no user serviceable parts. Do not open the housing.
• Keep the product out of reach from children, infirm persons or animals.
• Check the product regularly for signs of damage, when damaged do not use the product any longer and return the product to the supplier.
• Keep the product away from heat sources. Do not place the product on hot surfaces or near open flames.
• Do not place the product under any mechanical stress.
• Do not expose the product to a high level of vibrations.

Operation instruction

For the best reception, please check the following conditions:

• Keep the antenna away from the sources of interference: keep the antenna away from those big power consumption devices, such as air conditioner, elevator, hair dryer and microwave oven.
• Place the antenna near windows when using the antenna in indoor environment.

• Install the antenna as high as possible: In digital terrestrial reception, interceptions between antenna and transmission tower will cause signal loss temporarily. Please install the antenna as high as possible to reduce interceptions.

Product features

• Variable gain control.
• Power On/Off LED indicators.
• SMD circuit technology design.
• Built-in high gain and low noise amplifier.
- Adjustable loop aerial for the best UHF reception.
- Adjustable telescopic antennas for optimum VHF and FM radio reception.
- Compatible with HDTV of various digital terrestrial signal (DVB-T, ISDB-T, DMB-T/H, ATSC) and DAB/FM radios.

Installation

1. Connect the AC 230V cable to the 230V AC wall socket.
2. Connect the TO TV cable to the antenna-input socket of your Tv or terrestrial DTV set-top-box.
3. After checking that all the connections have been done properly, turn on the power switch to switch the antenna on: LED lights up showing that the amplifier of indoor antenna is working.
4. Now, turn your television set on and select a TV program, then adjust the rod antennas, the UHF dipole, The UHF reflector and the amplifier gain adjuster knob according to what is described in next paragraphs.

Signal reception

VHF signals - I-III BAND (channels 1 - 12)

This antenna receives VHF signals (both analog and digital) through the rod antennas. For the best reception, adjust rod antennas as follows:

• For I Band: extend completely the rod antennas.
• For III Band: shorten the rod antennas to about 16 inches (the extension depends on the channel you want to receive);
• Then, move the rod antennas until you get the best signal reception.

UHF signals - IV-V BAND (channels 21 - 69)

This antenna receives UHF signals through dipole antenna:

1. Turn the UHF reflector sideways.
2. Turn the UHF dipole in anticlockwise direction until you get the best signal reception.

Gain adjusting

1. In order to adjust the amplifier gain turn gain adjuster knob until to get the best signal reception:
2. To increase gain, turn the knob clockwise.
3. To reduce gain, turn the knob anticlockwise.
4. This antenna can be used directly connected to TV or terrestrial set-top-box, please take reference of following 2 different connecting ways to install your antenna.

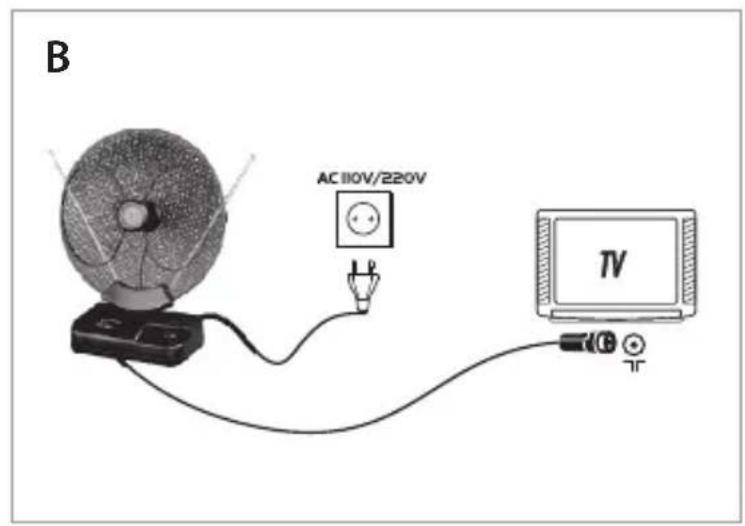

5. Directly connected to TV (Image B).

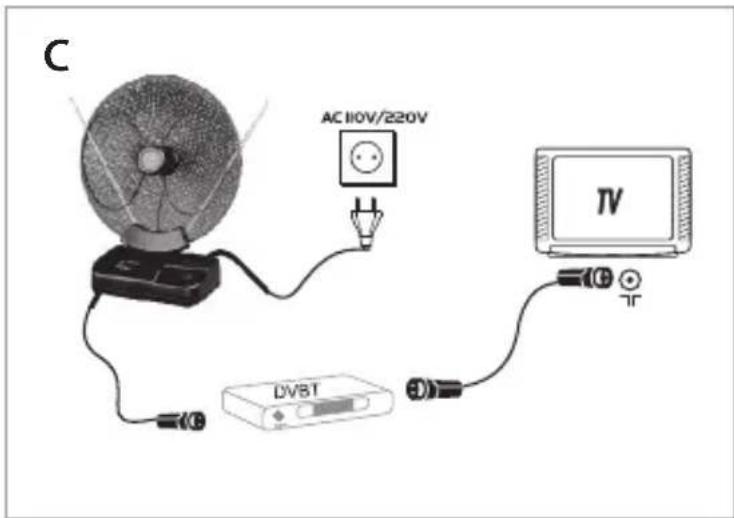

6. Directly connected to terrestrial set-top-box (Image C).

Disposal

This symbol indicates that this product should not be thrown away with other household waste throughout the EU. To prevent possible harm to the environment or human health by uncontrolled waste disposal, you are responsible for recycling it so that it can promote the sustainable reuse of raw materials. To return your used product, you can use the regular return and collection systems or contact the store where the product was purchased. They can recycle this product for the environment.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product ANIR2503BK700 from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/ANIR2503BK700#support
