ANIR0502BK - TV Antenna NEDIS - Free user manual and instructions

Product type	Indoor TV antenna
Brand	Nedis
Model	ANIR0502BK
Frequency range	FM: 87.5 - 108.5 MHz VHF: 170 - 230 MHz UHF: 470 - 790 MHz
Gain	5 - 7 dB
Output impedance	75 Ohms
Power supply	Passive (powered via coaxial cable from TV or set-top box)
Connectivity	Coaxial cable (not included)
TV compatibility	DVB-T, ISDB-T, DMB-T/H, ATSC
Radio compatibility	DAB / FM
Design	Adjustable and tiltable tube, compact design
Usage	Indoor only
LED indicator	Yes, power indicator
Safety instructions	Do not expose to water or humidity; do not open the housing; keep out of reach of children
Maintenance	Clean with a dry, soft cloth; do not use abrasive products
Repairability	Contains no user-serviceable parts; contact a qualified technician
Package contents	Main antenna unit
Approximate weight	Approximately 150 g
Approximate dimensions	300 x 100 x 100 mm (tube extended)

Frequently Asked Questions - ANIR0502BK NEDIS

How to install the Nedis ANIR0502BK antenna?

Connect the coaxial cable to the antenna and to your TVN set-top box or TV. Make sure coaxial power supply is enabled on your set-top box. Place the antenna near a window and adjust its orientation for optimal reception.

Why does the antenna LED not turn on?

The LED only lights up if coaxial power supply is enabled on your set-top box or TV. Check your device settings (see set-top box manual) and ensure the cable is properly connected.

Is this antenna compatible with French DTT?

Yes, the antenna supports DVB-T signals used in France for DTT, as well as DAB/FM radio.

Can I use this antenna outdoors?

No, the antenna is designed for indoor use only. Do not expose it to humidity or weather.

What types of connectors are needed?

The antenna uses a standard coaxial cable with F-type or IEC connector (depending on your set-top box). Make sure you have the appropriate cable.

How to improve signal reception?

Place the antenna as high as possible and near a window. Keep it away from interference sources (microwaves, air conditioners). Adjust the tilt and rotation of the tube to best capture signals.

Does the antenna require electrical power?

No, it is passive: it receives power via the coaxial cable from your set-top box or TV (coaxial power supply function must be enabled).

What to do if the picture is unstable or absent?

Check the signal strength and quality via your set-top box menu. Gradually move the antenna to different locations near the window and reorient it until you get a stable picture.

Does this antenna work with TVs without a set-top box?

Yes, if your TV has a built-in DTT tuner and supports coaxial power supply. Otherwise, you will need an appropriate set-top box.

How to clean the antenna?

Use a dry, soft cloth. Do not use water, solvents, or abrasive products. Always disconnect the antenna before cleaning.

USER MANUAL ANIR0502BK NEDIS

Two horizontal bar charts with grayscale and colored squares, no text or symbols present

nedis

Digital Indoor TV

Antenna

ANIR0502BK

Black antenna with a vertical pole and base (no visible text or symbols)

EN
Quick start guide 4
DE
Kurzanleitung 7
FR
Guide de démarrage rapide 11
NL
Snelstartgids 15
IT
Guida rapida all'avvio 19
ES
Guía de inicio rápido 23
PT
Guia de iniciação rápida 27
SV
Snabbstartsguide 31
FI
Pika-aloitusopas 34
NO
Hurtigguide 37
DA
Vejledning til hurtig start 41
HU
Gyors beüzemelési útmutató 44
PL
Przewodnik Szybki start 48
EL
Οδηγός γρήγορης εκκίνησης 52
SK
Rýchly návod 56
CS
Rychlý návod 60
RO
Ghid rapid de inițiere
64

Two horizontal bar charts with grayscale and colored squares, no text or symbols present

Black-and-white photo of a vertical antenna or sensor device with a labeled component (1), no visible text or symbols on the device itself.

Diagram of a TV connection setup with antenna, cable, and monitor (no text or symbols)

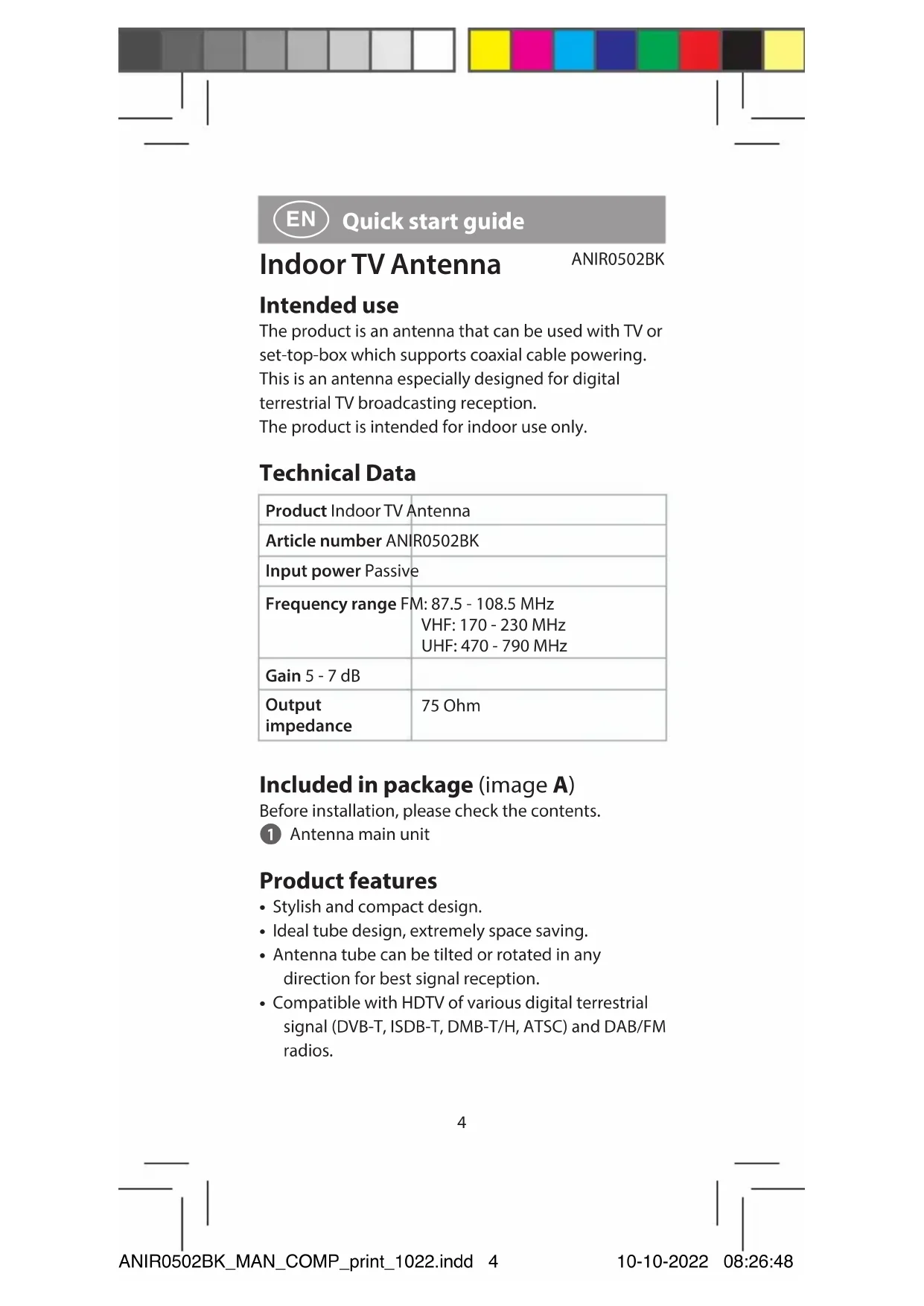

Quick start guide

Indoor TV Antenna

ANIR0502BK

Intended use

The product is an antenna that can be used with TV or set-top-box which supports coaxial cable powering. This is an antenna especially designed for digital terrestrial TV broadcasting reception. The product is intended for indoor use only.

Technical Data

Product Indoor TV Antenna
Article number ANIR0502BK
Input power Passive
Frequency range FM: 87.5 - 108.5 MHzVHF: 170 - 230 MHzUHF: 470 - 790 MHz
Gain 5 - 7 dB
Output impedance	75 Ohm

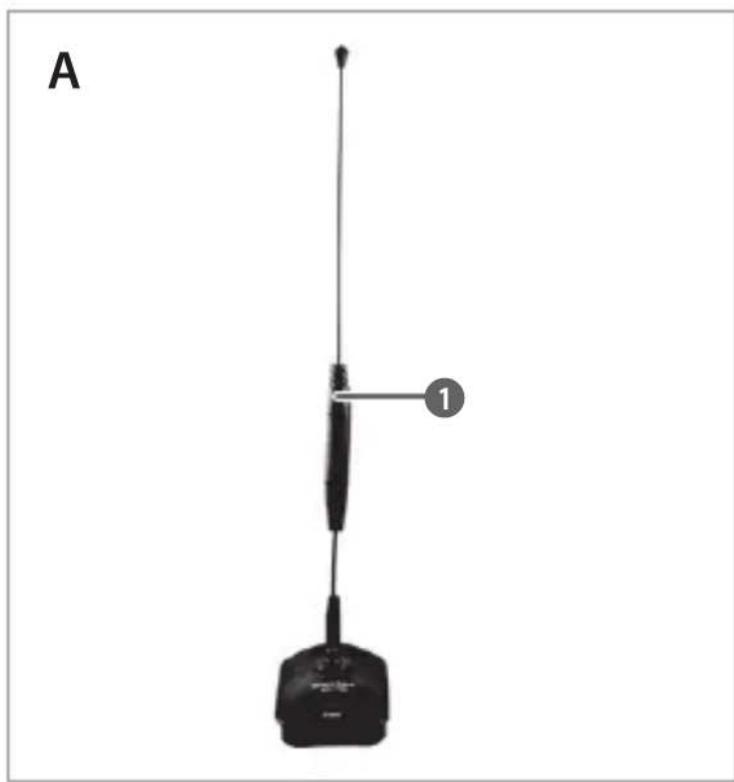

Included in package (image A)

Before installation, please check the contents.

1 Antenna main unit

Product features

• Stylish and compact design.
- Ideal tube design, extremely space saving.
- Antenna tube can be tilted or rotated in any direction for best signal reception.
- Compatible with HDTV of various digital terrestrial signal (DVB-T, ISDB-T, DMB-T/H, ATSC) and DAB/FM radios.

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• Do not throw away this product with other household waste.
• There are no user serviceable parts. Do not open the housing.
• Keep the product out of reach from children, infirm persons or animals.
• Check the product regularly for signs of damage, when damaged do not use the product any longer and return the product to the supplier.
• Keep the product away from heat sources. Do not place the product on hot surfaces or near open flames.
• Do not place the product under any mechanical stress.
• Do not expose the product to a high level of vibrations.

Operation instruction

For the best reception, please check the following conditions:

- Keep the antenna away from the sources of interference: keep the antenna away from those big power consumption devices, such as air conditioner, elevator, hair dryer and microwave oven.

- Place the antenna near windows when using the antenna in indoor environment.

• Install the antenna as high as possible: In digital terrestrial reception, interceptions between antenna and transmission tower will cause signal loss temporarily. Please install the antenna as high as possible to reduce interceptions.

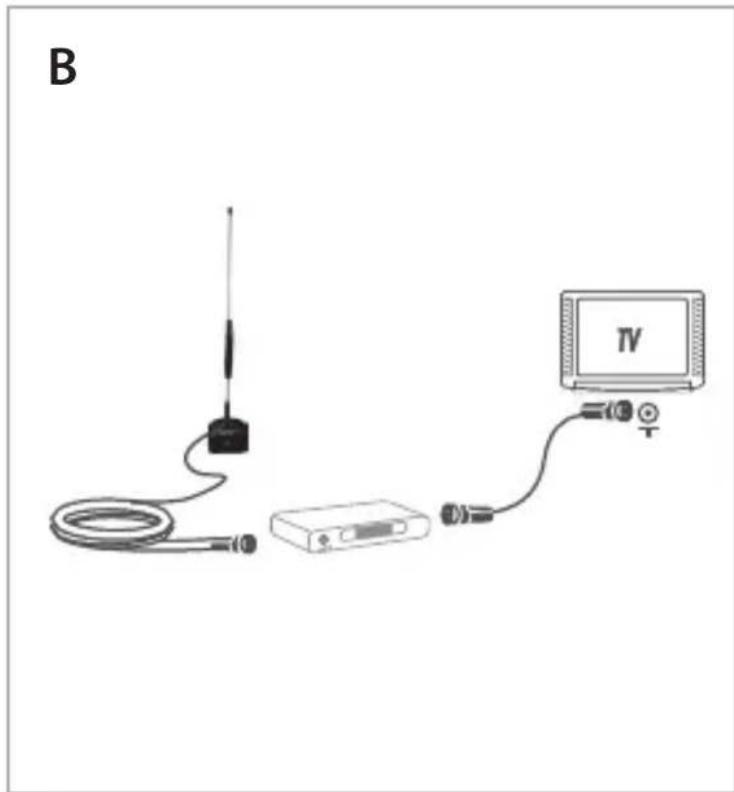

Installation: DTV set-top-box (image B)

1. Take out the antenna main unit and accessories from box.

2. Connect the coaxial cable with antenna and DTV set-top-box.

3. Connect the DTV set-top-box to your TV. Please make sure the coaxial cable powering function of your STB is ON. (Please check the operational manual of your STB for coaxial cable powering function).

4. Check the LED on the antenna. If the LED is not lighted on, Please go back to step 3.

5. Adjust the antenna in the best position that can receive digital TV signal. (It is recommended to place the antenna near the window where the digital TV signal comes in).

6. Organize the coaxial cable for neat, tidy and safety. After the installation is finished, you can use your set-top-box to check the signal strength and quality. If you cannot have a steady picture, please move the antenna to a better reception position. When you find the best position, please fix it.

Disposal

This symbol indicates that this product should not be thrown away with other household waste throughout the EU. To prevent possible harm to the environment or human health by uncontrolled waste disposal, you are responsible for recycling it so that it can promote the sustainable reuse of raw materials. To return your used product, you can use the regular return and collection systems or contact the store where the product was purchased. They can recycle this product for the environment.
