ANIR1504BK700 - TV Antenna NEDIS - Free user manual and instructions

Product type	Indoor TV Antenna
Brand	Nedis
Model	ANIR1504BK700
Power supply	AC/DC adapter 5 V DC / 200 mA or via TVN decoder (5 V DC / 40 mA)
FM frequency range	87.5 – 108.5 MHz
VHF frequency range	170 – 230 MHz
UHF frequency range	470 – 694 MHz
Gain	28 dB
Output level	100 dBµV
Output impedance	75 Ohms
Noise figure	≤ 3 dB
Technology	SMD circuits, shielded, integrated low-noise amplifier
TV compatibility	HD TV, DVB-T, ISDB-T, DMB-T/H, ATSC
Positioning	Horizontal or vertical
Usage	Indoor only
Box contents	Main antenna unit, base, power adapter
Design	Elegant and compact, glossy black finish
Maintenance	Clean with a dry cloth. Do not use chemicals.
Safety	Do not open the housing. Keep out of reach of children.
Repairability	No user-serviceable parts. Contact a qualified technician.
Weight	Approximately 200 g (estimate)
Dimensions	Approximately 200 × 150 × 50 mm (estimate)
Warranty	Check with the retailer
Article number	ANIR1504BK700

Frequently Asked Questions - ANIR1504BK700 NEDIS

How to power the Nedis ANIR1504BK700 antenna?

You can power the antenna in two ways: either via the supplied AC/DC adapter (5 V DC, 200 mA) by connecting the DC plug to the antenna, or via the coaxial cable if your TVN decoder supports cable power (5 V DC, 40 mA). In that case, activate the coaxial power function in the decoder settings.

Where to place the antenna for best reception?

For optimal reception, place the antenna near a window, as high as possible, and away from interference sources such as air conditioners, microwaves, or elevators. Orient it horizontally or vertically depending on signal polarization in your area.

Is the antenna compatible with DTT?

Yes, the antenna is specially designed for digital terrestrial television reception (DVB-T, ISDB-T, DMB-T/H, ATSC). It supports HD and is compatible with Freeview standards.

Can I use this antenna outdoors?

No, the Nedis ANIR1504BK700 antenna is intended for indoor use only. Its housing is not waterproof and could be damaged by moisture or weather.

How to clean the antenna?

Unplug the antenna before cleaning. Use a soft, dry cloth to wipe the surface. Do not use chemicals, alcohol, or solvents, as they may damage the coating.

What to do if the picture is unstable or missing?

First check that the antenna is properly powered and that the decoder is set for coaxial power if applicable. Gradually move the antenna to find the best position. Make sure no metal obstacles block the signal. Use your TV's channel search function.

Can the antenna be wall-mounted?

The antenna comes with a base and can be placed on a flat surface. It does not have a wall mount. For vertical positioning, you can lean it against a wall or use a compatible stand.

What to do if the antenna does not work after installation?

Check the connections: the coaxial cable must be firmly inserted, the power adapter plugged in (if used), and the decoder turned on. Try another power outlet or another TV to isolate the problem. If nothing works, contact Nedis customer service.

Is the antenna compatible with older decoders?

Yes, as long as the decoder has a coaxial input (IEC or F) and supports cable power if using that method. For decoders without coaxial power, use the supplied power adapter.

How to recycle the antenna at end of life?

Do not dispose of the antenna with household waste. In accordance with the WEEE directive, take it to an electronic waste collection point or to the store where you purchased it. Recycling allows raw materials to be reused.

USER MANUAL ANIR1504BK700 NEDIS

Line drawing of a rectangular electronic device with a base (no text or symbols)

Two horizontal bar charts: one grayscale with black, gray, and white bars, the other colored with yellow, magenta, cyan, blue, green, red, black, and pink bars (no text or symbols)


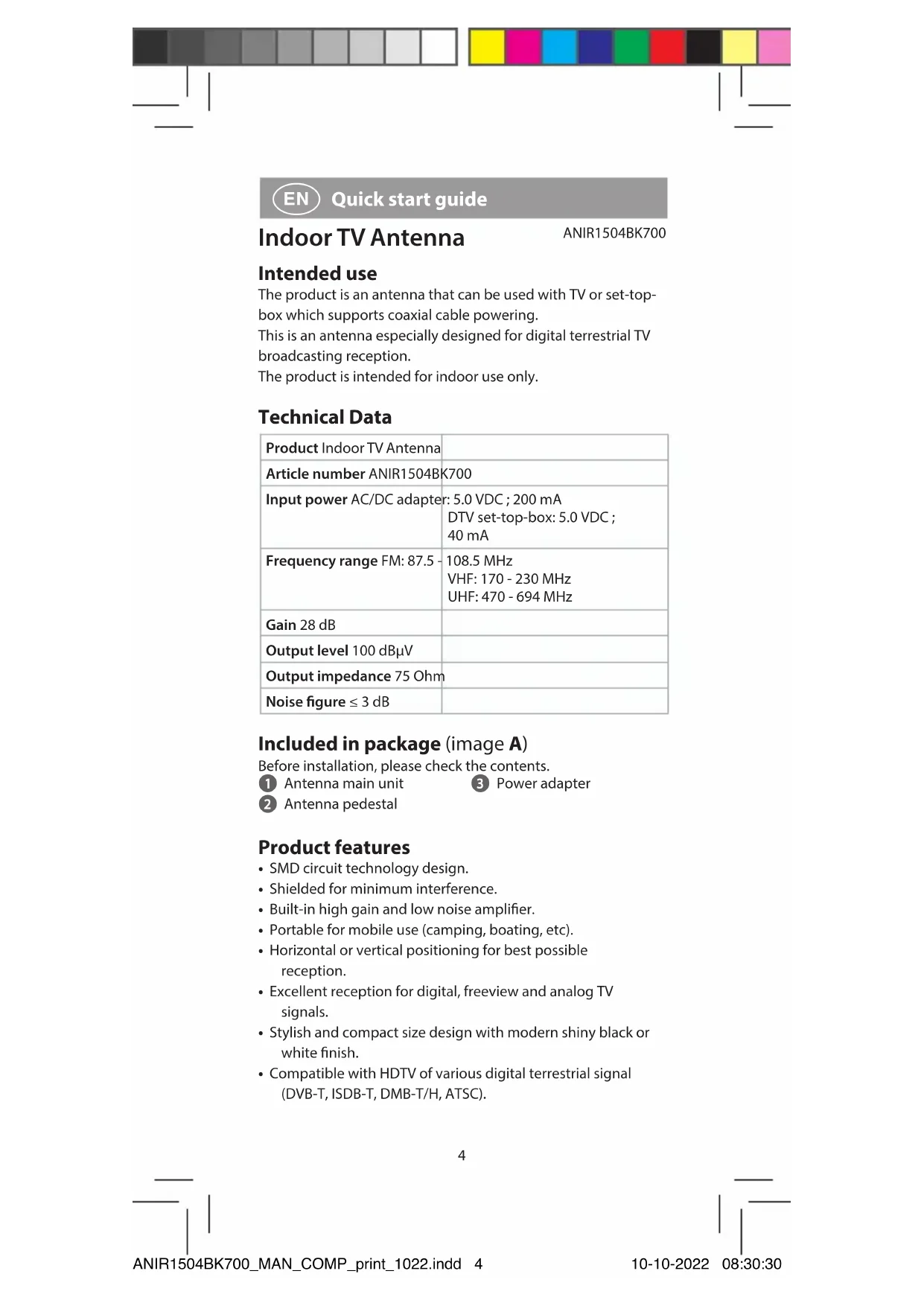

Quick start guide

Indoor TV Antenna

ANIR1504BK700

Intended use

The product is an antenna that can be used with TV or set-top-box which supports coaxial cable powering.

This is an antenna especially designed for digital terrestrial TV broadcasting reception.

The product is intended for indoor use only.

Technical Data

Product Indoor TV Antenna
Article number ANIR1504BK700
Input power AC/DC adapter: 5.0 VDC; 200 mADTV set-top-box: 5.0 VDC;40 mA
Frequency range FM: 87.5 -	108.5 MHzVHF: 170 - 230 MHzUHF: 470 - 694 MHz
Gain 28 dB
Output level 100 dBμV
Output impedance 75 Ohm
Noise figure ≤ 3 dB

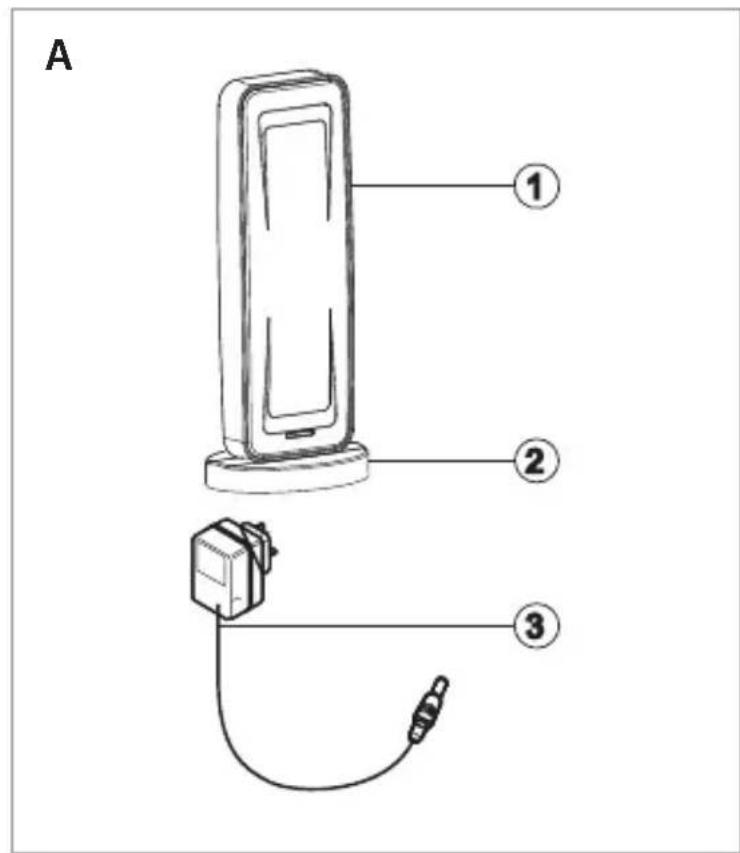

Included in package (image A)

Before installation, please check the contents.

1 Antenna main unit

3 Power adapter

2 Antenna pedestal

Product features

• SMD circuit technology design.

- Shielded for minimum interference.

• Built-in high gain and low noise amplifier.

- Portable for mobile use (camping, boating, etc).

• Horizontal or vertical positioning for best possible reception.

- Excellent reception for digital, freeview and analog TV signals.

- Stylish and compact size design with modern shiny black or white finish.

- Compatible with HDTV of various digital terrestrial signal (DVB-T, ISDB-T, DMB-T/H, ATSC).

Safety instructions

WARNING

- Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

- Only use the product as described in this document.

- Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

- Do not drop the product and avoid bumping.

- This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

- Do not expose the product to water or moisture.

- Do not throw away this product with other household waste.

- There are no user serviceable parts. Do not open the housing.

- Keep the product out of reach from children, infirm persons or animals.

- Check the product regularly for signs of damage, when damaged do not use the product any longer and return the product to the supplier.

- Keep the product away from heat sources. Do not place the product on hot surfaces or near open flames.

- Do not place the product under any mechanical stress.

- Do not expose the product to a high level of vibrations.

Operation instruction

For the best reception, please check the following conditions:

- Keep the antenna away from the sources of interference: keep the antenna away from those big power consumption devices, such as air conditioner, elevator, hair dryer and microwave oven.

- Place the antenna near windows when using the antenna in indoor environment.

• Install the antenna as high as possible: In digital terrestrial reception, interceptions between antenna and transmission tower will cause signal loss temporarily. Please install the antenna as high as possible to reduce interceptions.

Installation 1: powered by DTV set-top-box

Please be noticed, in this installation, you need to make sure that your set-top-box can support coaxial cable 5V DC powering via the IEC or F connector to antenna.

1. Take out the antenna main unit and accessories from box.

2. Connect the coaxial cable with antenna and DTV set-top-box.

3. Connect the DTV set-top-box to your TV. Please make sure the coaxial cable powering function of your STB is ON. (Please check the operational manual of your STB for coaxial cable powering function).

4. Adjust the antenna (turn around the antenna body in different direction or put it in vertical or horizontal) in the best position that can reception digital TV signal. (It is recommended to place the antenna near the window where the digital TV signal comes in).

5. Organize the coaxial cable for neat, tidy and safety.

Installation 2: powered by AC/DC Adapter

1. Take out the antenna main unit and accessories from box.
2. Connect the coaxial cable with antenna and DTV set-top-box or TV.
3. Connect the DTV set-top-box to your TV.
4. Connect the power adapter DC output jack to the DC input connector of the antenna, and then plug the AC/DC power adapter into the AC power socket.
5. Adjust the antenna in the best position that can receive digital TV signal. (It is recommended to place the antenna near the window where the digital TV signal comes in).
6. Organize the coaxial cable for neat, tidy and safety.

After the installation is finished, you can use your set-top-box to check the signal strength and quality. If you cannot have a steady picture, please move the antenna to a better reception position. When you find the best position, please fix it.

This antenna can stand for vertical or horizontal reception, as shown in image B.

Disposal

This symbol indicates that this product should not be thrown away with other household waste throughout the EU. To prevent possible harm to the environment or human health by uncontrolled waste disposal, you are responsible for recycling it so that it can promote the sustainable reuse of raw materials. To return your used product, you can use the regular return and collection systems or contact the store where the product was purchased. They can recycle this product for the environment.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product ANIR1504BK700 from our brand Nedis ^® , produced in China,

has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/ANIR1504BK700#support
