Product Type	Soundbar
Brand	Samsung
Model	HW-S56B / HW-S50B
Dimensions (W x H x D)	670.0 x 62.3 x 105.0 mm
Weight	2.4 kg
Power supply	AC/DC adapter 19V, standby consumption 0.5W
Total output power	160 W (30W x 4 + 20W)
Connectivity	HDMI ARC, optical input, USB (5V/0.5A), Bluetooth
Supported audio formats	DTS, Dolby Digital, LPCM 2ch, DTS Virtual:X
Audio functions	Sound modes (DTS Virtual:X, Standard, Music, Game, Adaptive Sound), Night mode, Voice enhancement, 7-band equalizer
Bluetooth	Version 5.0 with multi-connection (2 devices), range ~10 m
Included components	Remote control, batteries, HDMI cable, power adapter, power cord, wall mounting guide
Wall mounting	Wall mount included, screws not provided (M5, length ≥35 mm)

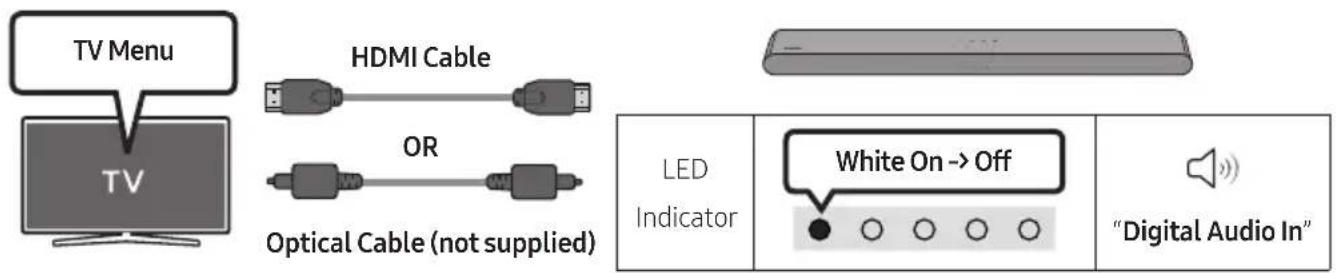

TV compatibility	Q-Symphony function with Samsung TVs, HDMI ARC, Bluetooth
Maintenance	Clean with a soft, dry cloth, avoid liquids and aerosols
Operating temperature	+5°C to +35°C
Operating humidity	10% to 75%
Safety	Surge protection, automatic shutdown after 20 min without signal, class II
Repairability	Spare parts available through Samsung service, factory reset possible

Frequently Asked Questions - HWS56B SAMSUNG

The soundbar does not turn on. What should I do?

Check that the power cord is properly plugged into the wall outlet and the adapter. Make sure the AC/DC adapter is correctly connected to the soundbar. If the problem persists, try another power outlet.

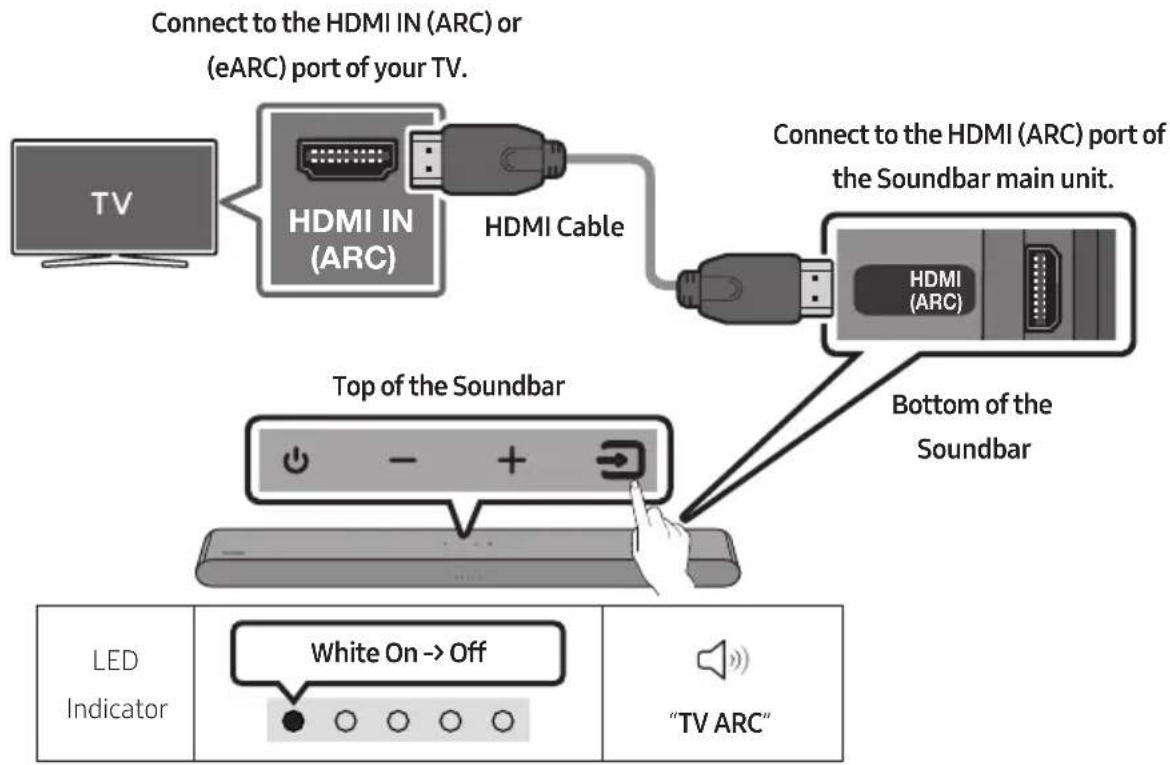

How to connect the soundbar to my TV via HDMI ARC?

Use an HDMI cable to connect the HDMI (ARC) port on the soundbar to the HDMI IN (ARC) port on the TV. Turn on both devices and select the 'TV ARC' source on the soundbar. Make sure HDMI-CEC is enabled in the TV settings.

The sound from the soundbar cuts out intermittently via Bluetooth. Why?

This may be due to too great a distance between the devices or interference. Move the Bluetooth device closer to the soundbar (within 10 m). Avoid obstacles like thick walls and devices emitting waves (microwaves, Wi-Fi routers). Also check that the device's battery is sufficiently charged.

The remote control does not work. How to fix it?

Point the remote control directly at the soundbar from a maximum distance of 7 m. Replace the batteries with new ones (AAA type). If the problem persists, check that no object is blocking the infrared sensor on the soundbar.

How to reset the soundbar to factory settings?

Turn on the soundbar. Simultaneously press and hold the Volume + and Volume - buttons on the device for at least 5 seconds. The LED indicator will blink and the device will restart. All settings will be erased.

Can I connect two Bluetooth devices at the same time?

Yes, the soundbar supports Bluetooth multi-connection. You can connect up to 2 devices simultaneously. To enable this function, make sure multi-connection mode is active (default). Press and hold the PAIR button on the remote control for 5 seconds while the soundbar is off to toggle.

How to update the soundbar software?

Download the latest firmware version from the Samsung website (samsung.com) and place the file on a USB drive formatted in FAT32. Connect the drive to the soundbar's USB port via a Micro-USB adapter. Turn on the soundbar and select the USB source. The update will start automatically. Do not turn off the device during the process.

The soundbar produces no sound with the TV. What to check?

Check that the soundbar is selected as the audio output in the TV settings (Sound menu > Sound output). Make sure the cable (HDMI or optical) is properly connected. If using HDMI, confirm the ports are marked ARC. Increase the soundbar volume and disable mute mode.

How to adjust bass and treble?

Use the TONE CONTROL button on the remote to access the settings. Use the Up/Down buttons to switch between 'Treble' and 'Bass', then adjust the level from -6 to +6. This function is available in all audio modes except 'Standard'.

What sound modes are available and what are they for?

The sound modes are: DTS Virtual:X (immersive 3D sound), Standard (original sound), Music (natural sound for music), Game (stereoscopic sound for games), Adaptive Sound (analyzes content and optimizes sound automatically). Select them with the SOUND MODE button on the remote.

USER MANUAL HWS56B SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Refer to the table below for an explanation of symbols which may be on your Samsung product.

	CAUTIONRISK OF ELECTRIC SHOCK.DO NOT OPEN.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground). If this symbol is not present on a product with a power cord, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

CAUTION

WARNING

- To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
- This apparatus shall always be connected to a AC outlet with a protective grounding connection.
- To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
- Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
- To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7\~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery.

CAUTION: Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

CONTENTS

01 Checking the Components 6

02 Product Overview 7

Front Panel / Top Panel of the Soundbar 7

Bottom Panel of the Soundbar 8

03 Using the Remote Control 9

Inserting Batteries before using the Remote Control (AAA batteries X 2) ____ 9

How to Use the Remote Control ____ 9

Using the Hidden Buttons (Buttons with more than one function) ____ 14

Output specifications for the different sound effect modes ____ 14

Adjusting the Soundbar volume with a TV remote control 15

04 Connecting the Soundbar 16

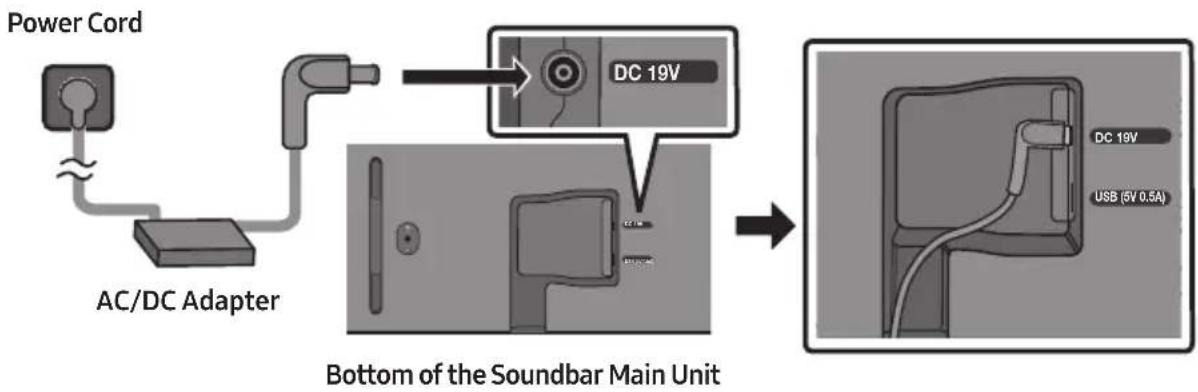

Connecting Electrical Power 16

Connecting the Samsung Wireless Rear Kit and Subwoofer to your Soundbar 16

05 Using a wired connection to the TV 17

Method 1. Connecting with HDMI ____ 17

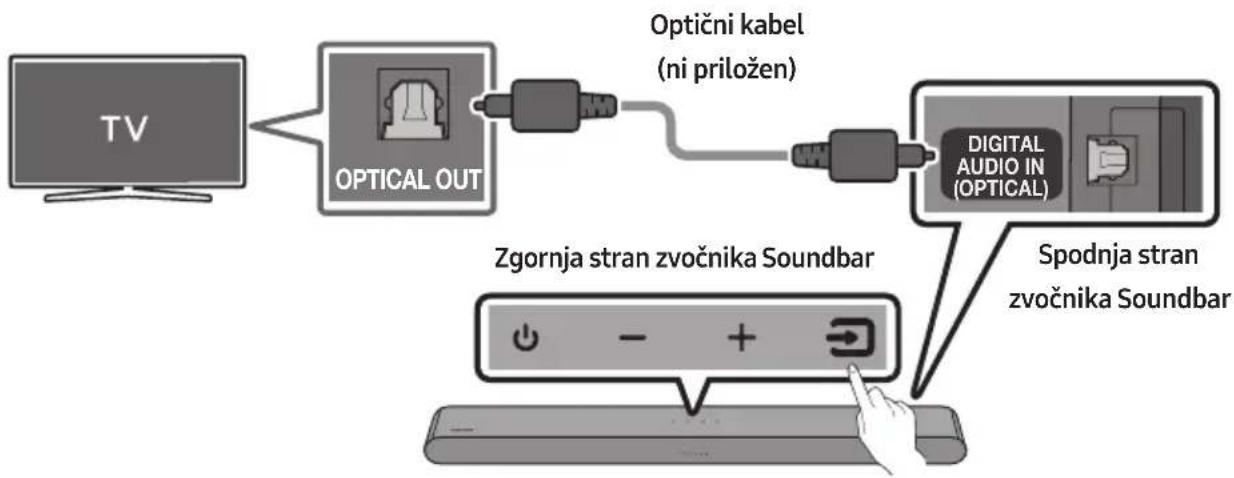

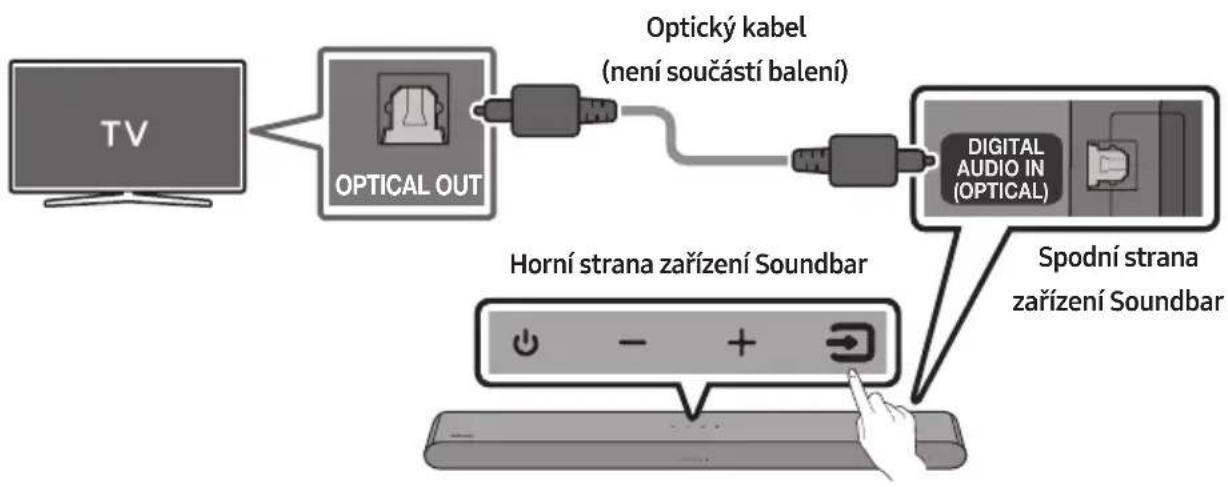

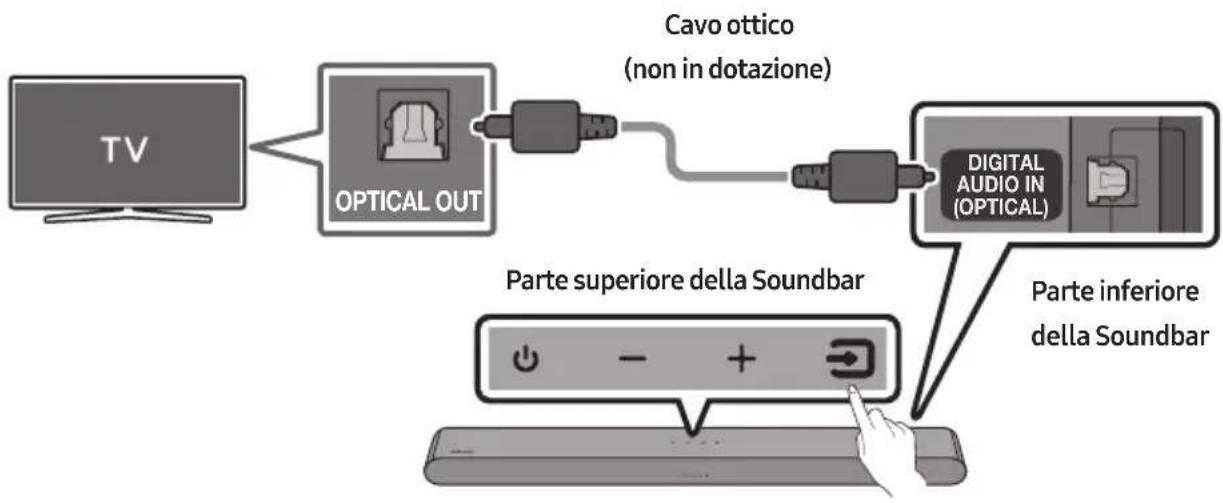

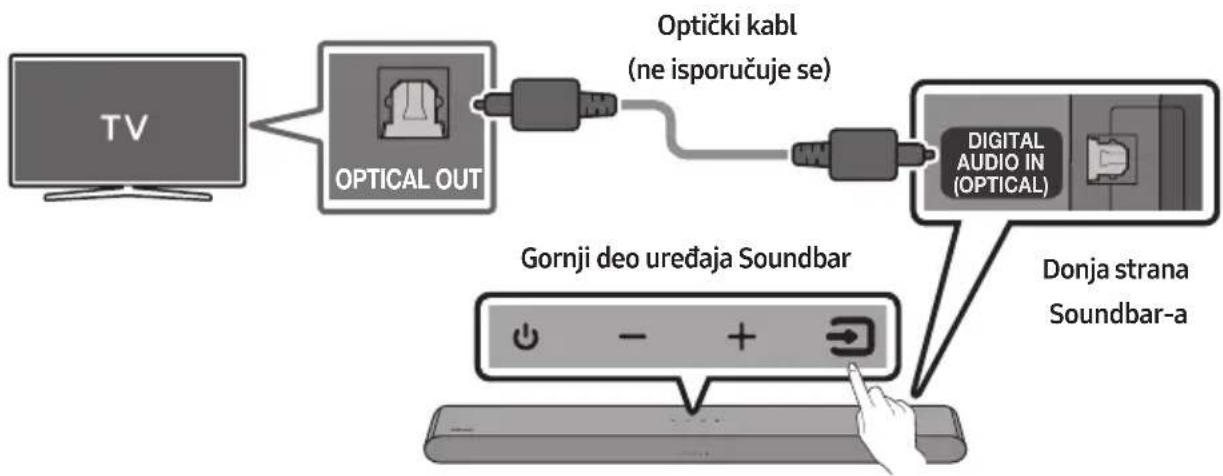

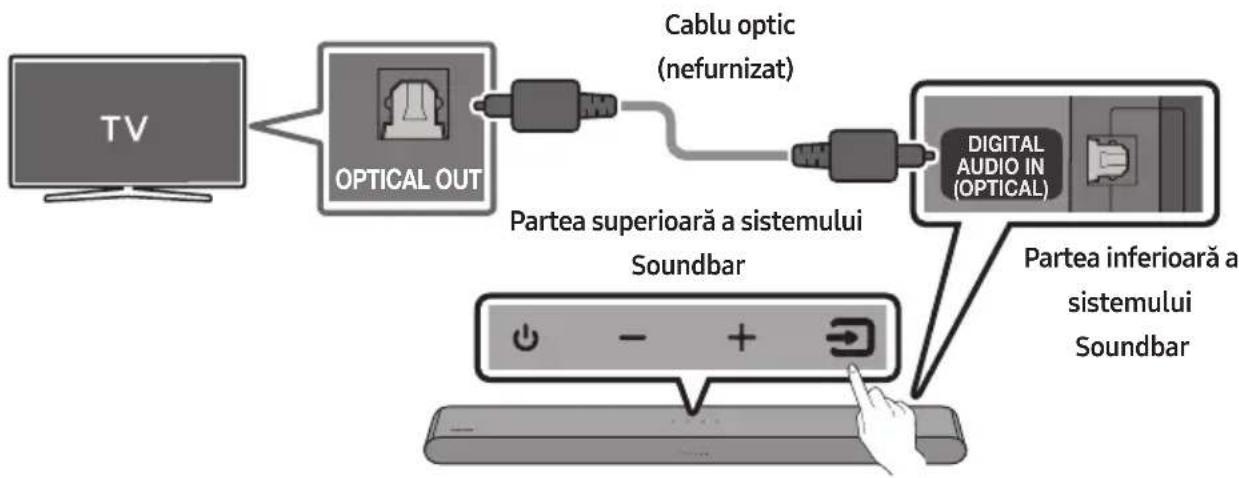

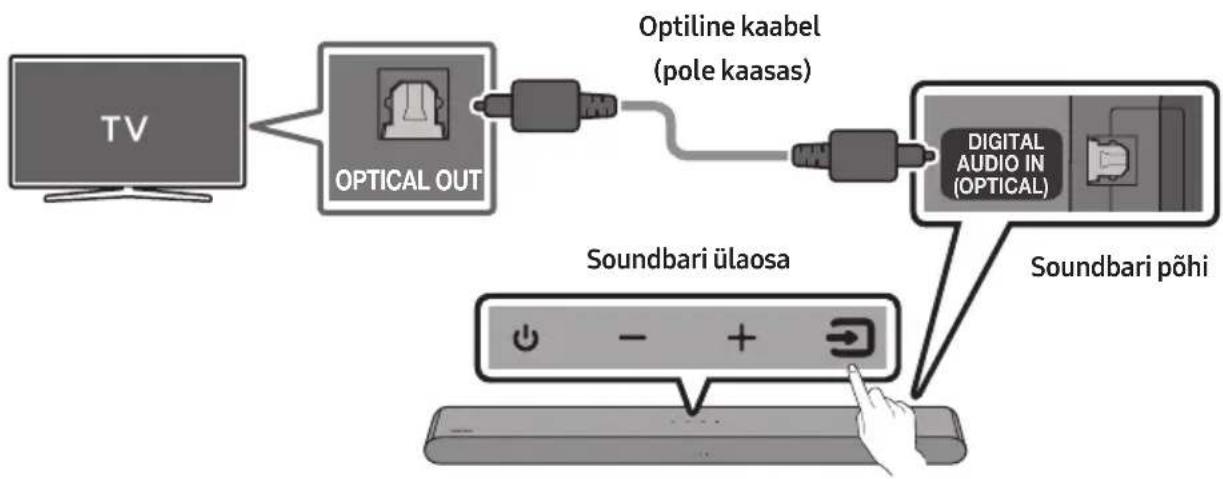

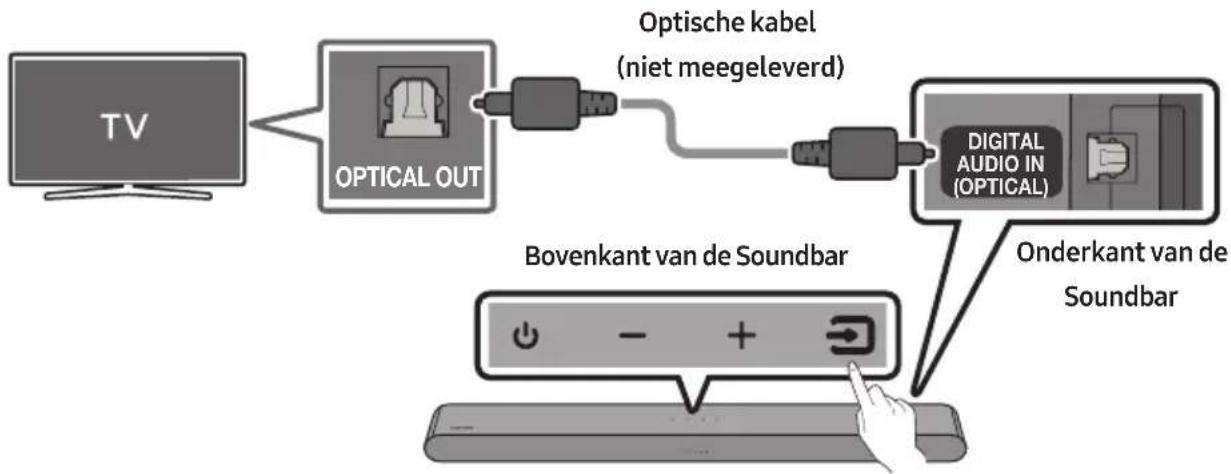

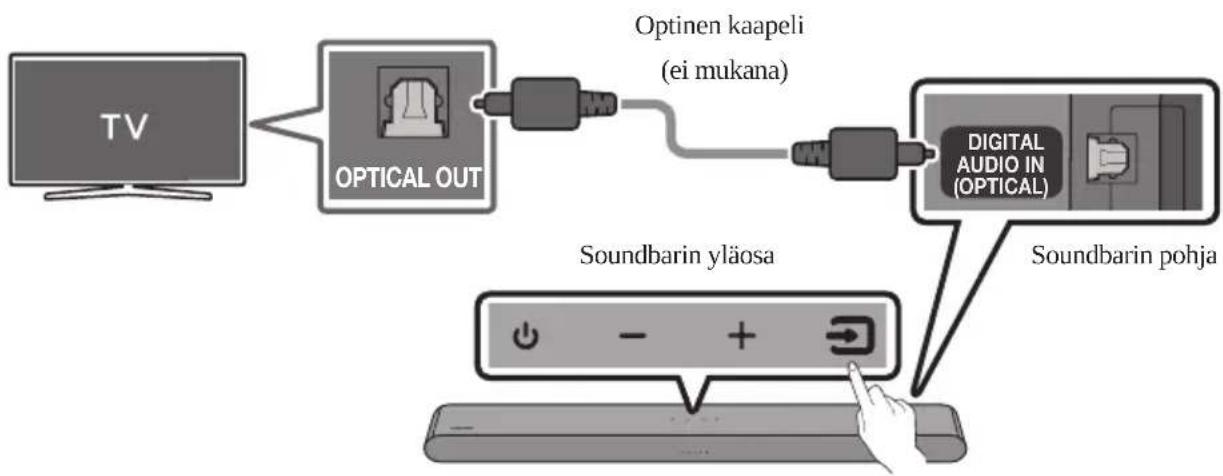

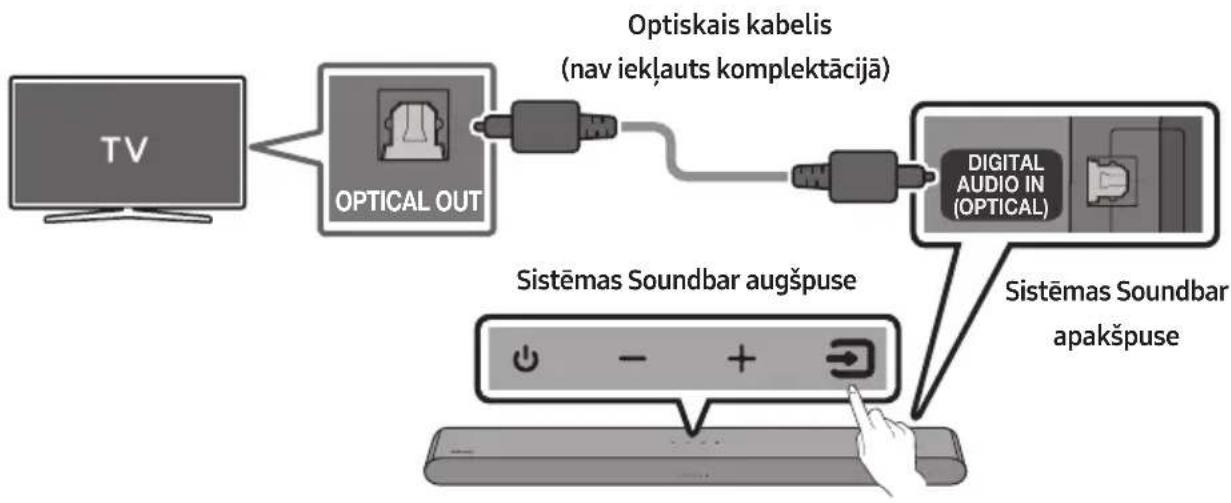

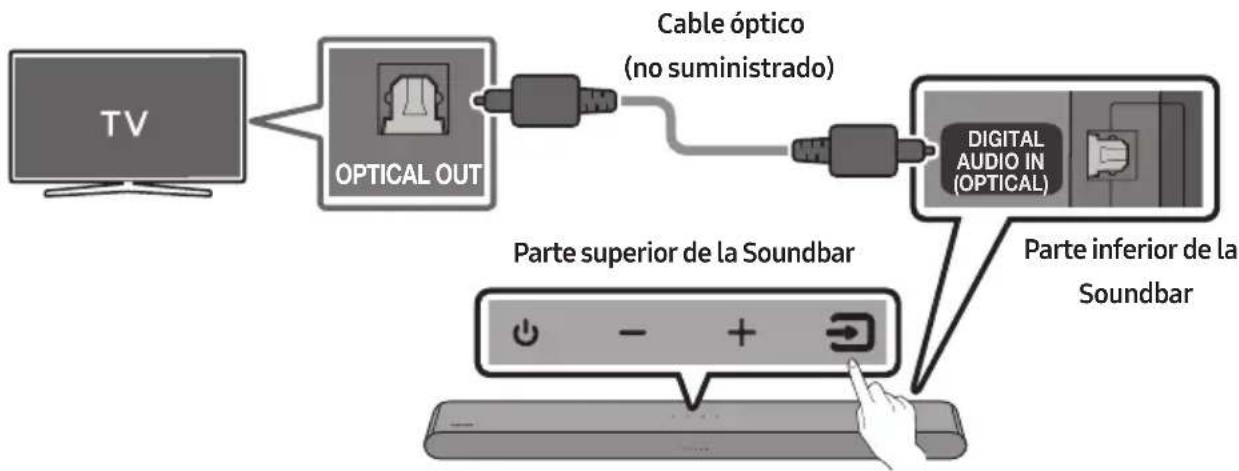

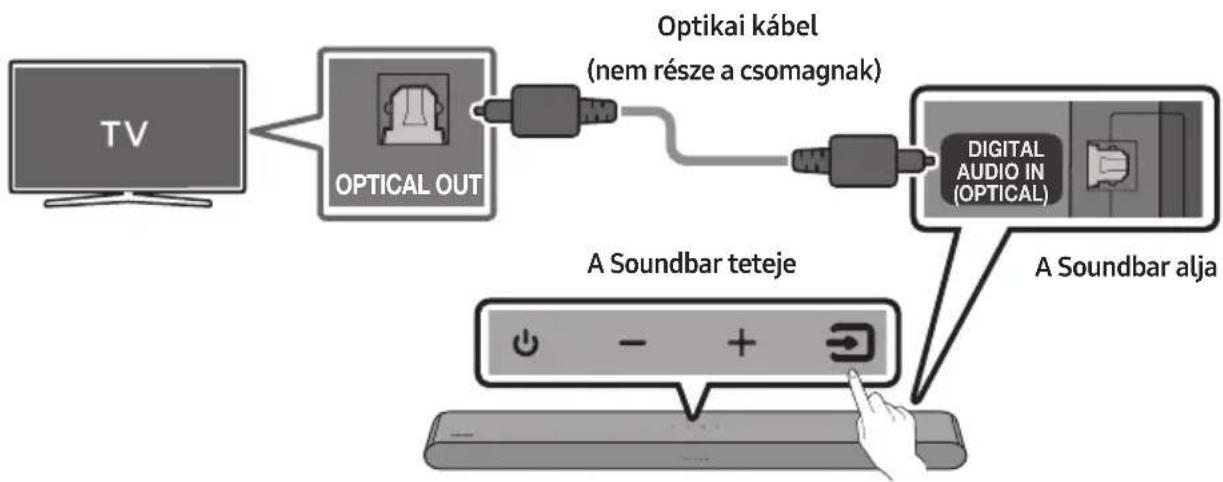

Method 2. Connecting using an Optical Cable ____ 19

06 Using a wireless connection to the TV 21

Connecting via Bluetooth 21

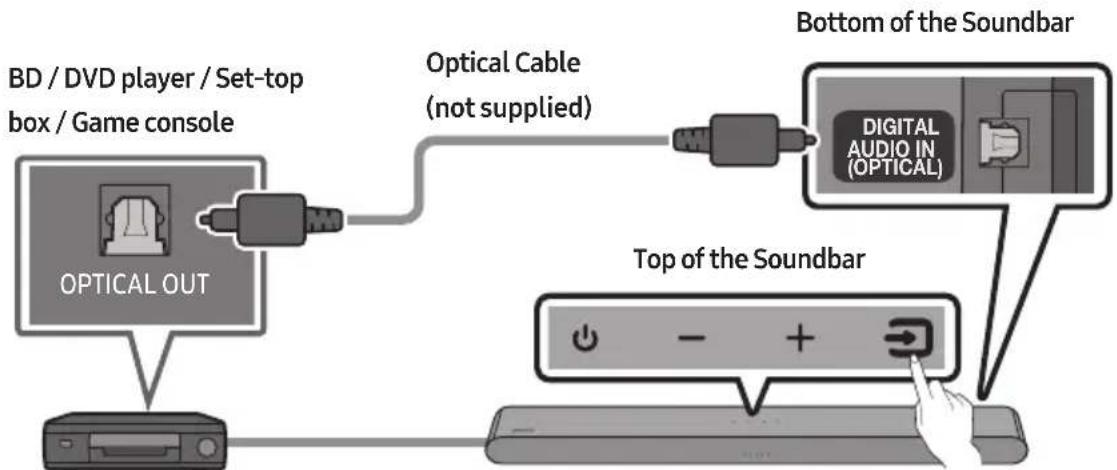

07 Connecting an External Device 23

Connecting using an Optical Cable ____ 23

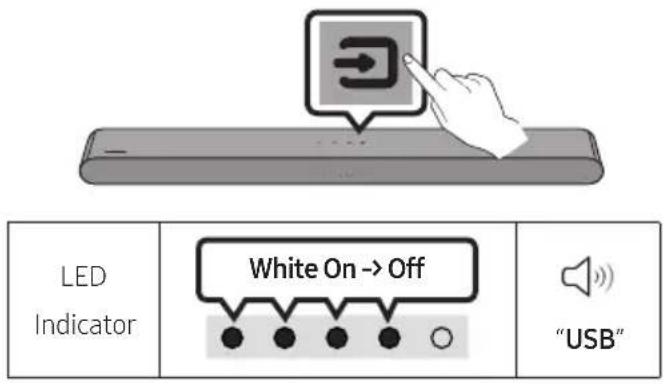

08 Connecting a USB Storage Device 24

09 Connecting a Mobile Device 26

Connecting via Bluetooth 26

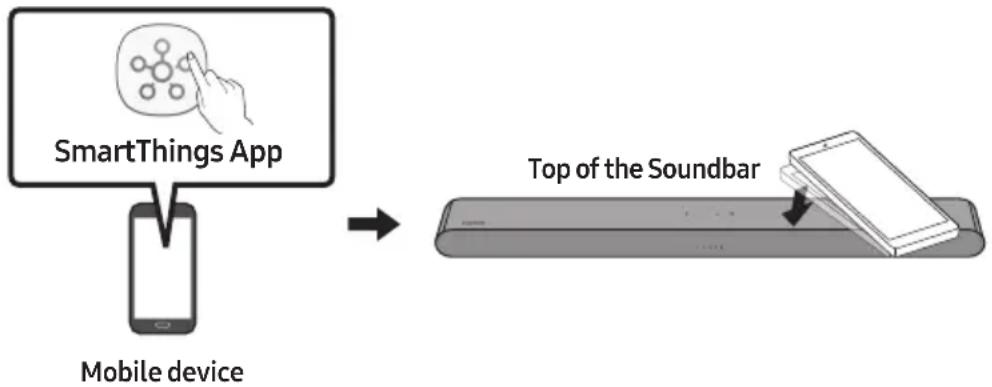

Using Tap Sound ____ 31

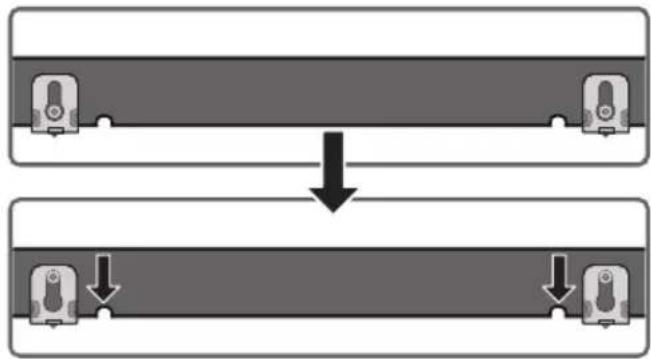

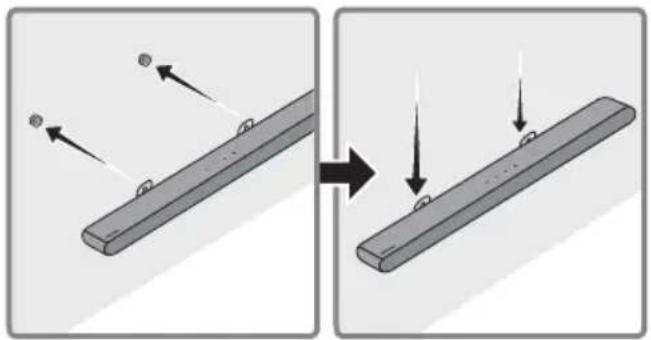

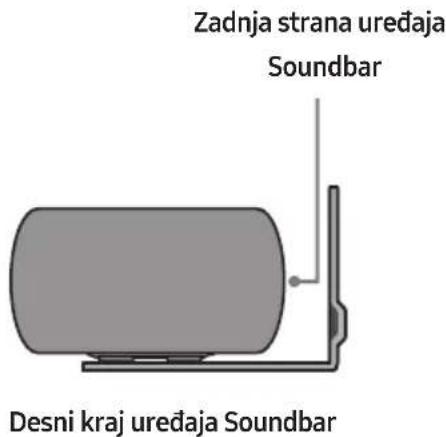

10 Installing the Wall Mount 32

Installation Precautions ____ 32

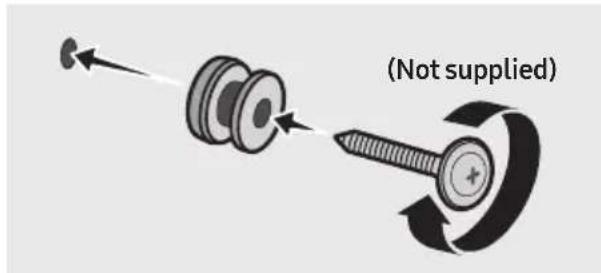

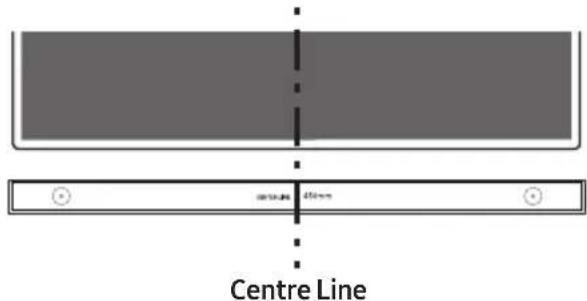

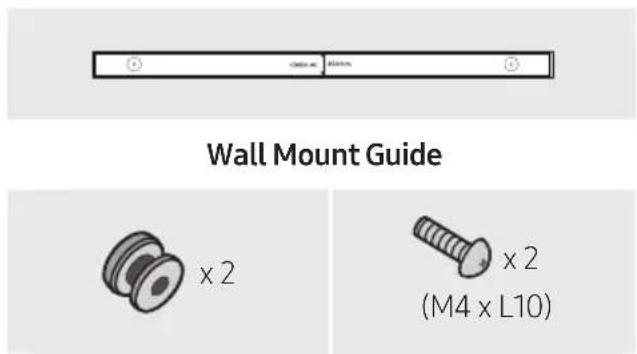

Wallmount Components 32

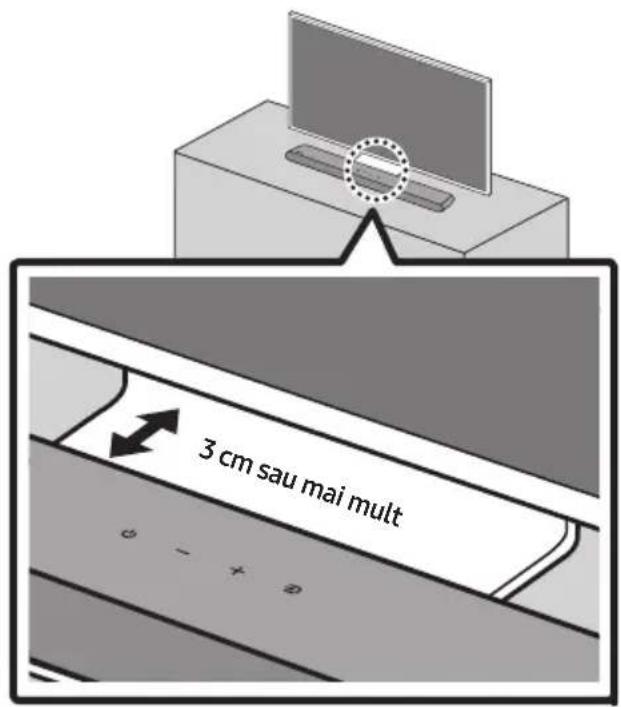

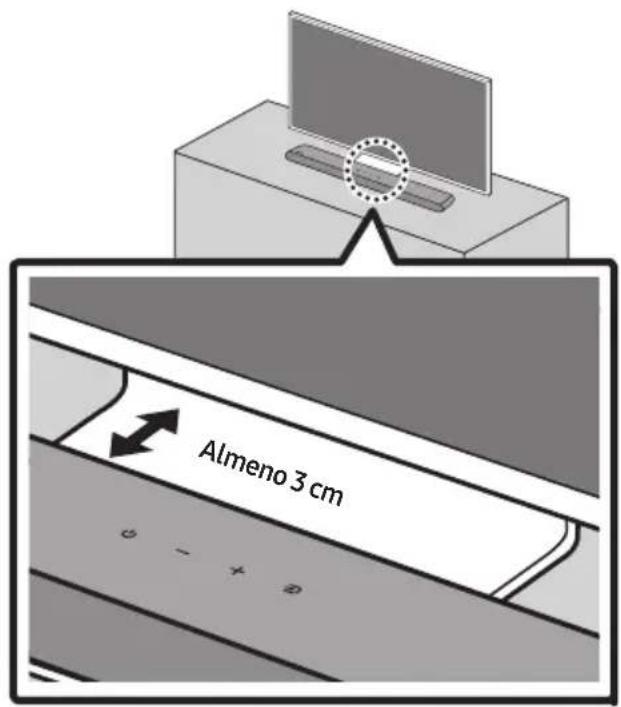

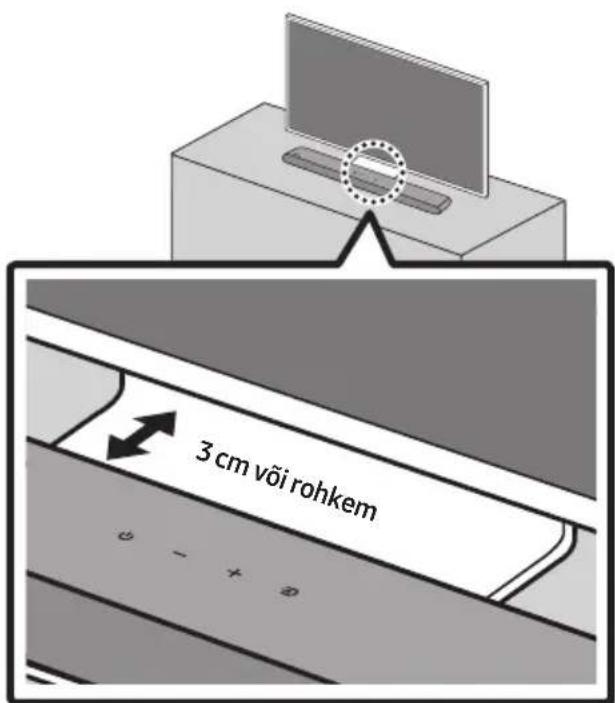

11 Installing the Soundbar in front of TV 34

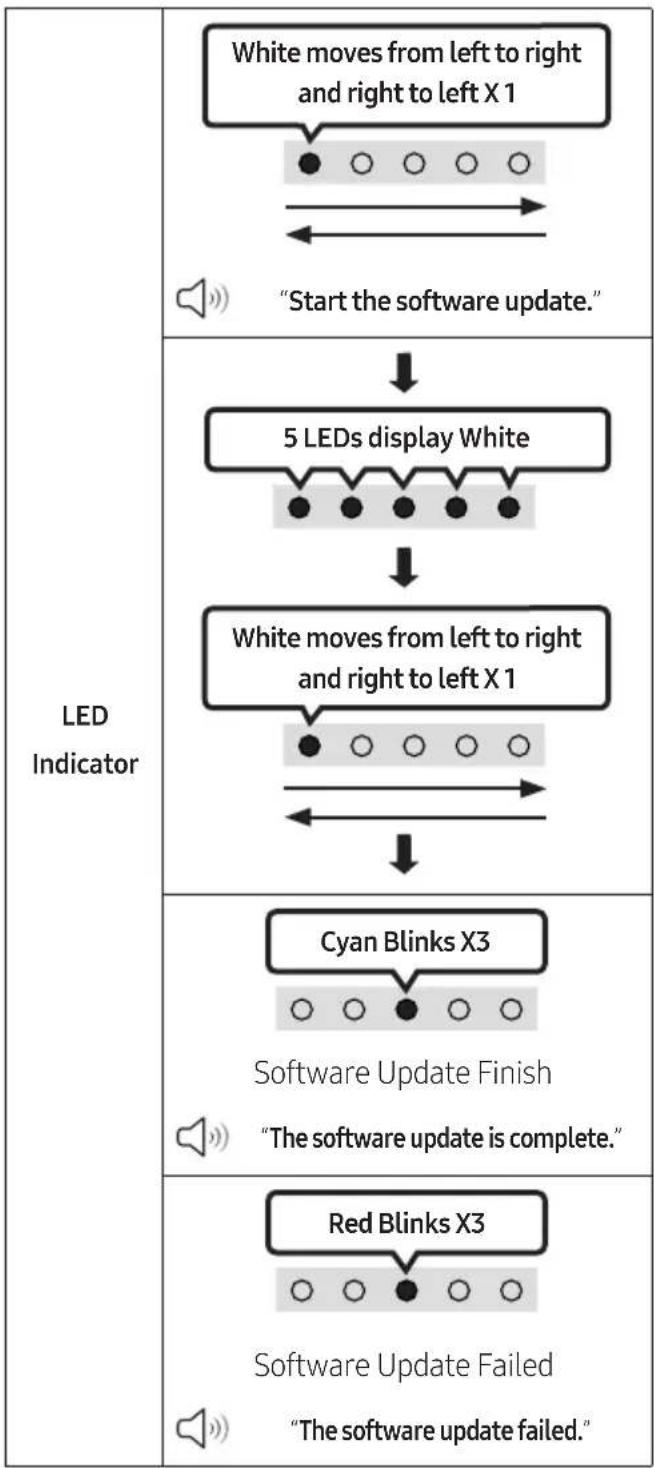

12 Software Update 35

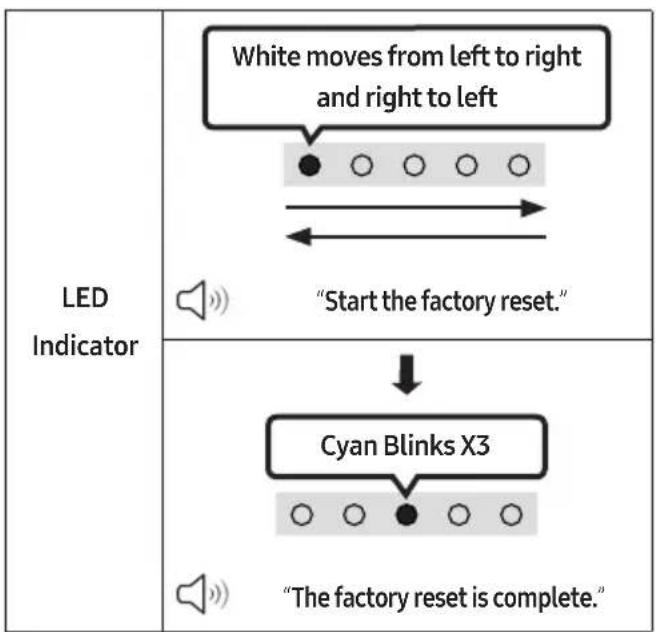

Reset 36

13 Troubleshooting 37

14 Licence 38

15 Open Source Licence Notice 39

16 Important Notes About Service 39

17 Specifications and Guide 40

Specifications 40

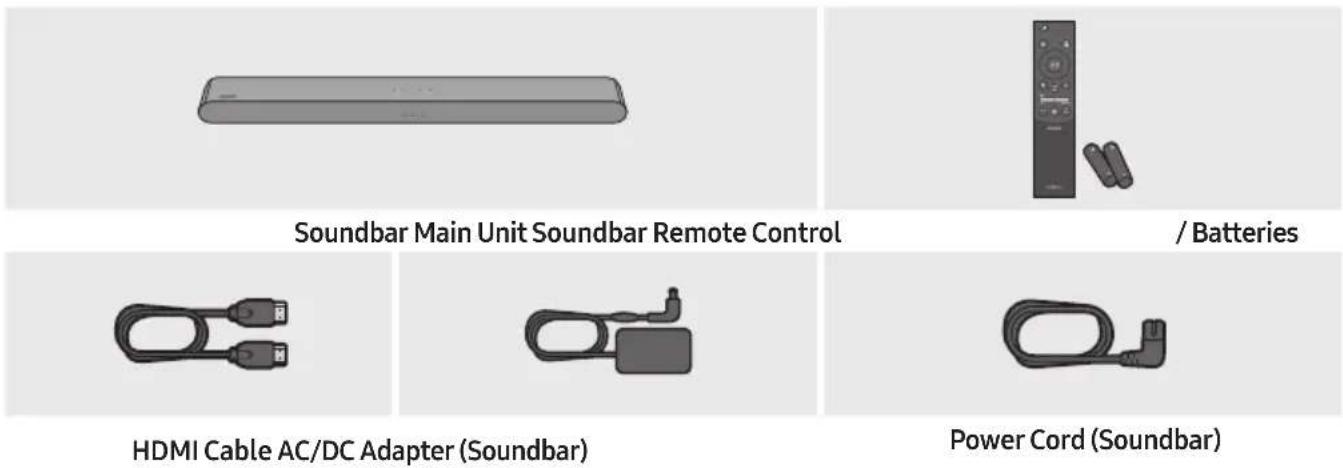

01 CHECKING THE COMPONENTS

Soundbar Main Unit Soundbar Remote Control / Batteries HDMI Cable AC/DC Adapter (Soundbar) Power Cord (Soundbar)

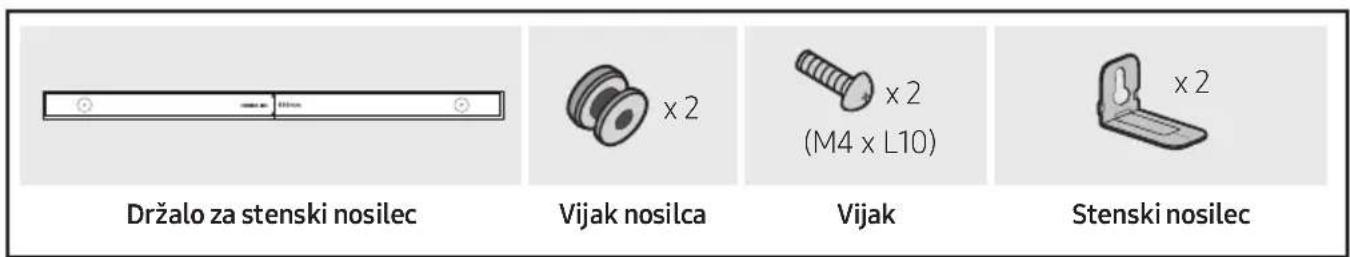

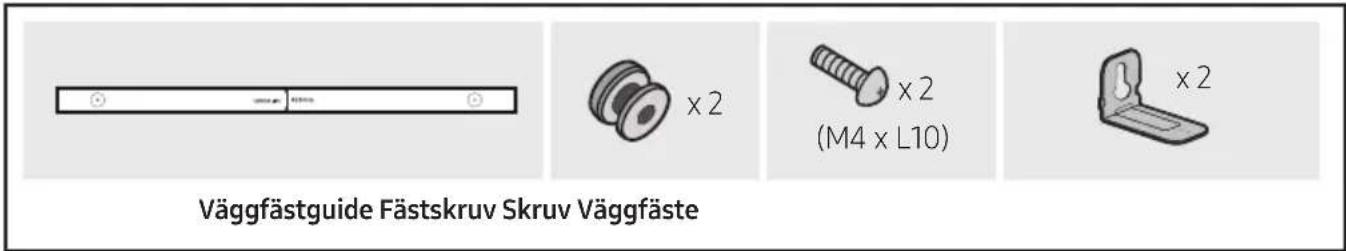

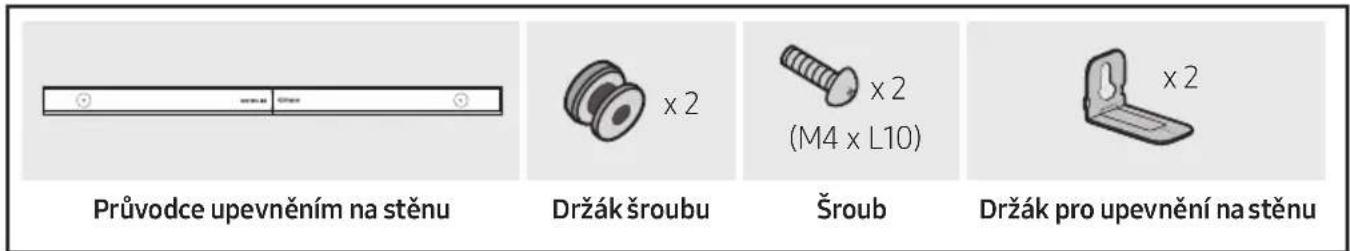

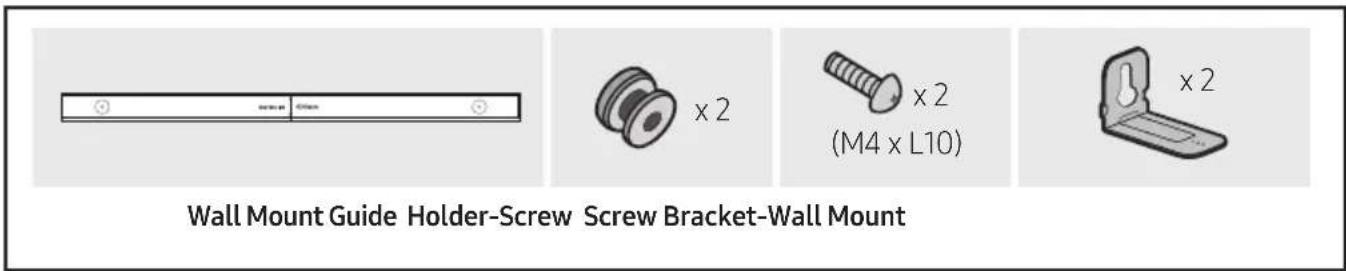

Wall Mount Guide Holder-Screw Screw Bracket-Wall Mount

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)
• To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.
• For more information about the wallmount see page 32.
• Design, specifications are subject to change without prior notice.
• The appearance of the accessories may differ slightly from the illustrations above.

02 PRODUCT OVERVIEW

Front Panel / Top Panel of the Soundbar

2 4 3 Top Panel 1

1	LED indicator	The LED Indicator flashes, glows, or changes colour depending on the Soundbar's current mode or status. The colour of the LED indicator and the number of lights indicate the active mode as described below.
		White LED	White LED	Multicolour LED	White LED	White LED
		The Multicolour LED changes to White, Cyan, Green, Red, Yellow, Orange, Purple and Blue depending on the mode or status.
2	Power Turns the power on and off.
3	Volume Adjusts the volume.
4	Source	Press the (Source) button to change the mode. Each time you change the mode, the LED lights in white and then turns off.

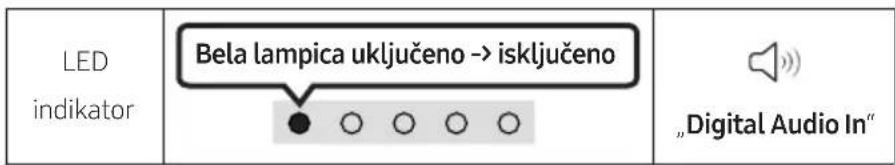

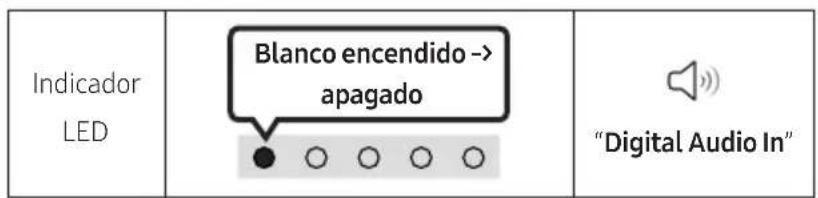

		LED Indicator		e

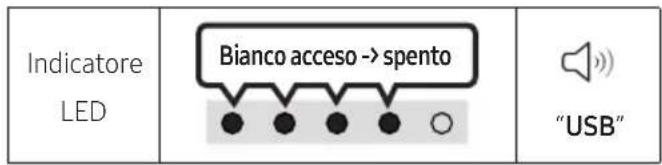

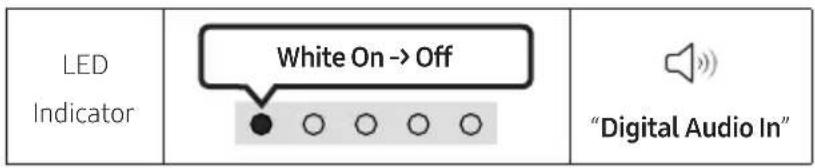

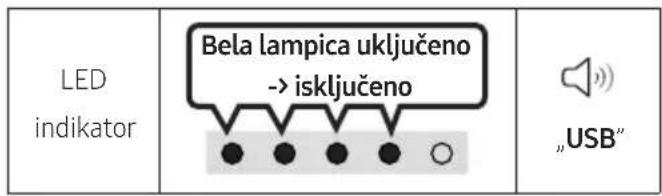

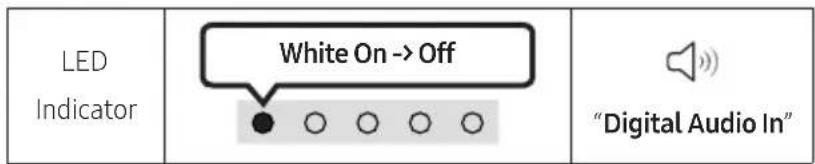

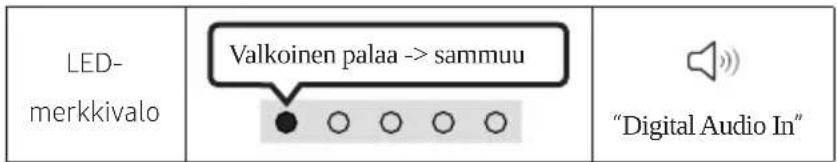

			"Digital Audio In" or "TV ARC"	"Bluetooth" "USB"

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and change the TV speaker to External Speaker.

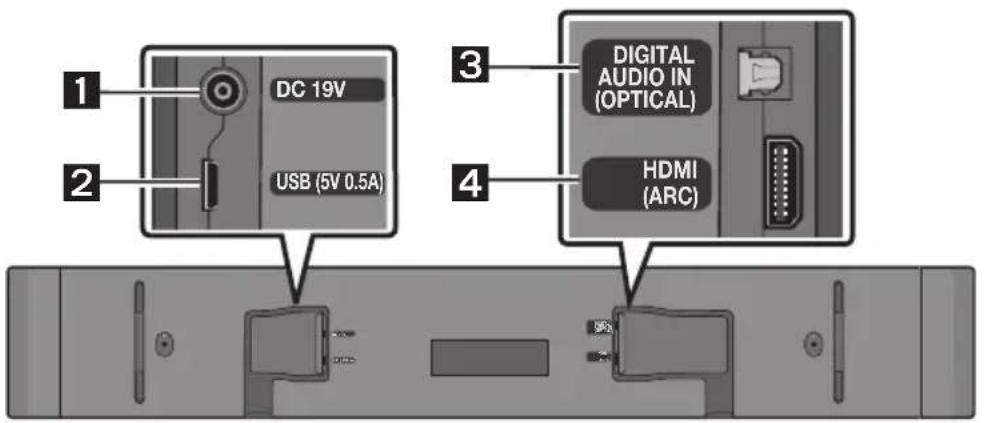

Bottom Panel of the Soundbar

1 2 DC 19V USB (5V 0.5A) 3 DIGITAL AUDIO IN (OPTICAL) HDMI (ARC) 4

1	DC 19V (Power Supply In)Connect the AC/DC power adapter.

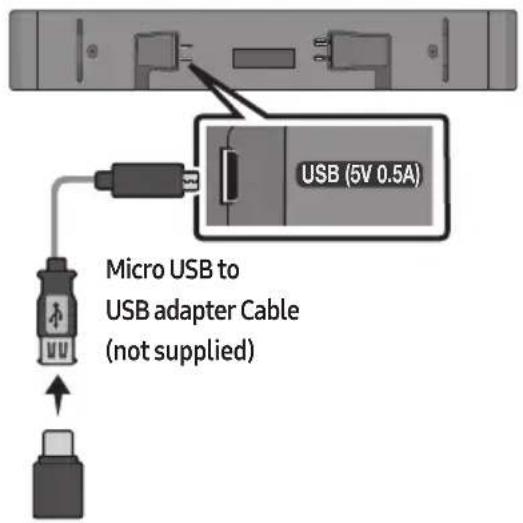

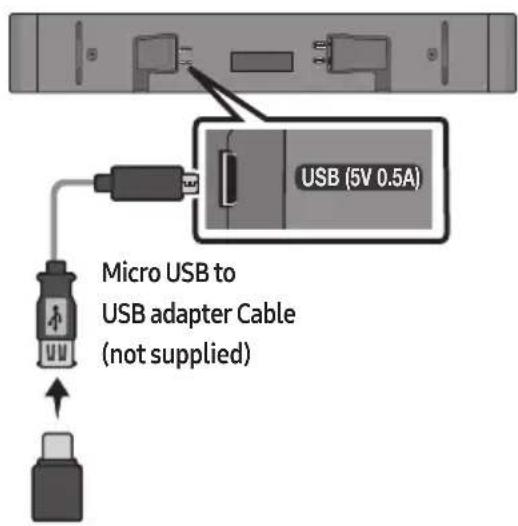

2	USB (5V 0.5A)Connect a USB device here to play music files stored on the USB device through the Soundbar.

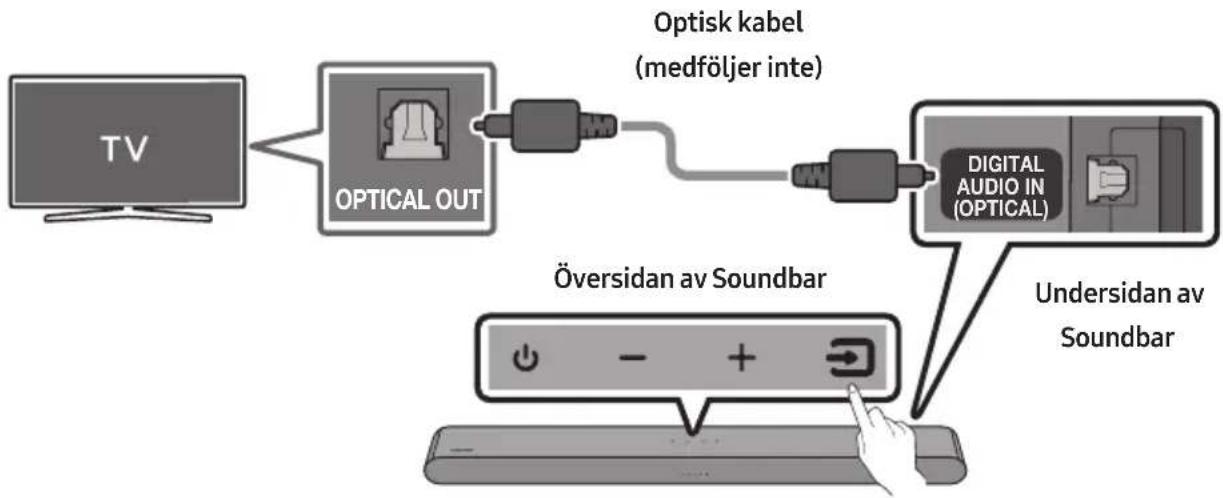

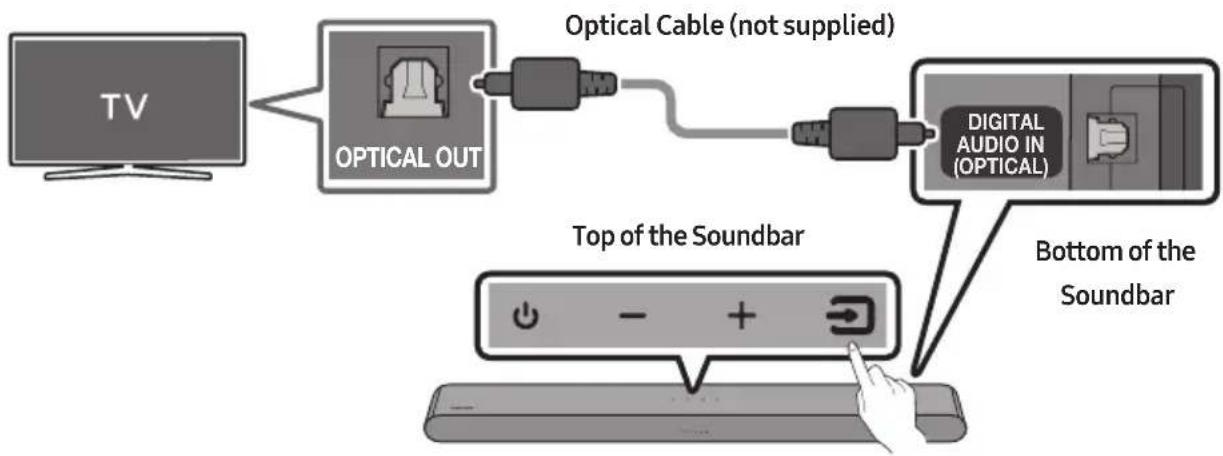

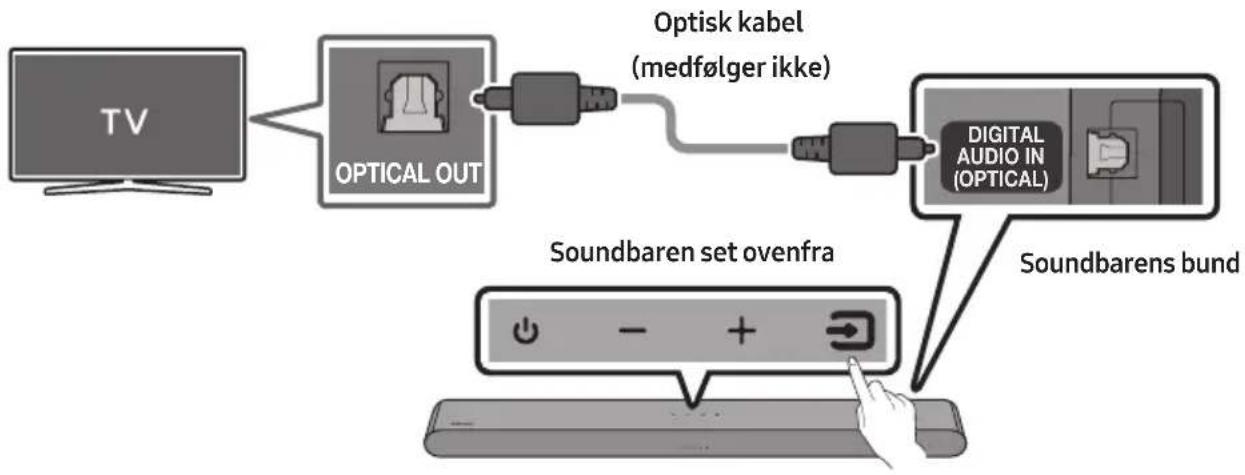

3	DIGITAL AUDIO IN (OPTICAL)Connect to the digital (optical) output of an external device.
4	HDMI (ARC)Connect to the HDMI (ARC) port on a TV.

• When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 USING THE REMOTE CONTROL

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow until it is completely removed.

Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct. Slide the back cover back into position.

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

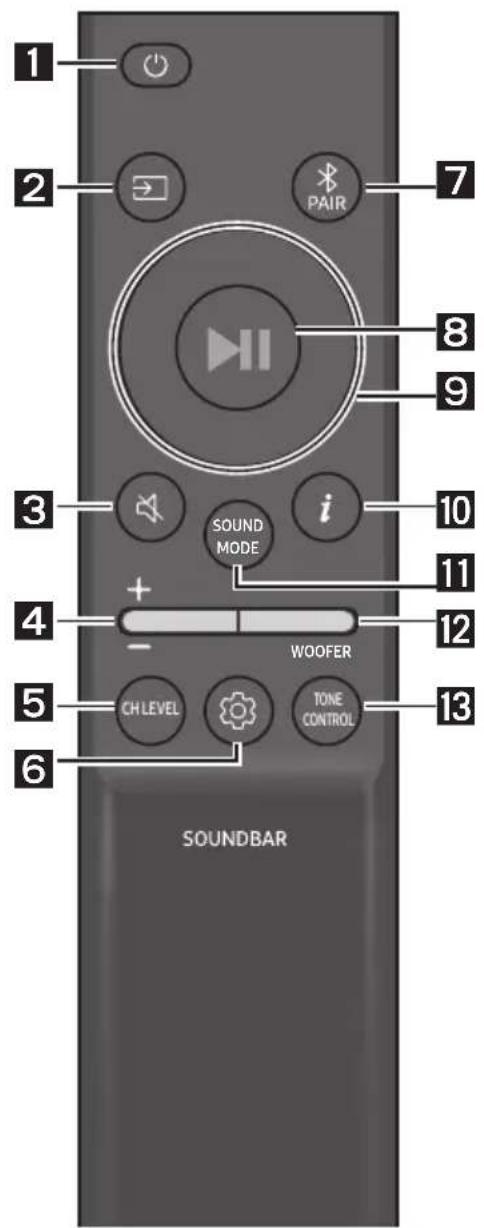

How to Use the Remote Control

1 2 PAIR 7 8 9 3 i SOUND MODE 10 4 + - WOOFER 12 5 CH LEVEL TONE CONTROL 13 6 SOUNDBAR

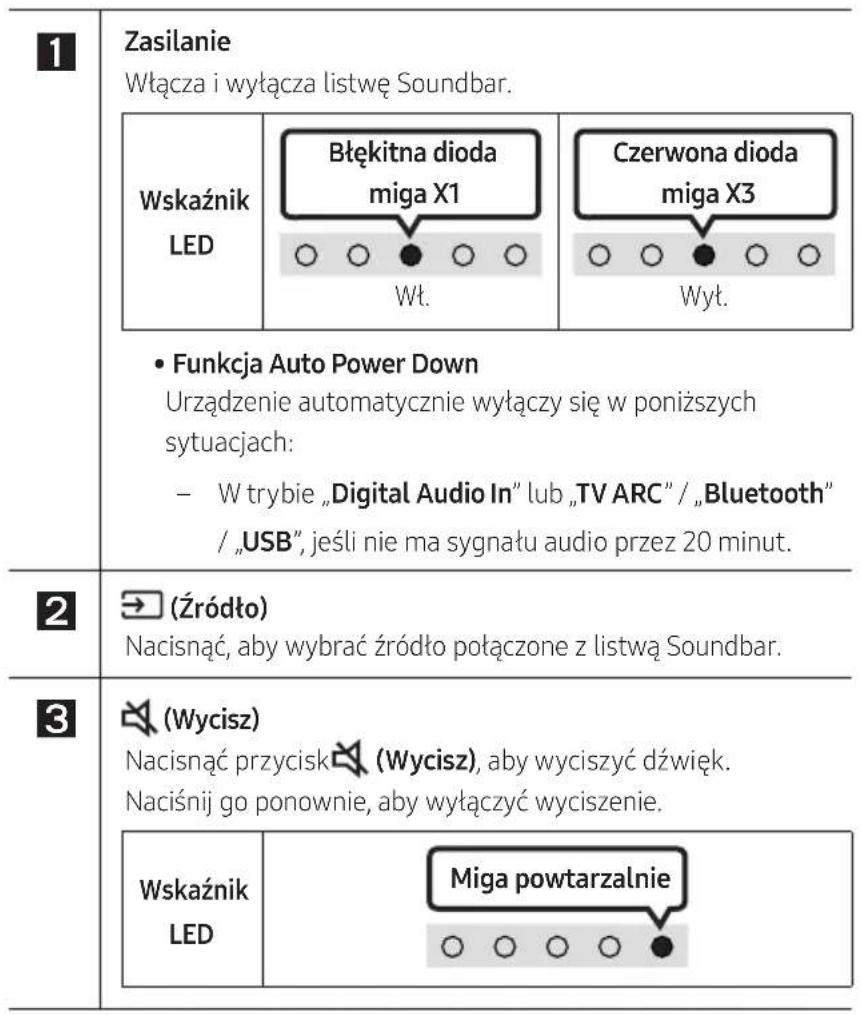

1

Power

Turns the Soundbar on and off.

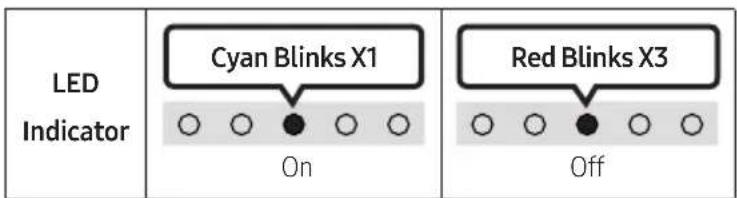

LED Indicator Cyan Blinks X1 On Red Blinks X3 Off

• Auto Power Down Function

The unit turns off automatically in the following situations:

- In "Digital Audio In" or "TV ARC" / "Bluetooth" / "USB" mode if there is no audio signal for 20 minutes.

2

→ (Source)

Press to select a source connected to the Soundbar.

3

(Mute)

Press the 📄 (Mute) button to mute the sound. Press it again to unmute the sound.

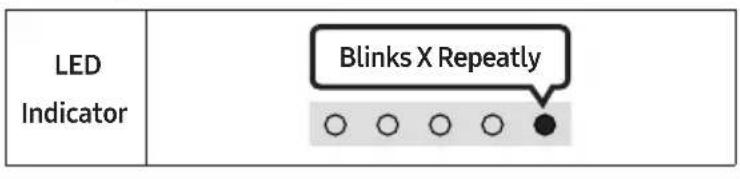

LED Indicator Blinks X Repeatly ○ ○ ○ ○ ●

Volume

Push the button up or down to adjust the volume.

LED Indicator

Volume Up

Volume Down

CH LEVEL

By pressing the button, you can adjust the volume of the each speaker.

LED Indicator
	“Centre Level”

- If the Rear Speakers (sold separately) are connected, the setting "Rear Level" is supported. To adjust the volume of the "Rear Level" between -6 to +6 by using the Up/Down buttons.

(Sound Control)

By pressing the button, you can set the audio function. The desired item can be adjusted using the Up/Down buttons. Each time the mode changes, the Multicolour LED blinks in white.

LED Indicator
[wwyt]	"Sync" → "Night mode" → "Voice enhancement"

- If the video on the TV and audio from the Soundbar are not synchronised, select "Sync" in Sound Control, and then set the audio delay between 0\~300 milliseconds by using the Up/Down buttons. (Not available in "USB" or "Bluetooth" mode.)

- "Sync" is only supported for some functions.

• "Night mode" and "Voice enhancement" are not supported in "DTS Virtual:X" sound mode.
• "Night mode" is optimised for night time viewing with the settings adjusted to bring the volume down but keep the dialog clear.
• "Voice enhancement" makes it easier to hear spoken dialog in movies and TV.

7 Band EQ

Press and hold the ⚙ (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons. (Make sure the Sound mode is set to "Standard".)

7 Band EQ
Press and hold the(Sound Control)button for about 5 seconds.		Using theLeft/Rightbuttos and each can be adjusted to setting between -6 to+6.
	“150Hz”		“150Hz” → “300Hz” → “600Hz” → “1.2kHz” → “2.5kHz” → “5kHz” → “10kHz”

7

Bluetooth PAIR

Switch the Soundbar to Bluetooth pairing mode.

When you press the button, the LED display changes as shown below.

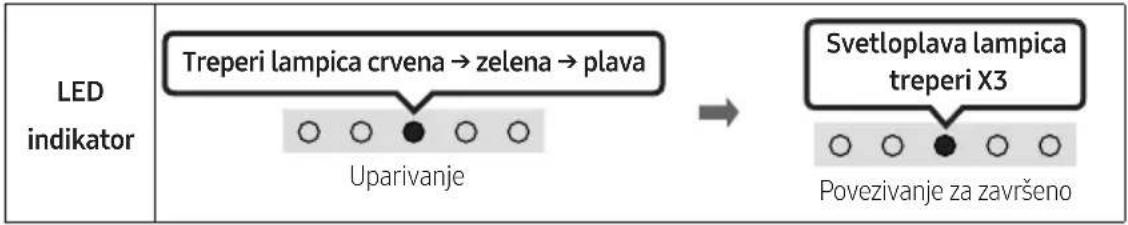

- Until pairing is complete, the Multicolour LED changes as Red → Green → Blue in turn.

LED Indicator

Red → Green → Blue BlinksPairing →

Cyan Blinks X3Connection is complete

8

▶II (Play / Pause)

You can also play or pause music by pressing the button in "USB" mode.

9

Up/Down/Left/Right

Press Up/Down/Left/Right on the button to select or set functions.

- Repeat

To use the Repeat function in "USB" mode, press the Up button.

- Music Skip

Press the Right button to select the next music file. Press the Left button to select the previous music file.

• ID SET

Press and hold the Up button for 5 seconds to complete ID SET (when connecting to a wireless subwoofer or wireless rear speakers).

10

i(Info)

Press the button to display information about the current function. (See page 7.)

11

SOUND MODE

By pressing the button, you can select the desired audio mode. Each time the mode changes, the Multicolour LED blinks in white. (The sound mode may differ with the TV model.)

LED Indicator
	“DTS Virtual:X” → “Standard” → “Music” → “Game” → “Adaptive Sound”

- DTS Virtual:X

Immersive 3D sound from any content.

- Standard

Outputs the original sound.

- Music

Provides more natural and room filling sound for music content.

- Game

Provides stereoscopic sound to immerse you in the action while gaming.

- Adaptive Sound

Analyzes the content in real time and automatically provides the optimal sound field based on the characteristics of the content.

- Bluetooth Power On/Off

This feature automatically turns the Soundbar on when it receives a connection request from a previously connected TV or Bluetooth device. The setting is On by default.

- Press and hold the SOUND MODE button for more than 5 seconds to turn off the Bluetooth Power function.

• DRC (Dynamic Range Control) On/Off

Lets you apply dynamic range control to Dolby Digital tracks. Press and hold the SOUND MODE button for more than 5 seconds while the Soundbar is powered off to turn DRC (Dynamic Range Control) on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)

SOUND MODE button LED Indicator
	On (Default)	Off
DRC On/Off Toggle On → Off

12	WOOFER (BASS) LEVEL When subwoofer is connected, push the button up or down to adjust the woofer level to -12 or between -6 to +6. When subwoofer is disconnected, push the button up or down to adjust the bass level between -6 to +6. To set the woofer (bass) volume level to 0 (Default), press the button. (If Soundbar connected to wireless subwoofer (sold separately)).

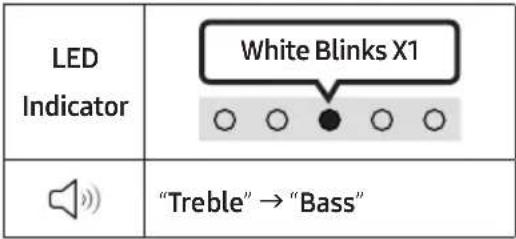

13	TONE CONTROLBy pressing the button, you can adjust the volume of the treble or bass sound. The desired item can be adjusted using theUp/Downbuttons. (This feature is available in all sound modes except “Standard” mode.)

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button		Reference page
Remote Control Button Function
WOOFER (Up)	TV remote control On/Off	page 15
Left TV Auto connect	On/Off page 22
Up ID SET page 11
(Sound Control)	7 Band EQ page 11
SOUND MODE	DRC On/Off page 12
	Bluetooth Power On/Off page 12
*PAIR	Bluetooth Multi connection On/Off page	29

Output specifications for the different sound effect modes

Effect Input		Output
		With Soundbar only With Subwoofer Only		With Subwoofer & Wireless Rear Speaker Kit
DTS Virtual:X	2.0 ch	3.0 ch	3.1 ch	5.1 ch
	5.1 ch	3.0 ch	3.1 ch	5.1 ch
Standard	2.0 ch	2.0 ch	2.1 ch	2.1 ch
	5.1 ch	3.0 ch	3.1 ch	5.1 ch
Music	2.0 ch	3.0 ch	3.1 ch	5.1 ch
	5.1 ch	3.0 ch	3.1 ch	5.1 ch
Game	2.0 ch	3.0 ch	3.1 ch	5.1 ch
	5.1 ch	3.0 ch	3.1 ch	5.1 ch
Adaptive Sound	2.0 ch	3.0 ch	3.1 ch	5.1 ch
	5.1 ch	3.0 ch	3.1 ch	5.1 ch

• The Samsung Wireless Rear Speaker Kit, and Subwoofer can be purchased separately. To purchase a Kit or the Subwoofer, contact the vendor you purchased the Soundbar from.

Adjusting the Soundbar volume with a TV remote control

Adjust the Soundbar volume using the TV's remote control.

• This function can be used with IR remote controls only. Bluetooth remote controls (remote controls that require pairing) are not supported.
• Set the TV speaker to External Speaker to use this function.
  • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA

TV remote control On/Off

1. Turn Off the Soundbar.
2. Push up and hold the WOOFER button for 5 seconds.

Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: "Off-TV Remote" (Default mode), "Samsung-TV Remote", "All-TV Remote".

The LED indicator status changes each time the mode is changed, as shown below.

Remote Control Button LED	Indicator Status
	"Off-TV Remote"(Default mode)	Disable the TV remote control.
	"Samsung-TV Remote"	Enable a Samsung TV's IR remote control.
	"All-TV Remote"	Enable a third-party TV's IR remote control.

04 CONNECTING THE SOUNDBAR

Connecting Electrical Power

Use the power components to connect the Soundbar to an electrical outlet in the following order:

- For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

1. First connect the power cable to the AC/DC adapter. Connect the AC/DC adapter (with the power cable) to the Soundbar.

2. Connect the power cord to a wall socket.

Power Cord AC/DC Adapter DC 19V Bottom of the Soundbar Main Unit DC 19V USB (5V 0.5A)

NOTES

• If you unplug and reconnect the power cord when the product is turned on, the Soundbar turns on automatically.
• Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Connecting the Samsung Wireless Rear Kit and Subwoofer to your Soundbar

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9100S, sold separately) and Wireless Subwoofer (SWA-W510, sold separately) to your Soundbar. For detailed information on connections, see the Samsung Wireless Rear Speaker Kit and Wireless Subwoofer manual.

05 USING A WIRED CONNECTION TO THE TV

Method 1. Connecting with HDMI

CAUTION

• When both the HDMI cable and optical cable are connected, the HDMI signal is received first.
• To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals marked ARC. Otherwise, the TV sound may not be output.
• The recommended cable is High Speed HDMI Cable with Ethernet.

Connecting the TV that supports HDMI ARC (Audio Return Channel)

Connect to the HDMI IN (ARC) or (eARC) port of your TV. Connect to the HDMI (ARC) port of the Soundbar main unit. Top of the Soundbar Bottom of the Soundbar LED Indicator White On -> Off "TV ARC"

1. With the Soundbar and TV turned off, connect the HDMI cable as shown in the figure.
2. Turn on the Soundbar and TV.

3. TV sound is output from the Soundbar.

4. When the TV sound is not output, press the top panel of the Soundbar or the → (Source) button on the remote control to select the "Digital Audio In" mode.

5. When the sound is not output, check the HDMI Cable connection again.
6. Use the volume buttons on the TV's remote control to change the volume on the Soundbar.

NOTES

• When you connect the TV that supports the HDMI ARC (Audio Return Channel) to the Soundbar with an HDMI cable, you can transmit the digital video and audio data without connecting a separate optical cable.
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
• This function is not available if the HDMI cable does not support ARC.
• When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)

Method 2. Connecting using an Optical Cable

Pre-connection Checklist

• When both the HDMI cable and optical cable are connected, the HDMI signal is received first.
• When you use an optical cable and the terminals have covers, be sure to remove the covers.

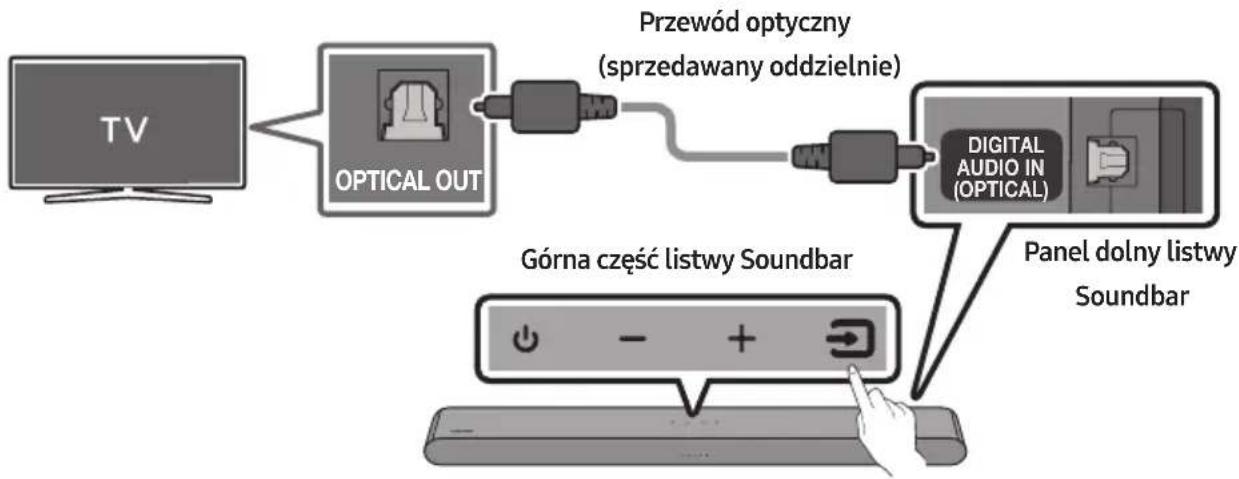

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

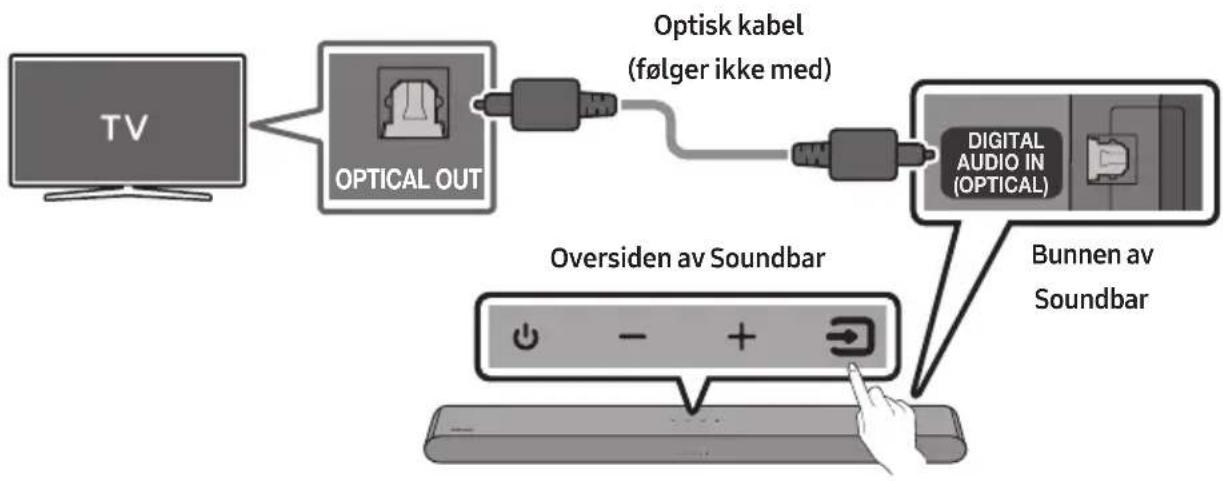

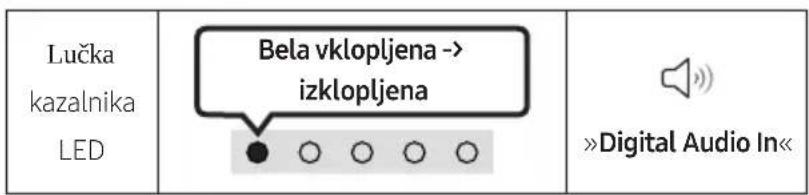

LED Indicator White On -> Off "Digital Audio In"

1. With the TV and Soundbar turned off, connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar and the OPTICAL output port on the TV with the optical cable (not supplied), as shown in the figure.
2. Turn on the Soundbar and TV.
3. Press the → (Source) button on the top panel or remote control, and then select the "Digital Audio In" mode.
4. The TV sound is output from the Soundbar.

Using the Q-Symphony Function

For Q-Symphony, the Soundbar syncs with a Samsung TV to output sound through two devices for optimum surround effect. When the Soundbar is connected, the menu, "TV+Soundbar" appears under the Sound Output menu of the TV. Select the corresponding menu.

TV Menu HDMI Cable OR Optical Cable (not supplied) LED Indicator White On -> Off "Digital Audio In"

• TV menu example: TV + [AV] Soundbar series name (HDMI)

NOTES

• It can operate according to the Codec supported by TV.
- This function is supported only when the HDMI Cable or Optical Cable (not supplied) is connected.
• The message displayed may differ with the TV model.
- This function is available in some Samsung TVs and some Soundbar models.

06 USING A WIRELESS CONNECTION TO THE TV

Connecting via Bluetooth

When a Samsung TV is connected using Bluetooth, you can hear stereo sound without the hassle of cables.

• Only one Samsung TV can be connected at a time.
• Samsung TV that supports Bluetooth can be connected. Check the specifications of your TV.

Illustration of a TV with wireless signal icons above (no text or symbols on the TV itself)

The initial connection

1. Press the ✗PAIR button on the Soundbar remote control or press → (Source) button on the Soundbar top panel to enter the "Bluetooth" mode.

Bluetooth Pairing button LED Indicator
ORWhen in “Bluetooth” mode	Pairing Connection is completeUntil pairing is complete, the Multicolour LED changes as Red → Green → Blue in turn.
	“Ready to connect via Bluetooth.”

1. Select Bluetooth mode on the Samsung TV.

(e.g. Home (💡) → Menu → Settings (💡) → All Settings (💡) → Sound → Sound Output → Bluetooth Speaker List → [AV] Soundbar S5B-Series (Bluetooth))

1. Select "[AV] Soundbar S5B-Series" from the list on TV's screen.

An available Soundbar is indicated with "Needs pairing" or "Paired" on the TV's Bluetooth device list. To connect the Samsung TV to the Soundbar, select the message, and then establish a connection.

1. You can now hear Samsung TV sound from the Soundbar,

- If there is a connection log between the Soundbar and Samsung TV, the Soundbar is automatically connected by changing its mode to "Bluetooth".

If the device fails to connect

• If you have an existing Soundbar (e.g., [AV] Soundbar S5B-Series) on the list of speakers on the Samsung TV, delete it.
• Then repeat steps 1 through 3.

Disconnecting the Soundbar from the Samsung TV

Press the (Source) button on the top panel or on the remote control to select the mode other than "Bluetooth".

- Disconnecting takes time because the Samsung TV must receive a response from the Soundbar. (The time required may differ, depending on the Samsung TV model.)

TV Auto connect On/Off

To cancel the automatic Bluetooth connection between the Soundbar and TV, press the Left button on the remote control for 5 seconds with the Soundbar in "Bluetooth Ready" status. (Toggle On → Off)

Left button LED Indicator
	On (Default)	Off
Bluetooth Ready	Toggle On → Off

Notes on Bluetooth connection

• Locate a new device within 1 m to connect via Bluetooth communication.
• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• The Soundbar automatically turns off after 20 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

07 CONNECTING AN EXTERNAL DEVICE

Connecting using an Optical Cable

LED Indicator White On -> Off "Digital Audio In"

1. With the external device and Soundbar turned off, connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar and the OPTICAL output port on the external device with the optical cable (not supplied), as shown in the figure.
2. Turn on the Soundbar and external device.
3. Press the (Source) button on the top panel or remote control, and then select the "Digital Audio In" mode.
4. The external device sound is output from the Soundbar.

08 CONNECTING A USB STORAGE DEVICE

You can play music files located on USB storage devices through the Soundbar.

USB (5V 0.5A) Micro USB to USB adapter Cable (not supplied)

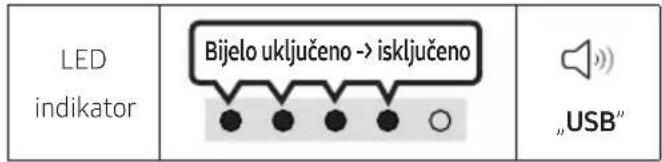

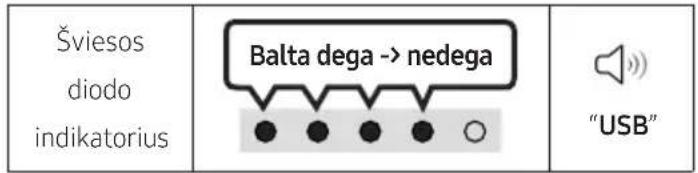

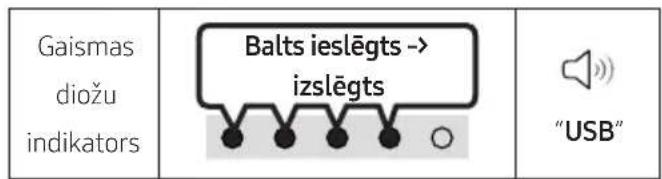

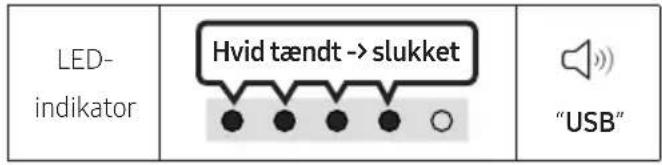

LED Indicator White On -> Off "USB"

1. Connect the Soundbar with the USB stick by the USB adapter cable above.

- The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

1. Press the → (Source) button on the top panel or remote control, and then select the "USB" mode.

2. Play music files from the USB storage device through the Soundbar.

- The Soundbar automatically turns off (Auto Power Down) if no USB device has been connected for more than 20 minutes.

File Format Type Compatibility list

Extension	Codec	Sampling Rate	Bit Rate
*.mp3 MPEG 1 Layer2	6kHz ~ 48kHz 80kbps~320kbps
	MPEG 1 Layer3 16kHz ~ 48kHz 80kbps~320kbps
	MPEG 2 Layer3 16kHz ~ 48kHz 80kbps~320kbps
	MPEG 2.5 Layer3 16kHz ~ 48kHz 80kbps~320kbps
*.wma	Wave_Format_MSAudio1	16kHz ~ 48kHz	56kbps~128kbps
	Wave_Format_MSAudio2 16kHz ~ 48kHz 56kbps~128kbps
*.aac	AAC	16kHz ~ 96kHz	48kbps~320kbps
	AAC-LC	16kHz ~ 96kHz	128kbps~192kbps5.1ch 320kbps
	HE-AAC	24kHz ~ 96kHz	48kbps~64kbps5.1ch 160kbps
*.wav	-	16kHz ~ 48kHz	up to 3000kbps
*.flac	FLAC	32kHz ~ 192kHz	162kbps ~ 8,100kbps
*.aiff	AIFF	32kHz ~ 192kHz	1,024kbps ~ 9,216kbps
*.ogg	OGG 1.1.0	16kHz ~ 48kHz	50kbps~500kbps

• If there are too many folders (about 200) and files (about 2000) stored on the USB device, it may take the Soundbar some time to access and play files.
• The Soundbar only supports USB devices with FAT16 (\~2GB), FAT32 (\~2TB) or NTFS (\~2TB) file systems.

09 CONNECTING A MOBILE DEVICE

Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cables.

- When you connect a paired Bluetooth device with the Soundbar off, the Soundbar automatically turns on.

mobile device

The initial connection

- When connecting to a new Bluetooth device, make sure the device is within 1 m distance.

1. Press the ✗PAIR button on the Soundbar remote control or press → (Source) button on the Soundbar top panel to enter the "Bluetooth" mode.

Bluetooth Pairing button LED Indicator
ORWhen in “Bluetooth” mode	Pairing Connection is completeUntil pairing is complete, the Multicolour LED changes as Red → Green → Blue in turn.
	“Ready to connect via Bluetooth.”

1. On your device, select "[AV] Samsung Soundbar S5B-Series" from the list that appears.

2. Play music files from the device connected via Bluetooth through the Soundbar.

If the device fails to connect

• If you have an existing Soundbar (e.g., [AV] Samsung Soundbar S5B-Series) on the list of speakers on the Mobile device, delete it.

• Then repeat steps 1 and 2.

• Locate a new device within 1 m to connect via Bluetooth communication.

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• The Soundbar automatically turns off after 20 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

• The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
• When connecting the Soundbar to a Bluetooth device, place them as close to each other as possible.
• The farther the Soundbar and Bluetooth device are from each other, the lower the sound quality will become.

The Bluetooth connection may break when the devices are out of the effective range.

• The Bluetooth connection may not function as intended in areas with poor reception.
• A Bluetooth device may experience noise or malfunction under in the following conditions:

- When the body is in contact with the signal transceiver on the Bluetooth device or Soundbar

- In corners or when there is an obstacle in proximity, such as a wall or partition, where electrical changes may occur.

• When exposed to radio interferences by other products operating on the same frequency ranges, such as medical equipment, microwave ovens, and wireless LAN devices.

• Obstacles such as doors and walls may still impact the sound quality even when the devices are within the effective range.

• Note that your Soundbar cannot be paired with other Bluetooth devices while using the Bluetooth option.

• This wireless device may cause electrical interference during operation.

Bluetooth Power On/Off

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the Soundbar is turned on.
2. Multicolour LED indicator on the Soundbar blinks "Cyan".

SOUND MODE button LED Indicator
	On (Default)	Off
Bluetooth Power On/Off	Toggle On → Off

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
- If the Soundbar is disconnected from the Bluetooth device, the multicolour LED indicator on the Soundbar blinks "Red" three times.

Disconnecting the Soundbar from the Bluetooth device

Press the (Source) button on the top panel or on the remote control to select the mode other than "Bluetooth".

- Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)

Bluetooth Multi connection

The Soundbar can be connected to 2 Bluetooth devices at the same time.

Diagram showing three smartphones with Bluetooth signals, connected by a rectangular device.

Bluetooth device A Bluetooth device B

TV Auto connect On/Off

1. Press and hold the ✗ PAIR button for more than 5 seconds on the remote while the Soundbar is turned off.
2. Multicolour LED indicator on the Soundbar blinks "Cyan".

Bluetooth Pairing button LED	Indicator
When in standby mode	Multi connection On (Default)	Multi connection Off

1. Connect the Soundbar to up to two Bluetooth devices. (See page 26)
2. Play music from one of the connected Bluetooth devices while two devices are connected.
3. If music is played from the Bluetooth device "B" while playing from the device "A", the music is started playing on the device "B" and automatically being stopped/paused playback on the device "A".
4. In versions prior to AVRCP V1.4, the switching time of the device playing music may be delayed.

Bluetooth Multi Pairing

How to pair multiple devices to the Soundbar

1. Turn on the Soundbar.
2. Only in "Bluetooth" mode, press and hold the (Source) button on the top of the Soundbar for more than 5 seconds for the Soundbar to go into "Bluetooth Pairing" mode, then on the Bluetooth device side, switch Bluetooth on, and select the Soundbar from the list of available devices, the Soundbar will automatically connect to the Bluetooth device.
3. A 2nd Bluetooth device can be paired and connected to the Soundbar using the same method. If you attempt to connect a 3rd device, a connected device that is not playing audio will lose its Bluetooth connection, but will still be paired with the Soundbar.
4. Using the same method, you can pair up to 8 Bluetooth devices, but only the last 2 will stay connected to the Soundbar at the same time.

NOTES

• Connect the Soundbar to up to two Bluetooth devices.
• Play music from one of the connected Bluetooth devices while two devices are connected.
• If music is played from the Bluetooth device "B" while playing from the device "A", the music is started playing on the device "B" and automatically being stopped/paused playback on the device A".
• In versions prior to AVRCP V1.4, the switching time of the device playing music may be delayed.
• The device can be switched by notification or alarm on some devices.
• Some devices do not support Bluetooth multi connection.

- "Bluetooth Pairing" mode stops when no device is paired within 3 minutes.

- Switching devices may take about 7 seconds on some apps.

- If you attempt to connect a 3rd Bluetooth device, the A or B devices will be disconnected. (A device that is not currently playing will be disconnected.)

- Only 1 Samsung TV, or 2 Bluetooth devices can be connected to the Soundbar at one time.

- The Soundbar will be disconnected from Bluetooth devices when it receives a connection request from a Samsung TV.

Using Tap Sound

Tap the Soundbar with your mobile device to play audio from the mobile device through the Soundbar.

• This function may not be supported, depending on the mobile device.
• This function is only compatible on Samsung mobile devices with Android 8.1 or later.

1. Turn on the Tap Sound function on your mobile device.

2. For details on how to turn on the function, refer to "Enable the Tap Sound function" below.

3. Tap the Soundbar with the mobile device. Select "Start now" in the displayed message window. A connection is established between the mobile device and Soundbar via Bluetooth.

4. Play audio from the mobile device through the Soundbar.

5. This function connects a mobile device to the Soundbar via Bluetooth by detecting vibration that occurs when the device touches the Soundbar.

6. Make sure the mobile device does not tap a sharp corner of the Soundbar. The Soundbar or mobile device may become scratched or damaged.
7. It is recommended that the mobile device be covered with a case. Lightly tap the wide area in the upper portion of the Soundbar, without using excessive force.
8. To use this function, update the SmartThings app to the latest version.

The function may not be supported, depending on the app version.

Enable the Tap Sound function

Use the SmartThings app to turn on the Tap View, Tap Sound function.

1. On the mobile device, run the SmartThings app.
2. Select (≡→_) in the SmartThings app screen displayed on the mobile device.
3. Set "Tap View, Tap Sound" to On to allow the function to work when a mobile device moves close to the Soundbar.

NOTES

• When the mobile device is in power-saving mode, the Tap Sound function does not work.
• The Tap Sound function may not work if there are devices near the Soundbar that cause radio interference such as electric devices. Make sure devices that may cause radio interference are placed at a sufficient distance away from the Soundbar.

10 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.

• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

- Diameter: M5

– Length: 35 mm or longer recommended.

- Connect cables from the unit to external devices before you install the Soundbar on the wall.

- Make sure the unit is turned off and unplugged from the power source before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide × 2 × 2 (M4 x L10)

Holder-Screw Screw

Simple line drawing of a bracket with a hole and side slot, labeled 'x 2' (no other text or symbols)

Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.
- If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

TV 5 cm or more

1. Align the Wall Mount Guide's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

Centre Line

1. Use a pen to mark the positions of the holes and remove the Wall Mount Guide.

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, including a circular component and a pointer.

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors into the holes before you insert the support screws. If you use anchors, make sure the holes you drill are large enough for the anchors you use.

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

(Not supplied)

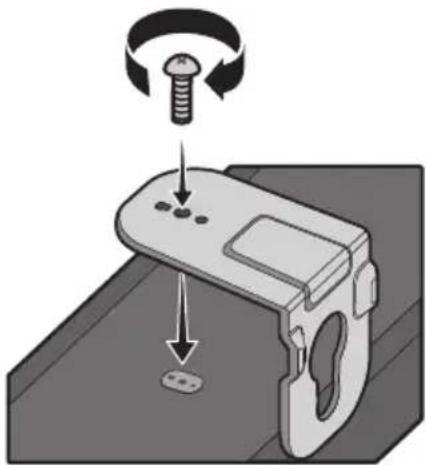

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

Diagram of a mechanical device with a screw and adjustment knob, showing no text or symbols

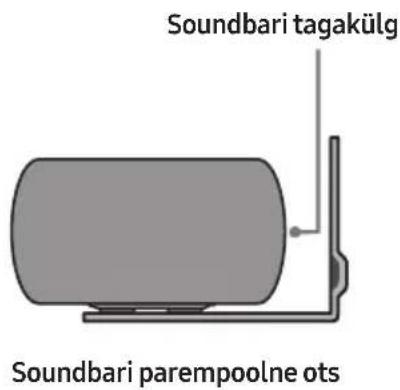

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

Rear of Soundbar

Right end of Soundbar

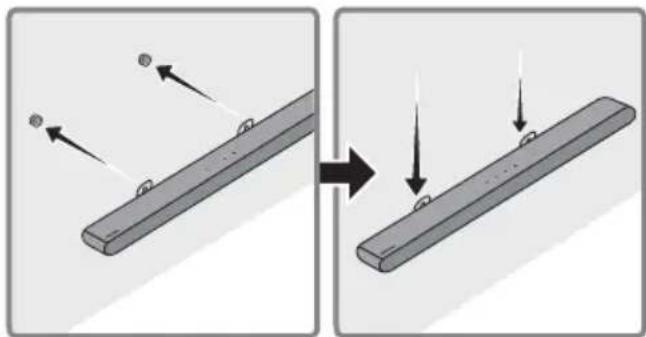

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

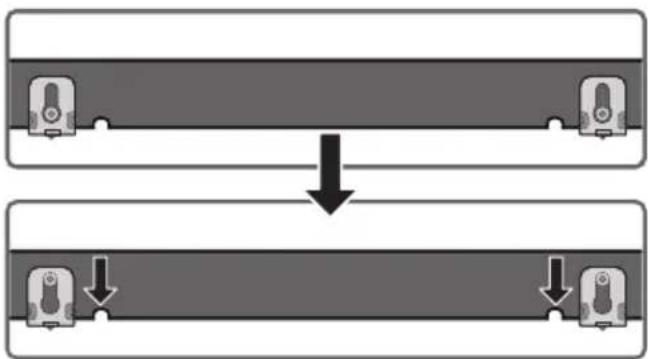

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

11 INSTALLING THE SOUNDBAR IN FRONT OF TV

3cm or more

Align the centre of the Soundbar to the centre of the TV as illustrated in the image.

Place the Soundbar at least 3cm away from the TV.

NOTES

• Make sure the Soundbar is placed on a flat and solid surface.
• Insufficient gap from the TV may cause acoustic problems.

12 SOFTWARE UPDATE

Important: After upgrading, keep the original Settings.

USB (5V 0.5A) Micro USB to USB adapter Cable (not supplied)

1. Connect a USB memory stick to the USB port on your computer.
   Important: Make sure there are no music files on the USB memory stick drive. This may cause the firmware update to fail.
2. Go to (samsung.com) → select Enter Model Number and enter the model of your Soundbar. Select manuals and downloads and download the latest software file.
3. Save the downloaded software to a USB memory stick and select "Extract Here" to unzip the folder.

4. Turn on the Soundbar and connect the USB memory stick containing the software update to the female port on a Micro USB adapter cable. Connect the cable to the USB port on the Soundbar.

5. Plug USB into Soudbar and switch to USB source, the software will update automatically and will complete update within 2 minutes. During the update process, the 5 LEDs will start flashing in a loop, and then the 5 LEDs will all be bright white, and then the 5 LEDs will flash in a loop again. When the update is complete, the cyan indicator blinks 3 times, and the soundbar automatically restarts.

- This product has a DUAL BOOT function. If the firmware fails to update, you can update the firmware again.

If LED sequence flashing is not displayed

1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar's USB port.
2. Disconnect the Soundbar's power cord, reconnect it, and then turn on the Soundbar.

NOTES

• The firmware update may not work properly if audio files supported by the Soundbar are stored in the USB storage device.
• Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.
  • After upgrading, keep the original Settings. (include Volume, sound field, etc.)

- When the firmware update is complete, the soundbar automatically turns on, and the Voice UI comes out.

If the software update fails, check if the USB stick is defective.

• Mac OS users should use MS-DOS (FAT) as the USB format.
• Updating via USB may not be available, depending on the USB storage device manufacturer.

Reset

5 Sec - +

With the Soundbar on, press the - + (Volume) buttons on the body at the same time for at least 5 seconds. The LED display changes as shown below and then the Soundbar is reset.

CAUTION

- All the settings of the Soundbar are reset. Be sure to perform this only when a reset is required.

13 TROUBLESHOOTING

Before seeking assistance, check the following.

Soundbar does not turn on.

→Check whether the power cord of the Soundbar is correctly inserted into the outlet.

Soundbar works erratically.

→After removing the power cord, insert it again.
→Power cycle the external device and try again.
→If there is no signal, the Soundbar automatically turns off after a certain period of time. Turn on the power. (See page 9.)

Remote control does not work.

→Point the remote directly at the Soundbar.
→Replace the batteries with new ones.

Soundbar does not output any sound.

→The volume of the Soundbar is too low or muted. Adjust the volume.
→When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device.
→For sound output of the TV, select Soundbar. (Samsung TV: Home (
Menu → Settings ( Ⓧ→ All Settings ( ) ➕ → Sound → Sound Output → Select Soundbar)
→The cable connection to the Soundbar may not be loose. Remove the cable and connect again.
→Remove the power cord completely, reconnect, and turn the power on.
→ Reset the product and try again. (See page 36.)

If the TV is not connected via HDMI (ARC).

→Check whether the HDMI cable is correctly connected to the ARC terminal. (See page 17)
→Connection may not be possible due to the connected external device (set-top box, game machine, etc.). Directly connect the Soundbar.
→HDMI-CEC may not be activated on the TV. Turn on the CEC on the TV menu. (Samsung TV: Home ( → Menu → Settings ( ) → All Settings ( → Connection → External Device Manager → Anynet+ (HDMI-CEC) ON)

Soundbar does not connect via Bluetooth.

→When connecting a new device, switch to Bluetooth Pairing for connection. (Press the
* PAIR button on the remote control or press the (Source) button on the body for at least 5 seconds.)
→If the Soundbar is connected to another device, disconnect that device first to switch the device.
→Reconnect it after removing the Bluetooth speaker list on the device to connect.
(Samsung TV: Home ( → Menu → Settings ( → All Settings ( ) Sound → Sound Output → Bluetooth Speaker List)
→Remove and reconnect the power plug, then try again.
→Reset the product and try again. (See page 36.)

Sound drops out when connected via Bluetooth.

→If your device that is connected via Bluetooth moves too far away from the Soundbar, it may cause the sound to drop out. Move the device closer to the Soundbar.
→If a part of your body is in contact with the Bluetooth transceiver or the product is installed on metal furniture, sound may drop out. Check the installation environment and conditions for use.

Bluetooth multi connection does not work.

→When the TV is connected to the soundbar, Bluetooth multi connection may not operate. Disconnect the Soundbar from the TV and try again.
→Check whether the Bluetooth Multi connection setting is turned on. (Refer to the "Soundbar does not connect via Bluetooth." section.)
→Disconnect the device currently playing, pair with the device that you want to connect, and reconnect the previous device.
→If the sound is inaudible even after connecting properly, refer to the "Sound drops out when connected via Bluetooth." section.

Soundbar does not turn on automatically with the TV.

→When you turn off the Soundbar while watching TV, power synchronization with the TV is disabled. First turn off the TV.

14 LICENCE

DOLBY AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

* This product does not support Dolby Atmos®.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
- Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 OPEN SOURCE LICENCE NOTICE

To send inquiries and requests for questions regarding open sources, contact Samsung Open Source (http://opensource.samsung.com)

16 IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).

(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).

- You will be informed of the administration fee amount before a technician visits.

17 SPECIFICATIONS AND GUIDE

Specifications

Model Name HW-S50B / HW-S56B
USB 5V/0.5A
Weight 2.4 kg
Dimensions (W x H x D) 670.0 x 62.3 x 105.0 mm
Operating Temperature Range +5°C to +35°C
Operating Humidity Range 10 % ~ 75 %
AMPLIFIER Rated Output power	(30W x 2) + (30W x 2) + 20W
Supported play formats DTS, Dolby® Digital (DTS Virtual Surround is played in DTS format.)	LPCM 2ch, Dolby AudioTM (supporting Dolby® Digital), DTS, DTS Virtual:X
WIRELESS DEVICE OUTPUT POWER The transmitting power is 9 dBm.
Overall Standby Power Consumption (W) 0.5W
Bluetooth Port deactivation method	Press and hold the SOUND MODE button for more than 5 seconds to turn off Bluetooth Power function.

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
  • Weight and dimensions are approximate.

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements.

The full text of the declaration of conformity is available at the following internet address:

http://www.samsung.com go to Support and enter the model name.

This equipment may be operated in all EU countries and in the UK.

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit:

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

COMMISSION REGULATION (EU) 2019/1782

Ecodesign requirements for external power supplies :

www.samsung.com/global/ecodesign_component

INFORMATIONS RELATIVES À LA SÉCURITÉ

AVERTISSEMENTS

POUR ÉVITER LES RISQUES DE CHOC

ÉLECTRIQUE, NE DÉMONTEZ PAS LE CAPOT.

L'APPAREIL NE CONTIENT PAS DE PIÈCES

RÉPARABLES PAR L'UTILISATEUR ; S'ADRESSER À UN SERVICE APRÈS-VENTE QUALIFIÉ.

Inserting Batteries before using the Remote Control (AAA batteries X 2) ____ 9

Two grayscale product photos: a rectangular remote with a scroll and a remote control unit with two USBs (no text or symbols visible)

Three black USB cable connectors shown in separate panels, no text or symbols present

x2 x2 (M4 x L10) x2

Guide de fixation murale Vis de fixation Vis Support de fixation murale

02 VUE D'ENSEMBLE DU PRODUIT

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

8 ▶II (Lecture / Pause)

9 Haut/Bas/Gauche/Droite

10 i(Info)

11

SOUND MODE

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Appareil Bluetooth A Appareil Bluetooth B

Diagram showing a mechanical device with labeled components and directional arrows, including a circular component and a pointer.

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

- Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.

- Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVIS DE LICENCE LIBRE

Two grayscale product photos: a rectangular remote with a scroll and a black remote with two small devices (no text or symbols visible)

Three black USB cable connectors shown in separate panels, no text or symbols present

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

IndicatoreLED
	“Sync” → “Night mode” → “Voice enhancement”

8 ▶II (Riproduci / Sospendi)

9 Su/Giù/Sinistra/Destra

10 i(Info)

11

SOUND MODE

IndicatoreLED
	“DTS Virtual:X” → “Standard” → “Music” → “Game” → “Adaptive Sound”

- DTS Virtual:X

LIVELLO WOOFER (BASSO)

SOFTING MODEL WROOFER CHA LEVEL

SOUND MODE WOOFER + - CHLAYER TOP GEAR

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Illustration of a flat-screen TV with wireless signal icons above (no text or symbols on screen)

Illustration of a hand interacting with a touchscreen device on a keyboard (no text or symbols visible)

Indicatore LED Bianco acceso -> spento "USB"

Diagram showing three smartphones with wireless signal icons between them, likely representing a mobile network or data transfer system.

Dispositivo Bluetooth A Dispositivo Bluetooth B

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

11 INSTALLAZIONE DELLA SOUNDBAR DAVANTI ALLA TV

Almeno 3 cm

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVVISO DI LICENZA OPEN SOURCE

http://www.samsung.com/it/aboutsamsung/sustainability/environment/our-commitment/data/

REGOLAMENTO (UE) 2019/1782 DELLA COMMISSIONE

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a battery or switch assembly with labeled components and polarity indicators

IndicatorLED
	“DTS Virtual:X” → “Standard” → “Music” → “Game” → “Adaptive Sound”

- DTS Virtual:X

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Indicador LED Blanco encendido -> apagado "Digital Audio In"

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

La conexión inicial

Diagram showing three smartphones with Bluetooth signals, connected by a rectangular device.

Dispositivo Bluetooth A Dispositivo Bluetooth B

100% 100%

Mechanical component diagram showing a screw being inserted into a housing with a button, and a drop in the base (no text or symbols)

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVISO SOBRE LICENCIA DE CÓDIGO ABIERTO

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

IndicatorLED
	"Sync" → "Night mode" → "Voice enhancement"

Indicator LED
	“DTS Virtual:X” → “Standard” → “Music” → “Game” → “Adaptive Sound”

- DTS Virtual:X

Indicator LED
	“Treble” → “Bass”

Diagram showing three stages of a mechanical component or assembly: before, after, and after (no text or symbols present)

IndicadorLED

“Digital Audio In”

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

A ligação inicial

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Dispositivo Bluetooth A Dispositivo Bluetooth B

Linha central

100% 100%

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVISO DE LICENÇA DE OPEN SOURCE

Para enviar perguntas e pedidos de esclarecimento relativamente a fontes abertas, contacte a Samsung Open Source por e-mail (http://opensource.samsung.com)

16 NOTA IMPORTANTE SOBRE O SERVIÇO

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

Two grayscale product photos: one of a remote control with a cable, the other of a remote device with two batteries (no text or symbols visible)

Three black audio/video ear components: two connected clips, a padlock, and a USB jack (no text or symbols visible)

HDMI-kabel Lichtnetadapter (Soundbar)
Stroomkabel (Soundbar)

x2 x2 (M4 x L10) x2

Wandmontagegids Schroefhouder Schroef Steun wandmontage

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Led-lampje
	“DTS Virtual:X” → “Standard” → “Music” → “Game” → “Adaptive Sound”

- DTS Virtual:X

Led-lampje
	“Treble” → “Bass”

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Led-lampje

"Digital Audio In"

Led- lampje Wit Aan -> Uit "USB"

Diagram showing three smartphones with Bluetooth signals, connected by a device icon

Bluetooth-apparaat A Bluetooth-apparaat B

control R100%

Diagram of a device with a screw and adjustment knob, showing mechanical assembly (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

LET OP

13 PROBLEEMOPLOSSING

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
- Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 KENNISGEVING OPEN SOURCE- LICENTIE

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

VERORDENING (EU) 2019/1782 VAN DE COMMISSIE

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating assembly steps.

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Diagram showing three smartphones with Bluetooth signals, connected by a rectangular device.

control unit 40.25V/Hz

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
- Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 BEKANNTMACHUNG ZU OPEN SOURCE LIZENZEN

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

VERORDNUNG (EU) 2019/1782 DER KOMMISSION

INNEHÅLLSFÖRTECKNING

01 Kontrollera komponenterna 6

Two grayscale product photos: a rectangular remote device and a black remote control with two small devices (no text or symbols visible)

Three black USB connectors shown in separate panels, no text or symbols present

HDMI-kabel AC/DC-adapter (Soundbar)
Strömsladd (Soundbar)

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

LED-indikator
	"Sync" → "Night mode" → "Voice enhancement"

LED-indikator
	"DTS Virtual:X" → "Standard" → "Music" → "Game" → "Adaptive Sound"

- DTS Virtual:X

LED-indikator
	"Treble" → "Bass"

Diagram showing three stages of a mechanical component or assembly: before, after, and after (no text or symbols present)

LED-indikator

"Digital Audio In"

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Bluetooth-enhet A Bluetooth-enhet B

TV-autoanslutning Av/På

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a system or process.

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
– Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 LICENSMEDDELANDE FÖR OPEN SOURCE

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

KOMMISSIONENS FÖRORDNING (EU) 2019/1782

2 4 3 Toppanel 1

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

Avgir originallyden.

- Music

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LED-indikator

«Digital Audio In»

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Bluetooth-multitilkobling

Soundbar kan kobles til 2 Bluetooth-enheter samtidig.

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Bluetooth-enhet A Bluetooth-enhet B

Mechanical component diagram showing a screw being inserted into a housing with a button, no text or symbols present

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
– Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 LISENSMERKNADER OM ÅPEN KILDEKODE

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

KOMMISJONSFORORDNING (EU) 2019/1782

Two grayscale product photos: one of a remote control with a rectangular frame, the other of a black remote with three remote devices (no text or symbols visible)

Three black USB cable connectors shown in separate panels, no text or symbols present

Technical diagram showing a mechanical component with two cross-sectional views labeled 'x2' and (M4 x L10)

Diagram illustrating the step-by-step assembly of a mechanical component, showing disassembly and reassembly with labeled arrows.

LED-merkkivalo
	“DTS Virtual:X” → “Standard” → “Music” → “Game” → “Adaptive Sound”

- DTS Virtual:X

12
WOOFER (BASSO) LEVEL

SOLDING MODEL PROXEDER + - CH LEVEL TICK GARL

SOLD MODE PROOFER CHA LEVEL

Diagram showing three stages of a mechanical component or assembly: before, after, and after (no text or symbols present)

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Ensimmäinen yhteys

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Bluetooth-laite A Bluetooth-laite B

Diagram showing a mechanical or electrical component with labeled parts and directional arrows

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVOIMEN LÄHDEKIELEN LISENSSI- ILMOITUS

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

KOMISSION ASETUS (EU) 2019/1782

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

LED-indikator
	“Sync” → “Night mode” → “Voice enhancement”

LED-indikator
	“DTS Virtual:X” → “Standard” → “Music” → “Game” → “Adaptive Sound”

- DTS Virtual:X

PROOFER CH LEVEL COCOL +

SOLD MODE PROOFER CA LEVEL

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LED-indikator

“Digital Audio In”

Illustration of a flat-screen TV with wireless signal icons above (no text or symbols on screen)

Illustration of a hand interacting with a touchscreen device on a keyboard (no text or symbols visible)

Diagram showing three smartphones with Bluetooth signals, connected by a device

Bluetooth-enhed A Bluetooth-enhed B

100% 50% 40%

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

AF SOUNDBAR FORAN TV

Mindst 3 cm

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
- Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 BEMAERKNING VEDR. OPEN SOURCE-LICENS

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

KOMMISSIONENS FORORDNING (EU) 2019/1782

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a battery or switch assembly with labeled components and directional arrows indicating assembly steps.

Indicator LED Luminează intermittent X ○ ○ ○ ○ ●

Volum

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

IndicatorLED

Alb Activat -> Dezactivat

„Digital Audio In”

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Prima conectare

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Dispositiv Bluetooth A Dispositiv Bluetooth B

100% 100%

Mechanical component diagram showing a screw being inserted into a housing with a button and a base, no text or symbols present.

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

11 INSTALAREA SISTEMULUI SOUNDBAR ÎN FAȚA TELEVIZORULUI

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 NOTIFICARE DE LICENȚĂ OPEN SOURCE

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the step-by-step assembly of a mechanical component, showing disassembly and reassembly with labeled parts and directional arrows.

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Светодиодениндикатор

„Digital Audio In“

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Diagram showing three smartphones with wireless signal icons, connected by a device

Diagram showing a control panel with checkmark, radio buttons, and two labeled boxes with checkmarks and crosses.

Diagram showing a mechanical device with labeled components and directional arrows, including a circular component and a pointer.

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 БЕЛЕЖКА ЗА ЛИЦЕНЗА ЗА ОТВОРЕН КОД

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

Obstuga pilota

1 2 PAIR 7 8 9 3 i 10 4 + - WOOFER 12 5 CH LEVEL TONE CONTROL 13 6 SOUNDBAR

▶II (Odtwarzanie/Pauza)

Góra/Dół/Lewo/Prawo

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 INFORMACJA O LICENCJI OPEN SOURCE

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

ROZPORZĄDZENIE KOMISJI (UE) 2019/1782

Two grayscale images: one of a rectangular remote device and one of three remote devices (no text or symbols visible)

Three black USB cable connectors shown in side-by-side views (no text or symbols)

Simple black outline of a mechanical clip or bracket (no text or symbols)

Napájecí kabel (Soundbar)

Diagram illustrating the process of a battery or switch assembly with labeled components and polarity indicators

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

První připojení

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a system or process.

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 POZNÁMKA K LICENCI OTEVŘENÉHO SOFTWARU

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a battery or switch mechanism with labeled components and directional arrows indicating movement.

ÚROVNE WOOFER (BASY)

SOLDING MODEL PROXEDER + - CH LEVEL TICK GARL

POCKET SOUND MODE CA LEVEL

Diagram showing three stages of a mechanical component or assembly: before, after, and after (no text or symbols present)

Illustration of a TV with wireless signal icons above (no text or symbols on the TV itself)

Prvotné pripojenie

1. Stlačením tlačidla ✝ PAIR na dial'kovom ovládači zariadenia Soundbar alebo ➞ (Zdroj) na hornom paneli zariadenia Soundbar prejdite do režimu „Bluetooth“.

Diagram showing three smartphones with Bluetooth signals connected by a device, likely illustrating wireless communication or data transfer.

Zariadenie Bluetooth A Zariadenie Bluetooth B

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, including a circular component and a pointer.

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two states of a mechanical component before and after cutting, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

- Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification. - Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 POZNÁMKA K LICENCII S OTVORENÝM ZDROJOVÝM KÓDOM

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

LED jelzőfény
	"Sync" → "Night mode" → "Voice enhancement"

WOOFER (BASSZUS) SZINT

SOLDING MODEL PROXEDER + - CH LEVEL TICK GARL

SOUND MODE PROOFER CH LEVEL CAN

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LEDjelzőfény

„Digital Audio In“

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Diagram showing three smartphones with wireless signal icons, connected by a rectangular device.

Pure electrical circuit lines without any symbols

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

FIGYELEM

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 NYÍLT FORRÁSKÓDÚ LICENC MEGJEGYZÉS

Diagram illustrating the process of a battery or switch assembly with labeled components and polarity indicators

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Illustration of a hand interacting with a button labeled '→' on a computer screen (no text or symbols beyond the icon)

LED indikator Bijelo uključeno -> isključeno „USB“

Diagram showing three smartphones with Bluetooth signals, connected by a rectangular device.

Bluetooth uređaj A Bluetooth uređaj B

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a system or process.

Diagram of a device with screw and adjustment knob, showing mechanical assembly (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

11 POSTAVLJANJE SOUNDBAR SUSTAVA ISPRED TELEVIZORA

3 cm ili više

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

* Ovaj proizvod ne podržava sustav Dolby Atmos®.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 OBAVIJEST O LICENCI ZA UPORABU SOFTVERA OTVORENOG KODA

Želite li poslati upite i zahtjeve u vezi sa softverom otvorenog koda, obratite se grupi Samsung Open Source (http://opensource.samsung.com)

16 VAŽNA NAPOMENA VEZANA UZ SERVIS

• Slike u ovom korisničkom priručniku služe kao samo kao referenca i mogu se razlikovati od stvarnog izgleda proizvoda.
• Moguća je naplata administrativne pristojbe u slučaju

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

UREDBA KOMISIJE (EU) 2019/1782

Two grayscale product photos: a rectangular remote device and a remote control with two small devices (no text or symbols visible)

Glavni uređaj Soundbar Daljinski upravljač/

Three black cable connectors with connectors, shown from different angles (no text or symbols)

HDMI kabl AC/DC adapter (Soundbar)
baterije Soundbar-a

Kabl za napajanje (Soundbar)

2 4 3 Gornji panel 1

1	LED indikator	LED indikator treperi, svetli ili menja boju u zavisnosti od trenutnog režima ili statusa Soundbar uređaja. Boja LED indikatora i broj lampica ukazuju na režim koji je aktivan, kao što je opisano u nastavku.
		Bela LED lampica	Bela LED lampica	Višebojna LED lampica	Bela LED lampica	Bela LED lampica
		• U zavisnosti od režima ili statusa, višebojna LED lampica menja sledeće boje: Bela, Svetloplava, Zelena, Crvena, Žuta, Narandžasta, Ljubičasta i Plava.
2	Napajanje	Uključuje i isključuje napajanje.
3	Jačina zvuka	Podešava jačinu zvuka.
4	Izvor	• Pritisnite dugme → (Izvor) da biste promenili režim. Svaki put kada promenite režim, LED lampica zasvetli u beloj boji, a zatim se isključi.
		LED indikator	Bela lampica uključeno -> isključeno	Bela lampica uključeno -> isključeno	Bela lampica uključeno -> isključeno
			„Digital Audio In“ ili „TV ARC“	„Bluetooth“ „USB“

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

Kako se koristi daljinski upravljač

1 2 PAIR 7 8 9 3 i SOUND MODE 10 4 + - WOOFER 12 5 CH LEVEL TONE CONTROL 13 6 SOUNDBAR

1

Napajanje

LED indikator	Bela lampica treperi X1
	"Sync" → "Night mode" → "Voice enhancement"

• Ukoliko slika na televizoru i zvuk sa uređaja Soundbar nisu sinhronizovani, izaberite opciju „Sync“ u Kontroli zvuka i zatim podesite zakašnjenje zvuka na vrednost između 0 i 300 milisekundi pomoću dugmadi Nagore/Nadole. (Nije dostupno u režimima „USB“ ili „Bluetooth“.)
  Ukoliko slika na televizoru i zvuk sa uređaja Soundbar nisu sinhronizovani, izaberite opciju „Sync“ u Kontroli zvuka i zatim podesite zakašnjenje zvuka na vrednost između 0 i 300 milisekundi pomoću dugmadi Nagore/Nadole. (Nije dostupno u režimima „USB“ ili „Bluetooth“.)
• „Sync“ je podržana samo za neke funkcije.
• „Night mode“ i „Voice enhancement“ nisu podržani režimu zvuka „DTS Virtual:X“.
  „Night mode“ je optimizovan za gledanje noću jer su postavke prilagođene tako da je jačina zvuka smanjena, a dijalog jasan.
• „Voice enhancement“ olakšava slušanje dijaloga u filmovima i TV emisijama.

	7-kanalni EQ
	Pritisnite i zadržite dugme (Kontrola zvuka)oko 5 sekundi.	Pomoću dugmeta Nalevo/Nadesno svako od njih se može podesiti na postavku od -6 do+6.
	„150Hz“	„150Hz“ → „300Hz“ → „600Hz“ → „1.2kHz“ → „2.5kHz“ → „5kHz“ → „10kHz“
7	Bluetooth PAIRPrebacuje Soundbar uređaj u režim za Bluetooth uparivanje.Kada pritisnete dugme, LED lampice se menjaju na način prikazan u nastavku.Dok se uparivanje ne završi, višebojna LED lampica naizmenično menja boje: Crvena → Zelena → Plava
8	►II (Reprodukcija/Pauza)Pritiskom na ovo dugme takođe možete pokrenuti reprodukciju muzike ili je pauzirati u režimu „USB“.
9	Nagore/Nadole/Nalevo/NadesnoPritisnite dugme Nagore/Nadole/Nalevo/Nadesno da biste izabrali ili podesili funkcije.PonoviDa biste koristili funkciju Ponovi u režimu „USB“, pritisnite dugme Nagore.Preskoči muzičku datotekuPritisnite dugme Nadesno da biste izabrali sledeću muzičku datoteku.Pritisnite dugme Nalevo da biste izabrali prethodnu muzičku datoteku.ID SETPritisnite i držite dugme Nagore 5 sekundi kako biste izvršili ID SET (prilikom povezivanja sa bežičnim sabvuferom ili bežičnim zadnjim zvučnicima).
10	i (Informacije)Pritiskom na ovo dugme pojavljuju se informacije za svaki režim. (Pogledajte stranicu 7.)

Bluetooth PAIR

▶II (Reprodukcija/Pauza)

Nagore/Nadole/Nalevo/Nadesno

11

SOUND MODE

Ako pritisnete dugme, moći ćete da odaberete željeni režim zvuka. Svaki put kada se menja režim, višebojna LED lampica treperi u beloj boji. (Režim zvuka može se razlikovati u zavisnosti od modela TV-a.)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

LED indikator Bela lampica uključeno -> isključeno „Digital Audio In“

1. Kada su TV i Soundbar isključeni, optičkim kablom (ne isporučuje se) povežite DIGITAL AUDIO IN (OPTICAL) port Soundbar-a i OPTICAL izlazni port TV-a, na način prikazan na slici.
2. Uključite Soundbar i TV.
3. Pritisnite dugme 📄 (Izvor) na gornjem panelu ili na daljinskom upravljaču i potom izaberite režim „Digital Audio In“.
4. Soundbar uređaj emituje zvuk sa televizora.

Upotreba funkcije Q-Symphony

Illustration of a hand interacting with a button labeled '→' on a device (no text or symbols beyond the icon)

LED indikator Bela lampica uključeno -> isključeno „USB“

Diagram showing three smartphones with Bluetooth signals, connected by a device

Bluetooth uređaj A Bluetooth uređaj B

Mechanical component diagram showing a screw being inserted into a housing with a button, no text or symbols present

- Prilikom sklapanja noseći delovi Nosač za montažu na zid treba da se nalaze sa zadnje strane uređaja Soundbar.

Zadnja strana uređaja Soundbar Desni kraj uređaja Soundbar

1. Postavite uređaj Soundbar sa pričvršćenim Nosač za montažu na zid tako što ćete okačiti Nosač za montažu na zid na Zavrtanj držača na zidu.

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 OBAVEŠTENJE O LICENCI OTVORENOG IZVORNOG KODA

Da biste poslali pitanja i zahteve u vezi sa softverom otvorenog koda obratite se grupi Samsung Open Source (http://opensource.samsung.com)

16 VAŽNA NAPOMENA O SERVISIRANJU

• Slike i ilustracije koje su upotrebljene u ovom korisničkom uputstvu date su samo kao reference i mogu se razlikovati od vašeg proizvoda.
• Administrativni troškovi mogu biti naplaćeni u sledećim slučajevima:
  (a) tehničar je pozvan u vaš dom na vaš zahtev i ako proizvod nije u kvaru (tj. ako niste pročitali ovo korisničko uputstvo),
  (b) vi donesete uređaj u servisni centar, a proizvod nije u kvaru (tj. ako niste pročitali ovo korisničko uputstvo).
• I znos tih administrativnih troškova biće vam saopšten pre obavljanja bilo kakvih radova ili kućne posete.

17 SPECIFIKACIJE I VODIČ

Specifikacije

Naziv modela HW-S50B
USB 5V/0,5A
Težina 2,4 kg
Dimenzije (Š x V x D) 670,0 x 62,3 x 105,0 mm
Opseg radne temperature +5°C do +35°C
Radni opseg vlažnosti vazduha 10 % ~ 75 %
POJAČALONominalna izlazna snaga	(30W x 2) + (30W x 2) + 20W
Podržani formati za reprodukcijuDTS, Dolby® Digital (DTS Virtual Surround sereprodukuje u DTS formatu.)	LPCM 2ch, Dolby AudioTM(podržani Dolby® Digital), DTS, DTS Virtual:X
IZLAZNA SNAGA BEŽIČNOG UREĐAJA Snaga prenosa je 9 dBm.
Ukupna potrošnja energije u režimu mirovanja (W)	0,5W
BluetoothNačin deaktivacije porta	Pritisnite i zadržite dugme SOUND MODE tokomviše od 5 sekundi kako biste isključili funkcijuBluetooth Power.

NAPOMENE

• Samsung Electronics Co., Ltd zadržava pravo da promeni specifikacije bez prethodne najave.
• Težina i dimenzije su približne.

Kompanija Samsung ovim izjavljuje da je ova radio-oprema u skladu sa Direktivom 2014/53/EU i relevantnim zakonskim odredbama Ujedinjenog Kraljevstva.

Ceo tekst izjave o usklađenosti dostupan je na sledećoj internet adresi: http://www.samsung.com; idite na stavku Podrška i unesite naziv modela.

Ova oprema sme da se koristi u svim državama članicama EU i Ujedinjenom Kraljevstvu.

[Ispravno odlaganje baterija za ovaj uređaj]

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

VARNOSTNI PODATKI

VARNOSTNA OPOZORILA

ZARADI NEVARNOSTI ELEKTRIČNEGA UDARA NE ODPIRAJTE ZADNJEGA (HRBTNEGA) POKROVA.

NAPRAVA NIMA DELOV, KI BI JIH LAHKO POPRAVIL UPORABNIK. SERVIS NAJ OPRAVI USTREZNO USPOSOBLJENA OSEBA.

Two grayscale product photos: a rectangular remote device and a black remote control with two batteries (no text or symbols visible)

Three black cable connectors with connectors, shown from different angles (no text or symbols)

Kabel HDMI Napetostni pretvornik

Simple black mechanical clip or bracket component (no text or symbols)

Napajalni kabel (Soundbar)

AC/DC (Soundbar)

Držalo za stenski nosilec Vijak nosilca Vijak Stenski nosilec

Diagram illustrating the process of a battery or switch mechanism with labeled components and polarity indicators

PROOFER CHLEVEL TOP GEAR +

SOLD MODE PROOFER CHA LEVEL

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Lučka kazalnika LED Bela vklopljena -> izklopljena »Digital Audio In«

Diagram showing three smartphones with Bluetooth signals, connected by a rectangular device.

Naprava Bluetooth A Naprava Bluetooth B

Diagram of a device with a screw and adjustment knob, showing mechanical assembly (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

1. Zvočnik Soundbar potisnite navzdol, kot je prikazano spodaj, da Stenska nosilca varno namestite na Vijake nosilca.

- Vstavite Vijake nosilca v široki (spodnji) del Stenskih nosilcev in nato potisnite Stenska nosilca navzdol, da Stenska nosilca varno namestite na Vijake nosilca.

11 NAMESTITEV ZVOČNIKA SOUNDBAR PRED TELEVIZOR

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

* Ta izdelek ne podpira Dolby Atmos®.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 OBVESTILO O ODPRTOKODNIH LICENCAH

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

UREDBA KOMISIJE (EU) 2019/1782

Two grayscale images: one of a rectangular remote device and one of a black remote control unit with two small devices (no text or symbols visible)

Three black cable connectors shown in separate views: two connected and one with a handle (no text or symbols visible)

Simple black outline of a U-shaped connector or clamp (no text or symbols)

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a battery or switch assembly with labeled components and polarity indicators

ΣΤΑΘΜΗΣ WOOFER (ΜΠΑΣΑ)

PROOFER CH LEVEL TOX CABBAGE

SOLD MODE PROOFER CHA LEVEL

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

'ΕνδειξηLED

Illustration of a flat-screen TV with wireless signal icons above (no text or symbols on screen)

Αρχική σύνδεση

Diagram showing three smartphones connected by a line of wireless signals, indicating wireless communication or data transmission.

Diagram showing a control panel with checkmark, radio buttons, and two labeled boxes (box1, box2) on a gray background.

U.S. 100% U.S. 100%

Diagram of a device with screw and adjustment knob, showing mechanical assembly (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only

(Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

– The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
- Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
- The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

Two grayscale product photos: a rectangular remote with a scroll and a remote control unit with three buttons (no text or symbols visible)

Three black USB cable connectors shown in separate panels, no text or symbols present

HDMI kabelis Mainstrāvas / lidzstrāvas adapteris (Soundbar)
Barošanas vads (Soundbar)

02 PRODUKTA PÄRSKATS

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a battery or switch assembly with labeled components and polarity indicators

Gaismas diožu indikators
	"Sync" → "Night mode" → "Voice enhancement"

Gaismas diožu indikators
	“DTS Virtual:X” → “Standard” → “Music” → “Game” → “Adaptive Sound”

- DTS Virtual:X

12
WOOFER (BASI) LĪMENA

Solid Gear WOOFEL Chisel COAST

MOOPER TOK CAN CHELVER

"Off-TV Remote" (noklusējuma režīms), "Samsung-TV Remote", "All-TV Remote".

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Gaismas diožu indikators

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Illustration of a hand interacting with a touchscreen device displaying a QR code (no text or symbols on the device itself)

Gaismas diožu indikators Balts ieslēgts -> izslēgts "USB"

Diagram showing three smartphones with Bluetooth signals, connected by a device

Bluetooth ierice A Bluetooth ierice B

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a system or process.

Diagram of a mechanical device with screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

13 PROBLÉMU NOVĚRŠANA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

* Šis produkts neatbalsta Dolby Atmos®.

dts.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

• Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.
• Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 PAZIÑOJUMS PAR ATVÉRTÃ PIRMKODA LICENCI

Two grayscale product photos: one of a remote control with a flat-screen box, and another with a black remote control unit and two USB ports (no text or symbols visible)

Three black USB connectors shown in separate panels, no text or symbols present

Toitejuhe (Soundbar)

HDMI-kaabel Vahelduvvoolu-/alalisvooluadapter (Soundbar)

Technical diagram showing a toolbar with a magnified view of two mechanical parts: a screw and a bracket, each labeled with dimensions.

Seinakinnitusjuhik Hoidikkruvi Kruvi Seinakinnituskronstein

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a battery or switch assembly with labeled components and polarity indicators

12
WOOFER (BASS) TASE

SOLVER MOTOR PROOFER CALIFER GAR CALE GAR + -

SOLD MOODER CHANNEL

Diagram showing three stages of a mechanical component or assembly: before, after, and after (no text or symbols present)

LED-näidik

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Esmane ühendus

Diagram showing three smartphones connected by a wireless signal symbol, illustrating the connection between devices.

Bluetooth-seade A Bluetooth-seade B

10000000 45.78%

Diagram of a mechanical device with a screw and adjustment knob, showing rotational motion (no text or symbols)

- Kokkupanekul veenduge, et Seinakinnituskronstein riputusosad jääksid Soundbari taha.

Soundbari tagakülg Soundbari parempoolne ots

1. Paigaldage Soundbar koos selle külge kinnitatud Seinakinnituskronstein, riputades Seinakinnituskronstein seinal olevatele Hoidikkruvi.

Diagram showing two mechanical components before and after assembly, with arrows indicating motion direction (no text or symbols)

1. Libistage Soundbari alla, nagu on allpool näidatud, nii et Seinakinnituskronstein toetuksid Hoidikkruvi.

- Sisestage Hoidikkruvi Seinakinnituskronstein laia (alumisse) ossa ja seejärel libistage Seinakinnituskronstein allapoole, nii et Seinakinnituskronstein toetuksid kindlalt Hoidikkruvi.

11 SOUNDBARI PAIGALDAMINE TELERI ETTE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

* See toode ei toeta Dolby Atmos®-t.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

- Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification.

- Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 AVATUD LÄHTEKOODI LITSENTSI TEATIS

www.samsung.com/ee/aboutsamsung/sustainability/environment/our-commitment/data/

KOMISJONI MÄÄRUS (EL) 2019/1782

DC 19V USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) HDMI (ARC)

Diagram illustrating the process of a battery or switch with polarity markings and internal components

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Šviesos diodo indikatorius

Illustration of a TV with wireless signal icons above it (no text or symbols on the TV itself)

Illustration of a hand interacting with a touchscreen device on a keyboard (no text or symbols visible)

Šviesos diodo indikatorius Balta dega -> nedega "USB"

Diagram showing three smartphones connected by a wireless signal symbol, illustrating wireless communication or data transmission.

„Bluetooth“ A jrenginys „Bluetooth“ B jrenginys

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a system or process.

Diagram of a device with a screw and adjustment knob, showing mechanical components (no text or symbols)

Diagram showing two states of a mechanical component before and after assembly, with arrows indicating motion direction (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samsung Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

[ENERGY STAR]

ENERGY STAR qualified model only

- Your Samsung product is ENERGY STAR qualified in its factory default setting. Change to certain features, settings and functionality in this product can change the power consumption, possibly beyond the limits required for ENERGY STAR qualification. - Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of the Government agencies, designed to promote energy efficient products and practices.

Refer to www.energystar.gov for more information of the ENERGY STAR Program.

ENERGY STAR qualified model only (Applicable to Thin Client models only)

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

• The ENERGY STAR Program has been to reduced greenhouse gas emissions and save energy through voluntary labeling.
• Power management setting of this product have been enabled by default, and have various timing setting from 1 minutes to 5 hours.
• The product can wake with a button press on the chassis from sleep mode.

ENERGY STAR qualified model only (The other models)

- As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency.

15 ATVIROSIOS PROGRAMINĖS JRANGOS LICENCIJOS PRANEŠIMAS

www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

KOMISIJOS REGLAMENTAS (ES) 2019/1782

© 2022 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country	Samsung Service Centre	Web Site
■Europe
UK 0333 000 0353		www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100		www.samsung.com/ie/support
GERMANY 06196 77 555 77		www.samsung.com/de/support
FRANCE 01 48 63 00 00		www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864)		www.samsung.com/it/support
SPAIN 91175 00 15		www.samsung.com/es/support
PORTUGAL	210 608 098Chamada para a rede fixa nacionalDias úteis das 9h às 20h	www.samsung.com/pt/support
LUXEMBURG 261 03 710		www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100		www.samsung.com/nl/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY 21629099		www.samsung.com/no/support
DENMARK 707 019 70		www.samsung.com/dk/support
FINLAND 030-6227 515		www.samsung.com/fi/support
SWEDEN 0771-400 300		www.samsung.com/se/support
POLAND	801-172-678* lub [phone]*Specjalistyczna infolinia do obstugi zapytań dotyczących telefonów komórkowych: 801-672-678** (optata według taryfy operatora)	http://www.samsung.com/pl/support/
HUNGARY 0680 SAMSUNG (0680-726-7864)		www.samsung.com/hu/support
AUSTRIA 0800 72 67 864 (0800-SAMSUNG)		www.samsung.com/at/support
SWITZERLAND	0800 726 786	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)

Country	Samsung Service Centre	Web Site
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA 072 726 786		www.samsung.com/hr/support
BOSNIA	055 233 999	www.samsung.com/support
NORTH MACEDONIA	023 207 777	www.samsung.com/mk/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA 080 697 267 (brezplačna številka)		www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
KOSOVO	038 40 30 90	www.samsung.com/support
ALBANIA 045 620 202		www.samsung.com/al/support
BULGARIA	0800 111 31 - Безплатен за всички оператори*3000 - Цена на един градски разговор или според тарифата на мобилният оператор09:00 до 18:00 - Понеделник до Петък	www.samsung.com/bg/support
ROMANIA	0800872678 - Apel gratuit*8000 - Apel tarifat în rețea	www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA 800-7267		www.samsung.com/ee/support
