Product Type	Car Seat
Brand	CYBEX
Model	Sirona S2 iSize
Safety Standard	R129/03 (i-Size)
Size Range	61 to 105 cm (with newborn insert from 45 cm)
Maximum Child Weight	18 kg
Orientation	Rear-facing (up to 105 cm) and forward-facing (from 76 cm and 15 months)
Installation	ISOFIX + support leg
Rotation	Yes, up to 360° with adjustment handle
Recline Positions	Multiple positions, adjustable via front handle
Headrest Adjustment	Yes, via handle at the back (adjustment max 2 cm above shoulders)
Harness	5-point with center adjustment
Newborn Insert	Sold separately (recommended for 45-60 cm)
Side Protection	Linear (L.S.P.)
Locking Indicators	ISOFIX (red/green), support leg (green), seat locking
Cover Maintenance	Wash at 30°C on delicate cycle, no tumble dryer
Cleaning Plastic Parts	Warm water and mild detergent, no harsh products or bleach
Lifespan	8 years maximum
Manufacturer Warranty	3 years
Country of Manufacture	Germany (CYBEX GmbH)

Frequently Asked Questions - Sirona S2 iSize CYBEX

How to install the Sirona S2 iSize seat in my car?

Installation is done only with the ISOFIX system and a support leg. Make sure the ISOFIX indicators turn green and the support leg touches the floor (green indicator). Check the list of compatible vehicles on the CYBEX website.

From when can I use the seat in forward-facing position?

The seat can be oriented forward-facing when your child is at least 15 months and has a height of at least 76 cm. Before this age, always use the rear-facing position.

How to clean the seat cover?

The cover consists of 4 removable parts. Wash it at 30°C on a delicate cycle, separately from other clothes. Do not tumble dry or dry in direct sunlight. Use a mild detergent, never bleach.

How to adjust the headrest?

Pull the adjustment handle at the back of the headrest. Adjust so that there is a maximum of 2 cm (about two fingers) between the child's shoulders and the bottom of the headrest.

What is the rotation function for?

The 360° rotation makes installation and getting the child in and out easier. Pull the front handle upwards to unlock and turn the seat. Make sure it locks into position before driving.

How do I know if the ISOFIX installation is correct?

The ISOFIX indicators on the arms change from red to green when properly engaged. Additionally, the support leg indicator turns green when it is in contact with the floor.

Can I use a support leg on a seat with a storage compartment?

The support leg must always rest on the vehicle floor. If your vehicle has a storage compartment, contact the manufacturer to check compatibility.

How to tighten the harness correctly?

Place the child, fasten the buckle, then pull the center adjustment strap to tighten the shoulder straps. The lap belts should sit low on the groin. The harness should be tight enough so that you cannot pinch the straps.

Up to what age can I use the newborn insert?

The newborn insert (sold separately) is recommended for children from 45 to 60 cm. Remove it when the child exceeds 60 cm.

What is the lifespan of the seat and the warranty?

The seat has a lifespan of 8 years from the date of manufacture. The CYBEX manufacturer warranty is 3 years from the date of purchase. Keep the proof of purchase.

USER MANUAL Sirona S2 iSize CYBEX

cybex GOLD SIRONA S2 i-Size 10K W1500.0L - 125 cm, max. 36 kg (kg/week) 3 Kilobus-egyptc + VJ User guide

GO TO WWW CYBEX-ONLINE.COM TO WATCH AN INSTRUCTIONAL VIDEO

DE....2
EN....5
IT 8
FR....12
NL 15
PL 18
HU 21
CZ 24
SK....27
ES....30
PT 34
SE 38
NO 41
FI 44
DK....47
SL 50
HR 53
RU 56
UK....60
EE....64
LT 67
LV 70
TR....73
AR....76
BG 79
SR....83
EL 86
RO 90
SQ 93
BS....96
MK 99
CNR 103
HI....106
TH....109
VI 112
MS 115
HY....119
CMN 123
YUE 126
JA....129
KO 132

61 – 105 cm, approx. 3 M – approx. 4 Y max. 18 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 18 kg

Thank you for deciding on the SIRONA S2 I-SIZE when choosing your car seat.

Carefully read this User guide before installing the car seat in your vehicle and always keep the guide to hand in the designated compartment.

IMPORTANT INFORMATION AND WARNINGS

Without the approval of the Type Approval Authority, the car seat may not be modified or added to in any way.
In order to keep your child properly protected, it is absolutely essential that you use the car seat as described in this User guide.
Do not use forward facing before the child's age exceeds 15 months and before the child has reached a size of 76 cm.
- This car seat may only be installed on vehicle seats which are approved for the use of child restraint systems according to the vehicle manual.

The installation of this car seat on the front passenger seat with the front airbag activated is NOT PERMITTED.

Do not use any load-bearing contact points other than those described in the User guide and marked on the child restraint.
The lap belts on the harness must run as low as possible across your child's groin to have optimum effect in the event of an accident.
Before each journey make sure that the five-point harness is correctly adjusted and fits tightly to the child's body. The belts must never be twisted!
Only an optimally adjusted headrest can offer your child maximum protection and comfort while ensuring that the shoulder belts can be fitted appropriately.
The car seat must always be correctly installed and secured in the vehicle even when not in use.
The load leg must always make direct contact with the floor of the vehicle. If your vehicle has storage compartments in the footwell, be sure to contact the vehicle manufacturer to ensure the floor of the vehicle can support the load leg.

While driving, the car seat must always be locked in the rearward or forward-facing position.

Always ensure that the car seat is not jammed against any surface when closing the vehicle door or adjusting the back seat.
Luggage or any other objects present in the vehicle must always be firmly secured. Otherwise, they may be thrown within the vehicle, which could cause fatal injuries.
- The car seat must never be used without the seat cover. Ensure that only an original CYBEX seat cover is used, as the cover is a key element allowing the seat to function correctly.
Never leave your child unattended in the vehicle.
Parts of this child restraint system can heat up when exposed to direct sunlight and could potentially burn your child's skin. Protect your child and the car seat from direct sun exposure.
An accident may cause damage to the car seat that is not identifiable with the naked eye. Please replace the car seat after an accident. In case of doubt, please consult your dealer or the manufacturer.
•The plastic parts can be cleaned with a mild cleaning agent and warm water. Never use harsh cleaning agents or bleaches!
On some vehicle seats made of sensitive materials, the use of car seats may leave marks and/or cause discolouration. To prevent this, you can place a blanket, towel or similar underneath the car seat to protect the vehicle seat.
Do not use this car seat for more than 8 years. The car seat is exposed to high stress during its product lifespan, which leads to changes in the quality of its materials with increasing age.

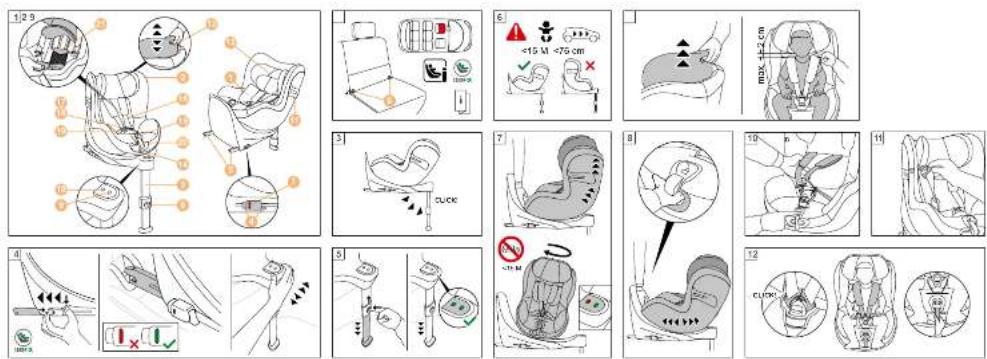

PRODUCT PARTS

EN	Newborn inlay (1)	Headrest (12)
	(separately available)	Headrest adjustment handle (13)
	Size indicator (2)	Position adjustment handle (14)
	Load leg (3)	Belt adjustment button (15)
	ISOFIX-Release buttons (4)	Shoulder belt (16)
	ISOFIX-Locking arms (5)	Belt buckle (17)
	ISOFIX-Anchorage points (6)	Buckle tongue (18)
	ISOFIX-Indicator (7)	Lap belts (19)
	Load leg adjustment button (8)	Central adjustment belt (20)
	Load leg indicator (9)	User guide compartment (21)
	Seat locking indicator (10)
	Linear side-impact protection (L.S.P.) (11)

DIFFERENT USES OF THE SEAT

61 – 105 cm, approx. 3 M – approx. 4 Y max. 18 kg	76 – 105 cm, > 15 M – approx. 4 Y max. 18 kg

A Newborn inlay (1) can be purchased as a separate accessory and allows for usage from 45 cm on. It should be removed if your child is taller than 60 cm. The Size indicator (2) shows the size your child must reach before it is permitted to convert the seat for forward-facing use.

THE CORRECT POSITION IN THE VEHICLE

This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. R129/03, for use in i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in their vehicle user manuals. If your vehicle does not have an i-Size seating position, please check the enclosed vehicle Type List. You can obtain the most up-to-date version of the Type List from www.cybex-online.com.

INSTALLATION IN THE VEHICLE

Always ensure that...

• the backrests in the vehicle are locked in their upright position.

• when installing the car seat on the front passenger seat, adjust the vehicle seat as far back as possible.

• Fold out the Load leg (3) until it locks into its foremost position.

• Release the ISOFIX-Release buttons (4) to extend the ISOFIX-Locking arms (5) on both sides.

The ISOFIX-Release buttons can both be released independently allowing the ISOFIX-Locking arms to be adjusted independently.

1. Push the ISOFIX-Locking arms (5) out of the car seat to their furthest extent.

2. Place the car seat on an appropriate seat in the vehicle.

3. Push the ISOFIX-Locking arms (5) into the ISOFIX-Anchorage points (6) until these lock into place with an audible "CLICK". The two ISOFIX-Indicators (7) will switch from RED to GREEN.

4. Ensure the car seat is secure by trying to pull it out of the ISOFIX-Anchorage points (6).

5. Push the car seat towards the backrest of the vehicle seat until it is fully aligned with the backrest.

Moving the car seat from side to side will also brace it against the vehicle backrest.

1. Press the Load leg adjustment button (8) and extend the leg until it touches the vehicle floor.

2. Pull the Load leg (3) out to the next locking position to ensure optimal force transmission.

3. The Load leg indicator (9) switches to GREEN when the load leg is correctly positioned on the vehicle floor.

REMOVAL FROM THE VEHICLE

1. Unlock the ISOFIX-Locking arms (5) on both sides by pressing the ISOFIX-Release buttons (4) and at the same time pulling them back.
2. Pull out the car seat from the ISOFIX-Anchorage points (6).
3. Remove the car seat and slide the ISOFIX-Locking arms (5) completely back into their transport positions.
4. Push the Load leg (3) back into its original position and then fold it in to save space.

ADJUSTING THE HEADREST

The adjustable Headrest (12) can be adjusted by using the Headrest adjustment handle (13) at the back of the Headrest (12). When adjusting the headrest ensure that no more than 2 cm (approx. 2 finger's width) remain between the child's shoulders and the headrest.

ROTATION FUNCTION

Pull the Position adjustment handle (14) on the front of the seat and bring it into an upright position. Now you can turn the seat.

Before starting your journey, make sure that the seat is properly locked into place.

To adjust the car seat to the desired recline position, press the Position adjustment handle (14) on the front of the car seat.

We recommend using the flattest lying position for children who are not yet able to sit upright independently.

Always make sure that the car seat audibly clicks into place when adjusting it to either the lying or sitting position.

SECURING THE CHILD

1. Rotate the seat to the boarding position.
2. Press the Belt adjustment button (15) and pull both Shoulder belts (16) at the same time to loosen them.
3. Undo the Belt buckle (17) by pressing the red button firmly.
4. The Buckle tongues (18) can now be attached to the indicated places on the cover using the integrated loops.
5. Put your child in the car seat with their buttocks at the back.
6. Place the Shoulder belts (16) directly over your child's shoulders.
7. Place both Buckle tongues (18) together and lock them in place in the Belt buckle (17). You should hear an audible "CLICK".
8. If you are using a seat with a SensorSafe Clip, push the clip closed until you hear an audible "CLICK" and slide the closed clip down towards the Belt buckle (17).
9. Tighten the Lap belts (19) and then pull on the Central adjustment belt (20) to tighten the Shoulder belts (16) until they rest snug against your child's body.

The harness should be fitted tight enough so that it is not possible to put a fold in any of the straps.

1. When using the SensorSafe clip, position the clip directly below the shoulder pads.

REMOVING AND REATTACHING THE SEAT COVER

The car seat cover consists of 4 parts. These are fastened to the car seat at several places. Once unfastened, the individual parts of the cover can be removed. To reattach the cover, follow the removal instructions in the reverse order.

The cover may only be washed at 30^ C with a delicate wash program otherwise it may result in discolouration of the cover fabric. Please wash the cover separately from other laundry and do not dry it in the dryer or in direct sunlight!

MANUFACTURER'S WARRANTY AND DISPOSAL REGULATION

CYBEX GmbH (Riedingerstr. 18, 95448 Bayreuth, Germany) gives you 3 years warranty on this product. The warranty is valid in the country where this product was initially sold by a retailer to a customer. The contents of the warranty and all essential information required for the assertion of the warranty can be found on our homepage:

go.cybex-online.com/manufacturer-warranty-car-seats. If a warranty is shown in the article description, your legal rights against us for defects remain unaffected.

Please observe the waste disposal regulations in your country.
