| Product type | Cordless electric hedge trimmer (battery-powered) |
| Brand | Wolf Garten |
| Model | 30R |
| Interchangeable blades | Shrub blade (FINESSE 30B) and grass blade (FINESSE 30R) – length 30 cm |
| Power source | 7.2 V lithium-ion battery (charger included) |
| Charging time | Approximately 4 hours |
| Weight | Approximately 1.5 kg (with battery) |
| Main functions | Trimming and cutting hedges, shrubs, lawn edges |
| Start | Safety switch + on/off switch |
| Safety | Safety switch, blade guard, release stop, inertia blade stop |
| Protection rating | IPX1 (splash-proof) |
| Protection class | III (very low safety voltage) |
| Maintenance and cleaning | Clean and lubricate blades after each cut (WD-40). Clean the device with a dry cloth. Do not spray with water. |
| Spare parts available | Shrub blade (ref. 7080021), grass blade (ref. 7079021), charger (ref. 7079072) |
| Warranty | Legal warranty against material and manufacturing defects |
Frequently Asked Questions - 30R Wolf Garten
User questions about 30R Wolf Garten
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric hedge trimmer in PDF format for free! Find your manual 30R - Wolf Garten and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 30R by Wolf Garten.
USER MANUAL 30R Wolf Garten
I


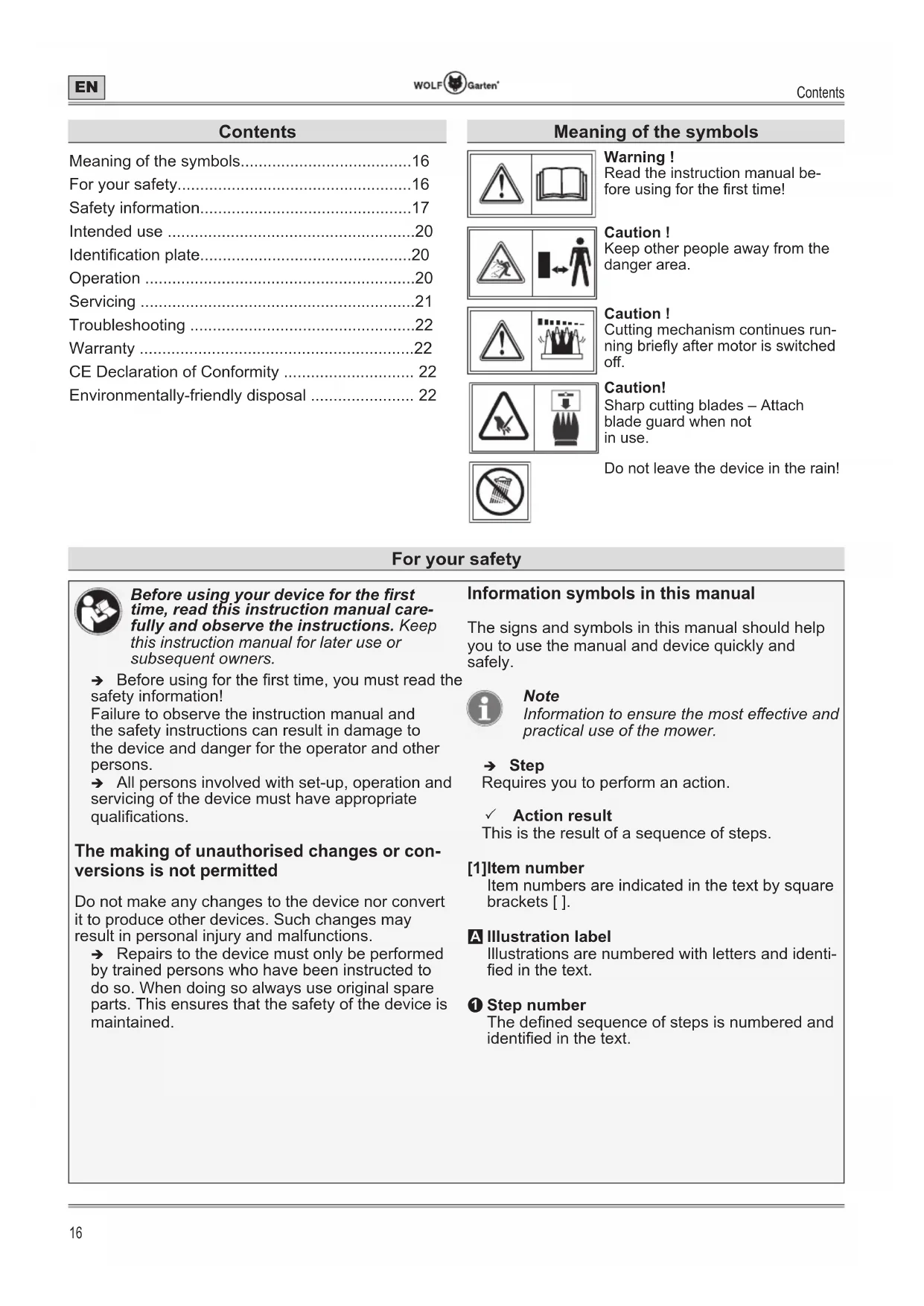

EN English 16 (Original operating instructions)
Meaning of the symbols....16
For your safety....16
Safety information....17
Intended use 20
Identification plate....20
Operation 20
Servicing 21
Troubleshooting 22
Warranty 22
CE Declaration of Conformity 22
Environmentally-friendly disposal 22
Meaning of the symbols
Warning!
Read the instruction manual before using for the first time!
Caution!
Keep other people away from the danger area.
Caution!
Cutting mechanism continues running briefly after motor is switched off.
Caution!
Sharp cutting blades – Attach blade guard when not in use.
Do not leave the device in the rain!
For your safety
Before using your device for the first time, read this instruction manual carefully and observe the instructions. Keep this instruction manual for later use or subsequent owners.
→ Before using for the first time, you must read the safety information!
Failure to observe the instruction manual and the safety instructions can result in damage to the device and danger for the operator and other persons.
→ All persons involved with set-up, operation and servicing of the device must have appropriate qualifications.
The making of unauthorised changes or conversions is not permitted
Do not make any changes to the device nor convert it to produce other devices. Such changes may result in personal injury and malfunctions.
→ Repairs to the device must only be performed by trained persons who have been instructed to do so. When doing so always use original spare parts. This ensures that the safety of the device is maintained.
Information symbols in this manual
The signs and symbols in this manual should help you to use the manual and device quickly and safely.
Note
Information to ensure the most effective and practical use of the mower.
→ Step
Requires you to perform an action.
√ Action result
This is the result of a sequence of steps.
[1]Item number
Item numbers are indicated in the text by square brackets [].
A Illustration label
Illustrations are numbered with letters and identified in the text.
① Step number
The defined sequence of steps is numbered and identified in the text.
Safety information
Danger levels of warning information
The following danger levels are used in this instruction manual to indicate potentially dangerous situations:
DANGER!
A dangerous situation is highly likely and, if the measures are not followed, will result in severe injury and even death.
WARNING!
A dangerous situation may occur and, if the measures are not followed, will result in severe injury and even death.
CAUTION!
A dangerous situation may occur and, if the measures are not followed, will result in slight or minor injuries.
Attention!
A possibly harmful situation may occur which if not avoided will result in property damage.
Safety information content
DANGER!
Type and source of the danger!
Consequences of non-observation
➢ Measure for preventing the danger
Workplace safety
Keep your work area clean and well lit. Messy and poorly lit work areas can lead to accidents.
Do not use the power tool in an explosive environment, where there are inflammable liquids, gases or dusts. Electrical power tools may create sparks, which could ignite the dust or vapours.
Keep children and other persons away from the power tool during use. You can lose control of the device when distracted.
Electrical safety
➢ Pull the mains plug immediately if the cable is damaged or severed.
The connector plug of the power tool must fit inside the socket. Under no circumstances may the plug be modified. Do not use any adapter plugs together with grounded power tools. Unmodified plugs and matching sockets reduce the risk of an electric shock.
- Avoid body contact with earthed surfaces such as of pipes, heaters, cookers and refrigerators. There is an increased risk of electric shock when your body is earthed.
Keep power tools away from rain and water. The ingress of water into an electric power tool increases the risk of an electric shock.
Do not misuse the cable by using it to carry or hang up the power tool or to pull the plug from the socket. Keep the cable away from heat, oil, sharp edges and moving device components. Damaged or tangled cable increases the risk of an electric shock.
Only charge Wolf-Garten power packs. The power pack voltage must match the power pack charging voltage of the charger. Otherwise there is a risk of fire and explosion.
Keep the device clean. Dirt increases the risk of an electric shock.
Personal safety
The device may not be used by persons with limited physical, sensory or mental abilities or lack of experience and / or knowledge, even if they are supervised or have received instructions about the safe handling of the device and understand the associated dangers.
Children are not allowed to play with the mower.
- Cleaning and servicing may not be carried out by children.
Do not use the device with defective or detached safety equipment.
Safety information
Pay attention, be aware of what you are doing and go about your work with the electric power tool prudently. Do not use any power tools if you are tired or under the influence of drugs, alcohol or medication. One moment of inattentiveness when using the power tool may lead to serious injury.
➢ Wear personal protective equipment and always wear protective goggles. The wearing of personal protective equipment such as dust masks, non-slip safety shoes or hearing protection reduces the risk of injury depending on the type and use of the power tool.
Remove any adjustment tools or spanners before switching the power tool on. A tool or spanner located in a turning device component may lead to injuries.
➢ Adopt a normal posture. Ensure you are standing securely and that you maintain your balance at all times. This will ensure that you can maintain better control of the power tool if unexpected situations occur.
Do not run, rather walk forwards at a steady pace.
➢ Wear suitable clothing. Do not wear any loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose hair, clothing, jewellery or long hair may get caught be moving parts.
Always wait until the cutting tool comes to a standstill.
Under the following circumstances, switch the device off and remove the power pack. Make sure that all moving parts have come to a complete standstill:
- Before you leave the device.
- Before you release a block.
- Before you conduct cleaning, maintenance and tuning tasks.
- Before you check the device for damage; e.g. after a foreign object has been encountered.
Use and handling of the power tool
Do not overload the device. Use the electric power tool designed for your work. Your work is performed better and safer with the appropriate power tool in the specified power range.
Do not use a power tool with a defective switch. An electric power tool which can no longer be switched on or off is dangerous and must be repaired.
Keep unused power tools out of the reach of children. Do not let people use the device who are unfamiliar with it or who have not read these instructions. Electric power tools are dangerous when used by inexperienced persons.
Treat power tools with care. Check that moving parts work seamlessly and do not jam; whether parts are so damaged that the function of the power tool is impaired. Have damaged parts repaired prior to using the device. Many accidents originate from poorly maintained electric power tools.
Keep cutting tools sharp and clean. Cutting tools with sharp cutting edges which are treated with care become stuck less frequently and are easier to run.
Use power tools, accessories, insertion tools, etc. in accordance with these instructions. Take the work conditions and the activity to be performed into consideration. The use of electric power tools for applications other than those intended may lead to hazardous situations.
➢ Pull the power plug from the mains immediately if the cable is damaged or severed.
Only have your tool repaired by qualified specialist personnel and with original spare parts. This ensures that the safety of the power tool is maintained.
Use and handling of the battery tool
Only charge the battery with the charger recommended by the manufacturer.
Fluid can leak from the battery if misused. Avoid contact with battery fluid. Rinse off with water in the case of accidental contact. Also seek medical attention if fluid gets inside the eyes. Leaking battery fluid may lead to skin irritation and burns.
The device must neither be opened nor the battery removed. Risk of injuries and fire!
Device-specific safety instructions for hedge trimmers
Keep all body parts away from the cutting blade. Do not attempt to remove grass cuttings or hold material to be cut with the blade running. Only remove jammed grass cuttings with the device switched off. One moment of inattentiveness when using the battery-operated shears can lead to serious injury.
Safety information
Hold the hedge trimmer at the handle with the blade at a standstill. Always put on the protective cover when transporting or storing away the hedge trimmer. Careful handling of the device reduces the risk of injury from the blade.
Only hold the power tool at the insulated handles, because the cutting blade may come into contact with hidden power cables. Cutting blade contact with a live cable may pass voltage onto metallic device components and lead to electric shock.
Keep the cable away from the cutting area. During the work process, the cable may become hidden in shrubbery and accidentally severed.
Look for hidden objects in hedges, such as wire fencing, before commencing work. This way you can avoid a collision.
➢ Using a residual current device (RCD) with a triggering current of 30 mA or less is recommended.
Hold the hedge trimmer securely and firmly in your hand. Only hold the hedge trimmer by the handle while working.
General safety notes for lawn, contour and shrub shears
➢ Use the hedge trimmer in the domestic environment for which it is intended to look after bushes, hedges, shrubbery and grass.
Do not use the battery-operated shears for shredding for the purpose of composting due to the physical risks posed to the user.
The battery-operated shears should not be used in public facilities, parks, sports grounds, on roads, etc., nor in agriculture or forestry.
➢ Select the working height so that the blade does not come into contact with the ground.
➢ Only switch the device on if the hands and feet are at a sufficient distance from the cutting blades.
Also note that there is always a risk of injury during activation even with discharged devices due to residual charge.
➢ Minors under the age of 16 are not allowed to use the devices.
This device must not be used by children or persons with reduced physical, sensory or mental capabilities or with inadequate experience and knowledge. Likewise persons must be familiar with this instruction manual before using the device. The minimum age for using the device may be specified by local or national legislation.
Device-specific safety notes for lawn shears
➢ Clear the lawn of foreign objects such as branches, stones, wire, etc. prior to cutting lawn areas and corners.
➢ Only use the device in daylight or under bright artificial light.
Power pack
Risk of fire!
➢ Never load power pack in the vicinity of acids and readily inflammable substances.
Only charge the power pack in an ambient temperature of between 10 °C to 45 °C. Allow the power pack to cool down following heavy use.
Charger
Do not connect a charger which has become wet into a socket in a moist condition.
Only use the charger in dry rooms.
➢ Disconnect cable connections only by pulling on the plug. Pulling on the cable could damage the cable and the plug and electrical safety is no longer ensured.
➢ Never use the charger if the cable, plug or the device itself are damaged by external influences. Take the charger to the closest workshop.
Under no circumstances may the charger be opened. In the event of a fault, take it to a workshop.
Risk of explosion!
Protect the device from heat and fire.
Do not place on sources of heat or subject to intense solar radiation for long periods.
Only use the device in an ambient temperature of between -10 °C to +45 °C.
Risk of short circuit
The device must neither be opened nor the battery removed.
The device must not be short-circuited, and no objects may be inserted in the charging socket.
Intended use
The battery-operated shears are exclusively designed for looking after lawn corners, small lawn areas and shrubs in domestic settings. Any other use is classed as an unintended use.
The user is liable for any damages arising from unintended use.
Identification plate
Position
The identification plate is located at the casing of the device.

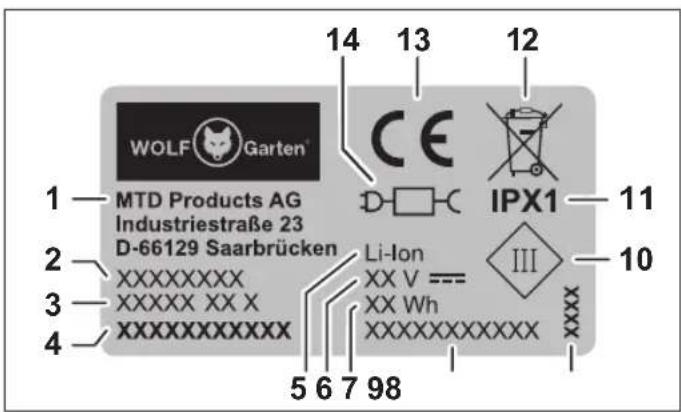

Structure
2 Device group
3 Model name
4 Model number
5 Power pack type
6 Rated voltage, current type
7 Power
8 Serial number
9 Year of manufacture
10 Protection class
11 IP rating
12 Disposal instruction
13 CE label
14 Detachable supply unit

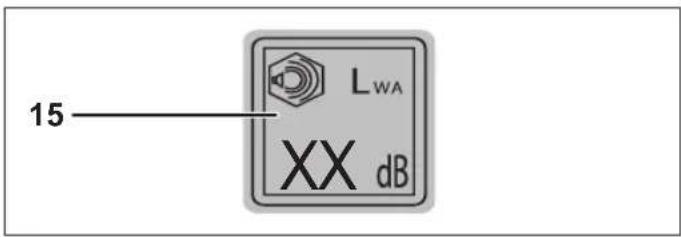

15 Guaranteed sound level
Operation

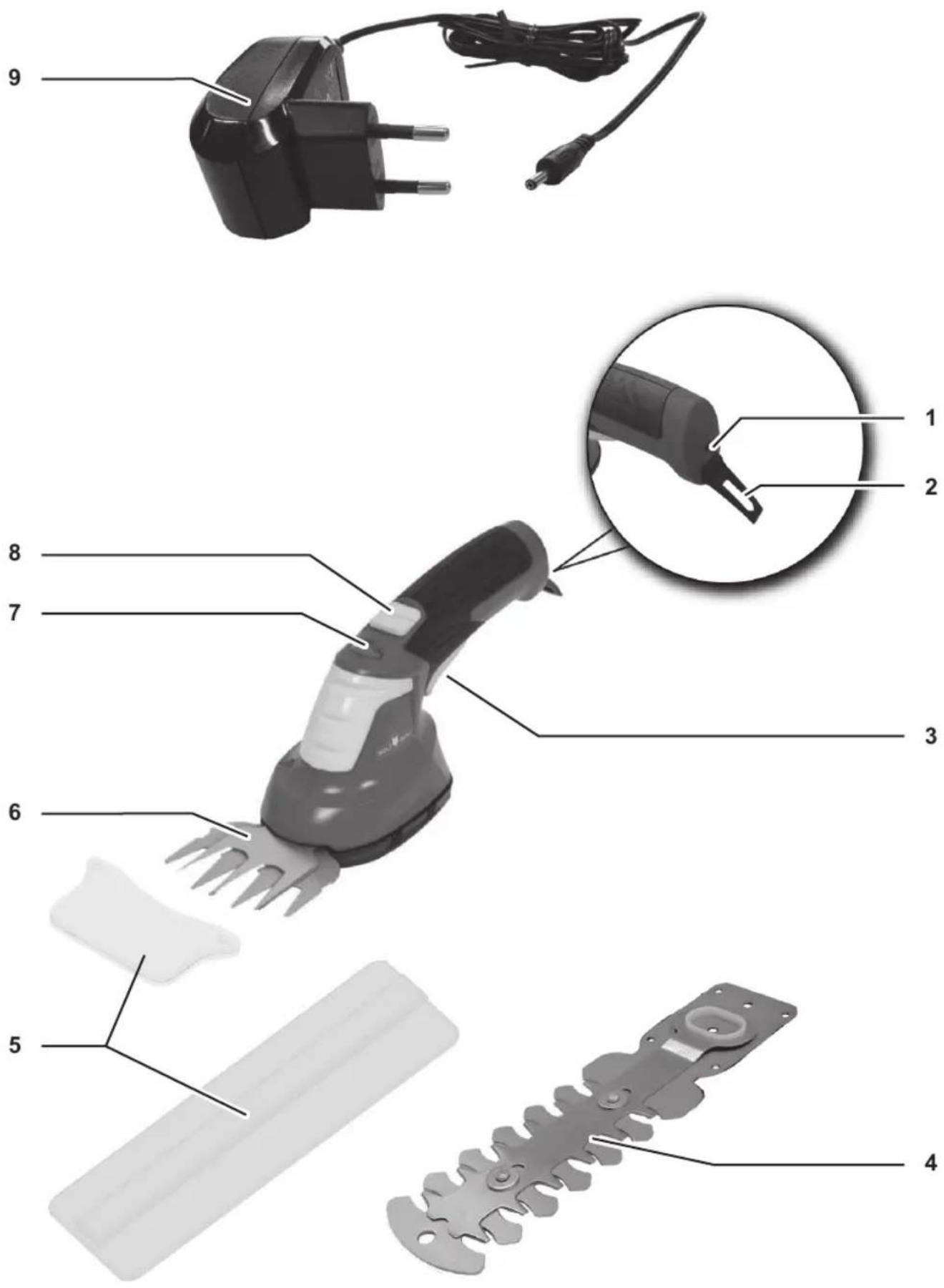

Operating elements (Fig. K)
1 Charging socket
2 Attachment lug
3 On/off switch
4 Shrub blade (FINESSE 30 B)
5 Blade guards
6 Grass blade (FINESSE 30 R)
7 Charge state indicator
8 Safety switch
9 Charger

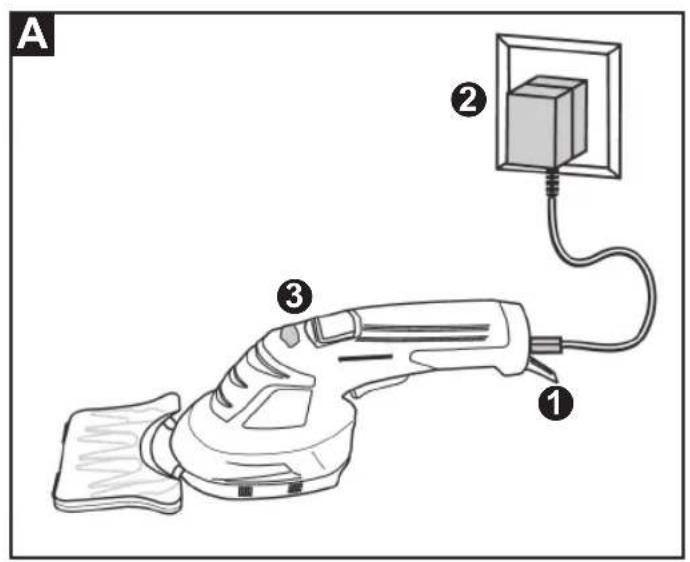

Power pack charging (Fig. A)
WARNING!
Injuries or material damage.
▶ Only charge in dry rooms.
Only use the original WOLF-Garten charger.
CAUTION!
Injuries or material damage.
➢ Attention: mains voltage!
The charger must match the information on the identification plate of the device.
Note
The power pack must be charged prior to first use.
→ Plug the charging plug into the charging socket of the battery-operated shears A 1.
→ Connect the charger to the mains voltage (230 V \~) A ②.
Notes on the charge status indicator (Fig. A ③)
• Red LED indicates charging process.
- Green LED indicates that the charging process is complete.

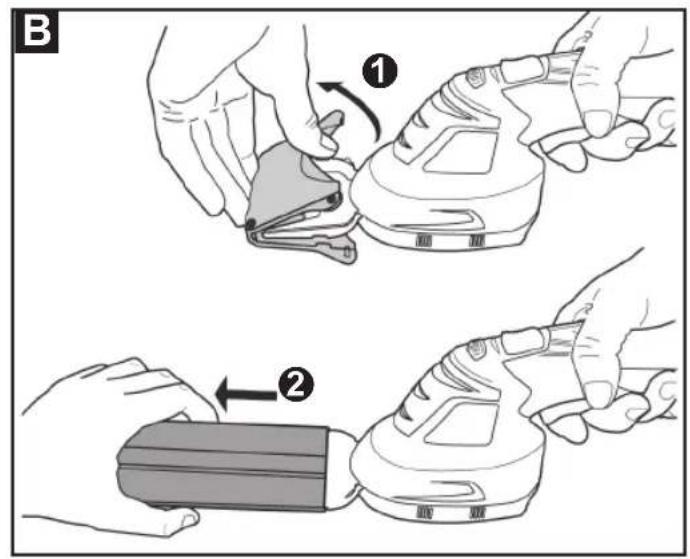

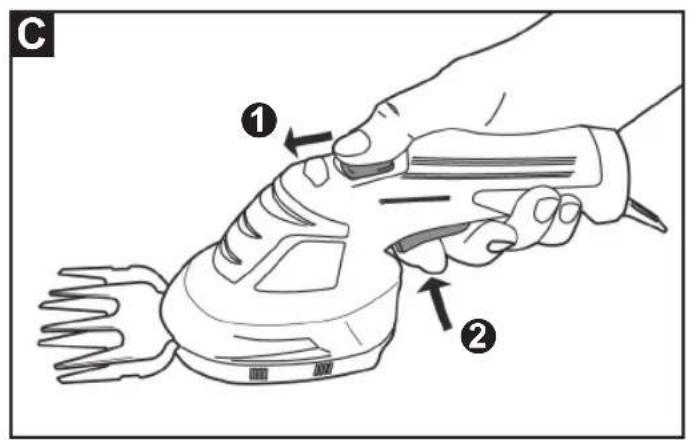

Switching the battery-operated shears on/off (Fig. B C)
CAUTION!
Injuries or material damage.
- Use appropriate eye protection and sturdy footwear.
Only switch the battery-operated shears on if hands and feet or beyond the reach of the cutting mechanism.
→ Fold out the blade guard and take it ③ff①, or pull the blade guard off B ②.
→ Push the safety switch forwards and hold it down.
→ Actuate on/off switch②.
→ Release safety switch① again.
→ To switch the battery-operated shears off, release the on/off switch C ②.
General information about the power pack:
To obtain a long power pack service life, the following points should be heeded:
- Low power pack voltage reduces the stroke rate of the shears. The power pack must be charged in such cases.
- The lithium-ion power pack must be charged up prior to extended periods of non-use; e.g. prior to storage.
- Charging time: approx. 4 hours.
- The lithium-ion power pack can be charged in any charge state and charging can be interrupted at any time without damaging the power pack (no memory effect).
- To prevent self-draining of the power pack, pull the plug of the charger from the battery-operated shears, as long as the charger is disconnected from the mains.

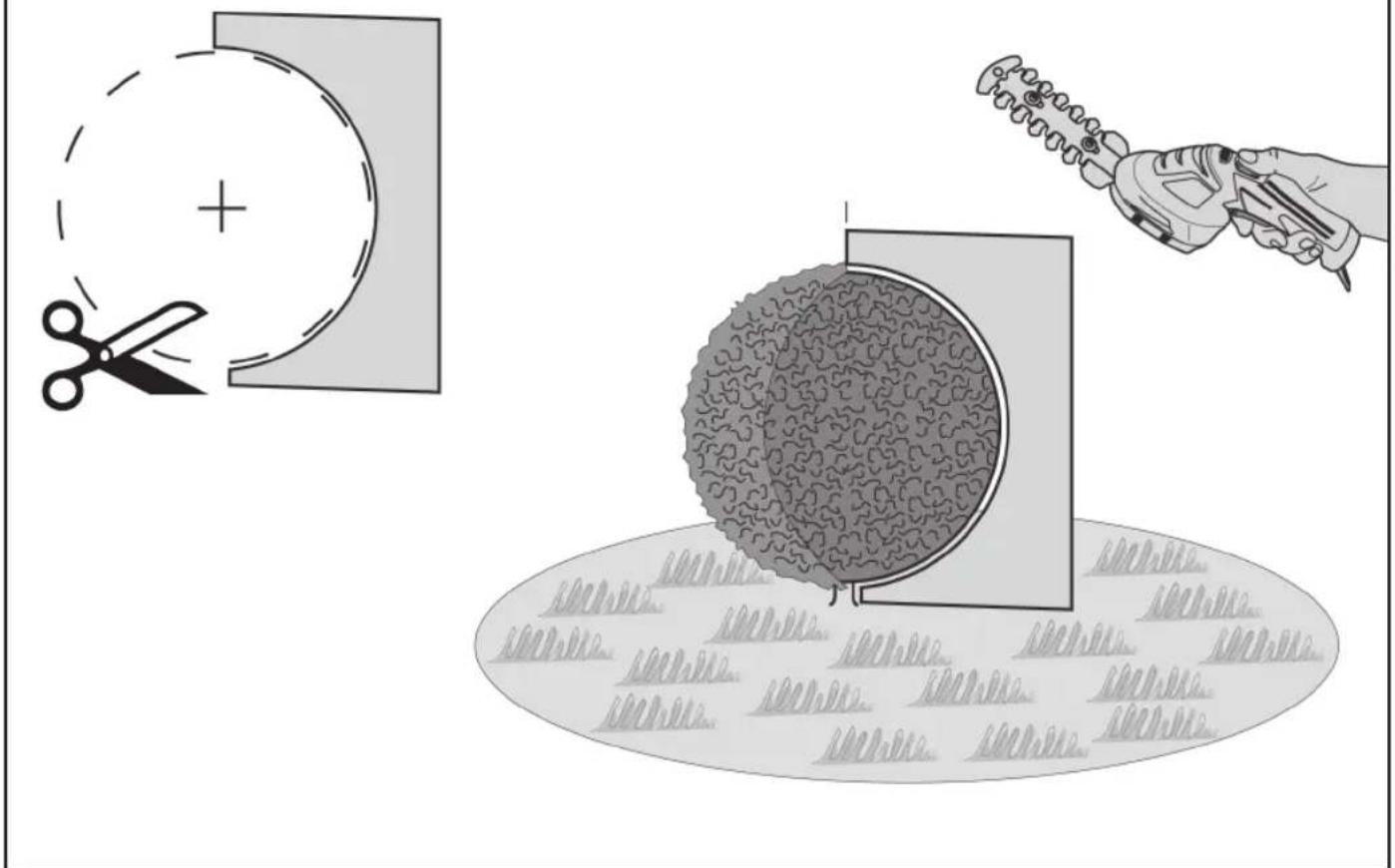

Tips for form-cutting ornamental shrubs (Fig. I J)
→ Create a template out of cardboard for another light, sizeable material with which you can easily obtain an even cut; e.g. for a sphere 1.

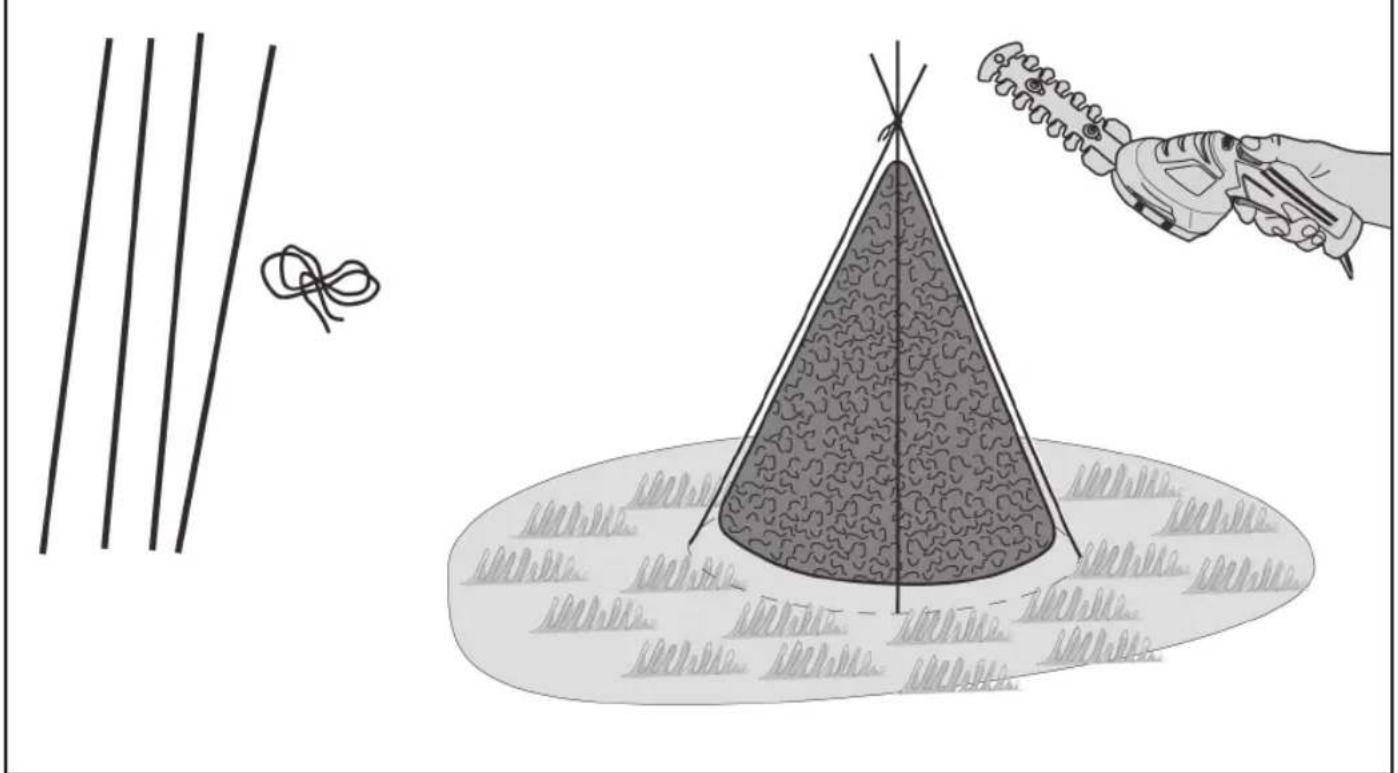

→ You can also create a template by forming a cone J, for example, by using rods and some lace J.
Servicing
WARNING!
Risk of injuries due to counter-running blades.
Do not open the device. In case of doubt always consult a specialist workshop.
➢ Remove the power pack before maintenance and cleaning work on the device.
Do not grab the blades when running.
Cleaning
→ Clean and lubricate the blades (WD40 multi-purpose oil recommended) after every cut.
→ Clean the battery-operated shears after each instance of use with a dried towel or with a brush in the vent of heavy soiling.
→ Clean and lubricate the gear at the end of the gardening season (see "Cleaning or replacing blades").
Attention!
➢ Never spray the shears down with water.
Service
Only have your tool repaired by qualified specialist personnel and with original spare parts. This ensures that the safety of the power tool is maintained.
Attention!
Maintenance work other than that described in these operating instructions may only be performed by the manufacturer or its representatives.
Cleaning or replacing blades
(Fig. D E F G H)
Note
In general the blade should not be re-sharpened but replaced.

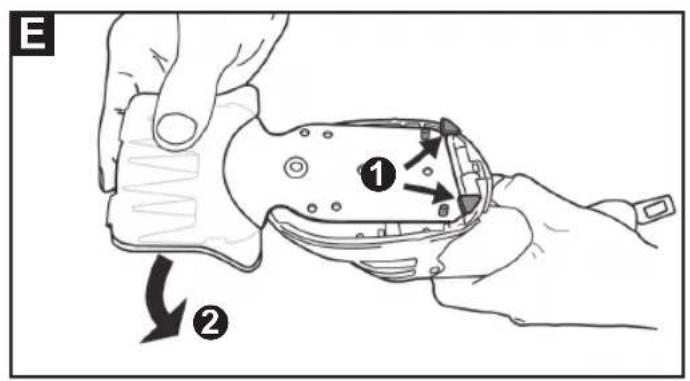

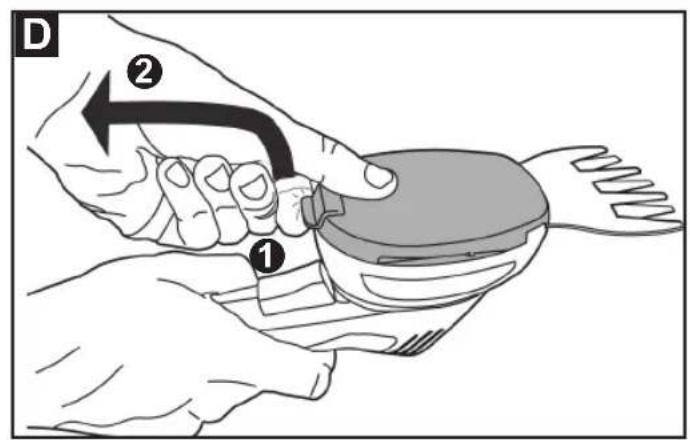

→ Lift the locking machans in ① and pull the base back ②.
→ Remove the blade from the battery-operated shears.

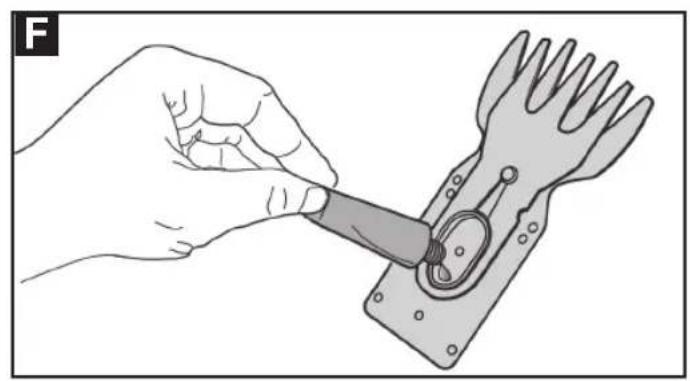

→ Grease the plastic ring of the black with Vaseline.
→ Clean the visible part of the gear and lubricate it with the grease, too.
→ Attach the blades to the gear color

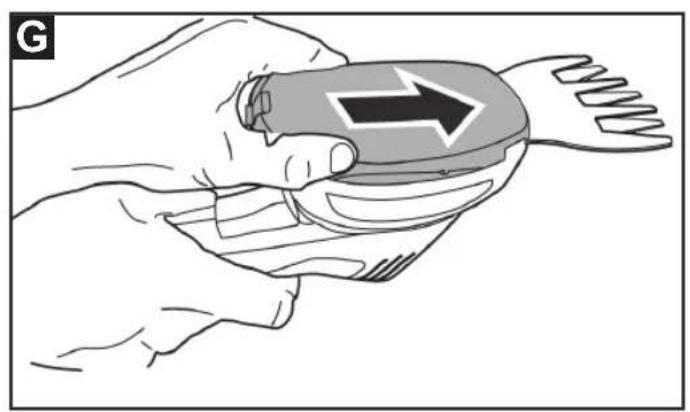

→ Push the base over the battery-operated shears until the locking mechanism latches in G H (the blade automatically locks into the gear).
Storage
→ Store batteries out of the reach of children.
→ Always attach the blade guard for transport and storage.
→ The lithium-ion power pack must be charged up prior to extended periods of non-use; e.g. prior to storage during winter.
→ Store the battery-operated shears in a dry and ice-free location.
Troubleshooting
WARNING!
Risk of injuries or material damage.
In case of doubt always consult a specialist workshop.
➢ Switch the device off and remove the power cable prior to each inspection or prior to working.
Do not open the device. In case of doubt always consult a WOLF-Garten service workshop.
Shut the battery-operated shears down prior to each inspection or prior to working on the blades
| Problem Possible cause Remedy | ||
| Blades getting hot. Blunt blade. Take your mower to a specialist workshop. | ||
| Motor does not run. | Discharge power pack.Power pack defective. | Charge power pack.Take your mower to a specialist workshop. |
| Problems charging power pack. | Power pack or charger defective. | Take your mower to a specialist workshop. |
| Uneven running, severe vibration of the device. | Blade damaged. Replace blade. | |
Spare parts and accessories
Order no. Part code
7080021 Compl. shrub blade Finesse 30B Invox no. 23000400
7079021 Compl. grass blade Finesse 30R Invox no. 23000500
7079072 Charger Finesse 30R/RR2000 Invox no. 66000101
Warranty
The warranty conditions of our local company or importer apply in all countries. Under the terms of the warranty we will repair faults on your lawnmower free of charge, insofar as material or manufacturing defects are the cause. To make a claim under warranty please contact your reseller or your nearest branch.
CE Declaration of Conformity
Further details about the device are contained on the separately enclosed CE Declaration of Conformity, which forms part of this instruction manual.
Environmentally-friendly disposal
Electrical tools, accessories and packaging must be routed into an environmentally compatible recycling chain.
Power packs:
Do not dispose of power packs/batteries in domestic waste, in a fire or in water. Power packs must be collected, recycled or disposed of in an environmentally friendly manner.
For EU countries only: Do not throw power tools away with your domestic waste! According to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation in national law, irreparable or non-serviceable power tools must be collected separately and routed into an environmentally compatible recycling chain.
Table des matières
Signification des symboles....23
