DANGER! Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 7 Freitag, 16. April 2021 2:47 14EN Safety instructions HiPro

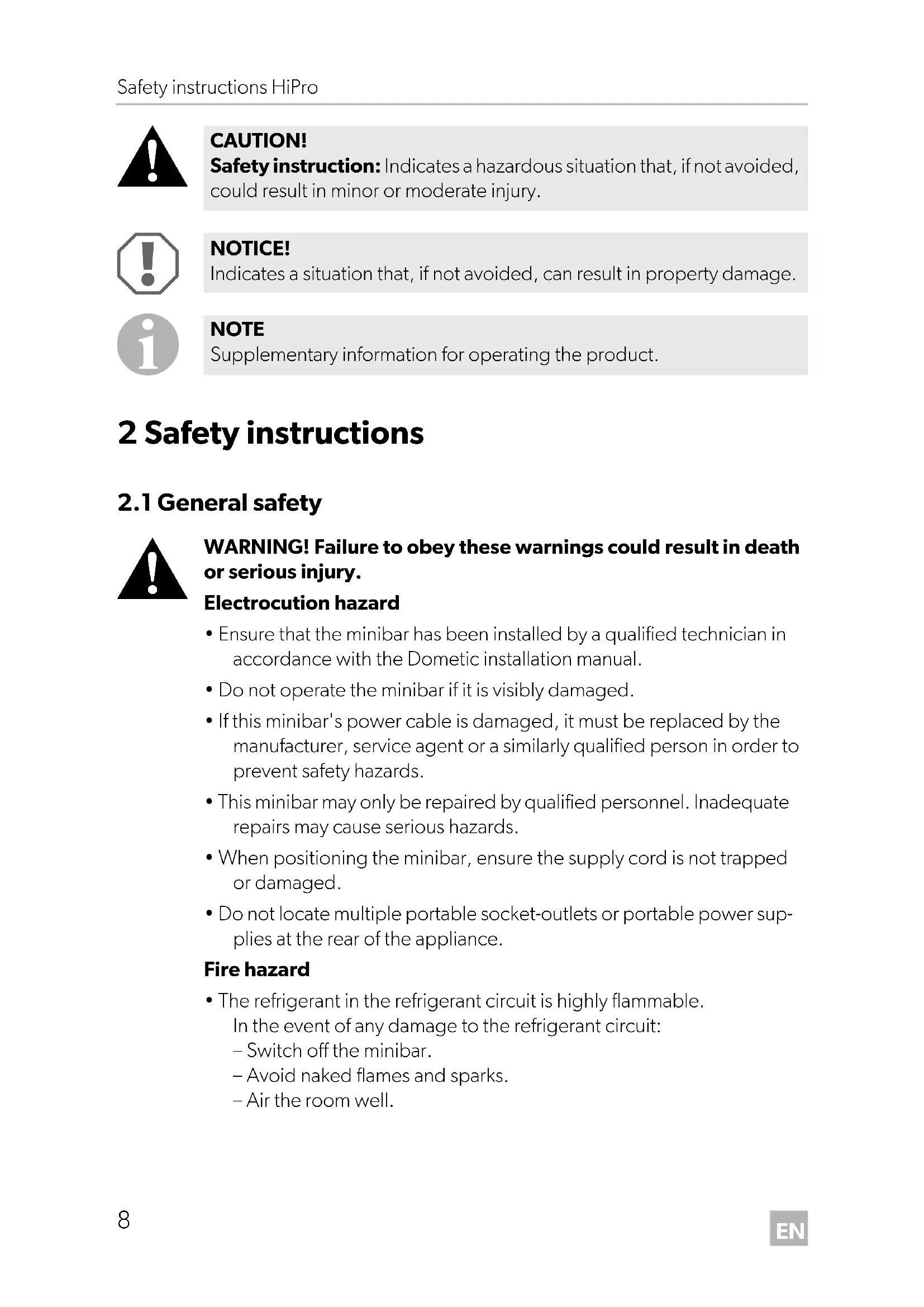

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

• Ensure that the minibar has been installed by a qualified technician in accordance with the Dometic installation manual.

• Do not operate the minibar if it is visibly damaged.

• If this minibar's power cable is damaged, it must be replaced by the manufacturer, service agent or a similarly qualified person in order to prevent safety hazards.

• This minibar may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.

• When positioning the minibar, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power sup- plies at the rear of the appliance. Fire hazard

• The refrigerant in the refrigerant circuit is highly flammable. In the event of any damage to the refrigerant circuit: – Switch off the minibar. – Avoid naked flames and sparks. – Air the room well. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 8 Freitag, 16. April 2021 2:47 14EN HiPro Safety instructions

• Do not store any explosive substances, such as spray cans with propellants, in the minibar. Health hazard

• For versions with absorption cooling: Never open the absorber unit. It is under high pressure and can cause injury if it is opened.

• This minibar can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the minibar in a safe way and understand the hazards involved.

• Children shall not play with the minibar.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload the minibar.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of crushing

• Do not put your fingers into the hinge. Health hazard

• Foodstuff may only be stored in its original packaging or in suitable containers.

• Check that the voltage specification on the type plate is the same as that of the power supply.

• The minibar is not suitable for storing substances which are caustic or contain solvents.

• The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.

• Keep the drainage outlet clean at all times.

• Do not open the refrigerant circuit under any circumstances.

DANGER! Failure to obey these warnings will result in death or serious injury. Electrocution hazard

• Do not touch exposed cables with your bare hands.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Before starting the minibar, ensure that the power supply line and the plug are dry. Health hazard

• Make sure that you only put items in the minibar which may be chilled at the selected temperature.

• Food may only be stored in its original packaging or in suitable containers.

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the minibar.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• If the minibar is left empty for long periods: – Switch off the minibar. – Defrost the minibar. – Clean and dry the minibar. – Leave the door open to prevent mould developing within the minibar.

• Do not use electrical devices inside the minibar unless they are recom- mended by the manufacturer for that purpose.

• Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

• Ensure that the ventilation vents are not covered.

• Never immerse the minibar in water.

• Protect the minibar and the cable against heat and moisture.

• Make sure that foodstuffs do not touch the walls of the cooling area. DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 10 Freitag, 16. April 2021 2:47 14EN HiPro Scope of delivery

• Minibar 4Accessories Available as accessories (not included in the scope of delivery): 5 Intended use The refrigeration appliance (also referred to as minibar) is designed for operation in enclosed buildings, such as:

• In staff kitchens in stores, offices and other work areas

• In the agricultural sector

• In hotels, motels and other accommodations

• In bed and breakfast establishments

• In catering businesses or similar wholesaler operations The minibar is not suitable for installation in caravans or mobile homes. The minibar is intended to be used either as a built-in appliance or as freestanding refrigeration appliance. Refer to the installation instructions. The minibar is designed exclusively for cooling and storing of beverages and foods in closed containers. The minibar is not suitable for storing fresh foods and medicine or freezing food- stuffs. This minibar is only suitable for the intended purpose and application in accordance with these instructions. This manual provides information that is necessary for proper installation and/or operation of the minibar. Poor installation and/or improper operating or mainte- nance will result in unsatisfactory performance and a possible failure. Description Explanation WiFi For monitoring and controlling the minibar via WiFi using an app Locks with keys For lockable versions DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 11 Freitag, 16. April 2021 2:47 14EN Technical description HiPro

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications.

6 Technical description The minibars are available with different cooling techniques:

• Absorption cooling: A30S1, A30S2, A30P1, A30P2, A30G1, A30G2, A40S1, A40S2, A40P1, A40P2, A40G1, A40G2

• Compressor cooling: C40S1, C40S2, C40P1, C40P2, C40G1, C40G2

• Thermoelectric cooling: N30S1, N30S2, N30P1, N30P2, N30G1, N30G2, N40S1, N40S2, N40P1, N40P2, N40G1, N40G2 All materials used are compatible for use with foodstuffs. The refrigerant circuit is maintenance-free. The minibar has depending on the version one or two shelves and one or two door racks. There is a door rack intended for bottles. A 1.5 l bottle can be stored in the door rack for bottles. If the second door rack is available it is intended for smaller bottles or snacks. As an option, the minibar can be equipped with an integrated WiFi function hence controllable using an app. The minibar can be featured with a lock. NOTE Condensating moisture on glass doors When the ambient humidity is above 65 % in 25 °C ambient tempera- ture, moisture will condense on the glass door. DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 12 Freitag, 16. April 2021 2:47 14EN HiPro Technical description

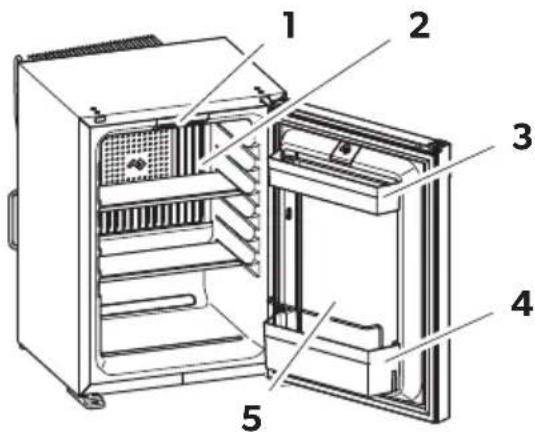

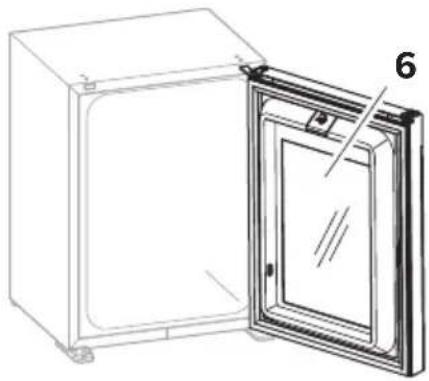

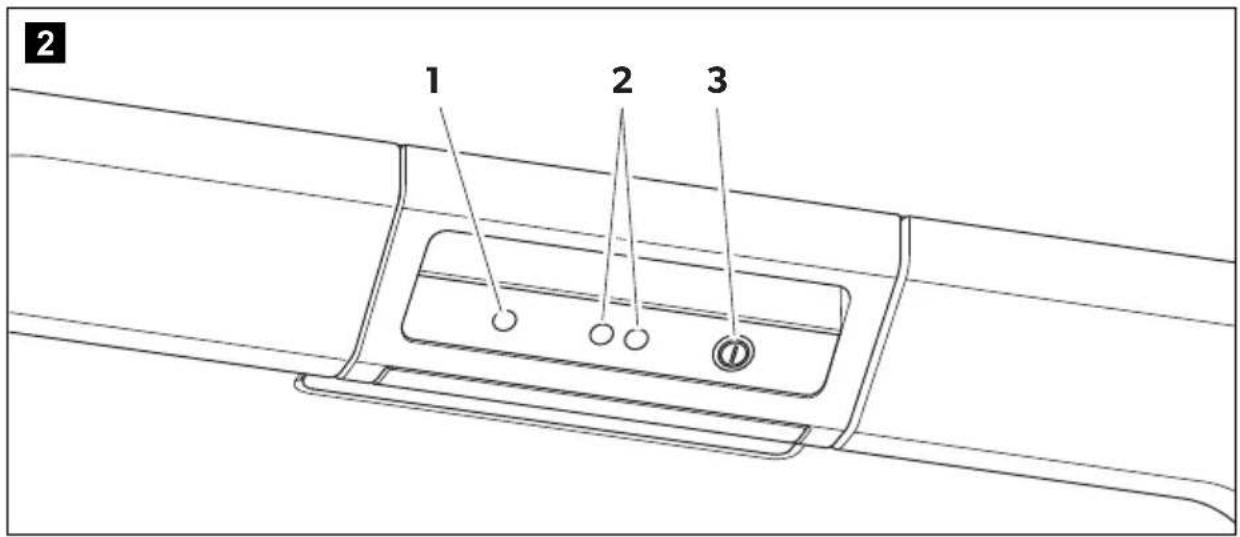

Operating elements of the minibar Operating panel No. in fig. 1, page 3 Explanation 1 Interior light and control element 21 Shelf 2 Shelves (optional for A40S1, A40S2, A40P1, A40P2, C40S1, C40S2, C40P1, C40P2, N40S1, N40S2, N40P1, N40P2) 3 Upper door rack (for A40S1, A40S2, A40P1, A40P2, C40S1, C40S2, C40P1, C40P2, N40S1, N40S2, N40P1, N40P2) 4 Lower door rack 5 Bottle holder door (optional) 6 Glass door without door racks (optional) – Bottom interior light (optional) No. in fig. 2, page 4 Explanation 1 Indicator LED LED illuminates green = minibar is cooling LED illuminates orange = minibar stops cooling (temperature reached or auto-defrost function active) LED does not illuminate = minibar is switched off or in silent mode LED flashes orange = an error occured 2 Infrared door sensor

Before first use, clean the minibar inside and outside with a damp cloth for hygienic reasons (see also chapter “Cleaning and maintenance” on page 15).

• Only open the minibar as often and for as long as necessary.

• Avoid unnecessarily low temperature settings.

• For optimal energy consumption, position the shelves and drawers according to their position on delivery.

• On a regularly basis, make sure the door seal still fits properly.

• Clean dust and dirt from the condenser at regular intervals.

7.3 Positioning the shelves

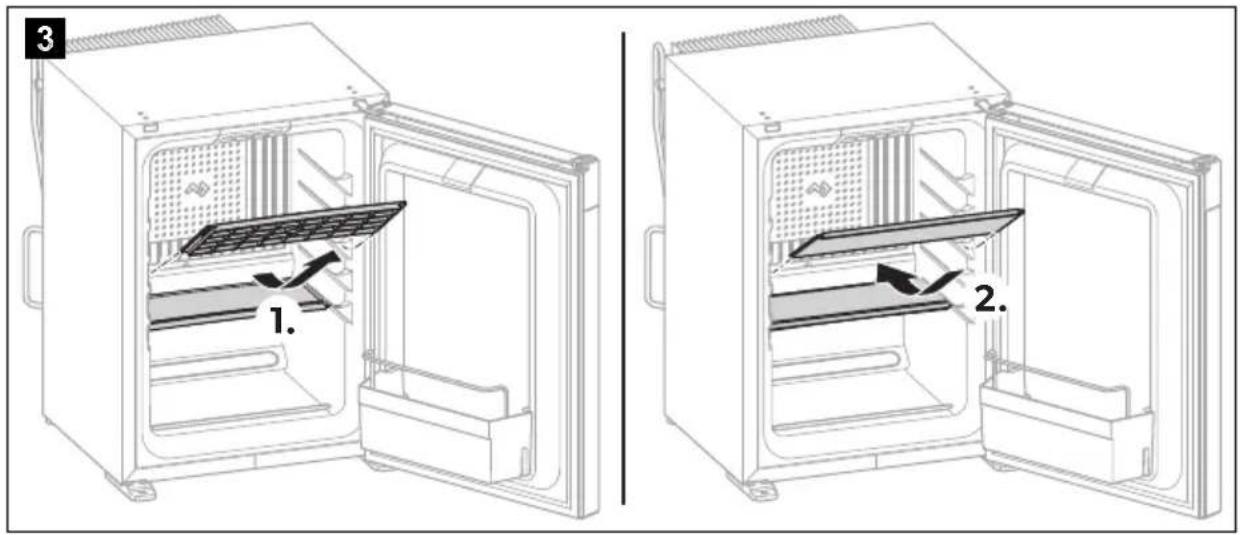

➤ Proceed as displayed in fig. 3, page 4.

7.4 Positioning the door rack

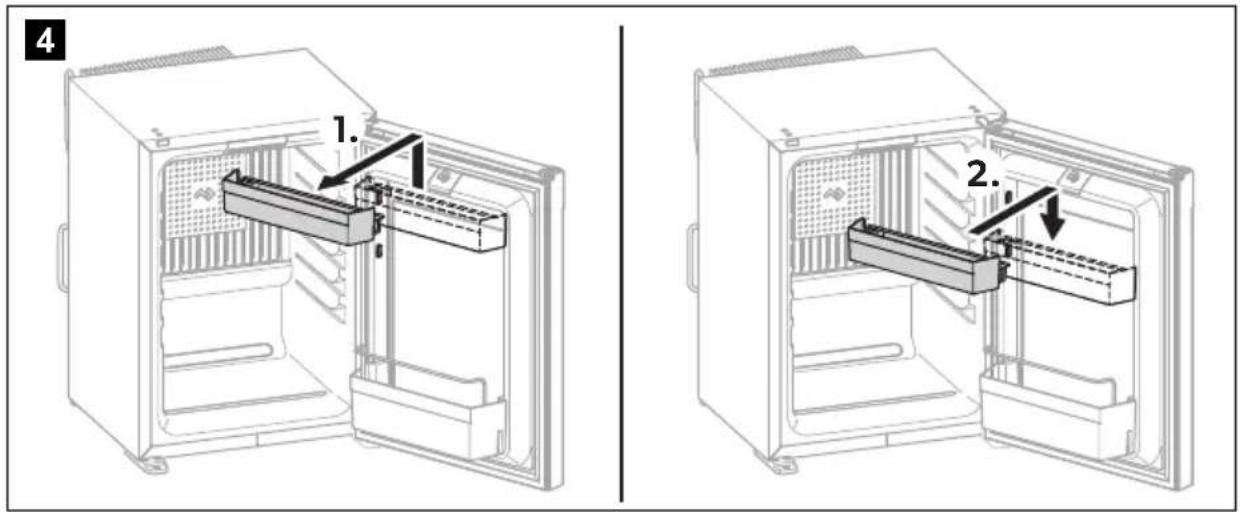

➤ Proceed as displayed in fig. 4, page 4.

7.5 Switching on the minibar

➤ Plug the power plug into the socket (fig. 5, page 5).

7.6 Setting the temperature

To avoid food waste, note the following:

• Keep temperature fluctuation as low as possible. Only open the minibar as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well. NOTE After switching on, the minibar needs several hours to reach the cooling temperature within the minibar compartment. DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 14 Freitag, 16. April 2021 2:47 14EN HiPro Cleaning and maintenance

• The minibar is equipped with an automatic temperature regulation function. Select the average of the possible temperature values.

• Adjust the temperature to the quantity and type of the foodstuff. The minibar is equipped with an automatic temperature regulation function. You can adjust the temperature to 4 °C, 7 °C or 12 °C. With each press of the button the cooling temperature switches between the possible values. The cooling tempera- ture is preset to 7 °C. ➤ Proceed as displayed in fig. 6, page 5.

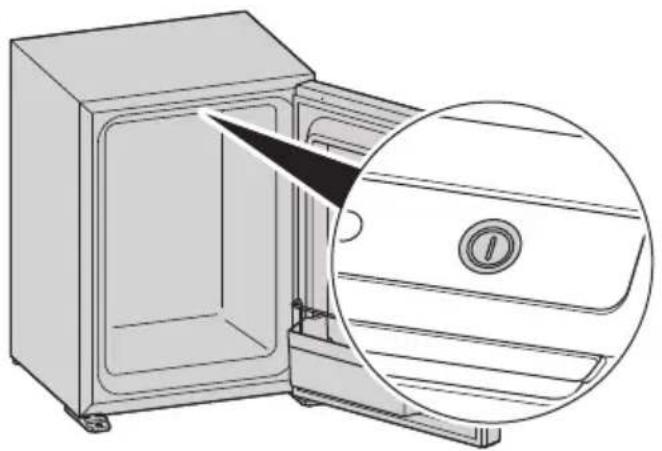

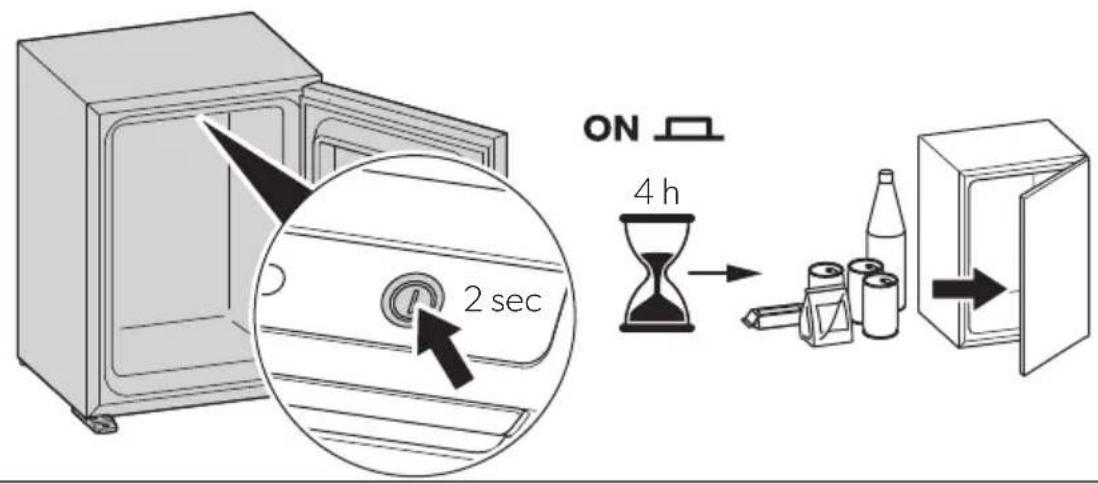

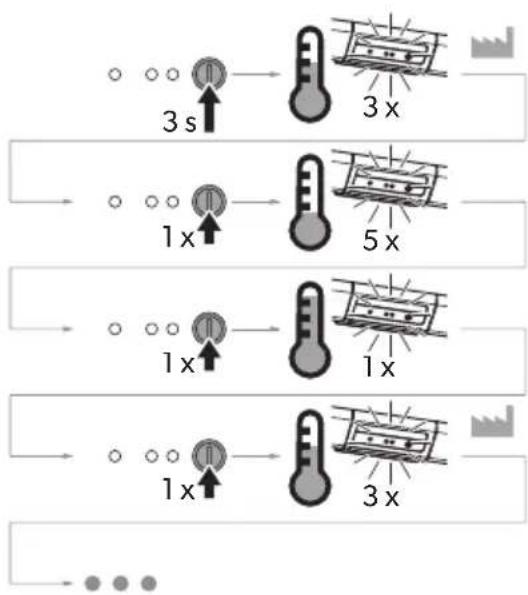

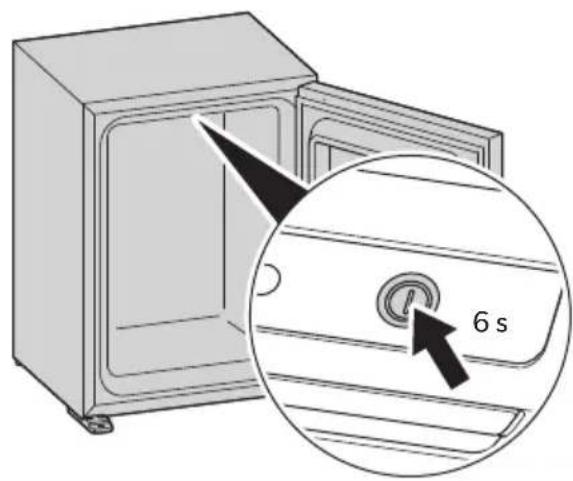

➤ Proceed as displayed in fig. 7, page 5.

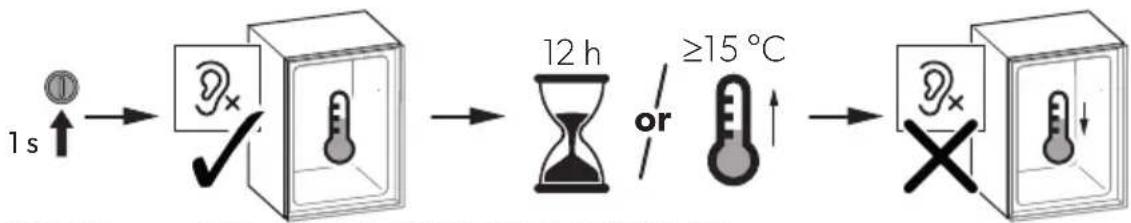

7.8 Setting the silent mode (only for C40)

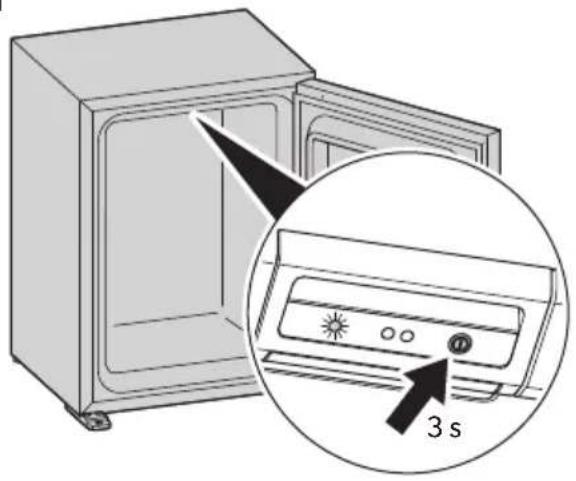

The minibar is equipped with a silent mode. ➤ Proceed as displayed in fig. 8, page 6.

The minibar is equipped with an auto-defrost function.

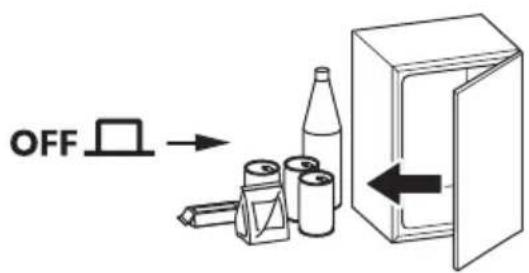

If you do not intend to use the minibar for a long time, proceed as follows:

1. Pull the power plug out of the socket.

2. Clean the minibar (see chapter “Cleaning and maintenance” on page 15).

8 Cleaning and maintenance

WARNING! Electrocution hazard Always disconnect the minibar from the mains before you clean and service it. DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 15 Freitag, 16. April 2021 2:47 14EN Cleaning and maintenance HiPro

➤ Clean the minibar regularly and as soon as it becomes dirty with a damp cloth. ➤ Make sure that no water drips into the seals. This can damage the electronics. ➤ Wipe the minibar dry with a cloth after cleaning. ➤ Check the condensate drain regularly. Clean the condensate drain when necessary. If it is blocked, the condensate collects on the bottom of the minibar. ➤ For absorber versions: Use a brush or soft cloth to remove dust from the absorber unit on a yearly basis.

• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the minibar.

• Never use hard or sharp tools to remove ice or to free objects frozen onto the minibar.

• Do not use any mechanical tools or any other tools to speed up the defrosting process. NOTICE! Damage hazard The lamp can only be replaced by the manufacturer, a service agent or similarly qualified person to avoid hazard. DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 16 Freitag, 16. April 2021 2:47 14EN HiPro Troubleshooting

9 Troubleshooting Fault Possible cause Solution Not cooling Power plug not plugged in Insert power plug into socket No voltage at socket Check circuit breaker Electronics or sensors defective Contact service agent. Service agent: Install new electronics or sensor For versions with absorber cooling: Heating cartridge defective Contact service agent. Service agent: Install new heating cartridge Auto-defrost active (see chapter “Defrosting” on page 15) No action required Minibar recently switched on Check cooling again after 5 to 6 hours Cooling unit defective Contact service agent. Service agent: Replace minibar Minibar is in silent mode. No action required Not cooling, indicator LED continuously flash- ing Cooling unit blocked Contact service agent. Cooling unit not water-tight Heating element defective Error during self-test DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 17 Freitag, 16. April 2021 2:47 14EN Troubleshooting HiPro

Poor cooling perfor- mance Cooling unit not sufficiently ventilated Provide sufficient ventila- tion, see Installation Manual Minibar exposed to direct sunlight Take minibar out of direct sunlight Door of minibar not closed with a tight seal Check distances, see Installation Manual Contact service agent. Service agent: Replace door seal Minibar recently filled Check cooling again after 5 to 6 hours For versions with absorber cool- ing: The input voltage is too low or high. Check input voltage Frost formation in the minibar compartment Door of minibar not closed with a tight seal Check distances, see Installation Manual Contact service agent. Service agent: Replace door seal Interior lighting not working Power plug not plugged in Insert power plug into socket Interior lighting is defective Contact service agent. Service agent: Change interior lighting Surface of infrared door sensor is cov- ered by condensate water. Clean the surface of the infrared door sensor. Fault Possible cause Solution DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 18 Freitag, 16. April 2021 2:47 14EN HiPro Warranty

10 Warranty The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault 11 Disposal ➤ Place the packaging material in the appropriate recycling waste bins, wherever possible.

If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. DometicHiPro30-40_OPM_4445103227_EMEA25_xxxx-xx-xx.book Seite 19 Freitag, 16. April 2021 2:47 14EN Technical data HiPro

12 Technical data For the current EU declaration of conformity for your device please refer to the respective product page on dometic.com or contact the manufacturer directly (see dometic.com/dealer). Further product information can be accessed via QR code on the energy label in the figures or via eprel.ec.europa.eu. HiPro A30S1, A30S2, A30P1, A30P2, A30G1, A30G2 HiPro A40S1, A40S2, A40P1, A40P2, A40G1, A40G2 Input voltage: 220 – 240 Vw 50/60 Hz Total volume: 26 l 33 l Rated input power: 60 – 70 W Climate class and intended ambient temperature use: N: +10 °C to +32 °C T: +16 °C to +43 °C Noise emission: 0 dB(A) Refrigerant: R717 Dimensions (W x H x D): 384 x 520 x 446 mm 405 x 550 x 466 mm Weight: With solid door: With panel door: With glass door:

Minibars with R134a as refrigerant contain fluorinated greenhouse gases. The cooling unit is hermetically sealed. HiPro C40S1, C40S2, C40P1, C40P2, C40G1, C40G2 Input voltage: 220 – 240 Vw 50/60 Hz Total volume: 33 l Rated input power: 45 W Climate class and intended ambient temperature use: N: +10 °C to +32 °C T: +16 °C to +43 °C

equivalent: 0.063 t (R134a) Global warming potential (GWP): 1430 (R134a) Noise emission: 33 dB(A) Refrigerant: R600a R134a (cruise line only) Dimensions (W x H x D): 405 x 550 x 481 mm Weight: With solid door: With panel door: With glass door:

Minibars with R134a as refrigerant contain fluorinated greenhouse gases. The cooling unit is hermetically sealed. HiPro N30S1, N30S2, N30P1,N30P2, N30G1, N30G2 HiPro N40S1, N40S2, N40P1, N40P2, N40G1, N40G2 Input voltage: 100 – 240 Vw 50/60 Hz Total volume: 26 l 33 l Rated input power: 55 W Climate class and intended ambient temperature use: N: +10 °C to +32 °C T: +16 °C to +43 °C

equivalent: 0.066 t (R134a) Global warming potential (GWP): 1430 (R134a) Noise emission: 0 dB(A) Refrigerant: R600a R134a (cruise line only) Dimensions (W x H x D): 384 x 520 x 415 mm 405 x 550 x 435 mm Weight: With solid door: With panel door: With glass door:
