1960 DA - Laser level SKIL - Free user manual and instructions

Brand	Skil
Model	1960 DA
Product type	360° cross-line laser level
Usage	Indoor, non-professional
Working distance	20 m
Leveling accuracy	±0.5 mm/m
Self-leveling range	±4°
Leveling time	≤5 seconds
Laser class	2 (635 nm)
Power supply	Li-polymer battery 3.7 V, 1200 mAh
Battery life	10 hours
Tripod mount	1/4"
Dimensions (L x W x H)	96 x 73 x 107 mm
Weight	0.44 kg
Operating temperature	-5°C to +40°C
Storage temperature	-20°C to +70°C
Max relative humidity	90%
Operating modes	Cross lines, horizontal, vertical
Leveling	Automatic (≤5 s) and manual
Battery level indicator	Yes (GREEN >40%, YELLOW <40%, RED <30 min)
Safety	Class 2 laser, do not stare into beam
Maintenance	Soft damp cloth, no solvents
Repairability	Skil authorized service center only
Included accessories	Charging cable (adapter not included)
Optional accessories	Viewing glasses, tripod

Frequently Asked Questions - 1960 DA SKIL

How to charge the battery of the Skil 1960 DA laser level?

Charge the battery via the supplied cable by connecting it to the charger interface A and to a USB charger (5 V, ≥0.5 A, not included). Indicator B flashes red (charging <30 min), yellow (>30 min), or green (>90%). It stays solid green when fully charged.

What does the battery level indicator mean during use?

During use, indicator B is green if remaining capacity >40%, yellow if <40%, and red if less than 30 minutes before automatic shutdown.

How to turn the device on and off?

To turn on without self-leveling, press button C. With self-leveling, slide switch F to position ⑥a. To turn off, press C (manual mode) or slide F to position ⑥b (lock).

What operating modes are available?

Press C multiple times to select: cross-line mode (horizontal + vertical), horizontal mode (horizontal line), or vertical mode (vertical line). These modes are available with or without self-leveling.

How to use self-leveling?

Place the device on a stable surface or tripod. Slide F to position ⑥a. If the slope is >4°, the lasers flash and indicator E turns red. Reposition horizontally; once within ±4°, the lasers stay on and E turns off.

What to do if self-leveling does not work?

If the lasers flash and indicator E is red, the surface exceeds the self-leveling range (±4°). Place the device on a more horizontal surface. In case of shock, the device relevels automatically after stabilization.

Can I use the device without self-leveling?

Yes. Slide F to position ⑥b and press C to activate the laser. Indicator E remains red. You can hold the device or place it on an inclined surface.

How to clean the laser level?

Use a soft damp cloth. Never immerse in water or other liquids. Do not use detergents or solvents. Regularly clean the laser output area to remove dust.

What to do in case of defect or malfunction?

Only have repairs carried out by a Skil authorized service center. Return the tool unopened with your proof of purchase. Damage due to overloading or misuse is not covered by warranty.

Are accessories like the tripod or glasses included?

No, the tripod K and laser viewing glasses J are not included as standard. They are available as options. The charging cable H is included, but the power adapter must be purchased separately.

USER MANUAL 1960 DA SKIL

Illustration of a SKIL industrial machine with no visible text or symbols on the device itself

GB ORIGINAL INSTRUCTIONS 5
F NOTICE ORIGINALE 8
D ORIGINALBETRIEBSANLEITUNG 12
NL ORIGINELE GEBRUIKSAANWIJZING 16
(S) BRUKSANVISNING | ORIGINAL 19
DK ORIGINAL BRUGSANVISNING 22
N ORIGINAL BRUKSANVISNING 26
FIN ALKUPERÄISET OHJEET 29
E MANUAL ORIGINAL 32
P MANUAL ORIGINAL 36
I ISTRUZIONI ORIGINALI 40
H EREDETI HASZNÁLATI UTASÍTÁS 44
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 47
TR ORİJINAL İŞLETME TALİMATI 51
PL INSTRUKCJA ORYGINALNA 54
ПОДЛИННИК РУКОВОДСТВА ПО 58
ЭКСПЛУАТАЦИИ

Icon of a person reading a book inside a circle, no text or symbols present

③

1960 P max <1mW , λ=635nm IEC/EN 60825-1: 2014 P max <5mW , λ=520nm IEC/EN 60825-1: 2014

USB Micro-B A * NOT STANDARD INCLUDED

⑦

1 360°

⑧

2 360°

⑨

Interior view of a room with a camera and a beam of light, no visible text or symbols

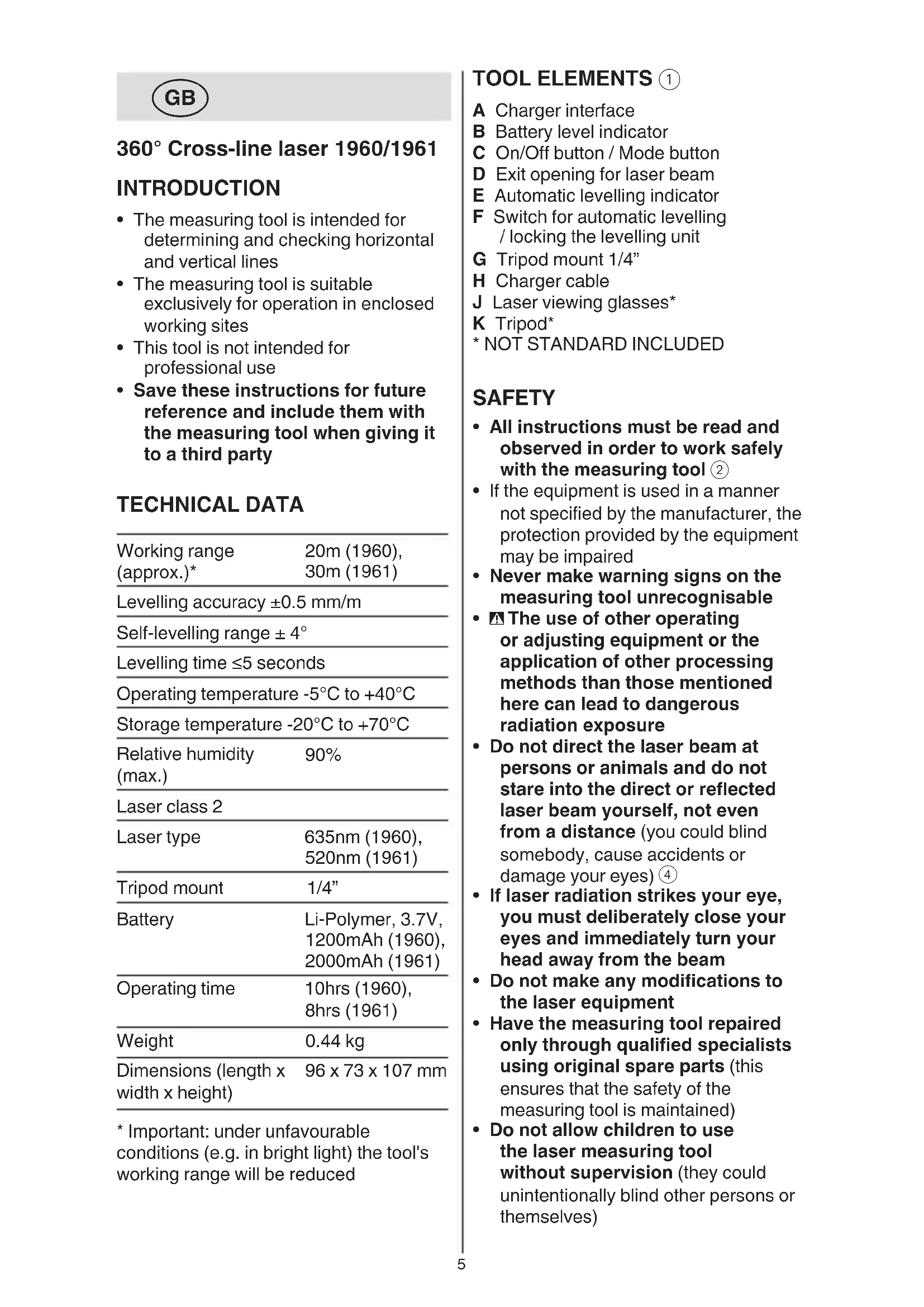

360° Cross-line laser 1960/1961

INTRODUCTION

• The measuring tool is intended for determining and checking horizontal and vertical lines
• The measuring tool is suitable exclusively for operation in enclosed working sites
  • This tool is not intended for professional use
• Save these instructions for future reference and include them with the measuring tool when giving it to a third party

TECHNICAL DATA

Working range (approx.)*	20m (1960), 30m (1961)
Levelling accuracy ±0.5 mm/m
Self-levelling range ± 4°
Levelling time ≤5 seconds
Operating temperature -5°C to +40°C
Storage temperature -20°C to +70°C
Relative humidity (max.)	90%
Laser class 2
Laser type	635nm (1960), 520nm (1961)
Tripod mount	1/4"
Battery	Li-Polymer, 3.7V, 1200mAh (1960), 2000mAh (1961)
Operating time	10hrs (1960), 8hrs (1961)
Weight	0.44 kg
Dimensions (length x width x height)	96 x 73 x 107 mm

* Important: under unfavourable conditions (e.g. in bright light) the tool's working range will be reduced

TOOL ELEMENTS ①

A Charger interface
B Battery level indicator
C On/Off button / Mode button
D Exit opening for laser beam
E Automatic levelling indicator
F Switch for automatic levelling / locking the levelling unit
G Tripod mount 1/4"
H Charger cable
J Laser viewing glasses*
K Tripod*
* NOT STANDARD INCLUDED

SAFETY

• All instructions must be read and observed in order to work safely with the measuring tool ②
• If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired
• Never make warning signs on the measuring tool unrecognisable
• The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here can lead to dangerous radiation exposure
• Do not direct the laser beam at persons or animals and do not stare into the direct or reflected laser beam yourself, not even from a distance (you could blind somebody, cause accidents or damage your eyes) ④
• If laser radiation strikes your eye, you must deliberately close your eyes and immediately turn your head away from the beam
• Do not make any modifications to the laser equipment
• Have the measuring tool repaired only through qualified specialists using original spare parts (this ensures that the safety of the measuring tool is maintained)
• Do not allow children to use the laser measuring tool without supervision (they could unintentionally blind other persons or themselves)

- Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts (sparks can be created in the measuring tool which may ignite the dust or fumes)

EXPLANATION OF SYMBOLS ON TOOL

② Read the instruction manual before use
③ Do not dispose of electric tools and batteries together with household waste material
④ Laser radiation / Do not stare into beam / Class 2 laser product

USE

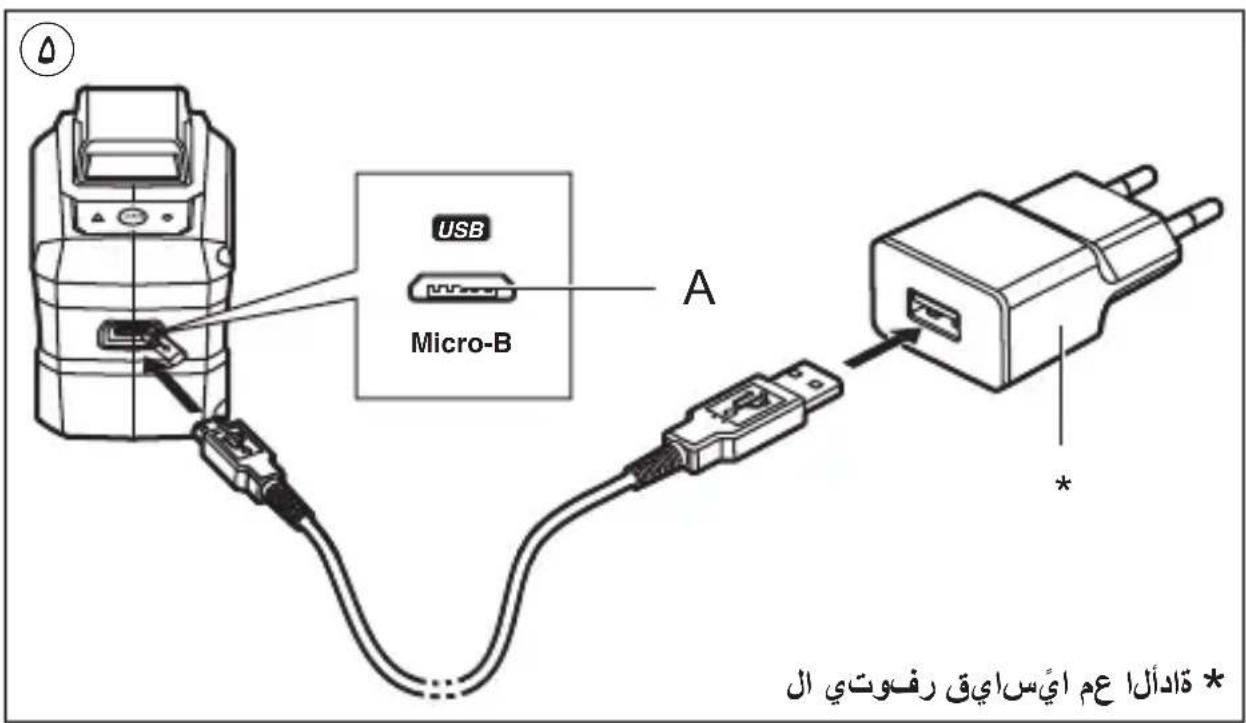

- Charging battery ⑤

! the battery supplied is partially charged (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time) ! read and follow the instruction delivered with the charger or power supply

-only use a charger or power supply which has an output voltage of 5V and output current of ≥ 0.5A -connect charger cable H with both charger or power supply (not standard included) and charger interface A
-indicator B is blinking RED indicating that the battery is being charged and the current battery capacity enables the tool to be operated for 30 minutes or less
-indicator B is blinking YELLOW indicating that the battery is being charged and the current battery capacity enables the tool to be operated for more than 30 minutes
-indicator B is blinking GREEN indicating that the battery is charged for more than 90% of full capacity
-indicator B turns GREEN continuously when the battery is fully charged

- Battery level indicator B ①

-during use the battery level indicator B indicates the remaining battery capacity with different colors

-GREEN indicates more than 40% of full capacity
-YELLOW indicates less than 40% of full capacity
-RED indicates only 30 minutes left before turning off automatically

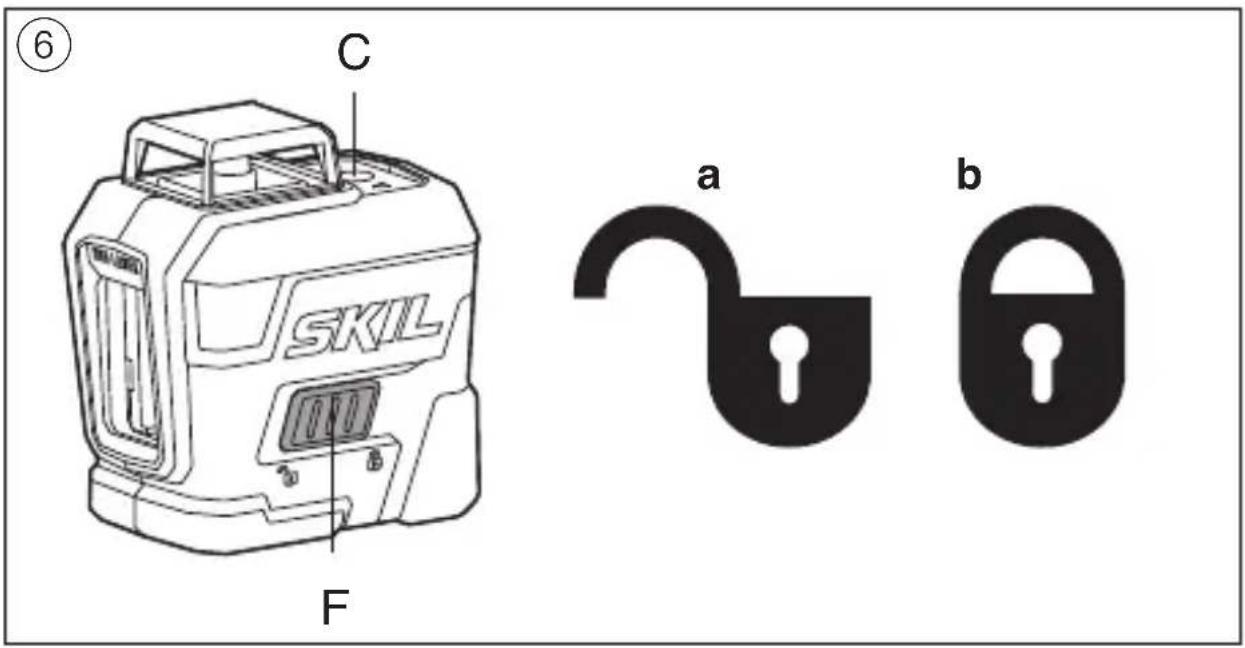

- On/off ⑥

-to switch on the measuring tool, press either laser button C when using it WITHOUT automatic leveling, or slide switch F into position ⑥ a to unlock the levelling unit when using it WITH automatic levelling

! immediately after switching on, the measuring tool sends a laser beam out of the exit opening D ! do not point the laser beam at persons or animals and do not stare into the laser beam yourself, not even from a large distance

-to switch off the measuring tool, press either laser button C when using it WITHOUT automatic leveling, or slide switch F into position ⑥b to lock the levelling unit when using it WITH automatic levelling

-do not leave the switched on measuring tool unattended and switch the measuring tool off after use (other persons could be blinded by the laser beam)

-when not using the measuring tool, switch it off in order to extend the battery life

- Operating modes

-all modes can be selected WITH automatic levelling (position ⑥a) and WITHOUT automatic levelling (position ⑥b)

-press button C repeatedly until the desired mode is set

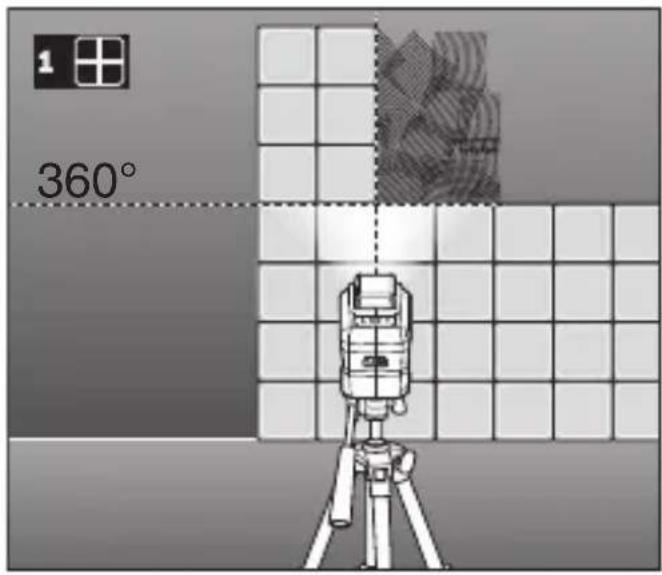

1) Cross-line mode: the measuring tool generates a horizontal and a vertical laser line⑦

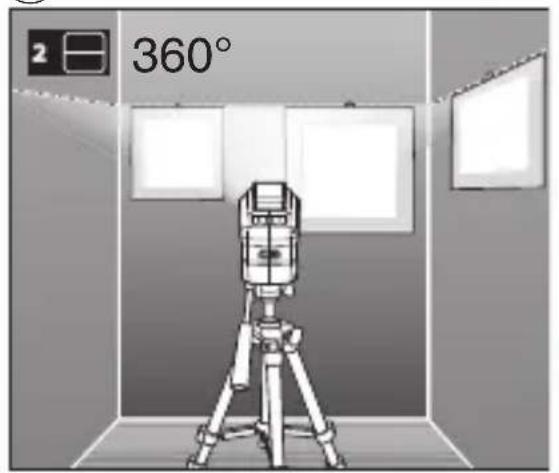

2) Horizontal mode: the measuring tool generates a horizontal laser line ⑧

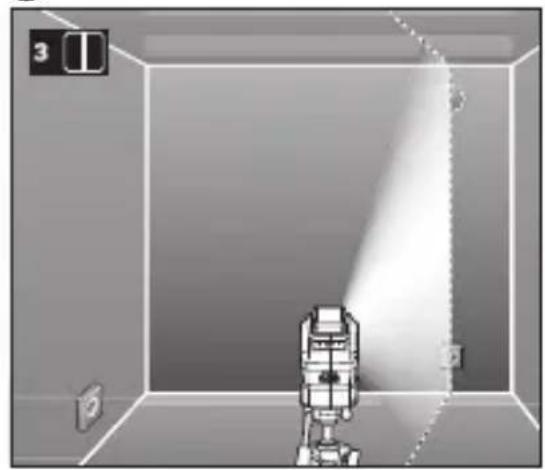

3) Vertical mode: the measuring tool generates a vertical laser line ⑨

- Working with automatic levelling -position the measuring tool on a level, firm support or attach it to tripod K

-slide switch F to position ⑥a

-if the automatic levelling function is not possible, e.g. because the surface on which the measuring tool stands deviates by more than 4° from the horizontal plane, the laser lines flash and indicator E turns red -if this is the case, set up the measuring tool in a level position and wait for the self-levelling to take place

-as soon as the measuring tool is once again within the self-levelling range of ±4^ , the laser lines light up continuously and indicator E turns off

-when not within the self-levelling range of ±4^ , working with automatic levelling is not possible, because it cannot be assured that the laser lines run at a right angle to each other

-in case of ground vibrations or position changes during operation, the measuring tool is automatically levelled in again

-to avoid errors, check the position of the horizontal and vertical laser line with regard to the reference points upon re-levelling

• Working without automatic levelling

-slide switch F to position ⑥b

-push laser button C to turn on the laser beam

-indicator E turns red continuously in this mode

-when automatic levelling is switched off, you can hold the measuring tool freely in your hand or place it on an inclined surface

APPLICATION ADVICE

• Always use the centre of the laser line for marking (the width of the laser line changes with the distance)

- Laser viewing glasses ① (not standard included)

-laser viewing glasses J① filter out the ambient light

-this makes the light of the laser appear brighter for the eyes

-do not use the laser viewing glasses as safety goggles (the laser viewing glasses are used

for improved visualisation of the laser beam, but they do not protect against laser radiation)

-do not use the laser viewing glasses as sun glasses or in traffic (the laser viewing glasses do not afford complete UV protection and reduce colour perception)

- Working with the tripod (not standard included)

-tripod K① offers a stable, height-adjustable measuring support

-place the measuring tool via tripod mount G onto the 1/4" male thread of the tripod and screw the locking screw of the tripod tight

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Protect the measuring tool against moisture and direct sun light
- Do not subject the measuring tool to extreme temperatures or variations in temperature (the accuracy of the measuring tool can be impaired)

-as an example, do not leave it in vehicles for long time

-allow the measuring tool to adjust to the ambient temperature before putting it into operation

- Avoid heavy impact to or falling down of the measuring tool

-damage to the measuring tool can impair its accuracy
-after heavy impact or shock, compare the laser lines with a known horizontal or vertical reference line

- Push switch F ① into locking position ⑥ when transporting the measuring tool (this locks the levelling unit, which can be damaged in case of intense movement)

• Keep the measuring tool clean at all times
• Do not immerse the measuring tool in water or other fluids
• Wipe off debris using a moist and soft cloth

• Do not use any cleaning agents or solvents

• Regularly clean the surfaces at the exit opening of the laser in particular, and pay attention to any fluff of fibres

• If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

-send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

- Be aware that damage due to overload or improper handling of the tool will be excluded from the warranty (for the SKIL warranty conditions see www.skil.com or ask your dealer)

ENVIRONMENT

- Do not dispose of electric tools, batteries, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

-symbol ③ will remind you of this when the need for disposing occurs
