USER MANUAL BCMP380X SCHEPPACH
scheppach
Made in P.R.C.
BC-MP380-X
GB Battery-powered lawnmower | Translation of the original operating instructions.... 21
2
4a
4c
4b
4
4b
4
4b
4
2
2a
2b
2c
2f
4
2
2c
9
10
5a
5b
5c
5
6
7
KLICK
18
17
7
18
17
8
5
13
13
14
18
17
1
11
2
1
1
15 16
Inhaltsverzeichnis
Günzburger Straße 69
D-89335 Ichenhausen
Verehrter Kunde
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Head of Project Management

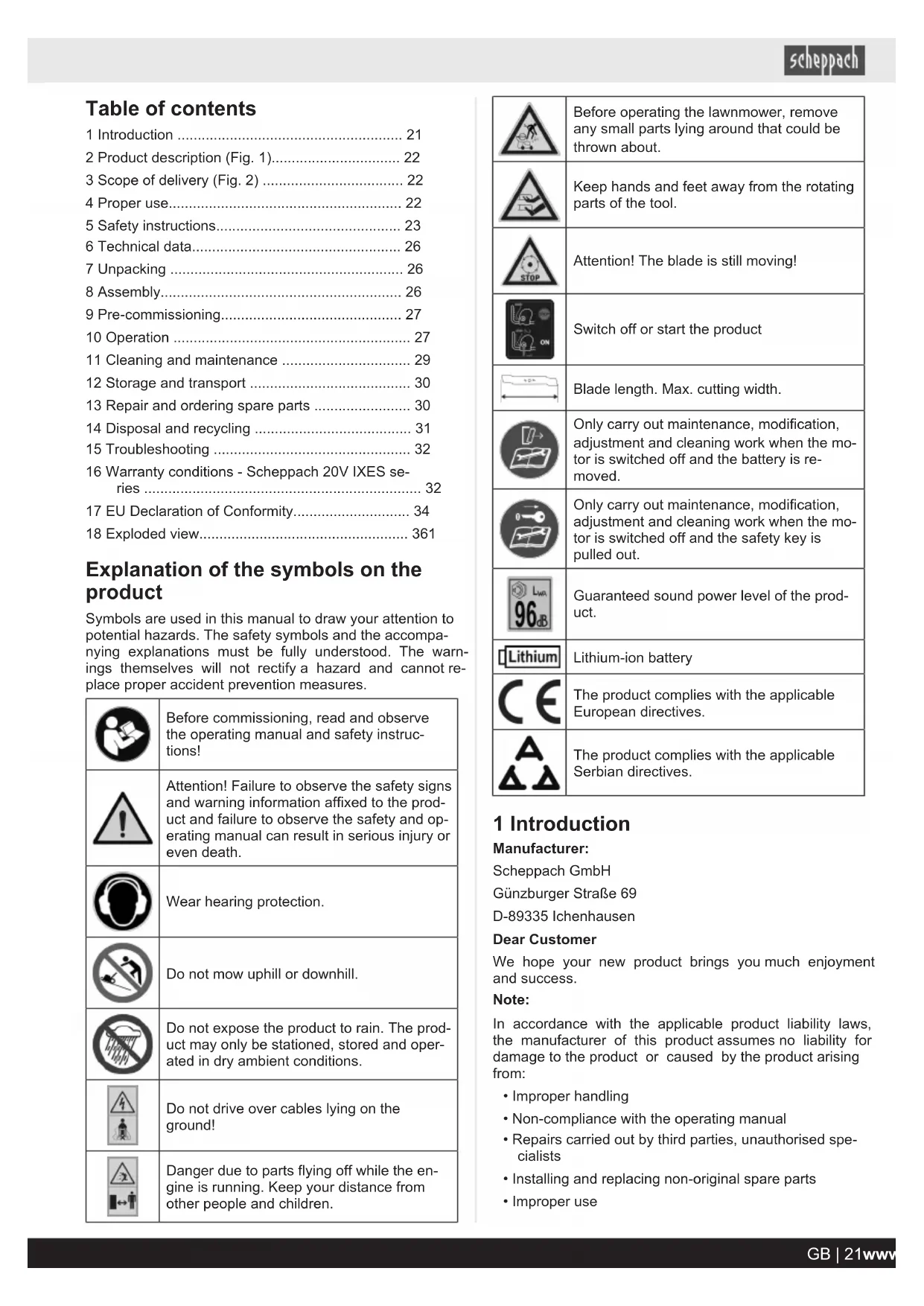

Table of contents
1 Introduction 21
2 Product description (Fig. 1).... 22
3 Scope of delivery (Fig. 2) 22
4 Proper use.... 22
5 Safety instructions.... 23
6 Technical data.... 26
7 Unpacking 26
8 Assembly.... 26
9 Pre-commissioning.... 27
10 Operation 27
11 Cleaning and maintenance 29
12 Storage and transport 30
13 Repair and ordering spare parts 30
14 Disposal and recycling 31
15 Troubleshooting 32
16 Warranty conditions - Scheppach 20V IXES series .... 32
17 EU Declaration of Conformity.... 34
18 Exploded view.... 361
Explanation of the symbols on the product
Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.
| Before commissioning, read and observe the operating manual and safety instructions! |
| Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death. |
| Wear hearing protection. |
| Do not mow uphill or downhill. |
| Do not expose the product to rain. The product may only be stationed, stored and operated in dry ambient conditions. |
| Do not drive over cables lying on the ground! |
| Danger due to parts flying off while the engine is running. Keep your distance from other people and children. |
 | Before operating the lawnmower, remove any small parts lying around that could be thrown about. |
 | Keep hands and feet away from the rotating parts of the tool. |
 | Attention! The blade is still moving! |
 | Switch off or start the product |
 | Blade length. Max. cutting width. |
 | Only carry out maintenance, modification, adjustment and cleaning work when the motor is switched off and the battery is removed. |
 | Only carry out maintenance, modification, adjustment and cleaning work when the motor is switched off and the safety key is pulled out. |
 | Guaranteed sound power level of the product. |
 | Lithium-ion battery |
 | The product complies with the applicable European directives. |
 | The product complies with the applicable Serbian directives. |
1 Introduction
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer
We hope your new product brings you much enjoyment and success.
Note:
In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:
- Improper handling
• Non-compliance with the operating manual
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts
- Improper use
Note:
The operating manual is part of this product.
It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.
Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.
2 Product description (Fig. 1)
- Safety bar
- Upper push bar
2a. Flat head screw
2b. Washer (upper push bar)
2c. Quick-clamp lever (upper push bar)
2d Cylinder nuts (upper push bar)
- Level indicator
- Lower push bar
4a. Washer (lower push bar)
4b. Quick-clamp lever (lower push bar)
4c. Cylinder nuts (lower push bar)
- Grass collection basket
5a. Carrying handle
5b. Rubber lip
5c. Frame
- Lever for cutting height adjustment
- Cover
- Discharge flap
- Cable holder
- Cable
- On/off switch
12.-
- Mulching insert
- Safety key
- Blade screw
- Blade
- Battery*
- Release button (battery)
- Battery mount
3 Scope of delivery (Fig. 2)
Item QuantityDesignation
2a. 2 x M6x55 mm flat head screw
2b. 2 x Washer (upper push bar)
2c. 2 x Quick-clamp lever (upper push bar)
2d 2 x M6 cylinder nuts (upper push bar)
4. 1 x Lower push bar
4a. 2 x Washer (lower push bar)
4b. 2 x Quick-clamp lever (lower push bar)
4c. 2 x M6 cylinder nuts (lower push bar)
5. 1 x Grass collection basket
5a. 1 x Carrying handle
9. 2 x Cable holder
13. 1 x Mulching insert
14. 1 x Safety key
17. 2 x Battery*
1 x Battery charger*
1 x Battery-powered lawnmower
1 x Operating manual
* = may not be included in the scope of delivery!
4 Proper use
The product is only intended for mowing lawns and grass in domestic situations.
This battery-powered lawnmower is suitable for a lawn area of approx. 450 - 500 m².
The actual lawn area is influenced by factors such as the battery charge, battery size (Ah), grass moisture, cutting height, moss growth or grass density.
The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.
An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.
Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.
The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.
The product may only be operated with original parts and original accessories from the manufacturer.
The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.
Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.
Explanation of the signal words in the operating manual
DANGER
Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
ATTENTION
Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.
5 Safety instructions
General power tool safety warnings
WARNING
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) The connection plug of the electric tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not operate the product in rain or wet conditions. This may increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting tools or spanners/keys before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust extraction can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and attachments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use electric tools, insertion tools, etc. according to these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
a) Only charge the batteries with battery chargers recommended by the manufacturer. A battery charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.
b) Only use the batteries in power tools that are designed for them. The use of other batteries can lead to injuries and a risk of fire.
c) Keep the unused battery away from paper clips, coins, keys, nails, screws or other small metal objects that could cause a short-circuit between the contacts. A short-circuit between the contacts of the battery could result in burns or fires.
d) Liquid may leak from the battery if used incorrectly. Avoid contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.
e) Do not use a damaged or modified battery. Damaged or modified batteries can behave unpredictably and cause fire, explosion or injury.
f) Do not expose a battery to fire or excessive temperatures. Fire or temperatures above 130^ C may cause an explosion.
g) Follow all charging instructions and never charge the battery or rechargeable tool outside the temperature range specified in the operating manual. Incorrect charging or charging outside the approved temperature range can destroy the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never attempt to service damaged batteries. Any type of battery maintenance shall be carried out only by the manufacturer or an authorised customer service centre.
Safety instructions for lawnmowers
a) Do not use the lawnmower in bad weather, especially not during thunderstorms. This reduces the risk of being struck by lightning.
b) Also check the working area for wild animals. Wild animals could be injured by the running lawnmower.
c) Thoroughly check the working area and remove all stones, sticks, wires, bones and other objects. Parts that are ejected can cause injuries.
d) Always check that the mowing blades and mowing unit are not worn or damaged before using the lawnmower. Worn or damaged parts increase the risk of injury.
e) Check the grass catcher regularly for wear and tear. A worn or damaged grass catcher increases the risk of injuries.
f) Leave guards in their place. Guards must be operational and properly fastened. A guard that is loose, damaged, or not functioning correctly can result in injuries.
g) Keep all cooling air openings free of deposits. Blocked air inlets and deposits can result in overheating or a risk of fire.
h) Always wear non-slip safety shoes when operating the lawnmower. Never work barefoot or in open sandals. This prevents the risk of foot injuries if contact in made with the rotating mowing blade.
i) Always wear long trousers when operating the lawnmower. Bare skin increases the likelihood of injuries by ejected parts.
j) Do not operate the lawnmower in wet grass. Walk; never run. This prevents the risk of slipping and falling down, which could result in injuries.
k) Do not operate the lawnmower on excessively steep slopes. This prevents the risk of losing control, slipping and falling down, which could result in injuries.
1) When working on slopes, make sure you have secure footing, always work across the slope, never upwards or downwards, and be extremely careful when changing the working direction. This prevents the risk of losing control, slipping and falling down, which could result in injuries.
m) Take particular care when mowing backwards or pulling the lawnmower towards you. Always pay attention to the environment. This reduces the risk of tripping while working.
n) Do not touch blades or other dangerous parts while they are still moving. This prevents the risk of injury from moving parts.
o) Make sure all switches are off and remove the safety key before removing jammed material or cleaning the lawnmower. Unexpected operation of the lawnmower can result in serious injuries.
p) If a foreign object is hit, switch off the product immediately and remove the battery. Inspect the product for damage and perform the required repairs before starting again and working with the product. If the product begins to experience exceptionally strong vibrations, switch it off immediately and check it.
Additional safety instructions
- Never allow children or other persons who are unfamiliar with the usage instructions to use the lawnmower. Contact your local governmental agency for information regarding minimum age requirements for operating the lawnmower.
-
Never mow while people, especially children or animals are nearby. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.
-
Only mow when visibility is good. It is necessary to keep third parties away.
- If you hand the product over to another person, please hand over this operating manual as well.
ATTENTION
Danger of flying stones!
Never drive over gravel with the motor running.
- Prior to use. always perform a visual inspection to check whether the blade and fastening bolts are worn out or damaged. To prevent an imbalance, worn out or damaged blades and bolts may only be replaced in sets.
- Be careful when adjusting the product and avoid trapping fingers between the moving blade and rigid parts of the device.
- Be particularly careful when mowing on yielding ground, nearby rubbish tips, ditches and dykes.
- Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way.
- Operating the product at excessive speed can increase the risk of accidents.
- Watch out for traffic near a road.
- Never lift or carry a lawnmower while the engine is running.
- Stop the blade when the lawnmower has to be tilted, when transporting over areas other than grass and when moving the lawnmower to and from the area to be mowed.
- Start the engine with care, in accordance with the manufacturers instructions. Ensure that your feet are far enough away from the blade.
- Do not tip the lawnmower when you start the engine unless the lawnmower must be raised off of the ground a little in order to start it. In this case, only tilt as far as absolutely required and only lift the side away from the operator.
- Never put hands and feet on or under rotating parts. Always keep clear of the ejection opening.
- Use only blades and accessories recommended by the manufacturer. Use of other insert tools and accessories may result in injury to the user.
• Always keep the product in good operating condition.
- It is necessary to take enough breaks to reduce noise and vibration exposure.
- Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modification of safety devices can result in damage to the product and serious injury to the person working with it.
- Please note that the product's safety systems or equipment must not be tampered with or deactivated. Never remove any safety-related parts.
CAUTION
The lawnmower must not be used without either the full grass catcher or the self-closing separating guard for the ejection opening in place.
- Never use the lawnmower if the blade or safety grilles are damaged, or without the attached guards, e.g. deflectors and/or grass catching devices.
Residual risks
The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.
- Damage to hearing if the stipulated hearing protection is not worn.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
- Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
WARNING
This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.
WARNING
In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.
Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).
If you notice unusual adverse effects, stop working immediately and seek medical advice.
ATTENTION
The product is part of the 20V IXES series and may only be operated with batteries of this series. Batteries may only be charged with battery chargers of this series. Observe the manufacturer's instructions.
WARNING
Follow the safety and charging instructions and correct usage given in the instruction manual of your 20V IXES Series battery and charger. A detailed description of the charging process and further information are provided in this separate manual.
6 Technical data
| Rated voltage 40 V (2 x 20 V) |
| Cutting width 380 millimeters |
| Cut height 6-level adjustment |
| Height adjustment of guide bar 3-level |
| Height adjustment 25 - 75 mm |
| Collection bag volume 45 L |
| Weight (without battery) 14.2 kg |
| Blade information: |
| Manufacturer: Royal Garden |
| Blade code: RG7A107 |
Subject to technical changes!
Noise and vibration
WARNING
Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.
The noise and vibration values have been determined through a standardised measurement process.
Noise data
| Sound pressure L_pA | 79.2 dB |
| Measurement uncertainty K_pA | 3.0 dB |
| Sound power L_wA | 90.3 dB |
| Measurement uncertainty K_wA | 2.37 dB |
Vibration parameters (hand/arm vibration)
| Vibration ah | < 2.5 m/s ^2 |
| Measurement uncertainty K 1.5 m/s | ^2 |
The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.
The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.
WARNING
The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.
Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).
7 Unpacking
WARNING
The product and the packaging material are not children's toys!
Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!
- Open the packaging and carefully remove the product.
- Remove the packaging material, as well as the packaging and transport safety devices (if present).
- Check whether the scope of delivery is complete.
- Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
- If possible, keep the packaging until the expiry of the warranty period.
- Familiarise yourself with the product by means of the operating manual before using for the first time.
- With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
- When ordering please provide our article number as well as type and year of manufacture for the product.
8 Assembly
CAUTION
Danger of injury!
Do not insert the battery until the battery-powered tool is ready for use.
CAUTION
Danger of injury due to rotating blade. Only work on the product when the blade is switched off and stationary!
ATTENTION
Always make sure the product is fully assembled before commissioning!
ATTENTION
Ensure that the cable is not squeezed during assembly.

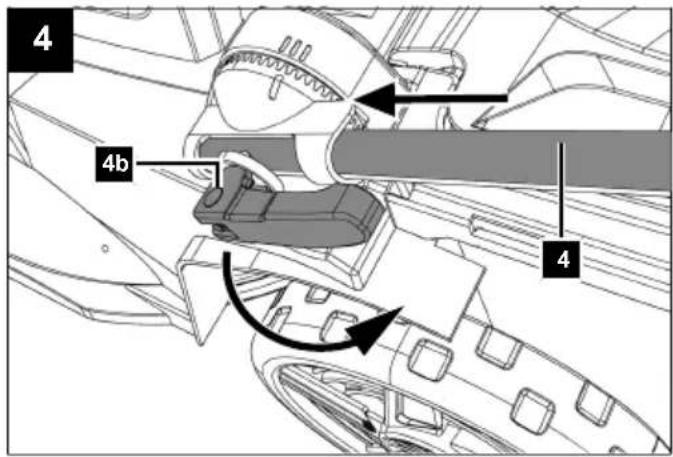

8.1 Installation of the lower push bar (4) (Fig. 1, 3, 4)
Note:
Make sure that the teeth mesh.
- Attach the lower push bar (4) to the pre-fitted screws.
- Screw down the lower push bar (4) with one washer (4a) and one quick-clamp lever (4b) on each side. Ensure that the cable (10), which will later be attached with a cable clip (9), is not in the way.
- Lock the two quick-clamp levers (4b) by pressing them in the direction of the lower push bar (4). They must rest against the lower push bar (4) in such a way that they can be tightened with moderate force.
Otherwise, the quick-clamp levers (4b) must be turned clockwise to tighten them or anti-clockwise to loosen them.
8.1.1 Adjust the position of the lower push bar (4) (Fig. 5)
Notes:
Three positions are possible.
Make sure that the teeth mesh.
- Loosen the two clamping levers (4b).
- Loosen the two clamping levers (4b) by turning them anti-clockwise.
- Move the lower push bar (4) to the desired position (use the markings as a guide).
- Close the lower push bar (4) again (see 8.1).
8.2 Installation of the upper push bar (2) (Fig. 6, 7)
-
Screw the upper push bar (2) to the lower push bars (4) with one flat head screw (2a), a washer (2b), a cylindrical nut (2d) and a quick-clamp lever (2c) on each side.
Two positions are possible.
-
Lock the two quick-clamp levers (2) by pressing them in the direction of the upper push bar (2).
They must rest against the upper push bar (2) in such a way that they can be tightened with moderate force. Otherwise, the quick-clamp levers (2b) must be turned clockwise to tighten them or anti-clockwise to loosen them.
8.3 Fitting the cable holder (9) (Fig. 1, 8)
- Clip the two cable holders (9) into the upper push bar (2) and lower push bar (4) and secure the cable (10).

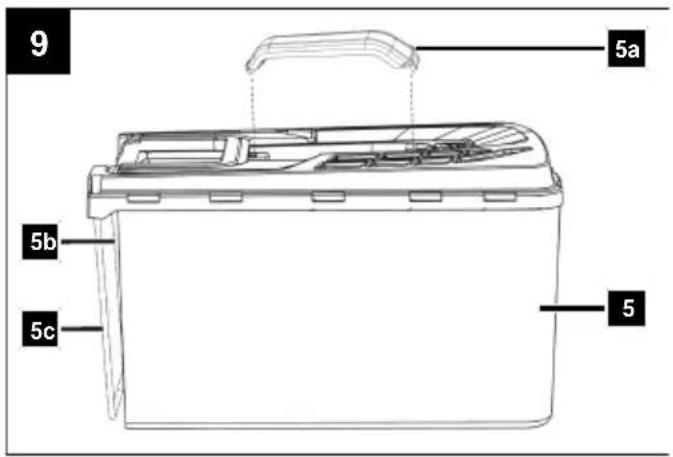

8.4 Mount the grass collection basket (5) (Fig. 9)
- Push the rubber lips (5b) over the frame (5c) from the inside at the corresponding points.
8.5 Fit the carry handle (5a) to the grass collection basket (5) (Fig. 9)
- Attach the carrying handle (5a) of the grass collection bag (5) to the holder provided on the top of the grass collection bag (5).
9 Pre-commissioning
NOTE
Some noise pollution from this product is unavoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods and limit the duration of work to the bare minimum.
For your personal protection and the protection of nearby persons, wear suitable hearing protection.

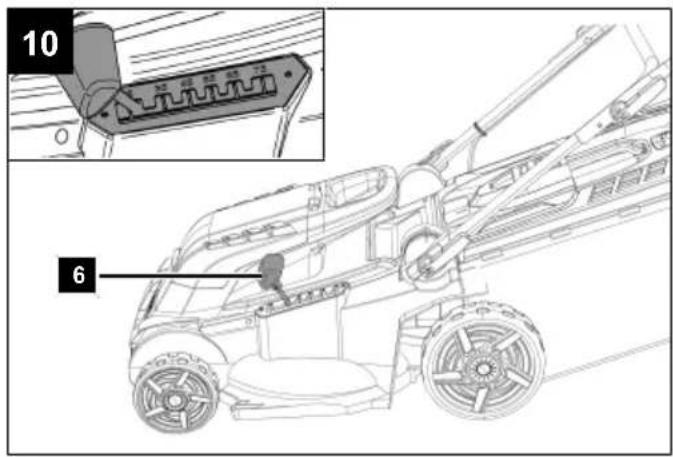

9.1 Setting the cutting height (Fig. 10)
ATTENTION
The cutting height may only be adjusted when the engine is shut off.
- In dense, tall grass, set the highest cutting level and mow more slowly. A high cutting height should be selected for the first cut of the season. Adjust the cutting height so that the product is not overloaded.
- Set the cutting height depending on the actual length of the lawn.
- Carry out several passes so that a maximum of 4 cm of lawn is removed at a time.
6 different cutting heights can be set:
| Ornamental lawn Utility lawn | |
| 1 = 25 mm 4 | 55 mm | | |
| 2 = 35 mm 5 | 65 mm | | |
| 3 = 45 mm 6 | 75 mm | | |
The cutting height is adjusted via the cutting height adjustment lever (6).
- Pull the cutting height adjustment lever (6) outwards.
- Move the cutting height adjustment lever (6) to the desired position.
- Release the cutting height adjustment lever (6) again. The lever locks into the desired position.
9.2 Inserting/removing the batteries (17) into/from the battery mount (Fig. 11, 12)
Inserting the battery
- Open the cover (7).
- Slide the batteries (17) into the battery mounts. The batteries (17) click into place audibly.
- Close the cover (7).
Removing the battery
- Open the cover (7).
- Press the unlock button (18) for the batteries (17) and remove them from the battery mounts.
- Close the cover (7).
9.3 Preparing the area to be mowed
- Before mowing, carefully examine the area.
- Remove stones, sticks, bones, wires, toys and other objects that may be ejected by the product.
- Ensure that no other people are present on the surface to be mowed.
10 Operation
The battery-powered lawnmower has a cutting tool that rotates parallel to the cutting plane. It is equipped with a powerful and quiet-running electric motor, a robust housing, a safety bar, a safety key, a double-sided lawn edge intake and a grass collection bag. The product's height can also be adjusted to 6 positions and has smooth-running wheels. Please refer to the following descriptions for the function of the controls.
WARNING
Danger of injury!
Remove the battery from the power tool before carrying out any work on the power tool (e.g. maintenance, tool change, etc.) and when transporting and storing it. There is a risk of injury if the on/off switch is operated unintentionally.
ATTENTION
Make sure that the ambient temperature does not exceed 50^ C and does not fall below -20^ C during work.
ATTENTION
The product is part of the 20V IXES series and may only be operated with batteries of this series. Batteries may only be charged with battery chargers of this series. Observe the manufacturer's instructions.
10.1 Mowing with the grass collection basket
ATTENTION
Do not operate the product without the grass collection basket fully attached or without a mulching insert.
ATTENTION
Only remove or attach the grass collection basket when the engine is switched off and the blade is stationary.

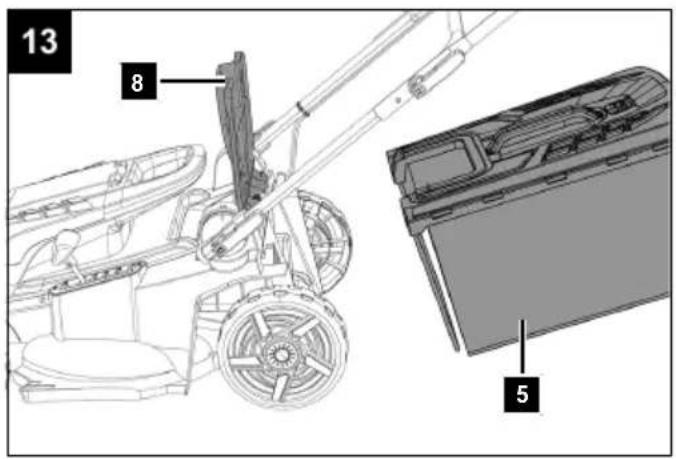

10.1.1 Inserting the grass collection basket (5) (Fig. 9, 13)
- Lift the discharge flap (8).
- Lift the grass collection basket (5) by the carrying handle (5a).
- Hang the grass collection basket (5) in the grass collection basket suspension provided at the rear of the product.
- Put down the discharge flap (8), it holds the grass collection basket (5) in position.
10.1.2 Level indicator (3) on the grass collection basket (5) (Fig. 13)
The air flow generated by the blade lifts the level indicator. When the grass collection basket is full, the air flow stops. If the air flow is too low, the level indicator closes. This is a note to empty the grass collection basket.
The unrestricted function of the level indicator is only assured with optimum air flow. External influences such as wet, dense or high grass, low cutting levels, dirt or similar can affect the air flow and the function of the level indicator.
- Flap open: Grass collection basket is being filled
- Flap closed: Grass collection basket is full

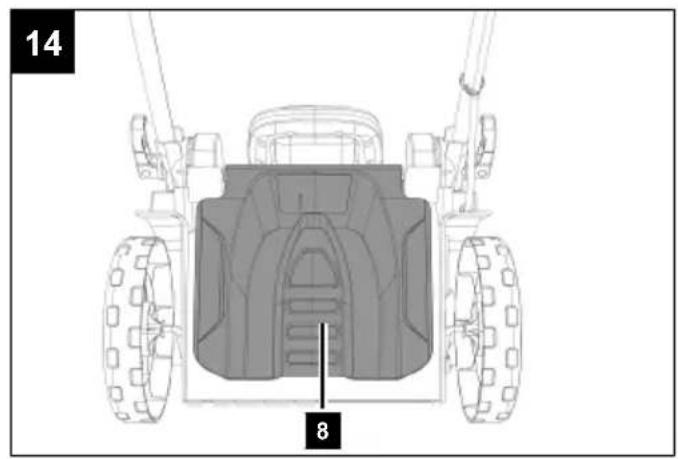

10.1.3 Emptying the grass collection basket (5) (Fig. 9, 13, 14)
WARNING
Before removing the grass collection basket, switch off the engine and wait for the blade to stop.
ATTENTION
Danger of injury!
Remove the grass collection basket only when the engine is switched off and the blade is stationary.
The grass collection basket must be emptied as soon as grass cuttings are left lying behind on the ground during mowing.
- To remove the grass collection basket (5), lift the discharge flap (8).
- Take out the grass collection basket (5) by the carrying handle (5a). In accordance with the safety regulations, the discharge flap (8) closes when the grass collection basket (5) is unhooked and closes the ejection opening.
If grass cuttings remain in the opening, it is advisable to pull the lawnmower back about 1 m to make it easier to start the motor.
ATTENTION
Do not remove cuttings in the mower housing and on the working tool by hand or with your feet, but with suitable aids, e.g. brush or hand brush.
To ensure good collection, the grass collection basket (5) must be cleaned after use.
10.2 Mowing with the mulching insert
When mulching, the cuttings are shredded in the closed lawnmower housing and then dispersed on the lawn. Grass collection and disposal are not required. The fine green waste falls back into the grass root as a natural fertiliser, adds moisture to the lawn and supplies it with important nutrients.
NOTE
Mulching is only possible on relatively short lawns.

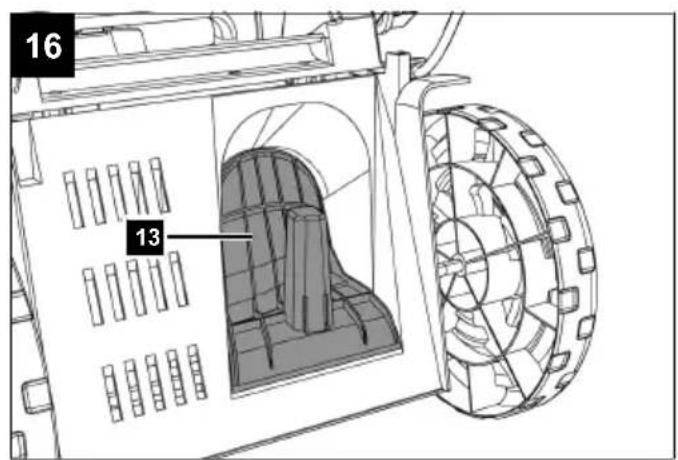

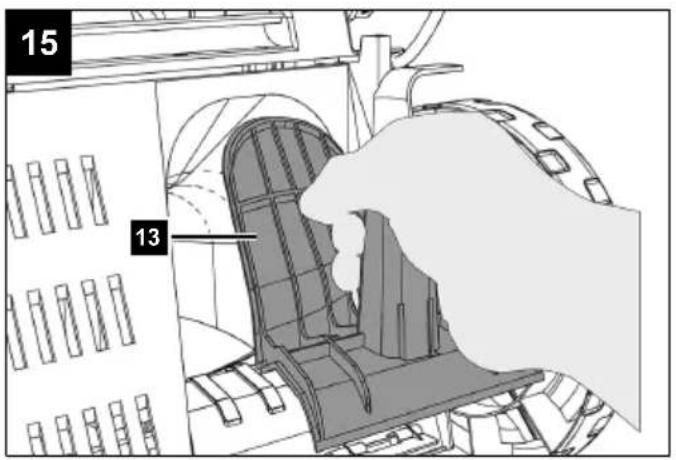

10.2.1 Inserting the mulching insert (13) (Fig. 13, 15, 16)
- Lift the discharge flap (8).
- Remove the grass collection basket (5) (if used) by the carrying handle (5a).
- Lift the discharge flap (8) and insert the mulching insert (13).
- Adjust the cutting height (see 9.1).
Note:
Cut the grass back by 2 cm if the grass is 4-6 cm high.
10.2.2 Difference between lawn mowing and lawn mulching (Fig. 13, 16)
When using the mulching insert (13), the grass clippings are not collected in a grass collection bag, but shredded and distributed over the lawn. The nutrients contained in
the grass clippings are thus broken down by soil organisms forming a nutrient cycle. Mulched lawns therefore need to be fertilised much less frequently.
As a general rule, the lawn must be mowed relatively often so that only small amounts of mulch remain on the lawn. It is therefore best to mulch the lawn at least once a week and set the mower so that only approx. 40% of the total height of the lawn is mulched. If the mulch remains visible on the lawn (e.g. during the first cut of the year or during heavy growth), the grass bag (5) should be used.
10.3 Safety key (14) (Fig. 1, 17)
Note:
The product can only be started if the security key is inserted in the product.
- Open the cover (7).
- Insert the rechargeable batteries (17) as described in 9.2.
- Insert the safety key (14).
- Close the cover (7).
WARNING
Danger of injury!
To switch off the product, switch off the motor, wait for it to stop, remove the battery and pull out the safety key.
10.4 Blade-stop device (Fig. 1, 18)
Before each use, you must check the blade stop device. Start the motor as described in 10.4.
- Release the safety bar (1). The motor switches off and the blade (16) is braked.
- The blade (16) must stop within 7 seconds.
10.5 Switching the product on/off (Fig. 18)
Note:
Switching on
- Hold the on/off button (11) depressed and pull the safety bar (1) rearwards.
Switching off
- Release the safety bar (1).
- Pull out the safety key (14).
- Remove the battery.
CAUTION
After switching off, the product will run on. Wait until the product has come to a complete stop.
10.6 After mowing
- Check all screws and nuts before the next use. Tighten up loose screws.
- Empty the grass collection basket before the next use.
- Please also observe the chapter "Storage".
11 Cleaning and maintenance
WARNING
Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.
WARNING
Improper maintenance or cleaning work can cause injuries!
WARNING
The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.
- Switch the product off.
- Remove the battery.
- Allow the product to cool.
CAUTION
Wear protective gloves when handling the blades!
- Pull the safety key out.
11.1 Cleaning
- Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth* or blow it off with compressed air* at low pressure. We recommend that you clean the product directly after every use.
- Ventilation openings must always be free.
-
Cleaning with a garden hose is only recommended at low pressure. A high-pressure cleaner is not suitable for cleaning the product.
-
Unhook the grass collection basket and brush it out with a hand brush. You can also roughly clean the housing of the lawnmower with the sweeper.
- Clean the underside of the lawnmower with a spatula and hand brush. The spatula helps to remove coarse and larger plant debris from the area of the blade (16). Cleaning the underbody is easier and more thorough immediately after use. Then dirt and plant residues are still fresh and can be loosened more easily.
- Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.
- Check that the grass ejection is clear of grass residues and remove these if necessary.
11.2 Maintenance
WARNING
Danger of injury!
Remove the battery from the power tool before carrying out any work on the power tool (e.g. maintenance, tool change, etc.) and when transporting and storing it. There is a risk of injury if the on/off switch is operated unintentionally.
11.2.1 Changing the blade (16) (Fig. 19)
WARNING
There is a risk of injury if you work with a damaged blade.
- Wear protective gloves!
- For safety reasons you should only ever have your blade sharpened and balanced by an authorised specialist workshop. For optimum results it is recommended that the blade should be inspected once a year.
- When changing the blade, only use original spare parts.
- Hold the blade (16) tightly with one hand.
- Turn the blade screw (15) anticlockwise using a 13 mm open-ended spanner (not included in the scope of delivery).
- Remove the blade screw (15) and the washer.
- Re-install the new blade (16) in reverse order. Fasten the blade screw (15) properly. Ensure that the blade (16) is correctly positioned in the fastening pins and lies flush.
- The tightening torque of the blade screw (15) is 45Nm. Also replace the blade screw (15) when replacing the blade (16).
11.2.2 Damaged blade (16) (Fig. 19)
If the blade (16) has come into contact with an obstacle:
- Switch off the motor, wait for it to stop, remove the battery and pull out the safety key.
- Check the blade (16) for damage.
- Damaged or bent blades (16) must be replaced.
- Never attempt to bend a bent blade (16) back to straight again.
- Never mow the lawn with a bent or heavily worn blade (16) as this will cause vibrations and can lead to further damage to the lawnmower.
12 Storage and transport
Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.
The optimum storage temperature is between 5^ C and 30^ C.
Store the product in its original packaging.
Cover the product to protect it from dust or moisture.
Store the operating manual with the product.
WARNING
Danger of injury!
Remove the battery from the power tool before carrying out any work on the power tool (e.g. maintenance, tool change, etc.) and when transporting and storing it. There is a risk of injury if the on/off switch is operated unintentionally.
12.1 Fold the upper push bar (2) together (Fig. 1, 7, 13)
WARNING
Risk of jamming!
Always hold the push bar with one hand at the highest point.
- Never place fingers between the upper push bar and the lower push bar.
For space-saving storage, the upper push bar (2) is foldable.
- Remove the grass collection basket (5).
- Open the quick-clamp levers (2c) on the upper push bar (2).
- Loosen the quick-clamp lever (2c) a little by turning it anti-clockwise.
- Move the upper push bar (2) down. The cable (10) must not be pinched in the process.
12.2 Preparation for storage
- Remove the battery.
- Empty the product completely.
- Clean and check the product for damage.
13 Repair and ordering spare parts
With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.
ATTENTION
According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.
Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.
Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.
13.1 Ordering spare parts
Please provide the following information when ordering spare parts:
- Model designation
- Item number
- Type plate data
Spare parts / accessories
| Battery pack SBP2.0 - Article no.: 7909201708 |
| Battery pack SBP4.0 - Article no.: 7909201709 |
| Battery charger SBC2.4A - Article no.: 7909201710 |
| Battery charger SBC4.5A - Article no.: 7909201711 |
| Battery charger SDBC2.4A - Article no.: 7909201712 |
| Battery charger SDBC4.5A - Article no.: 7909201713 |
| StarterKit SBSK2.0 - Article no.: 7909201720 |
| StarterKit SBSK4.0 - Article no.: 7909201721 |
| Blade - Article no.: 7911200650 |
| Blade screw - Article no.: 5911414001 |
14 Disposal and recycling
Notes for packaging
The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.
Notes on the electrical and electronic equipment act (ElektroG)
Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!
- Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
- Owners or users of electrical and electronic devices are legally obliged to return them after use.
- The end user is responsible for deleting their personal data from the old device being disposed of!
- The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
- Waste electrical and electronic equipment can be handed in free of charge at the following places:
– Public disposal or collection points (e.g. municipal works yards)
- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.
- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.
Notes on lithium-ion batteries
Remove the battery before disposing of the device!
- Do not dispose of the battery in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.
- Defective or used batteries must be recycled in accordance with Directive 2023/1542/EC.
- Hand in the device and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.
- Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.
- Dispose of batteries according to local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.
15 Troubleshooting
The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.
| Fault Possible cause Remedy | | |
| The product cannot be started. The battery power is too weak. Charge the battery. |
|
|
|
|
| Product runs unsteadily and vibrates heavily. | Quick-clamp lever loose. Check quick-clamp lever. |
| Blade fasteners are loose. Check blade fasteners. |
| Blade is unbalanced. Replace blade. |
| Motor does not run. Safety bar not pulled. Pull the safety bar. |
|
|
|
| The discharge of grass clippings is un-tidy | Cutting height is too low. | Adjusting the cutting height. |
| Blade is worn. | Replace blades. |
| Grass collection basket clogged. | Empty the grass collection basket or remove the blockage. |
16 Warranty conditions - Scheppach 20V IXES series
Revision date 25/04/2024
Dear customer,
our products are subject to strict quality checks. However, if a product does not function perfectly, we deeply regret this and ask that you contact our customer service at the address specified below. We will also be glad to assist you by telephone via the service number. The following information is intended to help you to process and settle your claim without any problems.
For the assertion of warranty claims, the following applies:
-
The warranty conditions govern our additional manufacturer warranty services for purchasers (private end consumers) of new products. The statutory warranty claims are not affected by this warranty. This is the responsibility of the dealer who you purchased the product from.
-
The manufacturer's warranty only covers defects in a new product purchased by you that are due to a material or manufacturing defect. If material or manufacturing defects occur during the warranty period, the manufacturer as guarantor shall provide one of the following services of its choice under this warranty:
- Free repair of the goods
- Free replacement of the goods with an item of equal value (if necessary also replacement with a successor model if the original goods are no longer available).
Replaced products or parts shall become our property. Please note that our products were not designed for commercial, trade or professional use. A warranty claim is therefore not valid if the product has been
used in commercial, trade or industrial operations within the warranty period or has been subjected to equivalent stress.
3. The following are excluded from our warranty services:
- Damage to the product which was caused by non-observance of the assembly instructions, improper installation, non-observance of the operating instructions (e.g. connection to an incorrect mains voltage or type of current) or the maintenance and safety regulations or use of the product in unsuitable environmental conditions as well as by insufficient care and maintenance.
- Damage to the product caused by misuse or improper application (such as overloading the product or using non-approved tools and accessories), penetration of foreign bodies into the product (such as sand, stones or dust), transport damage, use of force or external influences (such as damage caused if dropped).
- Damage to the product or parts of the product which is due to intentional, normal (operational) or other natural wear as well as damage and/or wearing of wear parts.
- Defects in the product which have been caused by the use of accessories, expansions or spare parts that are not original parts or are not used as intended.
– Products on which changes or modifications have been made.
- Minor deviations from the target characteristics which are irrelevant for the value and usability of the product.
- Products on which unauthorised repairs have been carried out, in particular by an unauthorised third party.
- If the marking on the product or the identification information of the product (machine label) is missing or illegible.
– Products that are very dirty and are therefore refused by the service personnel.
- Claims for damages and consequential damages are generally excluded from this warranty.
- The warranty period is usually 5 years (12 months for batteries/rechargeable batteries) and starts from the date of purchase of the product. The date on the original purchase receipt is decisive. Warranty claims must be made immediately after becoming aware of them. The assertion of warranty claims after expiry of the warranty period is excluded. The repair or replacement of the product does not result in an extension of the warranty period, nor does this service initiate a new warranty period for the product or for any installed spare parts. This also applies when using an on-site service. A prerequisite for a claim under the warranty is that the manufacturer, as the guarantor, is enabled to examine the warranty claim by sending in the goods at the manufacturer's request. Care must be taken to avoid damage during transport by using appropriate packaging. The product concerned is to be cleaned and returned to the service centre together with a copy of the purchase receipt, which must include the date of purchase and the product designation. If a product is sent in incomplete without the complete scope of delivery, the missing accessories will be charged / deducted in value if the product is exchanged or in the event of a refund. Partially or completely dismantled products cannot be accepted as a warranty claim. In the event of an unjustified complaint or if outside the warranty period, the purchaser shall generally bear the transport costs and the transport risk. Please report a warranty claim in advance to the service centre (see below). It is generally agreed upon that the defective product will be returned to the service address given below with a brief description of the fault by organised return or, in the case of repair outside the warranty period, with sufficient postage, taking the appropriate packaging and shipping guidelines into account. Please note that your product (depending on the model) will be free of all operating materials when returned for safety reasons. The product sent to our service centre must be packaged in such a way that damage to the product under complaint is avoided during transport. After successful repair / replacement, we will send the product back to you free of charge. If products cannot be repaired or replaced, a sum up to the purchase price of the defective product may be refunded at our own discretion, taking into account any deduction for wear and tear. These warranties are only for the benefit of the original private purchaser and cannot be assigned or transferred.
5. Extension of the warranty period to 10 years:
Scheppach offers an additional warranty extension of 5 years on products of the Scheppach 20V series. Thus, the warranty period for these products totals 10 years. Batteries / rechargeable batteries, battery chargers and accessories are excluded from this. You can claim this warranty extension by registering your Scheppach product from this range at https://garantie.scheppach.com no later than 30 days from the
date of purchase. After registering online successfully, you will receive confirmation for the item-related warranty extension.
- In order to submit your warranty claim, please contact our service centre.
Preferably, please use our form on our homepage: https://www.scheppach.com/de/service
Please do not send us any products without first contacting and registering with our service centre.
Contacting our service centre first is mandatory to claim these warranty promises. Warranty claims must be made before expiry of the warranty period within 14 days of discovery of the defect. For this purpose, the original purchase receipt and, if necessary, confirmation of the item-related warranty extension are required.
-
Processing time - We normally process complaint consignments within 14 days of receipt at our service centre. If, in exceptional cases, the processing time mentioned is exceeded, you will be informed in good time.
-
Wear parts are generally excluded from the warranty! - Wear parts are: a) supplied, attached and/or installed batteries / rechargeable batteries as well as b) all model-dependent wear parts (i.e. belts, saw blades, tool attachments, grinding discs, filters, carbon brushes etc., see operating manual). The warranty does not cover batteries or rechargeable batteries that are deeply discharged or those with damaged housing or battery terminals.
-
Cost estimate - Products that are not covered or no longer covered by the warranty will be repaired at extra cost. Upon request to our service centre, you can send in the defective products for a cost estimate and, if necessary, give the service centre approval for the repair in writing (by post, e-mail). No further processing will take place without approval for the repair.
The warranty conditions only apply in the current version at the time of the complaint and, if necessary, can be found on our homepage (www.scheppach.com).
In case of translations, the German version is decisive.
Scheppach GmbH · Günzburger Str. 69 · 89335 Ichenhausen (Germany)
Tel: +800 4002 4002 ·
E-Mail: customerservice.GB@scheppach.com
Internet: https://www.scheppach.com
We reserve the right to make changes to the warranty conditions at any time without prior notice.
Original Declaration of Conformity
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
We declare under our sole responsibility that the product described here complies with the applicable directives and standards.
Brand: SCHEPPACH
Art. designation: BATTERY-POWERED
LAWNMOWER
BC-MP380-X
Item No. 5911414900
EU directives:
2014/30/EU, 2006/42/EC, 2000/14/EC_2005/88/EC, 2011/65/EU*
* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Applied standards:
EN 62841-1:2015/A11:2022;
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Documentation authorised representative:
Stefan Hartinger
Günzburger Str. 69
D-89335 Ichenhausen
Division Manager Product Center
Head of Project Management
Sommaire
Günzburger Straße 69
D-89335 Ichenhausen
Cher client,
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Indice
Günzburger Straße 69
D-89335 Ichenhausen, Germania
Egregio cliente,
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Inhoudsopgave
1 Inleiding....65
Günzburger Straße 69
D-89335 Ichenhausen
Geachte klant,
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Índice
Günzburger Straße 69
customerservice.ES@scheppach.com -
Internet: https://www.scheppach.com
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Head of Project Management
Índice
Günzburger Straße 69
Utilize, de preferência, o formulário na nossa homepage: https://www.scheppach.com/de/service
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Head of Project Management
Obsah
1 Úvod.... 110
2 Popis výrobku (obr. 1).... 111
3 Rozsah dodávky (obr. 2).... 111
Günzburger Straße 69
D-89335 Ichenhausen
Vážený zákazníku,
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Obsah
Günzburger Straße 69
D-89335 Ichenhausen
Vážený zákazník,
Günzburger Straße 69
D-89335 Ichenhausen
Division Manager Product Center
Andreas Pecher
Head of Project Management
Tartalomjegyzék
Günzburger Straße 69
D-89335 Ichenhausen
Tisztelt Ügyfelünk!
Division Manager Product Center
Head of Project Management
Spis treści
Günzburger Straße 69
D-89335 Ichenhausen
Szanowny Kliencie
Günzburger Straße 69
D-89335 Ichenhausen
2014/30/UE, 2006/42/WE, 2000/14/WE_2005/88/WE,
2011/65/UE*
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Popis sadržaja
1 Uvod.... 167
2 Opis proizvoda (sl. 1) 168
3 Opseg isporuke (sl. 2).... 168
4 Namjenska uporaba.... 168
5 Sigurnosne napomene.... 169
6 Tehnički podatci 172
7 Raspakiravanje 172
8 Montaža 172
9 Prije pokretanja 173
10 Rukovanje 174
11 Čišćenje i održavanje.... 175
12 Skladištenje i transport.... 176
13 Popravak i naručivanje rezervnih dijelova...... 177
14 Zbrinjavanje i recikliranje.... 177
15 Otklanjanje neispravnosti.... 178
16 Uvjeti jamstva – serija Scheppach 20 V IXES.... 178
17 EU izjava o sukladnosti.... 180
18 Povećani crtež.... 361
Günzburger Straße 69
D-89335 Ichenhausen
Poštovani kupče
Želimo vam mnogo zadovoljstva i uspjeha prilikom rada s novim proizvodom.
Napomena:
Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Head of Project Management
Kazalo
Günzburger Straße 69
D-89335 Ichenhausen
Spoštovani kupec,
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Head of Project Management
Sisukord
Günzburger Straße 69
D-89335 Ichenhausen
Austatud klient!
E-post: customerservice.EE@scheppach.com
Internet: https://www.scheppach.com
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Head of Project Management
Turinys
Günzburger Straße 69
D-89335 Ichenhausen
Gerbiamas kliente,
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Head of Project Management
Satura rādītājs
Günzburger Straße 69
| 2=35mm 5=65mm | | |
| 3=45mm 6=75mm | | |
E-pasts: customerservice.LV@scheppach.com
Internets: https://www.scheppach.com
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Günzburger Straße 69
D-89335 Ichenhausen
Bästa Kund!
Günzburger Straße 69
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Sisällysluettelo
1 Johdanto 247
Günzburger Straße 69
D-89335 Ichenhausen
Arvoisa asiakas
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Indholdsfortegnelse
1 Indledning....261
2 Produktbeskrivelse (fig. 1).... 262
3 Leveringsomfang (fig. 2) 262
Günzburger Straße 69
D-89335 Ichenhausen, Tyskland
Kære kunde
Günzburger Straße 69
D-89335 Ichenhausen, Tyskland
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Dokumentationsansvarlig:
Stefan Hartinger
Günzburger Str. 69
D-89335 Ichenhausen
Division Manager Product Center
Head of Project Management
Innholdsfortegnelse
Günzburger Straße 69
D-89335 Ichenhausen
Kjære kunde
10.2.1 Sette inn mulching-innsats (13) (fig. 13, 15, 16)
E-post: customerservice.NO@scheppach.com
Internett: https://www.scheppach.com
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Head of Project Management
Съдържание
Günzburger Straße 69
D-89335 Ichenhausen, Германия
Уважаеми клиенти,
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Günzburger Straße 69
D-89335 Ichenhausen
Αξιότιμε πελάτη
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021,
EN IEC 55014-1:2021, EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Cuprins
Günzburger Straße 69
D-89335 Ichenhausen
Stimate client
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Sadržaj
1 Uvod.... 335
2 Opis proizvoda (sl. 1) 336
3 Opseg isporuke (sl. 2).... 336
4 Namenska upotreba.... 336
5 Sigurnosne napomene.... 337
6 Tehnički podaci 340
7 Raspakivanje.... 340
8 Montaža 341
9 Pre puštanja u rad.... 341
10 Rukovanje 342
11 Čišćenje i održavanje.... 343
12 Skladištenje i transport.... 344
13 Popravka i naručivanje rezervnih delova ..... 345
14 Odlaganje na otpad i reciklaža.... 345
15 Pomoć za otklanjanje smetnji.... 346
16 Uslovi garancije - Scheppach 20V IXES serija .. 346
17 EU izjava o usaglašenosti.... 348
18 Znak eksplozije 361
Günzburger Straße 69
D-89335 Ichenhausen
Poštovani kupče
- Uklonite akumulator.
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Lice ovlašćeno za dokumentaciju:
Stefan Hartinger
Günzburger Str. 69
D-89335 Ichenhausen
Division Manager Product Center
Head of Project Management
İçindekiler
1 Giriş.... 349
Günzburger Straße 69
D-89335 Ichenhausen
İthalatçı:
Günzburger Straße 69
D-89335 Ichenhausen
EN IEC 62841-4-3:2021/A11:2021;
EN IEC 55014-1:2021; EN IEC 55014-2:2021
Division Manager Product Center
Andreas Pecher
Head of Project Management
Notizen
CE
SCHEPPACH GMBH
Günzburger Str. 69
D-89335 Ichenhausen
©
Stand der Informationen · Status of the information · Version des informations · Versione delle informazioni · Stand van de informatie · Información disponible · Versão das informações · Stav informaci · Stav informácií · Az információk kelte · Stan informacji · Verzija informacija · Stanje informacij · Informatsiooni seis · Informacijos data · Informácijas stāvoklis · Informationens status · Tietojen tila · Informationsstatus · Status for informasjon · Последна редакция на информацията · Έκδοση των πληροφοριών · Stadiul informațiilor · Izdanje informacija · Bilgilerin güncelliği
Update: 04/2025 · Ident.-No.: 5911414900
