USER MANUAL BD 4325 C Bp Pack Kärcher

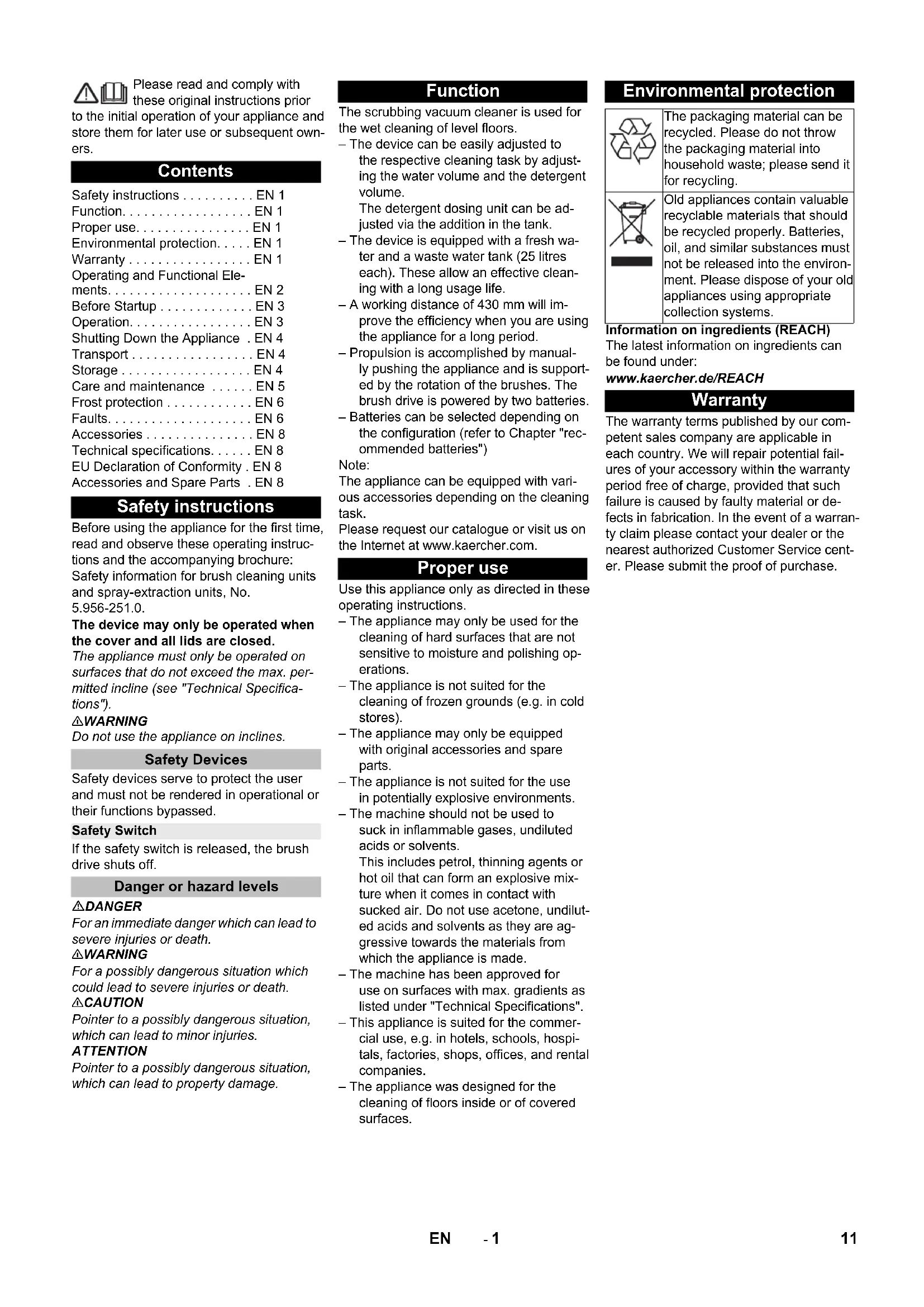

Zubehör und Ersatzteile Chairman of the Board of Management Director Regulatory Affairs & Certification 10 DE- 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. Before using the appliance for the first time, read and observe these operating instruc- tions and the accompanying brochure: Safety information for brush cleaning units and spray-extraction units, No. 5.956-251.0. The device may only be operated when the cover and all lids are closed. The appliance must only be operated on surfaces that do not exceed the max. per- mitted incline (see "Technical Specifica- tions"). 몇 WARNING Do not use the appliance on inclines. Safety devices serve to protect the user and must not be rendered in operational or their functions bypassed. If the safety switch is released, the brush drive shuts off. DANGER For an immediate danger which can lead to severe injuries or death. 몇 WARNING For a possibly dangerous situation which could lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. The scrubbing vacuum cleaner is used for the wet cleaning of level floors. – The device can be easily adjusted to the respective cleaning task by adjust- ing the water volume and the detergent volume. The detergent dosing unit can be ad- justed via the addition in the tank. – The device is equipped with a fresh wa- ter and a waste water tank (25 litres each). These allow an effective clean- ing with a long usage life. – A working distance of 430 mm will im- prove the efficiency when you are using the appliance for a long period. – Propulsion is accomplished by manual- ly pushing the appliance and is support- ed by the rotation of the brushes. The brush drive is powered by two batteries. – Batteries can be selected depending on the configuration (refer to Chapter "rec- ommended batteries") Note: The appliance can be equipped with vari- ous accessories depending on the cleaning task. Please request our catalogue or visit us on the Internet at www.kaercher.com. Use this appliance only as directed in these operating instructions. – The appliance may only be used for the cleaning of hard surfaces that are not sensitive to moisture and polishing op- erations. – The appliance is not suited for the cleaning of frozen grounds (e.g. in cold stores). – The appliance may only be equipped with original accessories and spare parts. – The appliance is not suited for the use in potentially explosive environments. – The machine should not be used to suck in inflammable gases, undiluted acids or solvents. This includes petrol, thinning agents or hot oil that can form an explosive mix- ture when it comes in contact with sucked air. Do not use acetone, undilut- ed acids and solvents as they are ag- gressive towards the materials from which the appliance is made. – The machine has been approved for use on surfaces with max. gradients as listed under "Technical Specifications". – This appliance is suited for the commer- cial use, e.g. in hotels, schools, hospi- tals, factories, shops, offices, and rental companies. – The appliance was designed for the cleaning of floors inside or of covered surfaces. Information on ingredients (REACH) The latest information on ingredients can be found under: www.kaercher.de/REACH The warranty terms published by our com- petent sales company are applicable in each country. We will repair potential fail- ures of your accessory within the warranty period free of charge, provided that such failure is caused by faulty material or de- fects in fabrication. In the event of a warran- ty claim please contact your dealer or the nearest authorized Customer Service cent- er. Please submit the proof of purchase. Contents Safety instructions ... EN 1 Function... EN 1 Proper use... EN 1 Environmental protection... EN 1 Warranty ... EN 1 Operating and Functional Ele- ments... EN 2 Before Startup ... EN 3 Operation... EN 3 Shutting Down the Appliance . EN 4 Transport ... EN 4 Storage ... EN 4 Care and maintenance ... EN 5 Frost protection ... EN 6 Faults... EN 6 Accessories ... EN 8 Technical specifications... EN 8 EU Declaration of Conformity . EN 8 Accessories and Spare Parts . EN 8 Safety instructions Safety Devices Safety Switch Danger or hazard levels Function Proper use Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable recyclable materials that should be recycled properly. Batteries, oil, and similar substances must not be released into the environ- ment. Please dispose of your old appliances using appropriate collection systems. Warranty 11EN- 2 1 Fluff filter 2 Safety button 3 Battery * 4 Drain hose for wastewater with dosing unit 5 Holding rail for home base 6 Float 7 Fresh water tank 8 Fresh water tank lock 9 Cleaning head 10 Disc brush 11 Fresh water reservoir filler neck 12 Bow brush change 13 Waste water tank 14 Pedal transport chassis 15 Fresh water level display 16 Rotary handle to incline the vacuum bar 17 Height adjustment of suction bar * 18 Wing nuts for fastening the vacuum bar 19 Vacuum bar * 20 Suction hose 21 Water quantity regulator 22 Battery socket 23 Vacuum bar lowering lever 24 Operator console 25 Push handle 26 Storage surface for cleaning set "Home base box“ 27 Cover waste water tank

• not included in the delivery – The operating elements for the cleaning process are yellow. – The controls for the maintenance and service are light gray. Operating and Functional Elements Colour coding 12 EN- 3 1OFF Device is switched off 2 Normal mode Wet clean the floor and vacuum up dirt water. 3 Intense mode Wet clean the floor and allow the deter- gent to react. 4Vacuum mode Suck in the dirt fleet. 5 Program selection switch 6 Display ** option Unscrew the screws from the middle board of the pallet. Push down the device holding the push handle and pull out the middle board. Remove the chocks in front of and next to the wheels. Push down the device holding the push handle and push it forwards up to the edge of the pallet. Lift the device off the pallet and set it on the floor. Install the batteries (see "Care and Mainte- nance/Install and connect batteries"). We recommend using our batteries as de- scribed in chapter "Care and Maintenance/ Recommended batteries". Note: The device is equipped with a safety mech- anism to prevent total discharge, i.e. when the permissible minimum capacity is reached, the brush motor and the turbine are switched off. Drive the machine directly to the charg- ing station; avoid any steep gradients in the process. DANGER Danger of injury due to electric shock. Ob- serve the mains voltage and fuse protec- tion on the type plate of the device. Average charging time is approx. 10 -15 hours. The appliance must not be used during the charging process. DANGER Danger of explosion Prior to charging low-maintenance bat- teries Remove waste water tank (see Chapter "Maintenance and care/Maintenance tasks/Removing the waste water tank"). This prevents the accumulation of hazard- ous gases underneath the tank during the charging process. ATTENTION Risk of damage. Do not clean the device with water while the tank is removed. 1 Battery plug, appliance side 2 Battery plug, battery side Detach the battery plug on the unit side. ATTENTION Risk of damage! – Do not connect the charger with the battery plug on the unit side. – Only use a charger that is suitable for the installed battery type: Note: Please read the operating instruc- tions of the charger manufacturer, espe- cially the chapters on safety instructions! Connect the battery plug on the battery side with the charger. Plug the mains plug of the charger into a power outlet. Execute the charging process accord- ing to the information in the operating instructions of the charger. Connect the battery plug on the device side with the battery plug on the battery side. 몇 WARNING Danger of causticization! – Adding water to the battery in its dis- charged state can cause the acid to leak. – Use safety glasses while handling bat- tery acid and follow the safety instruc- tions to avoid personal injury or damage to clothes. – Should the acid spray on to the skin or clothes, rinse immediately with lots of water. ATTENTION Risk of damage! – Use only distilled or desalinated water (EN 50272-T3) for filling the battery. – Do not add any substances (so-called performance improving agents), else warranty claims will not be entertained. – Replace batteries with the same battery type only. Insert the vacuum bar into the vacuum bar suspension in such a manner that the profiled sheet is positioned above the suspension. Tighten the wing nuts. Insert the suction hose. DANGER Risk of injury! In dangerous situations, release the safety switch/drive lever. Open the lock of the fresh water reser- voir. Fill fresh water (maximum 60 °C) until the lower edge of the filling nozzle. Close the lock of the fresh water reser- voir. Operator console Symbols on the machine Battery socket Lashing point Mop holder ** Filling level fresh water tank 25% Bow brush change Vacuum bar lowering le- ver Drain outlet fresh water tank Dirt water discharge hose Transport chassis 1: Transport 0: Operation Before Startup Unloading Install batteries Using batteries made by other manufacturers Charging battery Charging process Battery type Battery set 24 V Charger 6.654-093.0 4.035-447.0 6.654-329.0 6.654-290.0 4.035-990.0 6.654-332.0 Low maintenance batteries (wet batteries) Installing the Vacuum Bar Operation Filling in detergents Fresh water 13EN- 4 몇 WARNING Risk of damage. Only use the recommended detergents. With other detergents, the opera- tor bears the increased risk regarding the op- erational safety and danger of accident. Only use detergents that are free from sol- vents, hydrochloric acid and hydrofluoric acid. Follow the safety instructions for using de- tergents. Note: Do not use highly foaming detergents. Recommended detergents: Add the detergent to the fresh water reservoir. Note: If the fresh water tank is empty, the clean- ing head continues working without liquid supply. Adjust the water quantity using the reg- ulating button according to the dirt on the floor covering. Note: Carry out initial cleaning attempts with low water volume. Increase water volume step- by-step until the desired cleaning result is achieved. To improve the vacuuming result on tiled floors the vacuum bar can be turned to an oblique position of up to 5°. Loosen the wing nuts. Turn the vacuum bar. Tighten the wing screws. If the vacuum result is unsatisfactory the in- clination of the straight vacuum bar can be modified. Adjust the rotary handle to incline the suction bar. The bend of the suction lips upon contact with the floor is influenced with the height adjustment. Try adjusting the twist handles of the height adjustment until the best vacu- uming result is achieved. ATTENTION Risk of damage to the floor covering. Do not operate the appliance on the spot. Swivel the pedal for the transport chas- sis down. Turn the program selection switch to the desired cleaning program. Pull the lever out and press it down; the vacuum bar is lowered. Note: – For cleaning tiled floors, adjust the straight suction bar in such a way that cleaning is not done at an angle of 90 degrees to the joints. – The inclined position and the inclination of the suction bar can be adjusted to achieve better suction results (see "Ad- justing the suction bar"). – If the waste water tank is full, the float closes the suction opening and the suc- tion turbine runs at an increased speed. If this is the case, shut the vacuum off and drive to empty the waste water tank. Release the safety switch. Set the program selection switch to suc- tion or vacuuming. Briefly drive forward and suck of the re- maining water. Raise the vacuum bar. Charge battery, if required. 몇 WARNING Please observe the local provisions regard- ing the wastewater treatment. Take the water discharge hose from the support and lower above a suited col- lection device. Crush or bend the dosing equipment. Open the lid of the dosing equipment. Drain off the dirt water - regulate the water quantity by pressing or bending. Rinse the waste water tank with clear water. Unscrew the lock of the fresh water res- ervoir. DANGER Risk of injury! When loading or unloading the machine, it may only be operated on gradients up to the maximum value (see "Technical Specifications"). Drive slowly. 몇 CAUTION Risk of personal injury or damage! Mind the weight of the appliance during transport. Lift the pedal for the transport chassis. Use the pushing handle to push the ap- pliance. When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. 몇 CAUTION Risk of personal injury or damage! Consider the weight of the appliance when storing it. This appliance must only be stored in inte- rior rooms. Detergent Application Detergent Routine cleaning of all water resistant floors RM 746 RM 780 Routine cleaning of glossy surfaces (e.g. granite) RM 755 es Routine cleaning and basic cleaning of industrial floors RM 69 ASF Routine cleaning and basic cleaning of fine stoneware tiles RM 753 Routine cleaning of tiles in sanitary areas RM 751 Cleaning and disinfection in sanitary areas RM 732 Removal of coating from all alkali-resistant floors (e.g. PVC) RM 752 Removal of coating from li- noleum floors RM 754 Setting the water quantity Setting the Vacuum Bar Oblique position Inclination Height Cleaning Lower the vacuum bar Shutting Down the Appliance Drain off dirt water Drain off clean water Transport Storage 14 EN- 5 DANGERRisk of injury! Set the programme selector switch to "OFF" and pull the mains plug of the charger prior to performing any work on the appliance.Remove the battery plug from machine. Drain and dispose of the dirt water and the residual fresh water.ATTENTIONRisk of damage. Do not sluice the appli-ance with water and do not use aggressive detergents. Drain off dirt water. Rinse the waste water tank with clear water. Clean the outside of the appliance with a damp cloth which has been soaked in mild detergent. Check the fluff filter, clean if required. Clean the vacuum lips and the wiping lips, check for wear and replace if required. Check the brush for wear and replace if required (see "Maintenance tasks"). Charge the battery:If the charging state of the battery is un-der 50%, charge the battery fully and without interruption.If the charging state of the battery is over 50%, only recharge the battery if the entire operation duration will be re-quired when next used. When used regularly, charge the bat-tery fully and without interruption at least once a week. Check battery poles for oxidation, brush off if necessary. Ensure that the con-nection cable sits firmly. Clean the seals between waste water tank and cover and check for tightness, replace if required. Clean sieve. Check the acid density of the cells if the batteries are not maintenance-free bat-teries. For long periods of disuse, only turn the device off when the battery is fully charged. Fully recharge the battery at least every month. Have the prescribed inspection carried out by the customer service.1Cover2Cover Open the cover. Turn cover the clockwise and remove it. Remove and clean the sieve lying be-neath it. Insert the sieve. Replace the cover and lock it by turning it anti-clockwise. Close cover.1 Wear indicator2 Vacuum lipThe vacuum lips must be replaced or reversed if they are worn down to the wear indicator. Remove the vacuum bar. Unscrew the star grips. Remove the plastic parts. Remove the vacuum lips. Insert new or reversed vacuum lips. Insert the plastic parts. Screw in and tighten the star grips. Push down the device holding the push handle so that the cleaning head is raised. Press the pedal for changing the brush-es downward beyond its resistance. Pull the device towards the back so that the disc brush becomes accessible. Place a new disc brush on the floor in front of the device. Drive the device with the raised clean-ing head over the new disc brush and lower the cleaning head.The brush locks into the drive. Drain off dirt water. Lift up the waste water tank and put it aside.Please observe the following warning notes when handling batteries: Care and maintenance Maintenance schedule After each operationWeeklyMonthlyYearly Maintenance Works Cleaning the sieveReplace or turn vacuum lipsReplacing the disk brushes

Removing the waste water tank Batteries Observe the directions on the bat-tery, in the instructions for use and in the vehicle operating instructionsWear eye protectionKeep children away from acid and batteriesDanger of explosionFire, sparks, naked flames and smoking must be strictly avoidedDanger of chemical burnsFirst aidWarning noteDisposalDo not throw the battery into the regular waste 15EN- 6 DANGER Risk of explosion. Do not place tools or the like on the battery, i.e. on the terminal poles and cell connectors. Risk of injury. Ensure that wounds never come into contact with lead. Always clean your hands after having worked with batteries. The device requires 2 batteries

Complete set (24 V/80 Ah) incl. connect- ing cable, order no. 4.035-990.0 Drain off dirt water. Lift up the waste water tank and put it aside. Pull out the battery plug. Battery 6.654-093.0 Battery 6.654-290.0 1Spacer Insert the battery into the device as shown above. Insert the spacer between the battery and the device on the side indicated in the illustration. 몇 CAUTION When the batteries are installed and re- moved, the stability of the appliance can be compromised; ensure a safe stance. Connect pole using the enclosed con- necting cable. Connect the connection cable to the free battery poles (+) and (-). ATTENTION If the polarity is reversed (positive and neg- ative terminals), the control electronics are destroyed. Pay attention to correct poles. Place the waste water tank on the appli- ance. Note: Charge the batteries before commissioning the appliance. See also "Charging the batteries". Set the programme selector switch to "OFF". Pull out the battery plug. Lift up the waste water tank and put it aside. Clamp off the minus pole of the battery. Clamp off the remaining cables from the battery. Remove the support blocks or the foam pieces. 몇 CAUTION When the batteries are installed and re- moved, the stability of the appliance can be compromised; ensure a safe stance. Remove the batteries. Dispose of the used batteries according to the local provisions. To ensure a reliable operation of the appli- ance maintenance contracts can be con- cluded with the competent Kärcher sales office. In case of danger of frost: Empty the fresh and waste water tank. Store the appliance in a frost-protected room. DANGER Risk of injury! Set the programme selector switch to "OFF" and pull the mains plug of the charger prior to performing any work on the appliance. Remove the battery plug from machine. Drain and dispose of the dirt water and the residual fresh water. Recommended batteries Order No. Volume

• Minimum volume of the battery charging room ** Minimum air flow between the battery charging room and the surroundings Insert batteries and connect Removing the batteries Maintenance contract Frost protection Faults Faults with display Display Correction ERR B Check if foreign objects block the brush; remove foreign object if required. ERR T Call customer service. LOW BAT Charging battery ERR TEMP Allow device to cool down. HANDS OFF Release the safety switch and wait until the operating hours or the battery status are displayed. Then operate the safety switch again. ERR REL Set the programme selector switch to "OFF", release the safety switch, wait for 3 seconds, restart. If the event recurs, call Customer Service. ERR PWM Call customer service. 16 EN- 7 Open the cover of the waste water tank. 1 Swimmer casing 2 Lock hook 3 Float 4 Lower part Pull out the float casing towards the top. Detach locking hooks. Clean float and bottom part. Assemble the float casing and insert it into the device. Faults without display on the console Failure Correction Appliance cannot be started Turn the program selection switch to the desired programme. Operate the safety switch. Insert battery plug. Check battery; charge it if required. Make sure that all battery terminals are connected. Insufficient water quan- tity Check fresh water level, refill tank if necessary. Increase the water volume on the regulating knob for water volume. Clean sieve. Insufficient vacuum per- formance Clean the seals between waste water tank and cover and check for tightness, replace if required. Wastewater reservoir is full; shut off the appliance and empty the wastewater reservoir Clean the fluff filter. Clean the vacuum lips on the vacuum bar, replace if required Check if the cover on the dirt water discharge hose is closed Check the setting of the vacuum bar. Check suction hose for blockages; clean if required. Check the suction hose for tightness; replace if required. Insufficient cleaning re- sult Check the brushes for wear, replace if required. Suction turbine is run- ning rough Clean the swimmer. Brush does not turn Check if foreign objects block the brush; remove foreign object if required. If over-current switch in the electronics system has been triggered, turn programme selection switch to "OFF". Afterwards, set it back to the desired programme. Vibrations during clean- ing You might need to use a softer brush. In case of faults that cannot be remedied using the table below please contact the customer service. Cleaning the floater 17EN- 8 We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Straße 28-40 71364 Winnenden (Germany) Tel.: [phone] Fax: [phone] Winnenden, 2019-03-01 Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaerch- er.com. Accessories Description Part no.: Description Disc brush, white (very soft) 4.905-024.0 For the gentle cleaning of sensitive surfaces. Disk brush, natural (white) 4.905-023.0 Made of natural fibres for spot cleaning and polishing. Disk brush, red (medium, standard) 4.905-022.0 For the use with all common cleaning tasks. Disk brush, black (hard) 4.905-025.0 For heavy soiling and for deep cleaning. For robust floorings only. Driver plate pad 4.762-533.0 For cleaning with pads. With quick change coupling and center lock. Pad, red (medium soft) 6.369-470.0 For cleaning and cleanering of all floors. Pad, green (medium hard) 6.369-472.0 For cleaning heavily soiled floors and for deep cleaning. Pad, white 6.369-469.0 For polishing floors. Pad, black (hard) 6.369-473.0 With stubborn soiling and for deep cleaning. Microfiber pad 6.905-526.0 Routine cleaning and basic cleaning of fine stoneware tiles Pad, beige (natural hair proportion) 6.371-081.0 For polishing and refreshing of hard and flexible floorings. Diamond pad, white 6.371-256.0 For coarse cleaning and upvaluation. Removes small scratches and ensures a clean, semi-gloss surface. Diamond pad, yellow 6.371-257.0 For coarse cleaning and upvaluation. Removes fine scratches and ensures an even more homogenous and shiny surface. Diamond pad, green 6.371-238.0 For polishing high-gloss coated floor coverings and for quick polishing of terraz- zo and natural stone surfaces. Suction bar, 850 mm, straight 4.777-401.0 Suction bar, 850 mm, bent 4.777-411.0 Set homebase box 4.035-406.0 Mop holder 9.753-023.0 Adapter Homebase 5.035-488.0 Double hook 6.980-077.0 Mop clip 6.980-078.0 Bottle hook 6.980-080.0 Universal hook 4.070-075.0 Technical specifications Power Nominal voltage V 24 Battery capacity Ah (5h) 80/76 Average power consump- tion W 1100 Rated power suction tur- bine W500 Rated power brush drive W 600 Vacuuming Vacuum power, air vol- ume (max.) l/s 24 Vacuuming power, nega- tive pressure (max.) kPa (mbar) 12 (120) Cleaning brushes Brush speed 1/min 155 Brush diameter mm 430 Dimensions and weights Theoretical surface cleaning performance m²/h 1600 Max. working range in- cline

Fresh/waste water tank volume l 25/25 Max. water temperature °C 60 Ambient temperature °C 5...40 Net weight (transport weight) kg 109(107

Total weight (ready to op- erate) kg 137 (135) Dimensions of battery compartment mm 350 x

Values determined as per EN 60335-2-

Sound pressure level L
