B326HKB - Monitor ACER - Free user manual and instructions

Product type	LCD Monitor
Brand	Acer
Model	B326HKB
Screen size	32 inches (81 cm)
Panel type	TFT-LCD IPS
Maximum resolution	3840 x 2160 (HDMI/DP/MiniDP) @ 60 Hz, DVI @ 30 Hz
Typical brightness	350 cd/m²
Dynamic contrast ratio	100,000,000:1 (ACM)
Viewing angle horizontal/vertical	178° / 178° (CR=10)
Response time (gray to gray)	5 ms
Video input connectors	HDMI, MHL, DVI (dual link), DP, Mini-DP (depending on model)
Built-in speakers	2 x 2 W (optional)
USB ports	USB 3.0 x 4
Power supply	100-240 V, 50/60 Hz
Power consumption (on)	44 W (typical)
Power consumption (standby)	0.39 W (typical)
Energy efficiency class	C
Dimensions (W x H x D)	737.9 x 473.4 ~ 623.4 x 266.5 mm
Net weight	15.3 kg
Adjustment	Tilt -5° to +25°, swivel -60° to +60°, height 0 to 150 mm, detachable stand
Maintenance and cleaning	Use a soft cloth and a solvent-free solution; do not spray liquid onto the screen. Avoid ammonia or alcohol.
Safety instructions	Do not expose to rain or moisture; do not press on the screen; do not open the enclosure.

Frequently Asked Questions - B326HKB ACER

What is the panel type of the Acer B326HKB monitor?

The monitor uses a color TFT-LCD IPS (In-Plane Switching) panel, offering wide viewing angles (178° horizontal and vertical).

What is the maximum supported resolution?

The maximum resolution is 3840 x 2160 pixels at 60 Hz via HDMI, DP or Mini-DP, and at 30 Hz via DVI.

What types of video connections are available?

Connections include HDMI, MHL, DVI (dual link), DisplayPort and Mini-DisplayPort, depending on the model.

Does the monitor have built-in speakers?

Yes, it has stereo speakers of 2 x 2 watts (optional depending on model).

What is the power consumption in on and standby modes?

In operation, typical power consumption is 44 W. In standby, it is about 0.39 W and in off mode 0.32 W.

How to safely clean the LCD screen?

Turn off and unplug the monitor. Spray a solvent-free cleaning solution onto a soft cloth, then gently wipe the screen. Never use products containing ammonia or alcohol, and do not spray liquid directly onto the screen.

What are the ergonomic adjustment options?

The monitor allows tilt from -5° to +25°, swivel from -60° to +60° and height adjustment from 0 to 150 mm. The stand is detachable.

What USB ports are available?

The monitor is equipped with 4 USB 3.0 ports for connecting peripherals.

Is the monitor VESA compatible?

Yes, it supports VESA DDCCI/DDC2B for Plug-and-Play and wall mounting (detachable stand).

What is the energy class of the monitor?

The energy efficiency class is C, with an estimated annual consumption of 93 kWh (for HDMI model).

USER MANUAL B326HKB ACER

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the AC power available in your location.
2. Turn off the LCD monitor and unplug the power cord.
3. Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
4. NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.
5. PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON THE LCD DISPLAY SCREEN OR CASE.
6. Acer will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
7. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.
8. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
9. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any nature.
10. Store the LCD monitor in a room with a temperature of -20° to 60° C (-4° to 140° F). Storing the LCD monitor outside this range may result in permanent damage.
11. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:
12. Monitor-to-PC signal cable is frayed or damaged.
13. Liquid spills onto the LCD monitor or the monitor is exposed to rain. The LCD monitor or case is damaged.

Attaching the monitor to the base

1. Remove the monitor from the packaging.
2. Attach the foot stand to the base. (for selected models)
3. Turn clockwise to lock. Ensure that the base is locked onto the stand. (for selected models)
4. Secure the base to the stand by turning the screw using the integrated tab or a suitable coin. (for selected models)

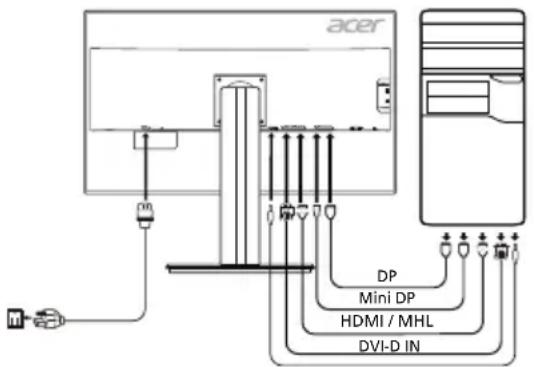

Connecting Your Monitor to a Computer

1. Turn off your monitor and unplug your computer's power cord.
2. 2-1 Connect HDMI Cable (Only HDMI/MHL-input model)

a. Make sure both the monitor and computer are powered off. b. Connect the HDMI/MHL cable to the computer.

2-2 Connect Digital Cable (Only Dual-input model)

a. Make sure both the monitor and computer are powered off. b. Connect one end of the 24-pin DVI cable to the back of the monitor and connect the other end to the computer's port.

2-3 Connect DP Cable (Only DP/Mini-DP-input model)

a. Make sure both the monitor and computer are powered off. b. Connect the DP/Mini-DP cable to the computer.

1. Connect the Audio Cable. (Only Audio-Input Model) (Optional)
2. Insert the monitor power cable into the power port at the back of the monitor.
3. Plug the power cords of your computer and your monitor into a nearby electrical outlet.
4. Select Power-off USB charge ON/OFF to enable/disable Power-off USB charge function.

External Controls

No.ItemDescription
1,2	Power button/indicator	Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode.
3 Input Input button Press to toggle input sources.
4 Volume button		Press to activate the volume sliding scale.
5 OSD function		Press to view the OSD. Press again to enter a selection in the OSD.
6	PIP Picture-in-Picture hotkey/Exit	If the OSD is active, press to exit the OSD. Once the OSD is inactive, press PIP hotkey to active the picture-in-picture function.
7 Empowering key		Press the Empowering Key to open the Acer eColor Management OSD and access the scenario modes.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. - Increase the separation between the device and receiver. - Connect the device into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/television technician for help.

CE declaration of Conformity

Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Notice:

In order to prevent damage to the monitor, do not lift the monitor by its base.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Notice:

Acer monitor is purported for video and visual display of information obtained from electronic devices.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user authority, which is granted by the Federal Communications Commission, to operate this product.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Warning Message for Magnet

Certain electronic devices such as hard drives, USB devices, tablet computers, laptops, cellphones, watches, earphones, speakers, credit cards, magnetic ID cards, etc. are sensitive to magnetic fields and may be damaged permanently or temporarily disabled if exposed to a magnetic field that is too strong. Electronic devices should not be put close to or directly on the magnetic area of monitor base.

SPECIFICATION

LCD Panel	Driving System TFT Color LCD
	Size 32"W (81 cm)
	Pixel Pitch 0.1845 mm (H) x 0.1845 mm (V)
	Brightness	350 cd/m² (Typical)
	Contrast 10000000:1 Max (ACM)
	Viewable Angle 178° (H) 178° (V) (CR=10)
	Response Time 5 ms (G) to G)
	Panel Type In-Plane Switching
	Video R, G, B Analog Interface
	H-Frequency DVI: 31 - 89 KHz, HDMI/DP/MiniDP: 31 - 135 KHz
	V-Frequency DVI/HDMI	23 - 76 Hz, DP/MiniDP: 29 - 76 Hz
Display Colors 1.078 Colors
Dot Clock DVI: 297 MHz, HDMI/DP/MiniDP: 533 MHz
Maximum Resolution DVI: 3840 x 2160 @ 30 Hz, HDMI/DP/MiniDP: 3840 x 2160 @ 60 Hz
Plug & Play VESA DDCCI/DDC2B
Energy Efficiency Class C
*Annual Energy Consumption 93 (kWh) (for HDMI-input Model)
Power Consumption	On Mode	44 W (Typical)
	Sleep Mode	0.39 W (Typical)
	Off Mode	0.32 W (Typical)
Input Connector		HDMI 19 pin (Only HDMI-Input Model) MHL (Only MHL-Input Model) DVI (Dual Link) 24 pin (Only Dual-Input Model) DP (Only DP-Input Model) Mini-DP (Only Mini-DP-Input Model)
Input Video Signal		HDMI signal (Only HDMI-Input Model) (Optional) MHL (Only MHL-Input Model) (Optional) Digital signal (Only Dual-Input Model) DP (Only DP-Input Model) (Optional) Mini-DP (Only Mini-DP-Input Model) (Optional)
Speakers		2 W x 2 (Only Audio-Input Model) (Optional)
USB		USB 3.0 x 4
Maximum Screen Size		Horizontal: 708.4 mm Vertical: 398.5 mm
Power Source		100-240 V, 50/60 Hz
Environmental Considerations		Operating Temp: 5° to 35°C Storage Temp: -20° to 60°C Operating Humidity: 10% to 85%
Dimensions		737.9 (W) x 473.4 - 623.4 (H) x 266.5 (D) mm
Weight (N.W.)		15.3 kg (net)
Mechanism Specifications		Tilt: -5° to +25° (Only at the highest point can 25 degrees of recline be offered for the angle of elevation) Swivel: -60° to +60° Height adjustment: 0 mm to 150 mm Detachable foot stand: Yes (Detachable foot stand with screw release)
External Controls	Switch/Buttons	Power Button Input Volume Contrast Brightness Focus (only Analog input model) Clock (only Analog input model) H. Position (only Analog input model) V. Position (only Analog input model) Super Sharpness 6-axis Saturate 6-axis Hue Gamma Color Temperature sRGB PIP/PBP Acer eColor Management Wide Mode (Full/Aspect) ACM On/Off Input Signal Selection DDC/CI On/Off Display Information Reset Exit
All specifications are subject to change without notice.

Find manuals and other documents for your Acer product on the official Acer support website.

*Annual energy consumption is calculated using the typical power consumption 4 hours per day, 365 days per year.

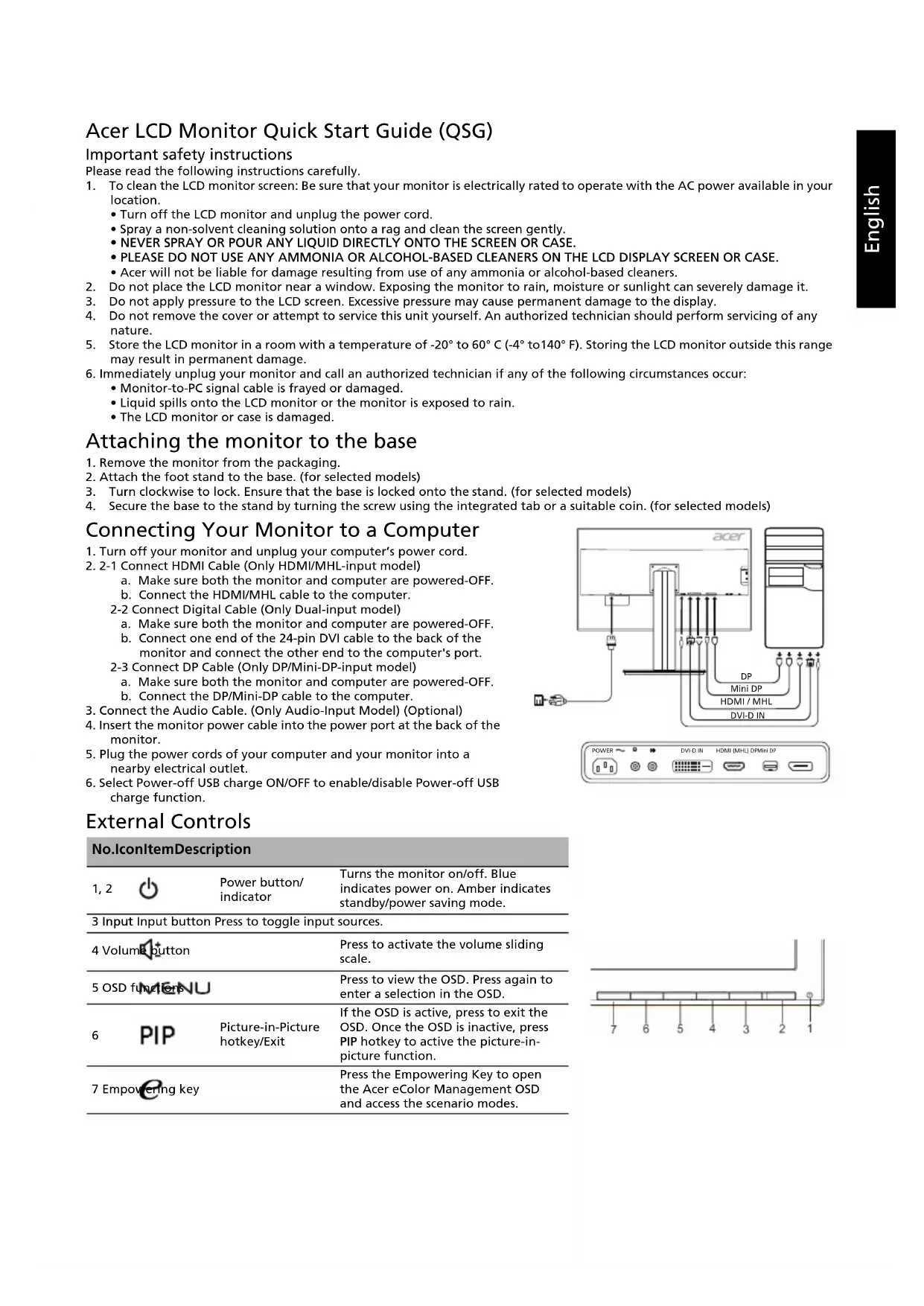

Acer LCD Monitor Quick Start Guide (QSG)

Acer LCD Monitor Quick Start Guide

Attach the monitor to the base.

1. Remove the monitor from the packaging.
2. Align the stand with the base (not for all models).
3. Turn clockwise to secure. Make sure the base is secured to the stand (not for all models).
4. Secure the base to the stand by turning the screw with a suitable screwdriver or coin (not for all models).

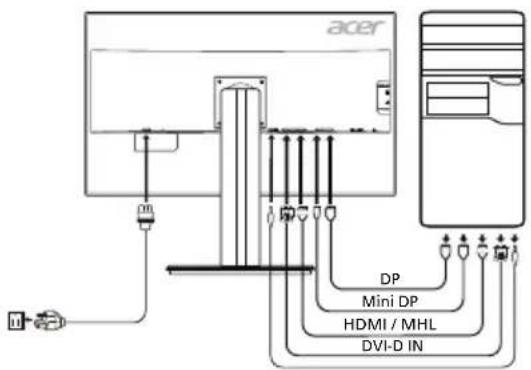

Connecting the monitor to a computer

1. Turn off the monitor and disconnect the power cord from the computer.
2. 2-1 Connect the HDMI cable (only for models with HDMI/MHL input).

a. Make sure the power to the monitor and computer is turned off. b. Connect the HDMI/MHL cable to the computer.

2-2 Connect the digital cable (only for models with DVI-D input).

a. Make sure the power to the monitor and computer is turned off. b. Connect one end of the 24-pin DVI cable to the back

panel of the monitor, and the other end to the computer's port.

2-3 Connect the DP cable (only for models with DP/Mini-DP input).

a. Make sure the power to the monitor and computer is turned off. b. Connect the DP/Mini-DP cable to the computer.

1. Connect the audio cable (only for models with audio input) (purchased separately).
2. Connect the monitor's power cable to the power port on the back panel of the device.
3. Connect the power cords of the computer and monitor to an electrical outlet.
4. Select "Charge devices via USB when power is off: On/Off" to enable/disable the function of charging devices via USB when power is off.

External controls

To avoid damaging the monitor, do not lift it by its base.

Advance cleaning for magnet

Safety instructions

Please read these instructions carefully.

1. To clean the LCD monitor screen: Do not use abrasive cleaners, as your monitor is designed for use with a protective screen coating.
2. Disconnect the LCD monitor and remove the screen cable from the connector.
3. Dampen a soft cloth with water or a mild detergent, and wipe the screen gently. Do not spray or pour any liquid directly onto the screen or the cabinet. Do not use ammonia-based or alcohol-based cleaners for cleaning the LCD screen or the cabinet.
4. Acer is not responsible for any damage resulting from the use of ammonia-based or alcohol-based cleaners.
5. Do not place the LCD monitor near a window. Exposure to direct sunlight, rain, or snow can seriously damage it.
6. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
7. Do not remove the cover and attempt to repair this device yourself. Authorized technicians must perform any servicing.
8. Store the LCD monitor in a room with a temperature ranging from -20° to 60°C (-4° to 140°F). Storing the LCD monitor outside this range may result in permanent damage.
9. Recently released from contact with your monitor and the authorized technician will be responsible for the occurrence of the following circumstances:

The signal cable from the monitor to the computer is damaged. Leaking liquid from the LCD monitor or the monitors are exposed to liquid. The LCD monitors or the housing are damaged.

Attaching the monitor to the base

1. Remove the monitor from the packaging.
2. Attach the stand to the base. (For selected models)
3. Turn the screw clockwise to secure the stand. Make sure the base is secured on the stand. (For selected models)
4. Secure the base to the stand by turning the screw with the attached handle or with a coin. (For selected models)

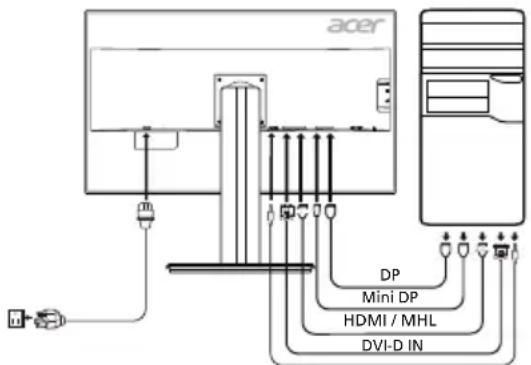

Connecting the monitor to the computer

1. Turn off the monitor and unplug the power cable from the computer or the outlet.
2. 2-1 Connect the HDMI cable (only for models with HDMI/MHL input) a. Make sure both the monitor and the computer are turned off. b. Connect the HDMI/MHL cable to the computer. 2-2 Connect the DisplayPort cable (only for models with DP input) a. Make sure both the monitor and the computer are turned off. b. Connect one end of the 24-pin DP cable to the back of the monitor, and the other end to the port on the computer. 2-3 Connect the DP cable (only for models with DP/Mini-DP input) a. Make sure both the monitor and the computer are turned off. b. Connect the DP/Mini-DP cable to the computer.
3. Connecting the audio cable. (Only for models with audio input) (Optional)
4. Place the monitor's power cable into the power port on the back of the monitor.
5. Plug the power cables of the computer and the monitor into a nearby electrical outlet.
6. Select On/Off for the charging function via USB when the power is off, to activate/deactivate this function.

Remote control

Do not place the monitor on an unstable surface.

Note: Shielded cable.

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Note: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) that are certified to comply with the Class B limits may be connected to this equipment. Operation with non-certified peripherals may cause interference to radio and television reception.

CAUTION

Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this product, which is granted by the FCC.

Operating conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Note: Canadian users

This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Important safety instructions

• 1
• Operating temperature: -20°C to 60°C (-4°F to 140°F) for LCD
• 4
• LCD display
• LCD panel

H

3. Connections (input)
4. 4

Connections

1. 2.2-1 HDMI input (HDMI/MHL)

a. b. HDMI/MHL

2-2 wuaaannnna (wauuun)

aunnnnnaeannn Class B annnnn nn Canadian ICES-003

USB jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy

Aell Eelil

a

∴ √3 = 1

1

a i aai all j S i : j S

y

∴ S ΔOBC = S ΔCOD + S ΔBOC - S ΔBOC

j 1

A

aaii iiaii aiee iiaai iiaai iiaai iiaai iiaai iiaai iiaai iiaai

15

Therefore, the area of triangle OBC equals the area of triangle COD plus the area of triangle BOC minus the area of triangle BOC.

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l.

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN55032:2012/AC:2013 Class B

EN55024:2010

EN61000-3-2:2014 Class D

EN61000-3-3:2013

LVD Directive: 2014/35/EU

EN60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013

RoHS Directive: 2011/65/EU

EN50581:2012

ErP Directive: 2009/125/EC

Regulation (EC) No. 1275/2008; EN 50564:2011

Year to begin affixing CE marking: 2017.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Acer Italy s.r.l.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Acer Italy s.r.l.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Et,

Acer Italy s.r.l.

(" x " = 0 9, a z, A Z, oublanc)

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

E.

Acer Italy s.r.l.

RU Jan / Senior Manager Acer Incorporated (Taipei, Taiwan)

Mar. 05, 2017

Data

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

En,

Acer Italy s.r.l.

RU Jan / Sr. Manager Acer Incorporated (Taipei, Taiwan)

Mar.05,2017

Date

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

E,

Acer Italy s.r.l.

Acer's ENERGY STAR qualified products save you money by reducing energy costs and helps protect the environment without sacrificing features or performance. Acer is proud to offer our customers products with the ENERGY STAR mark.

What is ENERGY STAR?

Products that are ENERGY STAR qualified use less energy and prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency. Acer is committed to offer products and services worldwide that help customers save money, conserve energy and improve the quality of our environment. The more energy we can save through energy efficiency, the more we reduce greenhouse gases and the risks of climate change. More information refers to http://www.energystar.gov.

Acer ENERGY STAR qualified products:

• Produce less heat and reduce cooling loads, and warmer climates.
• Automatically go into "display sleep" within 5 minutes of inactivity.
• Wake the monitor when it is in Active Off mode, move the mouse or press any keyboard key.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks

Say hello

to a more sustainable product

IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories. Harmful substances are used both in products and their manufacture. Products can often have a short lifespan because of poor ergonomics, low quality and when they are not able to be repaired or upgraded.

This product is a better choice. It meets all the criteria in TCO Certified, the world's most comprehensive sustainability certification for IT products. Thank you for making a responsible product choice, that help drive progress towards a more sustainable future!

Criteria in TCO Certified have a life-cycle perspective and balance environmental and social responsibility. Conformity is verified by independent and approved verifiers that specialize in IT products, social responsibility or other sustainability issues. Verification is done both before and after the certificate is issued, covering the entire validity period. The process also includes ensuring that corrective actions are implemented in all cases of factory non-conformities. And last but not least, to make sure that the certification and independent verification is accurate, both TCO Certified and the verifiers are reviewed regularly.

Want to know more?

Read information about TCO Certified, full criteria documents, news and updates at tcocertified.com. On the website you'll also find our Product Finder, which presents a complete, searchable listing of certified products.

For customers who own the EPEAT registered-products', Acer offers the following services2:

1. The availability of at least a 3 year warranty
2. For the product life extension 3 , through the use of compatible parts of after-market, or refurbished with equal or higher specification, we offer upgrade, repair or replacement parts up to for 5 years after end of production.
3. Product take-back program of Notebooks, Desktops and Monitors
4. Battery take-back program of Battery Pack of Notebooks

For more details of above services, please visit local Acer website

Message related to battery replacement

For customers who own EPEAT-registered products, your product may contain batteries that are replaceable once they reach the end of their useful life.

For products that ship with accessories such as remote controls, keyboards, mice, etc., containing alkaline batteries (AA, AAA, etc.), please refer to your product user guide for instructions on how to replace those batteries. Alkaline replacement batteries are available off-the-shelf at any retail store that carries standard alkaline batteries. Please dispose of spent batteries in accordance with your local waste disposal laws. For main product rechargeable batteries, such as those powering notebook PCs, tablets, etc., please refer to your local Acer customer support website or contact your local representative for detailed information on battery replacement services.

Regulatory Compliance

R43002 RoHS

Barcode

MC.T1N11.004

MC.T1N11.004

acer

barcode

MC.T1N11.004

Model No.: B326HK

Part No.: MC.T1N11.004
