F230 - Fan BONECO - Free user manual and instructions

Brand	Boneco
Model	F230
Product type	Column fan
Dimensions (W × D × H)	375 × 375 × 1210 mm
Net weight	8.9 kg
Supply voltage	220-240 V ~ 50 Hz
Power consumption (max)	33 W
Noise level (max)	58 dBA
Airflow	1260 m³/h
Air speed	3.9 m/s
Number of speeds	4 (levels I to IV)
Tilt	270° manual
Adjustable height	Yes, up to 2 support columns
Oscillation	No
Housing material	Plastic
Blade type	Special design for homogeneous airflow
Housing cleaning	Dry or damp cloth with mild dish soap
Blade cleaning	Remove front grille, wet cleaning
Safety instructions	Unplug before cleaning; do not use alcohol or harsh products
Included accessories	2 support columns, base, power cord, user manual
Recommended use	Air distribution for air conditioning, cooling

Frequently Asked Questions - F230 BONECO

How to adjust the fan speed?

Use the power regulator on the ventilation unit. It allows you to choose from 4 levels: 0 (off), I, II, III, IV (maximum power).

How to tilt the fan?

The ventilation unit is manually tiltable over 270 degrees. It does not perform a full 360-degree rotation. Tilt it in the desired direction to direct the airflow.

How to clean the fan blades?

First unplug the device. Tilt the unit upward and loosen the safety screw. Remove the front grille by turning it counterclockwise. Loosen the center screw and remove the blades. Clean them with a damp cloth (no alcohol or harsh products). Reassemble in reverse order.

How to adjust the fan height?

The height is adjusted by adding or removing support columns. Press the unlock button to separate them. Use a maximum of 2 support columns for safety reasons.

Does the fan oscillate automatically?

No, the BONECO F230 fan does not oscillate. Orientation is done manually by tilting the ventilation unit.

Can the fan be used without a support column?

Yes, the ventilation unit can be used with or without a support column, or with a single column. This allows customization according to your needs.

What is the power consumption of the fan?

The maximum power consumption is 33 Watts at the highest power level. This allows energy-efficient operation.

What is the noise level?

The maximum noise level is 58 dBA, which corresponds to moderate noise, comparable to that of a standard column fan.

How to disassemble the fan for storage?

Unplug the device. Press the unlock button on the upper column and remove the ventilation unit. Then unlock and separate the support columns. Store everything in the original packaging in a dry place.

Can the fan be used with an air conditioner?

Yes, the BONECO F230 is designed to distribute air from an air conditioner throughout the room, ensuring a uniform temperature. Direct the airflow towards the air conditioning unit or circulate the air.

USER MANUAL F230 BONECO

Close-up of a black circular fan with perforated grille, next to a white cylindrical tube (no text or symbols visible)

READ AND SAVE THESE INSTRUCTIONS

DE Gebrauchsanweisung 3
EN Instructions for use 13
FR Mode d'emploi 23
IT Istruzioni per l'uso 33
NL Gebruiksaanwijzing 43
ES Instrucciones de uso 53
PT Instruções de uso 63
HU Használati útmutató 73
PL Instrukcja obsługi 83
SE Bruksanvisning 93
FL Käyttöohjeet 103
DK Brugsanvisning 113

NO Bruksanvisning 123
LV Lietošanas instrukcija 133
LT Naudojimo instrukcijos 143
EE Kasutusjuhend 153
CZ Návod k použití 163
SK Návod na používanie 173
SL Navodila za uporabo 183
HR Upute za uporabu 193
GR Οδηγίες χρήσης 203
RU Руководство по эксплуатации 213
JP 取扱説明書 223
KR 사용 설명서 233

Simple line drawing of a document with an exclamation mark and speech bubble (no text or symbols)

Close-up of a cylindrical mechanical component with black and red adjustment knobs, no visible text or symbols

270°

Three identical circular objects on stands with red arrows indicating direction, no text or symbols present

Modern living room interior with blue sofas, decorative swirls, and hanging lamps (no text or symbols)

FRISCHLUFT

Modern interior design with a window, decorative floor, and wall-mounted display (no text or symbols visible)

MEHRERE STOCKWERKE

Interior scene with wooden stairs and a modern glass stand, no visible text or symbols

HOHE RÄUME

Interior view of a modern living room with large windows and abstract curved lines, no visible text or symbols

REINIGUNG

SICHERHEITSHINWEISE

Close-up of a white cylindrical object with a black cap and a red circle highlighting a small circular feature (no text or symbols)

Close-up of a black circular fan with a red curved arrow indicating rotation or motion (no text or symbols visible)

Close-up of a black propeller with red accent, no visible text or symbols

Close-up of a curved surface with a red circle highlighting a small circular feature (no text or symbols)

Overview and part names 17

Start-up 18

Handling 19

Handling 19

Alignment 19

Height adjustment 19

Positioning tips 20

Notes on output 20

Air-conditioning System (AC) 20

Fresh air 20

Multiple floors 20

Rooms with high ceilings 20

Cleaning 21

Safety instructions 21

Cleaning the housing 21

Disassembly and storage 22

TECHNICAL DATA

Technical data*

Model BONECO F220 – BONECO F230
Power supply voltage 220–240V ~ 50Hz
Power consumption 33 W (max. level)
Operation noise level 58 dBA (max. level)
Air flow 1260 m	^3/h
Air-speed 3.9 m/sec
Dimensions L×W×H	BONECO F220 375 × 375 × 850 mm (with one connector piece)
	BONECO F230 375 × 375 × 1210 mm (with two connector pieces)
Weight (empty)	BONECO F220 6,7kg
	BONECO F230 8,9kg

* Subject to change

INTRODUCTION

DEAR CUSTOMER,

Congratulations on your purchase of the BONECO Air Shower Fan. These high-performance units seamlessly adapt to your needs. When set to the lower output levels, they provide a pleasant breeze in your home on hot days. On the other hand, if you use an air-conditioning system, the unit's powerful fan distributes the air throughout the room ensuring a uniform temperature.

In developing the BONECO Air Shower Fan, low maintenance and durability were of primary importance. The fan blade's one-of-a-kind shape creates a uniform air flow using minimal energy, which is also good for the environment. The elegant design harmonizes with any decorative style so that you can use your BONECO Air Shower Fan throughout the entire year.

We hope you enjoy your new BONECO Air Shower Fan!

ITEMS INCLUDED

BONECO fan unit

Simple line drawing of a cylindrical object with a protruding shaft (no text or symbols)

Removable connector piece (F220: 1×/ F230: 2×)

Base with power cord

Manual Safety instructions

Simple line drawing of a document with an exclamation mark and speech bubble (no text or symbols)

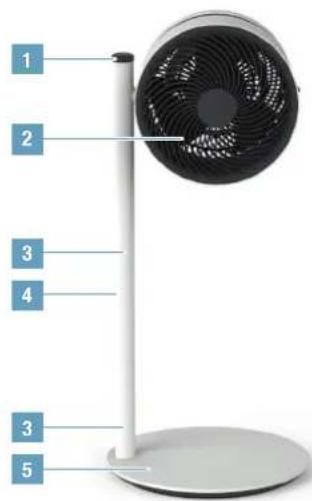

OVERVIEW AND PART NAMES

1 2 3 4 3 5

BONECO F220
Air Shower Fan

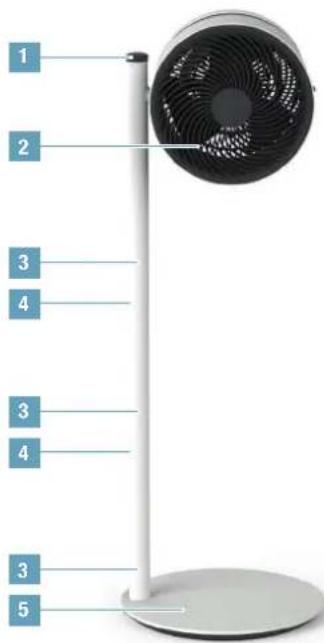

1 2 3 4 3 4 3 5

BONECO F230
Air Shower Fan

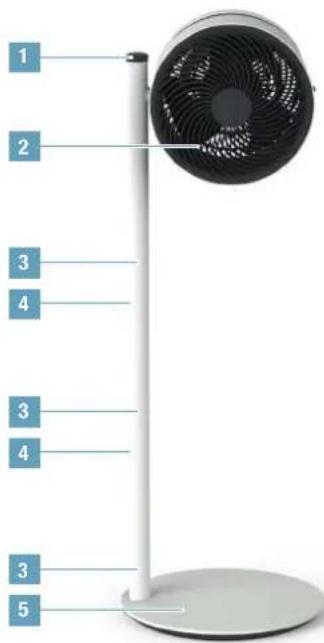

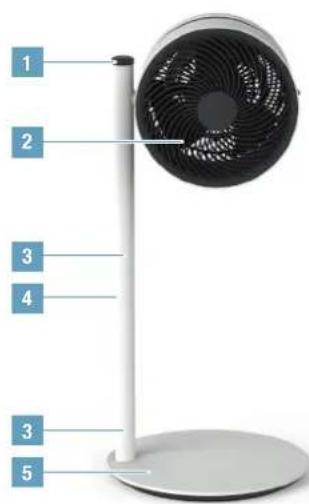

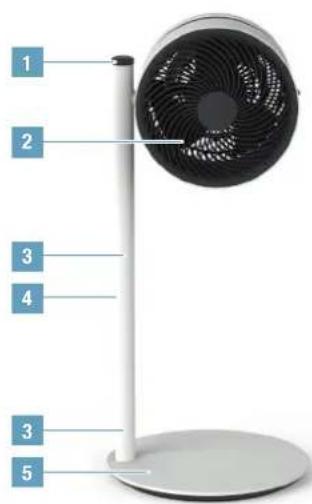

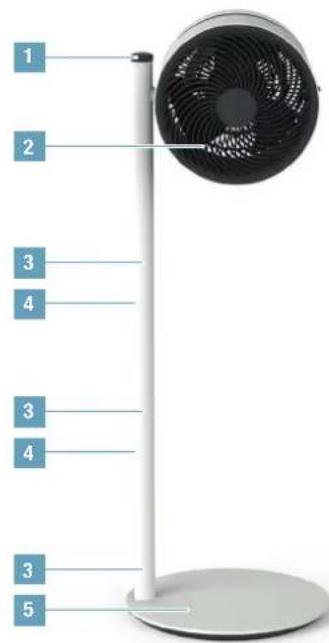

1 Output regulator
2 Fan unit
3 Button for unlocking
4 Removable connector piece
5 Base with power cord

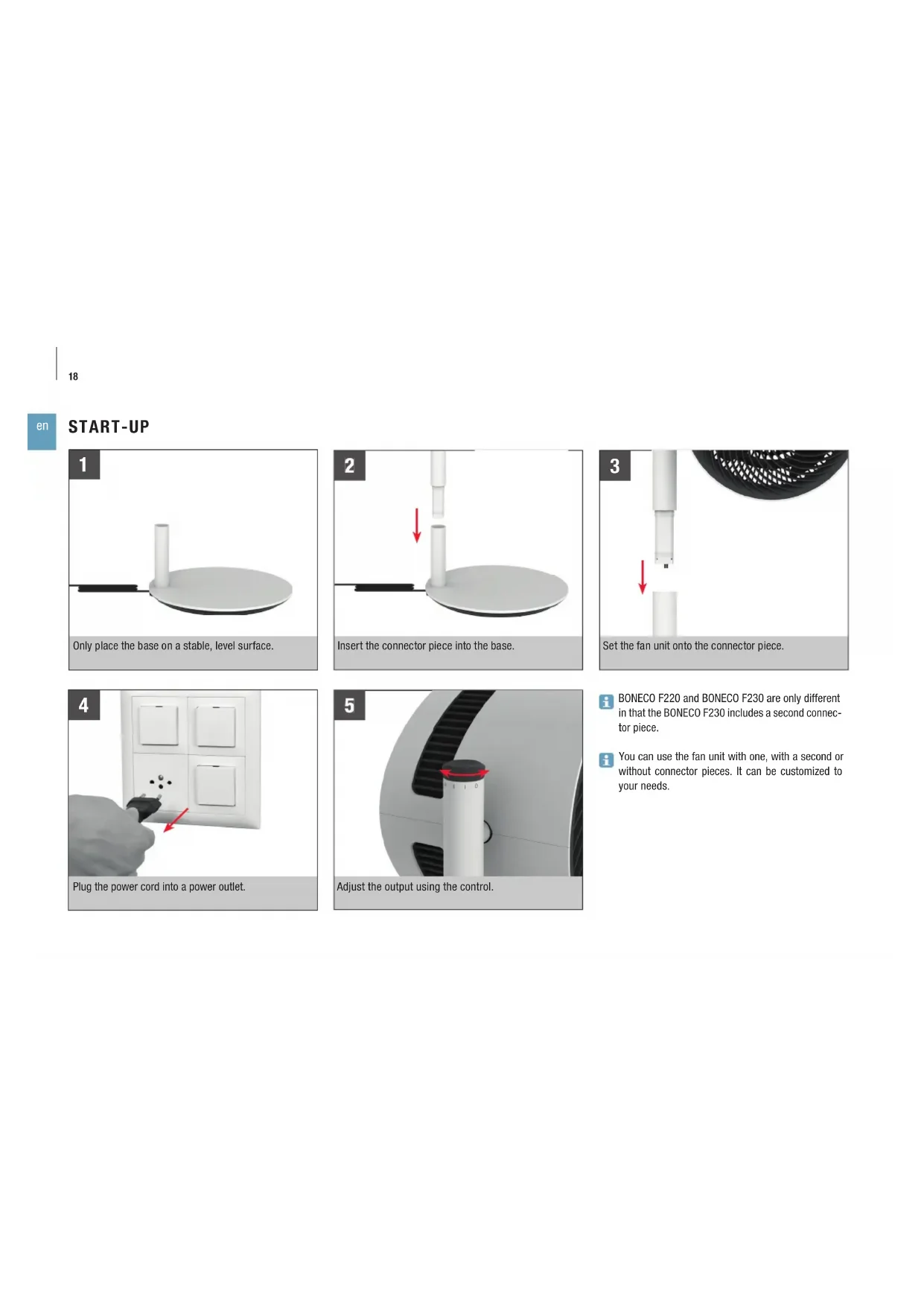

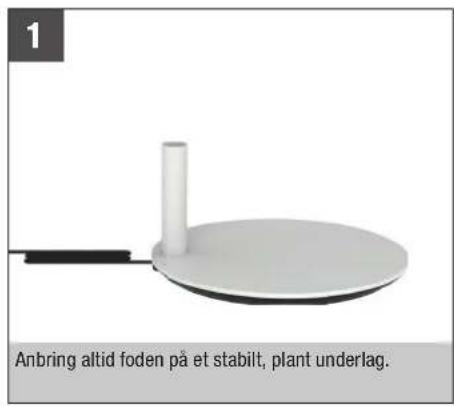

START-UP

Top-down view of a circular electronic device with a cylindrical port and base, labeled as 'Only place the base on a stable, level surface.'

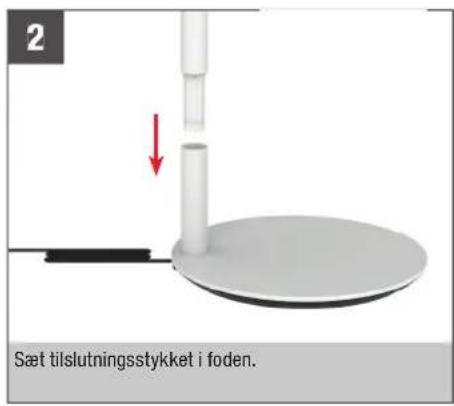

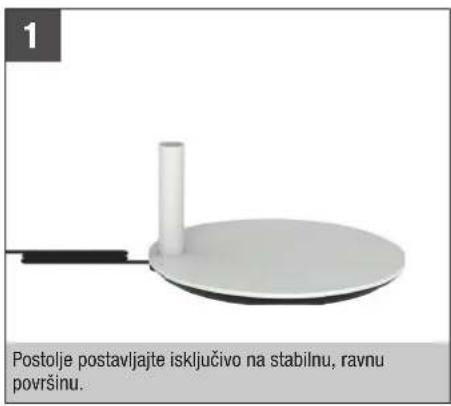

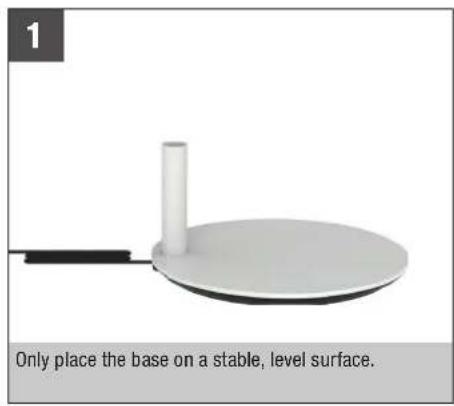

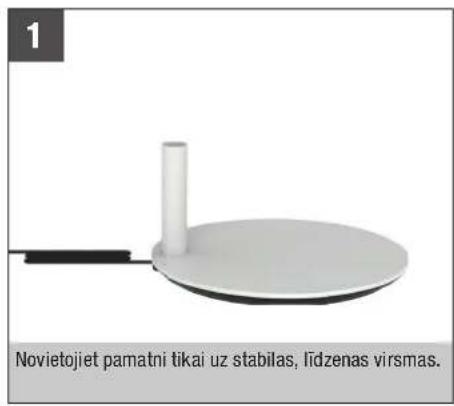

2 Insert the connector piece into the base.

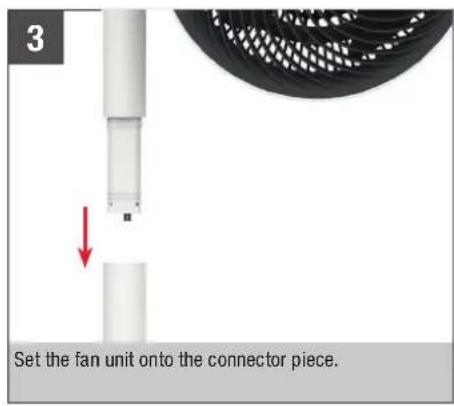

3 Set the fan unit onto the connector piece.

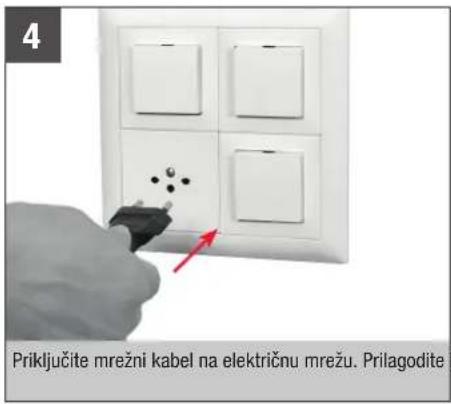

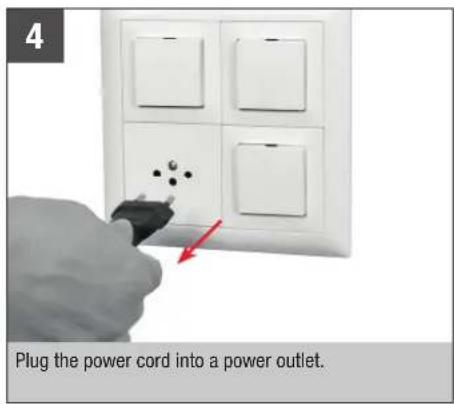

Plug the power cord into a power outlet.

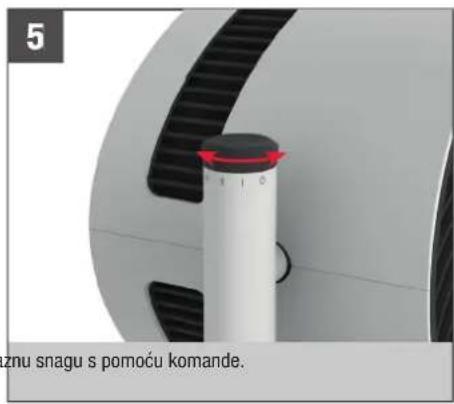

5 Adjust the output using the control.

i BONECO F220 and BONECO F230 are only different in that the BONECO F230 includes a second connector piece.
You can use the fan unit with one, with a second or without connector pieces. It can be customized to your needs.

HANDLING

HANDLING

All BONECO Air Shower fans are designed for easy handling. The output is adjusted in four levels using a single control: 0 > I > II > III > IV

ALIGNMENT

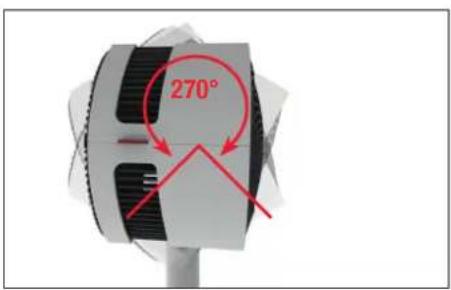

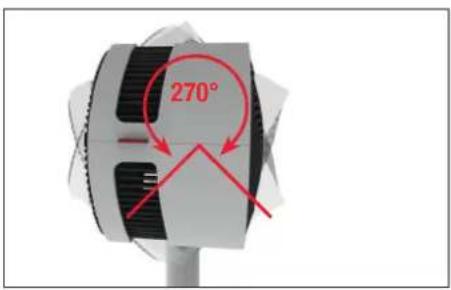

The fan unit can be manually tilted 270 degrees.

The fan unit does not rotate a full 360 degrees.

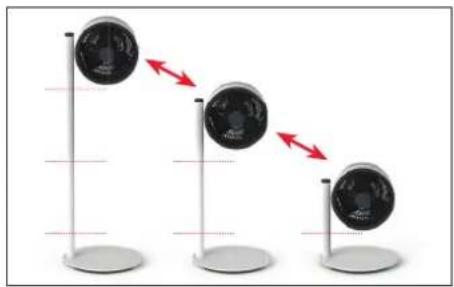

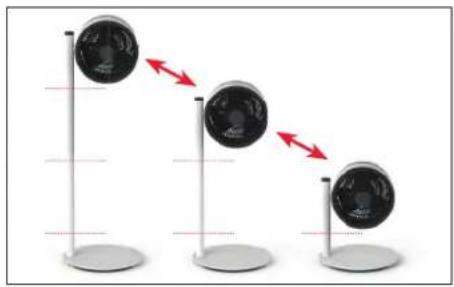

HEIGHT ADJUSTMENT

All electrical components are completely integrated in the connector. Therefore, you can adjust the height at any time by adding connector pieces or by pulling them off after pressing down the knob to unlock them.

For safety reasons, a maximum of two connector pieces can be used at once.

Close-up of a white cylindrical device with red lid and black side stripes, mounted on a curved surface (no visible text or symbols)

270°

Three identical circular objects on vertical stands with red arrows indicating direction, no text or symbols present.

POSITIONING TIPS

NOTES ON OUTPUT

All BONECO Air Shower fans are equipped with a high-performance fan that can move large amounts of air. Making use of this feature: Guide the air in a specific direction to achieve an uniform room climate. The following examples illustrate how to do this.

AIR-CONDITIONING SYSTEM (AC)

An air conditioner distributes temperature in various ways. Use the BONECO Air Shower Fan to move the warm air towards the air-conditioning system. This can be done directly or indirectly via air circulation, as shown in this image.

Modern living room interior with blue furniture, decorative swirls, and hanging lamps (no text or symbols)

FRESH AIR

The BONECO Air Shower Fan helps you achieve better ventilation indoors. If cross-ventilation is not created, guide fresh air directly from the window into the desired room.

Interior view of a modern room with a window, ceiling-mounted display stand, and decorative floor art (no visible text or symbols)

MULTIPLE FLOORS

In the summer, it can become hot and muggy on the upper floors. The powerful BONECO Air Shower Fan directs the cool air from the ground floor to multiple floors achieving a uniform temperature.

Interior scene with wooden stairs and a small potted plant, no visible text or symbols

ROOMS WITH HIGH CEILINGS

In air-conditioned rooms with high ceilings, the cold air sinks to the floor while the warm air rises to the ceiling. Turn the BONECO Fan straight up for an air-shower sensation.

Modern living room interior with sofa, chairs, and large windows (no visible text or symbols)

CLEANING

SAFETY INSTRUCTIONS

Always unplug the BONECO Air Shower Fan before you begin cleaning! Failure to do so can result in electric shock and fatal injury!

Do not use alcohol or corrosive cleaning agents for cleaning.

CLEANING THE HOUSING

All BONECO Air Shower fans are designed for low-maintenance operation, even after years of use. In most cases, a dry cloth can be used for cleaning.

If stubborn dirt is present, clean the housing using a damp cloth. Add a small amount of dishwashing detergent to the water.

CLEANING THE FAN BLADES

1. Tilt the fan unit upwards and loosen the safety screw.

Close-up of a white cylindrical object with a red circle highlighting a small circular feature (no text or symbols visible)

1. Remove the front grill by turning it counterclockwise slightly.

Close-up of a black circular fan with a red curved arrow indicating rotation, mounted on a white stand (no text or symbols visible)

1. Loosen the safety screw in the middle clockwise.

Close-up of a black propeller with red motion indicator (no text or symbols)

1. Remove the fan blades and clean them with a damp cloth.

2. Put the unit back together by following the steps in reverse order.

3. Attach the front grill with the safety screw. When doing so, pay attention to the position of the screw on the front grill.

Close-up of a curved surface with a red circle highlighting a small circular feature (no text or symbols)

DISASSEMBLY AND STORAGE

Please note that the removable connector pieces are detachable. When moving the unit to a new location, disassemble the unit into the detachable parts, transport the individual parts to the desired location, and then reassemble.
Storage is easiest and most efficient when you use the original packaging. Store the BONECO Air Shower Fan in a dry place.

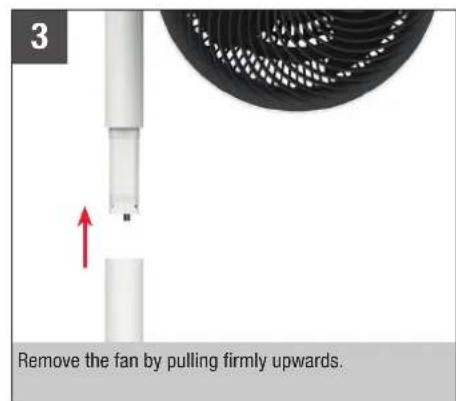

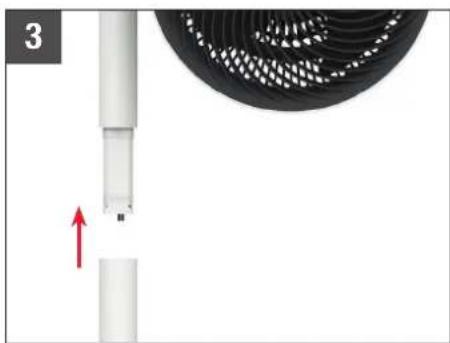

3 Remove the fan by pulling firmly upwards.

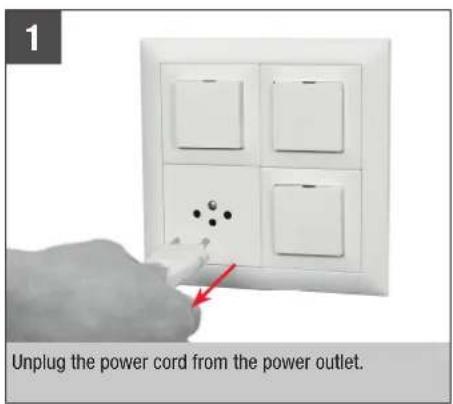

1 Unplug the power cord from the power outlet.

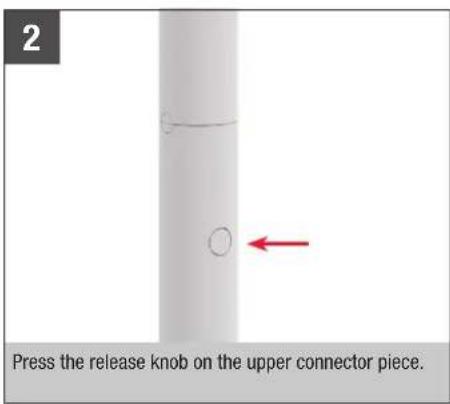

4 Press the release knob on the upper connector piece.

2 Press the release knob on the upper connector piece.

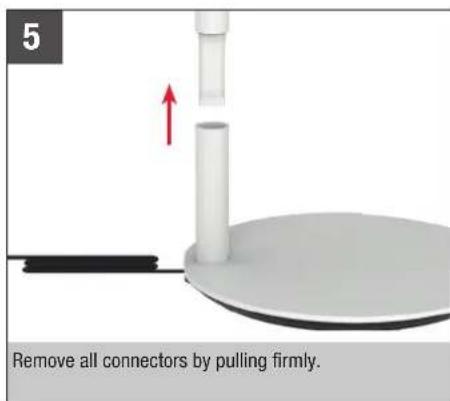

5 Remove all connectors by pulling firmly.
