Product type	Pedestal fan
Brand	Boneco
Model	F220
Dimensions (L × W × H)	375 × 375 × 850 mm
Weight	6.7 kg
Power supply	220-240 V ~ 50 Hz
Power consumption	33 W (max)
Maximum noise level	58 dBA
Maximum airflow rate	1260 m³/h
Maximum air velocity	3.9 m/s
Number of speeds	4 (0, I, II, III, IV)
Orientation	Manually tiltable by 270°
Adjustable height	Yes, by adding or removing support columns (max 2)
Housing material	Plastic (according to manual)
Blade type	Removable blades for cleaning
Main functions	Ventilation, air circulation, cooling
Maintenance and cleaning	Dry or damp cloth; disassemble blades for cleaning
Safety	Unplug before cleaning; do not use alcohol or harsh chemicals
Spare parts available	Support columns, ventilation unit, grille, blades
Repairability	Possibility to change blades and grilles; BONECO assistance
Warranty	Consult the retailer or BONECO

Frequently Asked Questions - F220 BONECO

How to adjust the speed of the Boneco F220 fan?

Use the power regulator to switch between levels 0 (off), I, II, III and IV. Turn the knob to select the desired speed.

Can the fan be tilted?

Yes, the ventilation unit can be manually tilted by 270 degrees. Note that it does not perform a full 360-degree rotation.

How to adjust the height of the fan?

The height is adjusted by adding or removing support columns. Pull firmly on the column to remove it. Use a maximum of two support columns for safety reasons.

How to clean the fan blades?

Unplug the appliance. Tilt the unit upward, loosen the safety screw and remove the front grille. Loosen the center screw, remove the blades and clean them with a damp cloth. Reassemble in reverse order.

Can the fan be used without a support column?

Yes, the ventilation unit can be used without a support column, or with one or two columns depending on your needs.

What is the maximum noise level of the Boneco F220?

The maximum noise level is 58 dBA, which corresponds to relatively quiet operation for a fan of this power.

How to store the fan in winter?

Disassemble the removable parts (ventilation unit, columns) and store them in the original packaging if possible. Store the device in a dry place.

What to do if the fan no longer works?

First check that the power cord is properly plugged in and that the outlet works. If the problem persists, contact BONECO customer service or an authorized repairer.

Can the fan be used with an external speed controller?

No, only the built-in regulator is intended. Using an external speed controller could damage the motor.

What is the maximum power consumption?

The maximum power consumption is 33 Watts (at level IV). This makes it energy efficient.

USER MANUAL F220 BONECO

READ AND SAVE THESE INSTRUCTIONS

Instructions for use 13

Mode d'emploi 23

FRISCHLUFT

HOHE RÄUME

REINIGUNG

SICHERHEITSHINWEISE

Overview and part names 17

Start-up 18

Handling 19

Handling 19

Alignment 19

Height adjustment 19

Positioning tips 20

Notes on output 20

Air-conditioning System (AC) 20

Fresh air 20

Multiple floors 20

Rooms with high ceilings 20

Cleaning 21

Safety instructions 21

Cleaning the housing 21

Disassembly and storage 22

TECHNICAL DATA

Technical data*

Model BONECO F220 – BONECO F230
Power supply voltage 220–240V ~ 50Hz
Power consumption 33 W (max. level)
Operation noise level 58 dBA (max. level)
Air flow 1260 m	3/h
Air-speed 3.9 m/sec
Dimensions L×W×H	BONECO F220 375 × 375 × 850 mm (with one connector piece)
	BONECO F230 375 × 375 × 1210 mm (with two connector pieces)
Weight (empty)	BONECO F220 6,7 kg
	BONECO F230 8,9kg

* Subject to change

INTRODUCTION

DEAR CUSTOMER,

Congratulations on your purchase of the BONECO Air Shower Fan. These high-performance units seamlessly adapt to your needs. When set to the lower output levels, they provide a pleasant breeze in your home on hot days. On the other hand, if you use an air-conditioning system, the unit's powerful fan distributes the air throughout the room ensuring a uniform temperature.

In developing the BONECO Air Shower Fan, low maintenance and durability were of primary importance. The fan blade's one-of-a-kind shape creates a uniform air flow using minimal energy, which is also good for the environment. The elegant design harmonizes with any decorative style so that you can use your BONECO Air Shower Fan throughout the entire year.

We hope you enjoy your new BONECO Air Shower Fan!

ITEMS INCLUDED

BONECO fan unit

Removable connector piece (F220: 1×/ F230: 2×)

Base with power cord

Manual Safety instructions

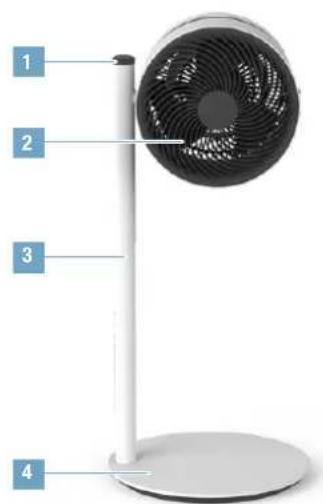

OVERVIEW AND PART NAMES

BONECO F220
Air Shower Fan

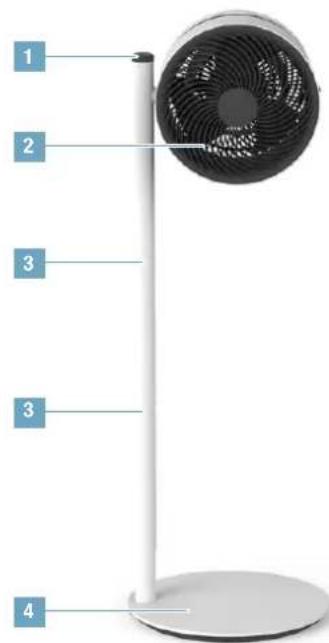

BONECO F230
Air Shower Fan

1 Output regulator
2 Fan unit
3 Removable connector piece
4 Base with power cord

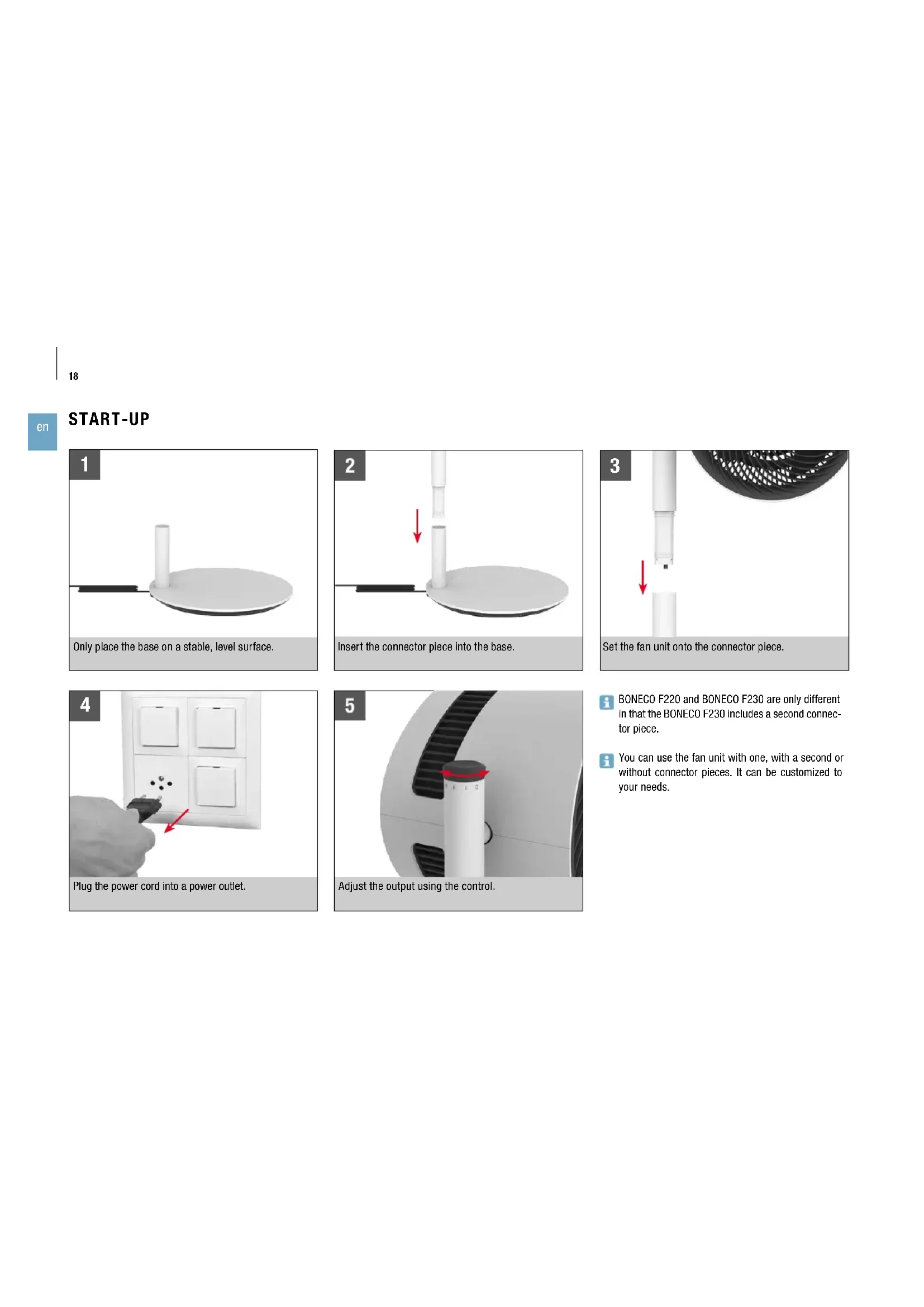

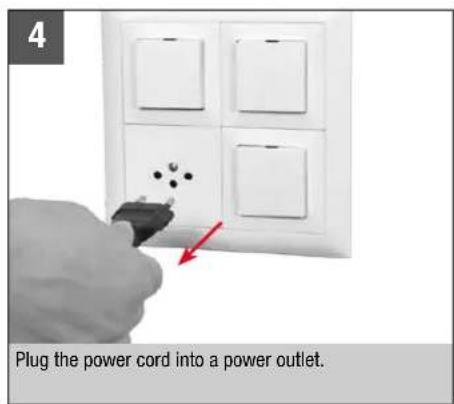

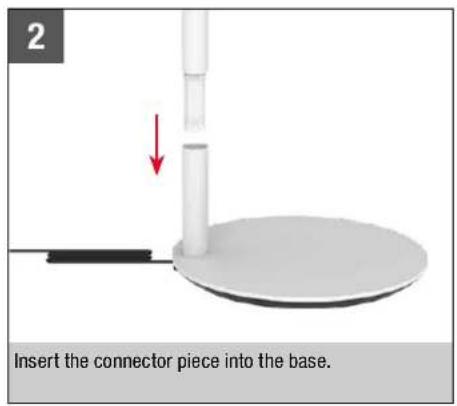

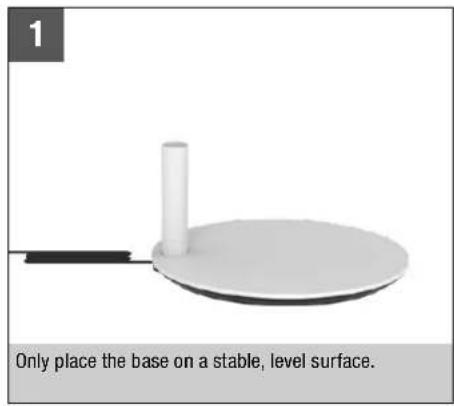

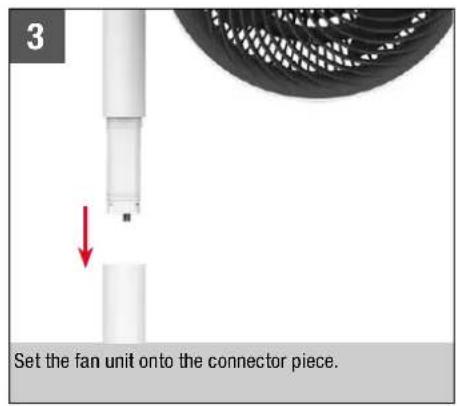

START-UP

BONECO F220 and BONECO F230 are only different in that the BONECO F230 includes a second connector piece.
You can use the fan unit with one, with a second or without connector pieces. It can be customized to your needs.

HANDLING

HANDLING

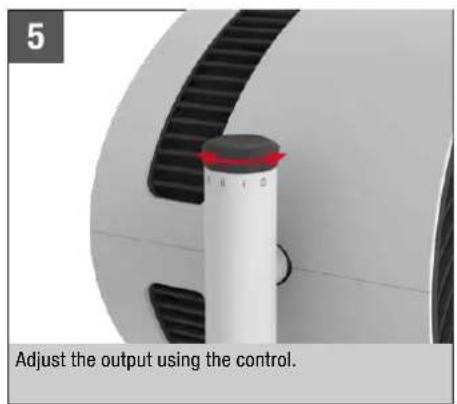

All BONECO Air Shower fans are designed for easy handling. The output is adjusted in four levels using a single control: 0 > I > II > III > IV

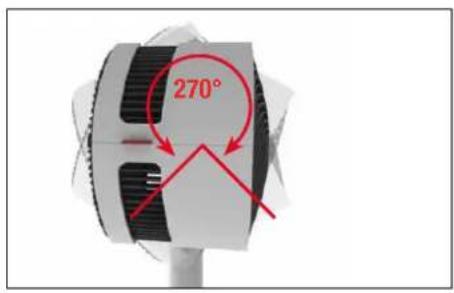

ALIGNMENT

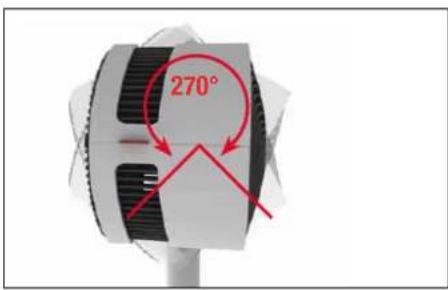

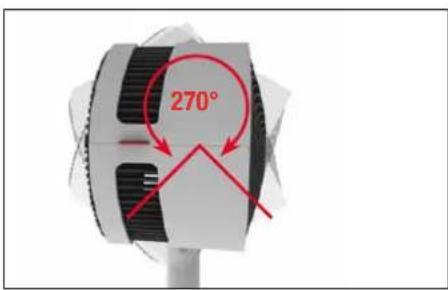

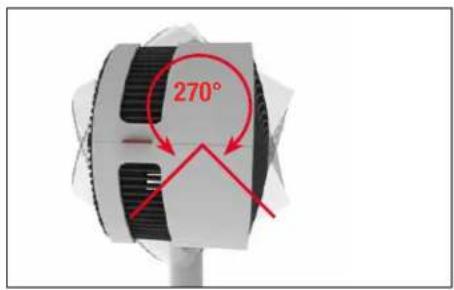

The fan unit can be manually tilted 270 degrees.

The fan unit does not rotate a full 360 degrees.

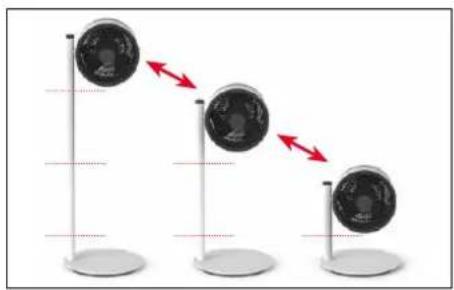

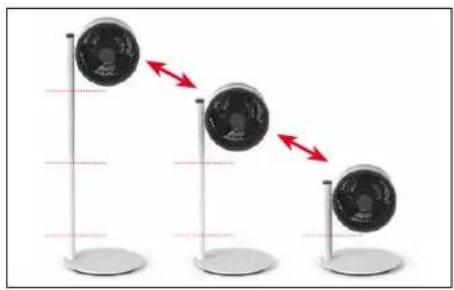

HEIGHT ADJUSTMENT

All electrical components are completely integrated in the connector. Therefore, you can adjust the height at any time by adding connector pieces or by pulling sharply to remove them.

For safety reasons, a maximum of two connector pieces can be used at once.

POSITIONING TIPS

NOTES ON OUTPUT

All BONECO Air Shower fans are equipped with a high-performance fan that can move large amounts of air. Making use of this feature: Guide the air in a specific direction to achieve an uniform room climate. The following examples illustrate how to do this.

AIR-CONDITIONING SYSTEM (AC)

An air conditioner distributes temperature in various ways. Use the BONECO Air Shower Fan to move the warm air towards the air-conditioning system. This can be done directly or indirectly via air circulation, as shown in this image.

FRESH AIR

The BONECO Air Shower Fan helps you achieve better ventilation indoors. If cross-ventilation is not created, guide fresh air directly from the window into the desired room.

MULTIPLE FLOORS

In the summer, it can become hot and muggy on the upper floors. The powerful BONECO Air Shower Fan directs the cool air from the ground floor to multiple floors achieving a uniform temperature.

ROOMS WITH HIGH CEILINGS

In air-conditioned rooms with high ceilings, the cold air sinks to the floor while the warm air rises to the ceiling. Turn the BONECO Fan straight up for an air-shower sensation.

CLEANING

SAFETY INSTRUCTIONS

Always unplug the BONECO Air Shower Fan before you begin cleaning! Failure to do so can result in electric shock and fatal injury!
Do not use alcohol or corrosive cleaning agents for cleaning.

CLEANING THE HOUSING

All BONECO Air Shower fans are designed for low-maintenance operation, even after years of use. In most cases, a dry cloth can be used for cleaning.

If stubborn dirt is present, clean the housing using a damp cloth. Add a small amount of dishwashing detergent to the water.

CLEANING THE FAN BLADES

1. Tilt the fan unit upwards and loosen the safety screw.

1. Remove the front grill by turning it counterclockwise slightly.

1. Loosen the safety screw in the middle clockwise.

1. Remove the fan blades and clean them with a damp cloth.
2. Put the unit back together by following the steps in reverse order.
3. Attach the front grill with the safety screw. When doing so, pay attention to the position of the screw on the front grill.

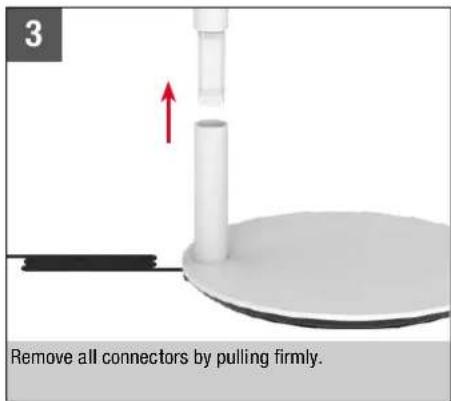

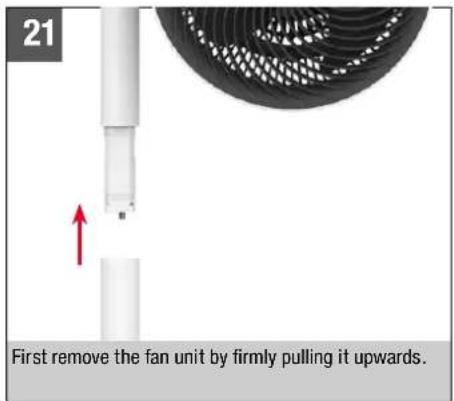

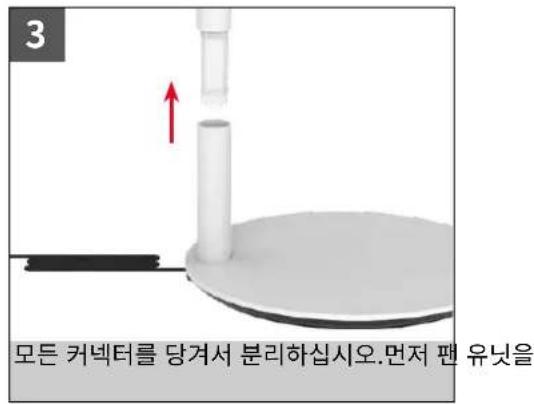

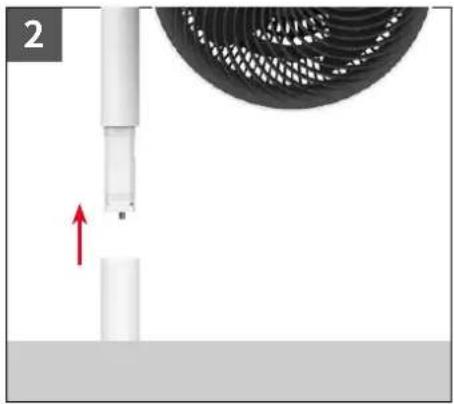

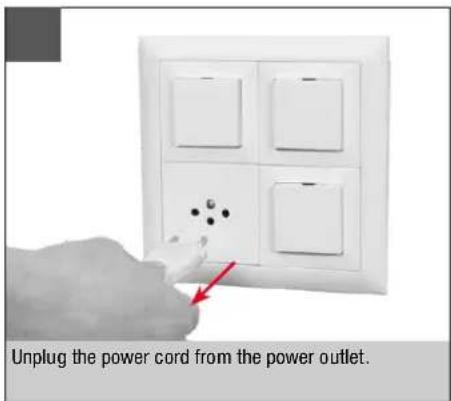

DISASSEMBLY AND STORAGE

Please note that the removable connector pieces are detachable. When moving the unit to a new location, disassemble the unit into the detachable parts, transport the individual parts to the desired location, and then reassemble.

Storage is easiest and most efficient when you use the original packaging. Store the BONECO Air Shower Fan in a dry place.

MODE D'EMPLOI

BONECO F220/F230

SOMMAIRE

Unité de ventilation BONECO

CONSEILS POUR LE POSITIONNEMENT

CONSIGNES RELATIVES À LA PUISSANCE

AIR FRAIS

PLUSIEURS ÉTAGES

NETTOYAGE

CONSIGNES DE SÉCURITÉ

DÉMONTAGE ET CONSERVATION

PANORAMICA E NOMI DELLE PARTI

Ventilatore BONECO F220 Air Shower

Ventilatore BONECO F230 Air Shower

ARIA FRESCA

PIANI MULTIPLI

PULIZIA

ISTRUZIONI PER LA SICUREZZA

BONECO-ventilatoreenheid

Voet met netkabel

OVERZICHT EN BENAMING VAN DE ONDERDELEN

BONECO F220
Air Shower-ventilator

BONECO F230
Air Shower-ventilator

PLAATSINGSTIPS

PRESTATIES

FRISSE LUCHT

MEERDERE VERDIEPINGEN

RUIMTEN MET HOGE PLAFONDS

REINIGING

Cabezal de rutina BONECO

AIRE FRESCO

VARIOS PISOS

LIMPIEZA

DESMONTAJE Y ALMACENAMIENTO

Unidade de ventilador BONECO

Conector amovível (F220: 1×/F230: 2×)

VISÃO GERAL E NOMES DE COMPONENTES

Ventilador de jato de ar BONECO F220

Ventilador de jato de ar BONECO F230

AR FRESCO

VÁRIOS PISOS

DIVISÕES COM PÉ DIREITO ALTO

LIMPEZA

INSTRUÇÕES DE SEGURANÇA

ÁTTEKINTÉS ÉS AZ ALKATRÉSZEK ELNEVEZÉSE

BONECO F220
Air Shower ventilátor

BONECO F230
Air Shower ventilátor

ELHELYEZÉSI TIPPEK

A KÉSZÜLÉK TELJESÍTMÉNYÉRŐL

FRISS LEVEGŐ

TÖBBSZINTES ÉPÜLETEK

NAGY BELMAGASSÁGÚ HELYISÉGEK

TISZTÍTÁS

BIZTONSÁGI ELŐÍRÁSOK

Wentylator BONECO

OMÓWIENIE I NAZWY CZĘŚCI

Wentylator BONECO F220 Air Shower

Wentylator BONECO F230 Air Shower

PORADY NA TEMAT POZYCJONOWANIA

UWAGI DOTYCZĄCE MOCY

ŚWIEŻE POWIETRZE

KILKA PIETER

WYSOKIE POMIESZCZENIA

CZYSZCZENIE

POLECENIA DOTYCZĄCE BEZPIECZEŃSTWA

DEMONTAŻ I PRZECHOWYWANIE

INNEHÅLLSFÖRTECKNING

Tekniska data 95

Avtagbart mellanstycke (F220: 1×/ F230: 2×)

Bas med nätkabel

ÖVERSIKT OCH DELARNAS NAMN

TIPS FÖR PLACERING

ANMÄRKNINGAR BETRÄFFANDE UTEFFEKT LUFTKONDITIONERINGSSYSTEM (AC)

FRISK LUFT

FLERA VÅNINGAR

UTRYMMEN MED HÖG TAKHÖJD

RENGÖRING

SÄKERHETSINSTRUKTIONER

ISÄRTAGNING OCH FÖRVARING

YLEISKATSAUS JA OSIEN NIMET

BONECO F220
Air Shower -tuuletin

BONECO F230
Air Shower -tuuletin

RAITIS ILMA

USEAMMAT KERROKSET

KORKEAKATTOISET HUONEET

PUHDISTUS

TURVALLISUUSOHJEET

PURKAMINEN JA VARASTOINTI

OVERSIGT OG DELENES NAVNE

BONECO F220 ventilator

BONECO F230 ventilator

TIPS TIL PLACERING

BEMÆRKNINGER TIL YDELSE

FRISK LUFT

FLERE ETAGER

RUM MED H∅JT TIL LOFTET

RENG∅RING

SIKKERHEDSANVISNINGER

ADSKILLELSE OG OPBEVARING

BONECO vifteenhet

Avtagbart koblingsstykke (F220: 1×/ F230: 2×)

TIPS OM PLASSERING

MERKNADER OM STYRKE

FRISK LUFT

FLERE ETASJER

ROM MED STOR TAKH∅YDE

RENGJ∅RING

SIKKERHETSANVISNINGER

1. Løsne sikkerhetsskruen i midten. Skru med klokken.

BONECO ventilators

Nonemama savienotajda'a (F220: 1 gab./F230: 2 gab.)

Pamatne ar tîkla kabeli

PĀRSKATS UN DAŁU NOSAUKUMI

Ventilators BONECO F220 Air Shower

Ventilators BONECO F230 Air Shower

1 Jaudas regulators
2 Ventilators
3 Nonemama savienotājdala
4 Pamatne ar tikla kabeli

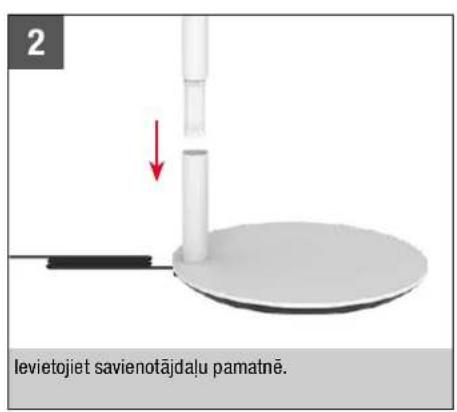

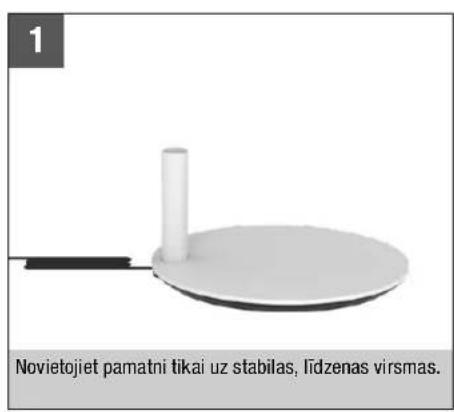

IEDARBINĀŠANA

NOVIETOŠANAS PADOMI

PIEZIMES PAR JAUDU

SVAIGS GAISS

VAIRAKI STAVI

TELPAS AR AUGSTIEM GRIESTIEM

TİRİŞANA

DROŠĪBAS NORĀDĪJUMI

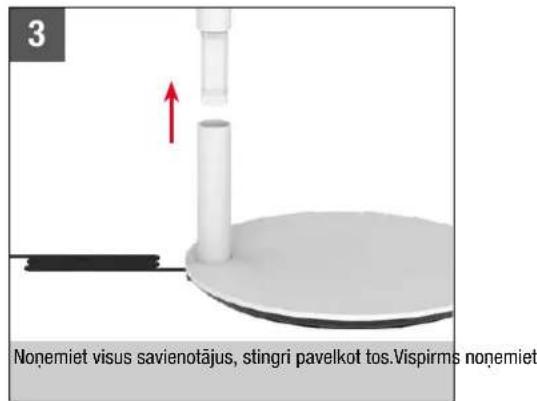

DEMONTĀŽA UN GLABĀŠANA

NAUDOJIMO INSTRUKCIJOS BONECO F220/F230

TURINYS

BONECO ventiliatorius

Nuimama jungtis (F220: 1×/ F230: 2×)

Pagrindas su maitinimo laidu

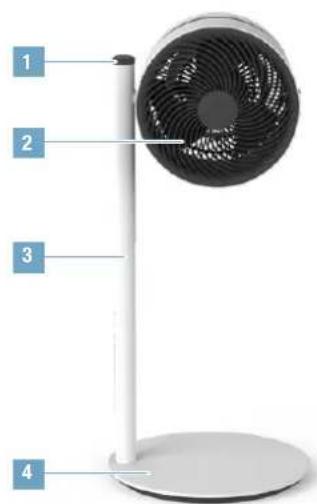

APŽVALGA IR DALIŲ PAVADINIMAI

„BONECO F220
Air Shower® ventilatorius

.BONECO F230
Air Shower" ventilatorius

1 Galios reguliatorius
2 Ventiliatorius
3 Nuimama jungtis
4 Pagrindas su maitinimo laidu

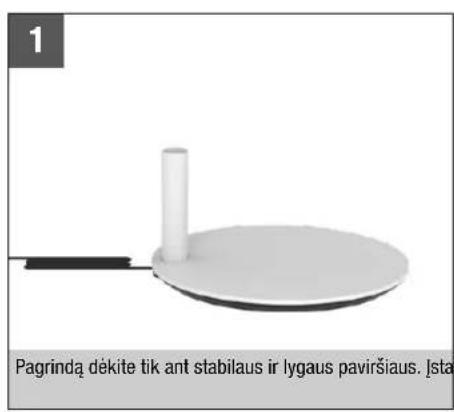

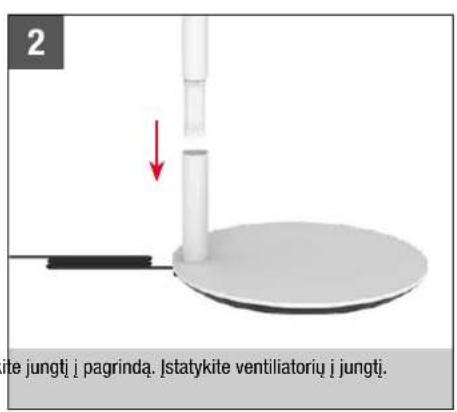

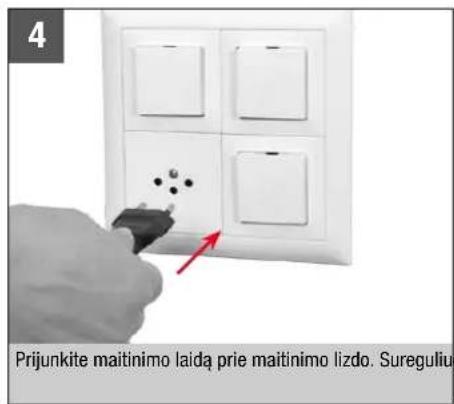

PALEIDIMAS

PADÉTIES NUSTATYMO PATARIMAI

PASTABOS APIE GALIA

ŠVIEŽIAS ORAS

KELI AUKŠTAI

PATALPOS AUKŠTOMIS LUBOMIS

VALYMAS

SAUGOS INSTRUKCIJOS

IŠARDYMAS IR LAIKYMAS

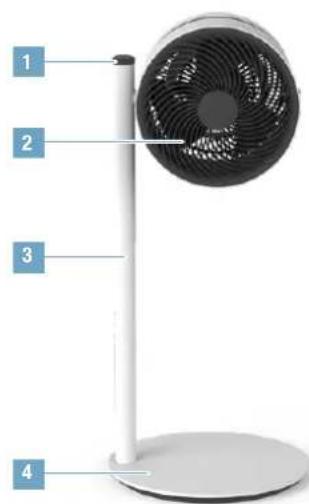

ÜLEVAADE JA OSADE NIMETUSED

BONECO F220
Air Shower Ventilaator

BONECO F230
Air Shower Ventilaator

NÕUANDED PAIGUTAMISE KOHTA

MÄRKMED VÕIMSUSE KOHTA

VÄRSKE ÖHK

MITU KORRUST

KÖRGETE LAGEDEGA RUUMID

PUHASTAMINE

OHUTUSJUHISED

LAHTIVÕTMINE JA LADUSTAMINE

RADY K UMÍSTĚNÍ

POZNÁMKY K VÝKONU

ČERSTVÝ VZDUCH

VICE PATER

MÍSTNOSTI S VYSOKÝM STROPEM

ČIŠTĚNÍ

BEZPEČNOSTNÍ POKYNY

DEMONTÁŽ A SKLADOVÁNÍ

Jednotka ventilátora BONECO

PREHŁAD A NÁZVY SÚČASTÍ

Ventilátor BONECO F220 Air Shower

Ventilátor BONECO F230 Air Shower

TIPY NA POLOHOVANIE

POZNÁMKY K VÝSTUPU

ČERSTVÝ VZDUCH

VIACERO PODLAŽI

MIESTNOSTI S VYSOKÝMI STROPMI

ČISTENIE

BEZPEČNOSTNÉ POKYNY

DEMONTÁŽ A SKLADOVANIE

Ventilatorska enota BONECO

Odstranljiv priključni del (F220: 1×/ F230: 2×)

PREGLED IN IMENA DELOV

BONECO F220
Ventilator Air Shower

BONECO F230
Ventilator Air Shower

1 Regulator zmogljivosti
2 Ventilatorska enota
3 Odstranljiv priključni del
4 Podnožje z električnim kablom

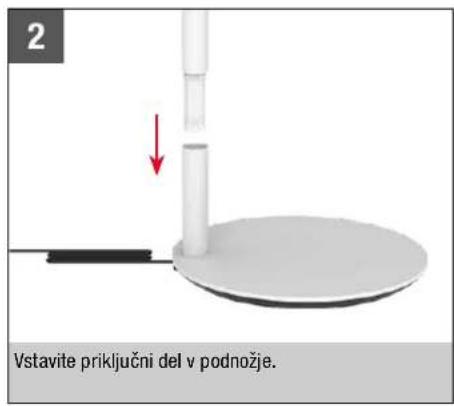

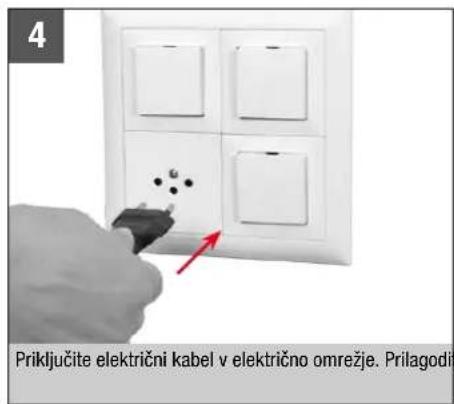

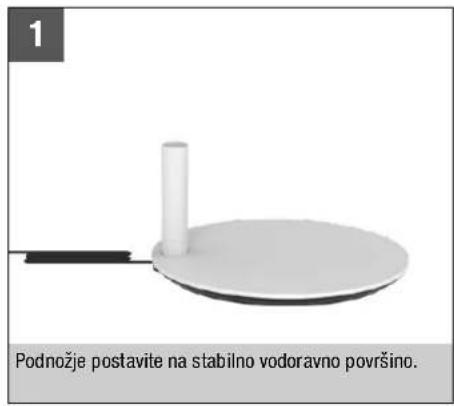

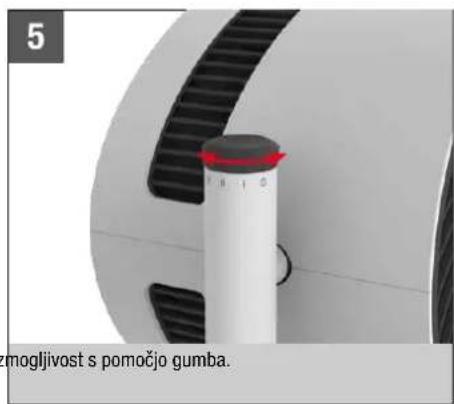

ZAGON

NAMIGI ZA POSTAVITEV

INFORMACIJE O ZMOGLJIVOSTI

SVEŽ ZRAK

VEČ NADSTROPIJ

PROSTORI Z VISOKIMI STROPI

ČIŠČENJE

VARNOSTNA NAVODILA

1. Odvijte varnostni vijak na sredini v smeri urnega ka- zalca.

Ventilator BONECO

Uklonjiva spojnica (F220: 1× / F230: 2×)

Postolje s mrežnim kabelom

PREGLED I NAZIV DIJELOVA

Ventilator BONECO F220 Air Shower

Ventilator BONECO F230 Air Shower

1 Regulator snage
2 Ventilator
3 Uklonjiva spojnica
4 Postolje s mrežnim kabelom

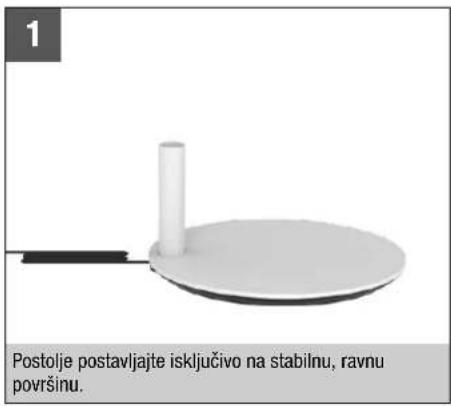

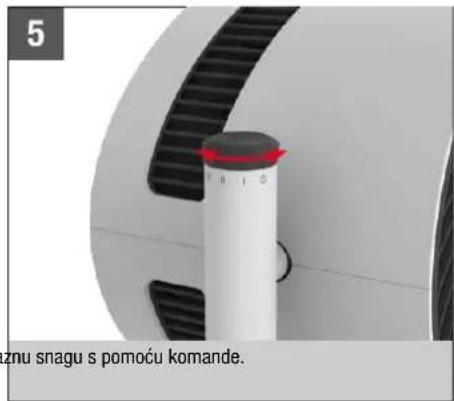

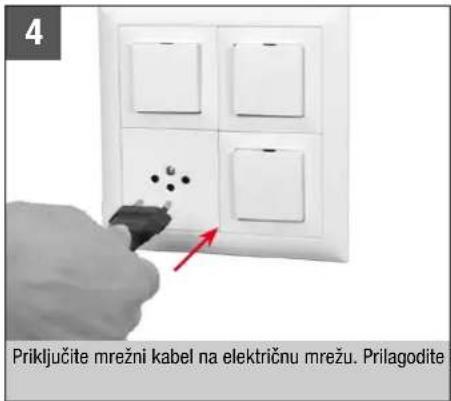

POKRETANJE

BONECO F220 i BONECO F230 razlikuju se samo po tome što je uz BONECO F230 uključena dodatna spojnica.
Ventilator možete upotrebljavati uz jednu ili dvije spojnice, kao i bez spojnica. Uređaj se može prilago-diti vašim potrebama.

RUKOVANJE

RUKOVANJE

Svi su ventilatori BONECO Air Shower dizajnirani tako da su jednostavni za upotrebu. Izlazna snaga prilagođava se u četiri razine s pomoću jedne komande: 0 > I > II > III > IV

PORAVNAVANJE

PRILAGODBA VISINE

Sve električne komponente u potpunosti su integrirane u spojnicu. Zbog toga možete prilagoditi visinu uređaja kada god želite tako da dodate spojnice ili ih uklonite snažnim povlačenjem.

SAVJETI ZA NAMJEŠTANJE

NAPOMENE O IZLAZNOJ SNAZI

SVJEŽI ZRAK

VIŠE KATOVA

PROSTORIJE S VISOKIM STROPOVIMA

U prostorijama s visokim stropovima s klimatizacijom hladan zrak pada na tlo dok se topli zrak podiže prema stropu. Postavite ventilator BONECO u uspravan položaj za efekt zračnog tuša.

ČIŠĆENJE

SIGURNOSNE UPUTE

1. Uklonite krilca ventilatora i očistite ih vlažnom krpom.

2. Ponovno sastavite uređaj primjenom istih koraka, samo obrnutim redoslijedom.

3. Pričvrstite prednju rešetku s pomoću sigurnosnog vijka. Dok to činite pripazite na položaj vijka na prednjoj rešetki.

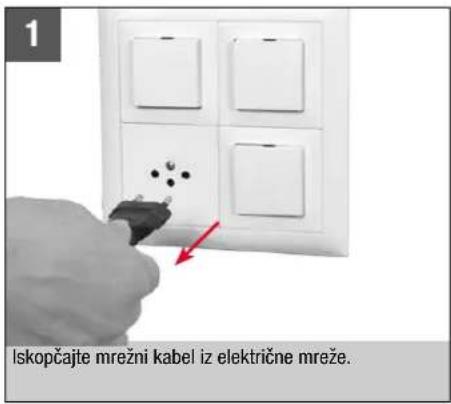

RASTAVLJANJE I POHRANA

Obratite pozornost na to da se uklonjive spojnice mogu odvojiti. Kada uređaj prenosite na novo mjesto, rastavite ga na dijelove koji se mogu odvojiti i prenesite pojedine dijelove na željeno mjesto, a zatim ponovno sastavite uređaj.

Upotrijebite originalnu ambalažu za najjednostavniju i najučinkovitiju pohranu. Pohranite ventilator BONECO Air Shower na suhom mjestu.

ΦΡΕΣΚΟΣ ΑΕΡΑΣ

ПОЛЛАПЛА ДАПЕДА

ΚΑΘΑΡΙΣΜΟΣ

ΟΔΗΓΙΕΣ ΑΣΦΑΛΕΙΑΣ

безопасности

СВЕЖИЙ ВОЗДУХ

ОЧИСТКА

РАЗБОРКА И ХРАНЕНИЕ

設置場所のポイント

出力について

上層階に送風する場合

外気を取り入れる場合

お手入れ

安全上のご注意

取外し方と保管

BONECO 팬 유닛

배치 정보

출력 정보

신선한 공기

층고가 높은 실내

세척

안전을 위한 주의사항

분해 및 보관

BONECO is a registered trademark of BONECO AG, Switzerland

BONECO AG, Espenstrasse 85, 9443 Widnau, Switzerland
