USER MANUAL V6540X2GB NEFF

Diagram of a washing machine with labeled components and a red arrow pointing to the door panel.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Ремонт

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with red arrows pointing to the front panel and a downward arrow indicating a component.

1. Uklonite vijke s upravljačke ploče (1-2-3-4).

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Popravak

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

4.1.2 Postavljanje upravljačke ploče

▶ Postavite obratnim redoslijedom.

Popravak

4.2 Zamjena poklopca baze

Zahtjev:

Uredaj je isključen iz napajanja.
Uređaj je isključen iz priključka za dovod vode.

4.2.1 Uklanjanje poklopca baze

1. Uklonite vijke.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

1. Uklonite poklopac baze tako da okrenete poklopac prema dolje.

4.2.2 Postavljanje poklopca baze

▶ Postavite obratnim redoslijedom.

2021-09-29_8001214502 Autorska prava BSH Hausgeräte GmbH Stranica 23 od 337

Popravak

Technical diagram of a front-loading washing machine with numbered components for identification

1. Uklonite prednju ploču.

4.3.2 Postavljanje prednje ploče

▶ Postavite obratnim redoslijedom.

Popravak

4.4 Zamjena vrata

Zahtjev:

Uredaj je isključen iz napajanja.
Uređaj je isključen iz priključka za dovod vode.

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

4.4.2 Postavljanje vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.5 Zamjena brtve vrata

Oštri rubovi kućišta!

Porezotine

▶ Nosite zaštitne rukavice.

Opasnost od padanja dijelova zbog otpuštenih vijaka!

Technical line drawing of a washing machine internal components (no text or labels)

1. Uklonite prsten za fiksiranje brtve na plastičnoj cijevi (utični ključ od 7 mm)
2. Uklonite brtvu.

4.5.2 Postavljanje brtve vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena brave vrata

Zahtjev:

Uredaj je isključen iz napajanja.
Uređaj je isključen iz priključka za dovod vode.

4.6.1 Uklanjanje brave vrata

1. Otvorite prednja vrata.

2.

POZOR!

Opasnost od oštećene površine!

Technical diagram of a mechanical assembly with cross-sectional views and component labels (no readable text or symbols)

▶ Postavite obratnim redoslijedom.

Popravak

Technical line drawing of a mechanical device showing internal components and a magnified view (no text or symbols)

4.7.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Diagram of a washing machine with labeled buttons and control panel, showing front panel and side view with red arrows indicating adjustment points.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Oprava

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

4.4.2 Montáž dvířek

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with red arrows pointing to top and bottom edges, showing control panel and door mechanism.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Reparation

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

4.1.2 Montering af betjeningspanel

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

1. Fjern frontpanelet.

4.3.2 Montering af frontpanel

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with labeled components and a red arrow pointing to the door panel.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Reparatie

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

4.1.2 Bedieningspaneel monteren

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or labels)

Technical diagram of a front-loading washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

4.4.2 Deur monteren

Technical line drawing of a washing machine internal components (no text or labels)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Repair hints - Washing machine

i Concerning this document....73

1.1 Important information....73

1.1.1 Purpose....73

1.2 Explanation of symbols 73

1.2.1 Danger levels....73

1.2.2 Hazard symbols 73

1.2.3 Structure of the warnings....74

1.2.4 General symbols....74

Safety....75

2.1 General Safety instructions 75

2.1.1 All domestic appliances 75

Tools and aids....76

Repair 77

4.1 Replacing control panel....77

4.1.1 Removing control panel....77

4.1.2 Installing control panel....78

4.2 Replacing base cover 79

4.2.1 Removing base cover 79

4.2.2 Installing base cover 79

4.3 Replacing front panel 80

4.3.1 Removing front panel 80

4.3.2 Installing front panel 80

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!
■ Only use original spare parts.
Risk of damage to electrostatically sensitive components (ESDs)!
- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Auxiliary tool[15000155]	Tool for loosening out of plastic parts
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Torque spanner [15000441]	Torque spanner 20 - 100 Nm
Slot screwdriver [00340854]	Blade 3.5 mm x 0.6 mm x 100 mm, Protective Insulation 1000 V AC
Slot screwdriver [00340855]	Blade 5.5 mm x 1.0 mm x 125 mm, Protective Insulation 1000 V AC
Needle-nose pliers, angled pattern [00341269]	Length 200 mm
Side-cutting pliers [00342182]	Length: 200 mm

Designation Details Images
Combination wrench[00340811]	Wrench size 10°mm, M6
Combination wrench[00340814]	Wrench size 13°mm, M8
Combination wrench[00340817]	Wrench size 17 mm, M10
Combination wrench[15000459]	Wrench size 16°mm, M10

Repair

4.1 Replacing control panel

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Furniture panel has been removed.

4.1.1 Removing control panel

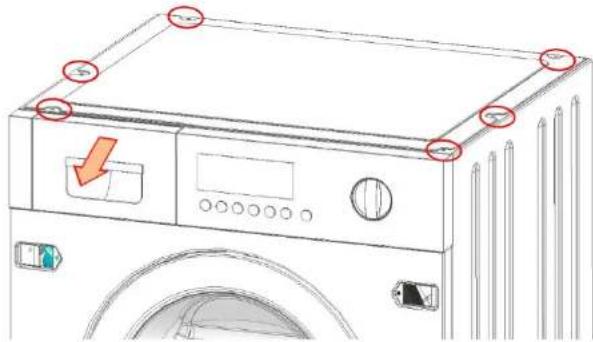

1. 1. Remove detergent drawer.
2. Remove screws on metallic worktop and this last one.

Diagram of a washing machine with red arrows pointing to top and bottom buttons, showing control panel and door.

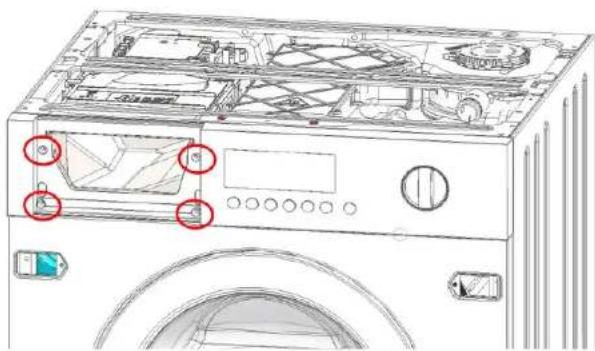

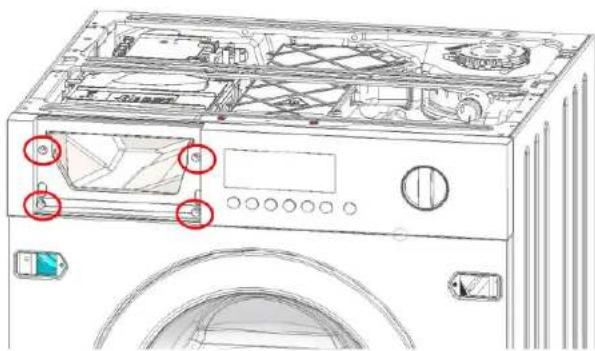

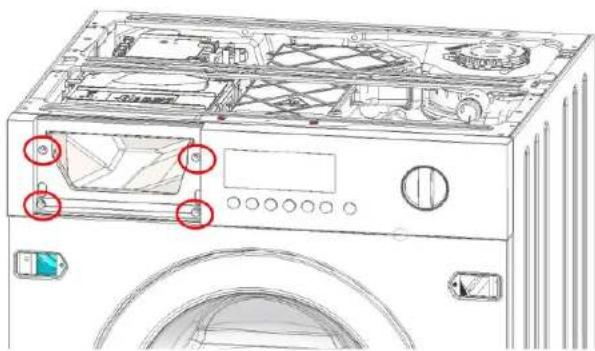

1. Remove the screws on control panel (1-2-3-4).

Technical diagram of a microwave oven with labeled components and red annotations indicating parts of the lid.

Repair

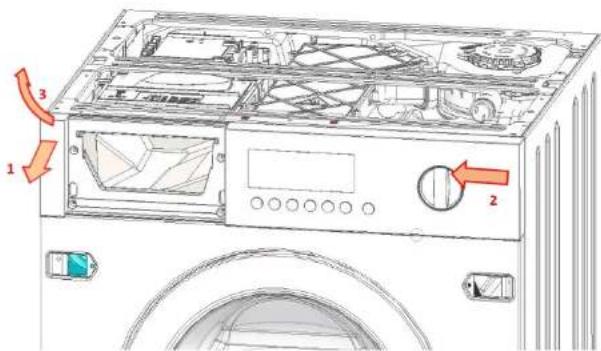

1. 1. Grab control panel with hands on left and right side.

2. Slightly pull out control panel on left side (1).

3. Slightly push control panel to the left (2).
4. Lift control panel to the front and upwards (3).

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

4.1.2 Installing control panel

▶ Install in reverse order.

Repair

4.2 Replacing base cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.2.1 Removing base cover

1. Remove screws.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

1. Remove cover base by rotating base downward.

4.2.2 Installing base cover

▶ Install in reverse order.

Repair

4.3 Replacing front panel

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.
√ Control panel has been removed.
√ Door has been removed.
√ Door seal has been removed.
√ Base cover has been removed.

4.3.1 Removing front panel

Caution

Sharp housing edges!

Cut injuries

Wear protective gloves.

1.

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

▶ Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Remove screws from in following order (1-2-3-4-5-6-7).

Technical diagram of a washing machine with numbered components for identification

1. Remove front panel.

4.3.2 Installing front panel

▶ Install in reverse order.

Repair

4.4 Replacing door

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.4.1 Removing door

Remove three screws.

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

▶ Install in reverse order.

Repair

4.5 Replacing door seal

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.5.1 Removing door seal

1. Remove detergent drawer.
2. Remove control panel (two screws on right side and four screws on dispenser area).

3. Remove door.

4. Remove base cover.

5.

Notice

Risk of damaged surface!

Surface of appliance can be scratched by using wrong tools.

▶ Only use plastic tools to replace the tension ring

Remove tension ring from gasket on front panel with a plastic tool.

1. Remove front panel.

Repair

1. Release gasket connection with dryer tunnel.

Technical line drawing of a washing machine internal components (no text or labels)

1. Remove fixation ring of gasket on plastic tub (7 mm socket wrench)
2. Remove gasket.

▶ Install in reverse order.

Repair

4.6 Replacing door lock

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.6.1 Removing door lock

1. Open front door.

2.

Notice

Risk of damaged surface!

Surface of appliance can be scratched by using wrong tools.

▶ Only use plastic tools.

Remove spring and push away seal.

1. Remove screws on door lock.
2. Release door lock.
3. Remove opening line upwards form guide.
4. Disconnect cable connector.

Door lock must be in the right position to ensure the emergency door opening function of the appliance.

▶ Install in reverse order.

Repair

4.7 Replacing door hinge

Open hinge areal

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Furniture panel has been removed.
√ Detergent drawer has been removed.
√ Control panel has been removed.
√ Door has been removed.
√ Door seal has been removed.
√ Front panel has been removed.

1. Remove two screws.

2. Remove door hinge.

Technical line drawing of a mechanical device showing internal components and a separate view (no text or symbols)

▶ Install in reverse order.

Remonditeave - Pesumasin

i Selle dokumendiga seoses 87

1.1 Tähtis teave 87

1.1.1 Eesmärk 87

1.2 Sümbolite selgitus 87

1.2.1 Ohutasemed....87

Diagram of a washing machine with labeled components and a red arrow pointing to the door panel.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Remont

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

4.1.2 Juhtpaneeli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

1. Eemaldage aluse kate, keerates alust allapoole.

4.2.2 Alumise katte paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

4.3 Esipaneeli vahetamine

Nõue:

Technical diagram of a washing machine with numbered components for identification

1. Eemaldage esipaneel.

4.3.2 Esipaneeli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

4.4 Ukse vahetamine

Nõue:

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

4.4.2 Ukse paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

Technical line drawing of a washing machine internal components (no text or labels)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

4.7.2 Ukse hinge paigaldamine

▶ Paigaldage vastupidises järjekorras.

Diagram of a washing machine with labeled buttons and control panel, showing front panel and side view with red arrows indicating adjustment points.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Korjaus

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a front-loading washing machine with numbered components for identification

1. Poista etupaneeli.

4.3.2 Etupaneelin asentaminen

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or symbols)

Technical line drawing of an open industrial washing machine with internal components and a circular housing (no text or symbols)

Diagram of a washing machine with labeled buttons and control panel, showing front panel and side view with red circles highlighting key points.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Réparation

Diagram of a washing machine with labeled parts and directional arrows indicating components

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with labeled buttons and control panel, showing front panel and side view with red arrows indicating adjustment points.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Instandsetzen

Diagram of a washing machine with labeled parts and directional arrows indicating components

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical line drawing of an open industrial washing machine with internal components and a separate view showing a circular component (no text or symbols present)

Diagram of a washing machine with red annotations pointing to the front panel and control buttons

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Επισκευή

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical component with cross-sectional view and internal structure (no text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with red arrows pointing to top and bottom buttons, showing front panel, control panel, and door.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Javítás

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with labeled buttons and control panel, showing front panel and side view with red arrows indicating adjustment points.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Riparazione

Technical diagram of a washing machine with labeled components and directional arrows indicating parts of the casing.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or labels)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with red arrows pointing to top and bottom edges, showing control panel and door mechanism.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Remonts

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or labels)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with red arrows pointing to top and bottom buttons, showing control panel and door.

Technical diagram of a microwave oven with labeled components and red annotations indicating parts of the lid.

Remontas

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with labeled components and a red arrow pointing to the door panel.

1. Fjern skruene i betjeningspanelet (1-2-3-4).


Technical line drawing of a washing machine with labeled components (no text or symbols)

Reparasjon

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

1. Demonter frontpanelet.

Technical line drawing of a circular mechanical component with mounting holes and a labeled section (no text or symbols beyond labels)

Technical line drawing of a washing machine internal components (no text or labels)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with labeled components and a red arrow indicating a component or adjustment.

Technical diagram of a microwave oven with labeled components and red annotations indicating parts of the lid.

Naprawy

Diagram of a washing machine with labeled parts and directional arrows indicating components

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a front-loading washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

4.4.2 Montaż drzwi

Technical line drawing of a washing machine internal components (no text or labels)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with red arrows pointing to top and bottom buttons, showing control panel and door mechanism.

1. Remova os parafusos do painel de comandos (1-2-3-4).

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Reparação

1. 1. Agarre o painel de comandos de ambos os lados.

2. Puxe o painel de comandos ligeiramente para fora do lado esquerdo (1).

3. Empurre o painel de comandos ligeiramente para a esquerda (2).

4. Levante o painel de comandos para cima e para a frente (3).

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

4.1.2 Instalar o painel de comandos

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a front-loading washing machine with numbered components and labeled parts

1. Remova o painel frontal.

4.3.2 Instalar o painel frontal

Technical line drawing of a circular mechanical component with mounting holes and a labeled section (no text or symbols beyond labels)

4.4.2 Instalar a porta

1. Remova o painel frontal.

Reparação

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of an open industrial washing machine with internal components and a circular housing (no text or symbols)

4.7.2 Instalar a dobradiça da porta

Diagram of a washing machine with labeled buttons and control panel, showing front panel and side view with red circles highlighting key points.

Technical diagram of a microwave oven with labeled components and red annotations indicating parts of the lid.

Repararea

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

4.4.2 Montarea uşii

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with labeled buttons and control panel, showing front panel and side view with red circles highlighting key points.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Oprava

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

4.4.2 Montáž dverí

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with labeled buttons and control panel, showing front panel and side view with red arrows indicating adjustment points.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Popravilo

1. 1. Primate nadzorno ploščo z rokama na levi in desni strani.
2. Nekoliko izvlecite nadzorno ploščo na levi strani (1).
3. Nekoliko potisnite nadzorno ploščo v levo (2).
4. Povlecite nadzorno ploščo naprej in navzgor (3).

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

1. Odstranite pokrov podstavka tako, da ga zavrtite navzdol.

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and a labeled section (no text or symbols beyond labels)

Technical line drawing of a washing machine internal components (no text or labels)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with red circles marking specific components and a red arrow pointing to the front panel.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Reparación

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and dimension lines (no readable text or symbols)

▶ Montar en orden inverso.

Reparación

4.7 Sustituir la bisagra de la puerta

PRECAUCIÓN

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with red arrows and a downward arrow indicating a component or adjustment.

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Reparation

Diagram of a washing machine with labeled parts and directional arrows indicating motion or movement.

4.1.2 Montera manöverpanel

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

1. Ta bort frontpanelen.

4.3.2 Montera frontpanel

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

4.4.2 Montera lucka

Technical line drawing of a washing machine internal components (no text or labels)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)

Diagram of a washing machine with labeled components and a red arrow pointing to the door panel.

1. Kontrol panelindeki vidaları sökün (1-2-3-4).

Technical diagram of a washing machine with labeled components and red annotations indicating parts of the door panel.

Onarim

Technical diagram of a washing machine with labeled components and directional arrows indicating parts 1, 2, and 3.

4.1.2 Kontrol panelini takma

Technical line drawing of a large industrial washing machine with internal components and mounting feet (no text or symbols)

Technical diagram of a washing machine with numbered components for identification

1. Ön paneli sökün.

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

Technical line drawing of a washing machine internal components (no text or labels)

Technical diagram of a mechanical assembly with cross-sectional views and component labels (no readable text or symbols)

Technical line drawing of a washing machine showing internal components and housing (no text or symbols)
