One+ RY18PHT40A - Hedge Trimmers RYOBI - Free user manual and instructions

Product Type	Cordless Pole Hedge Trimmer
Brand	RYOBI
Model	One+ RY18PHT40A
Category	Hedge Trimmers
Power Source	18 V lithium-ion battery (compatible with One+)
Total Length	Approx. 240 cm (telescopic)
Weight (with battery)	Approx. 4.5 kg
Blade Length	40 cm (estimated)
Guaranteed Sound Power Level	92 dB(A)
Intended Use	Cutting and trimming hedges, shrubs and similar vegetation
Main Features	Telescopic pole, adjustable head, HEDGESWEEP debris deflector, adjustable handle, quick release mechanism
Recommended Protective Equipment	Eye protection, hearing protection, helmet, sturdy gloves, non-slip shoes
Maintenance and Cleaning	Clean blades with a hard brush after each use, apply anti-rust lubricant, remove battery before any operation
Safety	Read all instructions, do not expose to rain, keep away from power lines, use both hands, always install blade cover for transport/storage
Spare Parts and Repairability	Use only original parts; have repairs done by an authorized service center
Standard Warranty	24 months (extendable by registration within 30 days)
Operating Temperature Range	0 °C to 40 °C
Charging Temperature Range	0 °C to 38 °C
Storage	In a dry, well-ventilated place, out of reach of children, ambient temperature 0 °C to 40 °C
Battery Transportation	Follow local regulations, insulate terminals, do not transport damaged battery

Frequently Asked Questions - One+ RY18PHT40A RYOBI

How to start the RYOBI One+ RY18PHT40A hedge trimmer?

Insert a charged One+ compatible battery. Press the On/Off trigger while holding the lock-off lever. To stop, release the trigger.

How to adjust the pole length?

Use the telescopic release latch to unlock the pole, then extend or retract the pole to the desired length. Ensure the latch is locked before use.

How to adjust the cutting head angle?

Press the angle release button and tilt the head to the desired angle. Release the button to lock.

What is the HEDGESWEEP debris deflector for?

The HEDGESWEEP is an integrated deflector that prevents cut debris from being thrown towards the user, enhancing safety.

How to maintain the blades?

After each use, remove the battery, clean the blades with a hard brush and apply an anti-rust spray lubricant. Always use the blade cover during storage and transport.

What type of battery to use?

This hedge trimmer is compatible with RYOBI One+ 18 V lithium-ion batteries. Use only batteries and chargers specified by the manufacturer.

What are the important safety precautions?

Always wear eye protection, hearing protection and a helmet. Use both hands, hold the tool by insulated gripping surfaces, and keep away from power lines. Never remove stuck debris without turning off the tool and removing the battery.

How to store the hedge trimmer?

Remove the battery, install the blade cover, clean the tool and store it in a dry, well-ventilated place out of reach of children. The storage temperature should be between 0 °C and 40 °C.

What to do in case of abnormal vibration?

Immediately stop the tool, remove the battery and inspect for damage. If the cause is not obvious, take it to an authorized service center.

How to benefit from the extended warranty?

Register your product on www.ryobitools.eu within 30 days of purchase. Keep the invoice and registration confirmation receipt.

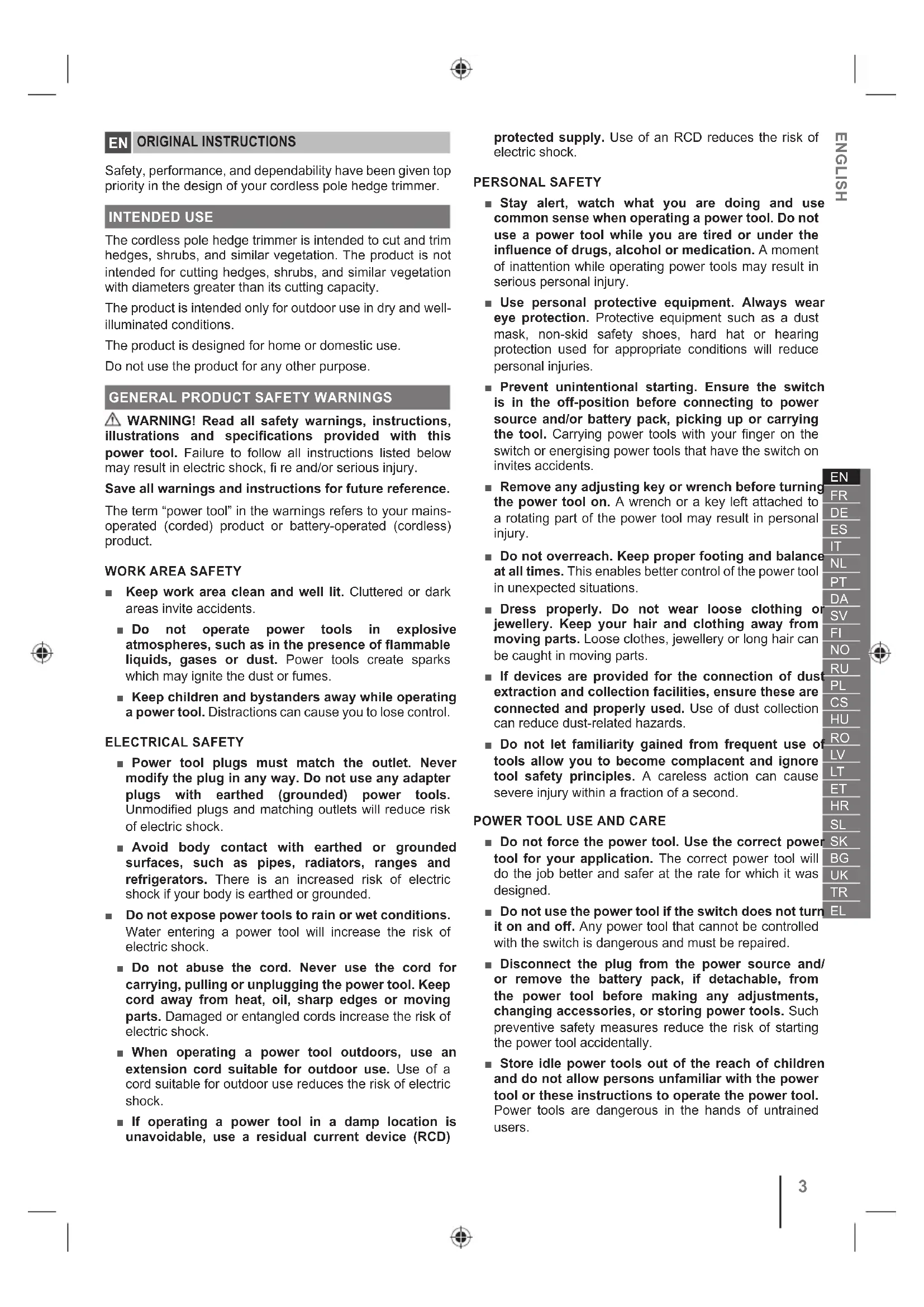

USER MANUAL One+ RY18PHT40A RYOBI

Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.

Safety, performance, and dependability have been given top priority in the design of your cordless pole hedge trimmer.

INTENDED USE

The cordless pole hedge trimmer is intended to cut and trim hedges, shrubs, and similar vegetation. The product is not intended for cutting hedges, shrubs, and similar vegetation with diameters greater than its cutting capacity.

The product is intended only for outdoor use in dry and well-illuminated conditions.

The product is designed for home or domestic use.

Do not use the product for any other purpose.

GENERAL PRODUCT SAFETY WARNINGS

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

WORK AREA SAFETY

ELECTRICAL SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories, and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean, and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

POLE HEDGE TRIMMER SAFETY WARNINGS

• Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
• Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.

Wear ear protection. Adequate protective equipment will reduce the risk of hearing loss.

Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock. Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury. When clearing jammed material or servicing the hedge trimmer, make sure all power switches are off and the battery pack is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury. Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades. When transporting or storing the hedge trimmer, always use the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades. Always use head protection when operating the pole hedge trimmer overhead. Falling debris can result in serious personal injury. Always use two hands when operating the pole hedge trimmer. Hold the pole hedge trimmer with both hands to avoid loss of control. To reduce the risk of electrocution, never use the pole hedge trimmer near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.

ADDITIONAL SAFETY WARNINGS

• Check the hedges and bushes for foreign objects, such as wire fences and hidden wiring. While operating the product, always hold it firmly with both hands by the two handles. Use the product only at ground level and not on any other unstable support. Inspect the product before each use. Check for the correct operation of all controls. Check for loose fasteners, etc. Make sure that all guards and handles are properly and securely attached. Replace any damaged parts before use. Check for battery pack leaks.
• Do not operate the product in poor lighting. Use the product only in daylight or with good artificial light. The operator requires a clear view of the work area to identify potential hazards. The use of hearing protection reduces the ability to hear warnings (shouts or alarms). Pay particular attention to potential hazards around and inside the working area. Do not get distracted and always concentrate on the task. To reduce the risk of injury associated with contacting moving parts, always power off the product and remove the battery pack. Allow both to cool down. Make sure that all moving parts have come to a complete stop:
• before adjusting the working position of the cutting means
• before servicing
• before clearing a blockage
• before checking, cleaning, or working on the product
• before changing accessories
• before leaving the product unattended
• before inspecting the product after striking a foreign object
• before performing maintenance
• whenever the product starts to vibrate abnormally
• Do not force the product through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace.

If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately power off the product and inspect it for damage or identify the cause of the vibration. Any part that is damaged should be properly repaired or replaced by an authorized service center. Use the harness if it is supplied with the product. Carefully adjust the harness to fit comfortably and help support the weight of the product. Identify the quick-release mechanism and practice using it before you start using the product. The correct use of the quick-release mechanism may prevent serious injury in the case of an emergency. Never wear additional clothing over the harness or otherwise restrict access to the quick-release mechanism. - Do not wear multiple belt or shoulder harnesses. - Operate the product only in temperatures between 0°C and 40°C. Store the product in a location where the ambient temperature is between 0°C and 40°C. Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks.

ADDITIONAL BATTERY SAFETY WARNINGS

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the product, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit. Charge the battery pack in a location where the ambient temperature is between 0°C and 38°C.

Store the battery pack in a location where the ambient temperature is between 0°C and 40°C. Use the battery pack in a location where the ambient temperature is between 0°C and 40°C.

TRANSPORTATION AND STORAGE

Power off the product, and remove the battery pack. Make sure that all moving parts have come to a complete stop. Allow the product and the battery pack to cool down before storing or transporting. - Remove all foreign materials from the product. Do not store or transport the product with the battery pack fitted. Remove the battery pack, and secure it separately. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors. - Fit the blade cover before storing the product or during transportation. - When transporting the product in a vehicle, secure it against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery pack in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty. Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only. The blades are extremely sharp. To prevent personal injury, exercise extreme caution when cleaning, lubricating, fitting, or removing the blade cover. Power off the product, and remove the battery pack. Allow both to cool down. Make sure that all moving parts have come to a complete stop before any cleaning or maintenance task. - You may make adjustments and repairs that are described in this manual. For other repairs, have the product serviced by an authorised service centre only. After each use, clean the plastic parts with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre. After each use, remove the debris from the blades with a stiff brush, and then carefully apply a rust-preventative lubricant before refitting the blade cover. Use a rust-preventative lubricant spray to apply an even distribution and reduce the risk of personal injury

from contact with the blades. For information about a suitable spray product, check with an authorised service centre.

• Check all nuts, bolts, and screws before each use and at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

KNOW YOUR PRODUCT

See pages 110-111.

1. Operator's manual
2. HEDGESWEEP debris sweeper
3. Blade
4. Angle button release 5. Blade cover
5. Quick-release mechanism
6. Harness
7. Telescopic release latch
8. Harness hanger
9. Shaft coupling
10. Lock-out trigger
11. On/Off trigger
12. Battery pack
13. Charger

SYMBOLS

Safety alert

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear eye, ear, and head protection.

Do not expose the product to rain or damp conditions.

Wear non-slip, heavy-duty protective gloves.

Wear non-slip safety footwear when using the product.

To prevent serious injury, do not touch the cutting blades.

Keep sufficient distance away from electrical power lines.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Guaranteed sound power level

Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

FR TRANSLATION OF THE ORIGINAL NOTICE

GET TO KNOW YOUR PRODUCT

See pages 110-111.

GENERAL SAFETY WARNINGS FOR THE PRODUCT

EXTRA SAFETY WARNINGS FOR THE BATTERY

GENERAL SAFETY WARNINGS FOR THE PRODUCT

TRANSPORT AND STORAGE

WORK AREA SAFETY

KNOW YOUR PRODUCT

See pages 110-111.

Stay alert. Do not get distracted; focus on the work.

To reduce the risk of injury from contact with moving parts, always switch off the device and remove the battery pack. Let the device and battery pack cool down. Make sure all moving parts have come to a complete stop.

Before changing the working position of cutting tools, before technical maintenance, before clearing a blockage, before inspection, cleaning and maintenance of the product, before replacing accessories, before inserting the tool without a pneumatic motor, before checking the product after impact on a foreign object, before performing technical maintenance if the product vibrates.

Using the product with a dull blade is not allowed. This can lead to jamming and slower operation of the cutting blades. If the cutting blades become dull, reduce the working speed. If the device is dropped, it emits a sharp knock or starts vibrating excessively, stop it immediately and check for damage and determine the cause of vibration. In case of damage to any part, it is necessary to contact an authorized service center for repair or replacement. Use the harness if it is included in the delivery set. Carefully adjust the harness to ensure a comfortable position and support the weight of the product. Test the quick release mechanism before starting to use the device. Proper use of the quick release mechanism can prevent serious injury in an emergency. Do not wear clothing over the harness or otherwise restrict access to the quick release mechanism. Using multiple belts or shoulder straps is not allowed. Operating temperature range: from 0°C to 40°C. Store the product at an air temperature between 0°C and 40°C. Prolonged use of the tool may lead to injury. During prolonged use, take periodic breaks.

SAFETY INSTRUCTIONS FOR USING ADDITIONAL ACCESSORIES AND BATTERIES

To reduce the risk of fire, injury, and damage to the product due to a short circuit, do not immerse the product, battery pack, or charging device in liquid and do not allow liquid to enter the interior. Corrosive and conductive liquids, such as salt solutions, certain chemicals, bleaching agents, and cleaning products, can cause a short circuit. Charge the battery pack at an air temperature between 0°C and 38°C.

Store the battery pack at an air temperature between 0°C and 40°C. Operation of the battery pack is allowed at an air temperature between 0°C and 40°C.

TRANSPORTATION AND STORAGE

Remove the device and remove the battery block. Make sure all moving parts have come to a complete stop. Before storage or transport, remove the battery block. Clean the device from all foreign materials. Storage and transport of the device with installed power elements is allowed. Remove the battery block and secure it properly. Store it in a cool, dry, well-ventilated place inaccessible to children. Protect from substances causing corrosion, for example, salt fertilizers or salt for removing ice. It is forbidden to store the device outdoors. Before storage or transport, install protective covers. For transport, secure the device so that it cannot move or fall to avoid injury to personnel or damage to the device.

TRANSPORTATION OF LITHIUM BATTERIES

Transportation of batteries is carried out in accordance with local norms and regulations.

Follow all requirements for packaging and labeling when transporting batteries to third-party organizations. Check that the battery does not come into contact with other batteries or conductive materials during transport. Protect open contacts with insulation, non-conductive caps, or tape. Do not transport damaged or leaking batteries. For consultations, contact the transport forwarding company.

MAINTENANCE

Use only original spare parts, accessories, and attachments from the manufacturer. Failure to comply with this requirement may lead to injury, reduced performance, and voiding of the warranty. Maintenance requires special care and knowledge and should be performed only by a qualified service technician. Contact an authorized service center. Regular maintenance is required. To avoid injury, exercise maximum caution when cleaning, lubricating, installing, or removing the protective cover. Disconnect the device and remove the battery block. Then allow the device and battery block to cool down. Before cleaning or performing technical maintenance with tools, check that all moving parts have come to a complete stop. Also, perform other preventive maintenance work described in this manual.

Repair work should be carried out only by an authorized service center.

After each use, clean the blades of dirt with a brush, and then carefully apply an anti-corrosion lubricant to them. Before installing the protective device for the blades, apply the recommended anti-corrosion lubricant evenly using a sprayer; this will reduce wear and tear during contact with the blades. For information on suitable spray lubricants, contact your local authorized service center. Before each use, at regular intervals, check the tightness of all nuts, bolts, and screws to ensure that the tool is in a safe operating condition. In case of damage to any part, contact an authorized service center for proper repair or replacement.

Study the device

See pages 110-111. 1. Operator's manual 2. Debris sweeping blade HEDGESWEEP 3. Cutting blade 4. Tilt adjustment button 5. Cutting blade cover 6. Quick-release mechanism 7. Belt clip 8. Hook for separating the telescopic tube 9. Locking lever 10. Shaft coupling 11. Locking trigger 12. Start button 13. Battery 14. Charging device

Symbols

Attention

Before starting work with the product, carefully read all instructions. Observe safety precautions.

Wear eye and hearing protection, as well as a protective helmet.

Do not expose the tool to rain or use it in conditions of high humidity.

Wear non-slip protective gloves for heavy-duty work.

When operating the product, wear non-slip footwear.

To avoid serious injury, do not touch the cutting blades.

Keep a sufficient distance from electrical wires.

Be aware of the danger posed by objects thrown by the device or flying out from under it. Do not allow bystanders, especially children and pets, to approach the work area closer than 15 m.

Guaranteed sound power level

Disposal of electrical and electronic equipment together with unsorted household waste is not permitted. Collection of electrical and electronic equipment for disposal must be carried out separately. Before disposal, remove light sources from the equipment. For information on disposal procedures and the location of collection points, contact your local authorities or the supplier. Retailers may be obliged to accept electrical and electronic equipment for disposal in accordance with local regulations. Your contribution to the recycling of electrical and electronic equipment will help reduce the demand for raw materials. Electrical and electronic equipment contains materials that, if not disposed of properly, can be harmful to human health and the environment. Before disposal, delete all personal data from the equipment.

Transportation:

Categorically not allowed are any mechanical impacts on the packaging during transportation.

During loading/unloading, the use of any equipment operating on the principle of gripping the packaging is not allowed.

Storage:

Must be stored in a dry place.

Must be stored away from sources of elevated temperatures and exposure to sunlight.

During storage, avoid sharp temperature changes.

Storage without packaging is not allowed.

Service life:

The service life is 5 years.

It is not recommended for operation after 5 years of storage from the date of manufacture without prior inspection.

The date of manufacture (or dates) is stamped on the surface of the product body.

Example:

W17Y2015, where Y2015 is the year of manufacture, W17 is the week of manufacture.

The month of manufacture can be determined according to the table below, using 2015 as an example.

Attention! The number of places varies from year to year.

Please provide the following information: - Please select the product and enter your name. - Please enter your country of residence. - Please enter your current working hours.

GENERAL SAFETY WARNINGS

ADDITIONAL SAFETY INSTRUCTIONS

WORK AREA SAFETY

Keep your work area clean and well lit. Cluttered and unlit work areas cause accidents. Do not use power tools in explosive environments, such as near flammable liquids, gases, or dust. Sparks from power tools can ignite them or cause an explosion. Keep children, visitors, and pets away from where you use power tools. They could distract you and cause you to lose control of the tool.

ELECTRICAL SAFETY

• The plug of the power tool must always match the outlet. Never modify the plug. Never use an adapter with an earthed power tool. This will reduce the risk of electric shock. Avoid any contact with earthed surfaces such as pipes, radiators, stoves, refrigerators, etc. The risk of electric shock increases if part of your body is in contact with earthed surfaces. Do not expose the power tool to rain or moisture. The risk of electric shock increases if water enters the power tool. Make sure the power cord is in good condition. Never hold the tool by the power cord, and do not pull the cord when unplugging. Keep the power cord away from heat sources, oil, sharp edges, and moving parts. The risk of electric shock increases if the cord is damaged or tangled. If working outdoors, use only extension cords intended for outdoor use. This will reduce the risk of electric shock.

If you must use the tool in a damp environment, plug the device into an electrical outlet protected by a residual current device. The use of a residual current device reduces the risk of electric shock.

PERSONAL SAFETY

ADDITIONAL SAFETY WARNINGS

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

Keep your work area clean and well lit. Cluttered and unlit work areas are a source of accidents. Do not use power tools in explosive environments, such as in the presence of flammable liquids, gases, or dust. During operation, power tools produce sparks that can ignite dust or fumes. Keep children and bystanders away while operating a power tool. If your attention is diverted, you may lose control of the power tool.

ELECTRICAL SAFETY

The plug of the power tool must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

The device for collecting dust is not intended for use in hazardous environments. Do not let overconfidence or frequent use of the tool make you ignore safety principles. A careless action can cause serious injury within a fraction of a second.

USE AND CARE OF ELECTRIC TOOLS

Do not force the product. Use the electric tool according to its intended purpose. The correct electric tool will do the job better and safer at the rate for which it was designed. Do not use electric tools if the switch does not turn them on and off. An electric tool that cannot be controlled with the switch is dangerous and must be repaired. Keep the tool away from children. Store idle electric tools out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate it. Electric tools can be extremely dangerous in the hands of untrained users. Maintain electric tools and their accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the operation of the electric tool. If damaged, have the tool repaired before use. Many accidents are caused by poorly maintained electric tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the electric tool, accessories and bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the electric tool for operations different from those intended could result in a hazardous situation.

Keep handles and gripping surfaces dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow safe handling and control of the tool in unexpected situations.

USE AND CARE OF BATTERY TOOL

Use only with the charging device provided by the manufacturer. A charging device suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools with battery packs only with the specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

Your power tool must be serviced only by qualified specialists using only original replacement parts. This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY WARNINGS FOR CUTTER

Never use the trimmer for cutting in rainy weather conditions, especially when there is a risk of lightning. This reduces the risk of injury from lightning. Keep all extension cords and cables away from the cutting area. Extension cords and cables can be hidden in grass or bushes and can be accidentally cut by the blade. Wear anti-slip footwear. Use protective equipment to reduce the risk of hearing loss. Keep the trimmer's cutting attachment away from insulated surfaces, so that the blade does not come into contact with hidden cables. Blades that come into contact with a live wire can make exposed metal parts of the trimmer live and can give the operator an electric shock. Keep all parts of the body away from the blade. Do not remove cut material or hold material you are cutting while the blade is moving. After switching off the motor, the blade continues to rotate. Inattention while working with the product can lead to serious physical injury. When you are replacing the cutting material or servicing the hedge trimmer, make sure that all power switches are off and the battery pack is removed or disconnected. Unexpected starting of the trimmer while replacing the cutting material or servicing can lead to serious physical injury. Carry the trimmer by the handle with the blade stopped and be careful not to activate the power switch. Proper handling of the trimmer will reduce the risk of unintentional starting and physical injury from the blade. When transporting or storing the trimmer, always put the blade guard on. Proper handling of the trimmer will reduce the risk of physical injury from the blade. Always use head protection when working with the telescopic hedge trimmer or above head height. Falling branches can lead to serious physical injury. Always use both hands when working with the telescopic hedge trimmer. Hold the telescopic hedge trimmer with both hands to avoid losing control. To reduce the risk of electric shock, never use the telescopic hedge trimmer near live electrical cables. Contact with or use near electrical wires can cause serious injury or electric shock, which can lead to death.

ADDITIONAL SAFETY INSTRUCTIONS

■ Before use, inspect the product for damage, e.g., torn protective cables. When working with the product, always hold it firmly with both hands on the two handles. Use the product only at ground level, not on a ladder or unstable support. ■ Before each use, check the machine for defects. Check all controls for proper operation. Check for loose connections, fuel leaks, etc. Make sure all guards and handles are correctly installed and secured. Replace damaged parts before use. Check the battery for leaks. Do not use the tool in poor lighting. Use the product only in daylight or with good artificial lighting. The operator must have a clear view of the work area to identify potential hazards. When using the tool, your ability to heed warnings (signals or alarms) may be impaired. Be especially attentive to potential hazards in and around the work area. Do not get distracted; stay focused on the task. To reduce the risk of injury from moving parts, always switch off the product and remove the battery pack. Let the product and battery cool down. Make sure all moving parts have come to a complete stop.

- before adjusting the working position of the machine - before servicing - before cleaning the tool - before checking, adjusting or repairing the tool - before changing accessories - before storing the tool without supervision - before checking the product for damage Body - before carrying out the inspection if the tool is to be switched off unexpectedly

Do not fill the product through a damaged blade guard. This may cause the blade to jam and become blocked. If the blade becomes blocked, switch off the motor. If the product is switched on and the motor stalls or stops unexpectedly, immediately switch off the product and check for damage or try to identify the cause of the stall. Any damaged part must be repaired or replaced by an authorized service center. Use the cord, if provided with the product. Carefully route the cord to keep it convenient and to support the product's weight. Familiarize yourself with the quick-release mechanism

and practice using it before you start working with the machine. Proper use of the quick-release mechanism can prevent serious injury in an emergency. Never carry the cord over the blade and do not restrict access to the quick-release mechanism in any way.

Do not use a multi-pronged cord or a damaged extension cord. The product must only be operated at temperatures between 0°C and 40°C. Store the product at ambient temperature between 0°C and 40°C. Prolonged use of the instrument may lead to injury or damage. When using the product for extended periods, ensure you take regular breaks.

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES POUR LA BATTERIE

Pour réduire les risques d'incendie, de blessures physiques et de dommages au produit, ne placez jamais le produit, la batterie ou le chargeur à proximité de sources de chaleur et ne laissez pas la chaleur y pénétrer. La chaleur, qui peut provoquer de la corrosion ou un dysfonctionnement électrique, comme l'eau salée, certains produits chimiques, des agents de blanchiment ou des produits contenant des agents de blanchiment, peut provoquer un court-circuit. Chargez la batterie dans un endroit où la température ambiante est comprise entre 0°C et 38°C. Conservez la batterie dans un endroit où la température ambiante est comprise entre 0°C et 40°C. Ne laissez pas la batterie dans un endroit où la température ambiante est comprise entre 0°C et 40°C.

TRANSPORT ET STOCKAGE

Retirez la batterie. Assurez-vous que toutes les pièces mobiles sont correctement fixées. Laissez le produit et la batterie refroidir avant de les stocker ou de les transporter. Nettoyez le produit de toute saleté et particules. Ne stockez pas et ne transportez pas le produit avec la batterie installée. Retirez la batterie et stockez-la séparément. Conservez-la dans un endroit frais, sec et bien ventilé, hors de portée des enfants. Rangez le produit loin des substances corrosives, telles que les produits chimiques de jardinage et les sels de dégivrage. Ne stockez pas le produit à l'extérieur. Placez le protège-disque avant de le ranger ou pendant le transport. Lorsque vous transportez le produit, sécurisez-le pour éviter qu'il ne bouge ou ne tombe, car cela pourrait causer des blessures ou des dommages au produit.

TRANSPORT DES BATTERIES AU LITHIUM

Transportez les batteries conformément aux réglementations nationales et locales.

Suivez toutes les exigences spéciales pour l'emballage et l'étiquetage lors du transport de batteries par des tiers. Assurez-vous que les batteries ne sont pas en contact avec d'autres batteries ou des matériaux conducteurs pendant le transport, en isolant les connecteurs exposés avec du ruban isolant, des capuchons non conducteurs ou du ruban adhésif. Ne transportez pas les batteries qui sont endommagées ou qui fuient. Contactez la société de transport pour plus de conseils.

DÉPANNAGE

Use only original spare parts and accessories from the manufacturer. Otherwise, the tool may malfunction or cause injury, and the warranty will become invalid. Servicing requires special attention and specific knowledge and should be performed only by qualified technicians. The product must be repaired only by an authorized service center. The blades are extremely sharp. To prevent physical injury, be extremely careful when cleaning, lubricating, mounting, or welding the blade. Remove the battery pack. Let the product and battery cool down. Make sure all moving parts are completely stopped before cleaning or servicing. You may adjust settings and corrections described in this user manual. All other repairs must be performed only at an authorized service center. Use only plastic parts with a dry cloth. Any damaged part must be repaired or replaced by an authorized service center. After each use, clean the blade from residues with a stiff brush, then lubricate with anti-rust agent before mounting the blade protector. Use anti-corrosion lubricating spray to apply an even layer to minimize the risk of physical injury from contact with the blade. For more information about suitable lubricating spray, contact your local authorized service center. Check all nuts, bolts, and screws before each use and at regular intervals for proper tightening to ensure the product is in safe working condition. Any damaged part must be repaired or replaced by an authorized service center.

PRODUCT IDENTIFICATION

Figures 110-111.

1. Operator's manual
2. Blade with holes for HEDGESWEEP 3. Blade
3. Button for blade release
4. Blade guard
5. Quick release mechanism 7. Guide
6. Telescopic pole
7. Carrying strap
8. Handle 11. Locking knob 12. On/Off switch 13. Battery 14. Charging device

SYMBOLS

Safety warnings

Read all instructions before using the product. Follow all safety warnings and instructions.

Wear protective equipment for eyes, ears, and head.

He n3naTe Ha d6xN Ha BnaxHn ycnoBna.

Hocete 3dpabn npedna3n pbkabu, npirodeh npotNB nIb3rahe.

Korato n3noJ3BaTe npOdykTa, HocTe HnIb3raUc ce npedna3Hn o6yBkn.

3a da n36erHete cepno3Ho fni3nuecko HapaHraBaHe, He DOKOCbaTe peKeuNTe octpneTa.

CTOHTe Ha DoCTaTbUHO pa3CToHHe oTeJEKeTpOpPoBOdnte.

BnmaBaTe 3a n3xBpIeHn nn neTaeu o6ekTu. Bn3KocToaUte, oc6eNo deua n Domaunn IIObumu, Tpa6Ba da cTOrT noHe Ha 15 m ot 3oHaTa Ha pa6ota.

TapaHTnpaHO HnBO Ha yM

He n3xbpnaIte OTnabuTeOT eNEKtpuecko n eNEKtpoHNOobopydBahe kaTO HecOpTnpaHb6tOBnO Tnadbuc. OtnadbUteOT eNEKtpueckn u eNEKtpoHNOobopydBahe Tp8Ba Da ce cb6bpatOTdeJIHO. OtnadbUteOT CBETNHHN3TOOHNU Tp8Ba Da 6bDatnpemaxhataO tbopdybaHTo.3aCbBETN OTHOCHO peunKnipaHTo nnyHKta 3a cb6paHce Ce obpheteKbMa Bawnte MeCTHN BnactnINrTbPROBcN PpeDCTABHTeIN.CbrNaCHO MeCTHne pa3npoe6nTBproBcNTe Ha Dpe6Ho MoKe da6bDat 3aBnKeHn Da npEmaTOTnabuO t ENEKTPuecko u eNEKtpoHNo obopydBaHe.BaunrTpnHoc 3a NobTopHaTa ynoTppe6aN peunKnipaHTo Ha OTnadbUnOT eNEKTPuecko u eNEKtpoHNOobopydBaHe NOMara 3a HamanraBaHeHa TbpcHeTO HA CypOBuH.NOTnabuNTe OT eNEKTPuecko NeEKEPOHNO obopydBaHe CbDbpxkATceHHN, NOxodyaN 3a peunKnipaMeTpnaNN, KOITo MOKe Da NMAtHeblaonpnaTHO B3dEInCTBNEBbpyOKONHATA CpeDAuN YoBEwKOTo3dpabe, Ako He 6bDaT N3XBpNeHNIO ekONorueH NaHH.Ako HaOTnabYHOTO obopydBaHe mAJIyH DAHHN, IN3TPnTE rN.

UK OPINIHANbHI IHCTyKu

TOnOBHmM MIPKyBaHHMa Npnpo3po6u Cboro akyMyIaTOphORo TEleckoniuHOrO KyOpia3a BynN 6e3neKa, epeKTnBHiCTb TaHaJinHiCtB.

IPEE6AUYBAHOMY BUKOPNCAHHI

AkymyIaTOpHn TpIMeP-BncOTopi3 npn3HaueHn Dn8 o6p3aHHN niDCTpRanHHK XNBONJIoTy, KUcIB Ta CXOXoIO pOcINHHocTI. Bnp6 He npn3HaueHn Dn8 o6p3aHHN XNBONJIoTIB, KUcIB Ta IHuNX pOcINH 3 diaMeTpOM rINOk, AKN nepeBnUyE 3a3HaueHn y TexHiHNx xapakTepcntKax.

Bupi6 npn3naeHm BnKIOUHO dnn BnKOpNCTaHH no3a npMiuEHHM B yMObax MInImaIbHOI BOIrorOcTi Ta doCTaTHbOrO OCBITneHH.

PpOdykT pnp3haeHn dIa DOMaunHbOro a6o MicceBOrO BHKOpNCtAHH.

He BnKopncToBnyTe dny 6yIb-ynx iHnx ciJe.

GENERAL SAFETY WARNINGS FOR POWER TOOL USE

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

PERSONAL SAFETY

BybTeYBaXHi, INBItbc, IO BN po6nte, IBNKOpNCBOyIte 3doPobn rny3 np npo60ti 3 eNEKtpoPnPnaDAMn. He BHKOpNCBOyIte eNEKtpoiHCTpymENT, kAio Bu BTOMnnc a6o nepe6yBaCTe niD BnNnBOM HApKOTkIB, anKOrIoA 6o NIKIB. HaMeHsHa HeOBepeKHiCTb np npo60ti 3 eNEKtpoiHCTpymENT MoKe pIn3BecTn Do cepNo3HNx TpaBM. BnKOpNCTOByTe nepcoHaJIbHe 3axncHE 6bnadHnn. 3aBXn HADraTae 3axncHi OKyIpyn. 3axnche yctaTKyBaHH, HanpNKnA, pecnipatop, BbyTTHa HeKOB3Hni NiOoBi, 3axncHm IoNOM a60 3acob 3axnCTy opraHb Cnyx, BnKOpNCTOByaHi B HaneJHX yMOBax, 3MeHsaTb pN3IK OTpMaHnH TpaBMn. 3anobiraTe BnnaKOBoro 3anycky. NepekoHaTecra, 30 BnMnka3haxoDntbcy y BnMKHeHomy nonoJxehni neped niKIOUeHNMAO dJepeena KINBJIeHHa Ta / a60 akyMnyIaTOPOHO 6aTapei, NiDHImAHm abo nepemiiueHHm IHCTpyMeHTy. He nepehocBe eneKTpoIHCTpymeHT 3 naIbceM Ha BnMnKaHi a60 noDaeyo JNBIeHHa H IHCTpyMeHT, kMy MaC nepemikau, 60 3ano6iRTn HeuacHOrO BnnaKdy. IpepeBKNIOUeHHM eNEKTPoIHcTpMeHTy 3HImaTe peYnIOBaIbHN a60 rAIKOBN KIOU. RaIKOBNI KIOU a60 perynIOBaIbHN KIOU, 3aINuEHN Ha o6epTaemi qactHi eNEKTPoIHcTpMeHTy, MoKe npN3BeCTN Do TpaBMn. He TarrhItbc. 36epiraTe npabnIbHy cTiky i 6anahc Becb yac. Lcdo3BOJIe KpaIe KOHTpOIOBAti IHCTpyMeH T HeCNOIDaHN CXITyaIrx. OraTecn npabNbHO.He Hocitb BinbHn OaI a60 npKpnc. TpMaTe BOLOcc i oJr noaI BiD pyxomnx qactnH.BiBHN oJr, npKpnc a60 doRe BOLOCCM MoKyTB NotpanNTB pyxomi qactnHn. KuO e npictpoi dny niknoueHHn 360py ny, nepekoahTeecy, 00 BOHn ndhaH i BnkOpncTObybCh npabnlbHo. BkOpncTaan Hnn036ipNka 3nHexky Hebe3neky, nob'rahy 3aannenieHCTIO. HeyxnbHO DoTPmyTecb npabn Texhki6e3neKn Habitb npu BnKOpncTaHHi iNCTpyMeHTy BnpoDOBk Tpmbanoro yacy. HeobepexKa nMOpe npotrom NueHHX ckyHn Pn3BcTn DO cepno3HNx TpaBM.

BVKOPNCTAHNA DORIAD 3A ENEKTPOHCTPYMEHTOM

He nepeBaHTaxyIte eneKtpoiHCTpymeHT. BnKopncTobye BiNObiDn Dnra Bawoi Notpe6n eNeKtpoiHCTpymeHT EneKtpoiHCTpymeHT BnKOHae pO60Ty Kpaue i 6e3neuHiue npn WbNdkocti, nra JkoI BIn 6ybPoz3po6neHn. He BnKOpNCToBMyTe eNekTPOiHCTpymeHT, KkO npemkkay He BKIOUac Ta BmNKAc Noro. BydbKaH eNekTPOiHCTpymeHT, kHr HE MOKe ynpabTnC3a DOIOMOrIO nepemkkaya, c Hebe3neuHIM i MaC 6yTu BiDpeMOHTOBAHNI.

Before performing any maintenance, cleaning, or when storing the power tool, disconnect the plug from the power source and/or remove the battery pack from the power tool. Such preventive safety measures reduce the risk of accidental starting of the power tool. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

USE OF THE POWER TOOL WITH BATTERY PACKS

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion and risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be carried out by the manufacturer or an authorized service center.

GENERAL POWER TOOL SAFETY WARNINGS

Do not use the clipper in wet conditions, especially when there is a risk of lightning. This increases the risk of electric shock. Ensure that the power cord does not enter the cutting zone. The power cord may be hidden in bushes or hedges, so there is a risk of accidentally cutting it with the blade. Use hearing protection. Inadequate hearing protection increases the risk of hearing loss. Hold the clipper only by insulated gripping surfaces, because the blade may contact hidden wiring. If the blade contacts a live wire, the voltage may be transferred to the metal parts of the clipper, and the user could receive an electric shock. The blade should be kept sharp. Do not touch the cutting material or the material being cut with your hands while the clipper is moving. Keep the clipper running for a short time after switching it off. Improper handling of the clipper can cause serious injury. Before clearing jammed material or servicing the clipper, make sure the clipper is switched off, the battery is removed, or the power cord is unplugged. Unexpected starting of the clipper while clearing jammed material or servicing can cause serious injury. Carry the clipper by the handle, with the blade stopped; be careful not to press the switch. Proper carrying of the clipper reduces the risk of accidental starting and, consequently, injury from the blades. When storing or transporting the clipper, always fit the blade cover. Improper handling of the clipper increases the risk of injury from the blades. When using the clipper for trimming hedges above head height, use head protection. Falling debris can cause serious injury. When using the clipper for trimming hedges, always hold it with both hands. Hold the clipper with both hands

when trimming hedges to avoid losing control. To reduce the risk of electric shock, never use the clipper near overhead power lines. Contact with or operation near power lines can cause serious injury or even death due to electric shock.

ADDITIONAL GENERAL SAFETY WARNINGS

Check the absence of leaks in all side objects, especially the wire fence. During operation of the device, to avoid injury, hold it with both hands. If the switch is to be used on the ground level without using any unstable supports. Turn off the switch before each use. Check the correct operation of all control elements. Check the absence of fluid leakage or loose connections. Check that all protective guards, deflector and handles are correctly and securely fastened. If damaged parts are found, replace them before starting work. Check the absence of battery screws. Do not use in poor lighting. Use the product in daylight or in good artificial lighting. The operator needs daily inspection of the working area to identify potential hazards. Use hearing protection to reduce the risk of injury (noise or vibration). Pay special attention to possible hazards around and inside the work zone. Do not rush, concentrate on the task. To reduce the risk of injury from moving parts, turn off the device and remove the battery. Then let it cool down. Make sure all moving parts have stopped.

• Preparation of the working position of the device
• Preparation
• Before starting the engine
• Before checking, maintenance or work on the product
• Before changing the attachment
• Before storing the product without load
• Before inspecting the switch after turning it off with the switch
• Before performing technical maintenance
• If the product is not working normally, do not use it

Do not operate the device on surfaces without stable support. This can lead to loss of control and injury. If the product falls or is hit by a heavy wave or starts to vibrate, stop the device immediately and check for damage or determine the cause of the vibration. Any damaged part must be properly repaired or replaced at an authorized service center. Use only original spare parts. Carefully adjust the settings to easily continue the test. Identify the emergency stop mechanism and practice using it before starting to use

the product. Improper use of the emergency stop mechanism can cause serious injury in case of danger. Do not block the emergency stop mechanism with your hands or any other means.

Do not operate the device with damaged or loose fasteners. The device is allowed to be operated at temperatures from 0°C to 40°C. Store the device in a place where the temperature remains within 0-40°C. Prolonged use of the instrument may lead to injury or aggravation of an existing injury. When using the device for a long period of time, take breaks.

SAFETY WARNINGS FOR BATTERY USE

Replace the mains plug, wiring and installation of the device in case of a short circuit. Never immerse the device, battery pack or charging device in water and do not allow liquids to get inside. Corrosive and conductive liquids, such as salt water, bleach, detergents or products containing them, can cause a short circuit. Charge the battery in a place with a temperature between 0°C and 38°C. Store the battery in a place where the ambient temperature is maintained between 0-40°C. Use the battery in a place where the ambient temperature is maintained between 0-40°C.

TRANSPORTATION AND STORAGE

Removing and inserting the battery pack. Make sure all moving parts have stopped. Before storing or transporting the device without the battery pack, let it cool down. Remove all external materials from the product. It is forbidden to store or transport the device with the battery installed. Remove the battery pack and store it separately. Store the product in a cool, dry, and well-ventilated place, out of reach of children. Keep away from aggressive agents, such as chemical solvents and salts, to avoid corrosion. Do not store the device outdoors. Before storing or transporting the product, always follow the instructions. ■During transportation of the device in a vehicle, secure it to prevent movement and damage, as this can lead to injury or damage to the device itself.

TRANSPORTATION OF BATTERIES

Transport the battery pack in accordance with local and national regulations and rules. Follow all special requirements for packaging and labeling when transporting batteries by third parties. Make sure that during transportation the battery does not come into contact with other battery packs or conductive materials, and protect the exposed terminals with insulating non-conductive caps or tape. Do not carry or drop the battery. Contact us for further recommendations.

TECHNICAL MAINTENANCE

Use only original spare parts, accessories, and attachments from the manufacturer.

Failure to comply with these requirements may lead to possible injury, poor product performance, and may result in loss of warranty.

WARNING: The blade surface is sharp and knowledge and skills must only be performed by a qualified specialist. Contact only an authorized service center. The blade is very sharp. To avoid injury, be very careful when handling, changing, installing, and removing the blade. Remove and disconnect the battery. Let it cool down. Make sure all moving parts have stopped before cleaning or servicing the device. You can perform the adjustments and repairs described in this user manual. For servicing or repair, contact only an authorized service center. After each use, clean the plastic parts with a soft dry cloth. Any damaged part must be properly repaired or replaced at an authorized service center. After each use, clean the blade with a soft brush and then carefully apply blade protection oil. Use a recommended anti-corrosion oil spray for even distribution and to reduce the risk of injury from contact with blades. For information about the original product, contact your local authorized service center. Check all screws and tighten them after a short period of use and before storage to ensure proper sealing and safe working condition. Any damaged part must be properly repaired or replaced at an authorized service center.

PRODUCT DESCRIPTION

See figures 110-111.

1. OPERATING INSTRUCTIONS
2. HEDGE TRIMMER
3. Blade
4. Angle adjustment button
5. Blade cover
6. Blade adjustment mechanism
7. Solutions
8. Telescopic mechanism
9. Switch for solutions
10. Clutch 11. Trigger switch
11. Trigger ON/OFF
12. Battery 14. Charging device

Before using the device, read and understand all instructions. Follow all warnings and safety instructions for use.

Wear eye, ear, and head protection.

Do not use the device in rain or wet conditions.

Wear non-slip, sturdy gloves.

Wear non-slip safety footwear when using the product.

Keep a safe distance from the electric hedge trimmer.

Beware of sharp or moving objects. Keep bystanders and animals at least 15 m away from the work area.

Guaranteed sound power level

Do not dispose of old electrical and electronic equipment with unsorted household waste. Old electrical and electronic equipment is collected separately. The equipment contains materials that are necessary for its operation and old light sources. For information on disposal or collection points, contact your local authorities or dealer. Local legislation may require retailers to take back old electrical and electronic equipment. Your contribution to the reuse and recycling of old electrical and electronic equipment reduces the need for new materials. Old electrical and electronic equipment contains valuable materials that can be reused, and disposing of such equipment in an environmentally unfriendly manner can negatively affect the environment and human health. Hand over your old equipment for recycling.

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Safety, performance, and reliability were given the highest priority in the design of the cordless hedge trimmer.

INTENDED USE

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardized test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organizing work patterns.

In addition to any statutory rights arising from the purchase of a product and without prejudice to the statutory rights which apply independently and free of charge, all new RYOBI branded power tools and/or garden tools listed on our website, excluding tool accessories, tool storage systems, and spare parts, as further outlined under ("Product"), are covered by a voluntary guarantee issued by Technoronic Industries GmbH ("TTI") subject to the terms and conditions as stated below ("Guarantee").

The Guarantee is only applicable to purchaser(s) who purchase the products as end users in their capacity as consumers ("Consumer"). Retailers, rental companies, as well as professional end users are expressly excluded from these general terms and conditions of the Guarantee. For professional end users, a different type of voluntary guarantee may be applicable to certain product(s), if explicitly provided on the www.roybitools.eu website. The invocation of this voluntary Guarantee does not limit the statutory legal rights of the Consumer in case of a defect.

1. The standard guarantee ("Standard Guarantee"), provided that the Product is purchased for private use only, has a term of 24 months ("Standard Guarantee Period") and commences on the date the product was purchased. This date must be documented by an invoice or other proof of purchase in order for the Standard Guarantee to be valid and enforceable. This Standard Guarantee also only applies to new Product(s).
2. Consumers in certain countries may be able to extend the Standard Guarantee for eligible Products beyond the period of the Standard Guarantee by registering on the www.rybitools.eu website. The eligibility of Products for the extended guarantee ("Extended Guarantee") is specified on the packaging of a Product, on the website at www.rybitools.eu, and/or is contained within the relevant Product documentation under https://www.rybitools.eu/. In order to benefit from the Extended Guarantee, Consumers are required to register their Product(s) online within 30 calendar days from the date of purchase to benefit from this Extended Guarantee. All personal information of a Consumer will be processed in accordance with the privacy statement, which can be found here https://uk.rybitools.eu/footer-links/privacy-policy/. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the Extended Guarantee.
3. The Standard Guarantee and the Extended Guarantee ("Guarantees") are limited to repair and/or replacement of the defective Product at the discretion of TTI provided that the defect in workmanship or material existed at the date of purchase. No further costs or losses can be claimed. In addition, the Guarantees do not apply to:

any damage caused accidentally, wilfully, or negligently by the Consumer any damage to the Product that is the result of improper treatment or lack of maintenance any Product that has been altered or modified - any Product where original identification (trade mark, serial number) markings have been defaced, altered or removed any damage caused by non-observance of the instruction manual - Products, which are not subject to a CE/UKCA marking

• any Product that has been attempted to be repaired by a non-authorised service centre or without prior authorisation by TTI any Product connected to improper power supply (amps, voltage, frequency) any Product used with inappropriate fuel mixture (fuel, oil, ratio of oil)
• any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
• normal wear and tear of spare parts inappropriate use, overloading of the Product(s) -use of non-approved accessories or parts
• power tool accessories provided with the tool or purchased separately. Such exclusions include, but are not limited to: screwdriver bits, drill bits, abrasive discs, sandpaper and blades, lateral guide components (parts and accessories) which are subject to normal wear and tear, including but not limited to service and maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins and springs, bump knobs, drive belts, clutch, blades of hedge trimmers or lawnmowers, harness, cable throttle, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.
• For guarantee servicing, the Product(s) must be sent or presented without undue delay after occurrence or recognition of the defect in workmanship or material to an authorised RYOBI service partner listed on the following website: https://www.nybitools.eu/. Consumers can obtain the services under the Guarantees from a RYOBI service partner by

a. contacting the retailer where the purchase was made; or

b. registering via the service platform available on the RYOBI Commercial webpage https://www.ryobiloools.eu/, the availability of the process might vary from country to country.

When sending a Product to an authorised RYOBI service partner, the Product shall be safely packaged without hazardous contents (for details, please see the safety instructions on the website at https://www.rybitools.eu/), marked with sender's address and accompanied by a short description of the defect. Please note that in some countries delivery charges or postage will have to be paid by the sender according to local practice. Please consult your local authorised RYOBI service centre to confirm whether such charges apply.

1. Upon receipt of the Product claimed to be defective by the Consumer, it will be inspected. When the defect has been confirmed, the services under the Guarantees will be provided by repairing the defective parts of the products or replacing them by non-defective parts at TTI's discretion. If TTI refuses to repair the defect or if, at TTI's discretion, the repair has failed, an equivalent replacement will be supplied. The replaced Product(s) or part(s) will become the property of TTI. Any repair/replacement(s) under the Guarantees above are free of charge. The repair/replacement(s) conducted by TTI do not constitute an extension or a new start of the Guarantees. The replaced spare parts are subject to the Guarantees originally given and the period for the Guarantees will end with period for the Guarantee that was originally given for the entire product.
2. The RYOBI Guarantees are granted by Techtronic Industries GmbH, Max-Eyth-Stt.10, 71364 Winnenden, Germany, only to the Consumer that originally purchased the Product and may not be transferred or assigned.
3. The Guarantees are valid in the European Economic Area (EEA), Switzerland, and the United Kingdom. Outside these areas, please contact the retailer where the purchase was made to find out if another voluntary guarantee applies.

FR CONDITIONS D'APPLICATION DE LA GARANTIE RYOBI

Normal wear and tear on spare parts

CS CONDITIONS OF VALIDITY OF THE RYOBI WARRANTY

In addition to the statutory rights arising from the purchase, which are independent and non-exclusive, all electrical equipment of the RYOBI brand or garden equipment listed on our websites, with the exception of accessories, tools, tool storage systems and spare parts, as well as wooden parts, is covered by a voluntary warranty offered by Techtronic Industries GmbH (TTI), subject to the following conditions (the 'Warranty').

If used accidentally, improperly, or without following the surface preparation instructions, any damage or defect resulting from incorrect training or improper adjustment of the product, which is a result of improper use, is not covered by the warranty. The user is responsible for following the operating instructions. Products that do not meet the CE/UKCA marking requirements, are modified, or have been repaired by unauthorized persons are excluded from warranty. Any product used with incorrect electrical supply (voltage, frequency) or with improper fuel mixture (fuel, oil, oil ratio) or with improper maintenance (water, chemicals, cleaning agents, etc.) is not covered by the warranty.

Normal wear and tear of parts, improper use, or storage on the product.

- Use of non-original accessories or parts.

• Accessories are not included with the tool and are available separately or upon request. Such accessories include, but are not limited to: blades, chains, guide bars, sprockets, spark plugs, air filters, fuel filters, starter ropes, and other parts and accessories that are subject to normal wear and tear. These parts and accessories are not covered by the warranty. The list includes, but is not limited to: spark plugs, air filters, fuel filters, starter ropes, drive belts, clutch shoes, bearings, seals, gaskets, and other wear items.

UK WARRANTY TERMS FOR RYOBI

Section 3 - Statutory rights. Under the statutory rights, for any goods, subject to the statutory provisions, the consumer has the right to free repair or replacement of the product, or a price reduction or rescission of the contract, if the product is defective. These rights are provided by the manufacturer RYOBI, for the products listed in the attached list, and are in addition to the rights provided by the statutory provisions. The warranty period is 24 months from the date of purchase of the product, unless otherwise stated in the product documentation. The warranty covers defects in materials and workmanship. The warranty does not cover defects caused by normal wear and tear, misuse, abuse, neglect, accident, or unauthorized repair or alteration. To make a warranty claim, the consumer must return the defective product to the place of purchase, or to an authorized RYOBI service center, with proof of purchase. The consumer is responsible for the cost of returning the product. The warranty is provided by Techtronic Industries GmbH, Max-Eyth-Str.10, 71364 Winnenden, Germany. The warranty does not affect the consumer's statutory rights.

The warranty for the buyer, who purchased the product for personal use, is valid (warranty). The manufacturer, company, and also the warranty period of use are specified in the accompanying documents for the product. The warranty period of use may be extended by the manufacturer. This is stated in the warranty card. The use of this warranty does not limit the consumer's rights in any way.

1. Under the conditions that the product is used correctly for its intended purpose, the standard warranty (standard warranty) has a term of 24 months (standard warranty term) and begins from the date of purchase of the product. The standard warranty covers defects and has legal force, but the date must be confirmed by a receipt or other document that confirms the fact of purchase. Also, the standard warranty covers only the product itself. 2. In some regions, the consumer may have the opportunity to obtain a warranty on the product for a longer term than the standard warranty, depending on the seller's offers. Information about the availability of the extended warranty (extended warranty) is provided on the product packaging, and the terms are specified in the accompanying documentation for the product. To use the extended warranty, the consumer must register the product on the manufacturer's website within 4 days of purchase. All personal data of the consumer will be processed in accordance with the privacy policy of the manufacturer, available at https://uk.pyotioCoEs.eu/footer-links/purity-policy. The extended warranty is provided with the receipt, sent by email, and the original receipt-figured confirmation of the date of purchase. 3. The standard warranty and extended warranty (warranty) cover repairs and/or replacement of defective products at the expense of the company, provided that the defect is caused by manufacturing or material defects. Any damage caused by improper use is not covered. Also, the warranty is not applicable:

-damage caused by the consumer, such as liquid or other contamination -damage to the product resulting from improper storage or transportation -damage to the product caused by modification or alteration

-damage to the product, on which the serial number has been changed or removed from the original identification markings (trade mark, serial number) -damage caused by improper operation of the product, which does not comply with the instructions for use and maintenance of the product -damage to the product caused by improper use of the product, such as use with incompatible accessories -damage to the product caused by exposure to aggressive environments (water, chemicals, solvents, mechanical impacts) or external factors

Normal wear and tear of parts

-improper use, transfer of the product [to a third party] -use of unapproved accessories or parts

Depending on the type of device, it is connected to the tool with a 60-degree angle. They are turned on, not disassembled, as follows: for high-voltage, circuit breakers, pulse disks, pressure under load, normal operation - complete with devices and accessories, and for normal operation, including but not limited to: complete maintenance and repair, bolts, nuts, washers, springs, seals, SDS drills, chemical anchors, auxiliary bags, transport bags and covers, inflatable boats, life jackets, hoses for exhaust, hoses or pipes, filters and hand pumps for pressure testing, pressure gauges, hoses, couplings, or quick couplings, exhaust system, throttle cable, teeth, toothed belt, belt tensioner, belt tensioner pulley, vacuum pump, vacuum bag and hoses, pressure hoses, hoses, diaphragm.

Replacement of filters, wheels, pulleys, inner coil, outer coil.

RYOBI WARRANTY TERMS AND CONDITIONS

In addition to the statutory rights arising from the purchase, you acquire the rights granted under the following terms and conditions ("Warranty") for all RYOBI brand cordless power tools and/or cordless garden tools, including accessories, storage systems, and spare parts, as detailed in the product section and listed on our website, provided by Techtronic Industries GmbH ("TTI") as a voluntary warranty.

EU DECLARATION OF CONFORMITY

Cordless pole hedge trimmer

Brand: RYOBI | Manufacturer | Model number | Serial number range

We declare as the manufacturer under our sole responsibility that the product

mentioned below fulfills all the relevant provisions of the following European Directives,

European Regulations and harmonised standards

Measured sound power level. 90.75 dB(A)

Guaranteed sound power level. 92 dB(A)

Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC.

Authorised to compile the technical file.

FR

EU DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY EC

Battery-powered hedge trimmers for animal husbandry

Brand: RYOBI | Manufacturer | Model number | Serial number range

We declare under our sole responsibility that the product mentioned below complies with all

the relevant provisions of the following European Directives, European

Regulations, as well as harmonised standards.

Measured sound power level. 90.75 dB(A)

Guaranteed sound power level 92 dB(A)

Conformity assessment method, Annex V of Directive 2000/14/EC as

amended by 2005/88/EC.

Person authorized to compile the technical documentation.

PL

EU DECLARATION OF CONFORMITY

EU DECLARATION OF CONFORMITY

Guaranteed sound power level 92 dB(A)

Method for assessing conformity with Annex V of Directive 2000/14/EC, as amended by 2005/88/EC

Authorized person for compiling the technical documentation

UK DECLARATION OF CONFORMITY

Battery trimmer - hedge trimmer

Brand: RYOBI | Manufacturer | Model number | Serial number range

We declare under our sole responsibility that the product described above complies with all relevant provisions of the EU Directives, European standards, and harmonized standards

Measured sound power level: 90.75 dB(A)

Sound power level 92 dB(A)

Conformity assessment method Annex V Directive 2000/14/EC as amended by 2005/88/EC.

Permission to store technical documentation:

TR AB DECLARATION OF CONFORMITY

Max-Eyth-Straße 10, 71364 Winnenden, Germany

2 RY18PHT40A

3 50459101000001 - 50459101999999

4 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU

EN 62841-1:2015+A11:2022, EN 62841-4-2:2019+A1:2022+A11:2022

EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 63000:2018

Todd Chipner

Senior Vice President, Quality - Asia

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless pole hedge trimmer

Brand: RYOBI

Model number: RY18PHT40A

Serial number range: 50459101000001 - 50459101999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597 (as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), S.I.

2001/1701 (as amended) and that the following designated standards have been used:

BS EN 62841-1:2015+A11:2022, BS EN 62841-4-2:2019+A11:2022

BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021

BS EN IEC 63000:2018

Measured sound power level: 90.75 dB(A)

Guaranteed sound power level: 92 dB(A)

Conformity assessment method to S.I. 2001/1701 Schedule 8 (as amended)

Todd Chipner

Senior Vice President, Quality - Asia

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

961087806-01
