USER MANUAL GPBC 36430 Li BL EINHELL

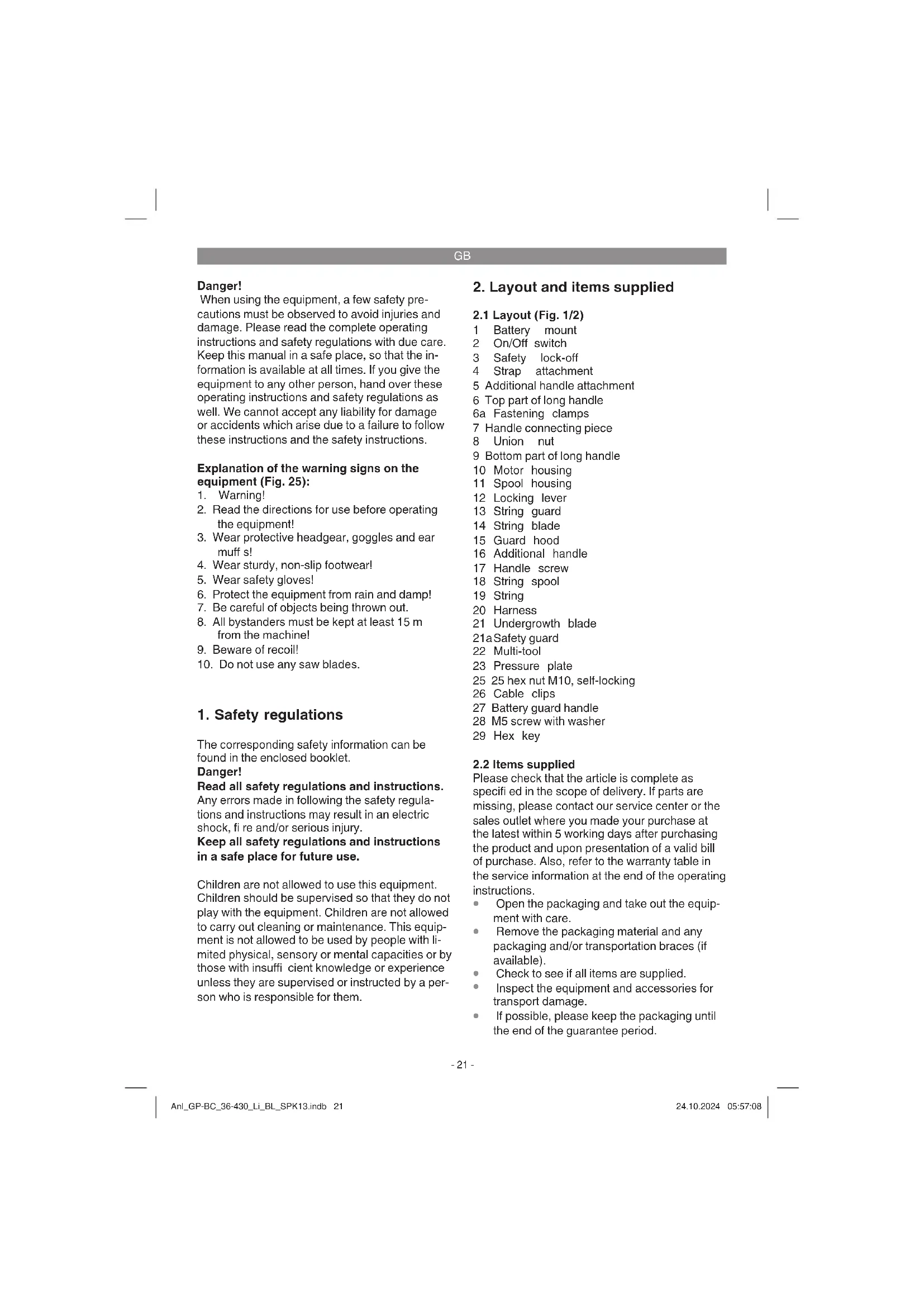

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. Explanation of the warning signs on the equipment (Fig. 25):

2. Read the directions for use before operating

3. Wear protective headgear, goggles and ear

4. Wear sturdy, non-slip footwear!

5. Wear safety gloves!

6. Protect the equipment from rain and damp!

7. Be careful of objects being thrown out.

8. All bystanders must be kept at least 15 m

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Children are not allowed to use this equipment. Children should be supervised so that they do not play with the equipment. Children are not allowed to carry out cleaning or maintenance. This equip- ment is not allowed to be used by people with li- mited physical, sensory or mental capacities or by those with insuffi cient knowledge or experience unless they are supervised or instructed by a per- son who is responsible for them.

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1 Battery mount 2 On/Off switch 3 Safety lock-off 4 Strap attachment 5 Additional handle attachment 6 Top part of long handle 6a Fastening clamps 7 Handle connecting piece 8 Union nut 9 Bottom part of long handle 10 Motor housing 11 Spool housing 12 Locking lever 13 String guard 14 String blade 15 Guard hood 16 Additional handle 17 Handle screw 18 String spool 19 String 20 Harness 21 Undergrowth blade 21a Safety guard 22 Multi-tool 23 Pressure plate 25 25 hex nut M10, self-locking 26 Cable clips 27 Battery guard handle 28 M5 screw with washer 29 Hex key

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Top section of the trimmer with handle

Original Operating Instructions

Used as a cordless scythe (using the cutting bla- de) the equipment is designed for cutting young trees, strong weeds and light undergrowth. Used as a cordless grass trimmer (using the line spool with cutting line) the equipment is designed for cutting lawns, grassed areas and small weeds. Important! Due to the high risk of bodily injury to the user, the equipment is not allowed to be used to clean paths or to chop up tree and hedge clippings. Similarly, the equipment must not be used to level out high areas such as molehills. For safety reasons, the equipment must not be used as a drive unit for other work tools or toolkits of any kind. Danger! Do not use any kind of metal wire or me- tal wire encased in plastic in the string spool. This may cause serious injuries to the user. Danger! Do not use any saw blades. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Caution! Residual risks Even if you use this electric power tool in accordance with the instructions, certain residual risks cannot be eliminated. The fol- lowing hazards may arise in connection with the equipment‘s construction and layout:

Lung damage if no suitable protective dust mask is used.

Damage to hearing if no suitable ear protec- tion is applied.

Health damage caused by hand-arm vibra- tions if the equipment is used over a longer period or is not properly guided and maintai- ned.

Injury and damage to property caused by fly- ing parts.

Cut injuries if no suitable safety clothing is used.

Cutting circle diameter of line .................Ø 43 cm Line length .................................................... 6 m Line diameter .......................................... 2.0 mm Cutting circle diameter of blade ...........Ø 25.5 cm Protection class .................................................III Weight ....................................................... 7.2 kg Important! The equipment is supplied without batteries and without a charger and is allowed to be used only with the lithium-ion batteries (two batteries) of the Power X-Change series! The lithium-ion batteries of the Power X-Change series are allowed to be charged only with the Power-X charger. Danger! Sound and vibration Sound and vibration values were measured in accordance with EN 62841. Using with cutting string Sound pressure level L

: ....... 96 dB(A) Using with an undergrowth blade Sound pressure level L

Wear ear-muff s. The impact of noise can cause damage to hea- ring. Total vibration values (vector sum of three direc- tions) determined in accordance with EN 62841. Handle with cutting line Vibration emission value a

Handle with an undergrowth blade Vibration emission value a

The stated vibration emission levels and stated noise emission values were measured in ac- cordance with a set of standardized criteria and can be used to compare one power tool with another. The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

The vibration and noise emission levels may vary from the level specifi ed during actual use, depen- ding on the way in which the power tool is used, especially the type of workpiece it is used for. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

Wear eye and hearing protection

5. Before starting the equipment

The equipment is supplied without batteries and without a charger! Caution! Carry out all the following assembly and adjustment work without rechargeable batteries –risk of injury. Wear protective gloves.

5.1 Fitting the guard hood (Fig. 3)

Push the guard hood (15) from below onto the mount on the motor housing and fasten with the screws (28). On the bottom side of the string guard (Item 13) is a blade (Item 14) for automati- cally adapting the length of the cutting string. This blade is fi tted with a guard strip which must be removed before beginning to work.

5.2 Fitting the additional handle (Fig. 4a-4f)

Undo the handle screw (Item 17) and remove the thrust piece (Item 5a). Insert the additional handle (16) into the holder (5) such that the plastic ring (B) lies in the groove (N) on the holder (5) (Fig. 4b). Important! The additional handle is wrongly fi tted if the plastic ring (B) lies outside the groove (N) as shown in the detailed drawing 4c. This mis- take can result in damage to the additional handle during use. Fasten the additional handle (16) to the thrust piece (5a) by re-tightening the handle screw (17). Then fasten the protective tubing (A) to the top part of the long handle (6) using the prefi tted fas- tening clamps (6a) and to the additional handle (16) using the provided cable clips (26).

5.3 Fitting the long handle (Fig. 5)

Slot the bottom part of the long handle (9) into the upper part of the long handle (6). Screw the hand- le connecting piece (7) to the top part of the long handle with the union nut (8) on the bottom part of the long handle. 5.4. Adjusting the angle of the additional handle (Fig. 6) To adjust the additional handle to the optimum working angle, slacken the handle screw (17). Set the desired tilt of the additional handle (16). Tigh- ten the handle screw (17) again.

5.5 Removing/fi tting the string unit (Fig. 7)

Note: The tool is supplied from the factory ready for operation with the string. Warning! Take care not to cut yourself on the Anl_GP-BC_36-430_Li_BL_SPK13.indb 23Anl_GP-BC_36-430_Li_BL_SPK13.indb 23 24.10.2024 05:57:0924.10.2024 05:57:09GB

string blade. a) Removing the string unit For later use as a brushcutter you must remo- ve the string unit. Press the locking lever (12) forward and at the same time turn the string unit (C) in “a” direction until the locking lever latches in place. Turn the string unit in “a” di- rection and take it off the motor shaft. b) Mounting the string unit For later use as a grass trimmer you must mount the string unit. Press the locking lever (12) forward and at the same time turn the string unit (C) in “b” direction onto the motor shaft until the locking lever latches in place. Turn the string unit on the motor shaft by hand until it is tightly secured. Check whether the string unit can rotate freely after you let go of the locking lever. If this is not the case, have the mechanism checked by an expert.

5.6 Guard hood for use with the undergrowth

blade (Fig. 8) Caution! The string guard (13) must be removed if you want to work with the undergrowth blade. Take care not to cut yourself on the string blade. Beginning on the side, use for example a screwdriver to press the lugs (F) carefully inwards and gradually pull off the string guard (13).

5.7 Guard hood for use with the string (Fig. 8)

Caution! The string cover (13) must be fi tted if you want to work with the string. Take care not to cut yourself on the string blade. Starting at the side, press in the lugs (F) of the string cover again.

5.8 Fitting/removing the undergrowth blade

The procedure for fi tting the undergrowth blade is shown in Figs. 9a-9e. Note the detailed drawing 9f.

The undergrowth blade (21) can be used on both sides (reversible blade). If the underg- rowth blade becomes damaged, deformed, blunt or otherwise worn you must replace it with a new one.

On the ends of the undergrowth blade there are safety guards (21a) which must be remo- ved prior to use. These guards must be put back in place after use, during storage and during transport.

Use only the Einhell undergrowth blade spe- cified in the section “Ordering spare parts”. Danger! Accessories from other suppliers can be dangerous and might result in serious injuries and damage to the tool. Warning! Take care not to injure yourself on the undergrowth blade. a) Fitting the undergrowth blade Important! If the spacer (N) between the undergrowth blade and the motor housing (detailed drawing 9f) slips off the motor shaft (M) during dismantling, push it back onto the motor shaft as shown in the drawing.

1. Fit the undergrowth blade (21) in place.

2. Attach the pressure plate (23) (Detailed draw-

3. Screw the size M10 hex nut (25) in place.

Warning! For safety reasons, self-locking nuts are allowed to be used only once without exception.

4. Press the locking lever (Fig. 7/Item 12) and

ly after you let go of the locking lever. If this is not the case, have the mechanism checked by an expert. b) Removing the undergrowth blade Press the locking lever forward and lock the motor shaft. Unscrew the hex nut and remove the pressure plate cover, the pressure plate and the undergrowth blade. Each time before you use the tool, check the following:

That the tool is in perfect condition and that the safety devices and cutting devices are complete.

That all the screws are securely fastened.

That all moving parts move smoothly. Important! Vibrations when using the under- growth blade If far stronger vibrations arise after you have fi tted the undergrowth blade than compared to when using the string, this is because the undergrowth blade is not fi tted in central position. Switch off the tool immediately. Remove the battery/batteries and refi t the undergrowth blade as previously described. Caution! An undergrowth blade that is not fi tted in central position will damage the tool! A worn undergrowth blade must be replaced with a new one (see Section 7.5). Anl_GP-BC_36-430_Li_BL_SPK13.indb 24Anl_GP-BC_36-430_Li_BL_SPK13.indb 24 24.10.2024 05:57:0924.10.2024 05:57:09GB

5.9 Using the harness

Caution! Always use the supplied harness when working with the tool (Fig. 2/Item 20). Do not use an additional harness. Always switch off the tool before you release the harness – risk of injury!

Fitting the harness (Fig. 10)

Adjust to the perfect working and cutting position using the various harness adjusters on the harness. The strap attachment (Fig. 11/Item 4) can be moved on the top part of the long handle if required. To do so, slacken the wing nut (4b) on the positioner (4a) of the strap attachment (4), then move the positi- oner, the strap attachment and if necessary the fastening clamp (6a). Then retighten the wing nut.

To establish the optimum length of the har- ness, you should then make a few swinging movements without starting the motor (Fig. 12). The harness is fi tted with a quick-release mecha- nism. If you need to remove the tool quickly, pull on the red part of the harness (Fig. 11/Item 20a).

5.10 Fitting the battery (Fig. 13)

Push the rechargeable batteries into the battery mounts provided on the left and right of the tool (Fig. 2/Item 1). When the battery is pushed in fully it will engage audibly. To remove the battery, press the pushlock button (Item K) and pull out the battery. Important! Use only batteries which are charged to the same level. Never combine full and half-full batteries. Always charge the two batteries simultaneously. The machine‘s operating time depends on the battery with the lower charge level. The two batte- ries must always be fully charged before use.

5.11 Charging the battery (Fig. 14)

1. Take the battery pack out of the equipment.

Do this by pressing the pushlock button.

2. Check that your mains voltage is the same as

that marked on the rating plate of the battery charger. Insert the power plug of the charger into the socket outlet. The green LED will then begin to fl ash.

3. Insert the battery pack into the charger.

4. In the section entitled „Charger indicator“ you

will fi nd a table with an explanation of the LED indicator on the charger. The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check:

whether there is voltage at the socket outlet

whether there is good contact at the charging contacts If the battery pack still fails to charge, send

and the battery pack to our customer service center. To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless grass trimmer drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect. To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased. When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res.

5.12 Battery capacity indicator (Fig. 15)

Press the button for the battery capacity indicator (Item H). The battery capacity indicator (Item F) shows the charge status of the battery using 3 LEDs. All 3 LEDs are lit: The battery is fully charged. 2 or 1 LED(s) are lit: The battery has an adequate remaining charge. 1 LED blinks: The battery is empty, recharge the battery. All LEDs blink: The battery temperature is too low. Remove the battery from the equipment, keep it at room tem- perature for one day. If the fault reoccurs, this me- ans that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery. Anl_GP-BC_36-430_Li_BL_SPK13.indb 25Anl_GP-BC_36-430_Li_BL_SPK13.indb 25 24.10.2024 05:57:1024.10.2024 05:57:10GB

Please note that the statutory regulations gover- ning noise abatement may diff er from one loca- tion to another. Danger! The guard hood must be fi tted when carrying out work.

6.1 Switching the tool on and off , adjusting

the speed (Fig. 16) Switching on Press the safety lock-off (3) and the On/Off / switch (2). Switching off Let go of the On/Off / switch. Adjusting the speed With the “Power Status” switch you can select the speed (low/high). The tool always starts with the low speed => the “Power Status” LED lights up green. Press the “Power Status” switch => high speed (MAX) => the “Power Status” LED lights up blue.

6.2 Battery charge level indicator on the tool

With the “Power Status” switch you are shown the battery capacity. 3 LEDs are lit = fully charged 2 LEDs are lit = adequate remaining charge 1 LED is lit = empty => charge

1. Switch off the tool, remove the battery and

check the tool for wear or damage: - after the tool strikes a foreign body. - whenever the tool begins to make unusual vibrations (examine immediately). The tool is not allowed to be put into operati- on again until the cause is eliminated. If you fail to fi nd the cause of the vibrations, contact a service center and arrange for essential repairs.

2. If there is string on the tool, you can use the

blade on the string guard hood to shorten the string. Take care not to cut your fi ngers on the blade. Practice all the work steps with the motor swit- ched off and without the rechargeable battery be- fore you start to use the equipment. Only use the cutting line to mow grass that is dry. If the grass is long, the grass must be cut shorter in stages (Fig. 17). Extending the cutting line (Fig. 18) Danger! Do not use any kind of metal wire or me- tal wire encased in plastic in the line spool. This may cause serious injuries to the user. The grass trimmer has a semi-automatic line extension system (automatic jog line feed). Each time you activate the semi-automatic line exten- sion system, the line is automatically extended to ensure that you can cut your lawn with the perfect cutting width at all times. To extend the cutting line, run the motor and tap the line spool on the ground. This will automatically extend the line. The blade on the guard hood will cut the line to the permissible length. Please note that the more often you activate the semi-automatic line exten- sion system, the more the line will wear. Note: If the line is too long when you use the equipment for the fi rst time, the surplus end of it will be cut by the blade on the guard hood. If the line is too short when you start the equipment for the fi rst time, press the knob on the line spool and pull the line hard. When you then start the machine for the fi rst time the line will be cut to the perfect length automatically. Using a brush or similar, carefully remove all resi- dual grass from the underside of the guard hood at regular intervals. Diff erent cutting methods When the equipment is correctly assembled it will cut weeds and long grass in places which are diffi cult to access, e.g. along fences, walls and foundations and also around trees. It can also be used for „mowing“ down vegetation so that a garden can be better prepared or a certain area cleared down to the soil. Please note: Even if it is used carefully, cutting around foundations, stone or concrete walls, etc. will result in the line suff ering above normal wear. Trimming/mowing Swing the trimmer from side to side in a scything motion. Always keep the line spool parallel to the ground. Check the site and decide which cutting height you require. Guide and hold the line spool at the required height to obtain an even cut (Fig. 19). Anl_GP-BC_36-430_Li_BL_SPK13.indb 26Anl_GP-BC_36-430_Li_BL_SPK13.indb 26 24.10.2024 05:57:1024.10.2024 05:57:10GB

Low trimming Hold the trimmer right in front of you at a slight angle so that the underside of the line spool is above the ground and the line strikes the correct target. Always cut away from yourself. Never draw the trimmer towards yourself. Cutting along fences/foundations Approach wire mesh fences, lath fences, natural stone walls and foundations slowly so that you can cut close to them without striking the obstac- le with the line. If, for example, the line strikes stones, stone walls or foundations, it will wear or fray. If the line strikes wire fencing, it will break. Trimming around trees When trimming around tree trunks, approach slowly so that the line does not strike the bark. Walk around the tree, cutting from left to right. Ap- proach grass or weeds with the tip of the line and tilt the line spool forwards slightly.

Warning: Take extreme care during mowing

work. When doing such work keep a distance of 30 meters between yourself and other people or animals. Mowing When mowing down to the ground you will cut all the vegetation. To do this, set the line spool at an angle of 30° to the right. Place the handle in the required position. Remember the increased risk of injury to the user, watchers and animals, and the danger of damaging property due to objects (for example stones) being thrown up (Fig. 20).

Warning: Do not use the equipment to remove

objects from footpaths, etc! The equipment is a powerful tool and can throw small stones and other objects a distance of 15 meters or more, causing injuries and damage to cars, houses and windows. Sawing The equipment is not suitable for sawing. Jamming If the cutting blade jams as a result of attempting to cut vegetation that is too dense, switch off the motor immediately. Remove the grass and scrub from the equipment before you restart it. Preventing recoil When you work with the blade, there is a risk of recoil if it strikes solid objects (tree trunks, bran- ches, tree stumps, stones or the like). This will throw the equipment backwards in the direction opposite to the rotation of the tool. This can cause you to lose control of the equipment. Do not use the blade near fences, metal posts, boundary stones or foundations. For cutting dense stalks, position the blade as shown in Fig. 21 to prevent recoil.

7. Cleaning, maintenance and

ordering of spare parts Danger! Before putting away or cleaning the grass trim- mer, switch off and remove the battery pack.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could at- tack the plastic parts of the equipment. Ensu- re that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Use a brush to remove deposits from the safety guard

housing at the point marked with “M” and the opposite point, and remove the spool cover.

2. Remove the empty string spool.

3. Fig. 23: Thread each of the string ends of the

new string spool through each of the two eye- lets (P) in the spool cover and let the string project by approx. 22 cm.

4. Press the spool cover back into the string

spool housing. When you start the equipment again the line will be cut to the perfect length automatically. Caution! Bits of the nylon line could cause injury when fl ung out! Anl_GP-BC_36-430_Li_BL_SPK13.indb 27Anl_GP-BC_36-430_Li_BL_SPK13.indb 27 24.10.2024 05:57:1024.10.2024 05:57:10GB

7.3 Sharpening the guard hood blade

The guard hood blade (Fig. 2/Item 14) can be- come blunt over time. When you notice this, undo the screw holding the guard hood blade on the guard hood. Clamp the blade in a vise. Sharpen the blade with a fl at fi le and make sure that the angle of the cutting edge is not altered in the pro- cess. File in one direction only.

There are no parts inside the equipment which require additional maintenance.

7.5 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com Spare line spool Art. No.: 34.051.03 Spare cutting blade Art. No.: 34.050.82

8. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

9. Storage and transport

Remove the batteries. Store the equipment and its accessories in a dark and dry place at above freezing temperature. The ideal storage tempe- rature is between 5 and 30 °C. Store the electric equipment in its original packaging. The equipment has an integrated wall holder (Fig. 24/Item L) to enable it to be hung on the wall.

Always hold the equipment with one hand on the handle and the other hand on the additio- nal handle. Do not carry the equipment by its motor housing.

Secure the equipment against slipping if you transport it in a vehicle.

As far as possible, use the original packaging for transporting the equipment.

Use a transport guard for metal blades during transport and storage.

The equipment does not work: Check that the battery is charged and whether the charging unit is working. If the equipment will not work in spite of the voltage supply being OK, please send it to the customer service address below. The string is pushed into the spool housing If the string is pushed into the spool housing when it impacts on an object (e.g. a bed sur- round), this is because the string is wound in the wrong direction. Anl_GP-BC_36-430_Li_BL_SPK13.indb 28Anl_GP-BC_36-430_Li_BL_SPK13.indb 28 24.10.2024 05:57:1124.10.2024 05:57:11GB

Indicator status Explanations and actions Red LED Green LED Off Flashing Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger On Off Charging The charger is charging the battery pack in quick charge mode. The char- ging times are shown directly on the charger. Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge. Off On The battery is charged and ready for use. (READY TO GO) The unit then changes over to gentle charging mode until the battery is fully charged. To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer. Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply. Flashing Off Adapted charging The charger is in gentle charging mode. For safety reasons the charging is performed less quickly and takes more time. The reasons can be: - The rechargeable battery has not been used for a very long time. - The battery temperature is outside the ideal range. Action: Wait for the charging to be completed; you can still continue to charge the battery pack. Flashing Flashing Fault Charging is no longer possible. The battery pack is defective. Action: Never charge a defective battery pack. Take the battery pack out of the charger. On On Temperature fault The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0° C). Action: Remove the battery pack and keep it at room temperature (approx. 20° C) for one day . Anl_GP-BC_36-430_Li_BL_SPK13.indb 29Anl_GP-BC_36-430_Li_BL_SPK13.indb 29 24.10.2024 05:57:1124.10.2024 05:57:11GB

Disposal Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental- friendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! Only for EU countries: According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transpo- sition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/ EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner. If disposed incorrectly, waste electrical and electronic equipment may have harmful eff ects on the envi- ronment and human health, due to the potential presence of hazardous substances. Only for United Kingdom: According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes. Anl_GP-BC_36-430_Li_BL_SPK13.indb 30Anl_GP-BC_36-430_Li_BL_SPK13.indb 30 24.10.2024 05:57:1124.10.2024 05:57:11GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Rechargeable battery, line spool holder Consumables* Line spool, cutting blade, String Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Annex VI Noise: measured L

Declaration of conformity Cordless Scythe GP-BC 36/430 Li BL (Einhell) Standards: EN 62841-1; IEC 62841-4-4; EN IEC 55014-1; EN IEC 55014-2 Wirral, 2024.09.23 Archive-File/Record: NAPR033397 Article Number: 34.113.40 I.-No.: 21014 Documents registrar: Josef Landauer Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany We, Einhell UK Ltd Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom declare the conformity to UK standards and legislation was assessed for: Simple Pressure Vessels (Safety) Regulation

Electromagnetic Compatibility Regulation

Electrical Equipment (Safety) Regulation Measuring Instruments Regulation

Radio Equipment Regulation Pressure Equipment (Safety) Regulation

Personal Protective Equipment Regulation

The Ecodesign for Energy-Related Products and Energy Information Regulation

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation

Noise Emission in the Environment by Equipment for use Outdoors Regulation Annex V

Annex VI Noise: measured L

= 96 dB (A) P = kW; L/Ø = 43 cm Approved Body: TÜV SÜD Industrie Service GmbH (NB 0036)
