1. Safety instructions for hand mower

2. Layout and items supplied

5. Before starting the equipment

7. Cleaning, maintenance, storage, transport and ordering of spare parts

8. Disposal and recycling

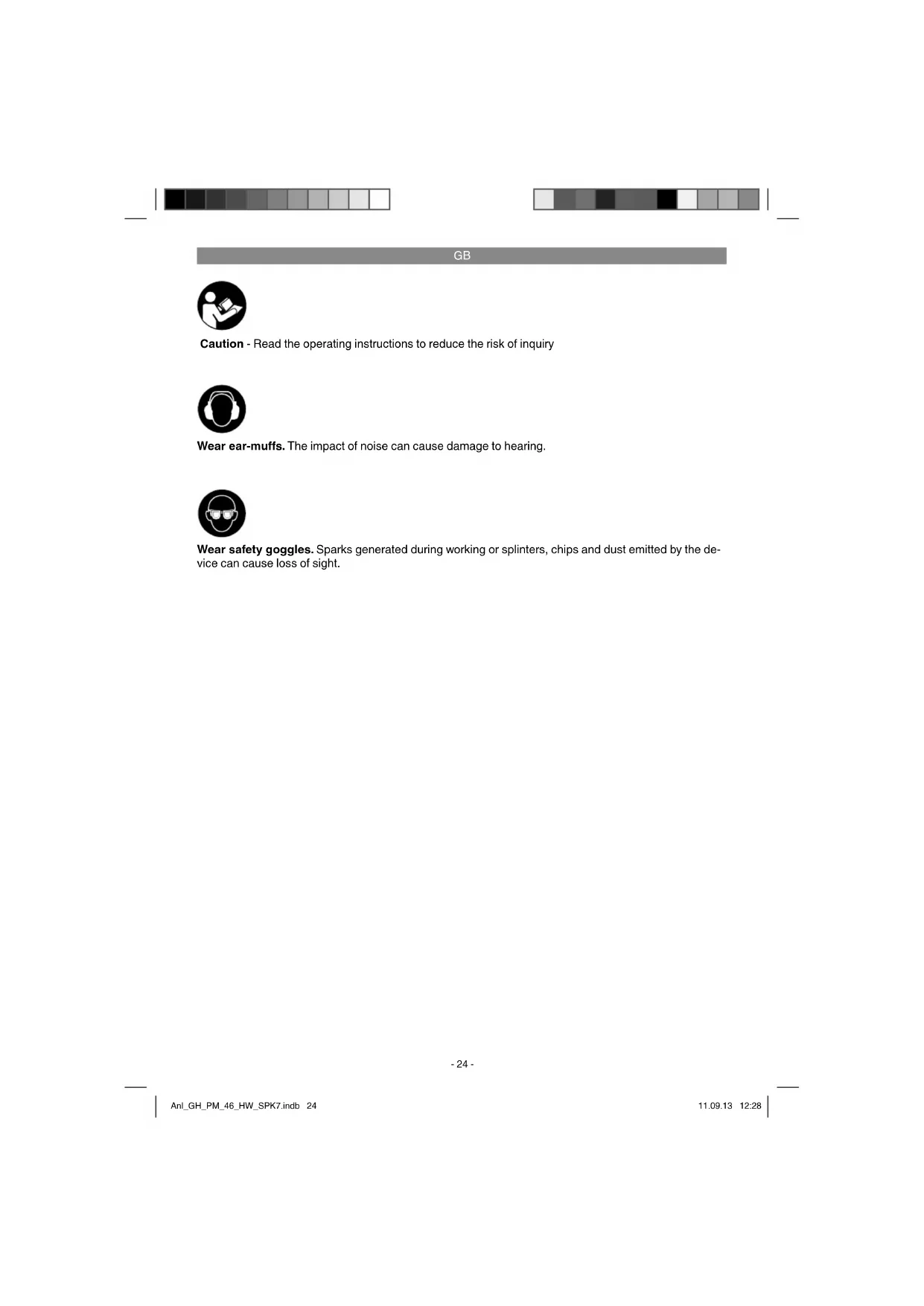

Caution - Read the operating instructions to reduce the risk of inquiry Wear ear-muff s. The impact of noise can cause damage to hearing. Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the de- vice can cause loss of sight. Anl_GH_PM_46_HW_SPK7.indb 24Anl_GH_PM_46_HW_SPK7.indb 24 11.09.13 12:2811.09.13 12:28GB

Important! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety instructions for hand

1. Read the directions with due care. Familiarize

yourself with the settings and proper operati- on of the equipment.

2. Never allow children or other persons who

are not familiar with the operating instructions to use the mower. Contact your local govern- mental agency for information regarding mini- mum age requirements for the user.

3. Never mow in the direct vicinity of persons -

especially children - or animals. Always keep in mind that the operator or user of the equip- ment is responsible for accidents involving other persons and/or their property.

4. If you give the equipment to any other person,

hand over these operating instructions as well. Preliminary measures

1. Always wear sturdy, non-slip footwear and

long trousers when mowing. Never mow bare- foot or in sandals.

2. Check the ground on which the equipment

will be used and remove all objects that could be caught up and violently fl ung out.

Petrol is highly fl ammable! Therefore: - Only store petrol in containers designed to hold petroleum-based liquids. - Only refuel out in the open and do not smoke during the refueling process. - Always refuel before starting the engine. Do not open fuel tank cap and do not refuel when the engine is running or when the scythe is hot. - If petrol has overfl owed, do not under any circumstances attempt to start the engine. Instead, remove the equipment from the af- fected area. Avoid starting the engine until the petrol fumes have completely evaporated. - For safety reasons, the petrol tank and other tank closures must be replaced if they are damaged.

to ensure that the blade, mounting bolts and the entire cutting apparatus are in good wor- king order (i.e. not worn out or damaged). To prevent any imbalance, replace worn out or damaged blades and mounting bolts as a set only (if applicable).

6. Please note that where equipment has more

than one blade, the rotation of one of the bla- des can cause the others to rotate as well. Handling

1. Do not let the combustion engine run in enc-

losed areas, as dangerous carbon monoxide gas can build up.

2. Only mow in broad daylight or in well-lit con-

ditions. If possible, avoid using the equipment on wet grass.

3. Always maintain good footing on inclines.

4. Only operate the equipment at a walking

5. For machines with wheels: Always mow

across hills i.e. never straight up or straight down.

6. Be particularly careful when you change di-

wer around and when pulling it towards you.

9. Stop the blade whenever the mower has to be

tilted to one side for transporting over areas other than lawns and whenever the mower has to be moved from or to the area you want to mow.

10. Never use the lawn mower if the blade or

safety grilles are damaged, or without the attached guards, e.g. defl ectors and/or grass catching devices.

11. Do not adjust or overclock the engine speed

12. Release the engine brake, before you start

13. Start the engine with caution as described in

the manufacturer‘s instructions. Make sure that your feet are far enough away from the mower blade!

14. Do not tilt the lawn mower when you start the

the ground a little in order to start it. In this case, tilt it as little as absolutely necessary and only raise the side opposite to that of the user.

15. Do not start the engine if you are positioned in

16. Never move your hands or feet toward or un-

der any rotating parts. Keep clear of the chute opening at all times.

17. Never lift or carry a lawn mower with the engi-

- before you dislodge any blockages or clogs in the chute. - before carrying out any checks, cleaning, maintenance or other work on the lawn mo- wer. - if you have struck a foreign object. Examine the mower for signs of damage and carry out any necessary repairs before restarting and continuing to work with the mower. If the lawn mower begins to experience exceptionally strong vibrations, immediately switch it off and check it. - when you leave the lawn mower.

19. Switch off the engine and make sure that the

blade and all moving parts have come to a complete standstill. - before you refuel.

21. Operating the equipment at excessive speed

may increase the risk of accidents.

22. Carry out adjustment work on the equipment

with care and avoid jamming your fi ngers bet- ween the moving blades and rigid parts of the equipment. Maintenance and storage

1. Make sure that all nuts, bolts and screws are

tightened securely and that the equipment is in safe working condition.

2. Never store the mower (with petrol in the

tank) inside a building in which petrol fumes could come into contact with open fl ames or sparks.

3. Allow the engine to cool before you put the

lawn mower in an enclosed area.

4. In order to avoid fi re hazards, keep the engi-

ne, exhaust and the area around the fuel tank free from grass, leaves and leaking grease (oil).

5. Routinely check the grass basket for signs of

wear and impaired functionality.

6. For your own safety, replace worn or dama-

ged parts without delay.

7. If the fuel tank needs to be emptied, ensure

that it is done out in the open with a petrol suction pump (available from DIY stores). Caution! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Explanation of the warning signs on the equipment (see Fig. 12)

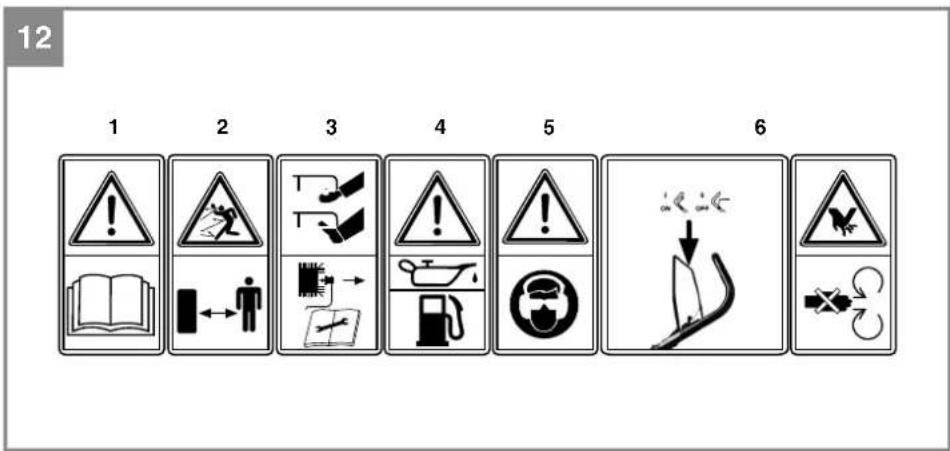

1) Read the operating instructions.

2) Take care of the danger from catapulted

parts. Keep a safe distance.

3) Caution! Sharp blades - Switch off the engine

and pull the spark plug boot before doing any maintenance, repair, cleaning or adjustment work.

4) Fill with oil and fuel before starting the mower.

5) Caution: Wear ear protection and safety gog

7) Risk of cut injuries. Caution: rotating cutters.

2. Layout and items supplied

8. Cutting height adjustment

Please check that the article is complete as spe- cifi ed in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Important The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Top and bottom push handle

Petrol service manual

Original operating instructions

The equipment may only be used for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. The petrol lawn mower is intended for private use i.e. for use in home and gardening environments. Private use of the lawn mower refers an annual operating time generally not exceeding that of 50 hours, during which time the machine is pri- marily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applica- tions are excluded. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or indust- rial businesses or for equivalent purposes. The operating instructions as supplied by the ma- nufacturer must be kept and referred to in order to ensure that the lawn mower is properly used and maintained. The instructions contain valuable information on operating, maintenance and servi- cing conditions. Important. Due to the high risk of bodily injury to the user, the petrol lawn mower must not be used to carry out the following work: Trim bushes, hedges or shrubs, to cut scaling vegetation, plan- ted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge clippings. Moreover, the lawn mo- wer may not be used as a power cultivator to level out high areas such as molehills. For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind.

5. Before starting the equipment

5.1 Assembling the components

Some parts of the mower come disassembled. For quick and easy assembly, read and follow the instructions below. Important. You will need the following additional tools (not supplied) for assembly, and also for maintenance work:

A flat oil drip tray (for changing the oil)

A 1 liter measuring jug (oil/petrol resistant)

A funnel (suitable for the tank’s petrol filler neck)

Household wipes (to wipe up oil/petrol resi- due; dispose of these at a filling station)

A petrol suction pump (plastic, available from DIY stores)

An oil can with hand pump (available from DIY stores)

one screw (Fig. 3a/Item 12) and one star nut (Fig. 3a/Item 11) on each side. For fastening choose one of the holes to suit the required height of the push bar. Important. The identi- cal height must be set on both sides. Ensure that the cords which are fastened later are not in the way.

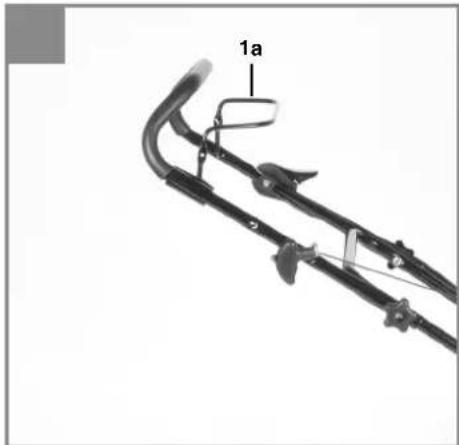

2. Fasten the top push handle to the bottom

push handle with the star screws (Item 11) as shown in Fig. 3b.

3. Insert the grip of the starter cord (Fig. 3c/Item

9) into the hook provided for that purpose as

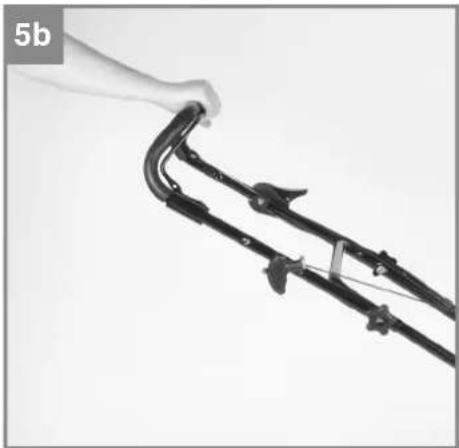

4. Fasten the cords to the push bar with the sup-

hand and hook in the grass bag (Fig. 4a/Item 4a) as shown in Figure 4a.

5.2 Setting the cutting height

Important. Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.

Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged. To prevent any imba- lance, replace blunt and/or damaged blades as a set only (if applicable). To carry out this check, first switch off the engine and pull the spark plug boot.

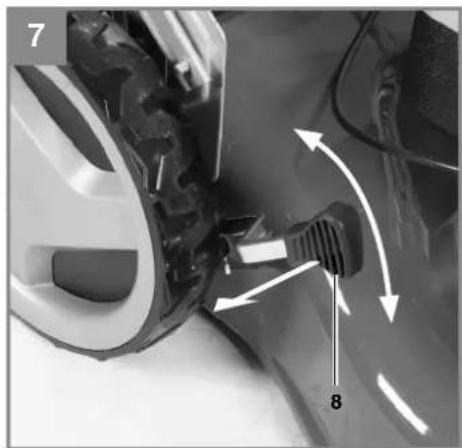

The cutting height is centrally adjusted with the cutting height adjustor lever (Fig. 7/Item 8). Different cutting heights can be selected.

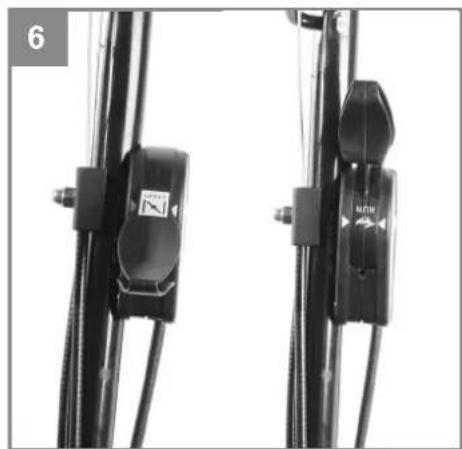

Pull the setting lever into the desired position. Allow the lever to engage.

Important. The engine is supplied without oil and petrol. Therefore, be sure to add oil and petrol befo- re starting the engine. In order to avoid any unintentional start-ups of the lawn mower, it comes equipped with an engine brake (Fig. 5a/Item 1a) which must be pulled back before the engine can be started. When the engi- ne start/stop lever is released, it must return to its initial position, at which point the engine automati- cally switches off . Move the throttle control (Fig. 6) in position . Pull the motor start/stop lever (Fig. 5b) and vigorously pull the starter cable (pull start). You should repeat this procedure several times before starting to cut the grass to make sure that everything is working correctly. Be sure to wait until the blade has stopped rotating before per- forming any adjusting and/or repair works to your lawn mower. Switch off the engine before performing any ad- justing, maintenance or repair works. Anl_GH_PM_46_HW_SPK7.indb 28Anl_GH_PM_46_HW_SPK7.indb 28 11.09.13 12:2811.09.13 12:28GB

gine start/stop lever to switch off the engine. When you release the engine start/stop lever, the engine and blade automatically stop. To mow, hold the lever in the working position (Fig. 5b). Before you start to mow, check the start/stop lever several times to be sure that it is working properly. Ensure that the tension cable can be smoothly operated.

2. Warning: The blade begins to rotate as soon

as the engine is started. Important: Before you start the engine, move the engine brake several times to be sure that the stop cable is properly working. Note: The engine is factory set to a speed that is optimal for cutting and blowing grass into the basket and is designed to provide many years of use.

3. Check the oil level.

4. Use a funnel and measuring vessel to fi ll the

tank with petrol. Make sure that the petrol is clean.

Warning: Never use more than one safety petrol

can. Do not smoke when refueling. Switch off the engine before refueling and allow the engine to cool down for a few minutes.

5. Ensure that the ignition cable is connected to

6. Stand behind the mower. Place one hand on

the engine start/stop lever. Place the other hand on the starter handle.

7. Start the engine using the reversing starter

(Fig. 1/Item 9). To do this pull the handle out approx. 10 – 15 cm (until you feel a resis- tance) and then start the engine with a sharp pull. If the engine does not start, pull the handle again. Important. Never allow the cable to snap back. Important: In cold weather, it may be neces- sary to repeat the starting process several times.

1. Make sure that you are properly dressed

when mowing. Wear sturdy footwear; do not wear sandals or tennis shoes.

2. Inspect the blade. Blades, that are bent or

otherwise damaged, must be exchanged for a genuine Einhell replacement blade.

3. Do not fi ll the fuel tank indoors, but rather out

in the open. Use a funnel and a measuring vessel. Wipe off any spilled petrol.

4. Read and follow in the instructions in the

operating manual as well as the information regarding the engine and accessory equip- ment. Store the manual in a place where it can be readily accessed by other users of the equipment.

5. Exhaust gas is dangerous. Only start the en-

gine out in the open.

6. Make sure that all the guards are fi tted and

that they are in good working order.

7. The equipment should only be operated by

persons who are well informed with the way it works and who are in reasonably good physi- cal condition.

8. Mowing wet grass can be dangerous. Mow

the grass when it is as dry as possible.

9. Tell other persons and children to stay away

10. Never mow in conditions of poor visibility.

11. Pick up any loose objects and debris on the

lawn prior to mowing.

6.2 Tips on mowing properly

Important. Never open the chute fl ap when the grass bag has been detached to be emp- tied and the motor is still running. The rota- ting blade can cause serious injuries! Always carefully fasten the chute fl ap and grass basket. Switch off the engine before emptying the grass basket. Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always mow along the incline (not up and down). Anl_GH_PM_46_HW_SPK7.indb 29Anl_GH_PM_46_HW_SPK7.indb 29 11.09.13 12:2811.09.13 12:28GB

For safety reasons, the lawn mower may not be used to mow inclines whose gradient exceeds 15 degrees. Use special caution when backing up and pulling the lawn mower. Tripping hazard!

Only use a sharp blade that is in good condition. This will prevent the grass blades from fraying and the lawn from turning yellow. Try to mow in straight lines for a nice, clean look. The swaths should overlap each other by a few centimeters in order to avoid stripes. Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it more diffi cult to start the mower; they decrease the quality of the cut and make it harder for the equipment to bag the grass. Always mow along inclines (not up and down). You can prevent the lawn mower from slipping down by holding a position at an angle upwards. Select the cutting height according to the length of the grass. If necessary, mow a number of times so that you never cut more than 4cm of grass in one go. Switch off the engine before doing any checks on the blade. Keep in mind that the blade continues to rotate for a few seconds after the engine has been switched off . Never attempt to manually stop the blade. Regularly check to see if the blade is securely attached, is in good condition and is sharp. If the contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object, immediately switch off the lawn mower and wait for the blade to come to a com- plete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged. Tips for proper mowing:

1. Pay attention to ensure that you do not run

into or over anything that could damage the mower. The lawn mower could be damaged and/or the machine could infl ict bodily injury.

2. A hot engine, exhaust or drive unit can burn

the skin if touched. Do not touch these parts.

4. Insuffi cient daylight or an insuffi cient level of

artifi cial light is one reason not to mow.

5. Check the mower, the blade and other parts

if they have struck a foreign object or if the equipment vibrates more than usual.

6. Do not make any adjustments or repairs until

the engine has been switched off . Pull the plug boot.

7. Pay special attention if you are mowing direct-

ly next to a street or are close by one (traffi c). Always keep the grass chute pointed away from the street.

8. Avoid mowing in places where the wheels

have trouble gripping or mowing is unsafe in any other way. Before you back up, ensure that nobody is standing behind you (espe- cially little children, who are more diffi cult to see).

9. When mowing over thick, high grass, select

the highest cutting level and mow at a slower speed. Before you remove any grass or blo- ckages of any kind, switch off the engine and pull the plug boot.

10. Never remove any safety-related parts.

11. Never fi ll the engine with petrol when it is hot

As soon as grass clippings start to trail the lawn mower, it is time to empty the grass basket. Important. Before taking off the grass bag, switch off the engine and wait until the blade has come to a stop. To take off the grass basket, use one hand to lift up the chute fl ap and the other to grab onto the basket carry-handle. Remove the basket (Fig. 4a). For safety reasons, the chute fl ap automatically falls down after removing the grass basket and closes off the rear chute opening. If any grass remains in the opening, it will be easier to restart the engine if you pull the mower back approxi- mately 1m. Do not use your hands or feet to remove clippings in or on the mower housing, but instead use suita- ble tools such as a brush or a hand broom. In order to ensure that the majority of grass clip- pings are picked up, the inside of both the grass bag and especially the air grill must be cleaned after each use. Reattach the grass bag only when the engine is switched off and the blade is stopped. Using one hand, lift up the chute fl ap, while grab- bing onto the basket handle with the other. Hang in the basket from the top. Anl_GH_PM_46_HW_SPK7.indb 30Anl_GH_PM_46_HW_SPK7.indb 30 11.09.13 12:2811.09.13 12:28GB

1. Allow the engine to cool before you put the

lawn mower in an enclosed area.

2. Remove grass, foliage, grease and oil before

storing the mower. Do not place any objects on top of the mower.

3. Before using the mower again, retighten all

nuts and screws. Tighten all screws which were slackened.

4. Also be sure to empty the grass basket.

5. Disconnect the spark plug boot to prevent

6. Ensure that you do not park the mower next

to any source of danger. Petrol fumes can lead to explosions.

7. Only original parts or parts approved by the

manufacturer may be used for repairs (see address on the warranty certifi cate).

8. Empty the petrol tank with a petrol extraction

pump if you are not intending to use the mo- wer for an extended period of time.

9. Tell your children not to use the mower. It is

10. Never place petrol near an ignition source.

Always use a can that is approved to store petrol. Keep petrol away from children.

11. Oil and maintain the equipment.

12. How to switch off the engine:

All you have to do to switch off the engi- ne is release the engine start/stop lever (Fig. 5a/Item 1a). Pull the ignition cable from the spark plug boot in order to prevent the engine from restarting. Before you start the engine again, check the cord for the engine brake. Check that the cord is correctly fi tted. If the cord is kinked or damaged, it should be replaced.

7. Cleaning, maintenance, storage,

transport and ordering of spare parts Important: Never work on or touch any current-conducting parts of the ignition system while the engine is running. Pull the spark plug boot from the spark boot before doing any maintenance or assembly work. Never carry out any work on the equipment while the engine is running. Work that is not de- scribed in these operating instructions, should only be carried out by authorized workshops.

The lawn mower should be cleaned thoroughly every time after it has been used. This particularly applies to its underside and the blade mount. For this purpose, tilt the lawn mower onto its left side (opposite the oil-fi ller neck). Note: Before placing the lawn mower on its side, fully drain the fuel tank using a petrol extraction pump. Do not tilt the lawn mower by more then 90 degrees. It is easiest to remove dirt and grass immediately after mowing. Dried grass remnants and dirt may impair the mowing operation. Check if the grass ejector chute is free of grass remnants and remove any if necessary. Never clean the mo- wer using a water jet or a high-pressure cleaner. Ensure that no water can get into the interior of the equipment. Do not use aggressive cleaning agents such as cold cleaners or petroleum ether.

Please refer to the supplied petrol service manual for information on the maintenance intervals. Important: Dispose of soiled maintenance mate- rial and media at the appropriate collection point

7.2.1 Axles and wheel hubs

A thin coating of grease should be applied to the axles and wheel hubs once per season. To do so, remove the wheel caps with a screwdri- ver and loosen the fastening screws on the wheels. Anl_GH_PM_46_HW_SPK7.indb 31Anl_GH_PM_46_HW_SPK7.indb 31 11.09.13 12:2811.09.13 12:28GB

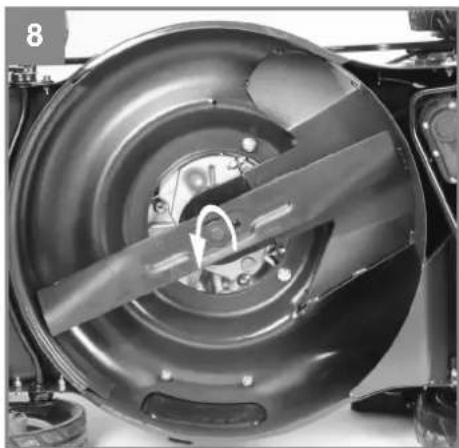

For safety reasons, have all blade sharpening, balancing and mounting work carried out by an authorized service center. To achieve optimal re- sults, we recommend to have the blades checked once a year. Changing the blades (Fig. 8) When changing the cutting unit, be sure to use only genuine replacement parts. The identifi cation mark on the blade must correspond with the num- ber specifi ed in the spare parts list. Never install a blade from a diff erent manufactu- rer. Damaged blades If, in spite of all caution, the blade comes into contact with an obstacle, switch off the engine immediately and pull the spark plug boot. Tilt the mower to the side and check the blade for damage. Damaged or bent blades must be replaced. Never straighten a bent blade. Never work with bent or heavily worn blades as this will result in vibrations, causing further damage to the mower. Important: Risk of injury when working with a da- maged blade. Resharpening the blade The blade edges can be resharpened with a metal fi le. To avoid imbalance, the blade reshar- pening work should only be carried out by an authorized service center.

7.2.3 Oil level check

Important: Never run the engine with no or too little oil. This can cause serious damage to the engine. Checking the oil level Place the lawn mower on a level and straight sur- face. Unscrew the oil dipstick (Fig. 9a/Item 7a) by turning it counter-clockwise and wipe the dipstick. Re-insert the dipstick into the fi ller opening as far as it will go but do not screw it in. Pull out the dip- stick, hold it horizontally and read off the oil level. The oil level must be between the two marks min. and max. on the oil dipstick (Fig. 9b). Change the oil The engine oil is best changed at room tempe- rature.

Place a flat oil drip tray beneath the mower.

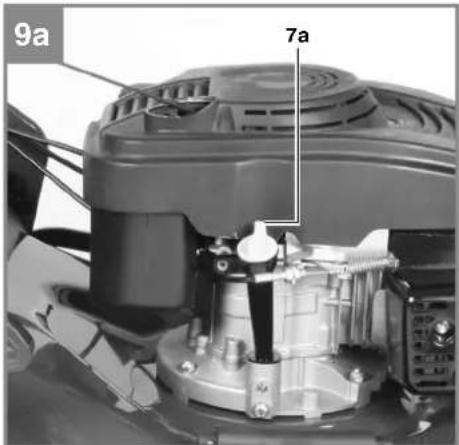

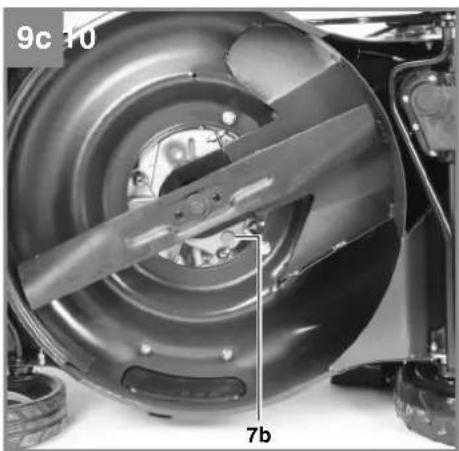

Open the oil drain plug (Fig. 9c/Item 7b). Drain the warm engine oil into a drip tray.

Close the drain screw again when all the used oil has been drained.

Fill in engine oil up to the top mark on the oil dip stick

Important. Do not screw in the oil dipstick to check the oil level – only insert it as far as the thread.

Dispose of the used oil in accordance with applicable regulations.

7.2.4 Care and adjustment of the cable pulls

Oil the cable pulls at regular intervals and check that they move easily.

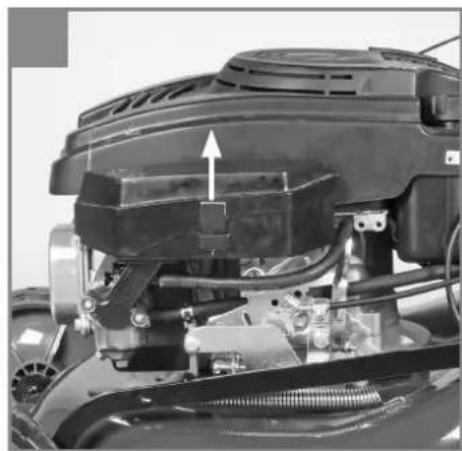

7.2.5 Maintenance of the air fi lter (Fig. 10)

Soiled air fi lters reduce the engine output by sup- ply too little air to the carburetor. If the air contains a lot of dust, the air fi lter should be checked more frequently. Important: Never clean the air fi lter with petrol or infl ammable solvents. Clean the air fi lter only with compressed air or by tapping it.

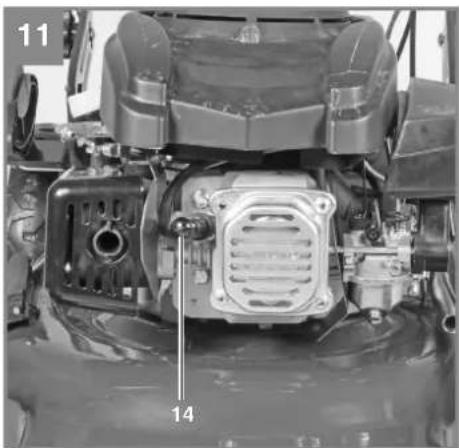

7.2.6 Maintenance of the spark plug

Clean the spark plug with a copper wire brush.

Pull off the spark plug boot (Fig. 11/Item 14) with a twist.

Remove the spark plug using a spark plug wrench.

Assemble in reverse order.

After carrying out repair or maintenance work, ensure that all safety parts are installed and in perfect condition. Store potentially hazardous parts out of the reach of other persons and children. Important: In accordance with the German Product Liability Act, we are not liable for any damages if they result from improper repairs to the product or if parts are replaced by items other than genuine parts or parts approved by us. Furthermore, we are not liable for any damages if they result from improper repairs to the product. Arrange for your customer service or an autho- rized workshop to do the work. The same applies to accessory parts. Anl_GH_PM_46_HW_SPK7.indb 32Anl_GH_PM_46_HW_SPK7.indb 32 11.09.13 12:2811.09.13 12:28GB

7.2.8 Operating times

Please observe the regulations concerning lawn mower operating times, which may diff er from town to town.

7.3 Preparing the mower for long-term sto-

Warning: Do not empty the petrol tank in enc-

losed areas, near fi re or when smoking. Petrol fumes can cause explosions and fi re.

1. Drain the petrol tank using a petrol extraction

2. Start the engine and run it until the tank and

fuel line are completely empty and the engine stalls.

3. Change the oil after each season. To do so,

remove the used engine oil when the engine is warm and refi ll new oil.

4. Remove the spark plug from the cylinder

head. Use an oil can to fi ll the cylinder with approx. 20 ml of oil. Slowly pull back the star- ter handle, which will bathe the cylinder wall with oil. Screw the spark plug back in.

5. Clean the cooling fi ns of the cylinder and the

6. Be sure to clean the entire equipment to pro-

7. Store the equipment in a well-ventilated place

7.4 Preparing the mower for transport

1. Empty the petrol tank (refer to point 7.3/1)

2. Always let the engine run until it has used up

the remainder of petrol in the tank.

3. Empty the engine oil from the warm engine.

4. Remove the spark plug boot from the spark

5. Clean the cooling fi ns of the cylinder and the

6. Unhook the starter cable from the hook (Fig.

3c). Slacken the star nuts and fold down the upper push bar. Make sure that the cables do not get kinked when the bar is pulled up.

7. Wedge a few layers of corrugated cardboard

between the upper and lower push bars and the engine in order to prevent any chafi ng.

7.5 Consumables, wear materials and spare

parts Spare parts, consumables and wear materials such as engine oil, V-belts, spark plugs, air fi lter inserts, petrol fi lters, batteries and blades are not covered by the warranty.

7.6 Ordering replacement parts

Please provide the following information on all orders for spare parts:

Model/type of the equipment

Article number of the equipment

ID number of the equipment

Part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be dispo- sed of as special waste. Ask your dealer or your local council. Anl_GH_PM_46_HW_SPK7.indb 33Anl_GH_PM_46_HW_SPK7.indb 33 11.09.13 12:2811.09.13 12:28GB

Warning: Switch off the engine and pull out the spark plug boot before making any checks or adjust-

Warning: If, after making an adjustment or repair to the engine, you let it run for a few minutes, remem-

ber that the exhaust and other parts will get hot. Do not touch these parts as they may burn you. Fault Possible cause Remedy The equipment does not operate smoothly and vibra- tes intensively - Bolts loose - Blade attachment is loose - Blade imbalanced - Check bolts - Check blade attachment - Replace blade The engine does not start - Engine start/stop lever is not pressed - Throttle lever in wrong position - Spark plug defective - Fuel tank empty - Press the engine start/stop lever - Check setting - Replace spark plug - Top up fuel Engine does not run smoothly - Air fi lter dirty - Spark plug dirty - Clean the air fi lter - Clean the spark plug Lawn turns yellow, uneven cut - Blade is not sharp - Cutting height too small - Engine speed too low - Sharpen blade - Adjust to the proper height - Set the lever to max. Grass chute is not clean - Engine speed too low - Cutting height too small - Blade is worn - Grass bag is clogged - Set the throttle lever to max. - Set properly - Replace the blade - Empty the grass bag Anl_GH_PM_46_HW_SPK7.indb 34Anl_GH_PM_46_HW_SPK7.indb 34 11.09.13 12:2811.09.13 12:28GB

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_GH_PM_46_HW_SPK7.indb 35Anl_GH_PM_46_HW_SPK7.indb 35 11.09.13 12:2811.09.13 12:28GB

Warranty provisions iSC GmbH or the DIY store where you made you purchase guarantees the repair of defects or replace- ment of the equipment in accordance with the overview below. Statutory guarantee claims are unaff ec- ted. Category Example Warranty Defect with regard to material or construction 24 months Wear parts* Air fi lter, Bowden cables, grass basket, tires, drive clutch 6 months Consumables* Blades Warranty only in case of an im- mediate defect (24 hours after purchase / date on the bill) Missing parts 5 work days

• Not necessarily included in the scope of delivery! For consumables, wear parts and missing parts iSC GmbH guarantees the correction of defects or a new delivery only if the defect is reported within 24 hours (consumables), 5 work days (missing parts) or 6 months (wear parts) after purchase and the purchase date is verifi ed with the bill. In case of defects concerning the material or construction, we kindly request you to submit the equip- ment together with the fully completed warranty card supplied with the equipment. It is important that you enter an exact description of the defect. To do so, answer the following questions:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to off er our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not aff ect your statutory warranty

rights. We do not charge you for this guarantee.

2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restric-

ted to the rectifi cation of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), eff ects of force or external infl uences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rende- red null and void if any attempt is made to tamper with the device.

3. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guaran-

tee claims should be submitted before the end of the guarantee period within two weeks of the de- fect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the gua- rantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies when an on-site service is used.

4. In order to assert your guarantee claim, please send your defective device postage-free to the

address shown below. Please enclose either the original or a copy of your sales receipt or ano- ther dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as pos- sible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts/consumables and missing parts as set forth in the warranty conditions in these operating instructions. Anl_GH_PM_46_HW_SPK7.indb 37Anl_GH_PM_46_HW_SPK7.indb 37 11.09.13 12:2811.09.13 12:28F

Annex VI Noise: measured L

= 91 dB (A); guaranteed L
