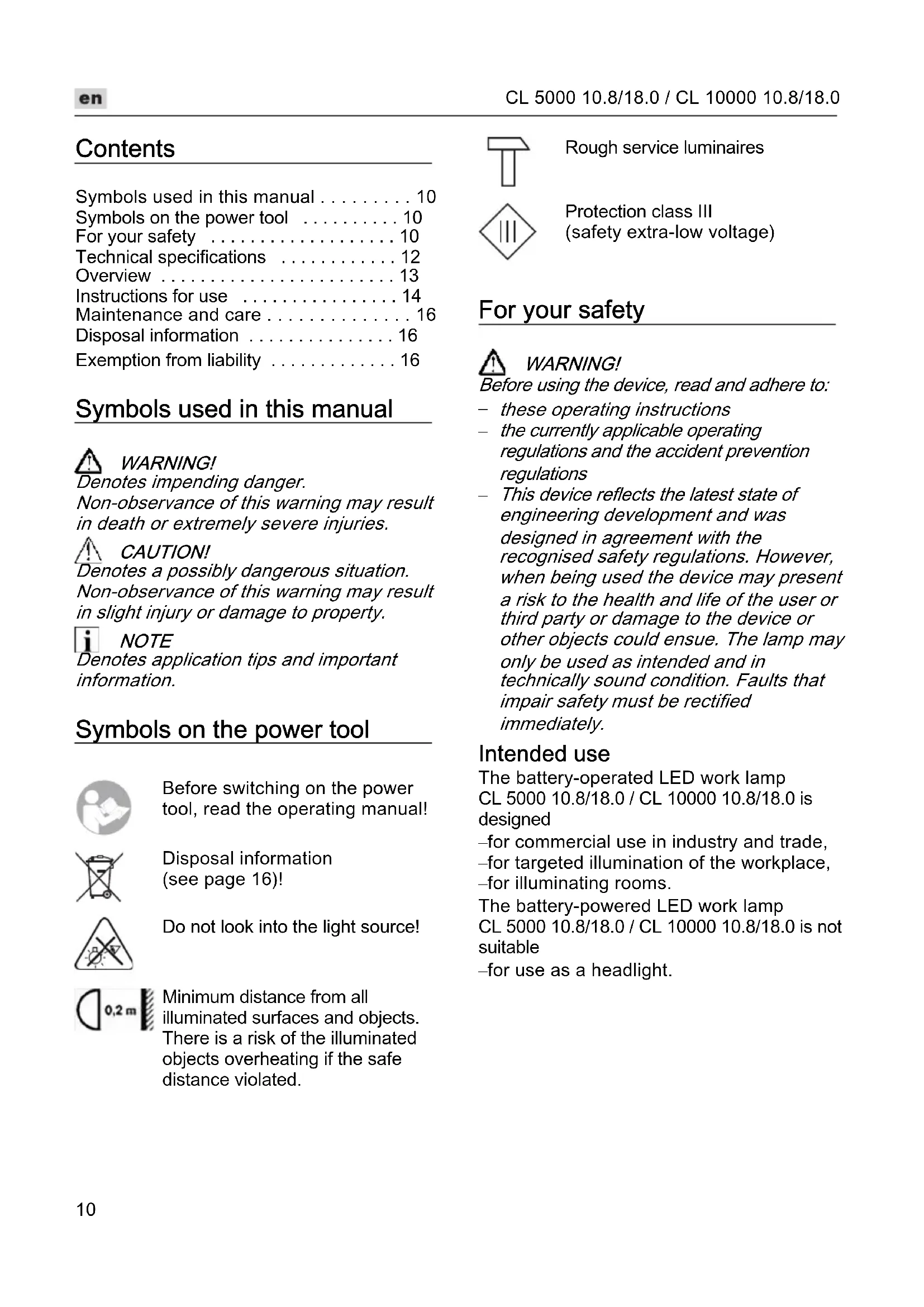

USER MANUAL CL 5000 10.818.0 Flex

Symbols used in this manual 10

Symbols on the power tool 10

For your safety 10

Technical specifications 12

Overview 13

Instructions for use 14

Maintenance and care 16

Disposal information 16

Exemption from liability 16

Symbols used in this manual

WARNING!

Denotes impending danger.

Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation.

Non-observance of this warning may result in slight injury or damage to property.

i NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Disposal information (see page 16)!

Do not look into the light source!

Minimum distance from all illuminated surfaces and objects.

There is a risk of the illuminated objects overheating if the safe distance violated.

Rough service luminaires

Protection class III (safety extra-low voltage)

For your safety

WARNING!

Before using the device, read and adhere to:

• these operating instructions
• the currently applicable operating regulations and the accident prevention regulations
• This device reflects the latest state of engineering development and was designed in agreement with the recognised safety regulations. However, when being used the device may present a risk to the health and life of the user or third party or damage to the device or other objects could ensue. The lamp may only be used as intended and in technically sound condition. Faults that impair safety must be rectified immediately.

Intended use

The battery-operated LED work lamp CL 5000 10.8/18.0 / CL 10000 10.8/18.0 designed

for commercial use in industry and trade, for targeted illumination of the workplace, for illuminating rooms.

The battery-powered LED work lamp CL 5000 10.8/18.0 / CL 10000 10.8/18.0 is not suitable

for use as a headlight.

Safety instructions for battery-powered LED work lamp

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injuries. Save all warnings and instructions for future reference.

• Do not work with the battery-powered LED work lamp in explosive environments.
• Do not point the light beam at people or animals and do not look into the light beam, even from far away.
• Do not cover the lamp head while the battery-powered LED work lamp is in operation. The lamp head heats up when in use and the accumulating heat may cause burns.
• Do not use the battery-powered LED work lamp in road traffic.
  Before any work on the battery-powered LED work lamp (e.g. assembly, service etc.) and also during transport and storage, remove the battery from the battery-powered LED work lamp.
• Do not let children use the battery-powered LED work lamp. It is designed for professional use. Children may be accidentally blinded or may blind others.
• Protect the battery from heat, e.g. from continuous exposure to sunlight, fire, water and humidity. There is a risk of explosion.
  If the battery is damaged or used improperly, fumes may be emitted. Provide fresh air and consult a doctor if you feel unwell. The fumes may irritate the respiratory tract.
  Pointed objects, such as nails or screwdrivers, or external forces may damage the battery. This may cause an internal short-circuit and the battery to burn, smoke, explode or overheat.
  The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

Safety instructions for handling batteries

• Do not open the battery. Short-circuiting hazard!
• Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
  A damaged or incorrectly used battery may result in the emission of fumes. Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.
  Liquid may leak out of the battery if the battery is incorrectly used. Avoid contact with such liquid. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical attention. Liquid discharged from the battery may cause irritation or burns.
  Use FLEX rechargeable batteries only in connection with FLEX tools and FLEX accessories. Only in this way is the rechargeable battery protected against dangerous overloads.
• Recharge batteries only with chargers recommended by the manufacturer. A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
  The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.

Technical specifications

	CL 5000 10.8/18.0 CL 10000 10.8/18.0
Machine type Battery-powered LED work lamp
Lithium-ion battery V/Ah		10.8/2.510.8/4.018/2.518/5.018/8.0
Lighting duration- 10.8/2.5- 10.8/4.0- 18/2.5- 18/5.0- 18/8.0	h/min	1h 25min -10%2h -10%1h 30min -10%3h -10%4h 45min -10%	1h 25min -10%2h 20min -10%40min -10%1h 27min -10%2h 10min -10%
Max. total luminous flux(+18V battery)	Im 5000	10000
Weight (without battery) kg 1.9 3.6
Size (LxWxH) mm 294x214x200 349x290x208
Installation height(Indoor use only)	m	≤3
Protection class		III / ☑
IP Code IP65 (without battery)
IK Code IK07

Overview

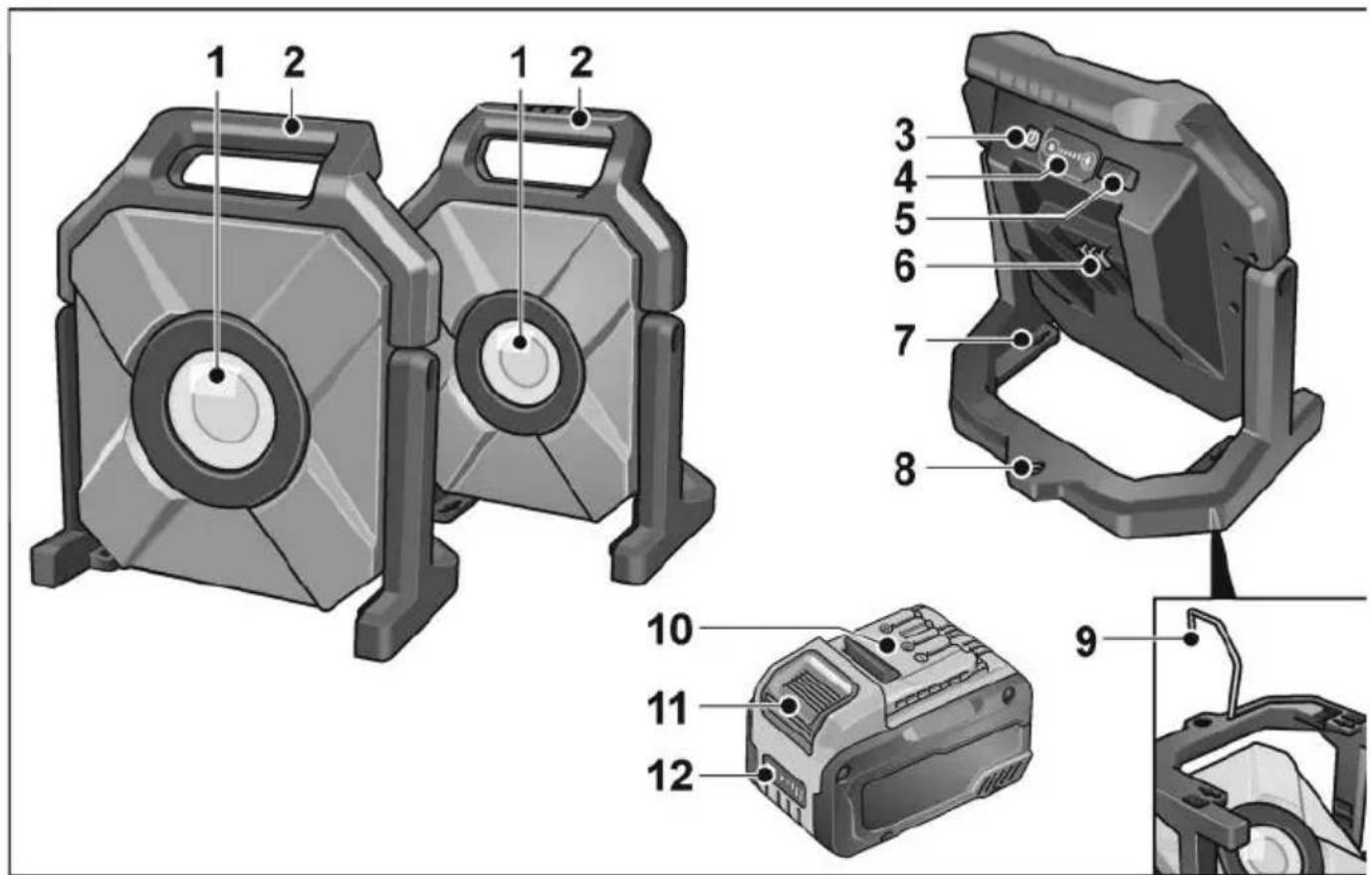

1 Protective glass of lamp head
2 Handle
3 On/Off switch
4 Light intensity buttons

Adjusting lighting output

5 USB-C port
6 Slot for battery

7 Wall mounting holes
8 Threads (5/8") for stand
9 Frame with hook for wall mounting
10 Battery
11 Release button for battery
12 State of charge indicator

Instructions for use

WARNING!

Before any work on the device, pull out the battery.

Before switching on the power tool

Unpack the device and accessories and check that no parts are missing or were damaged during transport.

Inserting/replacing the battery

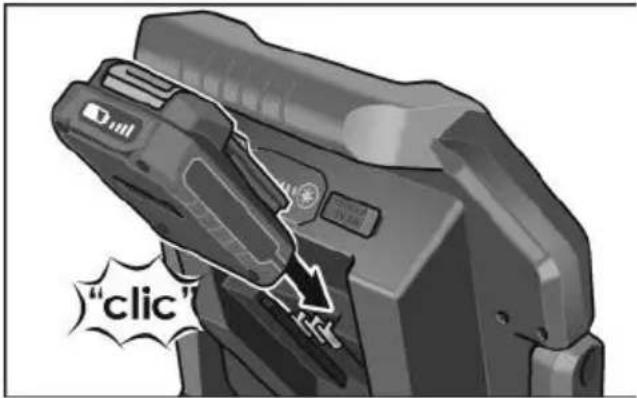

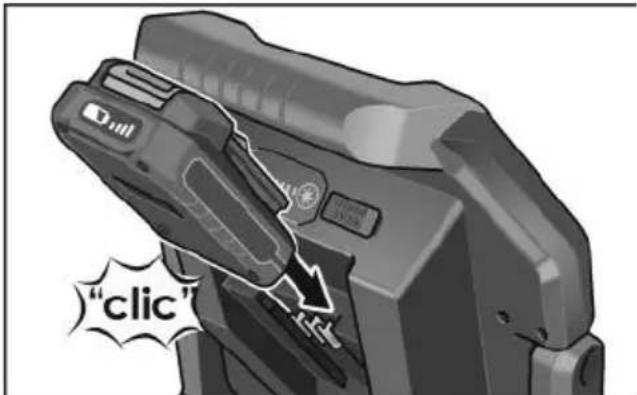

Push the charged battery into the device until it engages fully.

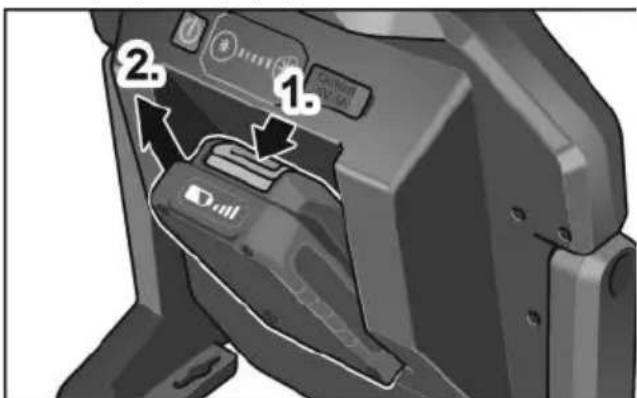

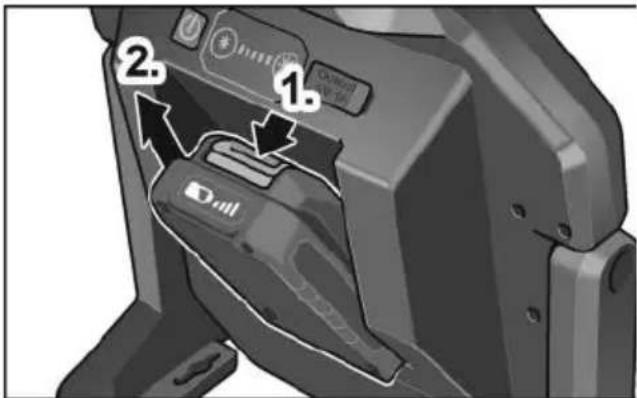

To remove, press the release button (1.) and take out the battery (2.).

CAUTION!

When the device is not in use, protect the battery contacts. Loose metal parts may short-circuit the contacts; there is a risk of explosion and fire!

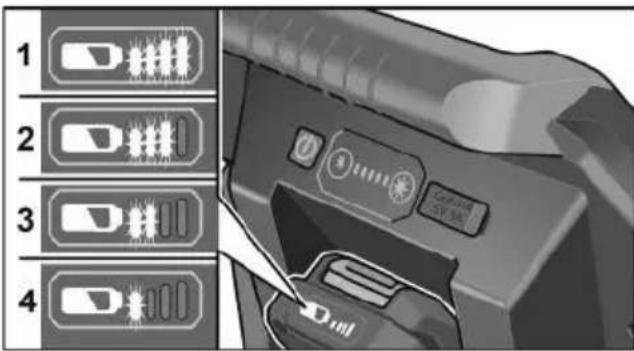

Battery state of charge

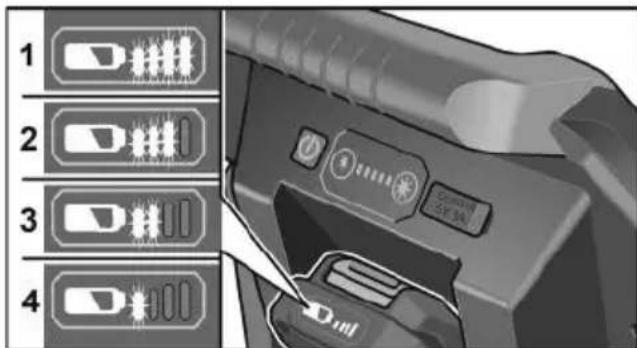

Press the button to check the state of charge at the state of charge indicator LEDs.

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

ECO mode

The battery-powered LED work lamps are equipped with a reminder function for low battery power. After flashing three times, the lamp switches automatically to ECO mode with a lighting output of 300 LM. There is enough time to change the battery.

In ECO mode, the brightness indicator flashes.

By pressing and holding the brightness down button, the lamp can be manually switched to ECO mode for the longest period of operation possible.

• Pressing any random button cancels ECO mode as long as the battery power is sufficient.

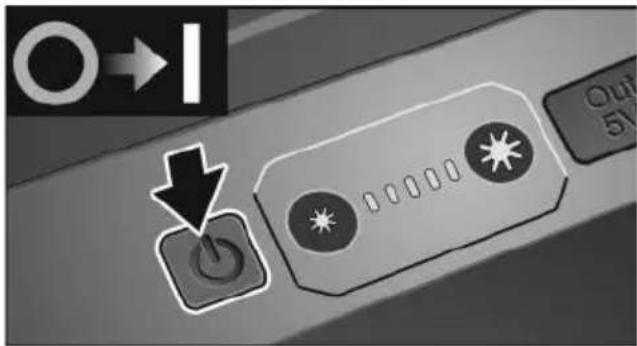

Switching on and off

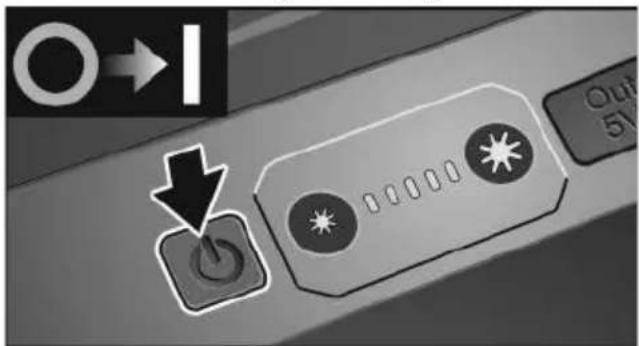

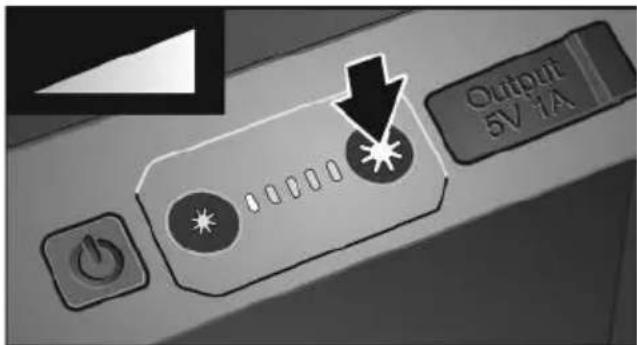

Switch the battery-powered LED work lamp on and off by pressing the on/off switch.

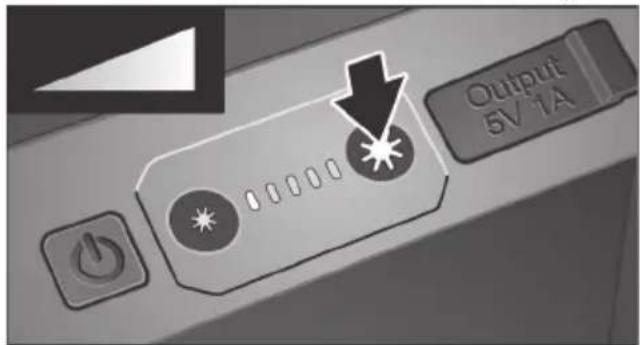

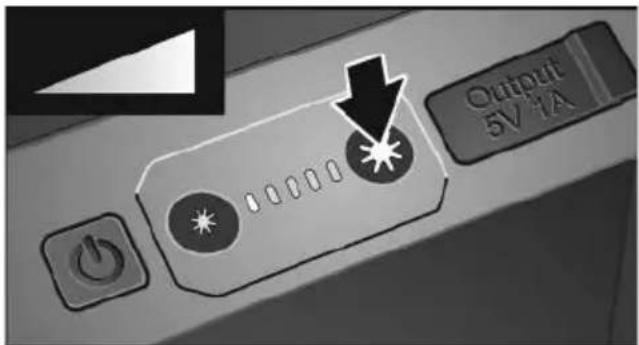

- Pressing the light intensity buttons changes the lighting output.

USB-C port

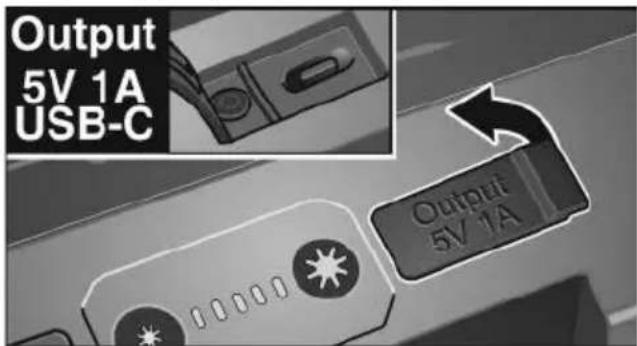

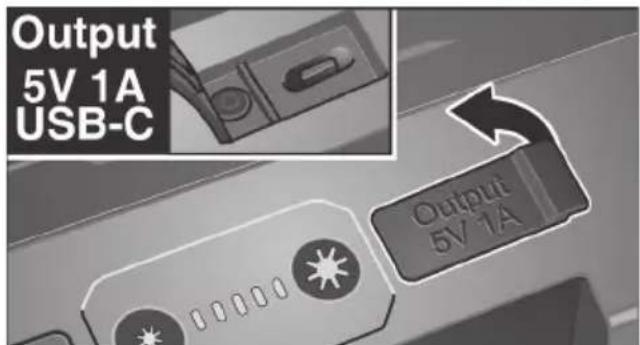

Smartphones, for example, can be charged via the integrated USB-C port.

i NOTE

With the lamp switched off, the USB-C port is automatically deactivated after 2 hours.

Mounting

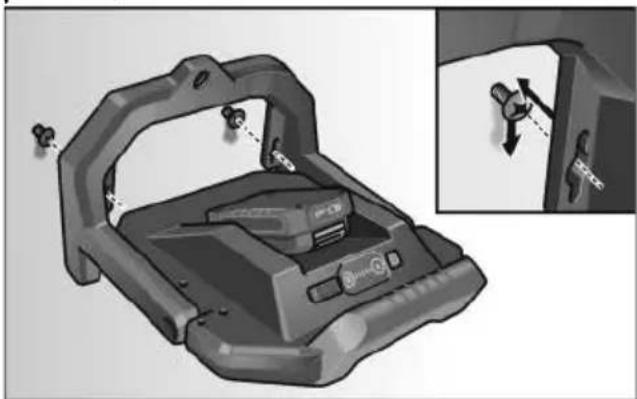

To mount the battery-powered LED work lamp on the wall, use the wall mounting holes.

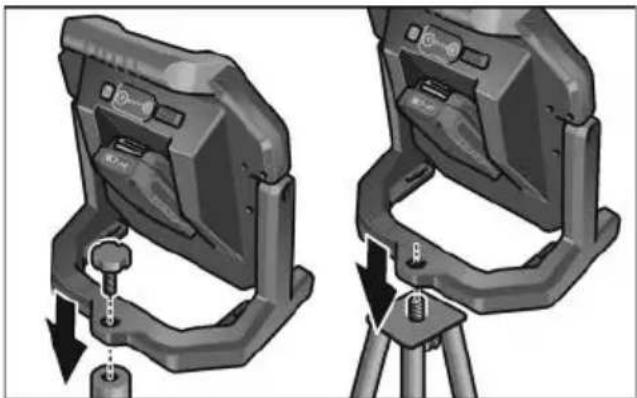

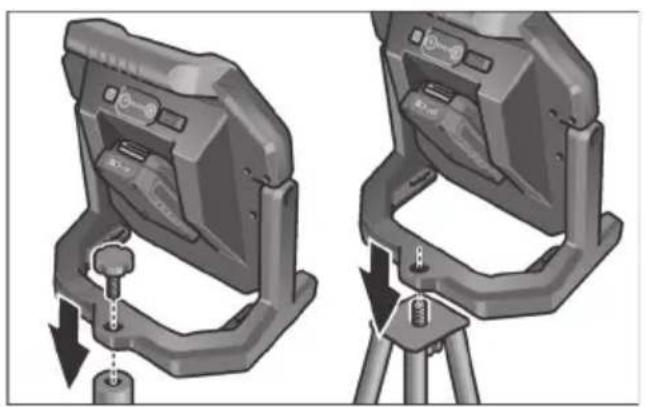

To mount the battery-powered LED work lamp on the tripod, use the thread (5/8").

Hook function

CAUTION!

Use of the hook is at the user's own risk!

i NOTE

We recommend positioning the battery-powered LED work lamp on firm ground or screwing it onto a sturdy tripod.

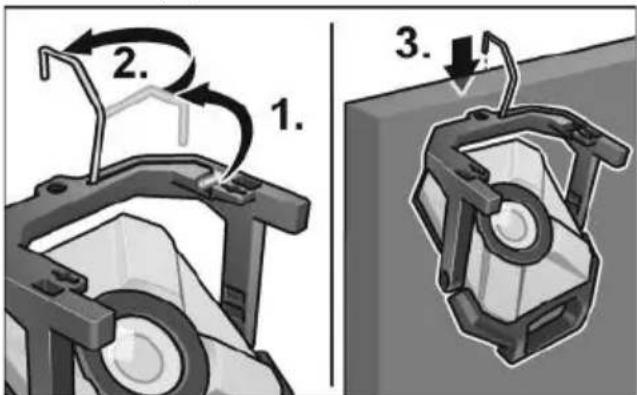

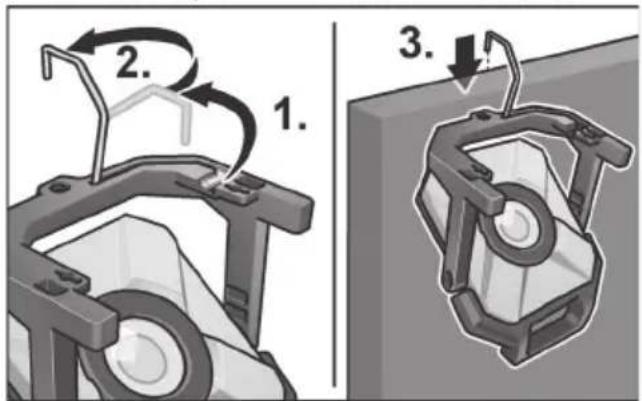

To hang the battery-powered LED work lamp, fold out the hook from the frame (1.), rotate 180^ (2.) and hang up the device (3.).

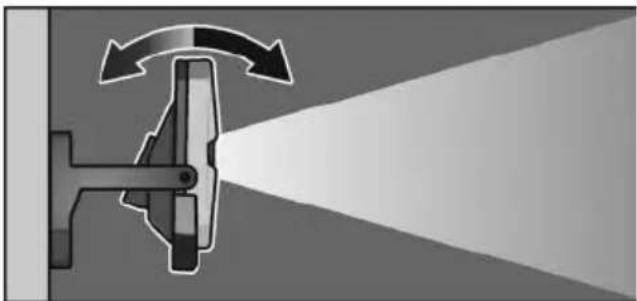

Swivel function

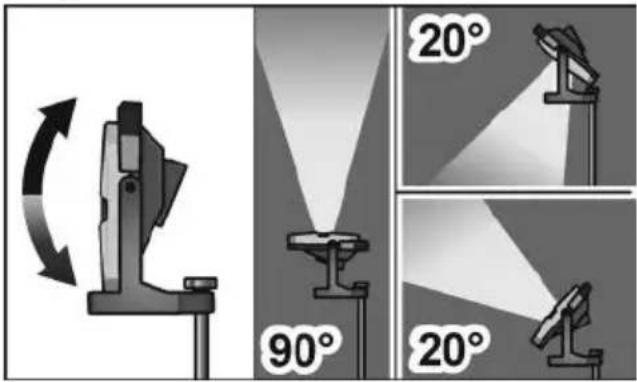

The lamp head can be swivelled 90^ upwards and 20^ downwards.

Maintenance and care

Cleaning

WARNING!

Before any work on the device, pull out the battery. Do not use water or liquid detergents.

• Remove dirt and dust from the housing with a paint brush or dry cloth.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

Exploded drawings and spare-part lists can be found on our homepage: www.flex-tools.com

Disposal information

WARNING!

Render end-of-life electrical equipment inoperable before disposal:

• for mains-powered electrical equipment, remove the power lead.
  for battery-powered electrical equipment, remove the battery.

EU countries only:

Do not dispose of the electrical equipment in household waste.

In accordance with the European Directive 2012/19/EC on Waste Electrical and Electronic Equipment and its incorporation into national law, used electrical equipment must be collected separately and recycled in an environmentally-friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open used batteries.

Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled

NOTE

Please ask your dealer about disposal options!

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Table des matieres

Symbolesutilisés 17

Lamper for toff drift

Endast for EU-stater:

Endast for EU-stater:

Enligt direktivet 2006/66/EG maste defekta eller forbrukade ackumulatorer/batterier lamnas in for atervinning.

OBS

Fraga fackhandlaren rorande avfallshanteringsmogljigheterna!

Móvo yia xwpeç tnc EupwnaiknC Evwons:

Mny TETATE TIG nAektpikec OuaKEuec Ota oikiaKa aToppipmuata!

NocTabraHe/cmHaHa akymyIaTOPHata 6aTepeHn

PnTnchTe 3apeDeHaTa aKymyIaTOPHa 6aTepeIa Do NbJHo fNkCnpaHe B ypeJa.

3a n3BaXdAHe haTnCHeTe 6yToHa 3a OTKIIOUbaHe (1.) n I3TeIneTe akymylaTophata 6aTeprna (2.).

BHVMAHVE!

Pn HEn3NoJ3BaHe OBe3OJaCte KOHTaKTITE Ha akymyIaTOpHata BaTepy. Xna6abNTe MetaJIHn Yactu MORat da 3aKbCT KOHTaKTITE, IMa ONaCHOCT OT EKcIIIO3Nr N NOxap!

CbctoHne Ha 3apeKdaHe Ha akymylaTopa

Upe3 HATnCKaHe Ha 6yToHa No CBETO- DIOJTE Ha INDnKaTopa 3a CbCTOHNeto Ha akymyNaTOpHaTa 6aTePnA MoKe Da ce npOBepn CbCTOHNeto Ha 3apeKdaHe.

INHdkaTopbT yracBa cIeD 5 cekyHn. Ako eHN OT CBeToNDIOHTe Mnra, akymlyaTopHaTa 6aTePna Tp6Ba Da ce 3apeDN. Ako cIeN HATNCKaHeTO Ha 6yToHa He CBETHe CBeToNDoD, akymlyaTopHaTa 6aTePna E DepeKTHa I Tp6Ba Da ce CMeHn.

ECOpekm

3axpaHbAHnte c akymylaTOPha 6aTepy
LED cTpOteHNn npoxeKTop ca cHa6deHN
c cyHKyra 3a HAnOMHRe 3a HNCKO HNBO Ha
3apYd Ha 6aTepyTa. Cnei 3-KpaTHo
Mirahe npoxeKTopbT aBTOMaTHUHO
npemHaBa B ECO pexm cbc cnla Ha
cbeteHe ot 300 LM. Octaba DoCTaTBuHO
BpeMe, 3a da ce cmEHn akymylaTOPHaTa
6aTepya.

B ECO peKIM nHnKaTOpbT 3a npKoCT Mra.

-4pe3 dblno HaTnCKaHe Ha 6yToHa 3a HamaJIbAHe Ha rPkOCTTa MoKe npOxEKTopbT Da ce npeBkIIOvN 3a Bb3MOxHO Ha-DbIro Bpeme Ha pa6oTa pbUHO ECO peKm.

4pe3HaTnCKaHe Ha npOn3BOJen 6byToH MOKe OTHOBO Da ce Hanyche ECO peXIMa, DOKOJIKOTo HNBOTO Ha akymyNaTOPHaTa 6aTePnE e DocTaTbUHO.

BkIIOUbaHe N n3KJIIOUbaHe

Bknoyete,pecn.n3KnOyete 3axpaHbAHnC akyMynaTOpHa 6aTepnr LED cTpOnTeJen npOKeTOp C HaTnCKaHe Ha NycOBnI ppeKbcBauch.

Upe3HaTnCKaHe Ha 6yToHa 3a CBETJIHHa INHTeH3INBHOCT MOKe Da ce npOMeHcNlata Ha CBeTeHe.

USB-C nopT

C nHTerpuaHn USB-C npT moKe HapnpMep da ce 3apeKdaT cMapTfoHn.

i YKA3AHVE

Ipn n3knoyeha lamna USB-C cbbp3BaHeto ce DeakTbBnpa abTomatuHo cne2 h.

MOHTAK

3aДaMOHTnpaTe 3axpaHbAHnC aKymyIaTOPHa 6aTePnA LED cTpoNTeJen npOxEKTOp KbM CTeHa n3NoJI3BaITe OTBOpITe 3a CToIka 3a CTeHa.

3a MOHTIpaHe Ha 3axpaHbAHnC akyMynaTopHa 6aTepy LED CTPOHTeH npoKeKTop Bbpxy CTAuB IN3NoJ3BaIte pe36aTa (5 / 8^n)

Функцяна Кукata

BHIMAHVE!

I3noJ3BaHeto Ha Kykata e Ha co6CTBEH pCK!

i YKA3AHVE

Hne npenopbYbAme noCTaBHeTo Ha 3axpaHbAHnC aKymyNaTOpHa bATEpN LED cTponTeH npoxKeTOp Bbpx Cyrypha OCHOBA INN 3aBHTBaHe Bbpxy CTabUnEn CtATNB.

3a 3akauhe Ha 3axpaHbAHnC akyMylatopHa 6aTepey LED cTponTeHen npoxeKTop n3kapaTe Kykata OT pamkata (1.), 3abbptete Ha 180^ (2.) n 3akaute (3.).

Функця 3a 3abpbTaHe

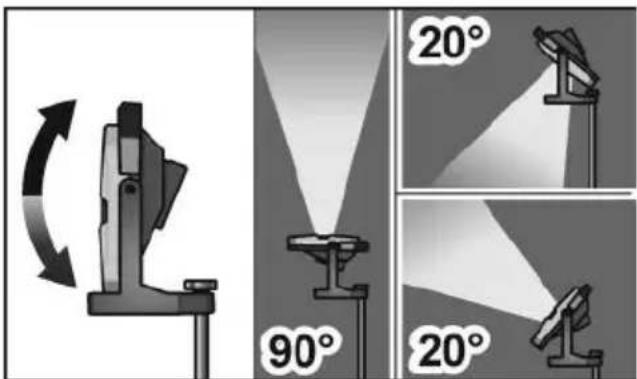

OcbetntenHaTa rnaBa MoKe da ce 3aBbptn Ha 90^ Harope n Ha 20^ haoNy.
