USER MANUAL WL 2800 18.0 Flex

Line drawing of a handheld device with multiple circular components and wiring (no text or symbols)

Technical line drawing of an automotive electrical connector with internal components (no text or symbols)

Technical diagram of a mechanical tool with labeled parts 6 and 7

Line drawing of a device with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

Technical line drawing of a device component with a close-up view showing internal structure (no text or symbols)

Line drawing of an electric vehicle charging plug with multiple slots and a cable (no text or symbols)

G 200°

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

To reduce the risk of injury, read the operating instructions!

Do not stare at operating lamp

Disposal information for the old machine

For your safety

WARNING!

Before using the power tool, please read and follow:

– these operating instructions,
– the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.

The flood light may be used only
-asintended,
- in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

The flood light is designed

– for commercial use in industry and trade,
– for illuminating distant objects and areas requiring additional light.

Safety warnings for flood light WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this appliance. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

■ The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

■ Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

■ Do not direct the light beam at persons or pets and avoid staring into the light even from a distance.

■ To reduce the risk of injury, do not stare at operating lamp. Serious eye injury could occur.

■ To reduce the risk of burns, do not touch hot lens.

■ Do not operate this light in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Light create heat which may ignite the dust or fumes.

■ Recharge battery packs only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
■ Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
■ Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
■ Have servicing performed by a qualified repairperson using only identical replacement parts. This will ensure that the safety of the product is maintained.
- Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
■ To reduce the risk of injury, close supervision is necessary when a product is used near children.
■ Do not contact hot parts.
■ Only use attachments recommended or sold by the manufacturer.
■ Do not use in the rain.
■ o reduce the risk of electrical shock, do not put the appliance in water or other liquid. Do not place or store appliance where it can fall or be pulled into a tub or sink.

Technical specifications

B
	WL 2800 18.0
V d.c.	Rated Voltage	18V(battery) / 12V (vehicle power source)
W Rated power 27
°	Rotation angle of lamp head	200
m Kg 1.04
T	Recommended operating temperature	-10 - 40°C
LM T	Total flux 2800/1100

Overview (see figure A)

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Lens(Transparent Cover)
2 Integral Hook
3 ON/OFF Switch
4 Soft Grip
5 Tripod Mounting Hole

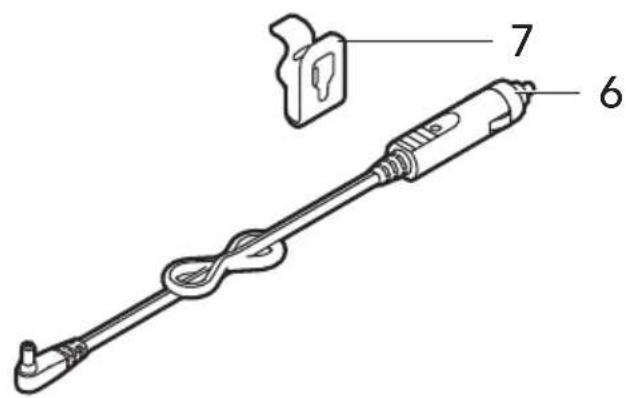

6 Vehicle Charging Adapter
7 Belt Clip

Operating instructions

NOTE

When the power tool is switched off, the tool continues running briefly.

For further information on the manufacturer's products go to www.flex-tools.com.

WARNING!

Before performing any work on the power tool, remove the battery pack from the tool.

Before switching on the power tool

Remove the battery pack from the tool and check that there are no missing or damaged parts.

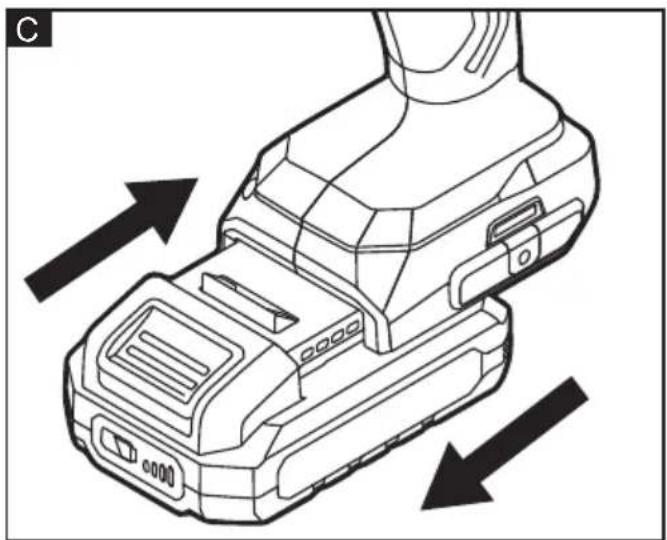

To attach/detach battery pack (See figure C)

To attach the battery pack:

Align the raised rib on the battery pack with the grooves in the tool, and then slide the battery pack onto the tool.

NOTICE: When placing the battery pack onto the tool, be sure that the raised rib on the battery pack aligns with the groove inside the tool and that the latches snap into place properly. Improper attachment of the battery pack can cause damage to internal components.

To detach the battery pack:

Depress the battery-release button located on the front of the battery pack, to release the battery pack. Pull the battery pack out and remove it from the tool.

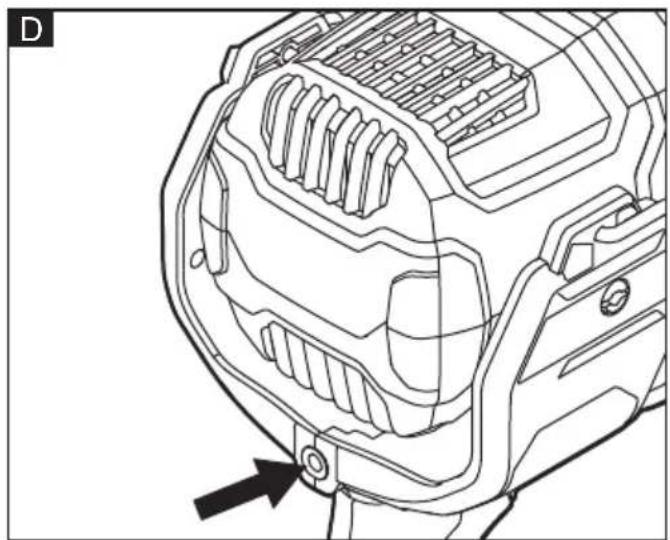

Mounting the flood light to a tripod (not included) (See figure D)

Choose a suitable tripod with 1/4-20 thread screw, thread the screw into the tripod mounting hole on the flood light.

WARNING!

Ensure the flood light is securely mounted on your tripod. Unsecured flood light may fall resulting in personal injuries and/or property damage.

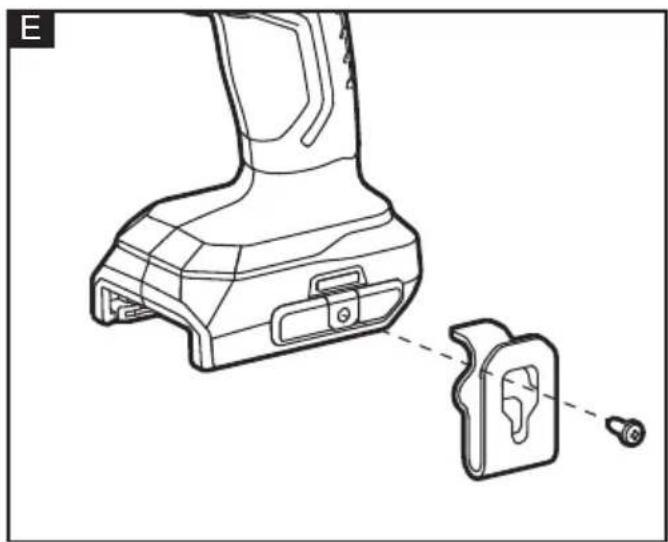

Removable belt clip (See figure E)

Your tool is equipped with a removable belt clip that can be positioned on the two sides of the tool for convenient transport.

Install the belt clip onto the tool:

• Remove the battery pack from the tool.
• Align the rib and the hole of the belt clip with the opening and the threaded hole on the base of the tool.
• Insert the screw and securely tighten the screw with a screwdriver (not included).

Remove the belt clip from the tool:

• Remove the battery pack from the tool.
• Use a screwdriver (not included) to loosen the screw that attaches the belt clip to the flood light.
• Remove the screw and the belt clip.

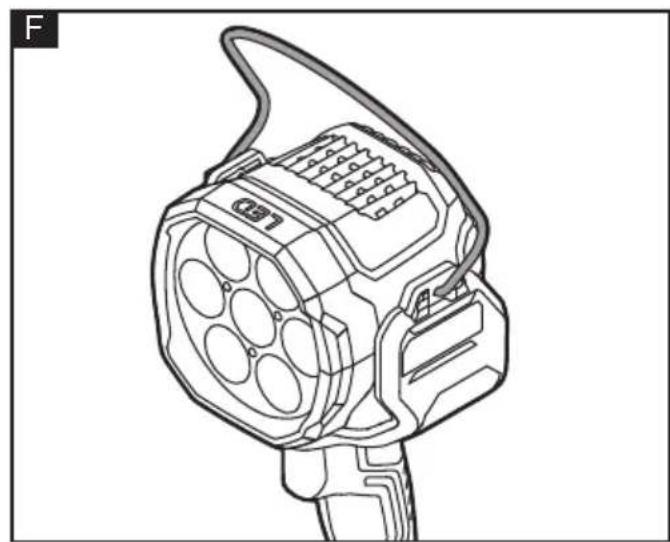

Integral Hook (See figure F)

Your tool is equipped with a hanging hook. It can be carried or hung on a hook or a hook-like object. To prevent the risk of injury or product damage make sure that the hook is sturdy enough to hold the weight of the light with attached battery pack.

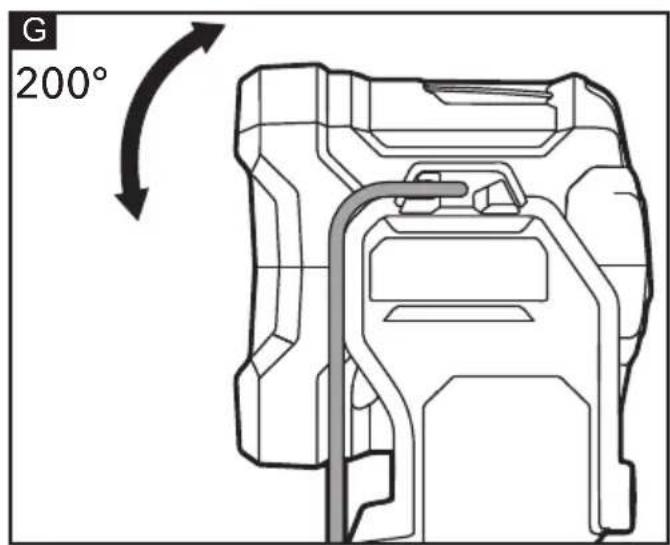

Adjusting the light head (See figure G)

The light head pivots 200^ for maximum flexibility. Manually move the head to any position within the pivot range. Do not force the head beyond that range.

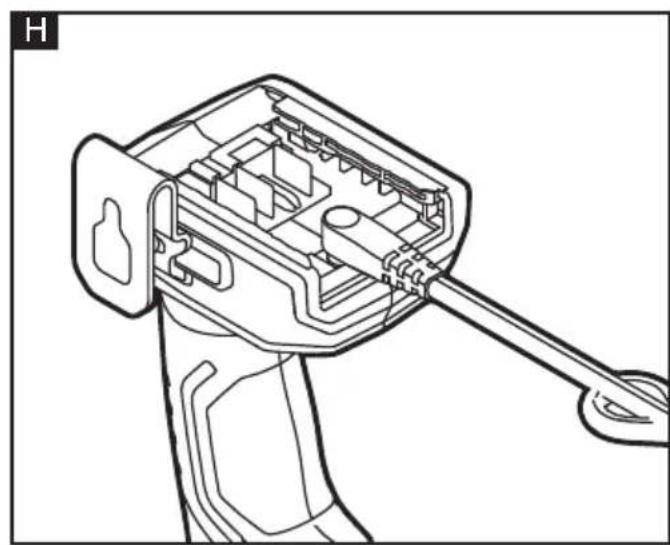

Connecting with vehicle power source (See figure H)

The flood light can connect to a 12 Volt vehicle power source, such as a cigarette lighter receptacle or automotive power port. Insert the plug of the charging adapter into the port on the base of the light.

Connect the other end of the charging adapter to the 12 Volt vehicle power source.

NOTICE: If the adapter does not fit firmly into the cigarette lighter receptacle or automotive power port, the receptacle may not be suitable for use with the light. A poor connection at the base of the adapter could lead to electrical problems in the vehicle outside of the protections offered by the vehicle or light's fuse.

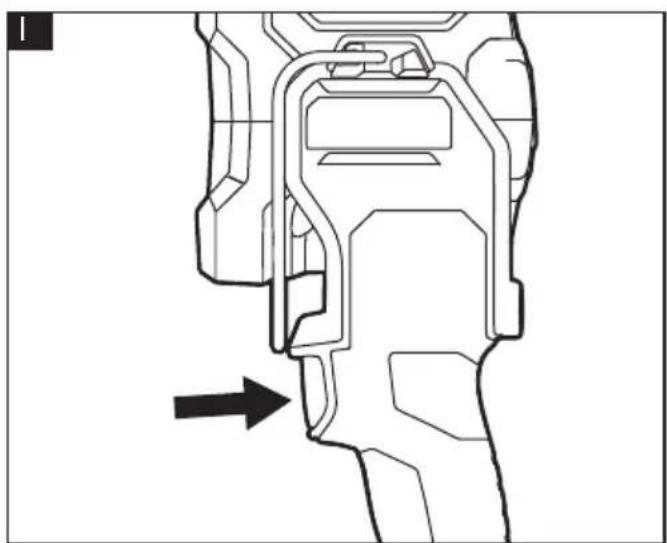

Switching on and off (see figure I)

Your light is equipped with a brightness adjustment, providing different light intensities for your operation.

Press the ON/OFF switch to turn on the light in the maximum brightness stage.

Press the ON/OFF switch again to change to the minimum brightness stage.

Press the third time to turn the light off.

Press and hold the ON/OFF switch for 3s to turn on the red light. The red light serves as a warning in emergencies or can be used when hunting. Press the ON/OFF switch again to return to the previous state.

CAUTION!

When the flood light flashes and goes out, it means that the battery voltage is low and needs to be charged.

Following a power failure, the switched-on power tool will not start running again.

Maintenance and care

WARNING!

Before performing any work on the power tool, remove the battery pack from the tool.

Cleaning

■ Clean the power tool and grille in front of the vent slots regularly. Frequency of cleaning is dependent on the material and duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air.

Spare parts and accessories

For other accessories, in particular tools and flood light accessories, can be found in the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

EU countries only

Do not throw electric power tools into the household waste! In accordance

with the European

Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

NOTE

Please ask your dealer about disposal options!

CE-Declaration of Conformity

We declare under our sole responsibility that the product described under "Technical specifications" conforms to the following standards or normative documents: EN 60598 in accordance with the regulations of the directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

i.v. P###e B###s Q - 1

Peter Lameli Klaus Peter Weinper

Technical Head Head of Quality

Department (QD)

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.
