Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

To reduce the risk of injury, read the operating instructions!

Do not stare at operating lamp

Class III protection

Disposal information for the old machine (see page 12)!

For your safety

WARNING!

Before using the power tool, please read the follow:

– these operating instructions,
- This device reflects the latest state of engineering development and was designed in agreement with the recognised safety regulations.

However, when being used the device may present a risk to the health and life of the user or third party or damage to the device or other objects could ensue. The lamp may only be used as intended and in technically sound condition.

Faults that impair safety must be rectified immediately.

The inspection light may be used only

-asintended,

– in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

The inspection light is intended

- for commercial use in industry and trade,

- for illuminating distant objects and areas requiring additional light.

Safety instructions for inspection light

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

■ The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
■ Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
■ Do not direct the light beam at persons or pets and avoid staring into the light even from a distance.
■ To reduce the risk of injury, do not stare at operating lamp. Serious eye injury could occur.
■ To reduce the risk of burns, do not touch hot lens.
■ Do not operate this light in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Light creates heat which may ignite the dust or fumes.
■ Recharge battery packs only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
■ Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
■ Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265^ F ( 130^ C) may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
■ Have servicing performed by a qualified repairperson using only identical replacement parts. This will ensure that the safety of the product is maintained.
- Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
■ To reduce the risk of injury, close supervision is necessary when a product is used near children.
■ Do not contact hot parts.
■ Only use attachments recommended or sold by the manufacturer.
■ Do not use in the rain.
■ To reduce the risk of electrical shock, do not put the appliance in water or other liquid. Do not place or store appliance where it can fall or be pulled into a tub or sink.

Technical specifications

Tool WL 1000 18.0
Type Inspection Light
Rated Voltage Vdc 18
Luminous Flux (brightness)		1000/500/200 Lumens
Articulating Head Range		180° Pivot / 270° Swivel
Weight (without battery)	kg 0.6
Battery	18V	AP 18.0/2.5AP 18.0/5.0AP 18.0/8.0
Weight of Battery	kg	AP 18.0/2.5AP 18.0/5.0AP 18.0/8.0	0.40.71.1
Working Temperature	-10-40°C
Storage Temperature	< 50°C
Charging Temperature	4~40°C
Charger CA 10.	8/18.0, CA 18.0-LD

Overview (see figure A)

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Hook
2 Swivel
3 Articulating head
4 Lens (transparent cover)
5 Grip
6 On/off button
7 Magnet bar
8 Removable belt clip

Operating instructions

Before switching on the power tool

Unpack the power tool and accessories and check that no parts are missing or damaged.

i NOTE

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. Refer to the charger operating manual.

Inserting/replacing the battery

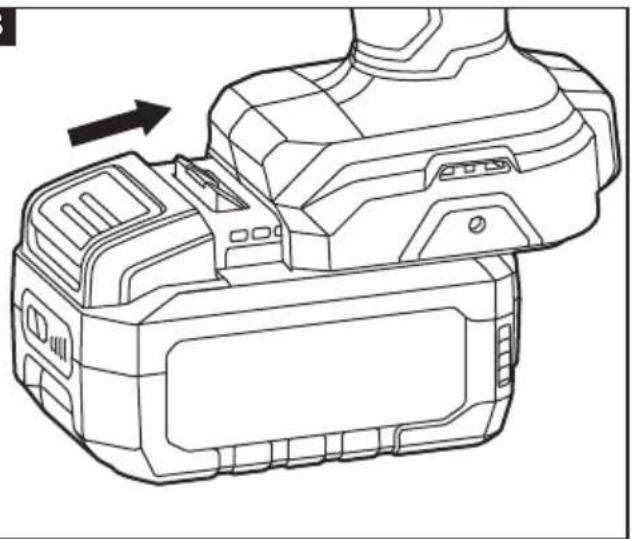

■ Press the charged battery into the power tool until it clicks into place (see figure B).

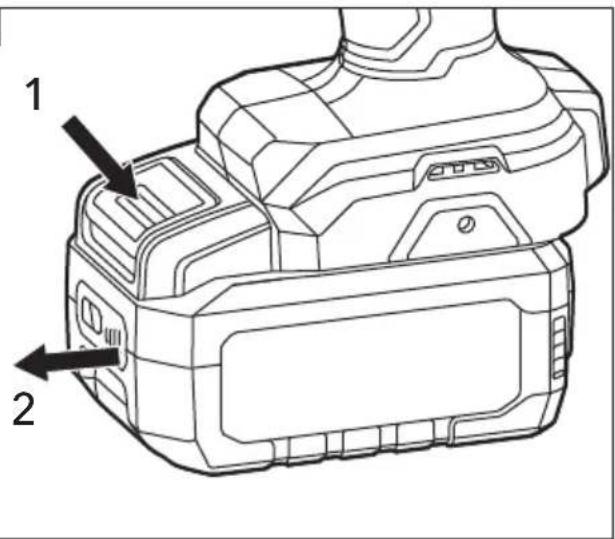

■ To remove, press the release button (1.) and pull out the battery (2.) (see figure C).

CAUTION!

When the device is not in use, protect the battery contacts. Loose metal parts may short circuit the contacts; explosion and fire hazard!

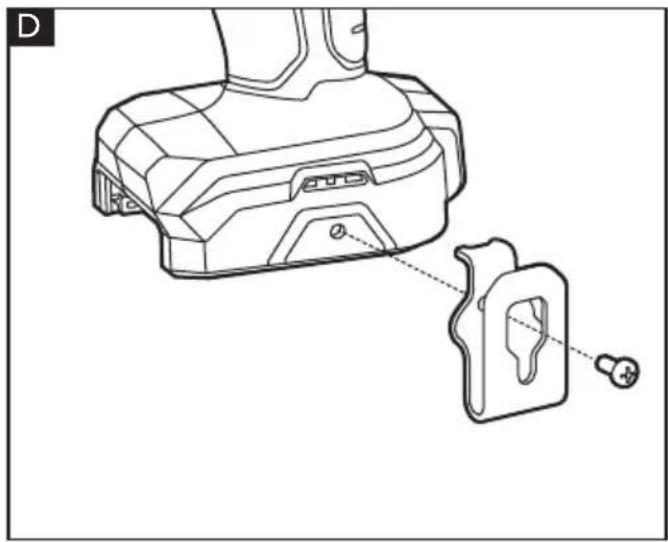

Removable belt clip (see figure D)

■ To install, align the belt clip 8 with the tool. Insert and tighten the screw.
■ To remove, loosen and remove the screw and the belt clip 8.

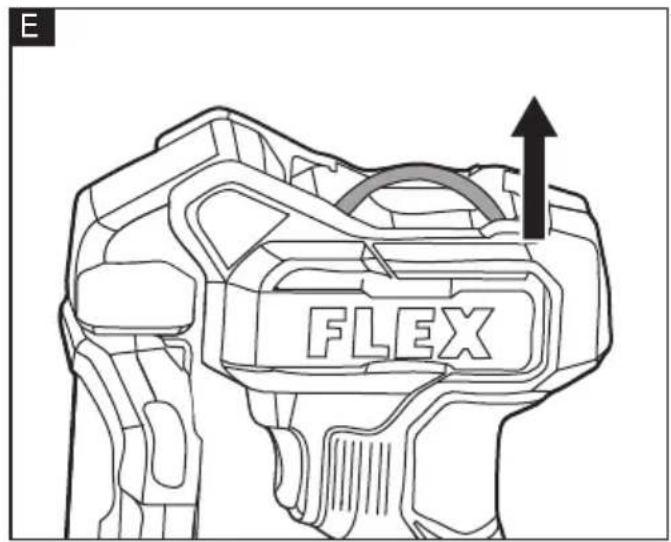

Hook (see figure E & F)

The hook 1 can be pulled out and pivoted 360 degrees to hang the light on a hook-like object.

To prevent the risk of injury or product damage, make sure that the hook-like object is sturdy enough to support the weight of the light with attached battery pack.

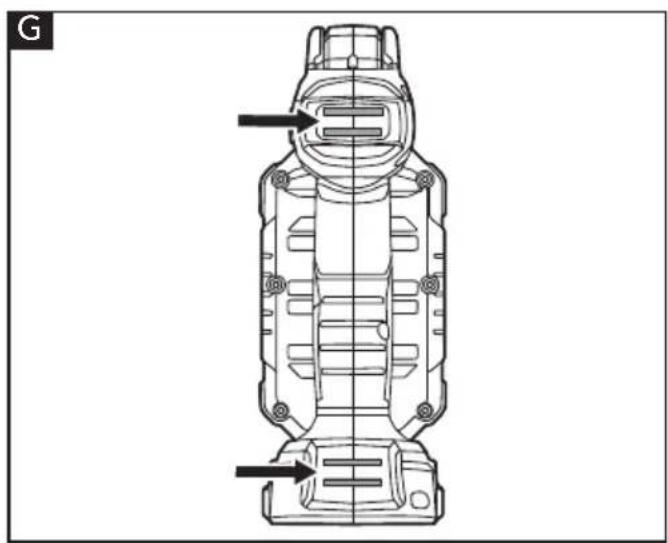

Magnet bar (see figure G) WARNING!

Keep the inspection light away from cardiac pacemakers. The magnets generate a field that can impair the function of cardiac pacemakers.

CAUTION!

Keep the inspection light away from magnetic data medium and magnetically sensitive equipment. The effect of the magnets can lead to irreversible data loss.

The light is equipped with two pairs of magnet bars 7 which could be used to temporarily mount the light on any surfaces (e.g., steel, iron) with magnetic force.

i NOTE

To prevent the risk of injury or product damage, make sure that the surface you are going to mount the light on is having enough magnetic force to hold the combined weight of the light and attached battery pack.

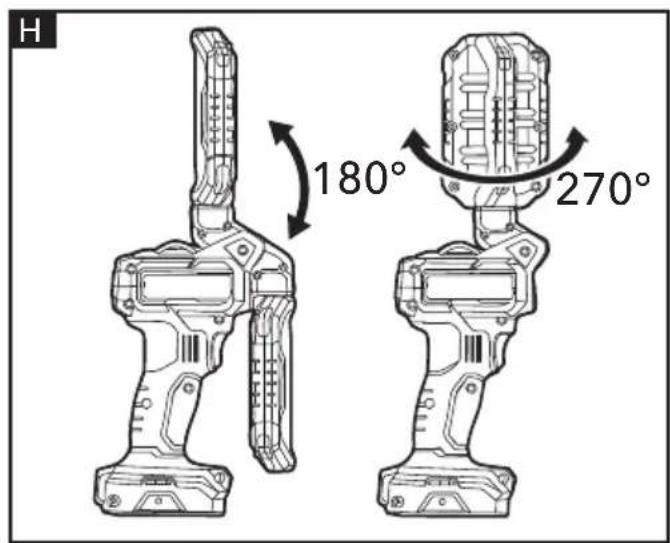

Articulating the light head (see figure H)

The head pivots 180^ and swivels 270^ for maximum flexibility. Manually move the head to any position within the rotating range. Do not force the head beyond that range.

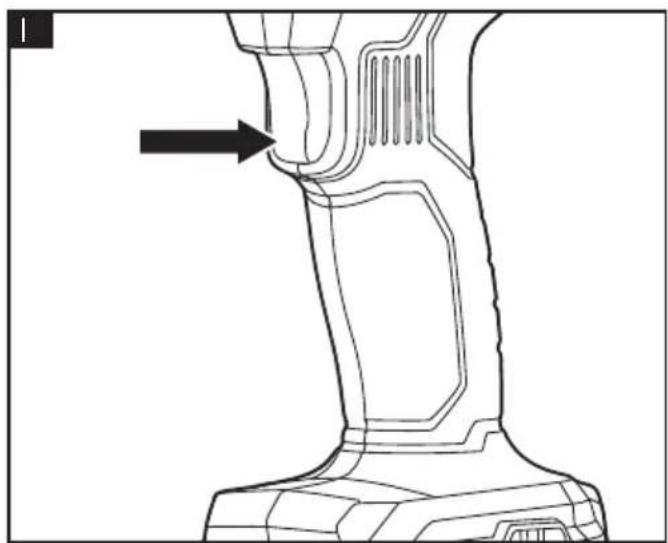

Brightness adjustment (see figure I)

The inspection light is equipped with a three-stage brightness adjustment button, providing different light intensities for your operation.

Press the on/off button 6 briefly to cycle through the three-stage brightness. Each press of the button switches brightness to the next stage.

■ To turn the light ON, press the ON/OFF button. The light will be turned on at maximum brightness.
■ To switch to medium brightness, press the ON/OFF button again.
■ To switch to low brightness, press the ON/OFF button again.
■ To turn the light OFF, press the ON/OFF button again (a fourth time).

Maintenance and care

WARNING!

Before performing any work on the electric power tool, remove the battery pack from the tool.

Cleaning

■ Clean the power tool and grille in front of the vent slots regularly. Frequency of cleaning is dependent on the material and duration of use.

Spare parts and accessories

For other accessories, in particular tools and polishing aids, see the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable:

- Battery operated power tool by removing the battery.

EU countries only

Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open used batteries.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

NOTE

Please ask your dealer about disposal options!

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.
